    THM Carbones

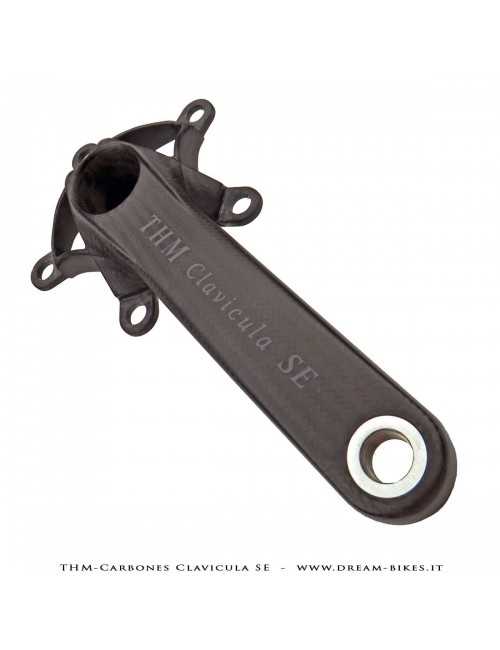

    THM-Carbones Clavicula SE Cranks 295 gr.

    Reference:
    €1,352.46

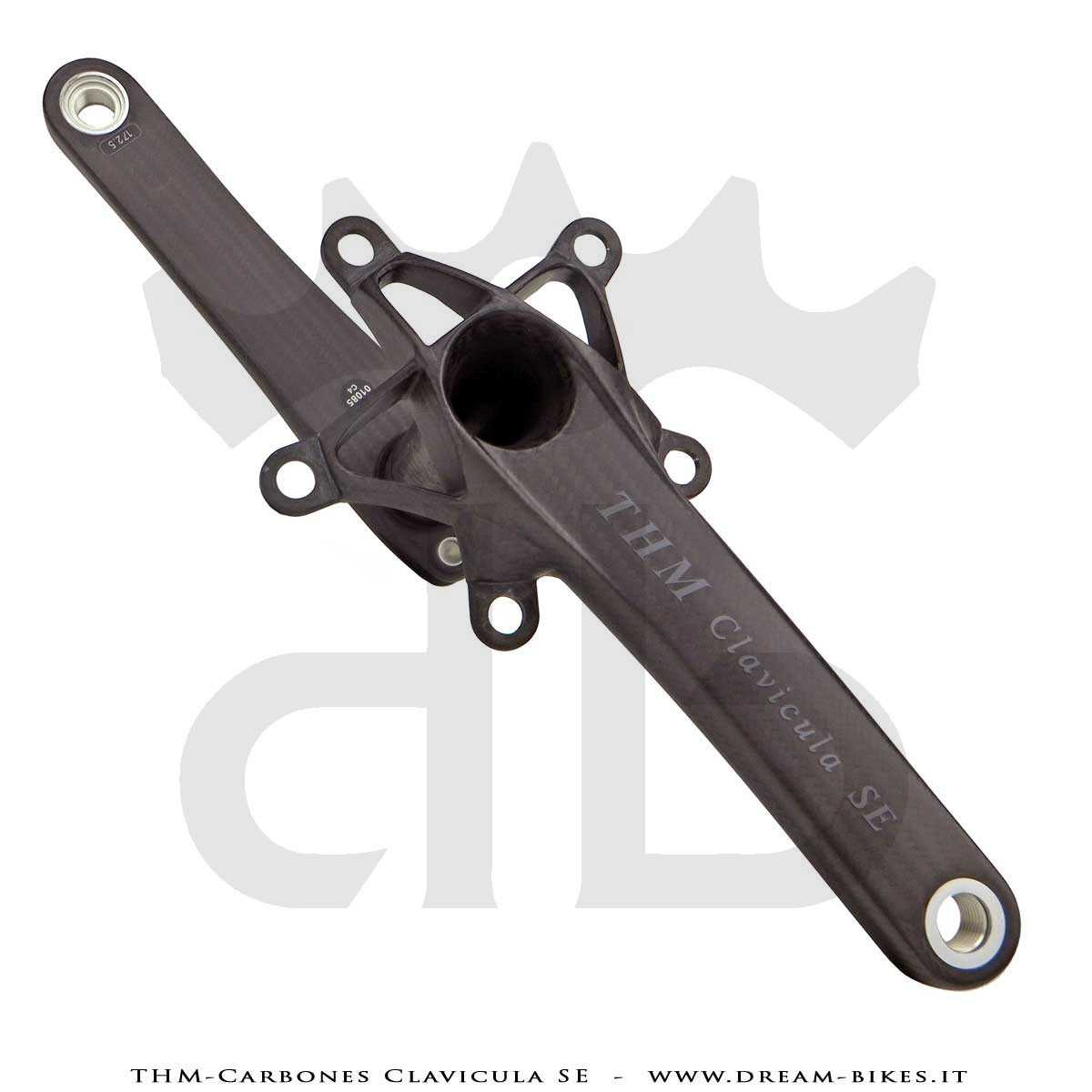

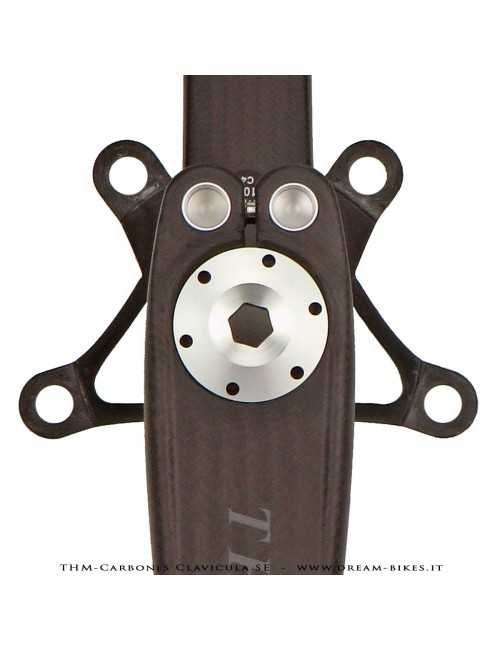

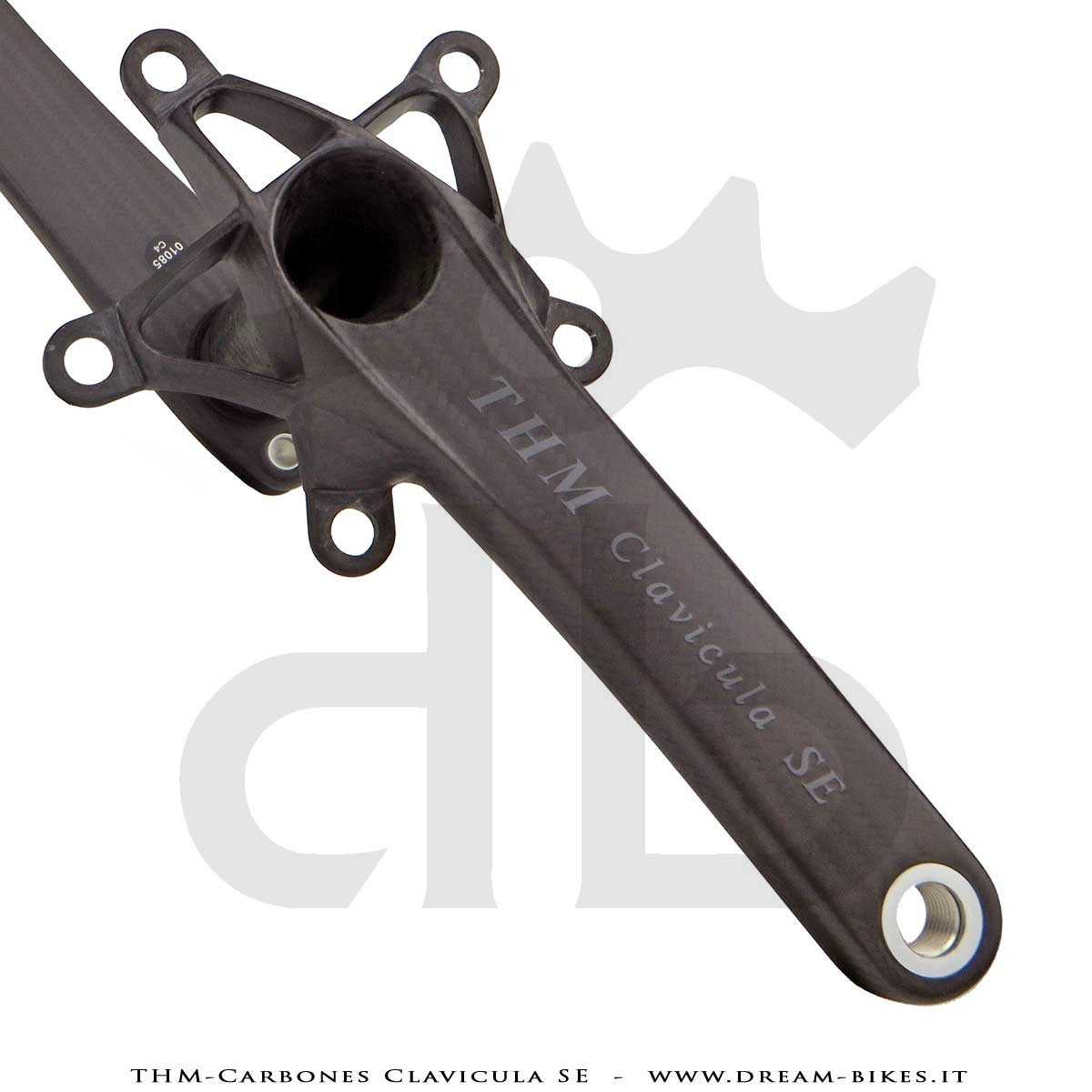

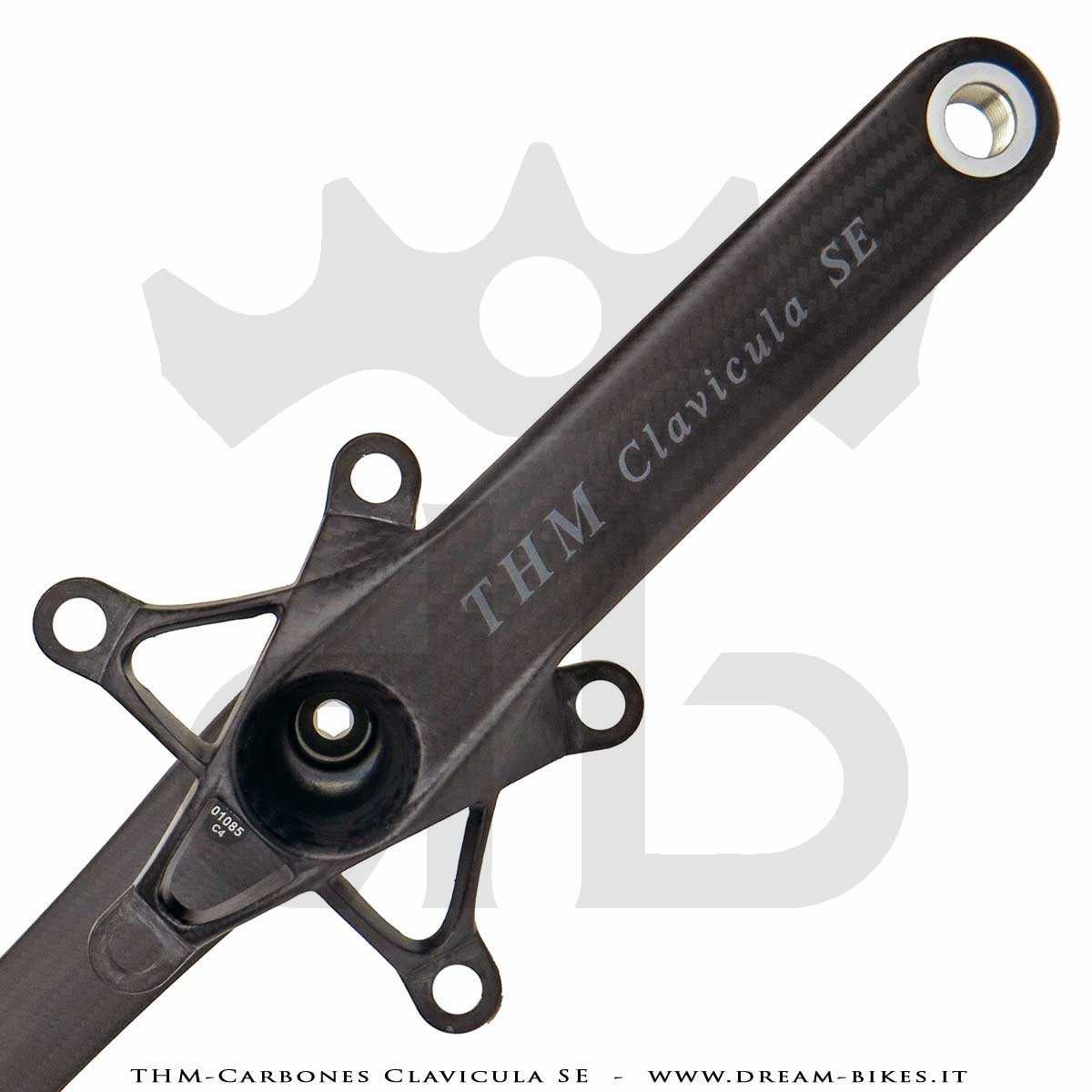

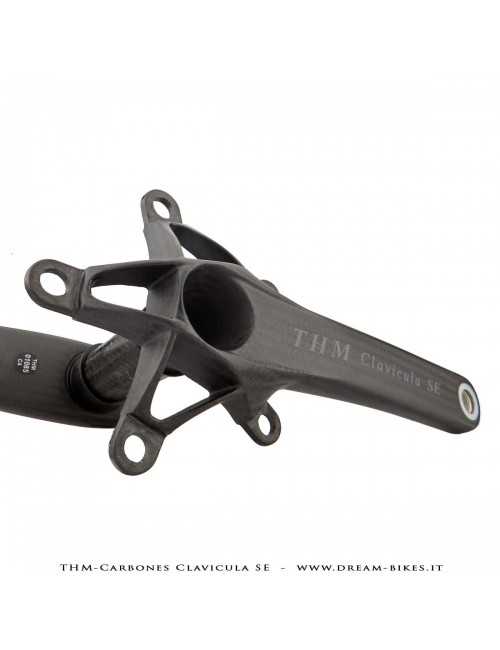

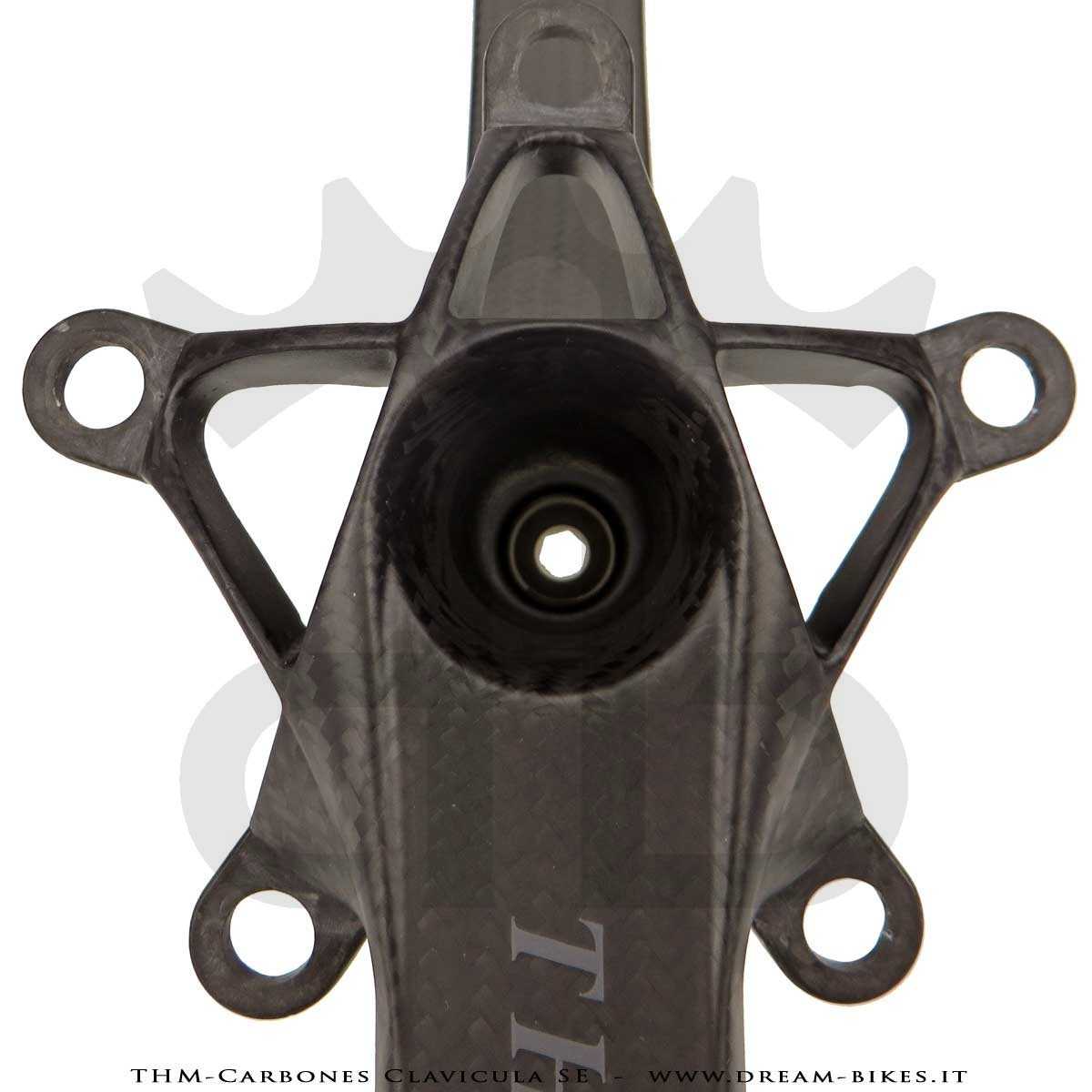

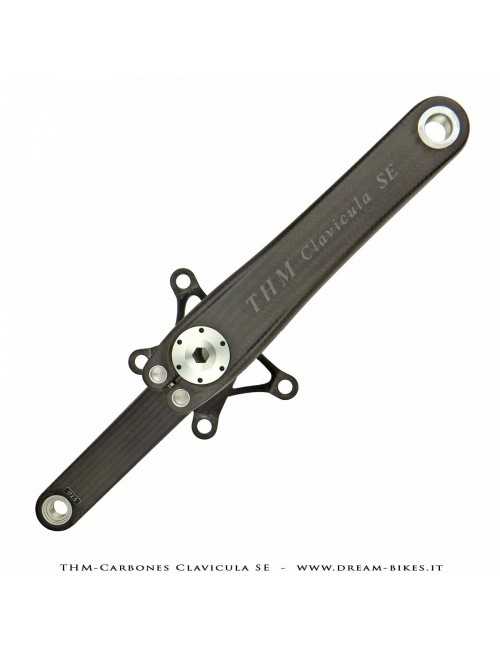

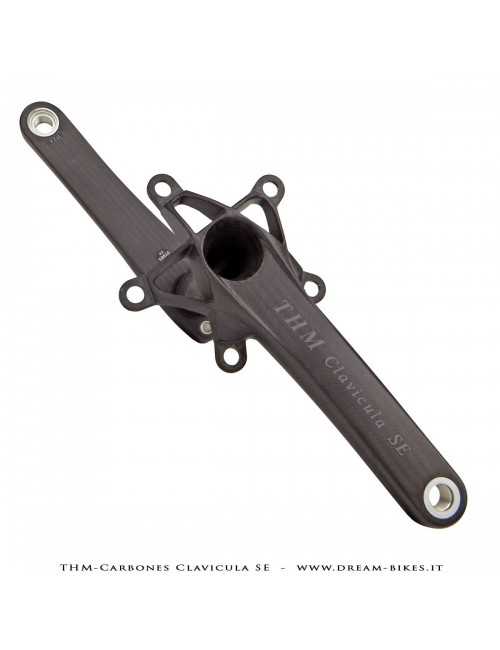

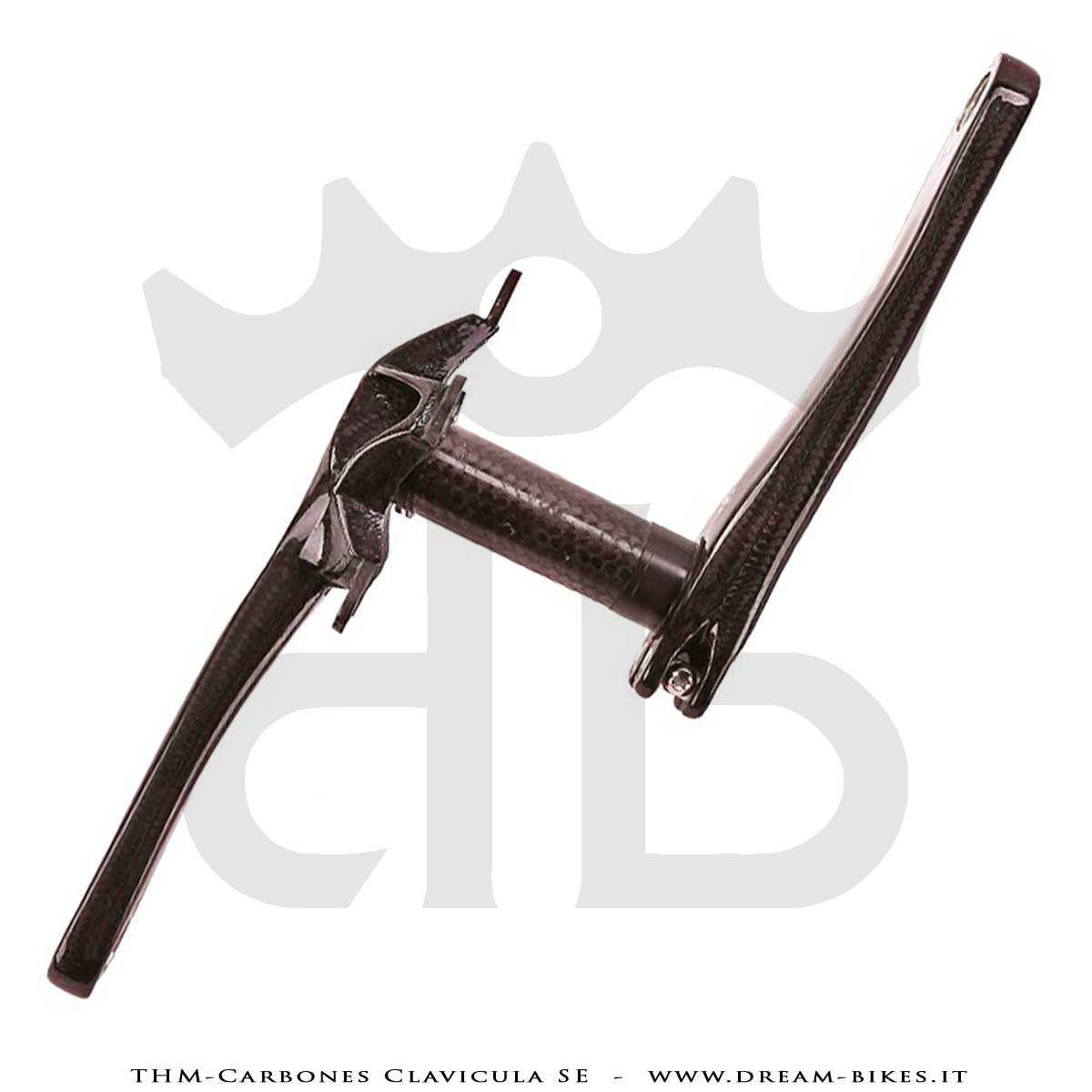

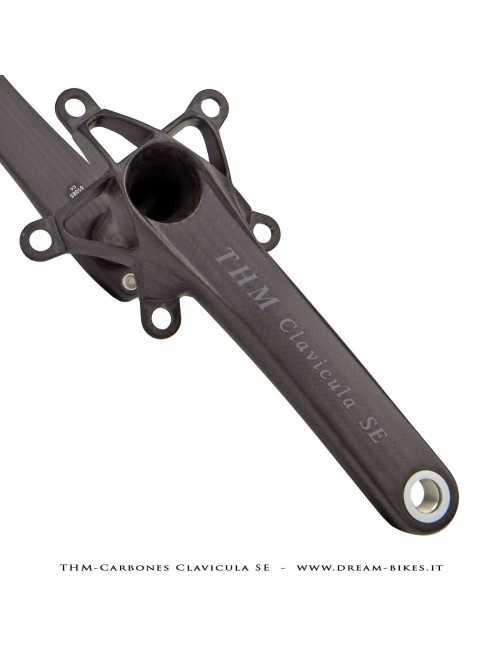

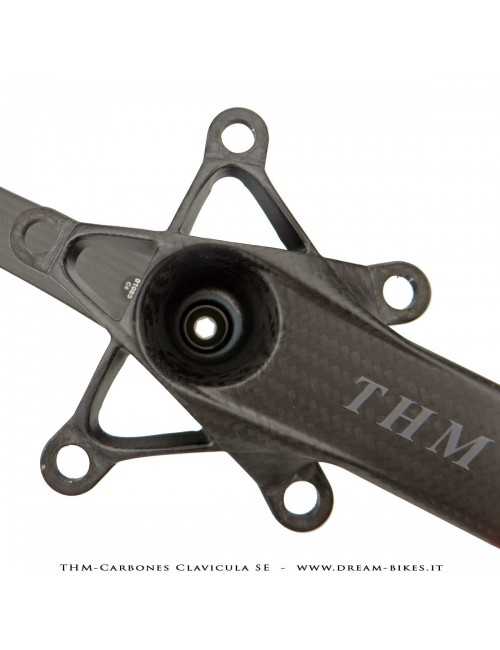

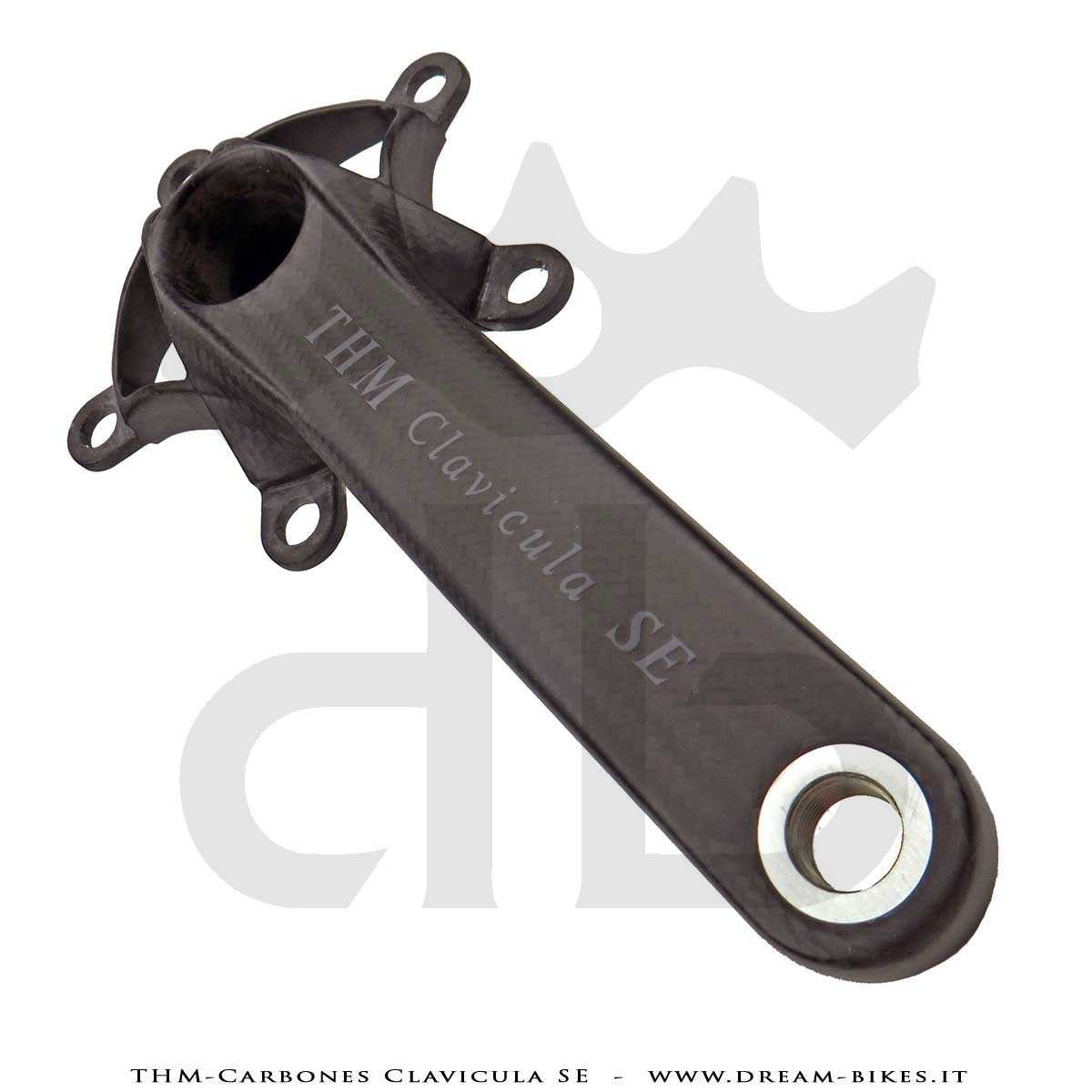

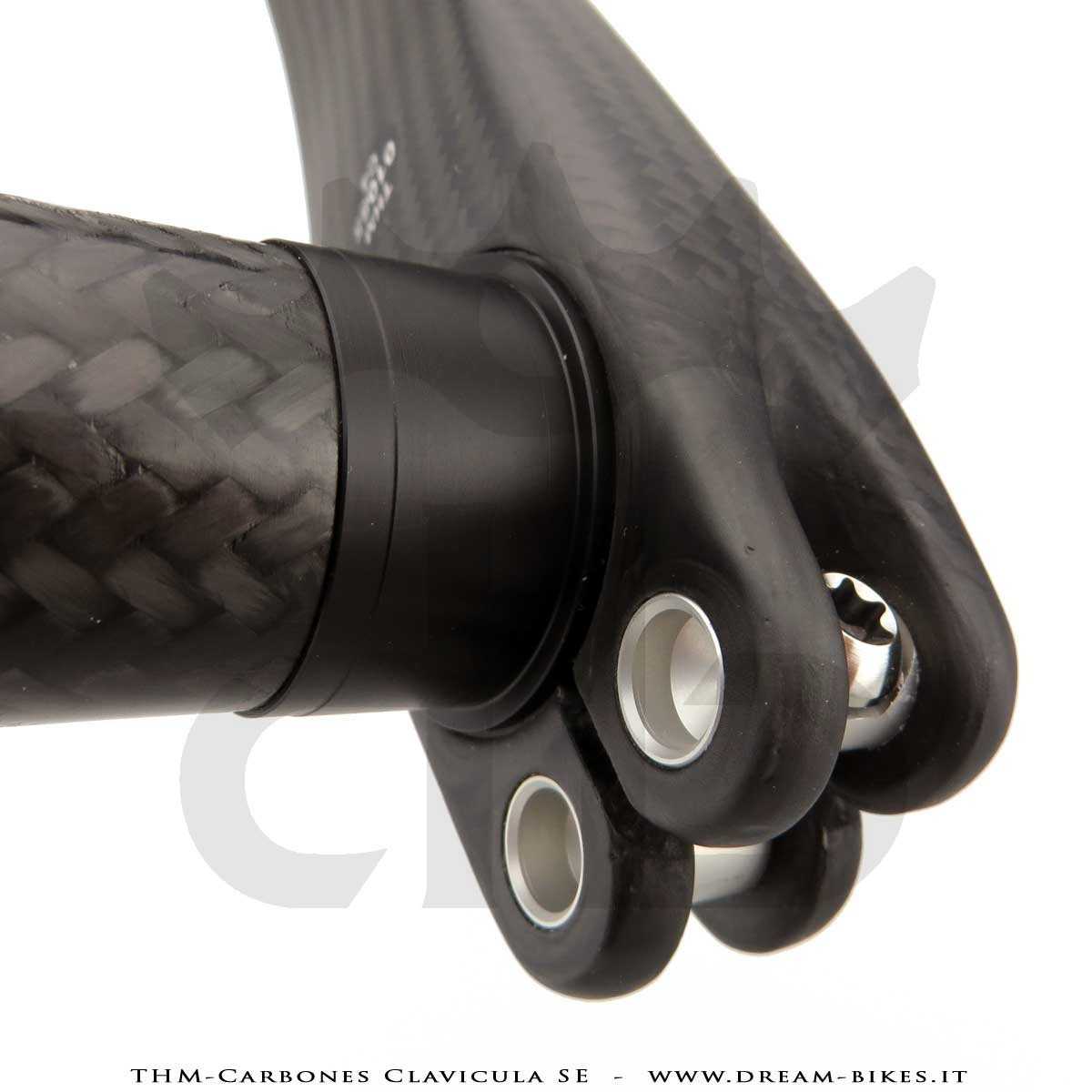

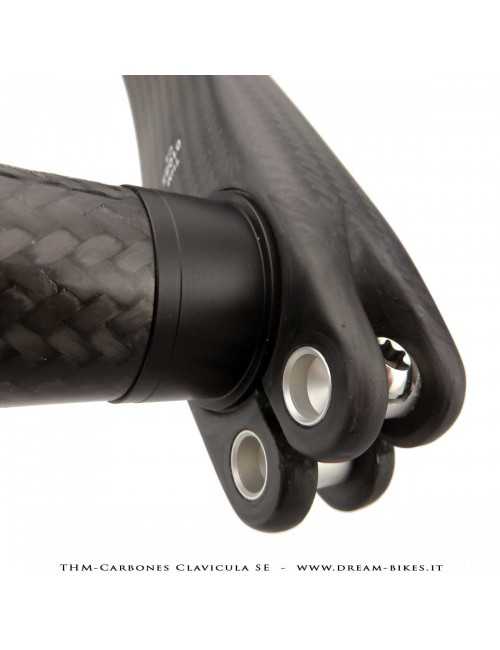

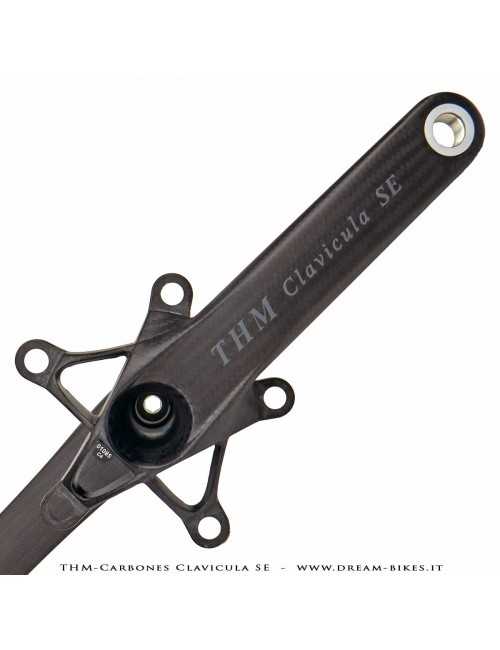

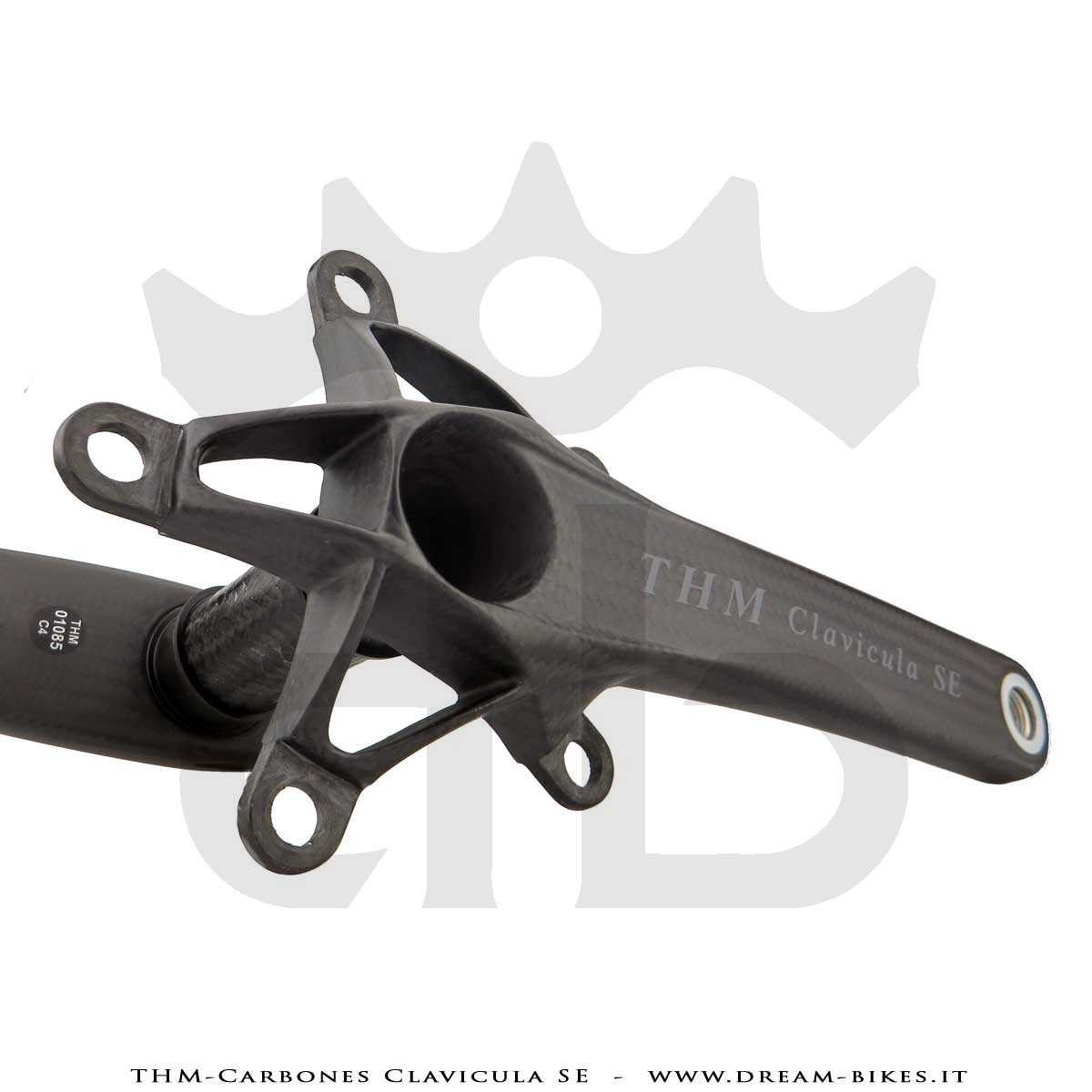

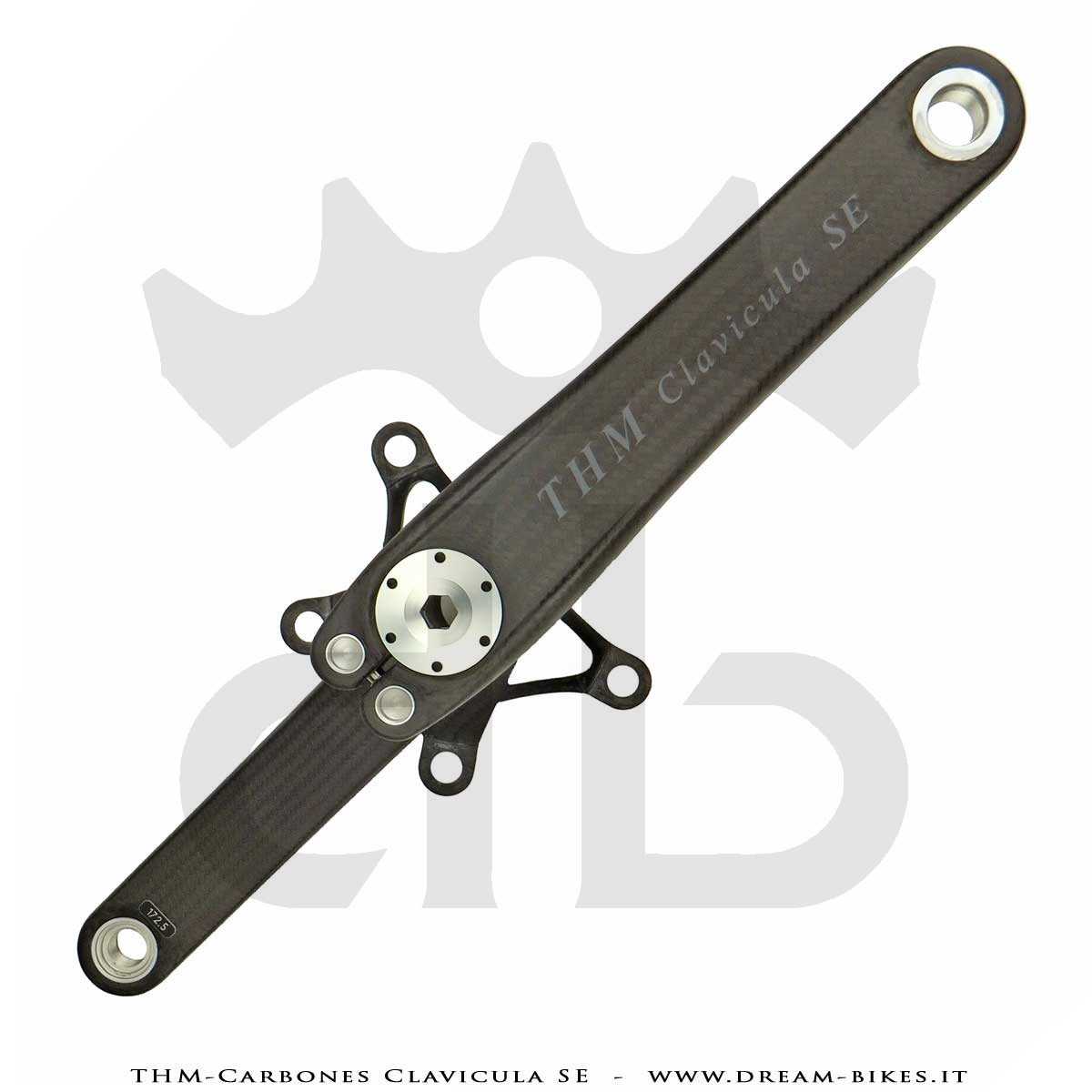

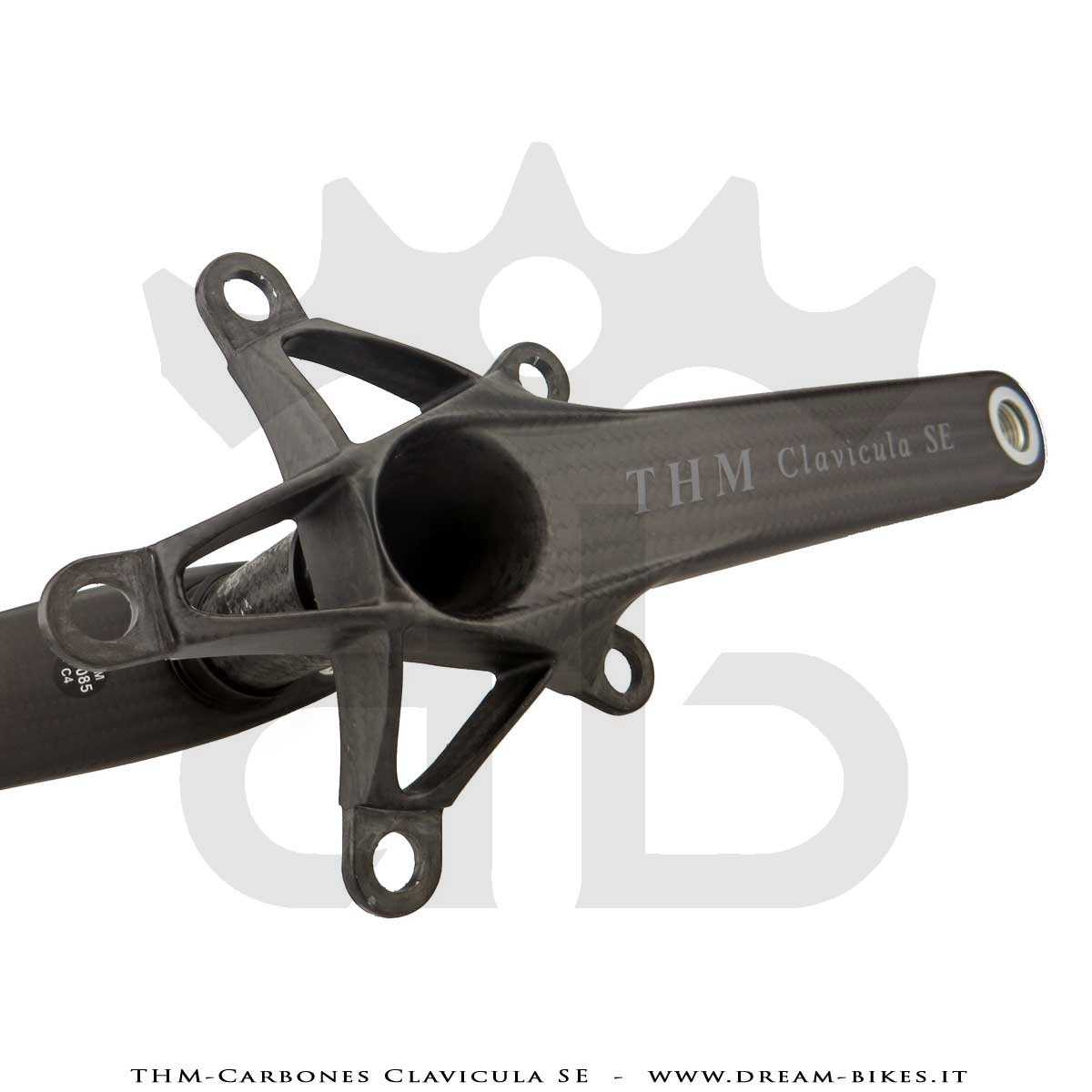

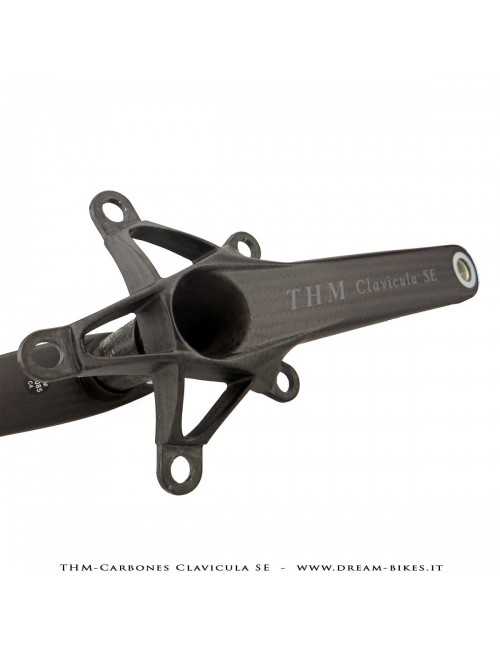

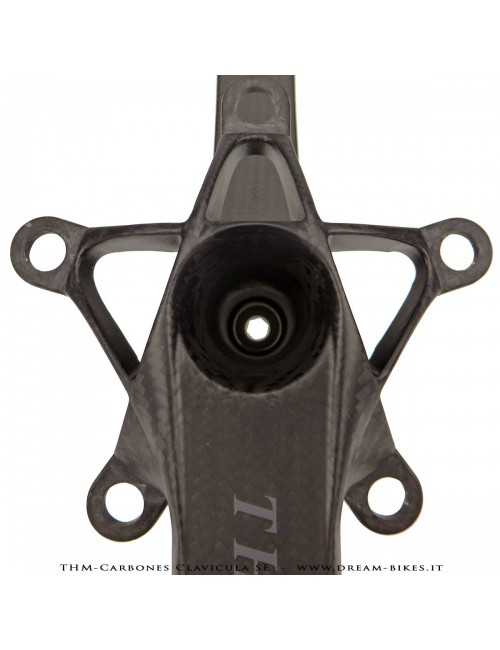

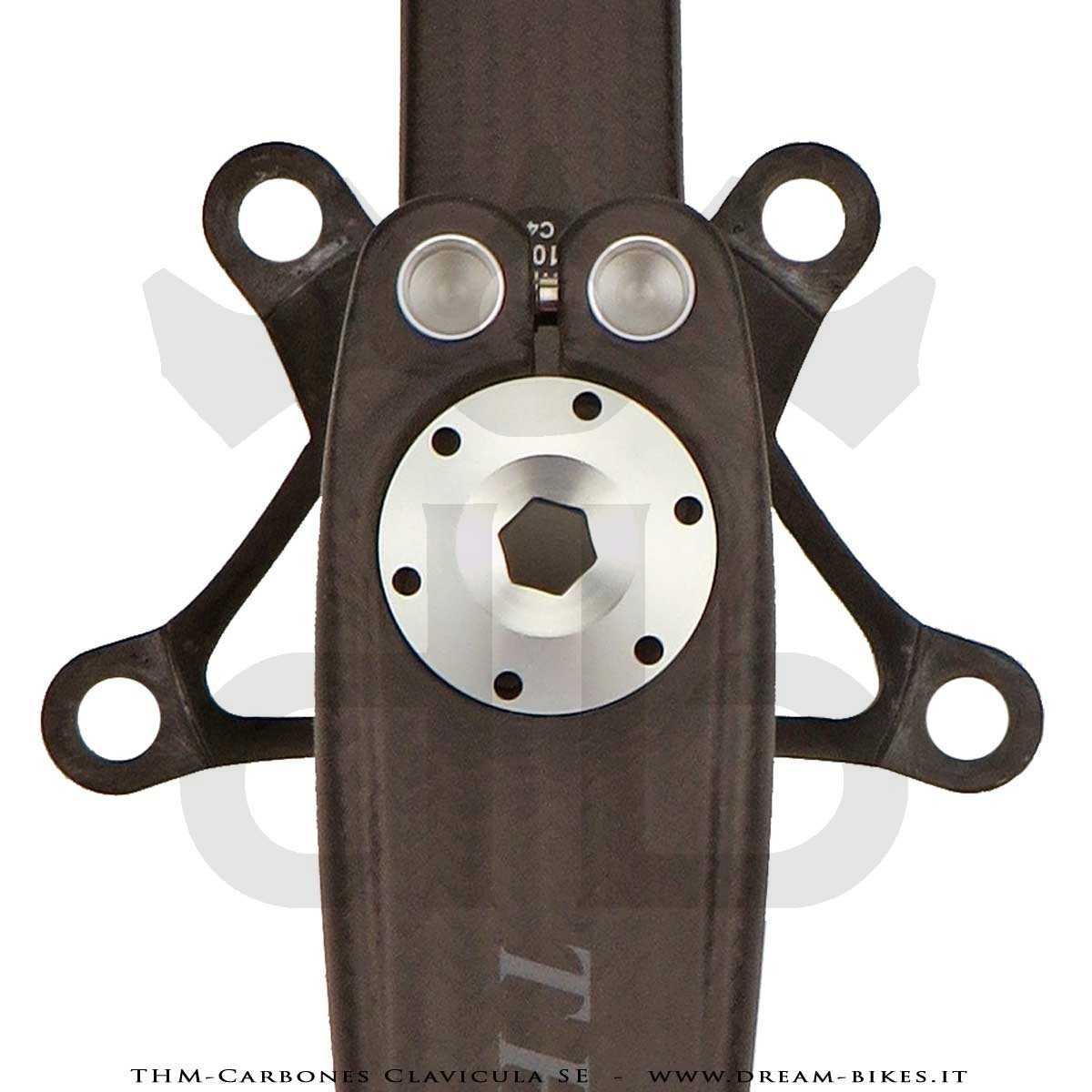

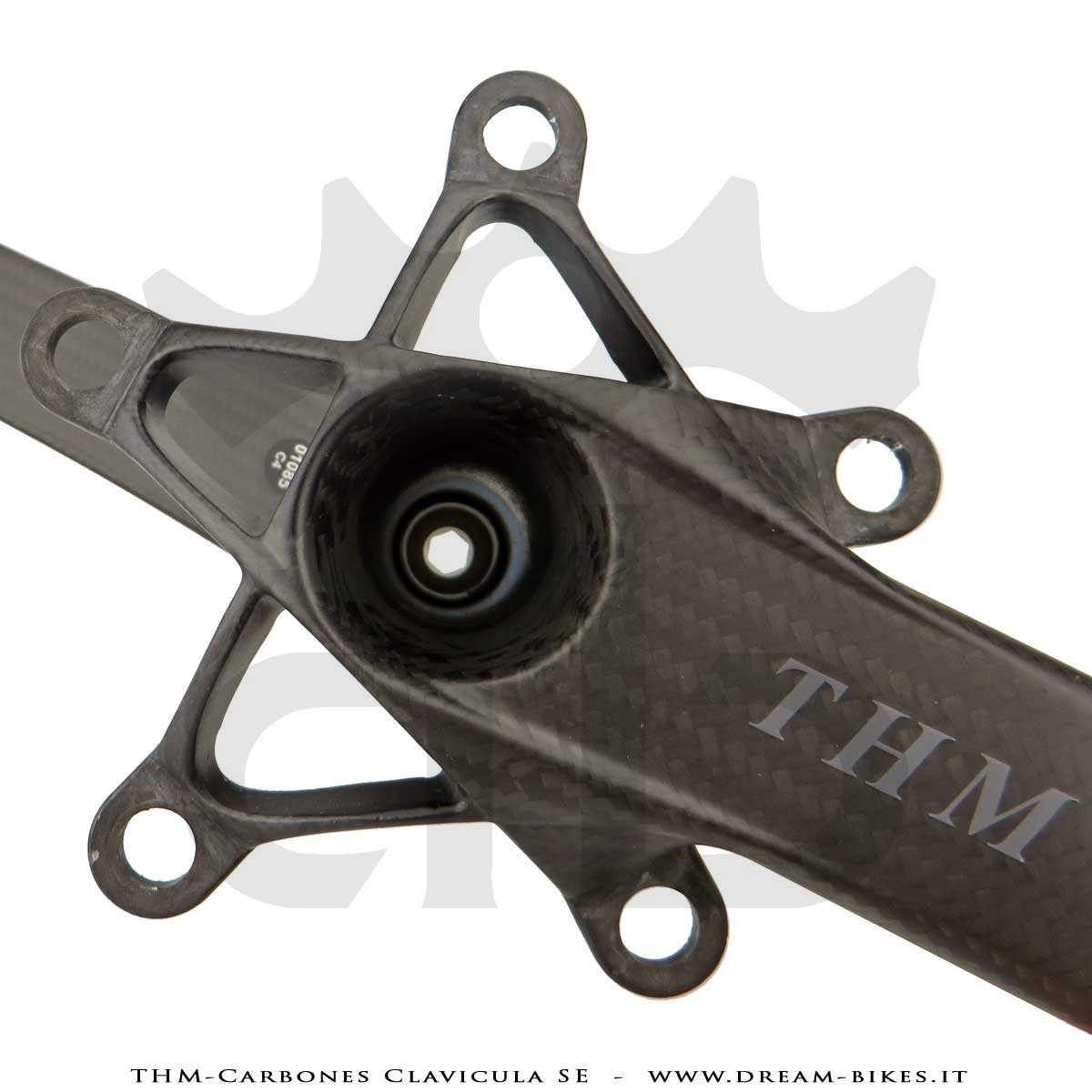

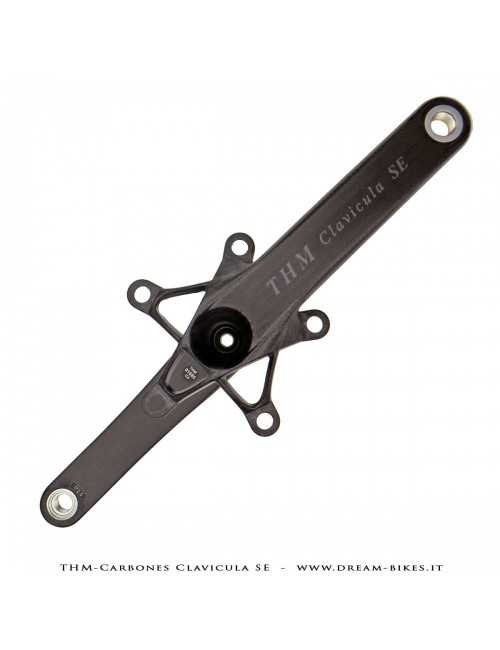

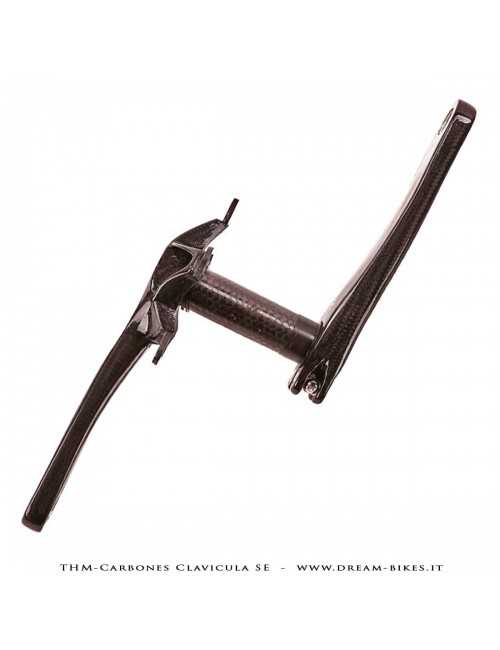

    THM-Carbones Clavicula SE ultralight high module carbon fiber cranks. With only 295 grams are the lightest in the world but also with a great stiffness and reliability due to clever design and high quality materials and manifacturing. Available in 110 mm compact BCD and 130 mm standard BCD both, 165-167.5-170-172.5-175 mm cranks lenght. Oversize 30 mm axle compatible with most BB shell standards.  Low 148 mm Q-factor. Carbon fiber natural finish (gloss or matte). 100% Made in Germany. Absolutely a must to have for any top level road bike!

    Quantity
      4-6 WEEKS

    Add to favorites Aggiungi alla comparazione



    thm-carbones

    Product Details

    0 Item

    Data sheet

    Weight :
    295 gr. (110 BCD) - 302 gr. (130 BCD) +/- 4% tollerance
    Axle Diameter :
    30 mm
    Q Factor :
    148 mm
    Chainline :
    43.5 mm
    Inner Width Of The Cranks :
    118 mm
    Crank Length :
    165 - 167.5 - 170 - 172.5 - 175 mm
    Crank Material :
    Carbon Fibre
    Axle Material :
    Carbon fiber
    Finish :
    Natural carbon fiber gloss or matte
    Graphics :
    Under clearcoat
    Use :
    Road, Cross, Gravel
    BCD (bolt circle diameter) :
    110 mm compact - 130 mm standard
    Holes :
    5
    Fitting :
    With BSA, ITA, BB30, PF30, BB386 EVO, BBright Pressfit, Shimano PressfitBB shell and on demand also with BB386 and BBright Direct Fit
    Max rider weight :
    120 kg

    Compara

    Prodotto
    		 Pedivelle THM-Carbones Clavicula SE 295 gr. Pedivelle THM-Carbones Clavicula SE 295 gr.
    Availability
    Questo prodotto non è più disponibile
    Prezzo
    1.352,46 €
    Descrizione

    Pedivelle THM-Carbones Clavicula SE, con soli 295 grammi sono le pedivelle più leggere al mondo, ma anche molto rigide ed affidabili grazie all'attenta progettazione ed alla qualità dei materiali e della progettazione. Interamente realizzate in fibra di carbonio ad alto modulo. Disponibili con attacco 5 fori sia girobulloni compact 110 mm BCD che standard 130 mm BCD. Lunghezza pedivelle 165-167.5-170-172.5-175 mm. Assale oversize 30 mm, compatibile con svariati standard di scatole movimento telai. Fattore Q di soli 148 mm. Finitura in carbonio naturale lucida o opaca. 100% Made in Germany. Rappresentano il massimo livello attualmente sul mercato!
    Peso :
    		 295 gr. (110 BCD) - 302 gr. (130 BCD) tolleranza +/- 4%
    Diametro Assale :
    		 30 mm
    Fattore Q :
    		 148 mm
    Linea Catena :
    		 43.5 mm
    Distanza interna tra le pedivelle :
    		 118 mm
    Lunghezza Pedivelle :
    		 165 - 167.5 - 170 - 172.5 - 175 mm
    Materiale Pedivelle :
    		 Fibra di Carbonio
    Materiale Assale :
    		 Fibra di carbonio
    Finitura :
    		 Fibra di carbonio naturale lucida o opaca
    Grafiche :
    		 Sotto trasparente
    Utilizzo :
    		 Strada, Cross, Gravel
    BCD (girobulloni) :
    		 110 mm compact - 130 mm standard
    Numero di Fori :
    		 5
    Compatibilità :
    		 Con Scatole movimento BSA, ITA, BB30, PF30, BB386 EVO, BBright Pressfit, Shimano Pressfit e su richiesta anche BB386 e BBright Direct Fit
    Limite peso Biker :
    		 120 kg
