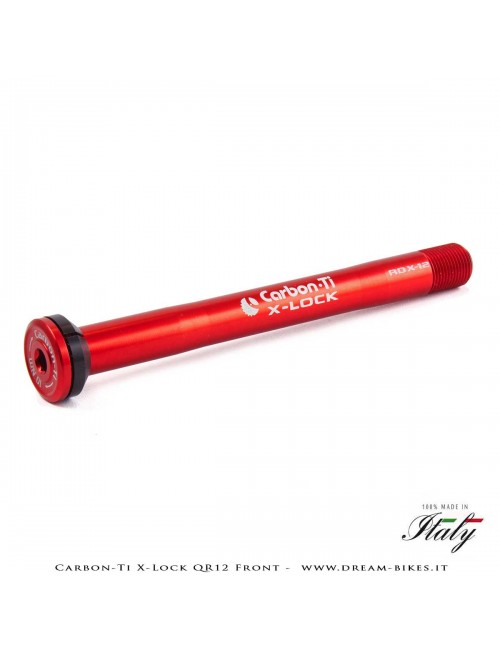

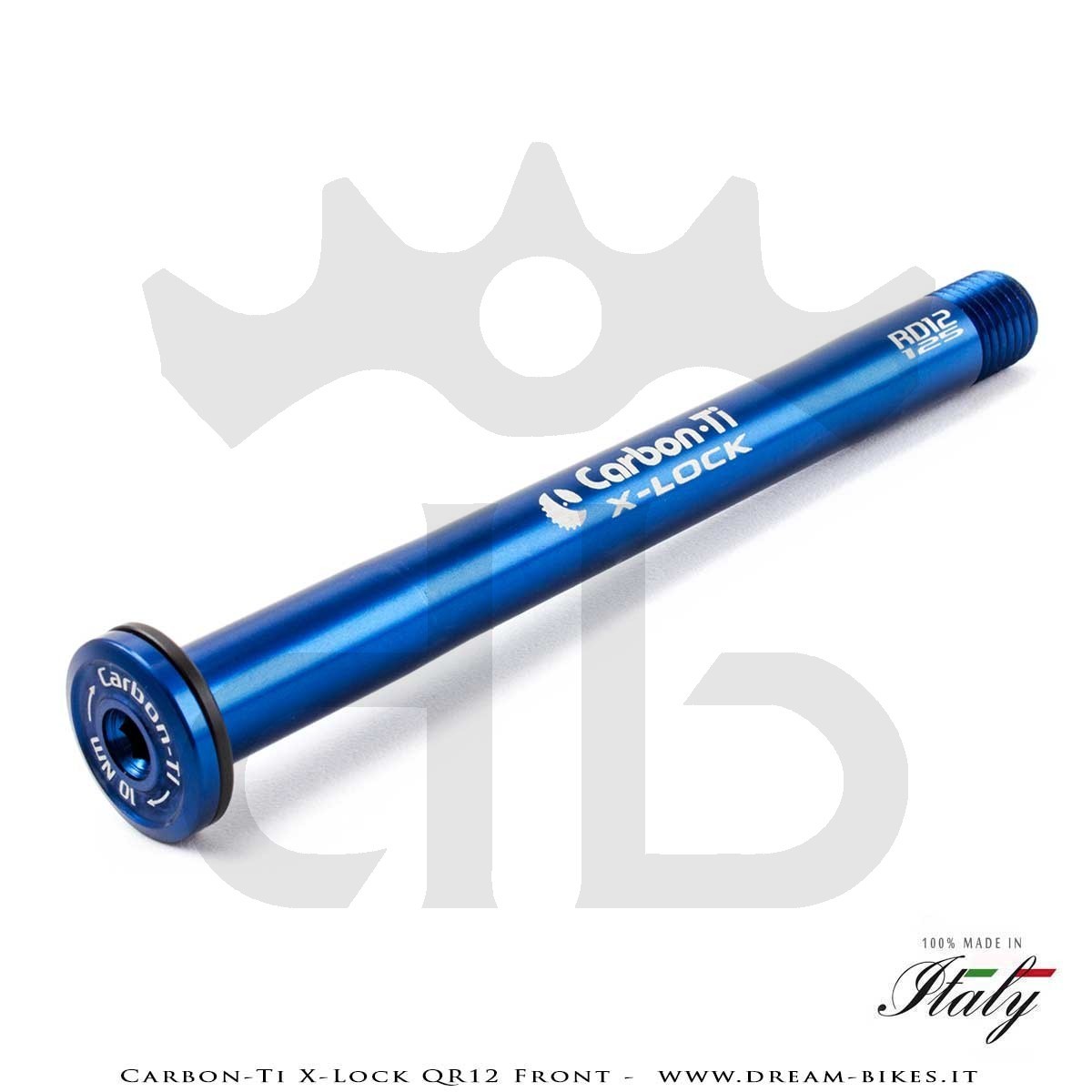

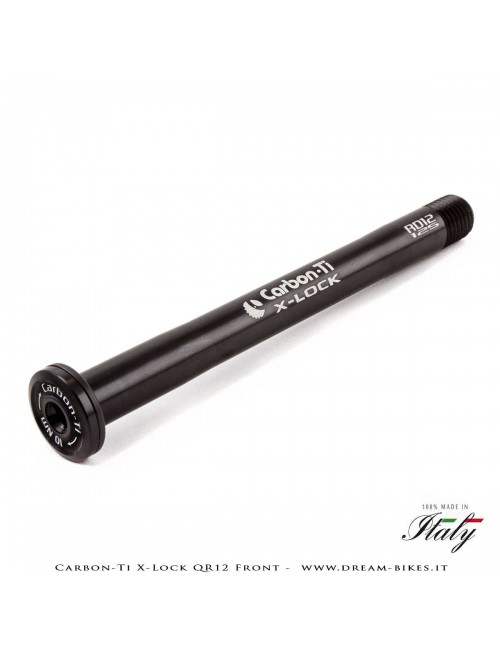

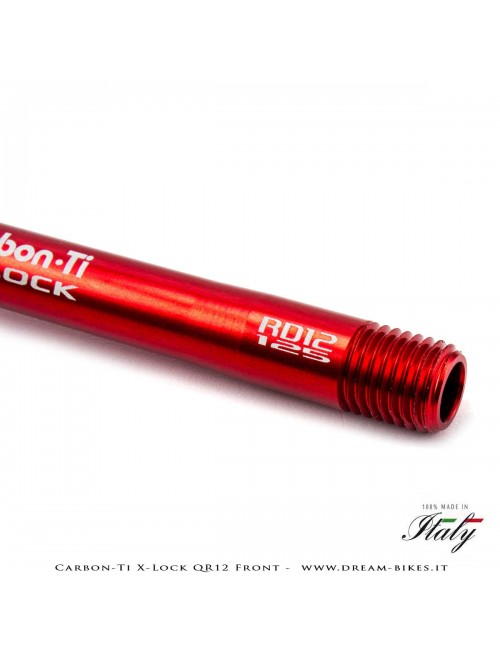

Carbon-Ti X-Lock QR12 Front Wheel Thru Axle Road
Reference:
€40.90
Carbon-Ti X-Lock QR12 ultralight 12 mm thru axle for road/gravel/triathlon/cross front forks. Fully Al 7075T6 CNC made, available in many sizes and anodized colors with laser etched graphics. Weights from 23 gr. Works with a 5 mm hex wrench. 100% Made in Italy.

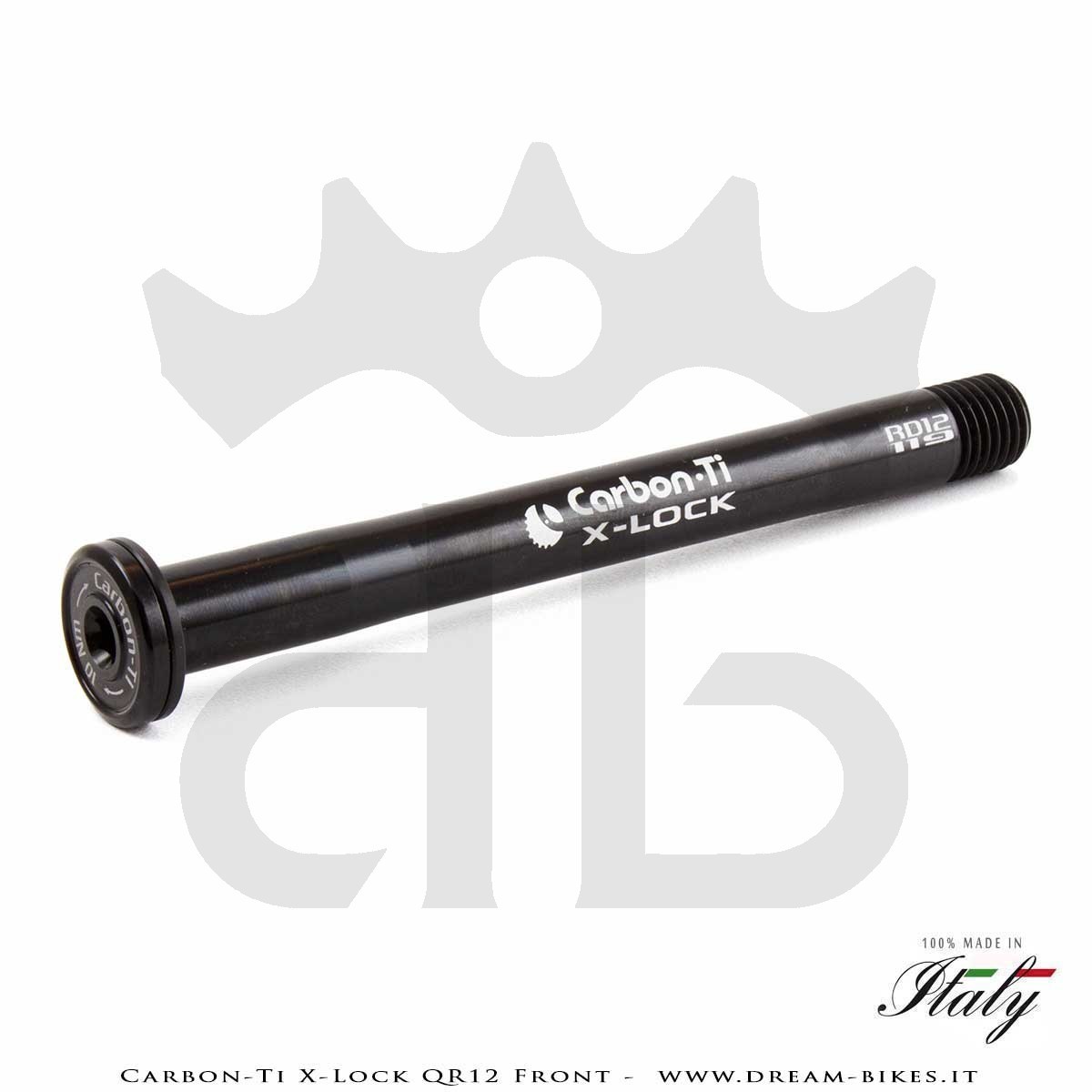

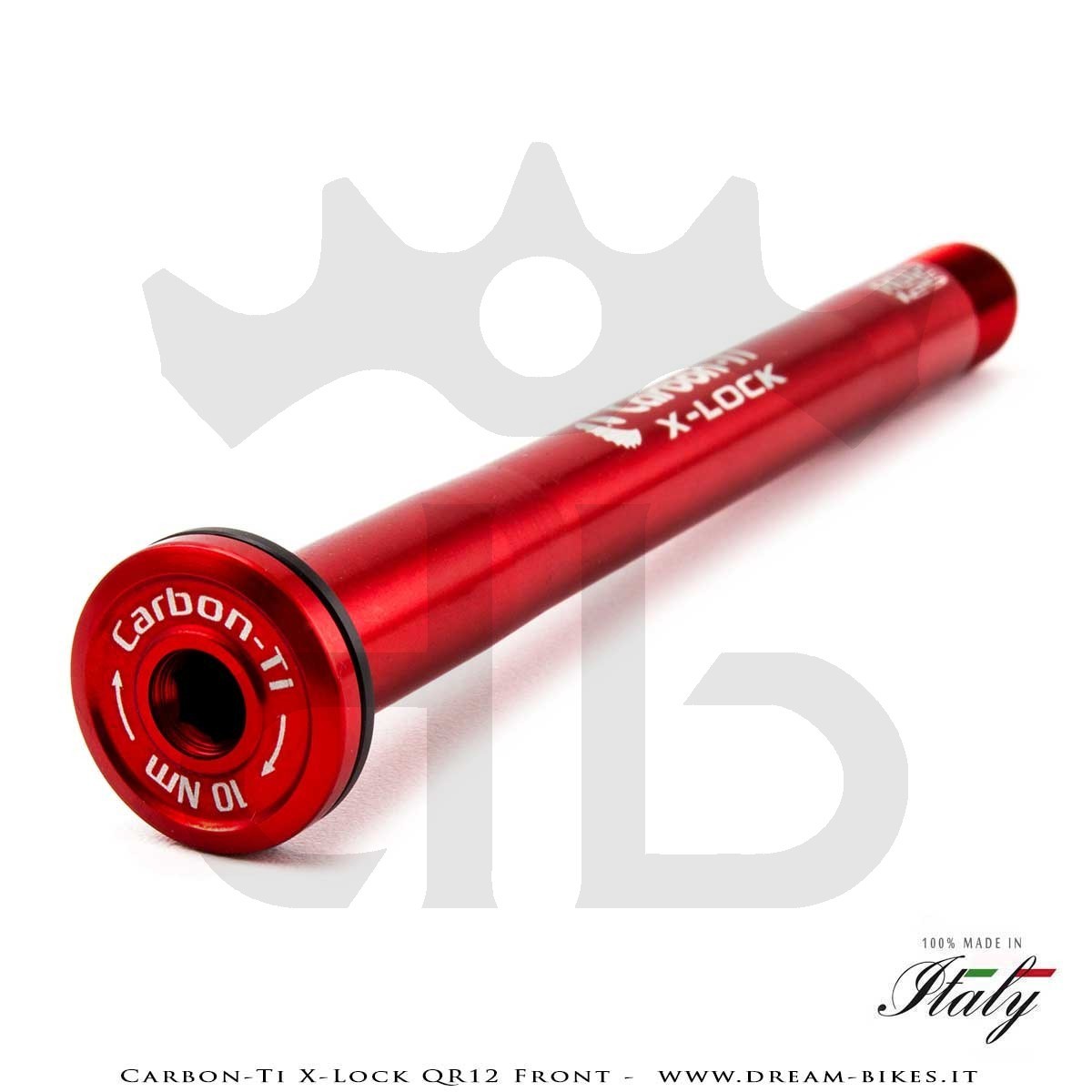

Carbon-Ti X-Lock QR12 is an ultralight aluminium thru axles family with 12 mm diameter for front wheels used on road (racing, triathlon) and offroad (Gravel, Cross).
X-Lock QR12 Thru Axles are made of 7075T6 aluminium (the strongest aluminium alloy), fully CNC machined. Nice anodized finishing (many colors available) and laser etched graphics assure an elegant look and a long lasting without adding any extra weight.

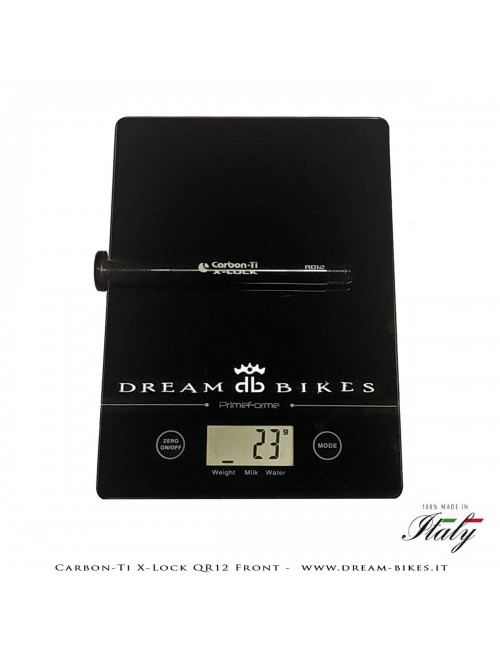

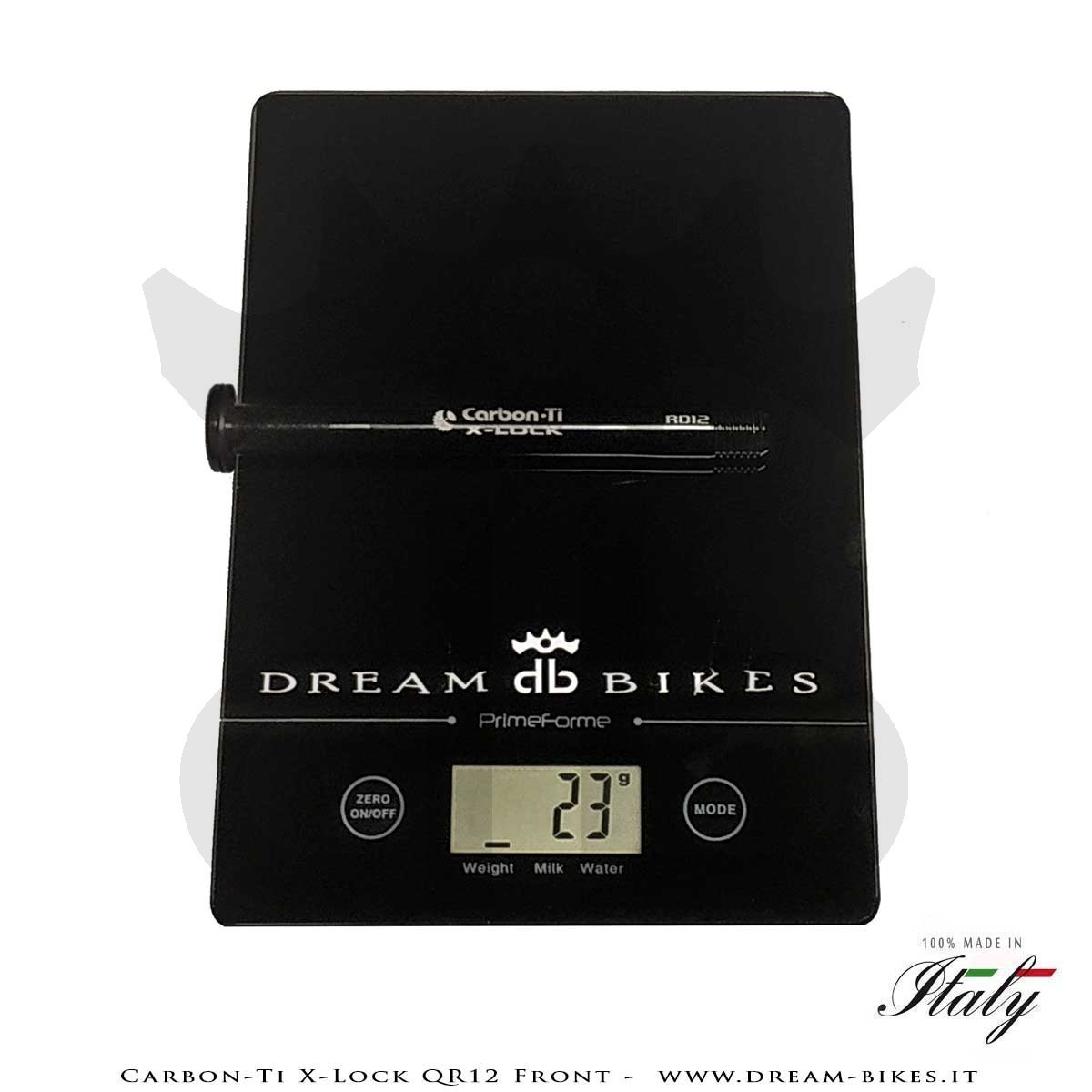

The axle design is optimized and it's hollow inside so the final weight is very low, only 23-25 gr. (due to axle standard) and allows to save a lot of weight because stock axles are usually cheap and heavy.

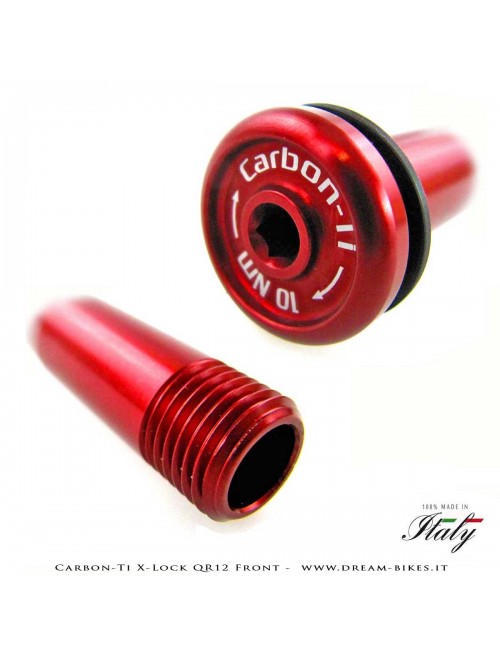

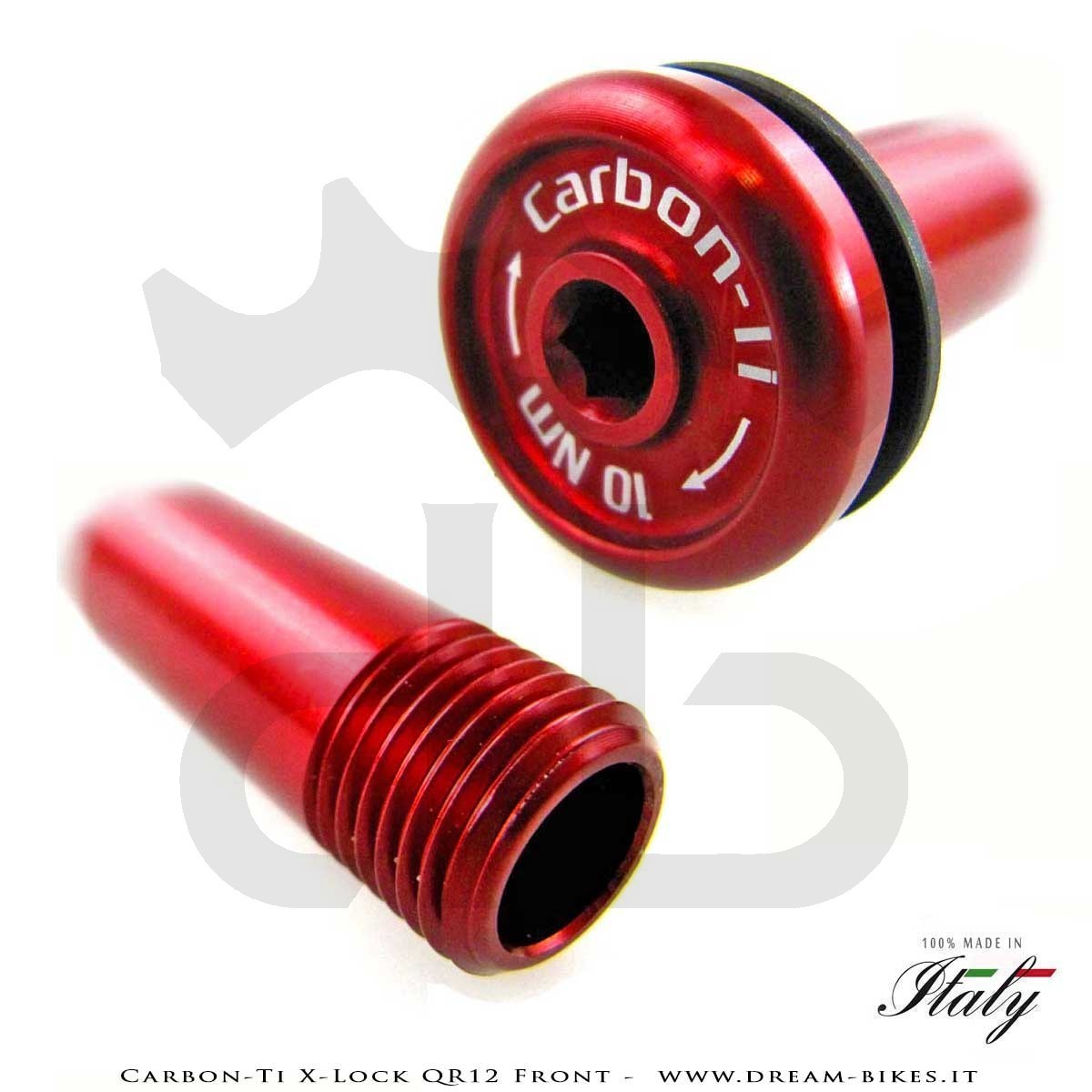

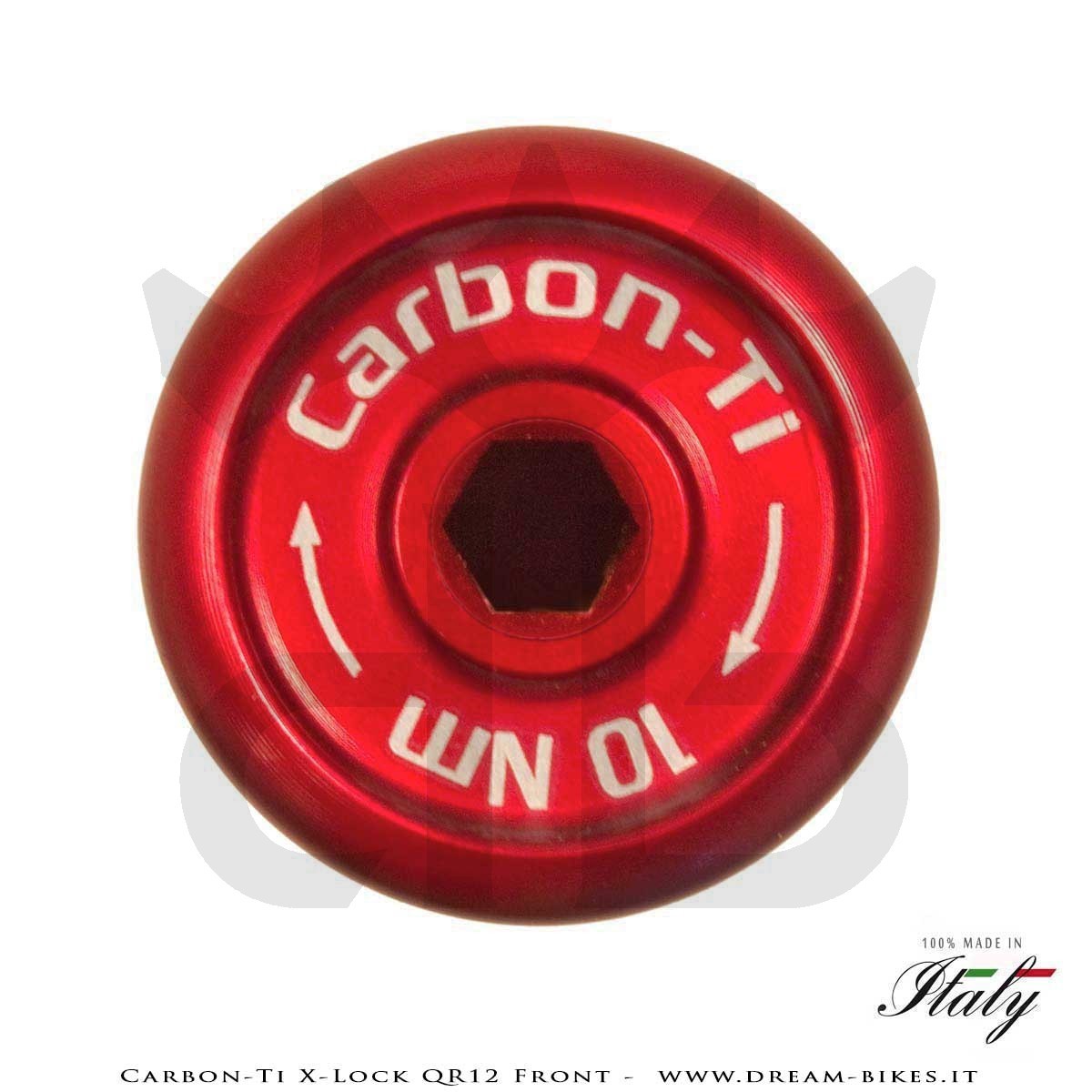

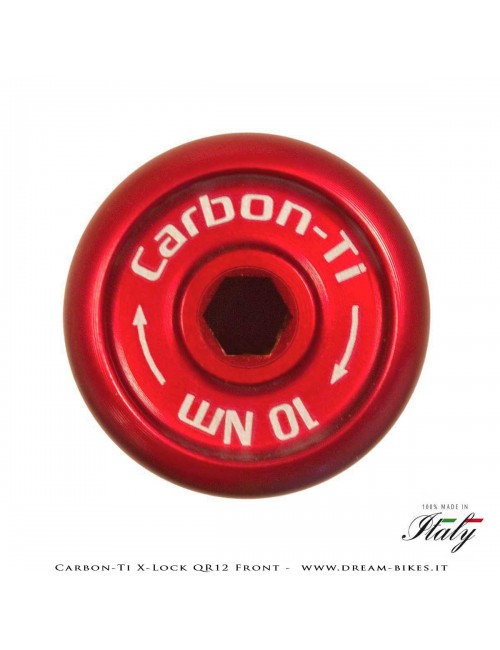

X-Lock QR12 axles are strong and safe (they've been used also for MTB), they allows to increase performances with a better look and a great reliability. X-Lock QR12 axles can be easily installed and removed just with the use of a 5 mm hex wrench.

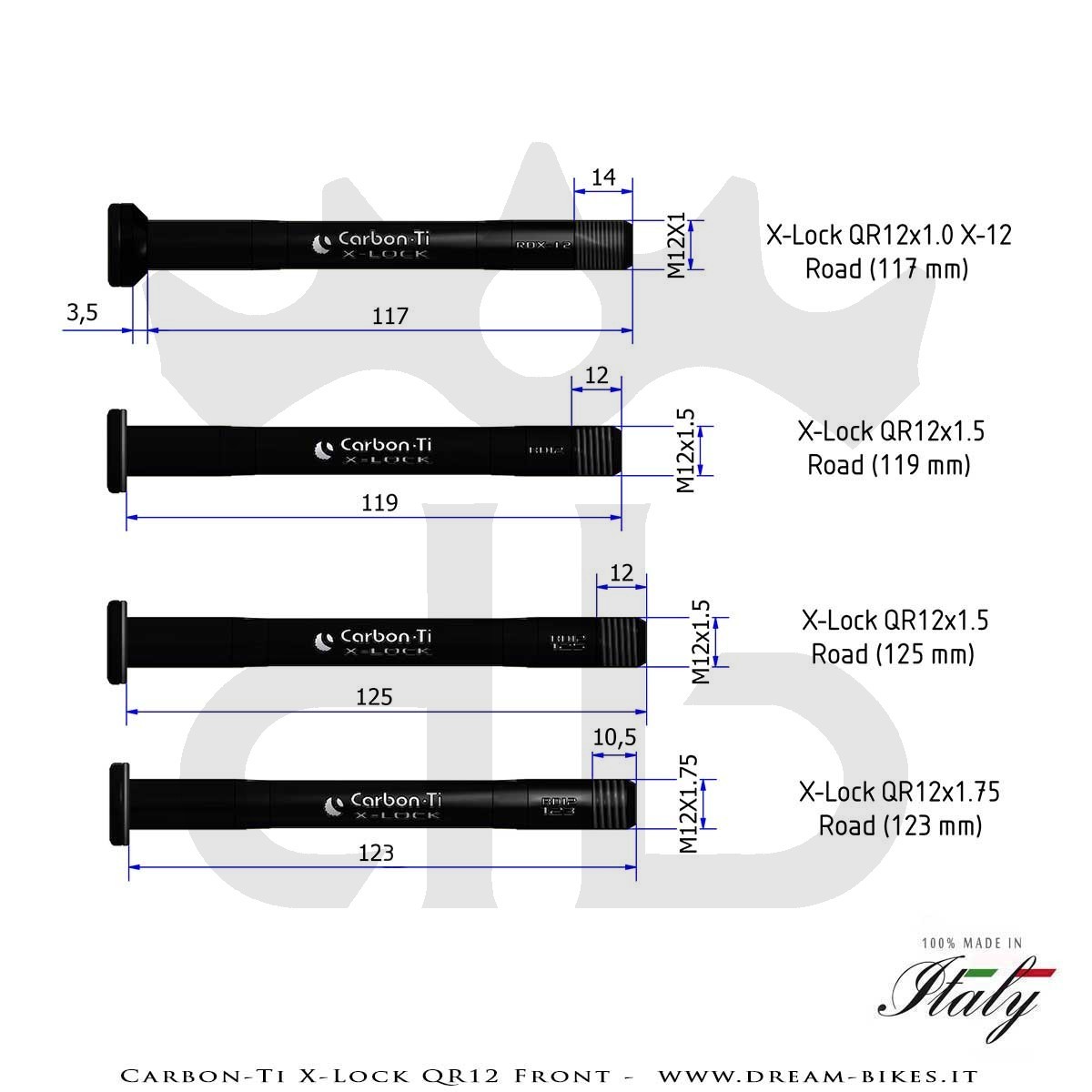

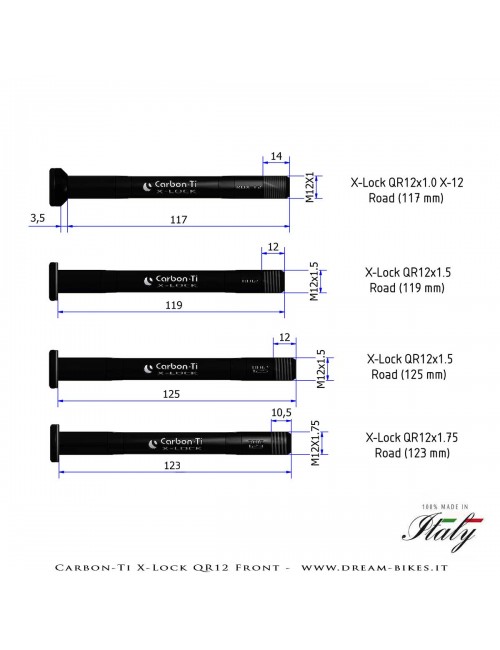

X-Lock QR12 axles are available in many different standards for different bicycle standards, the diameter is always the same (12 mm), total length, thread length and thread pitch changes...also the axle end shape can be different (flat or tapered). Most of the axles has got their features directly laser etched on, if you aren't able to find them try to ask to the producer or the seller of the bicycle/frame. Is always possible to measure stock axles that comes with the bicycle/frame and check if they are compatible with our products, just give a look at the follow tech specs :

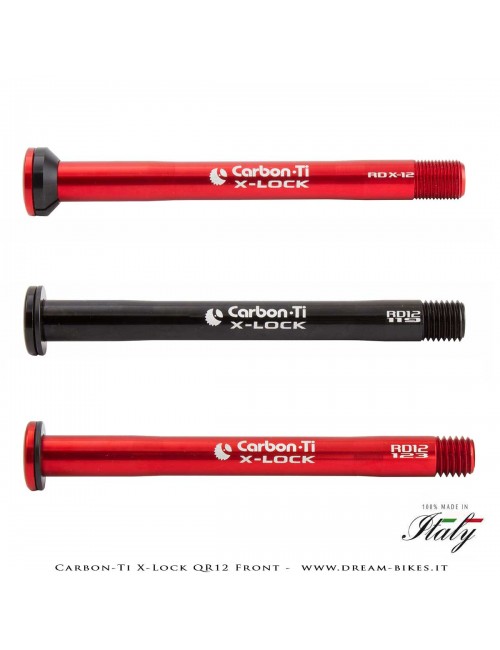

Actually X-Lock QR12 are available with these standards :
X-LOCK QR12x1.0 X-12 117 mm
Axle diameter : 12 mm
Axle length (without head) : 117 mm
Thread pitch : 1.0 mm
Thread length : 14 mm
Axle end type : tapered
Weight : 25 gr.
Fitting : Specialized Tarmac and Venge Disc 2019-2020 (S-Works, Pro, Expert, Comp)
X-LOCK QR12x1.5 119 mm
Axle diameter : 12 mm
Axle length (without head) : 119 mm
Thread pitch : 1.5 mm
Thread length : 12 mm
Axle end type : flat
Weight : 23 gr.
Fitting : Pinarello Disc 2019, Scott Foil Disc 2018-2019, Ridley Noah, Enve carbon disc forks

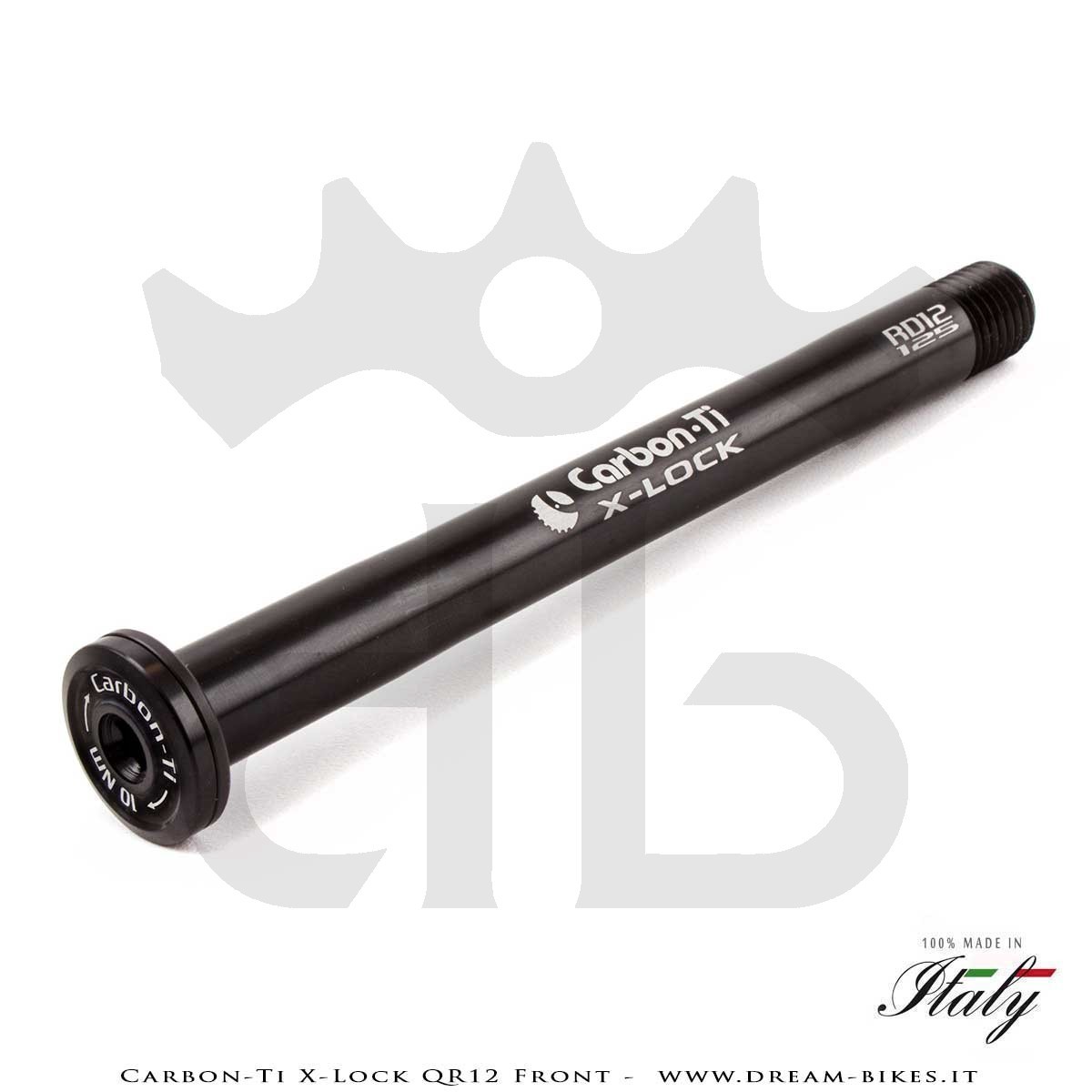

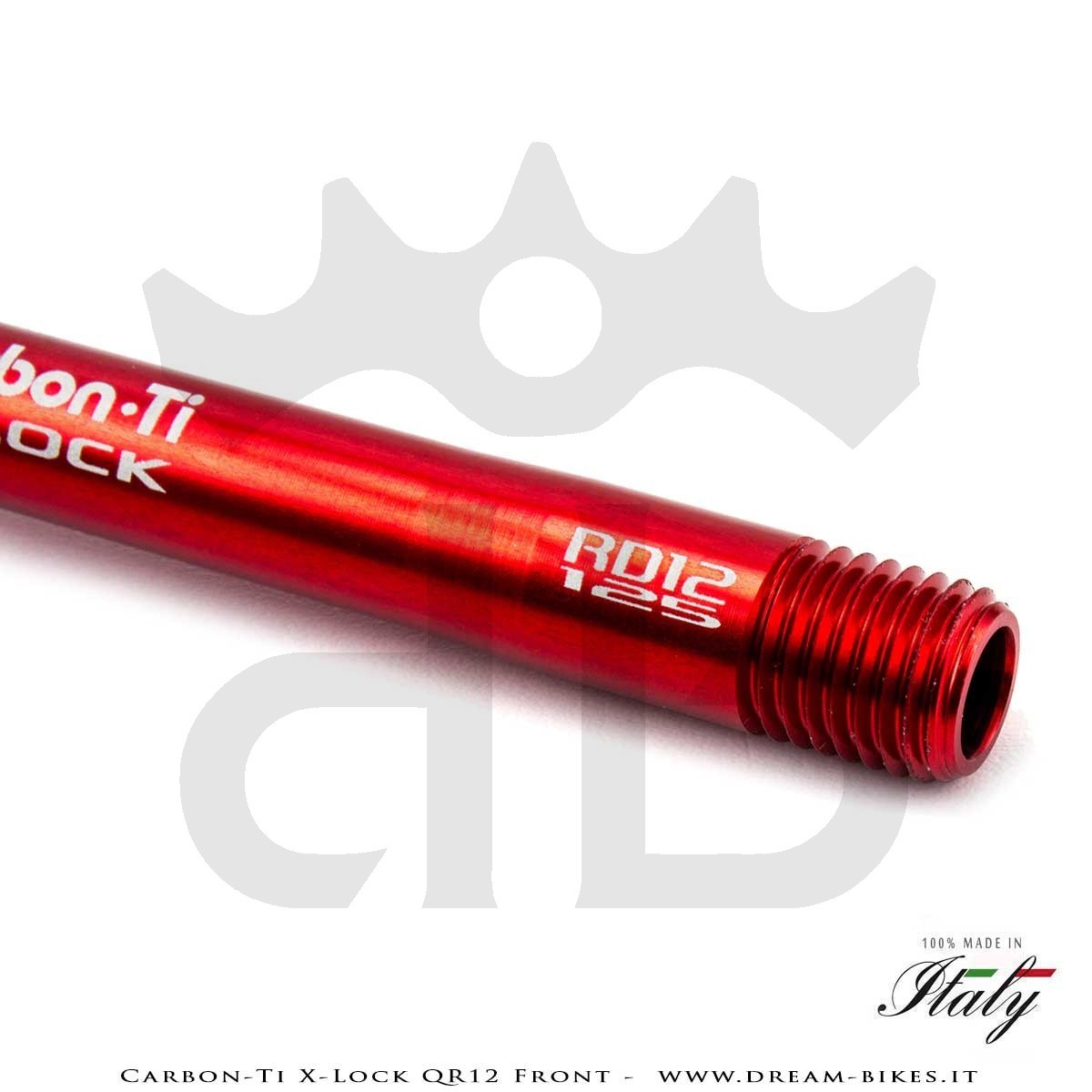

X-LOCK QR12x1.5 125 mm
Axle diameter : 12 mm
Axle length (without head) : 125 mm
Thread pitch : 1.5 mm
Thread length : 12 mm
Axle end type : flat
Weight : 23 gr.
Fitting : Cannondale Synapse Disc 2018, Scott Addict 2020, Bianchi Zolder Pro 2019
X-LOCK QR12x1.75 123 mm
Axle diameter : 12 mm
Axle length (without head) : 123 mm
Thread pitch : 1.75 mm
Thread length : 10.5 mm
Axle end type : flat
Weight : 25 gr.
Fitting : Trek Emonda Disc 2019, Trek Madone Disc 2019
The bicycle brands and models compatible can be more than the ones shown above, just take measures of stock ones and check with X-Lock QR12 ones, for any doubt or question feel free to ask us.
X-Lock QR12 thru axles, as all Carbon-Ti products, are proudly 100% Made in Italy.
Product Details
0 Items
Data sheet
- Weight :
- 23 gr. (QR12x1.5 119 mm and QR12x1.5 125 mm) - 25 gr. (QR12x1.0 X-12 117 mm and QR12x1.75 123 mm)
- Diameter :
- 12 mm
- Width :
- 117-119-123-125 mm
- Thread Pitch :
- 1.0 - 1.5 - 1.75 mm
- Material :
- Al 7075 T6 CNC
- Finish :
- Anodized, many colors
- Graphics :
- Laser etched
- Use :
- Road racing, Gravel, Triathlon, Cross
- Fitting :
- With 12 mm thru axle forks
- Bolt head type :
- 5 mm hex wrench
Compara
Prodotto |
|
Availability |
Questo prodotto non è più disponibile
|
Prezzo |
40,90 €
|
Descrizione |
Carbon-Ti X-Lock QR12 perno passante ultraleggero da 12 mm per forcelle anteriori strada/gravel/triathlon/ciclocross. Realizzato CNC in Alluminio 7075T6, disponibili in varie misure e colori anodizzati con serigrafie laser. Pesi a partire da 23 gr. Si serra con chiave esagonale da 5 mm. 100% Made in Italy . |
Peso : |
23 gr. (QR12x1.5 119 mm e QR12x1.5 125 mm) - 25 gr. (QR12x1.0 X-12 117 mm e QR12x1.75 123 mm) |
Diametro : |
12 mm |
Larghezza : |
117-119-123-125 mm |
Passo Filetto : |
1.0 - 1.5 - 1.75 mm |
Materiale : |
Al 7075 T6 CNC |
Finitura : |
Anodizzata vari colori |
Grafiche : |
Laser |
Utilizzo : |
Strada, Gravel, Triathlon, Ciclocross |
Compatibilità : |
Con forcelle dotate di assi passanti da 12 mm |
Tipo di innesto : |
Esagonale 5 mm |
