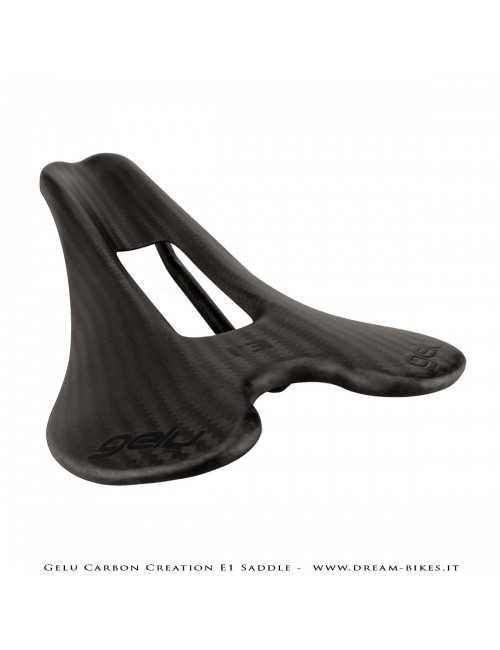

Gelu Carbon Creation E1 Full Carbon Ultralight Saddle 65 gr.
    Gelu Carbon Creation

    Gelu Carbon Creation E1 Full Carbon Ultralight Saddle 65 gr.

    Reference:
    €280.33

    Gelu Carbon Creation E1, ultralight high module carbon fibre saddle, only 65 grams, anatomic shape, anticompression design with a great comfort.. Super stiff due to its oversize elliptical rail and reinforced body. 242 mm lenght and 124 mm wide. 3K matte or gloss finish, racing and elegant at the same time. Compatible with Road racing, MTB or Gravel use, 115 kg max rider weight. HandMade in Portugal.

    Quantity
      To order, 3-4 weeks

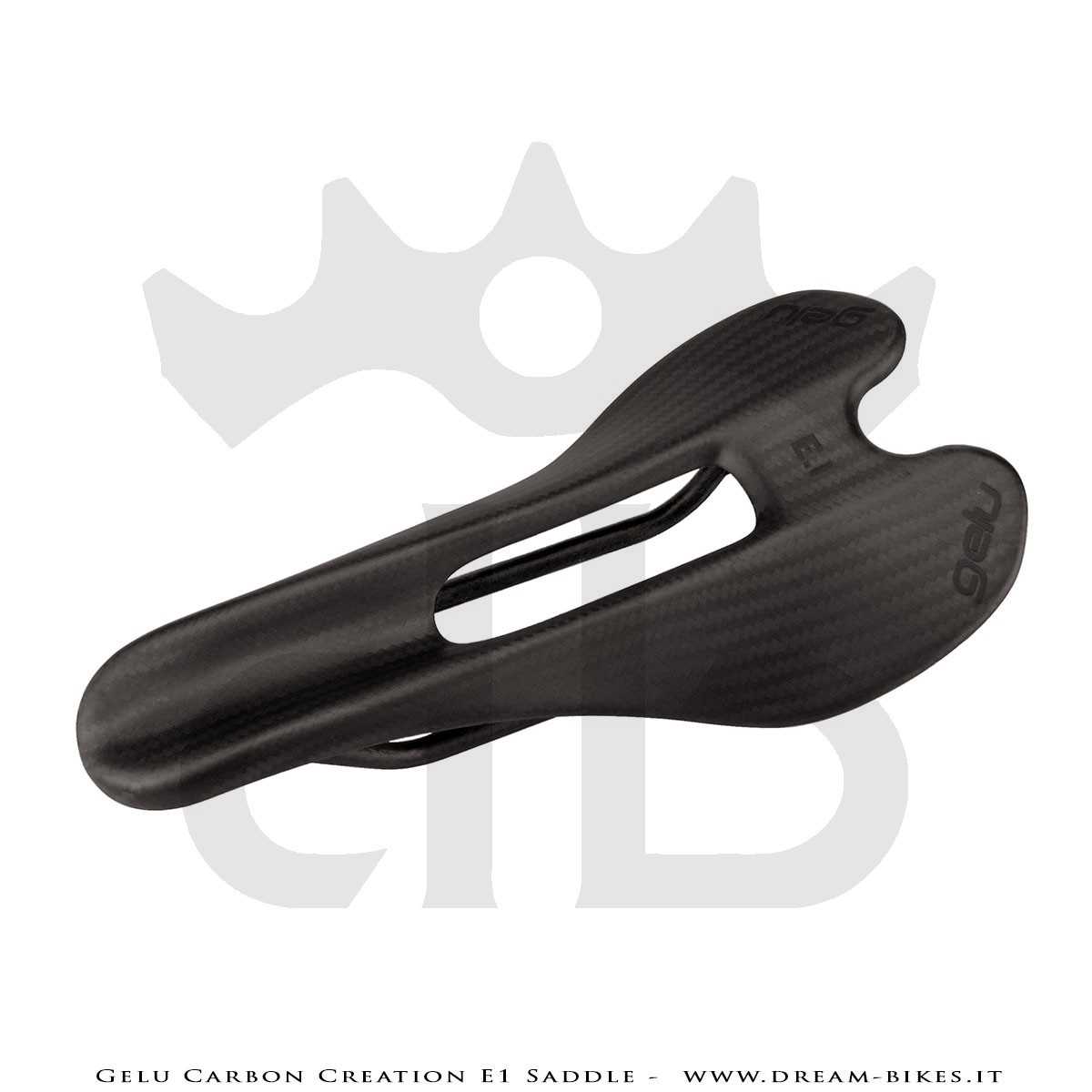

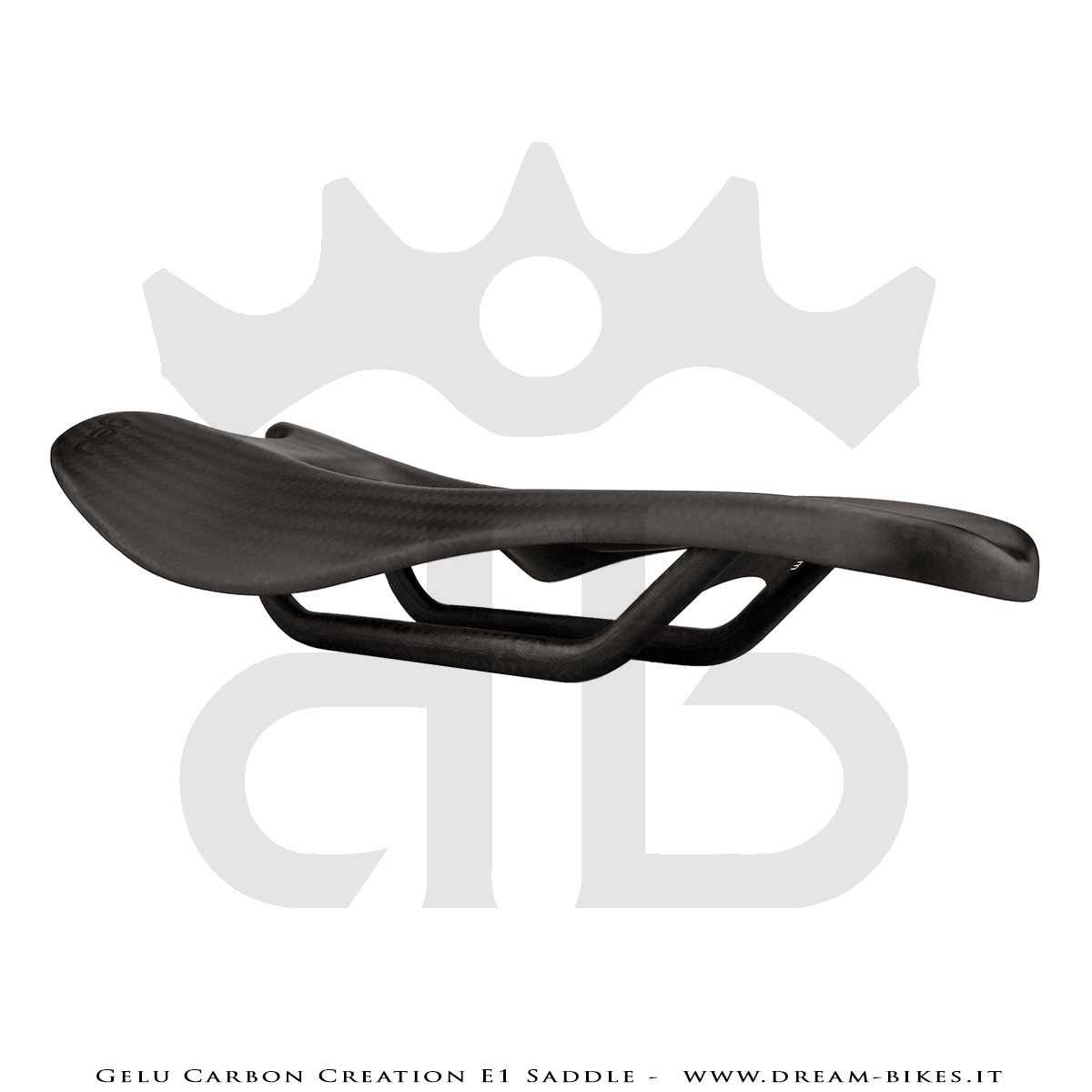

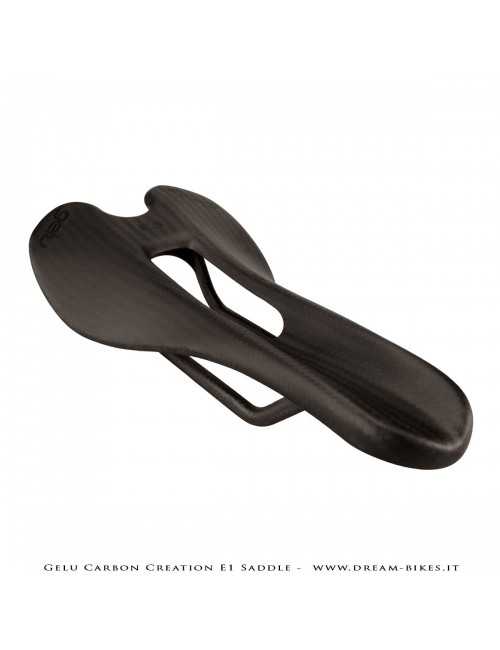

    Gelu Carbon creation E1 it's an ultralight carbon fiber saddle developed for road racing, MTB and gravel use (competitive or not). It's 100% handmade in Portugal with high quality materials and standards and offer the best performance possible with a great comfort at the same time too.

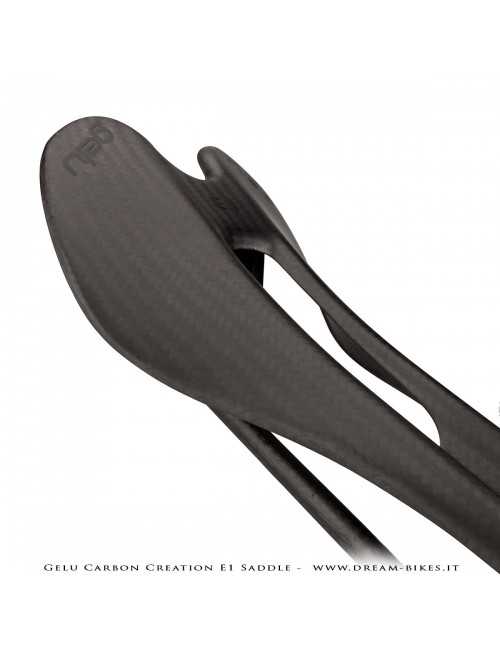

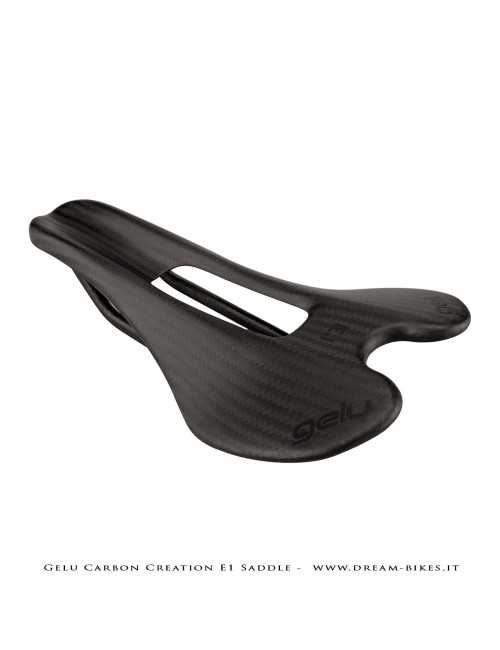

    Gelu Carbon Creation E1 Full Carbon Ultralight Saddle 65 gr.

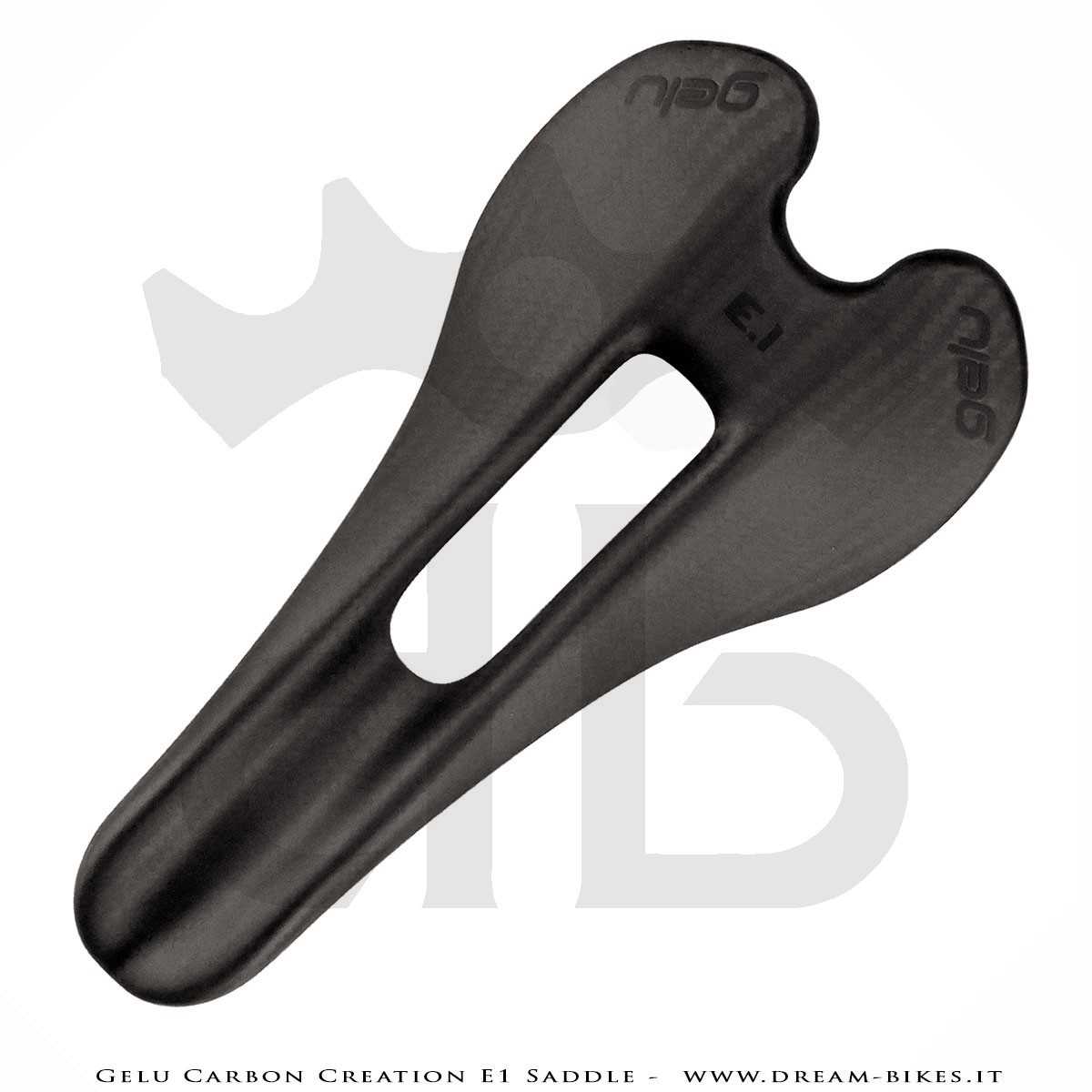

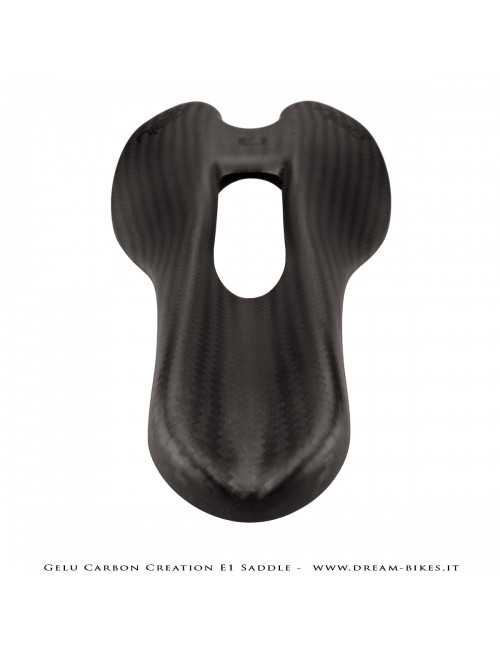

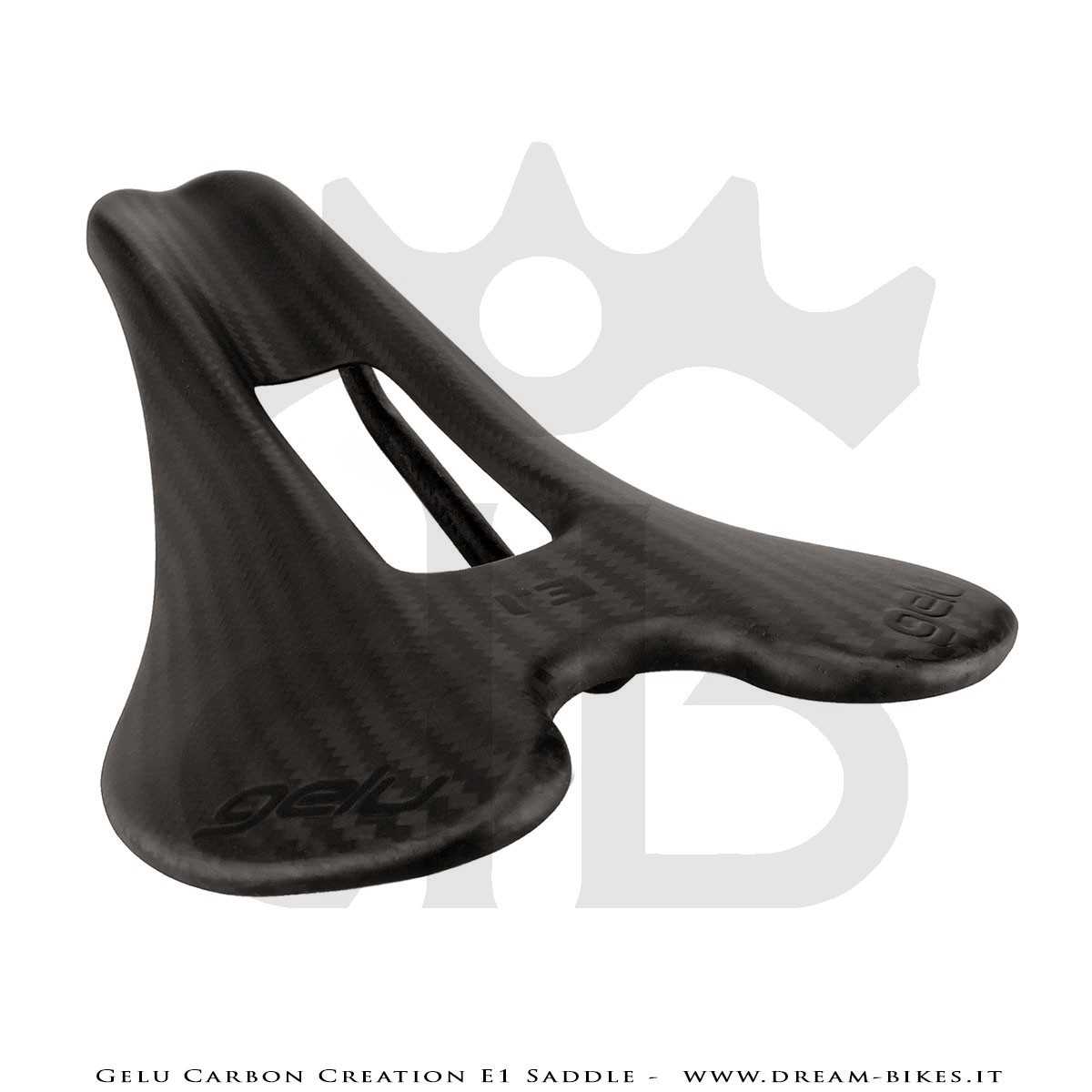

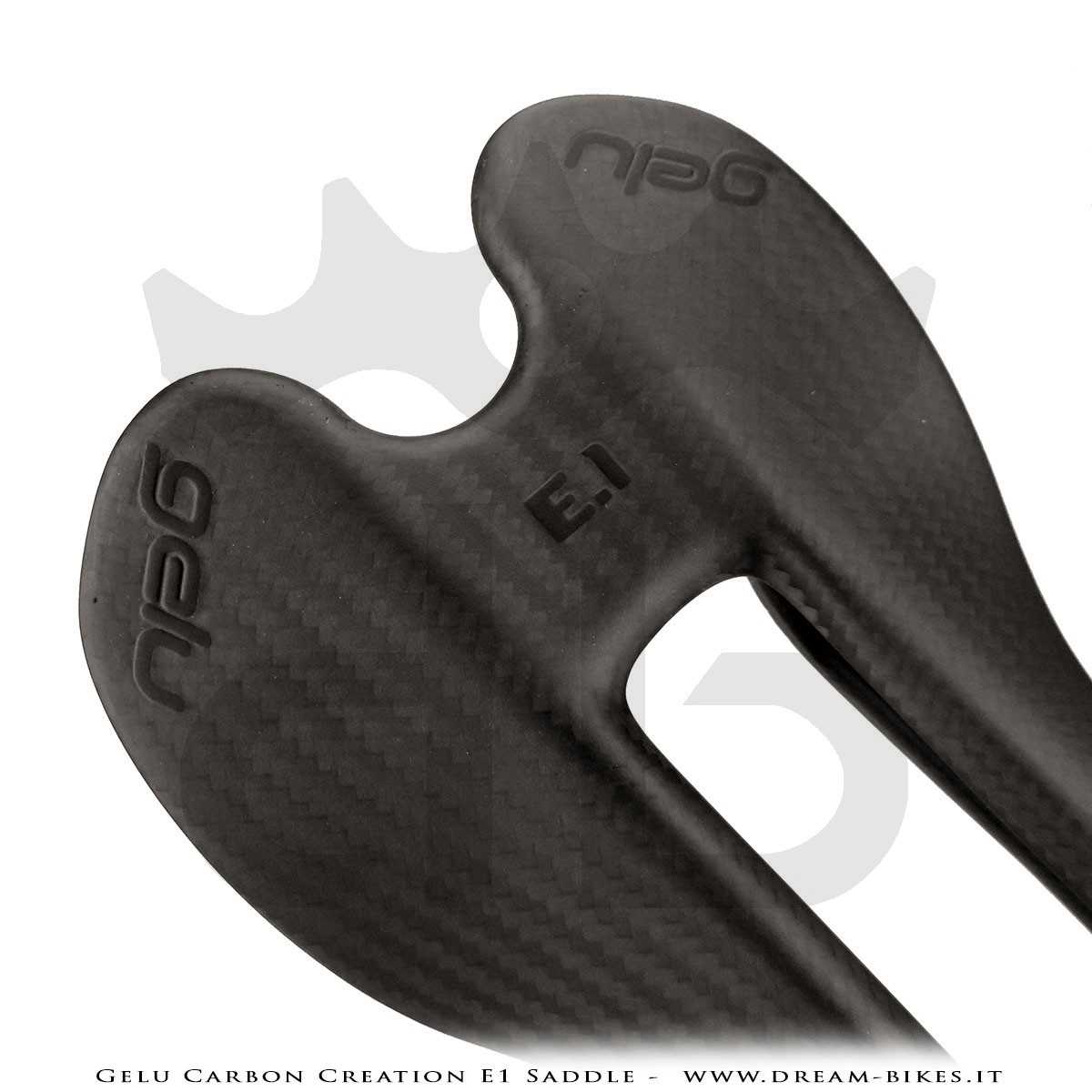

    It's endearing design isn't only for appearance but gives an high aerodynamic efficiency and also a great comfort due to the central depression (more than 30 mm wide) that unload prostate zone avoiding compression problems and assure fresh air in the "sensible zones". The design impiles fitting the saddle into the bones of the basin following its inclination at about 3 to 4 cm on each side, while leaving the tips of the ischia without any pressure. To achieve this, the side flaps of the saddle has got the same curvature as the bony structure of the basin at this point was crucial the intervention of an orthopedic doctor (all Gelu saddles are orthopedically certified).

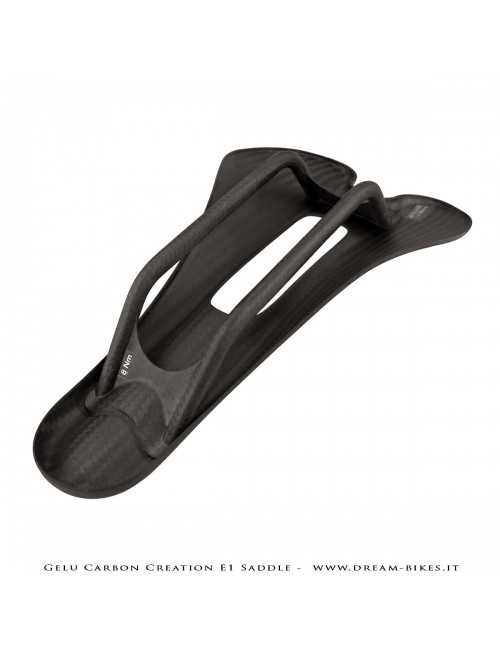

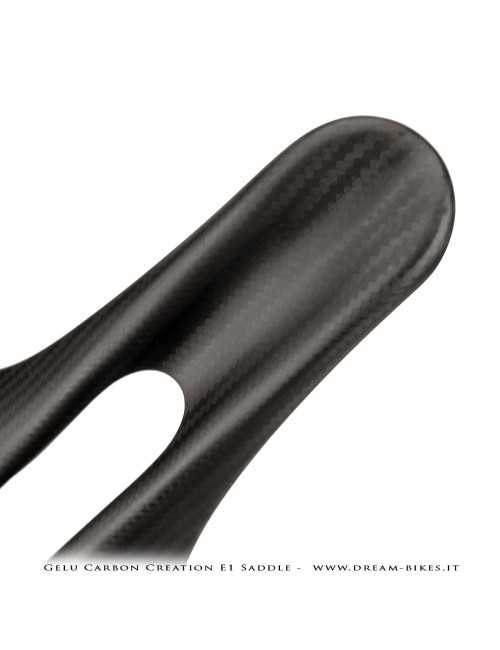

    Gelu Carbon Creation E1 Full Carbon Ultralight Saddle 65 gr.

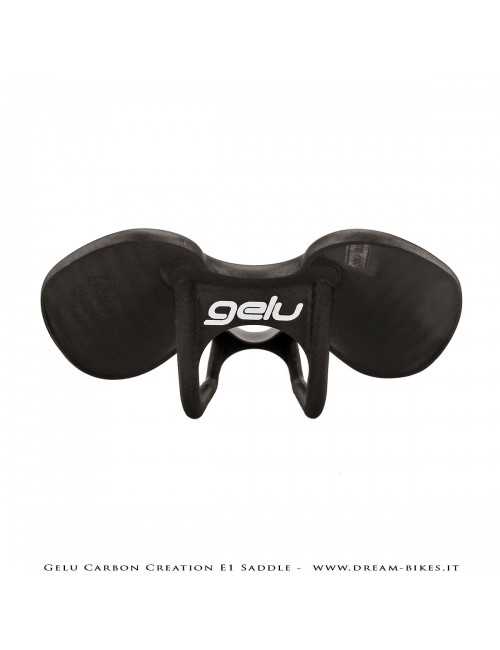

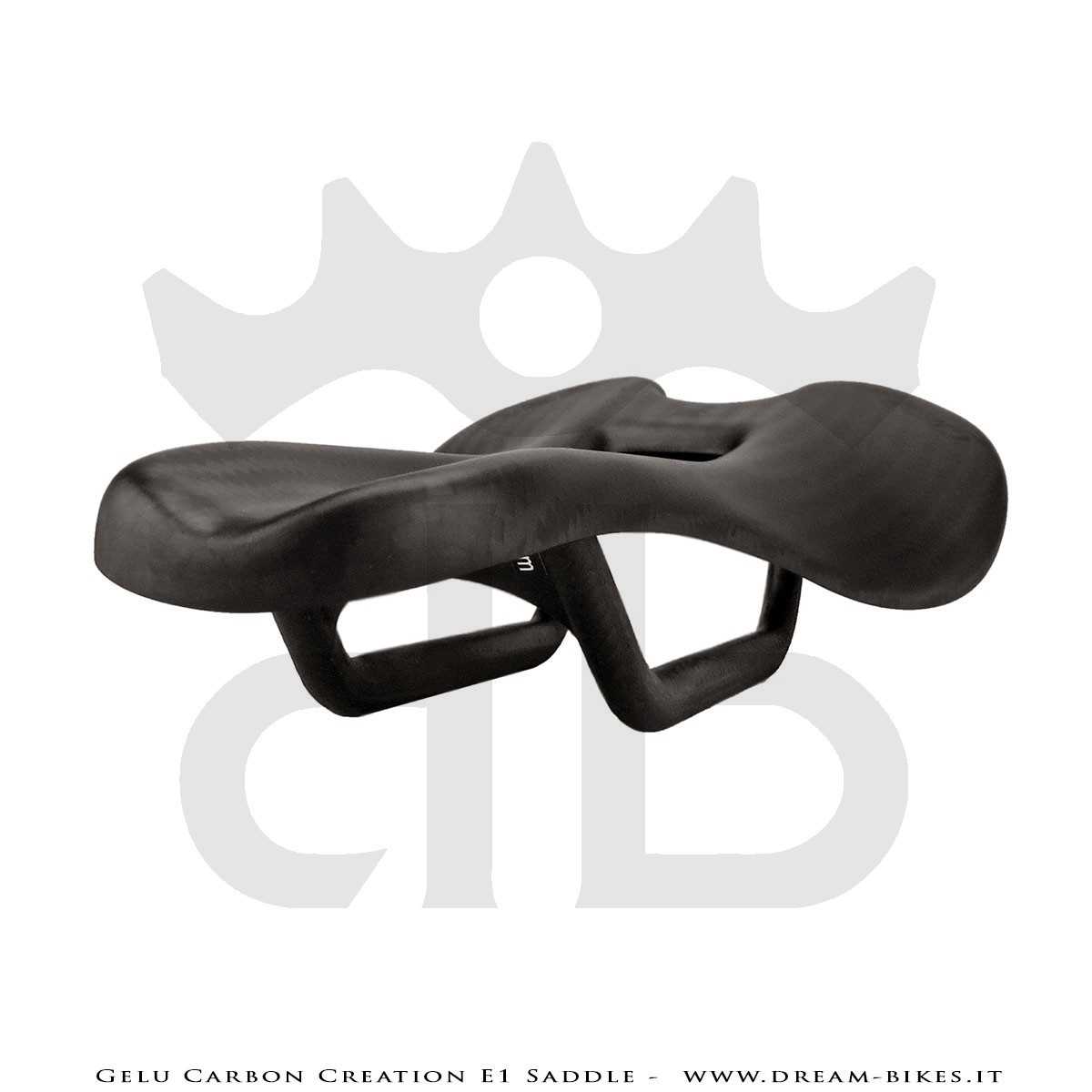

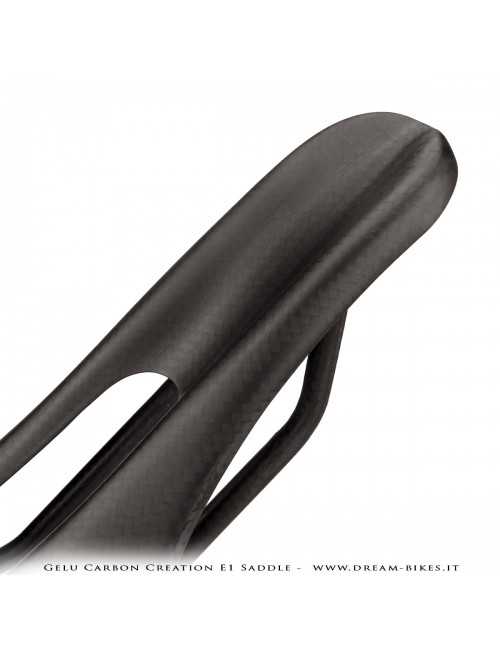

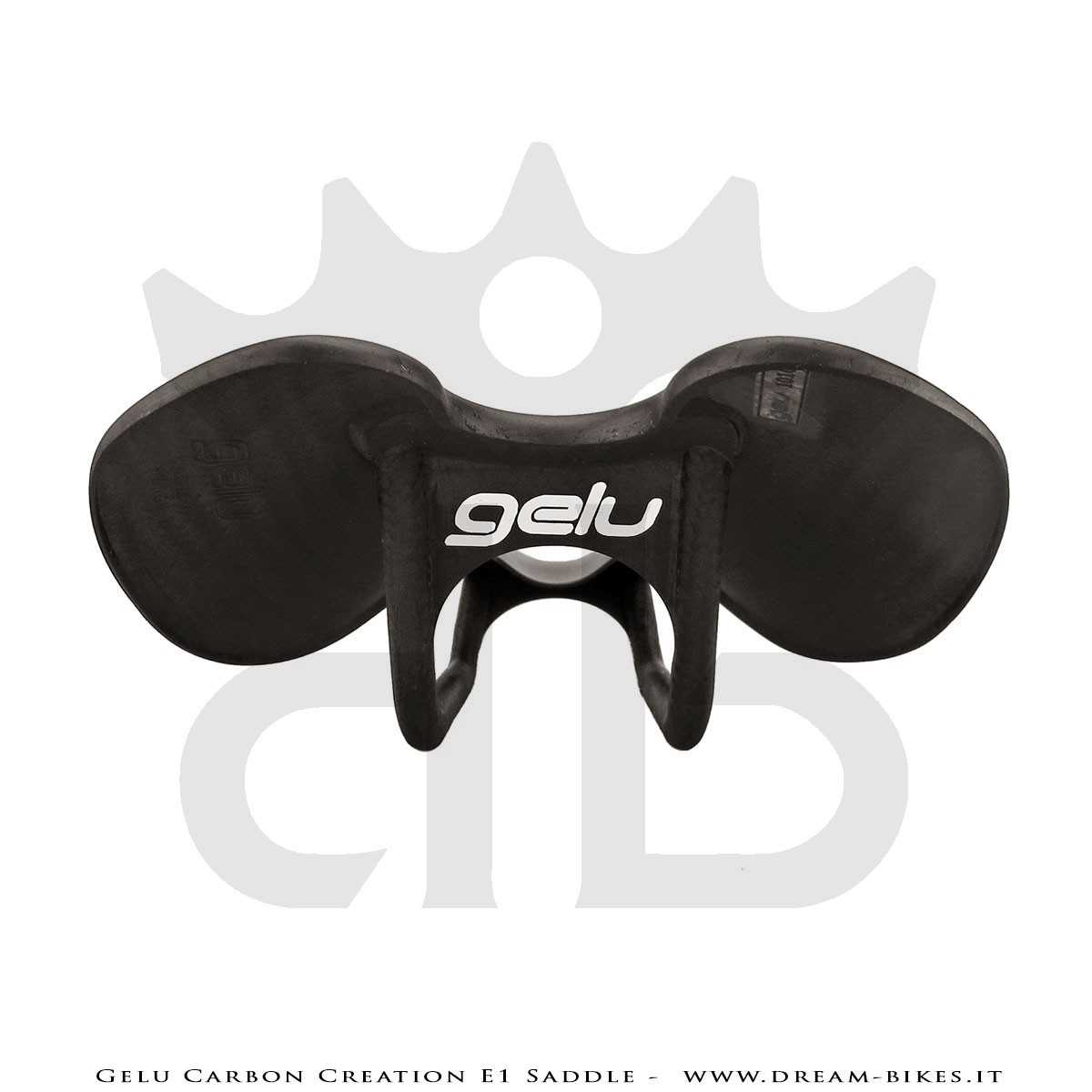

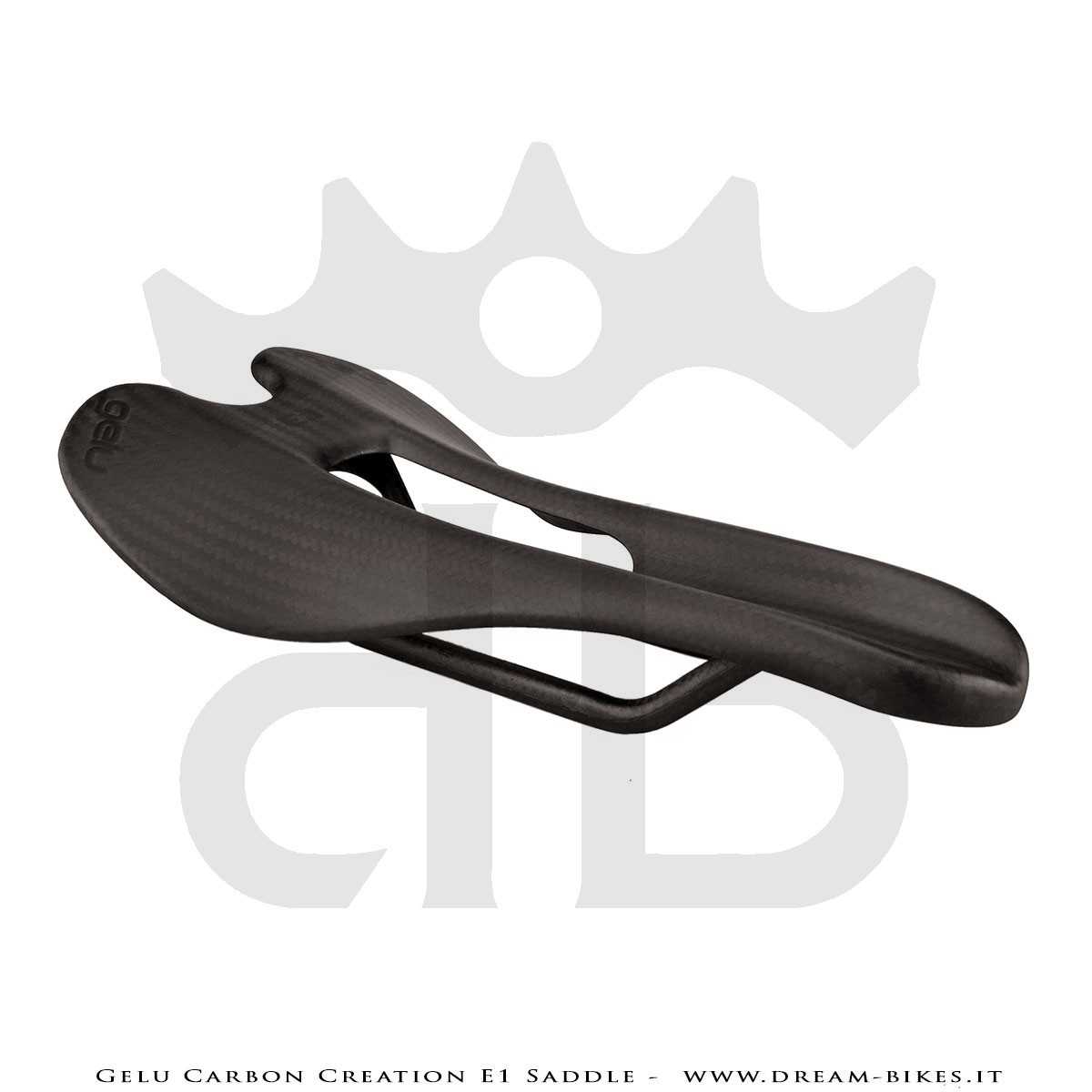

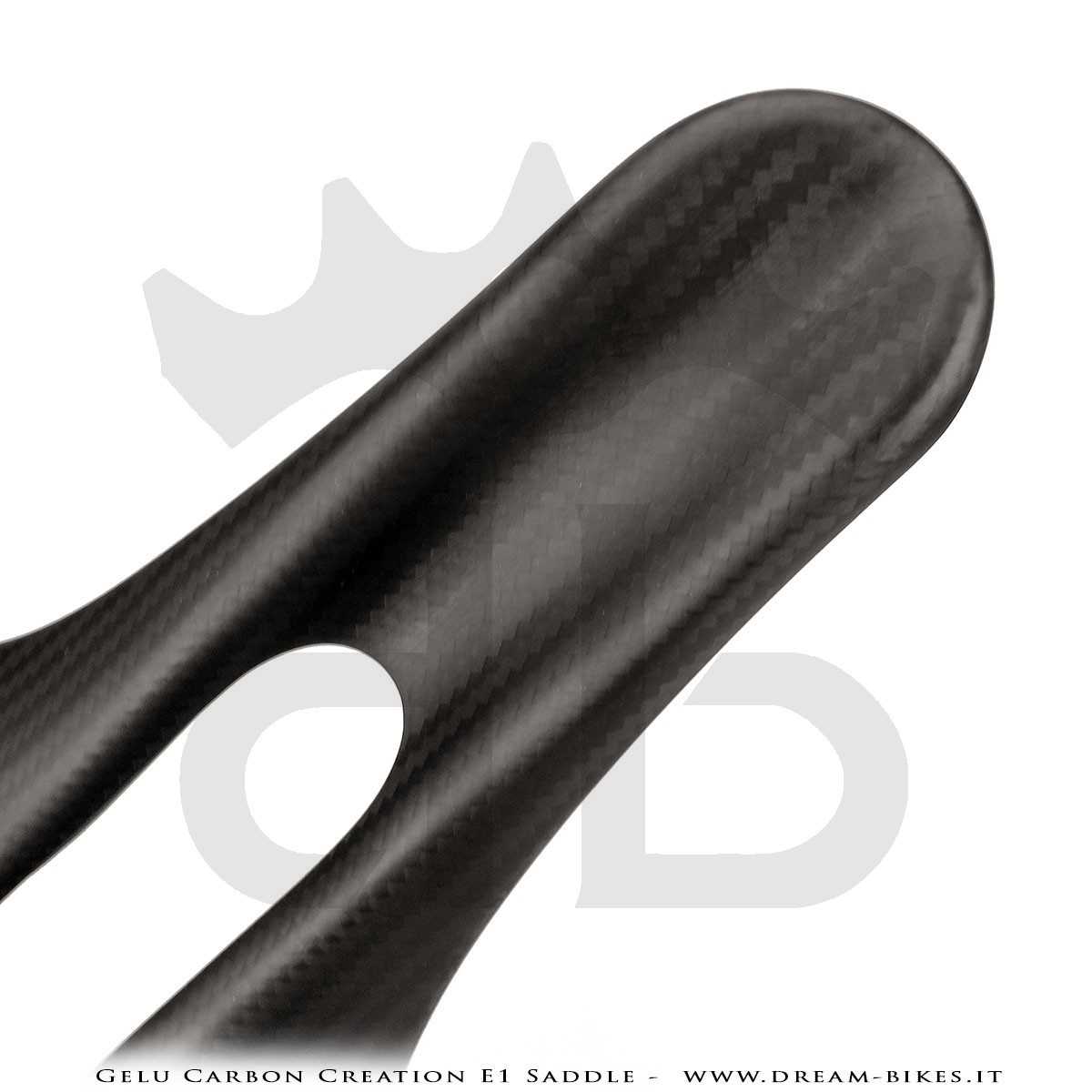

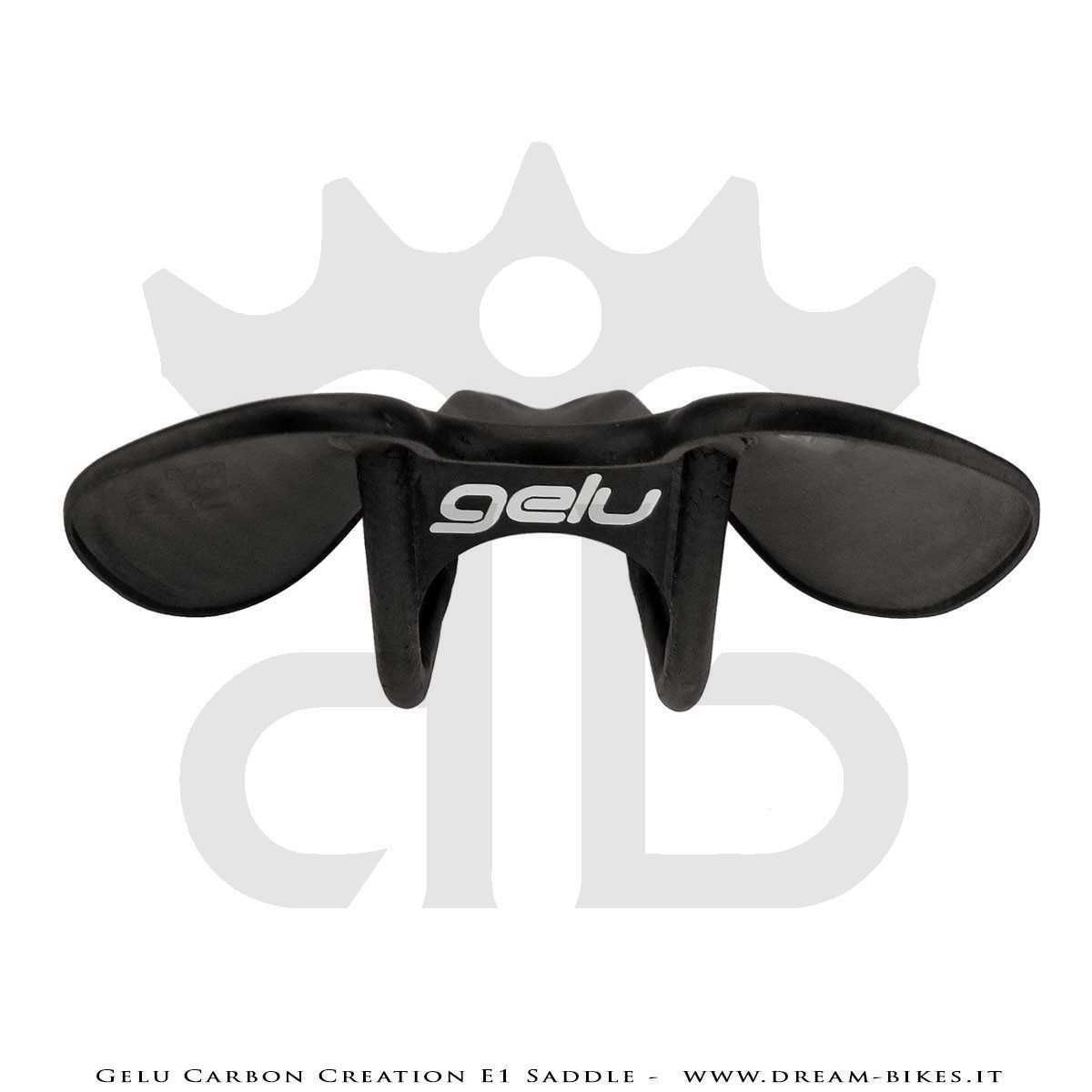

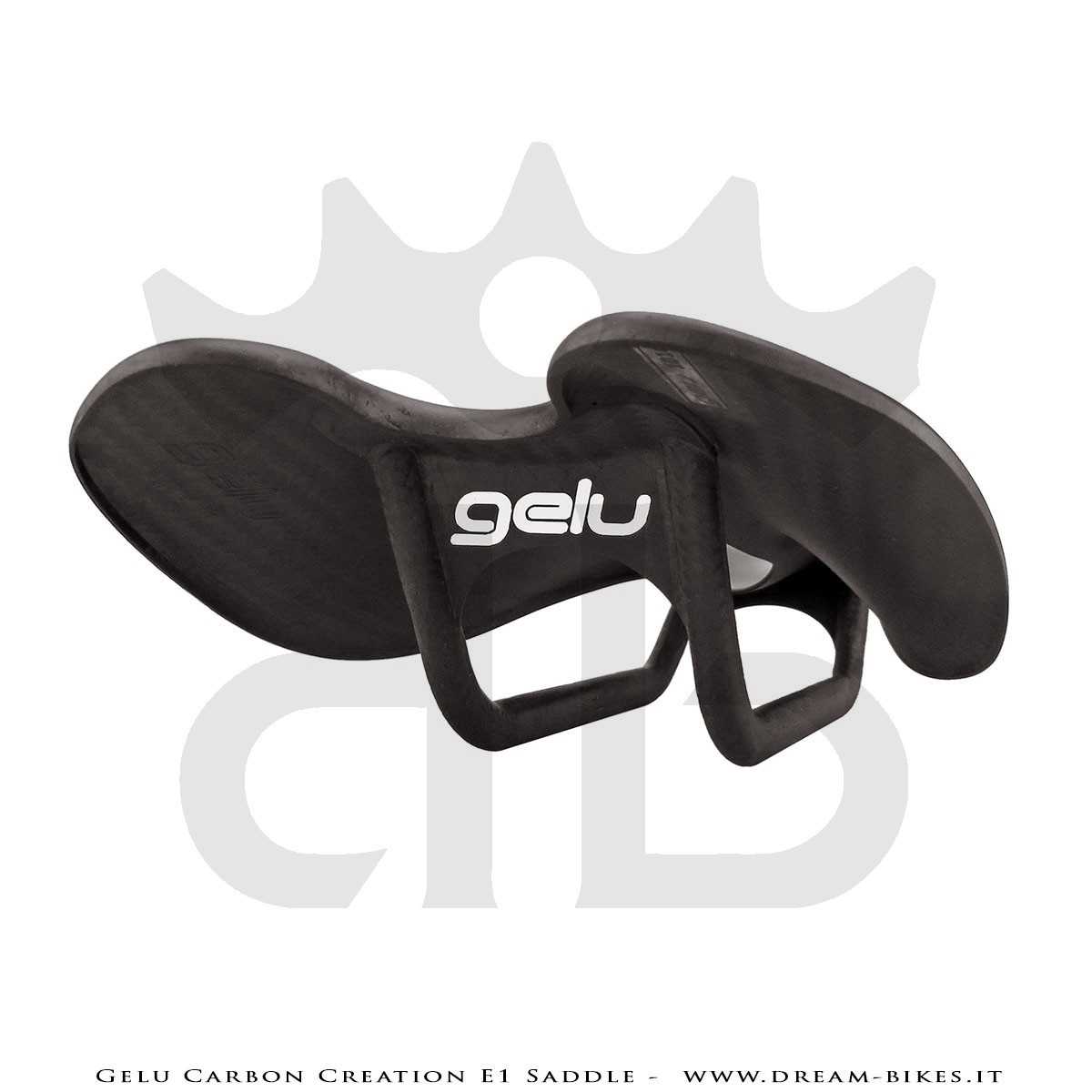

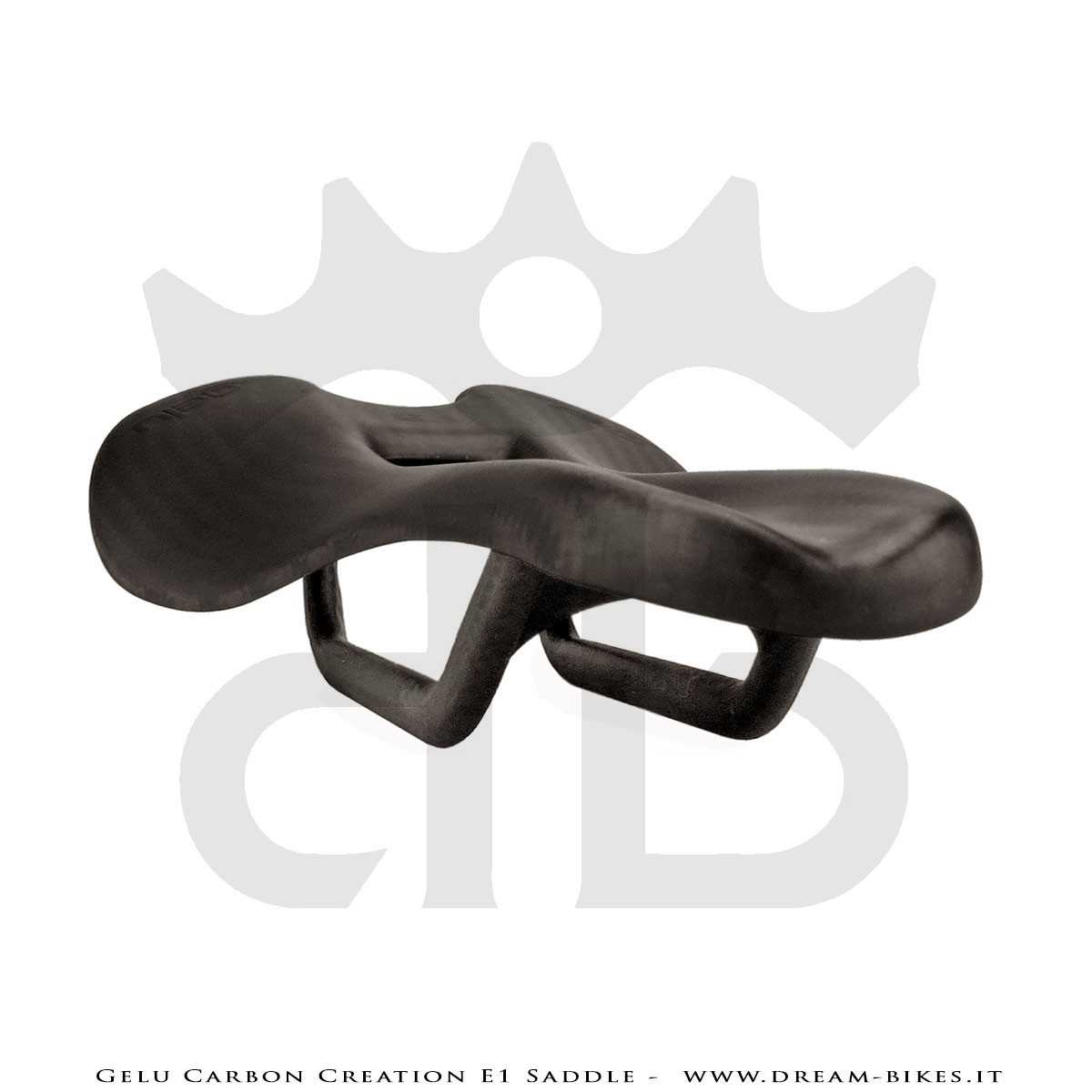

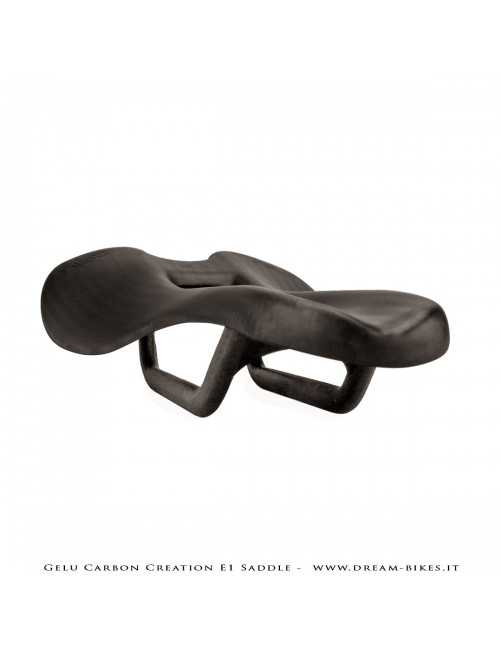

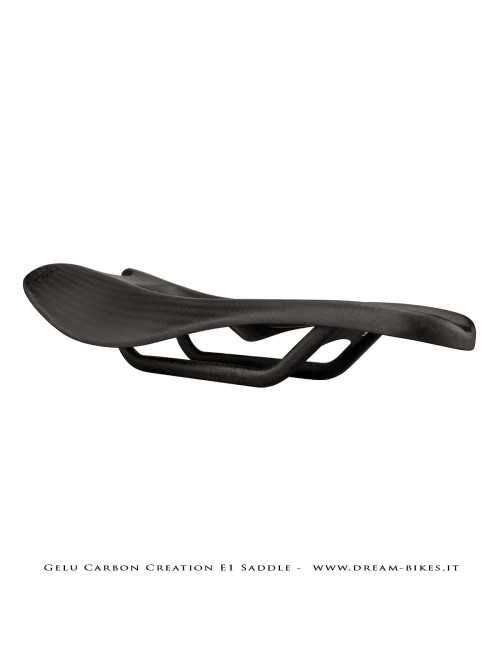

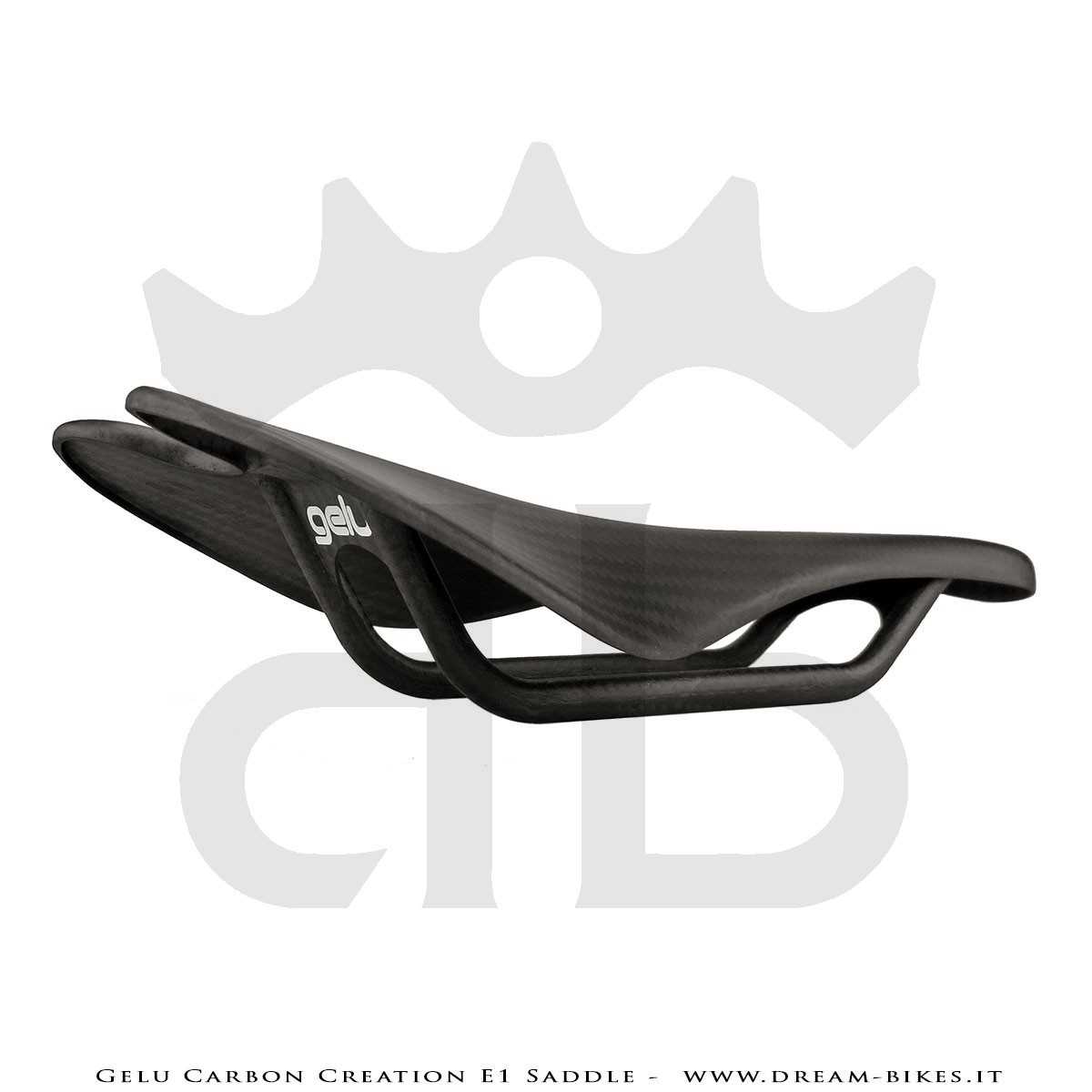

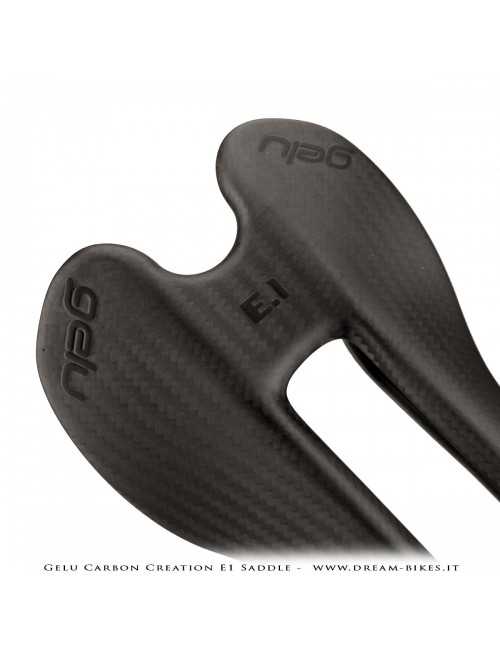

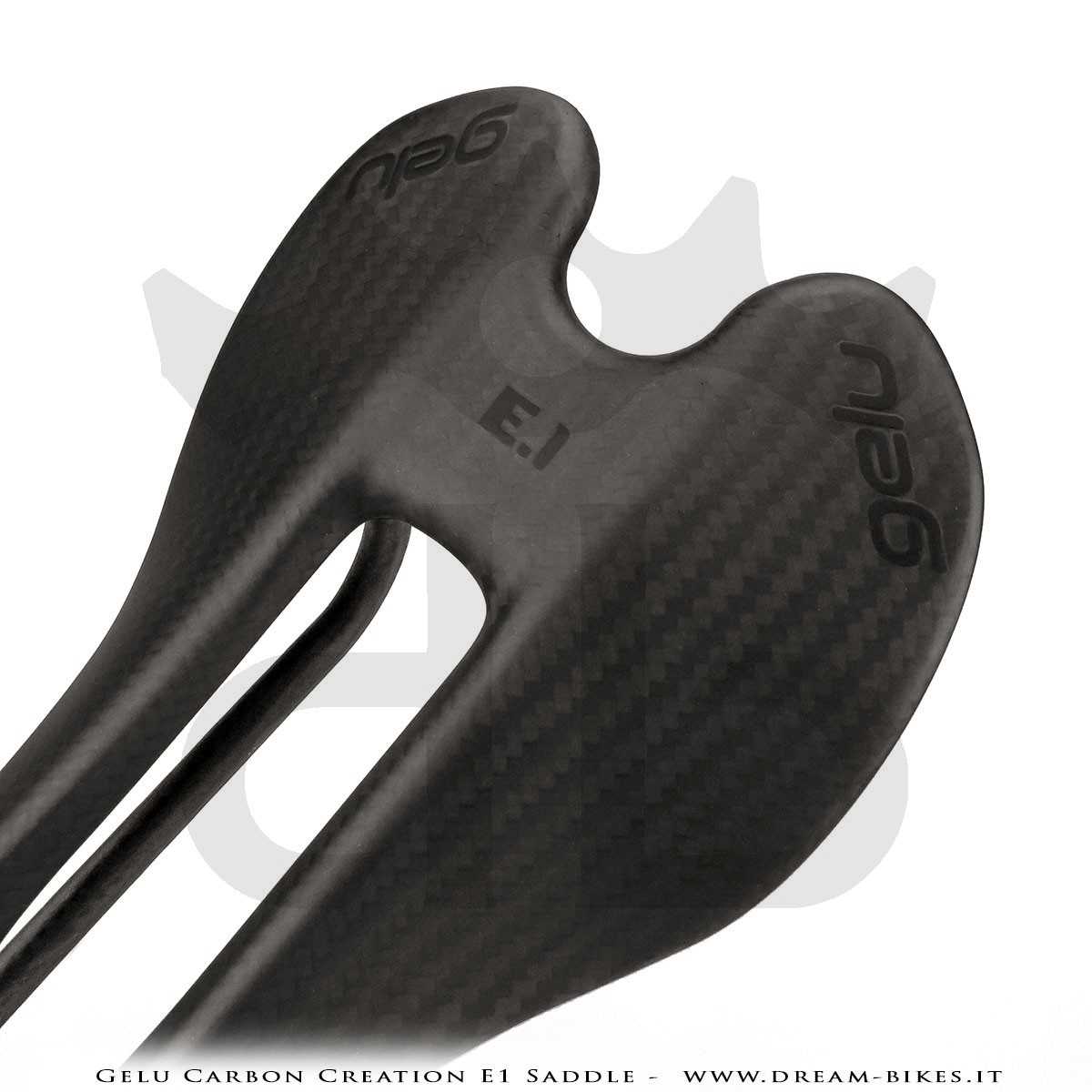

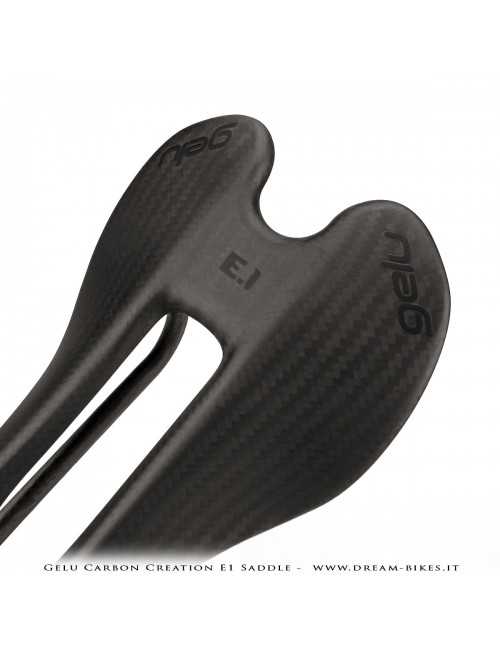

    Rounded edges and smooth side walls gives a great feeling without any problems also after position changing. Lightly raised rear end help to keep the rider in position avoiding sliding sensation, typical for flat carbon fiber saddles.

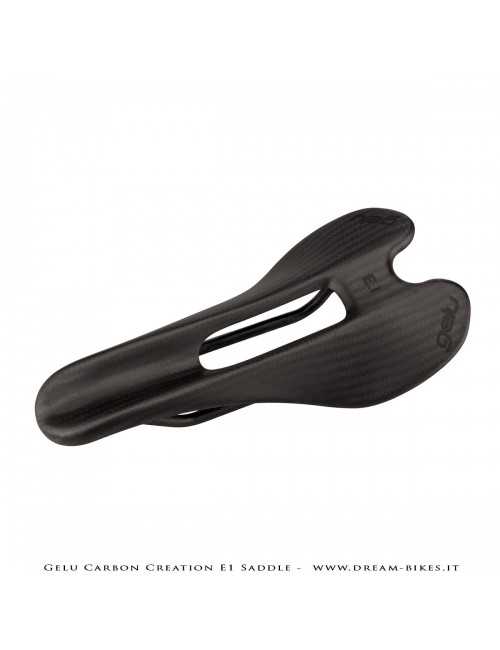

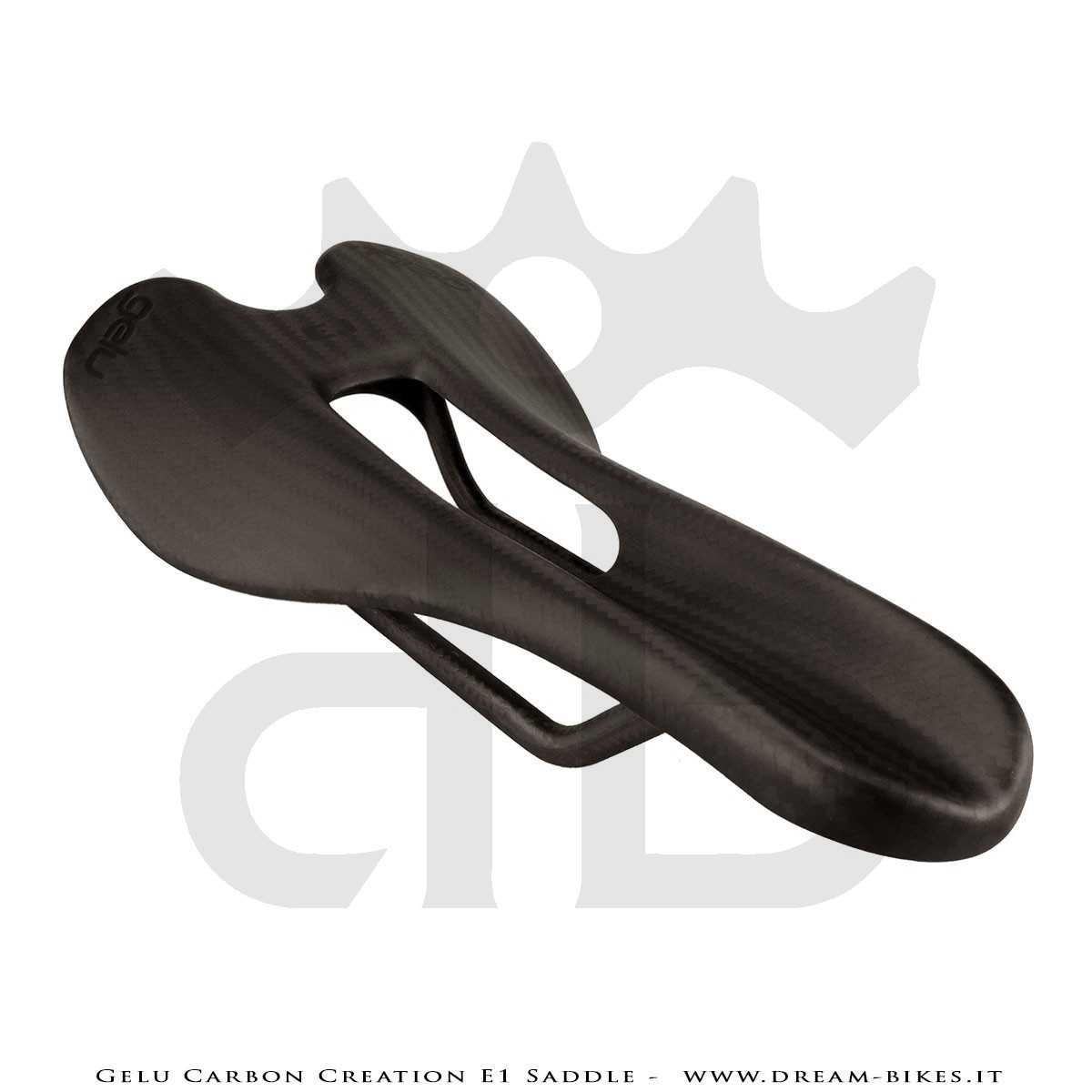

    Gelu Carbon Creation E1 Full Carbon Ultralight Saddle 65 gr.

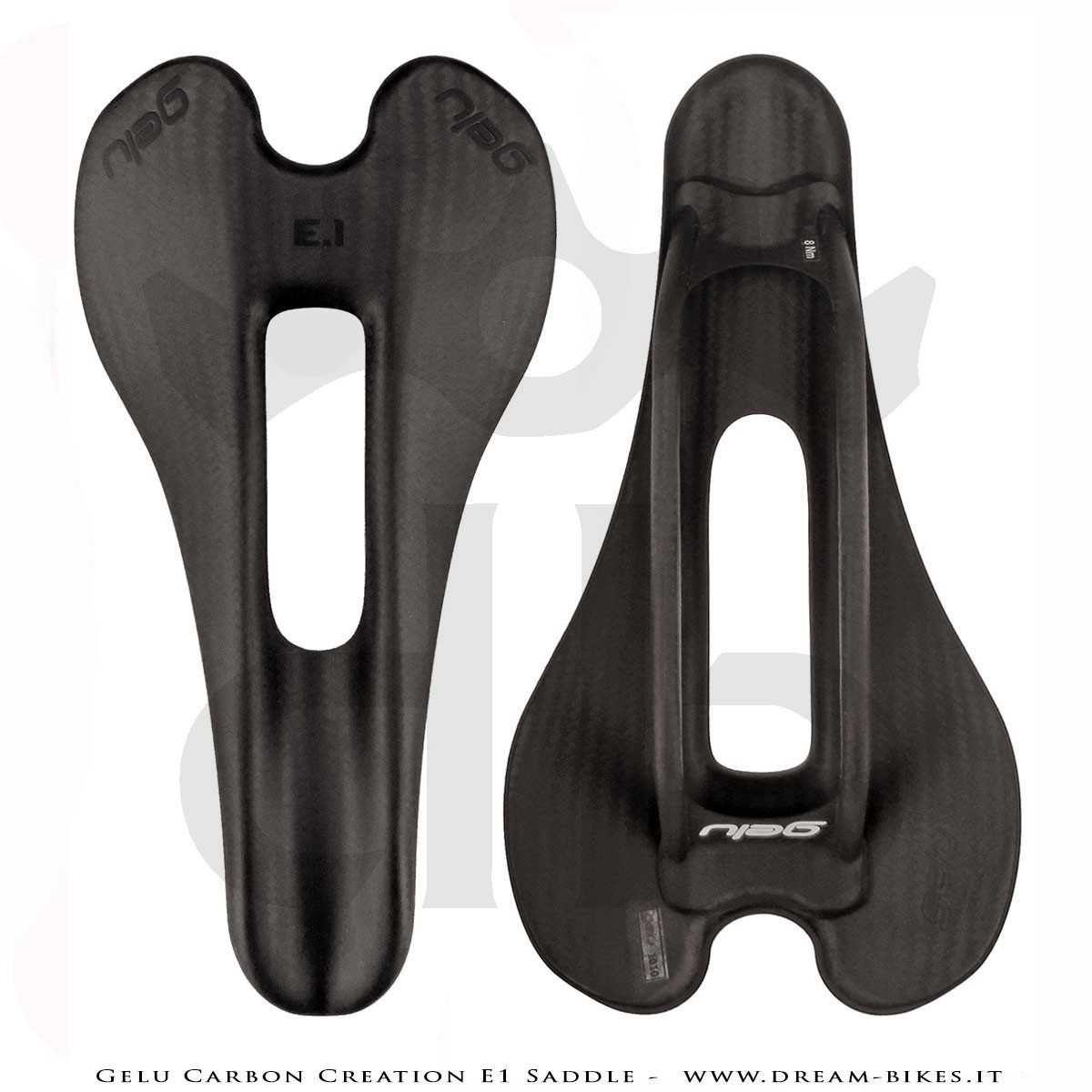

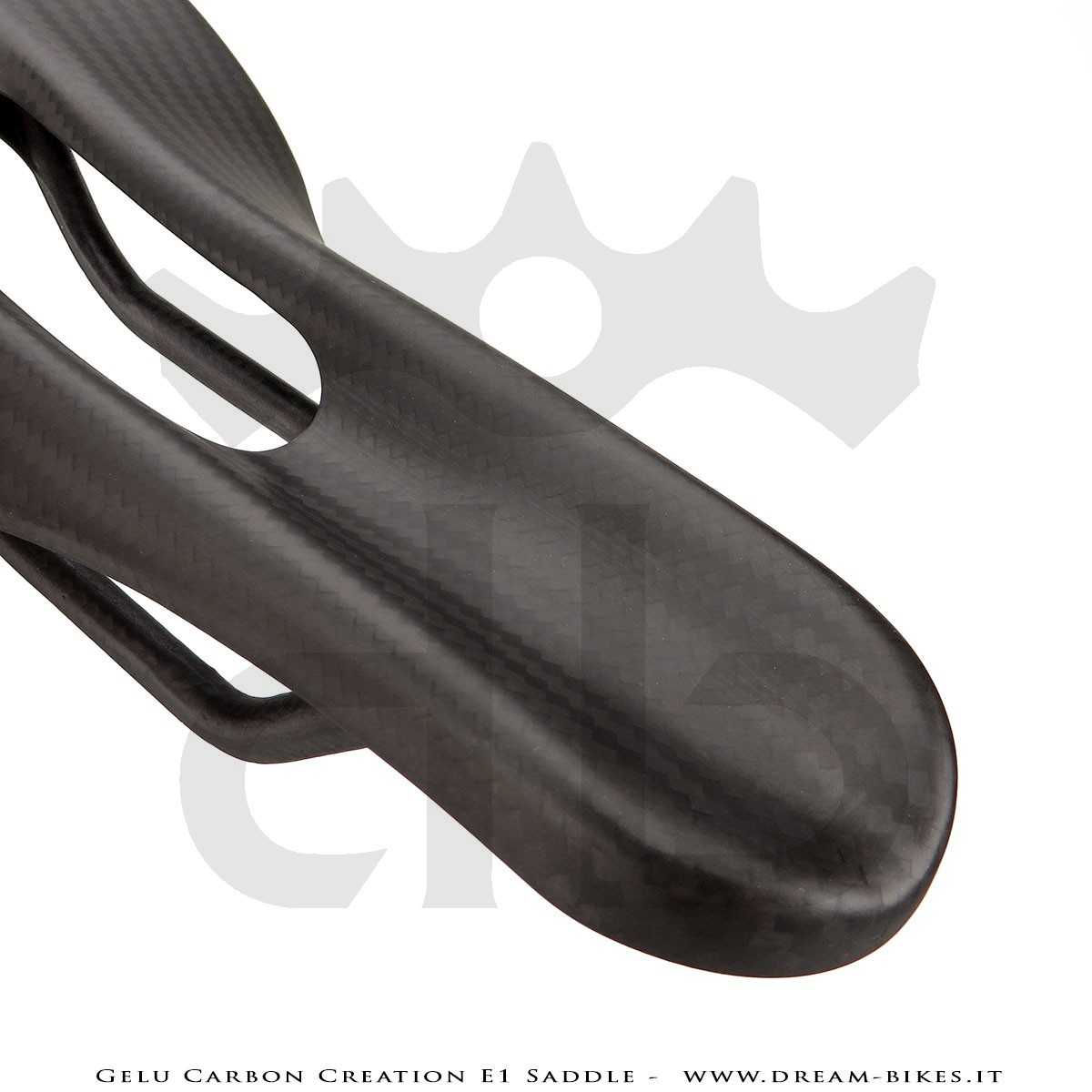

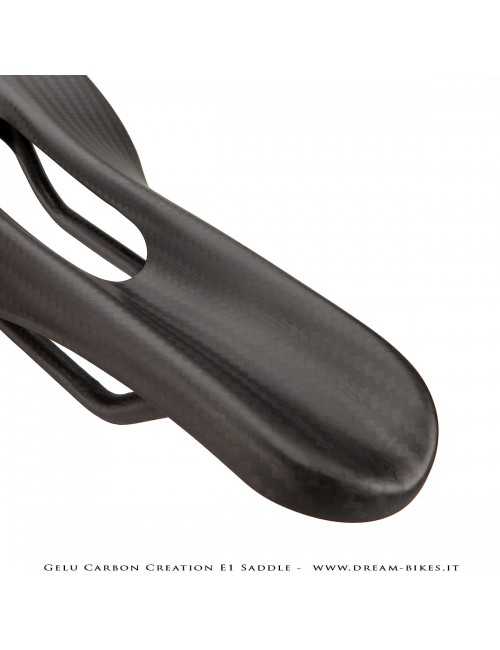

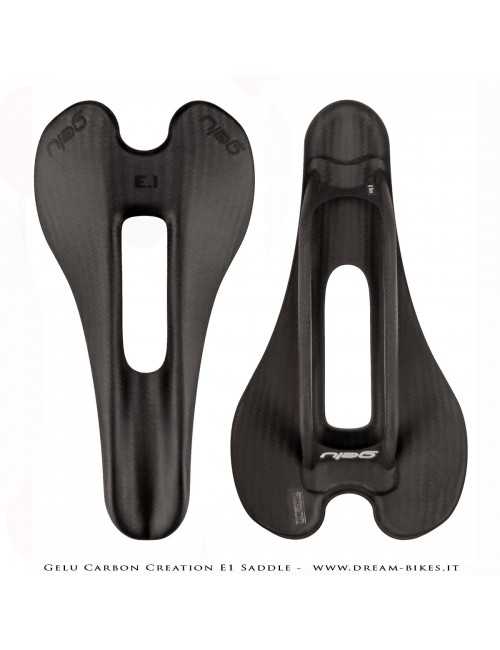

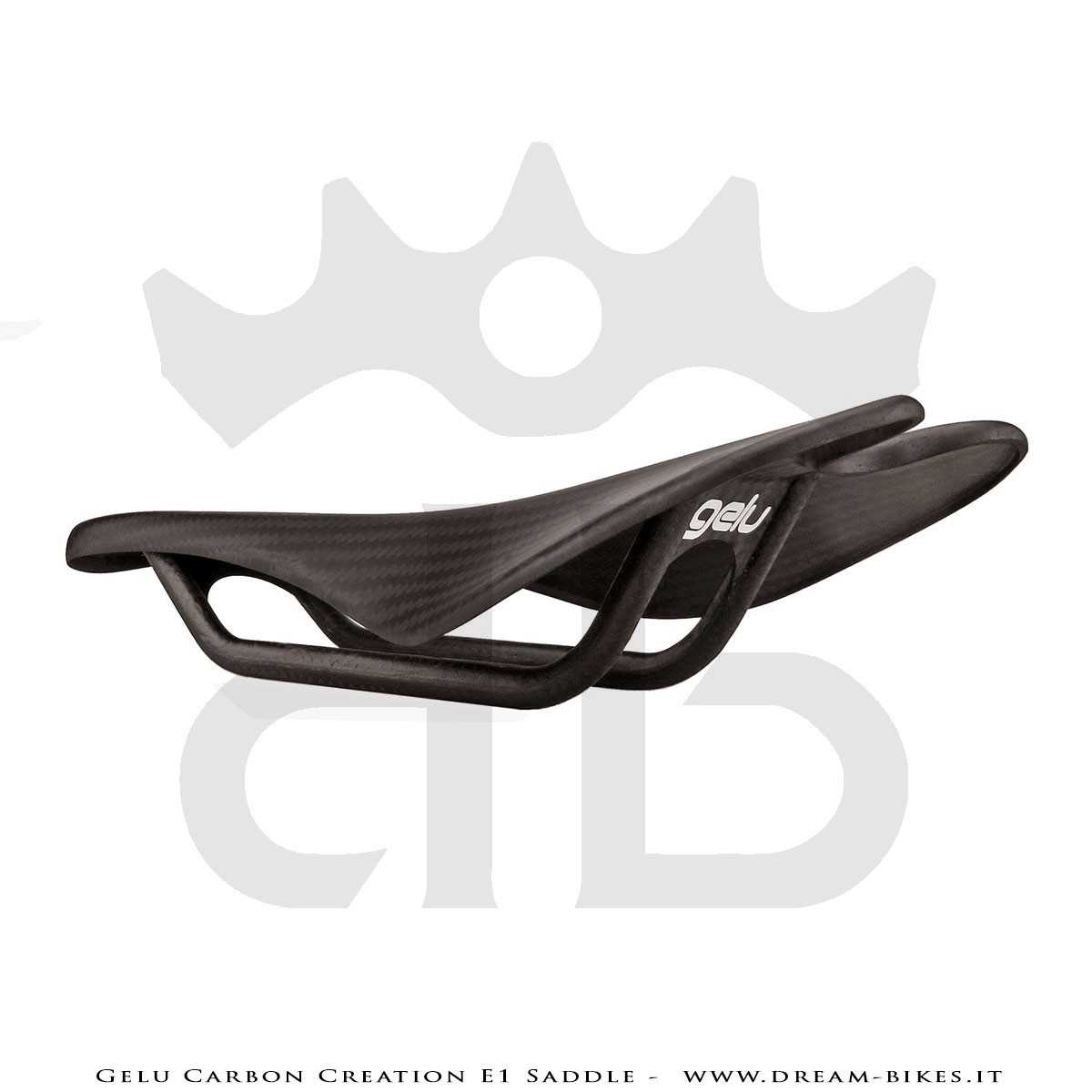

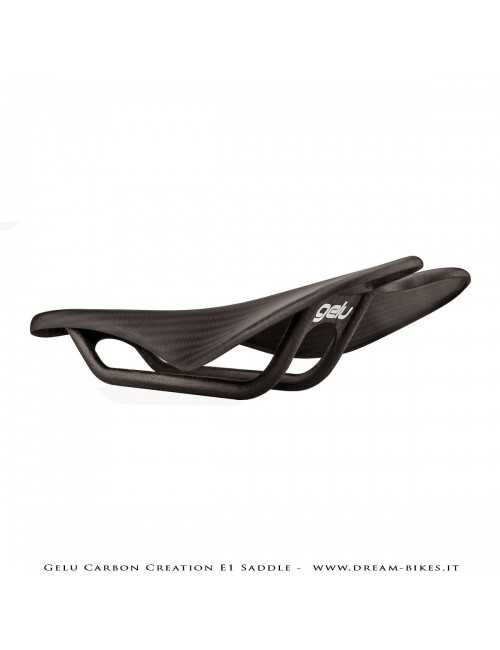

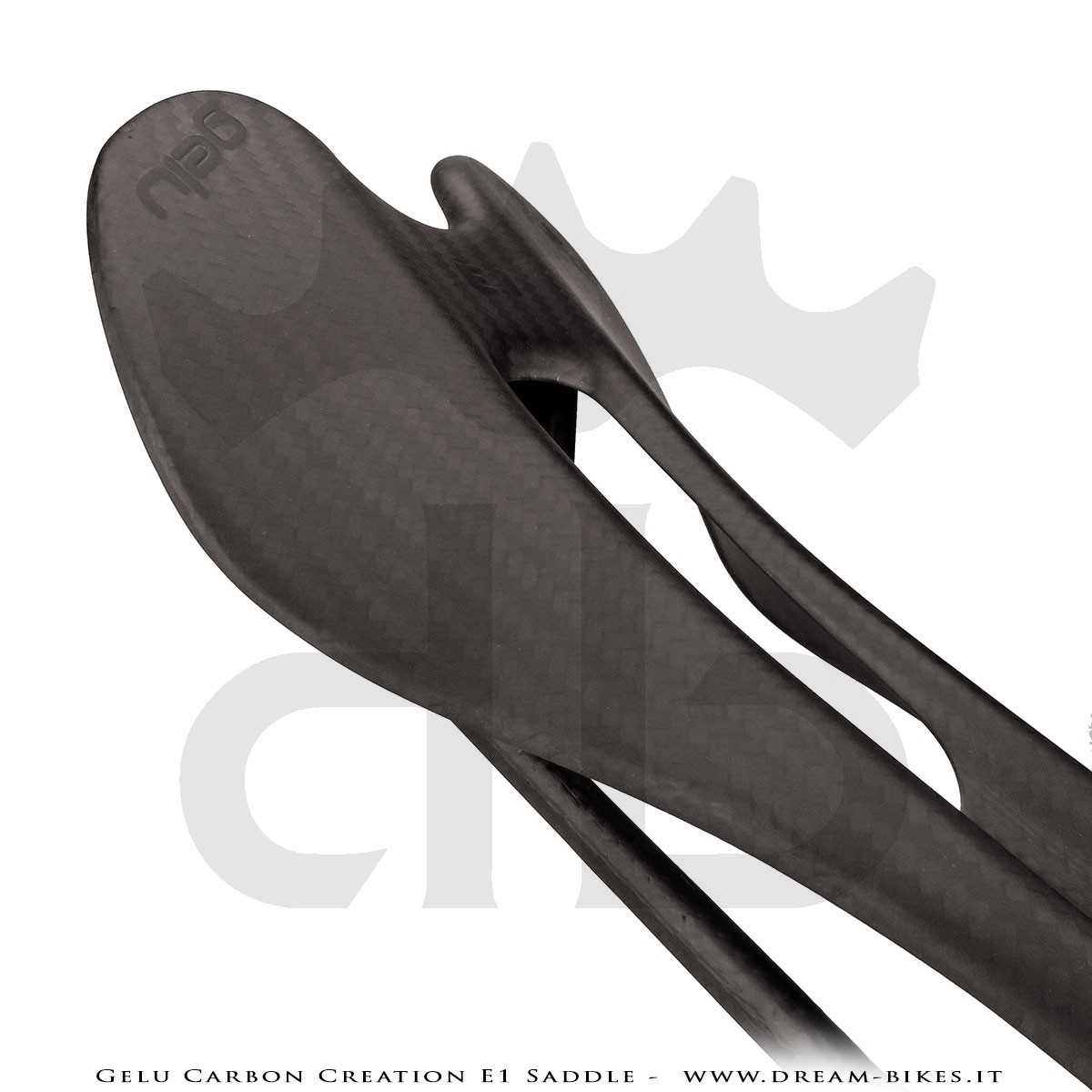

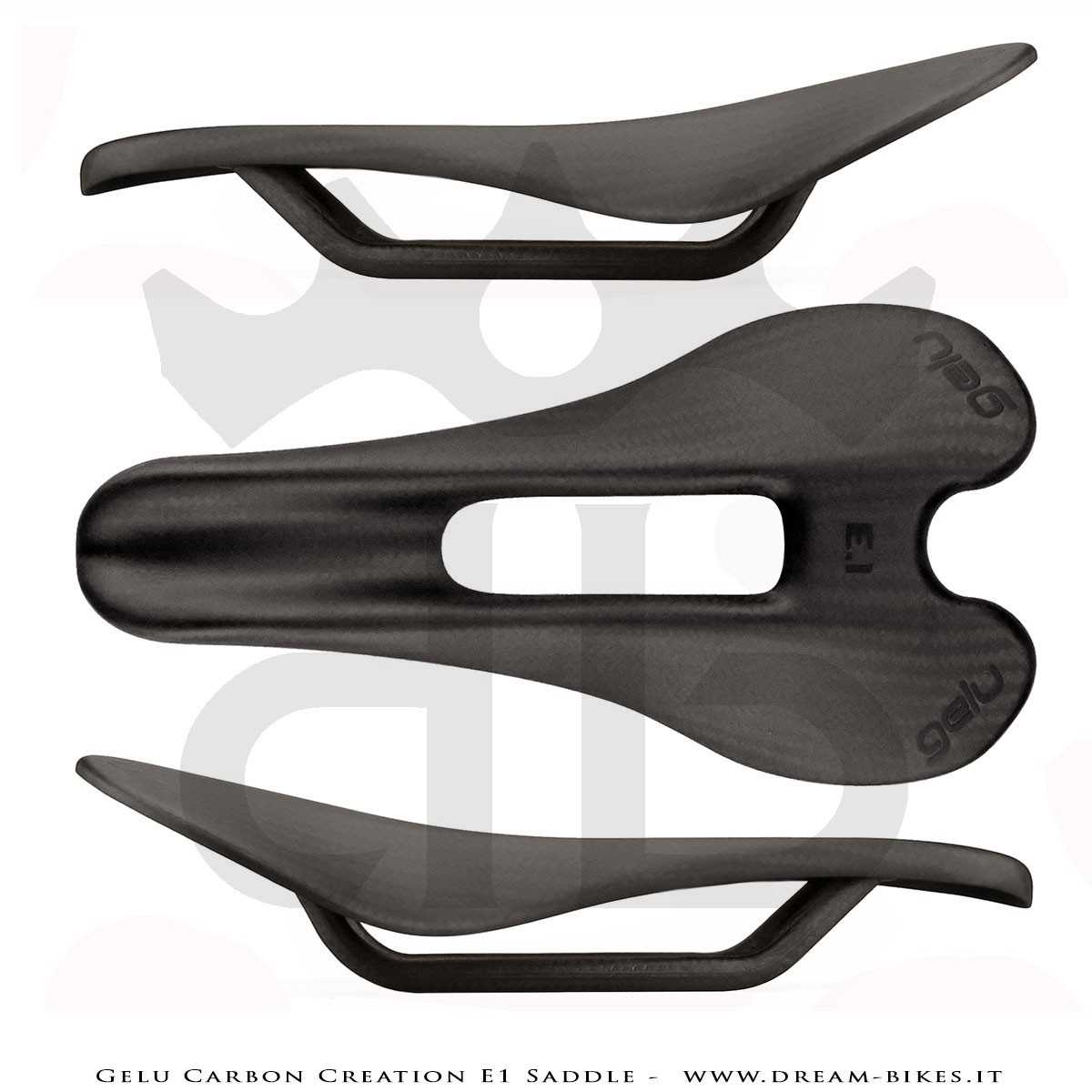

    Gelu E1 saddle is 242 mm long and 124 mm wide, has got a thin and long front end with the anatomical center of the saddle (where it's 72 mm wide) at about 130 mm from the front nose.

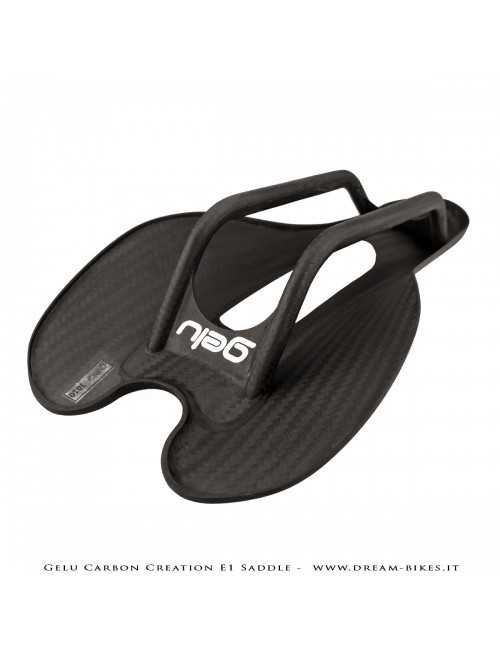

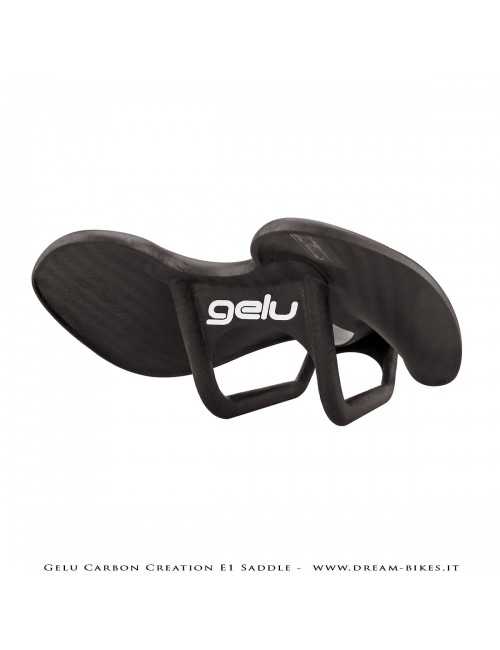

    Gelu Carbon Creation E1 Full Carbon Ultralight Saddle 65 gr.

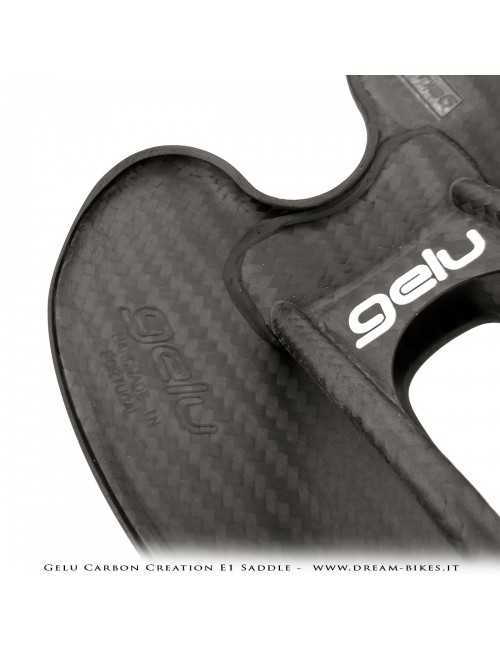

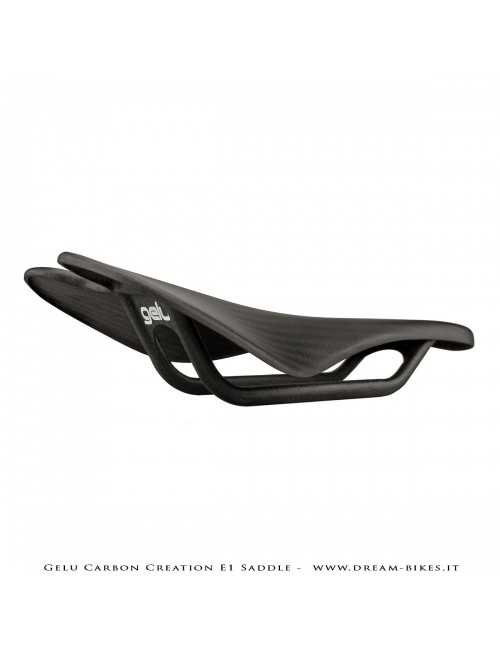

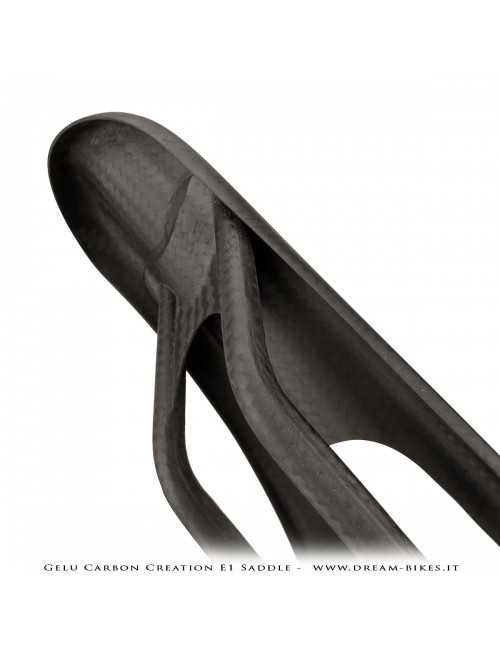

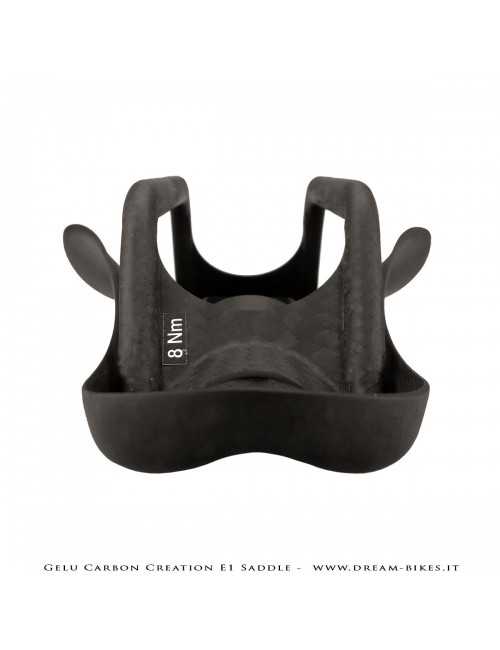

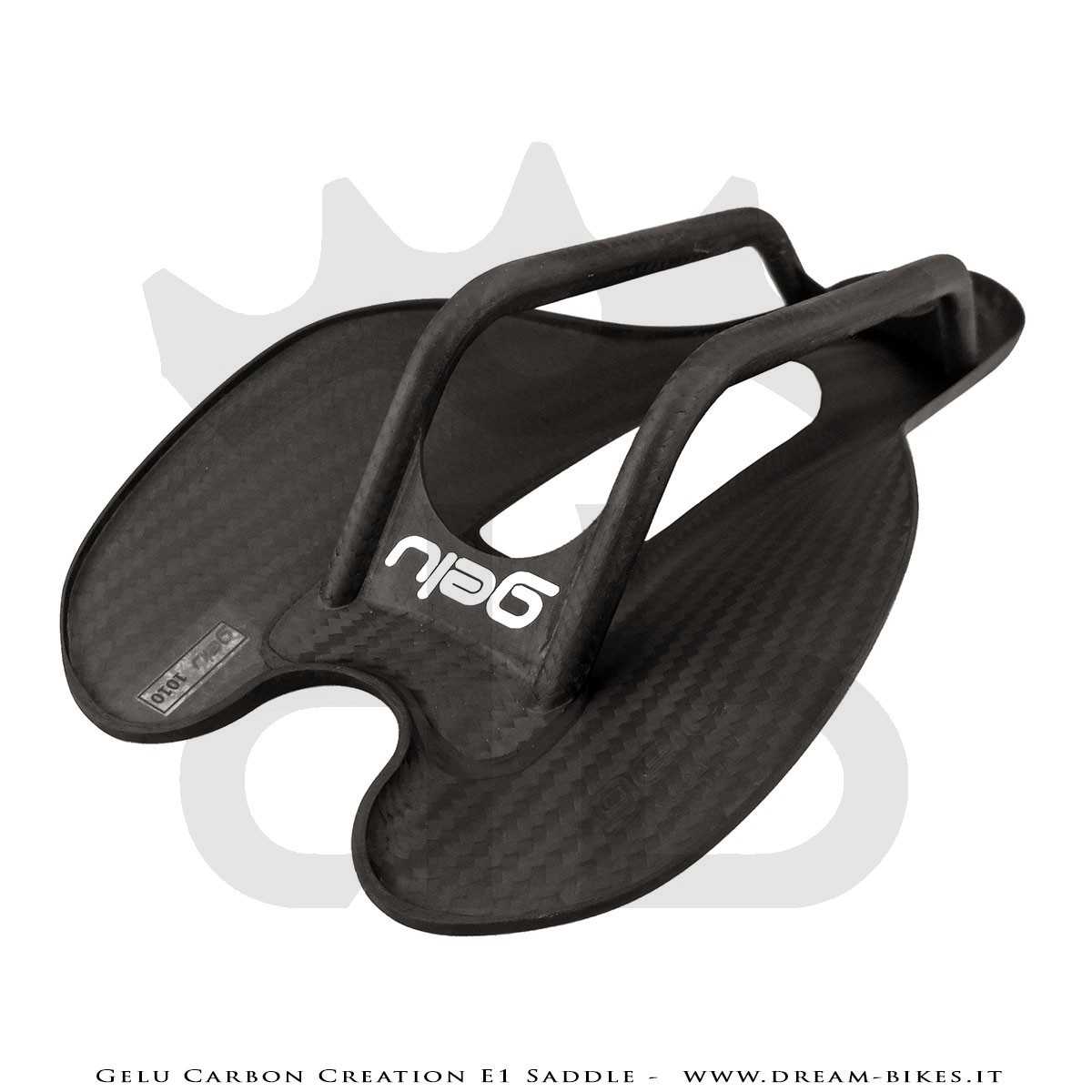

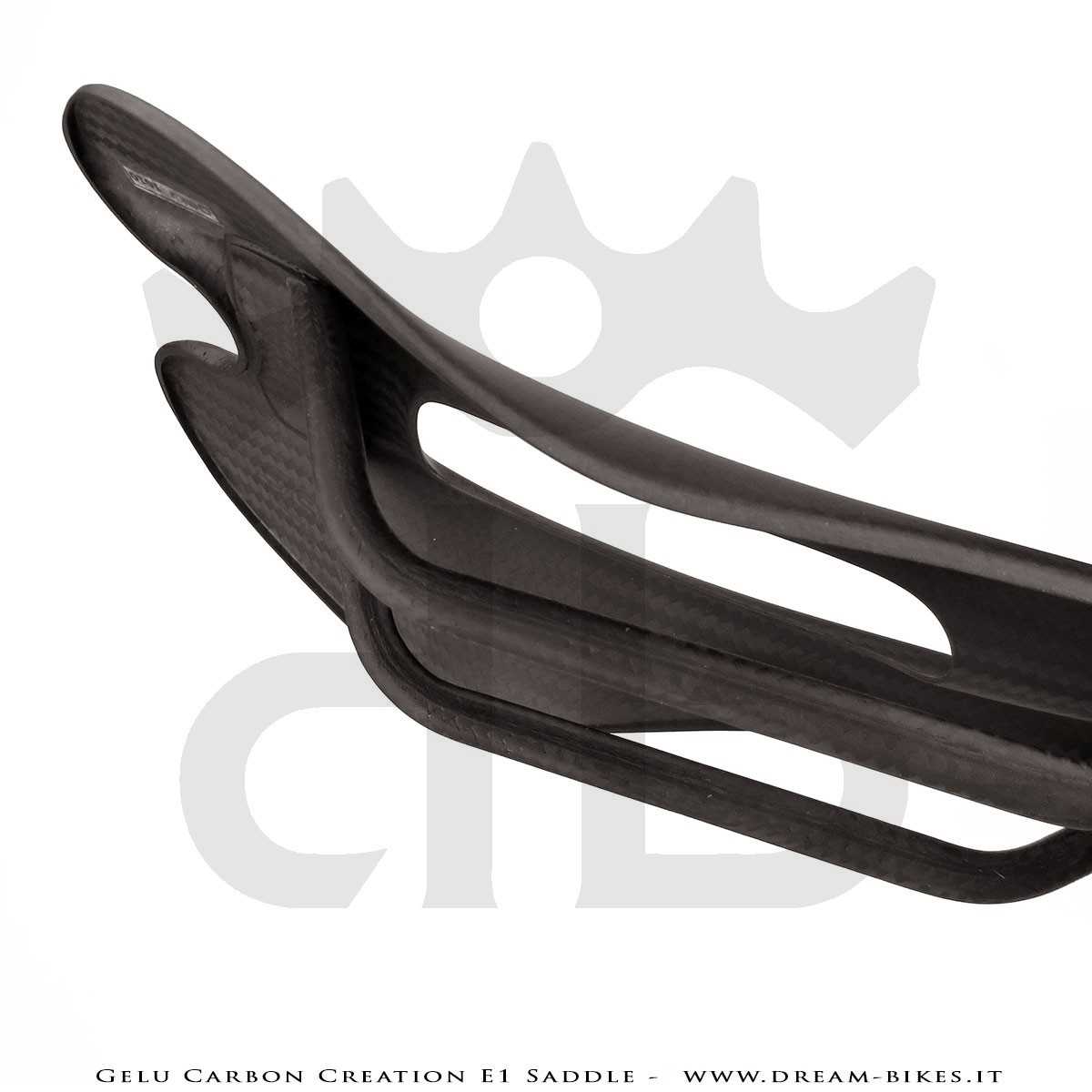

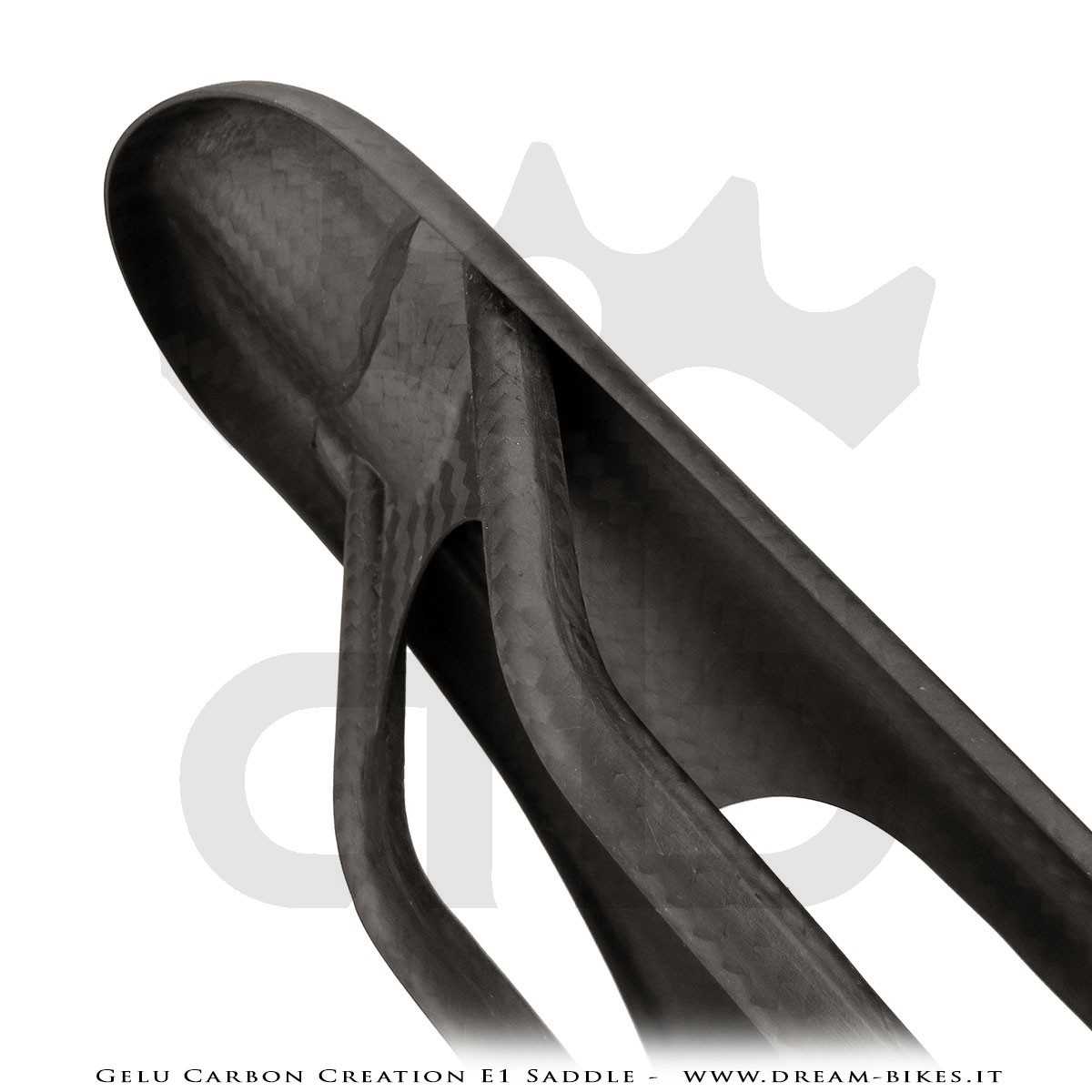

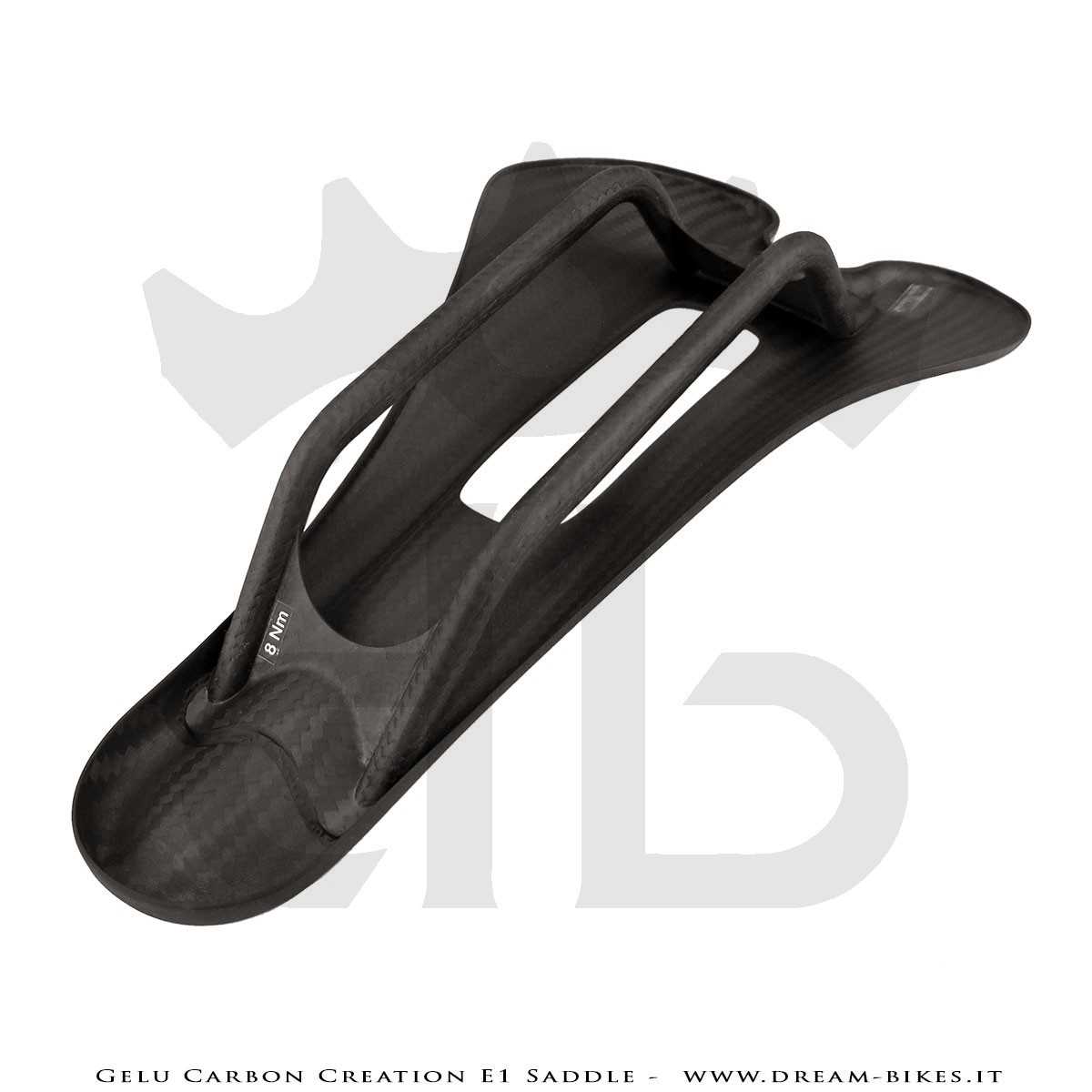

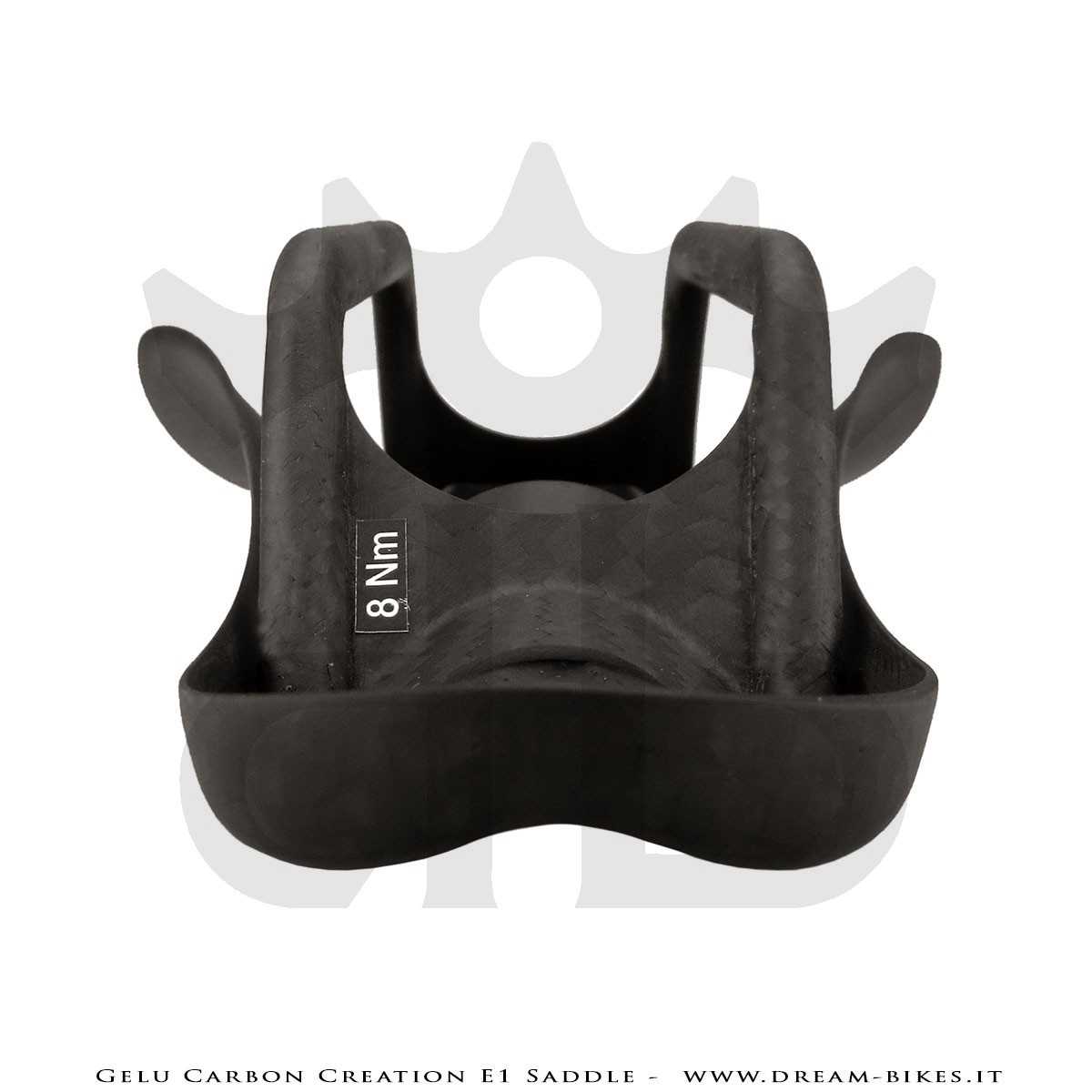

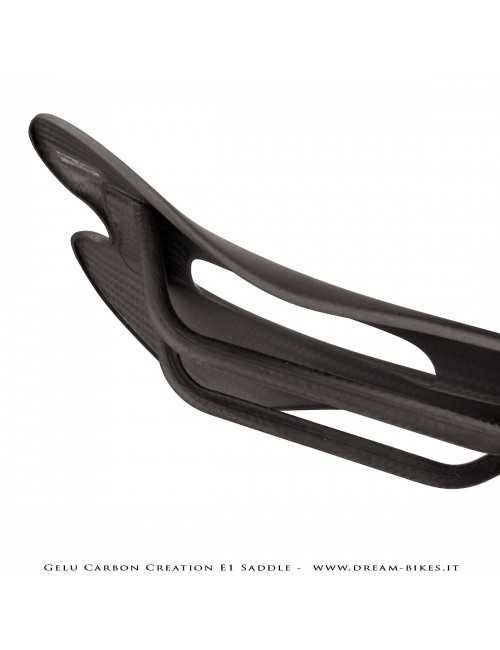

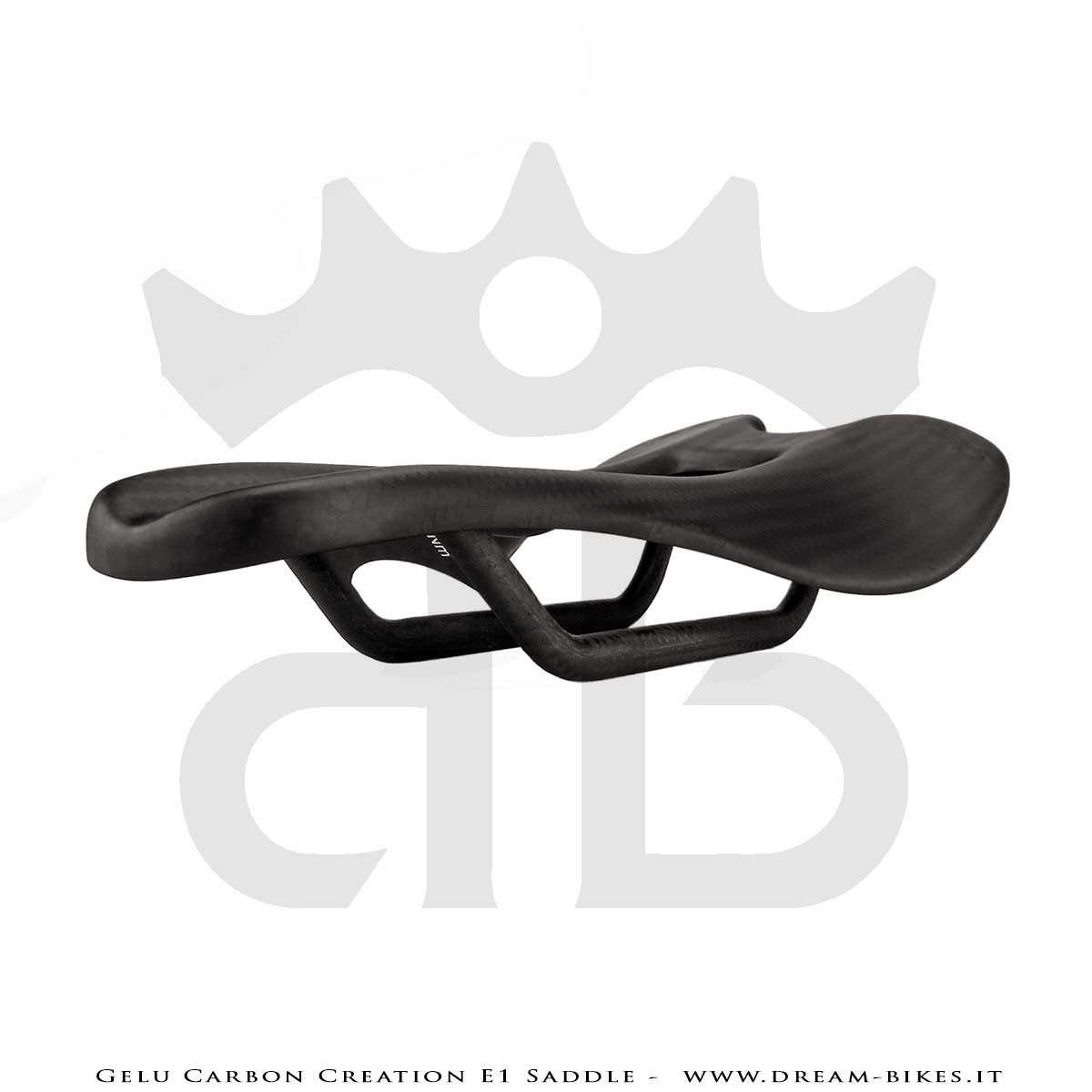

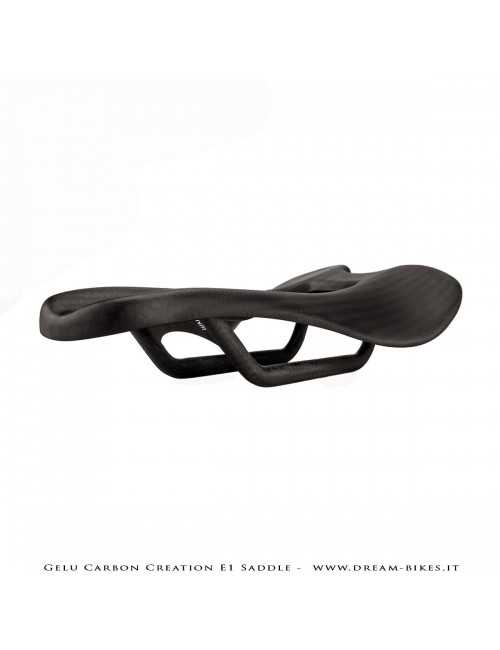

    The rails are oval shape, made of high module reinforced carbon fibers molded with high pressure to assure a great resistance, they could be tightened up to 8 Nm! There are also two bridges between saddle rails which allows a great torsional stiffness and also adds a nice look. The rails has got about 85 mm range of horizontal regulation. Saddle body height is about 35 mm.

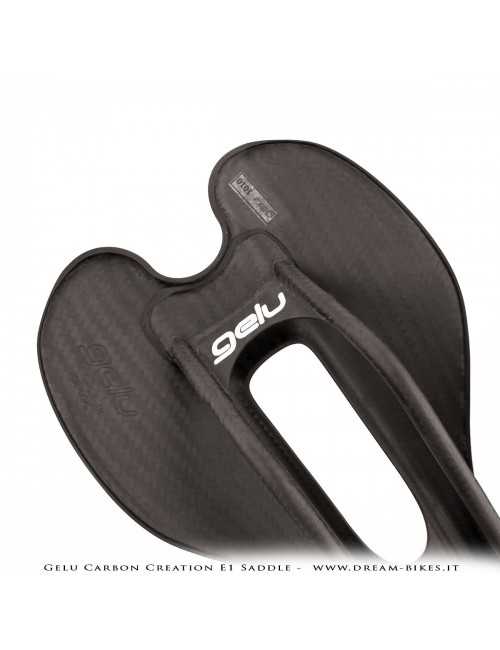

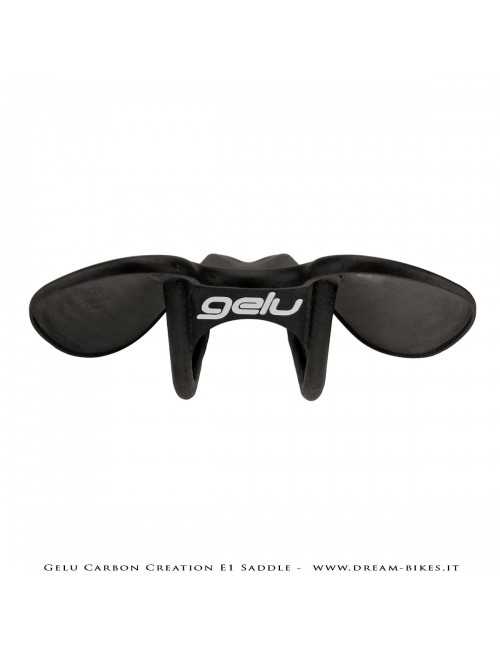

    Gelu Carbon Creation E1 Full Carbon Ultralight Saddle 65 gr.

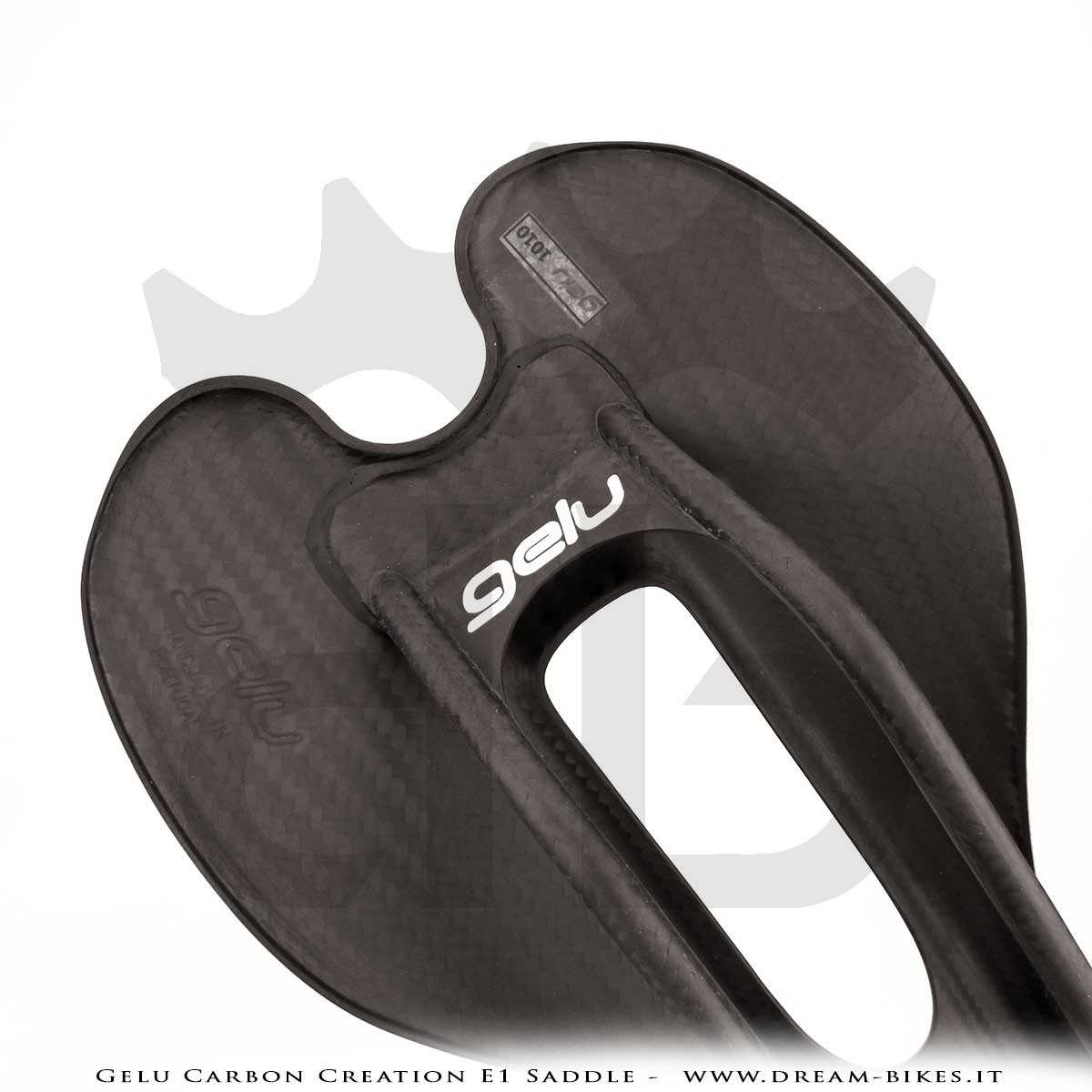

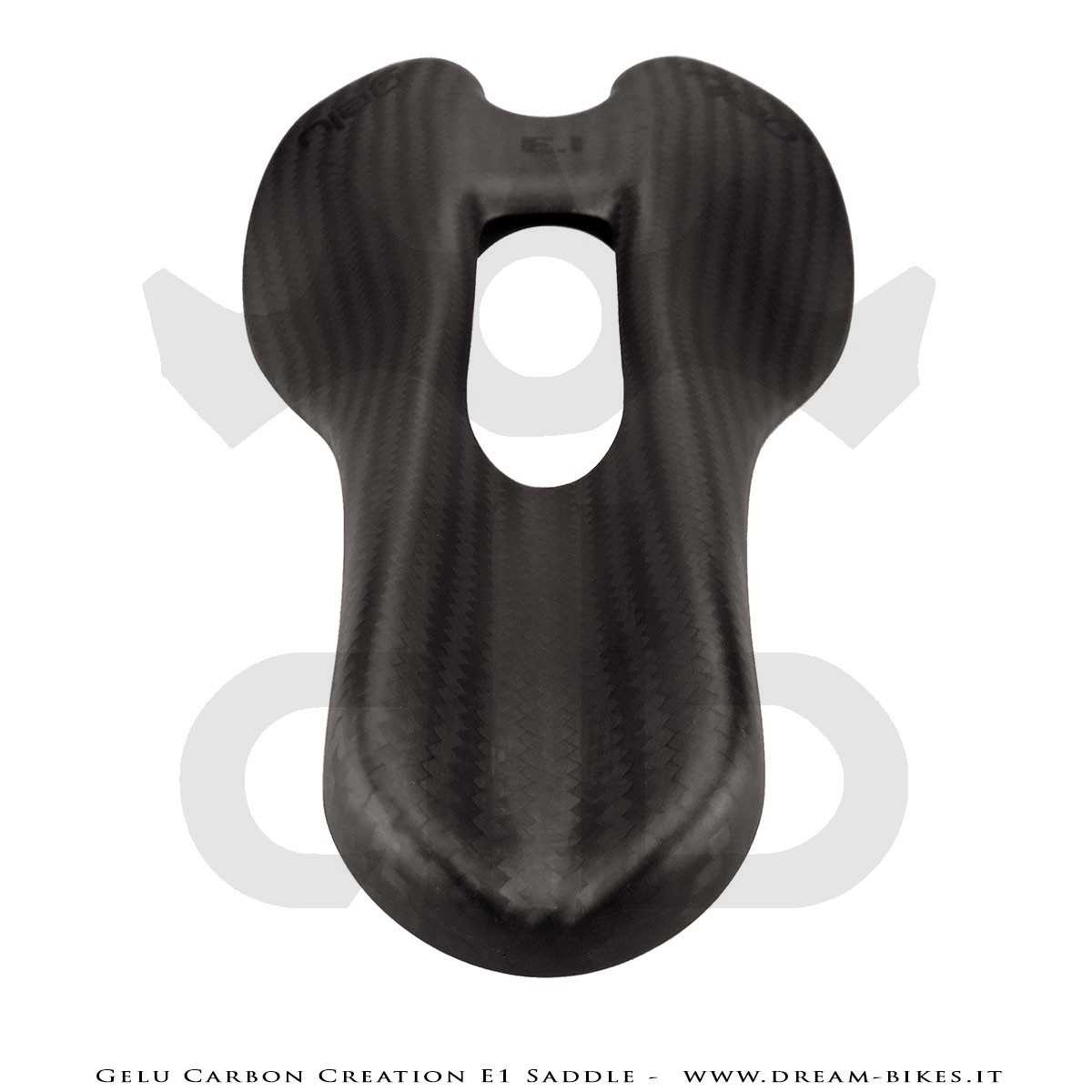

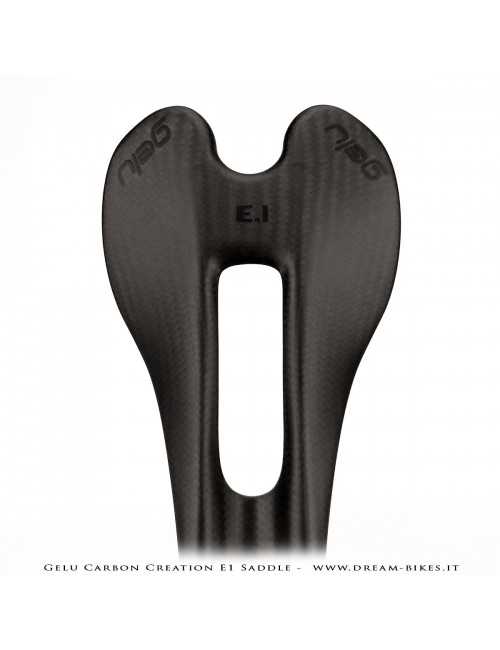

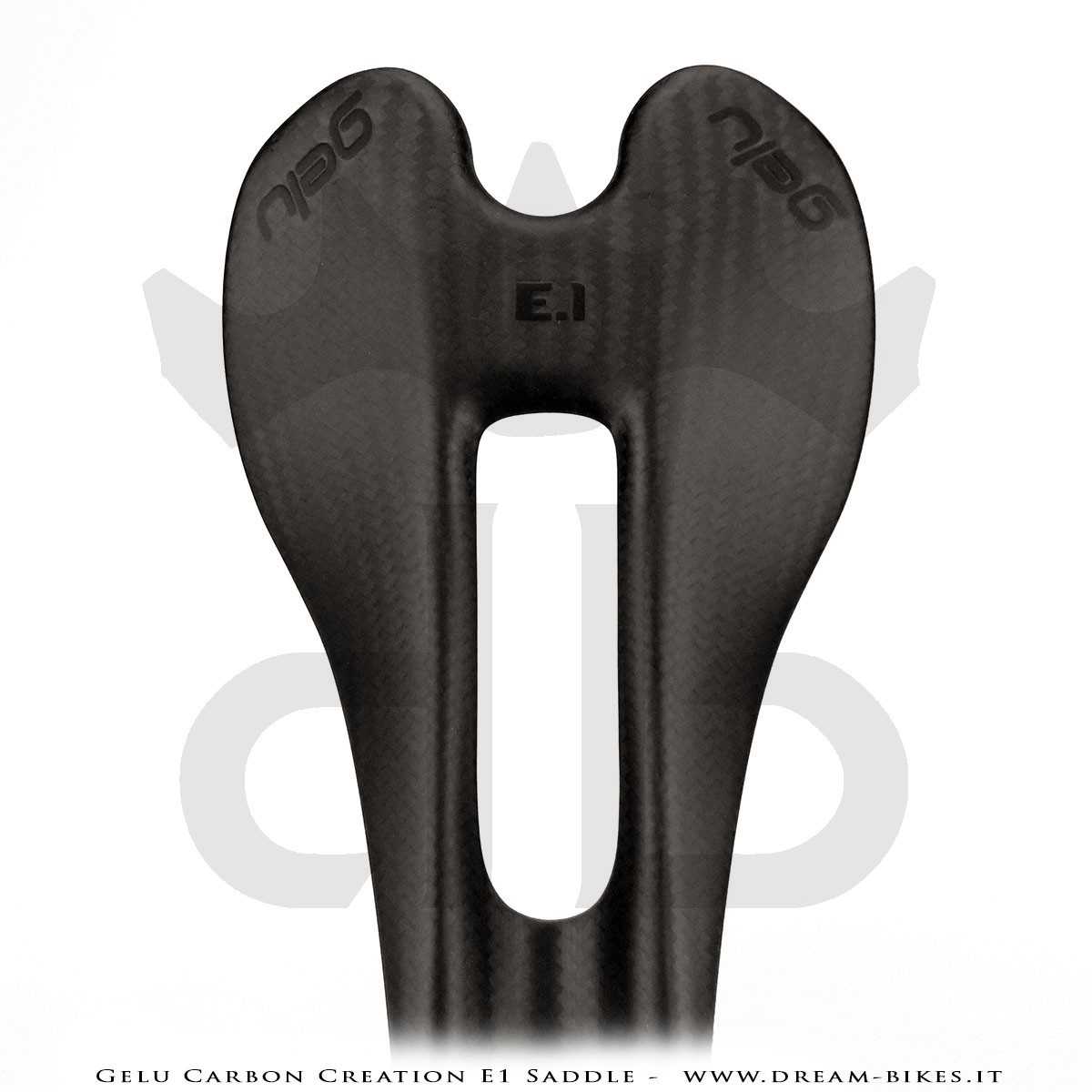

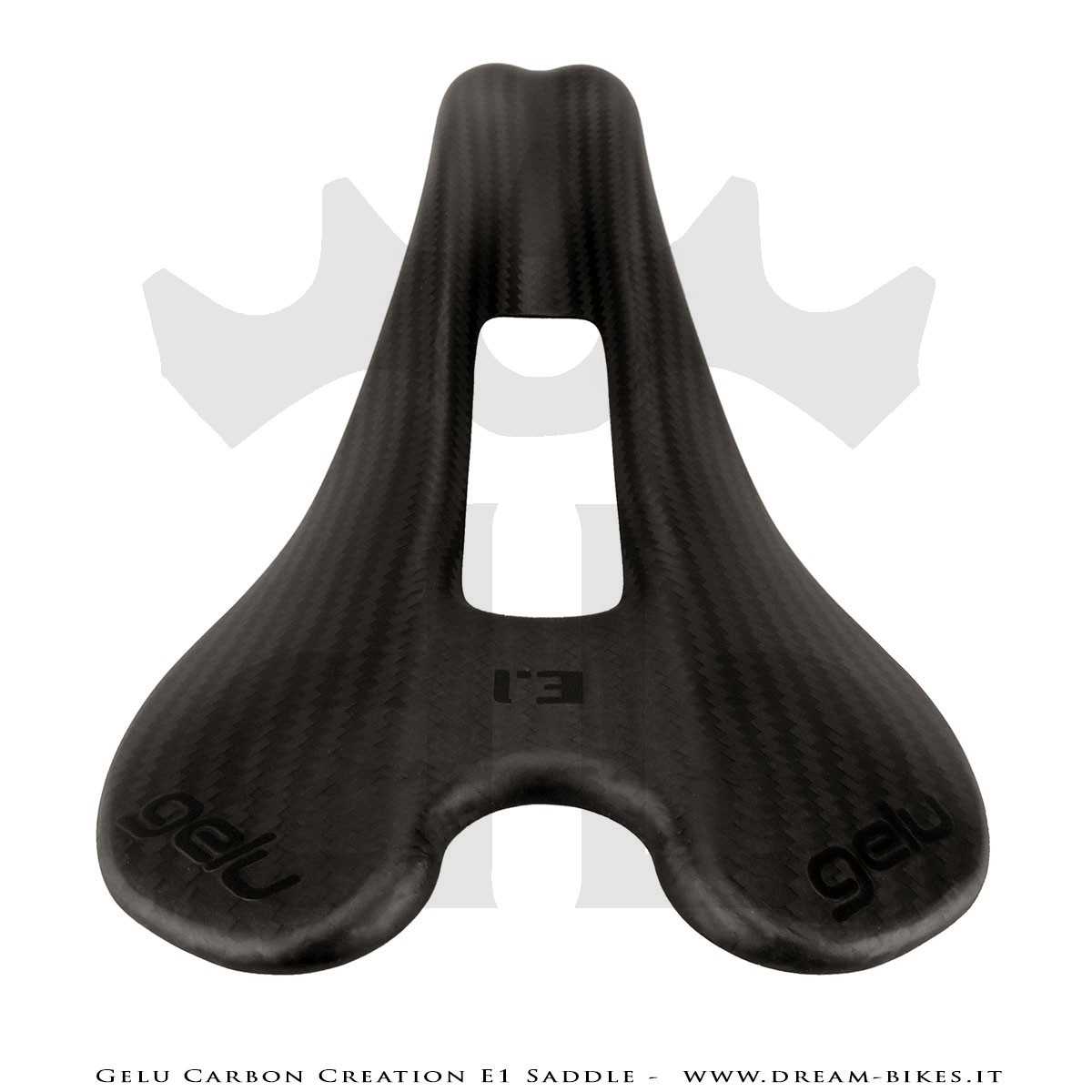

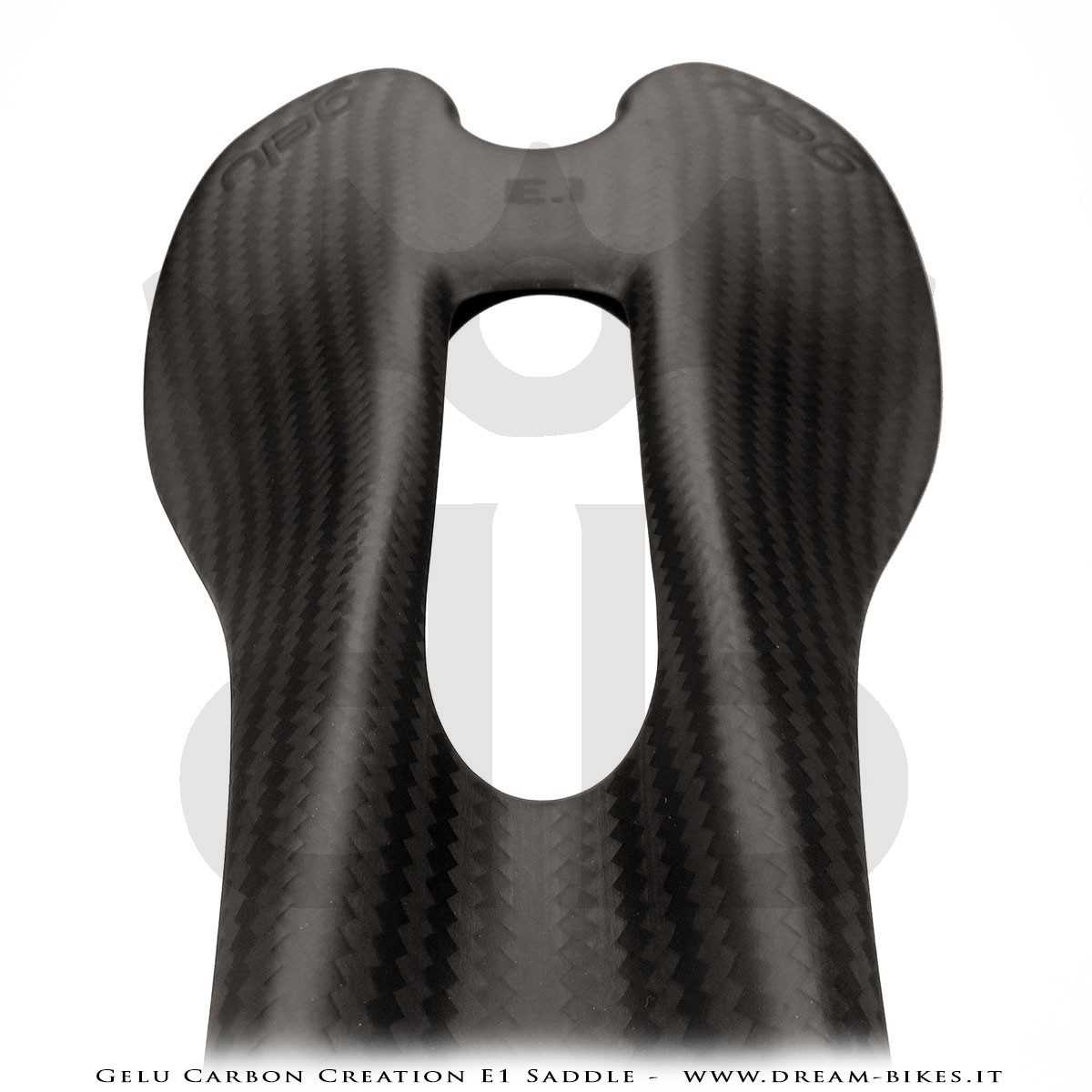

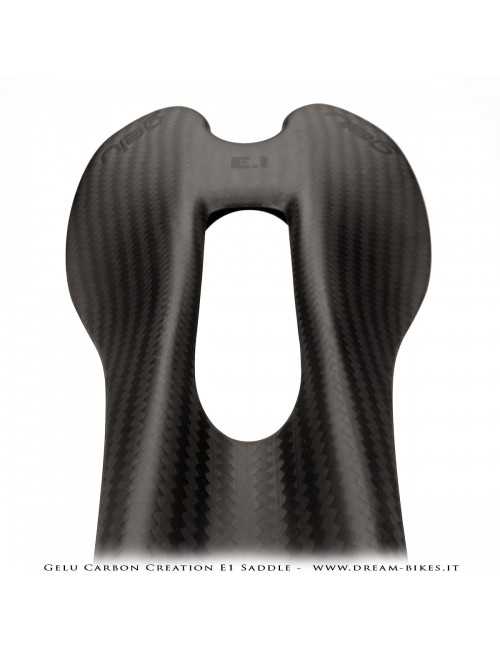

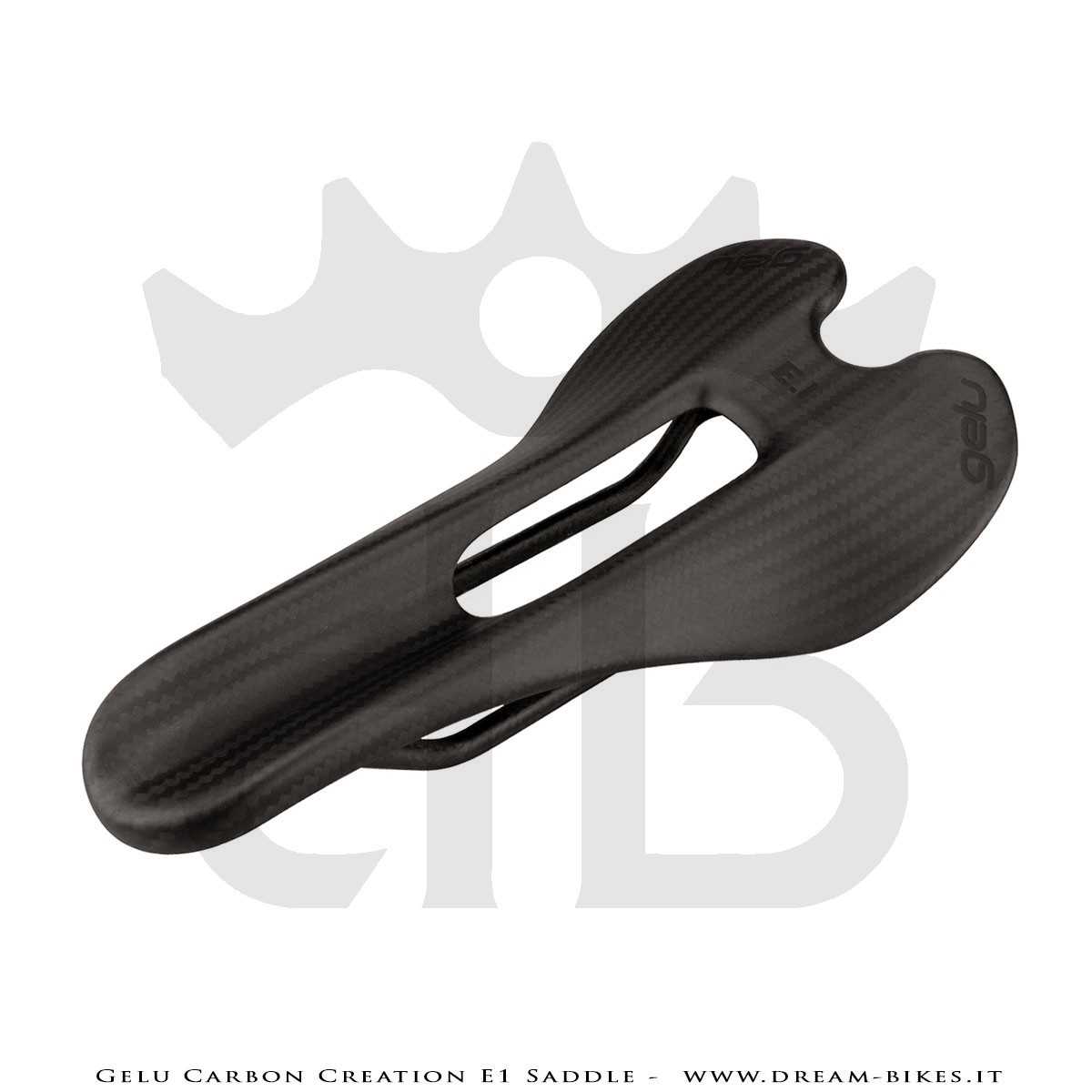

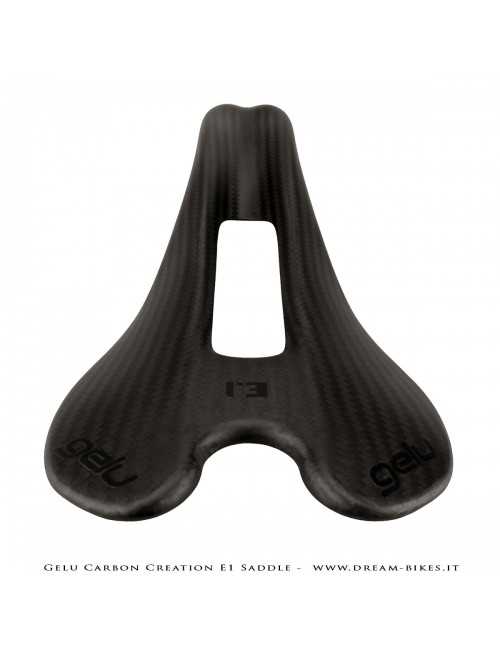

    Gelu E1 saddle is compatible with all 2 bolts longitudinal regulation seatposts and with single bolt transversal regulation seatposts that are equipped with clamps specific for elliptical rails carbon fiber saddles (7x10 mm). Also saddle body is high module carbon fiber made. Gelu Carbon choose only top quality fibers and resin. There's a big hole in the middle of the saddle which save some weight but also allows a better ventilation. Gelu E1 saddle is designed for road racing, gravel and MTB use for riders up to 115 kg. E1 saddle has got natural 3k carbon fiber finishing. The customer can choose glossy or matte finishing. We usually sell saddles with black decals but for all the saddles that aren't in stock and that we have to order from Gelu, you can choose decals color. The special UHS coating is sunlight proof and also provide protection against the impact of stones, mud, water...

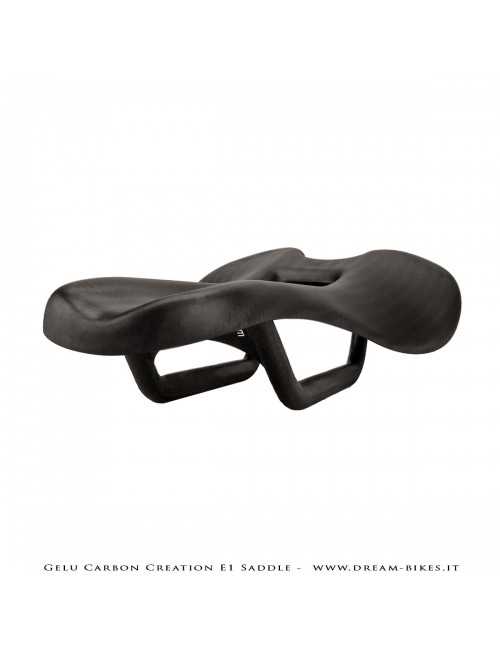

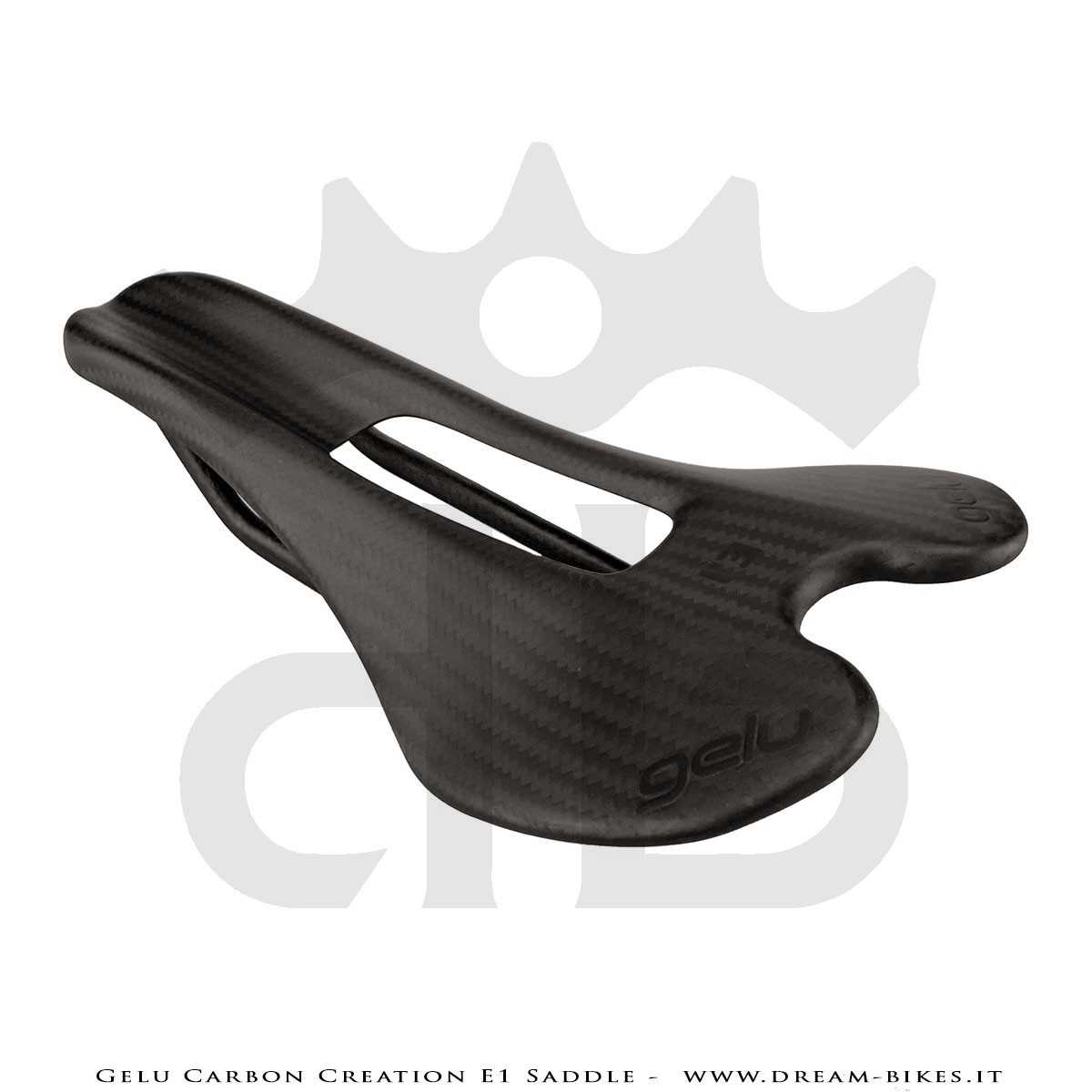

    Gelu Carbon Creation E1 Full Carbon Ultralight Saddle 65 gr.

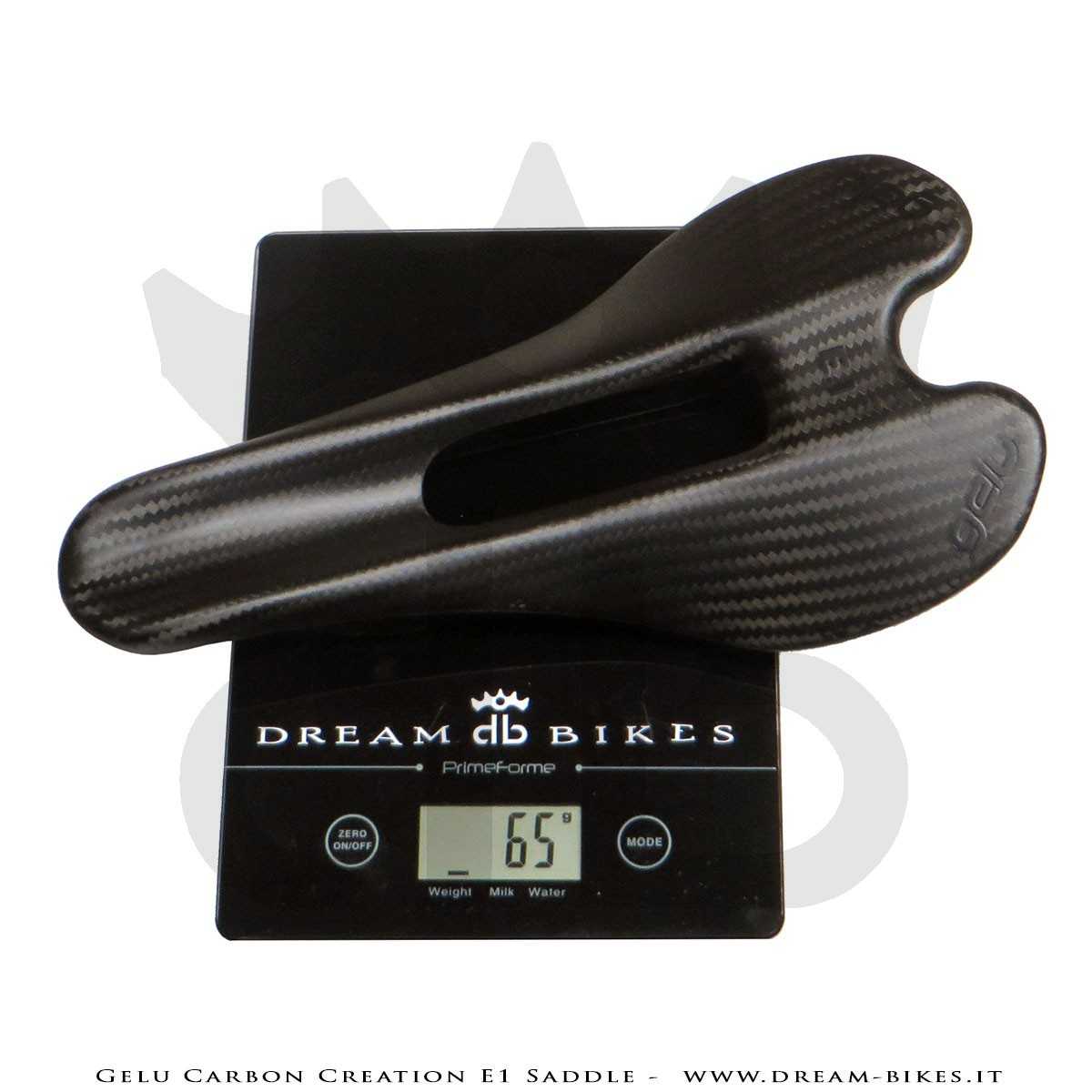

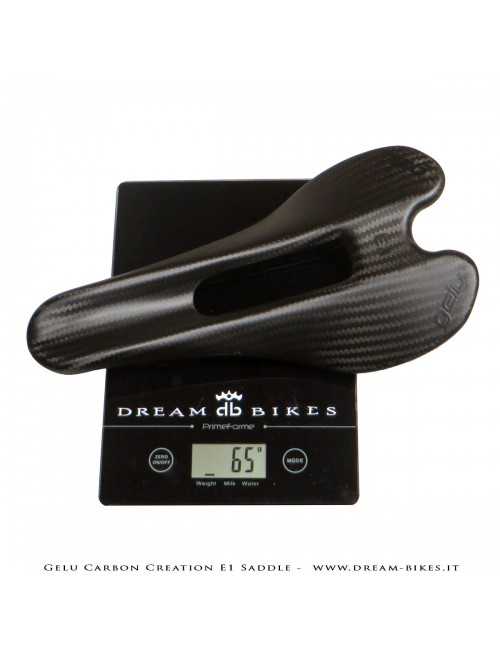

    Gelu E1 saddle weight could change due to saddle finishing and normal resin tolerance (+/- 5%), matte finishing version weighs around 65 grams.

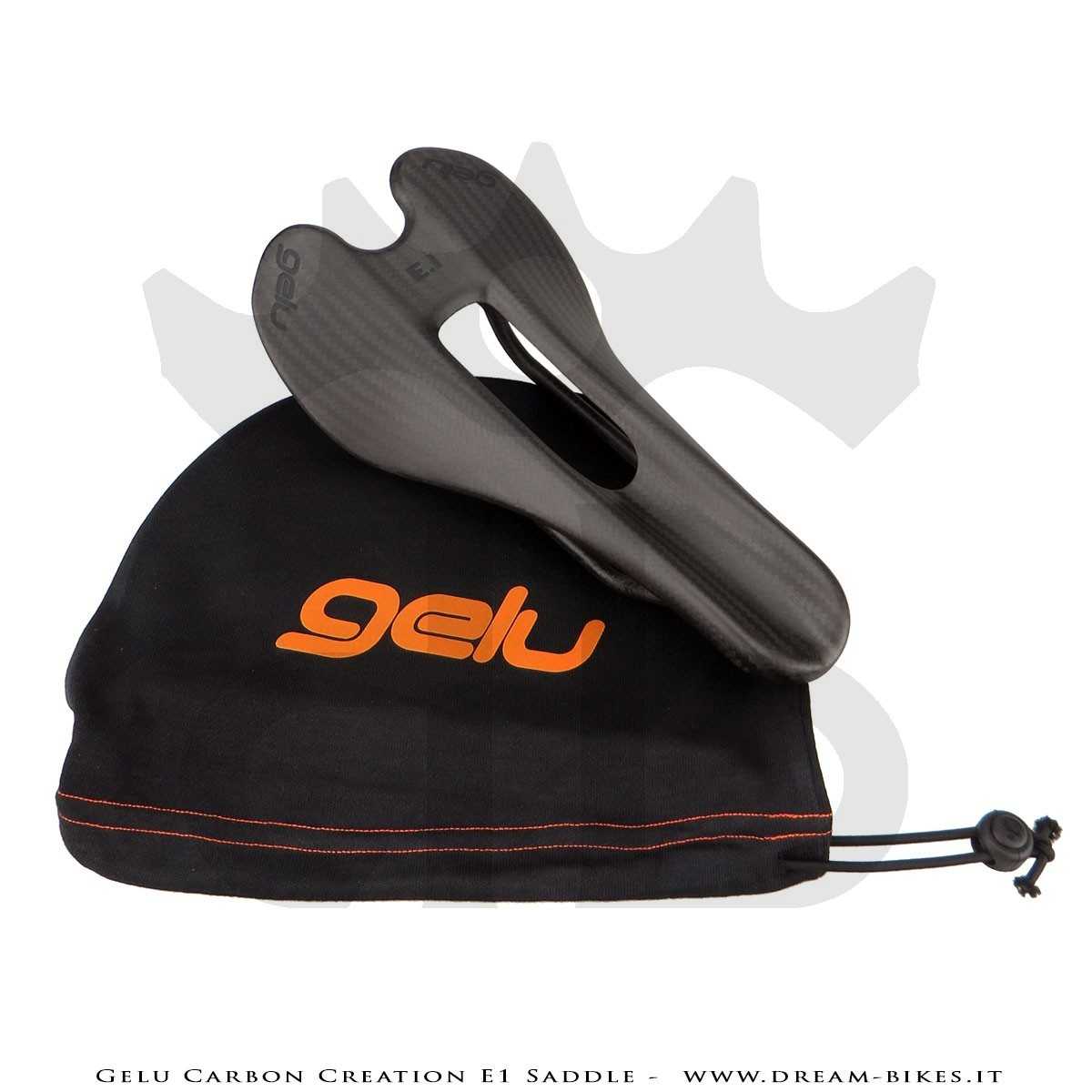

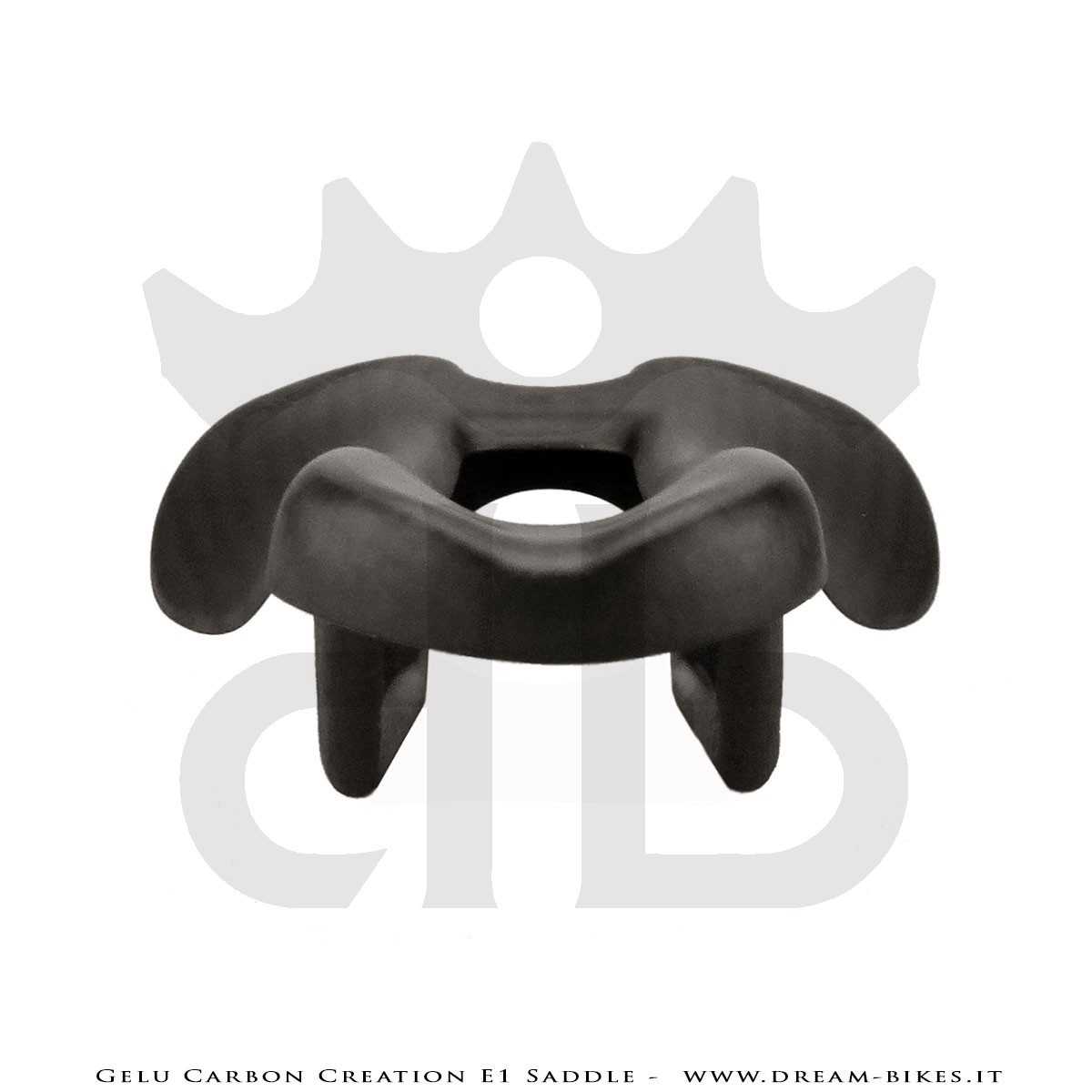

    Gelu Carbon Creation E1 Full Carbon Ultralight Saddle 65 gr.

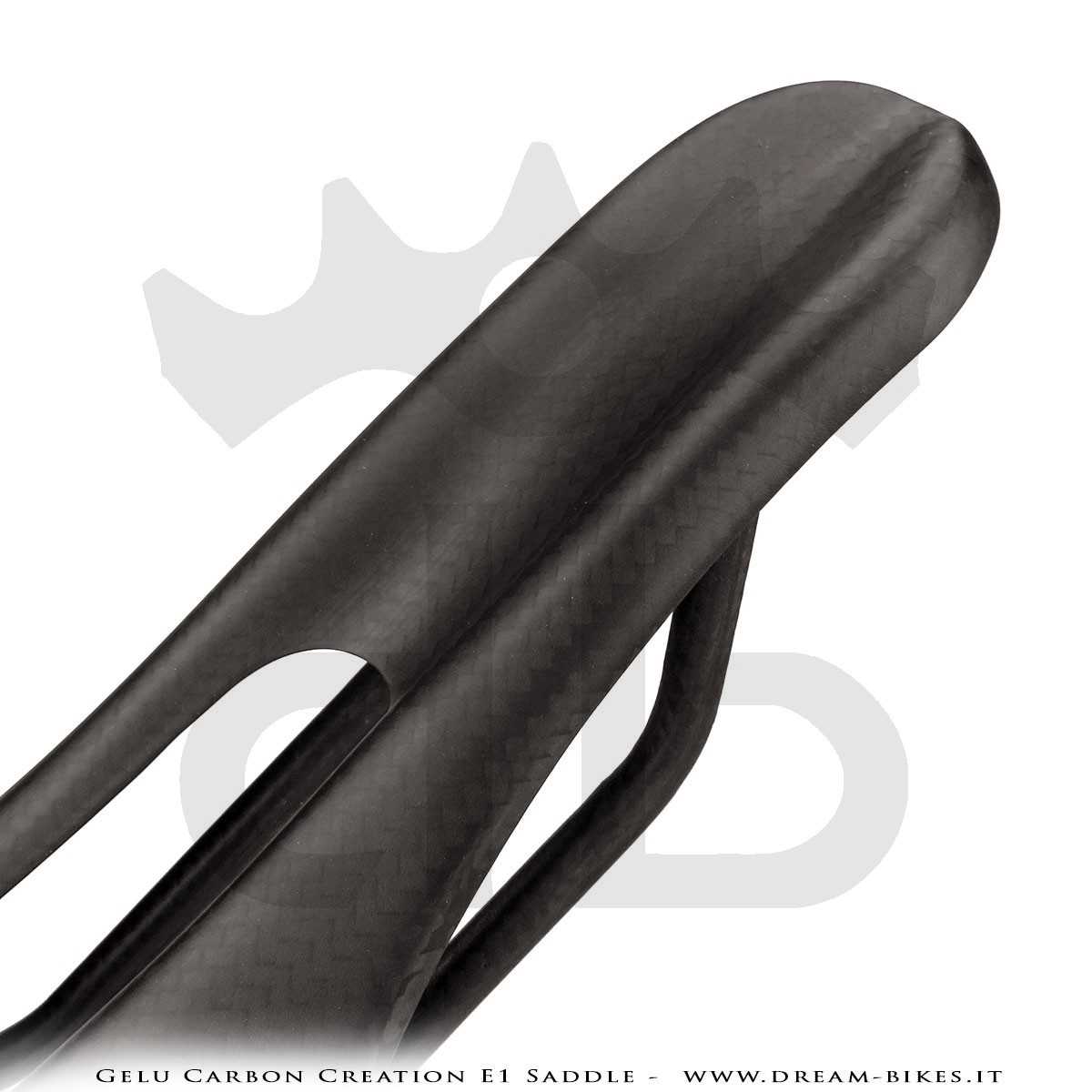

    That's an incredible weight, especially for the great saddle comfort. The real goal is a clever design with a great anatomic shape mixed to an intelligent use of composite materials. The reduced weight on a saddle has a direct influence on the performance of a bicycle, especially when standing, sprinting or climbing, as it almost completely eliminates the pendulum effect and helps to lower the center of gravity, making it much more stable above all with the wet floor.

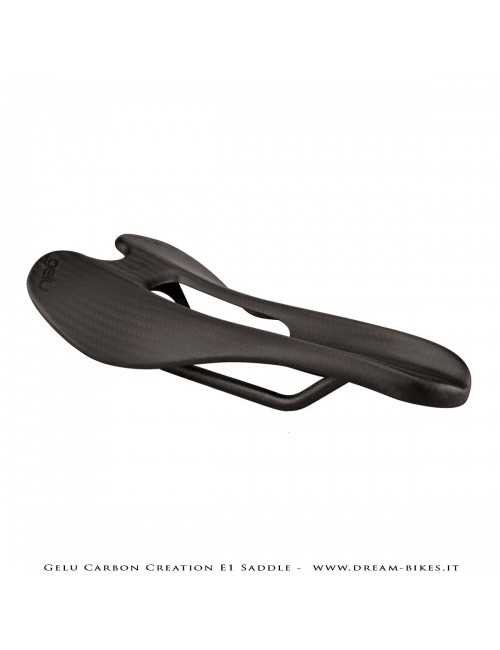

    Gelu Carbon Creation E1 Full Carbon Ultralight Saddle 65 gr.

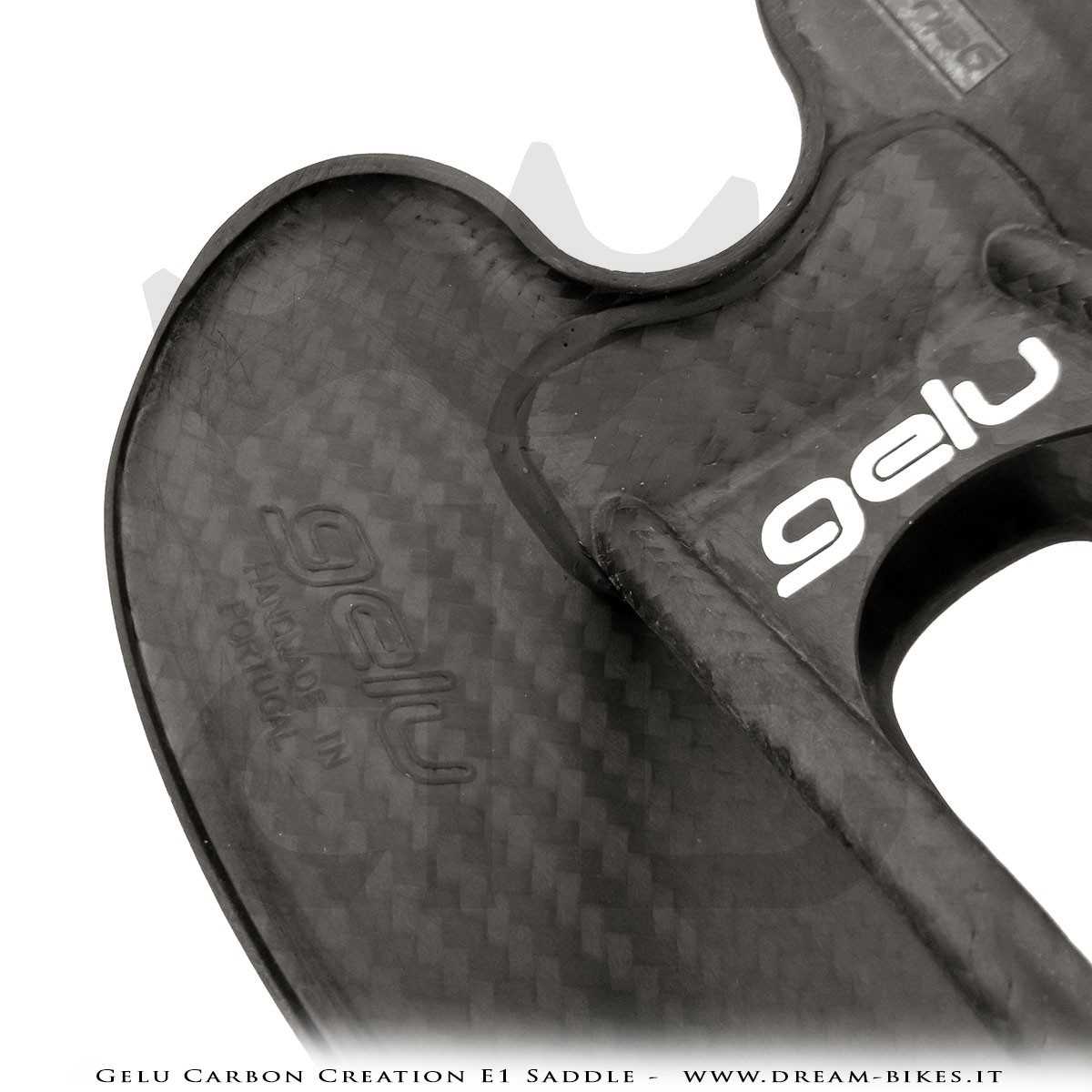

    Gelu Carbon Creation saddles are 100% designed and produced in Portugal.

    gelu carbon creation made in portugal

    Product Details

    Data sheet

    Weight :
    65 gr. (+/- 5 %)
    Construction :
    Full Carbon
    Length :
    242 mm
    Height :
    35 mm
    Width :
    124 mm
    Seat material :
    High-Module Carbon Fibre
    Rails material :
    High-Module Carbon Fibre
    Rails sizes :
    Oval 8.5 x 6.5 mm
    Adjustment range :
    85 mm
    Finish :
    3K carbon fibre gloss or matte
    Graphics :
    Decals under clearcoat
    Use :
    MTB, Road Racing, Urban, Gravel
    Fitting :
    With seatpost for oversized oval carbon rails
    Max rider weight :
    115 Kg
    Max tightening torque :
    8 Nm
