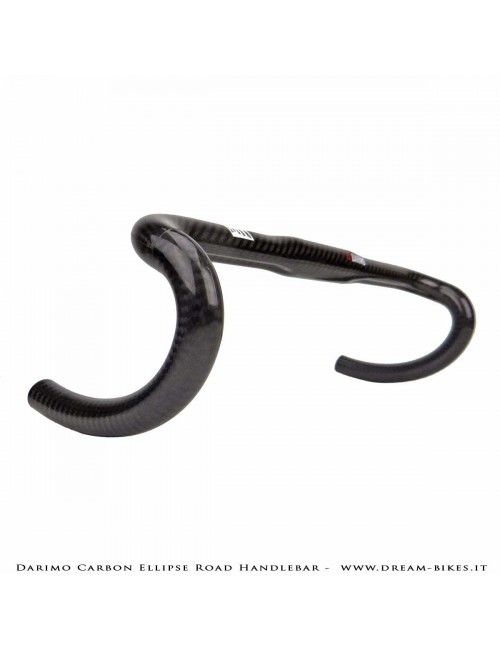

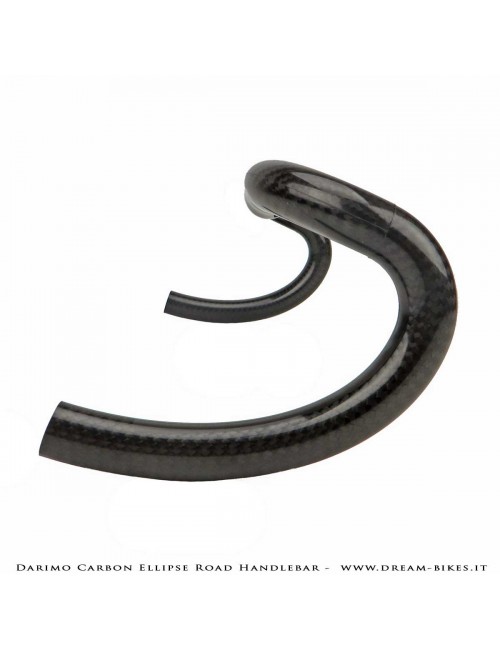

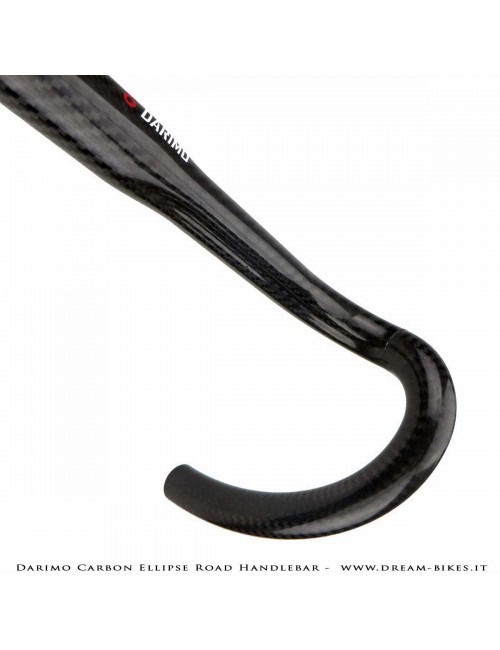

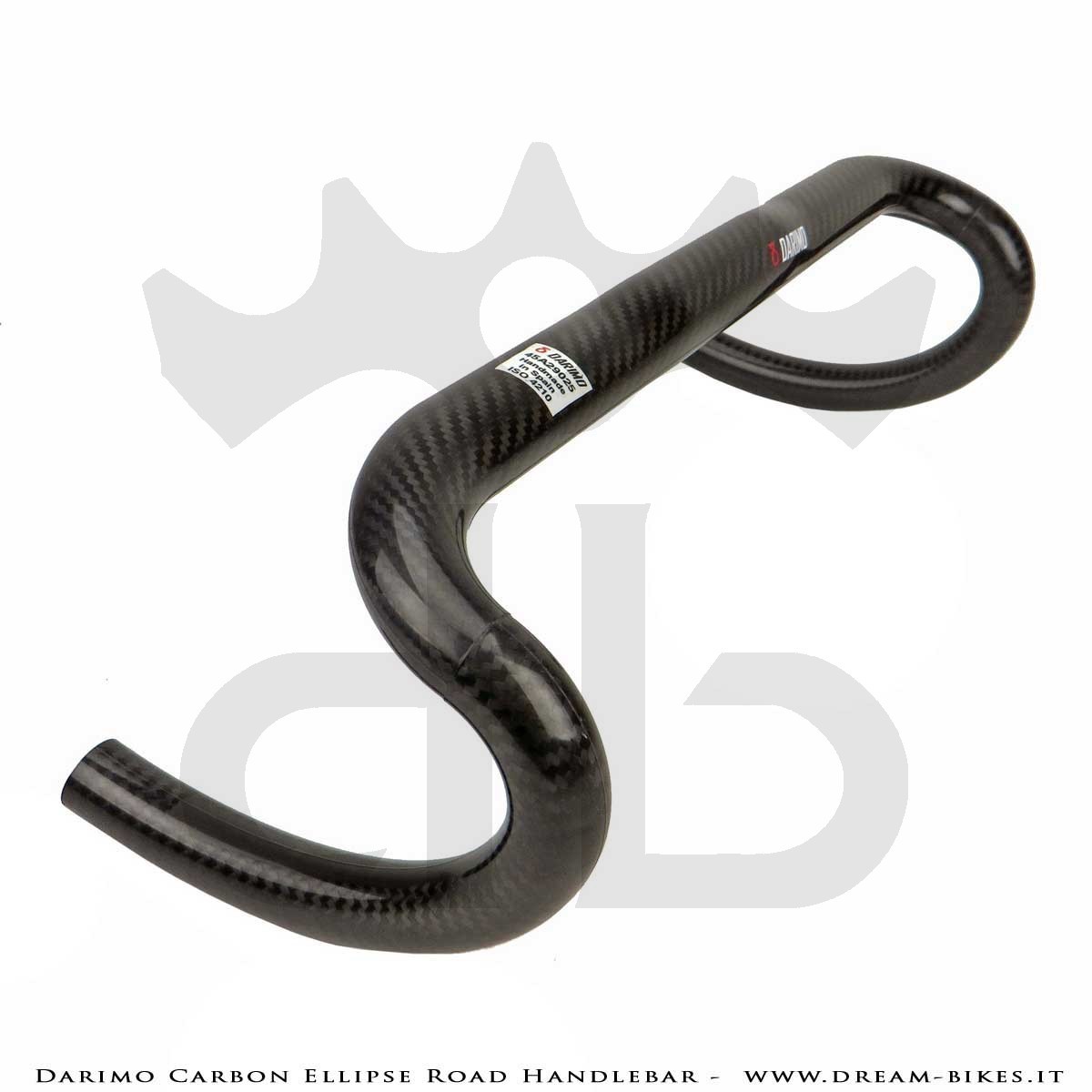

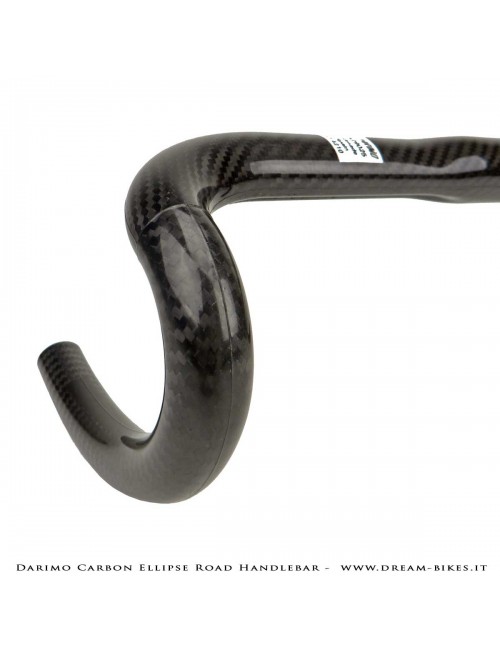

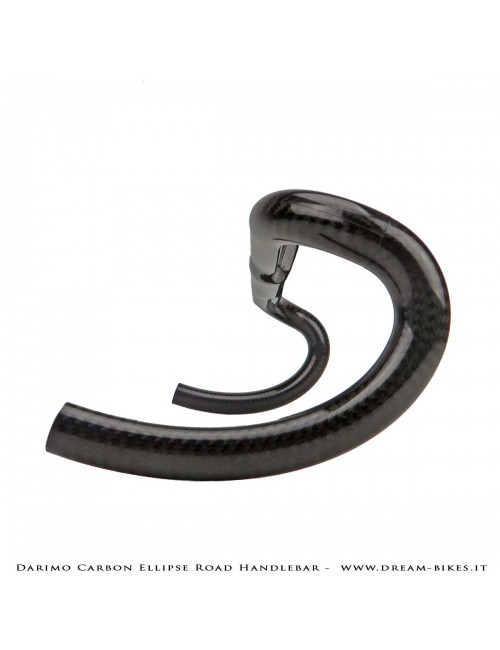

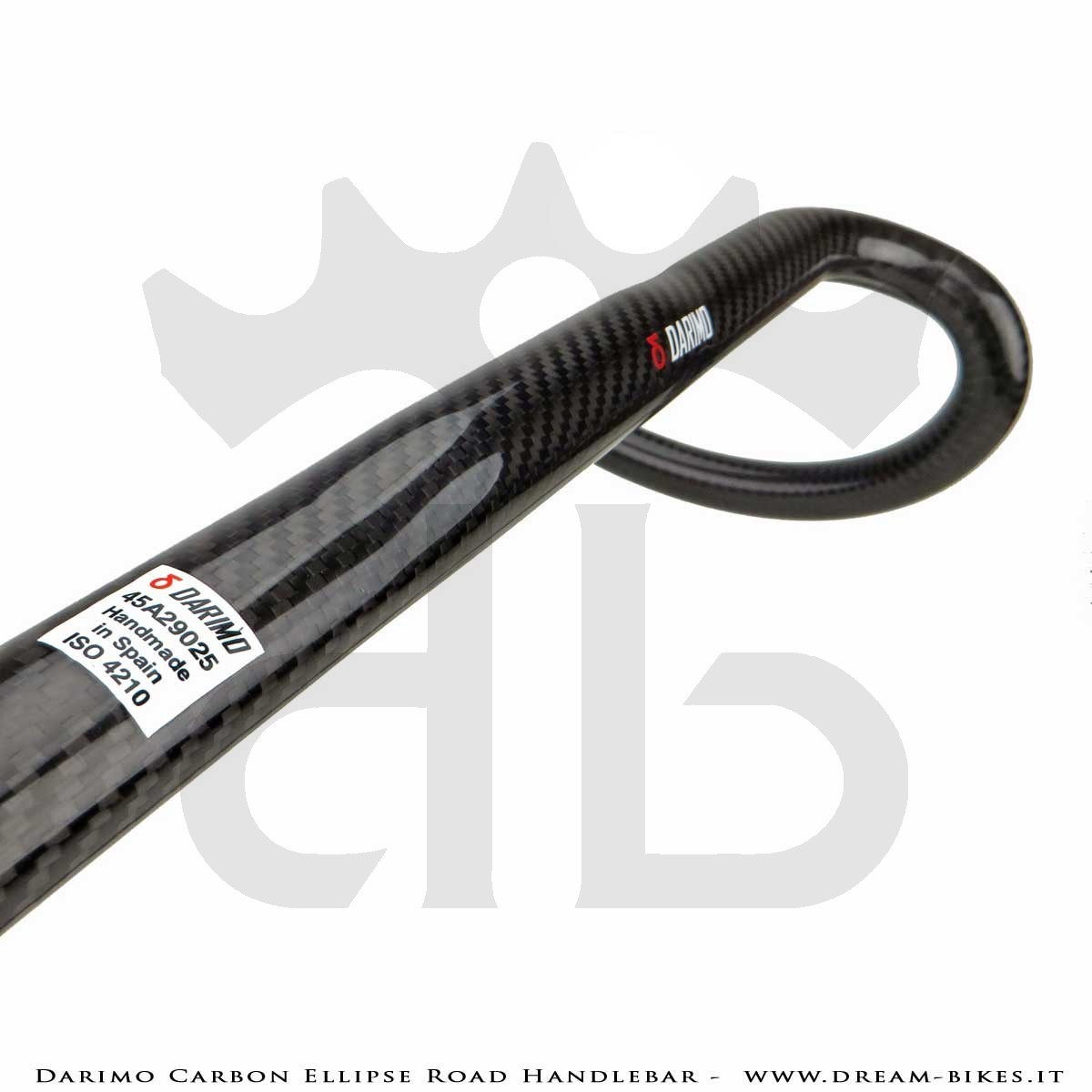

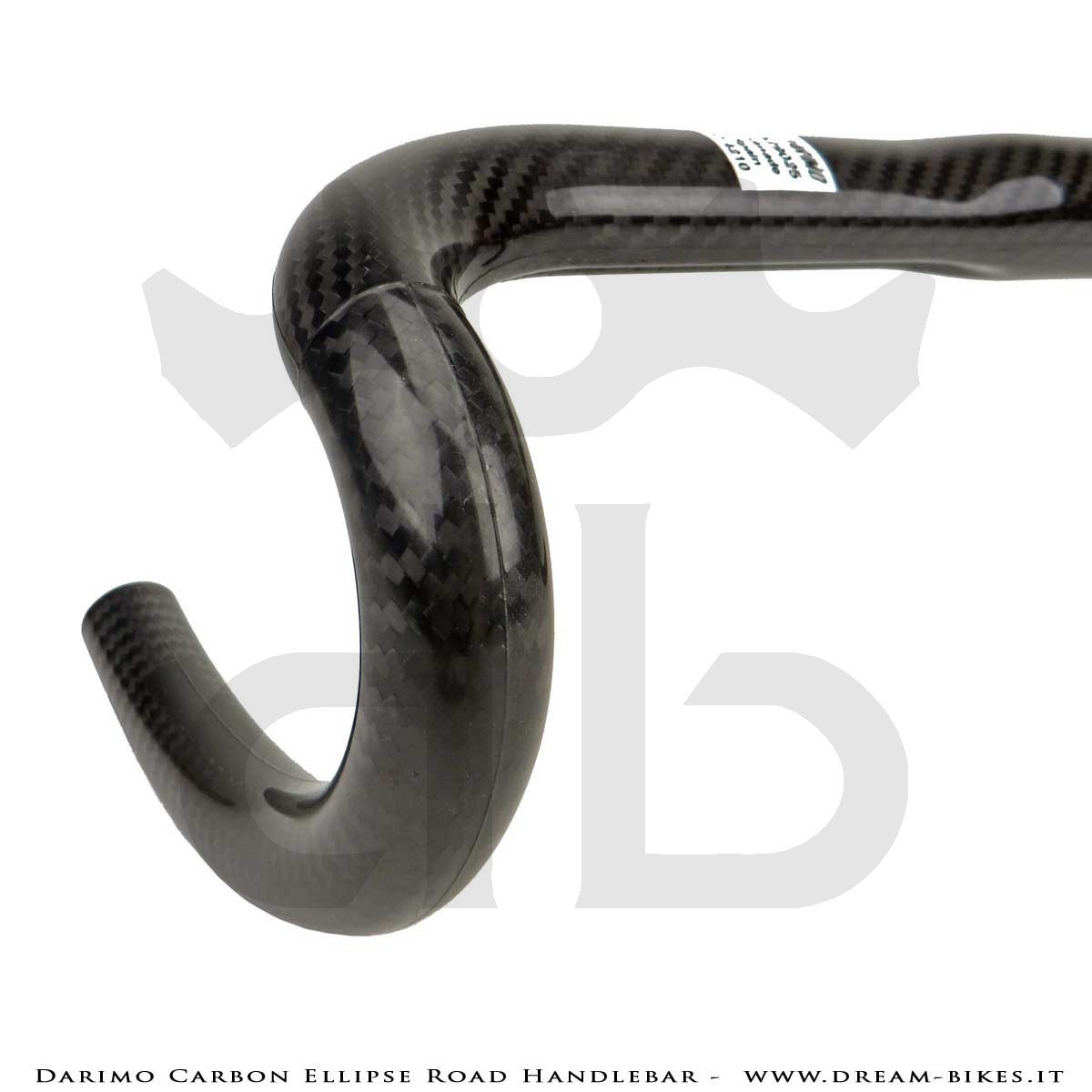

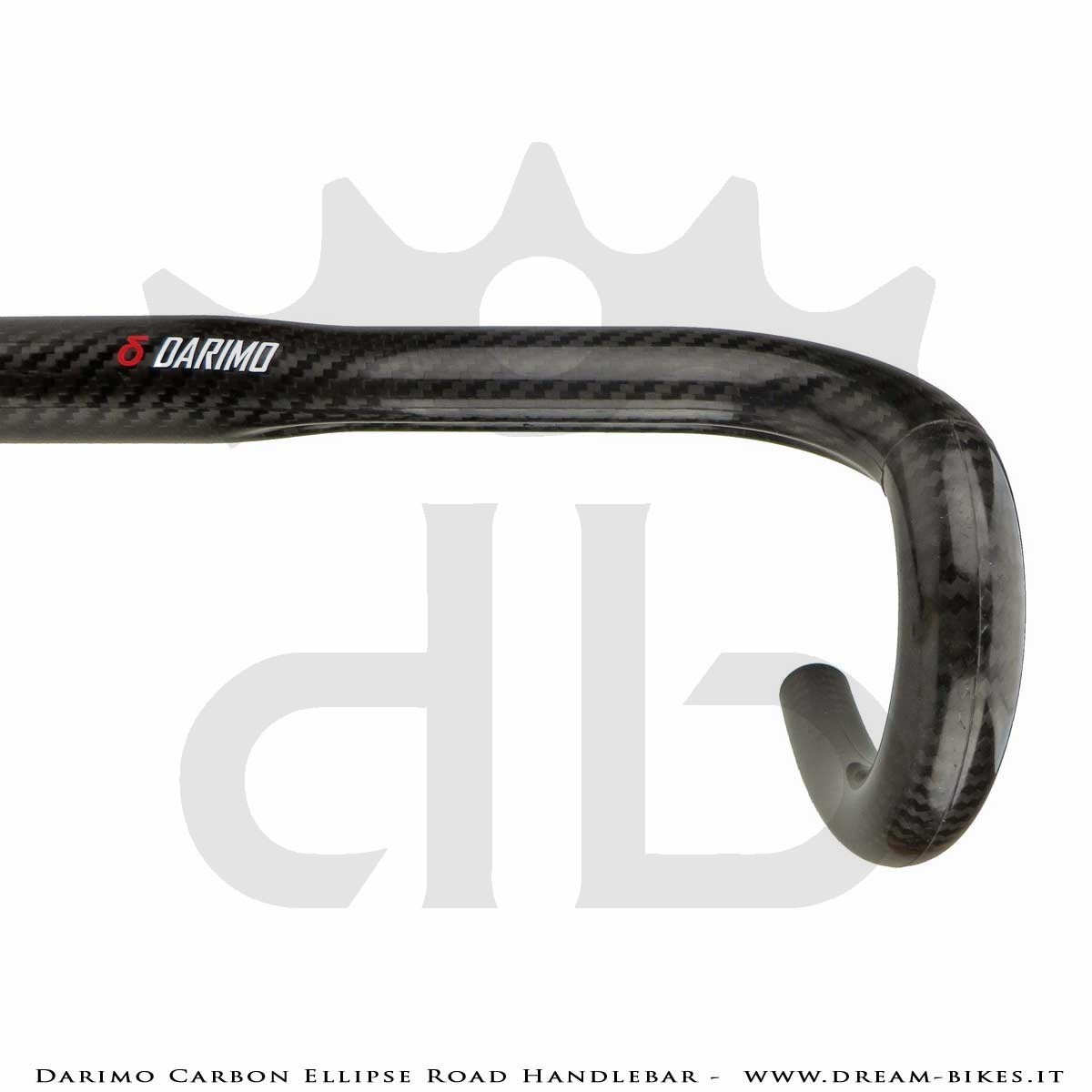

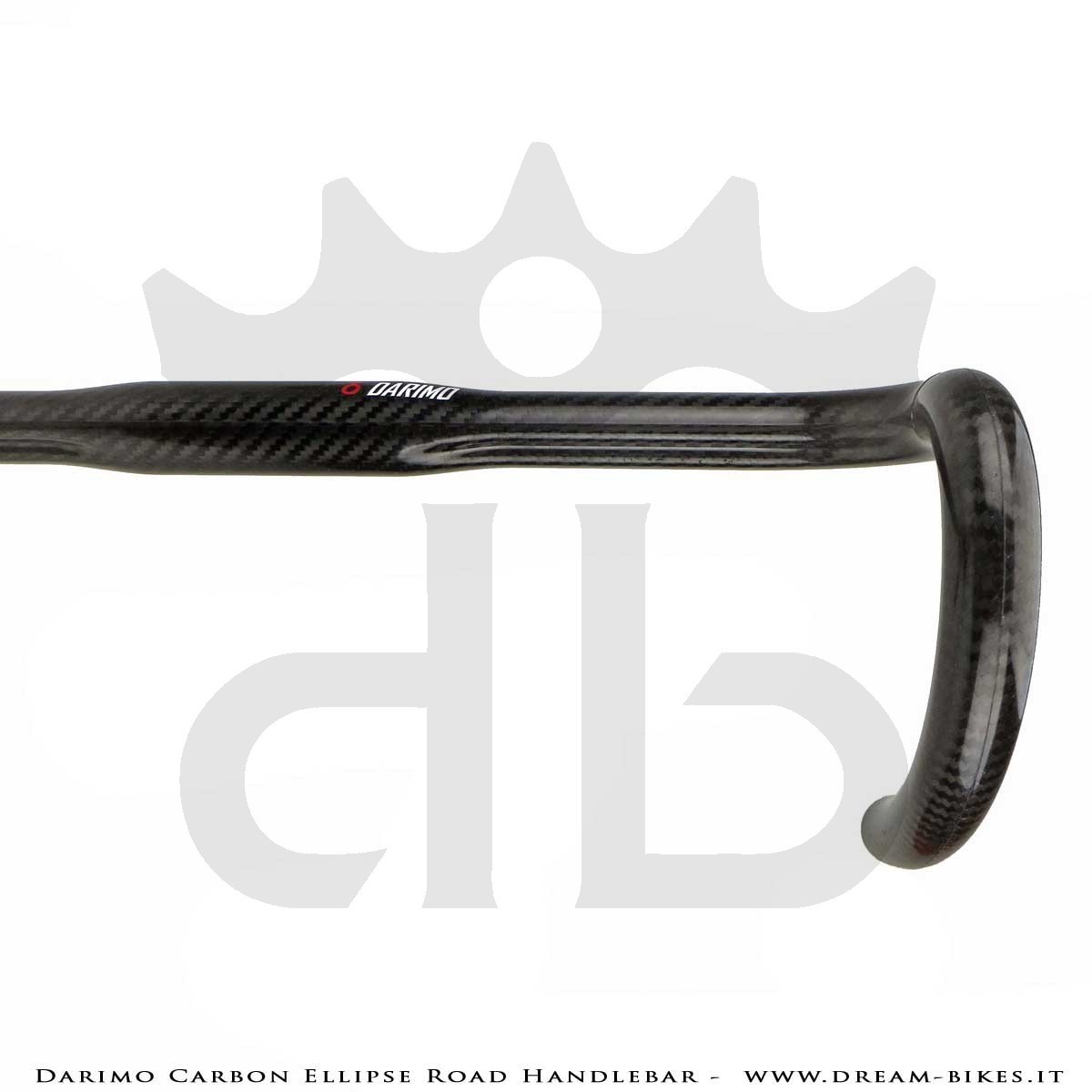

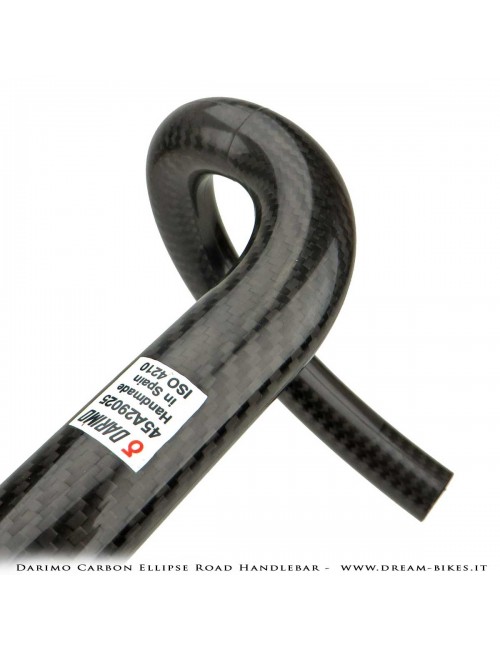

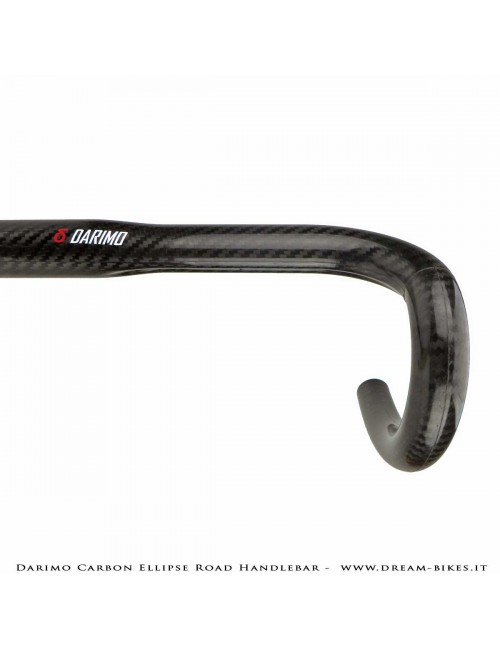

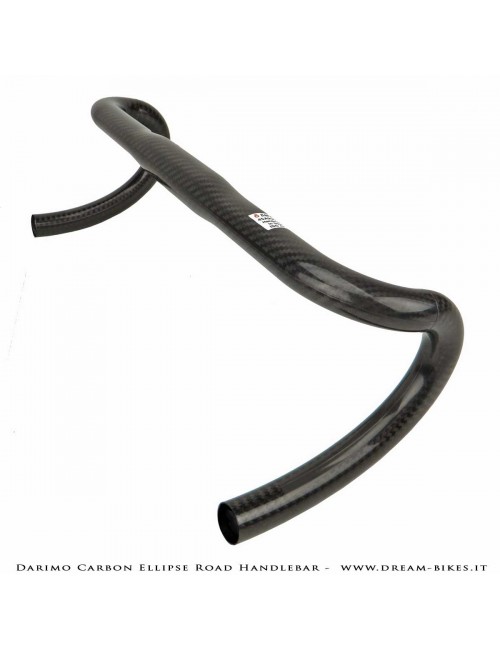

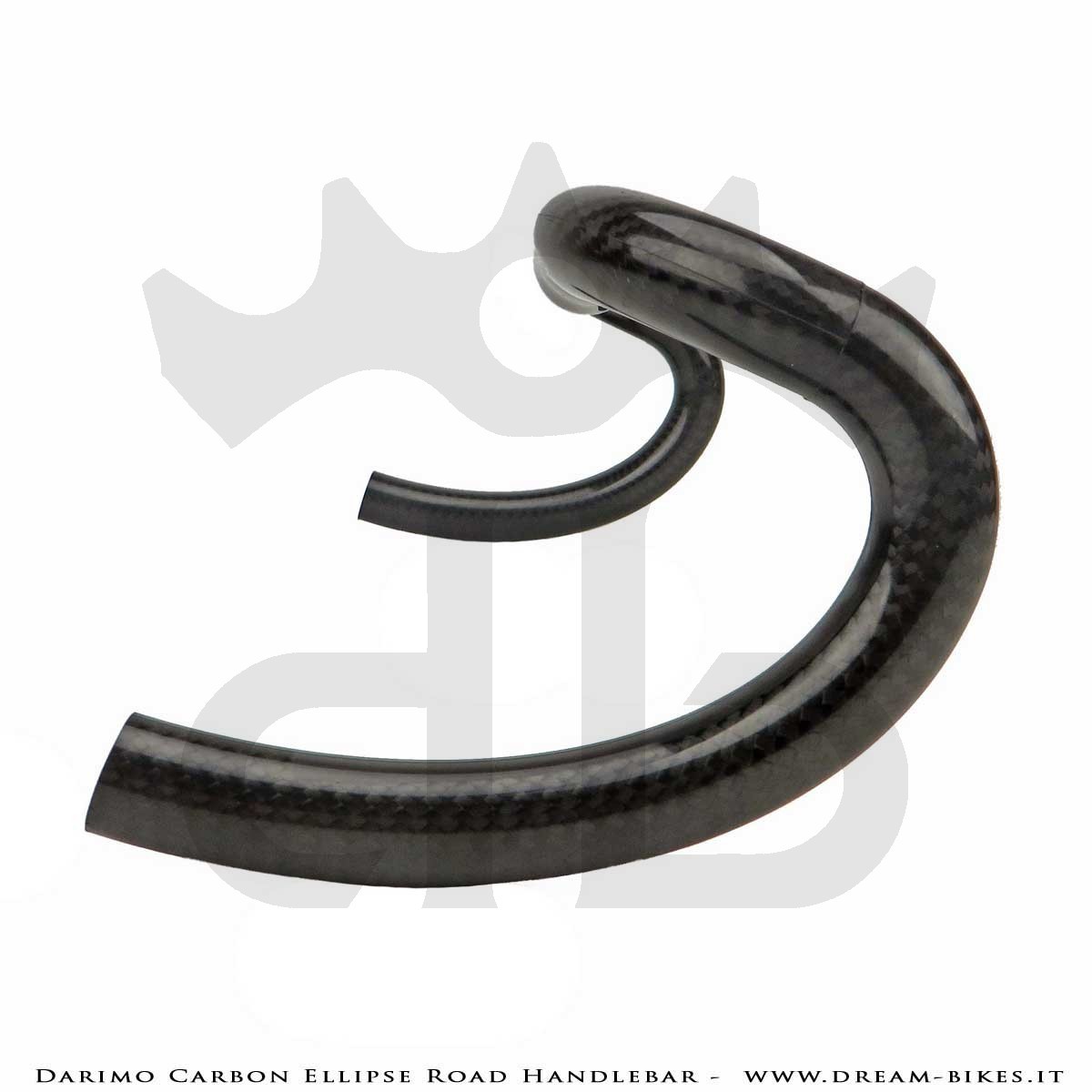

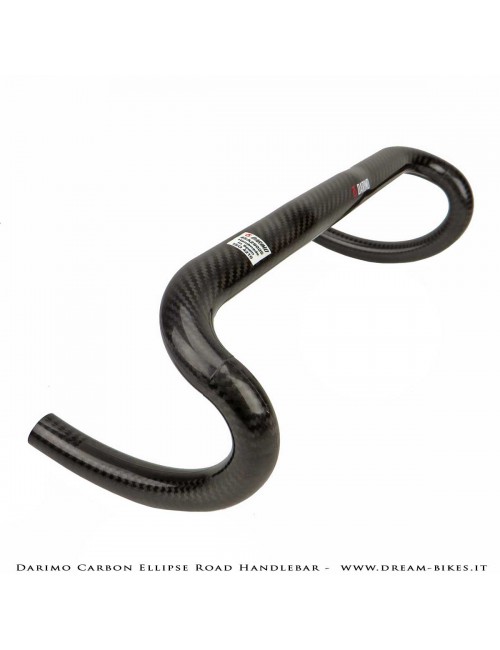

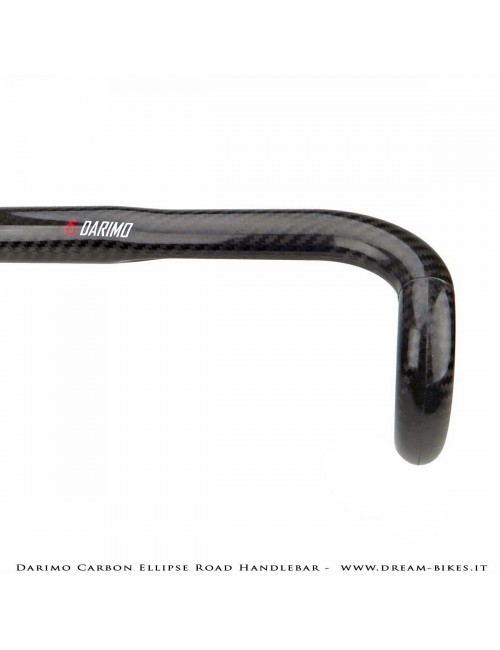

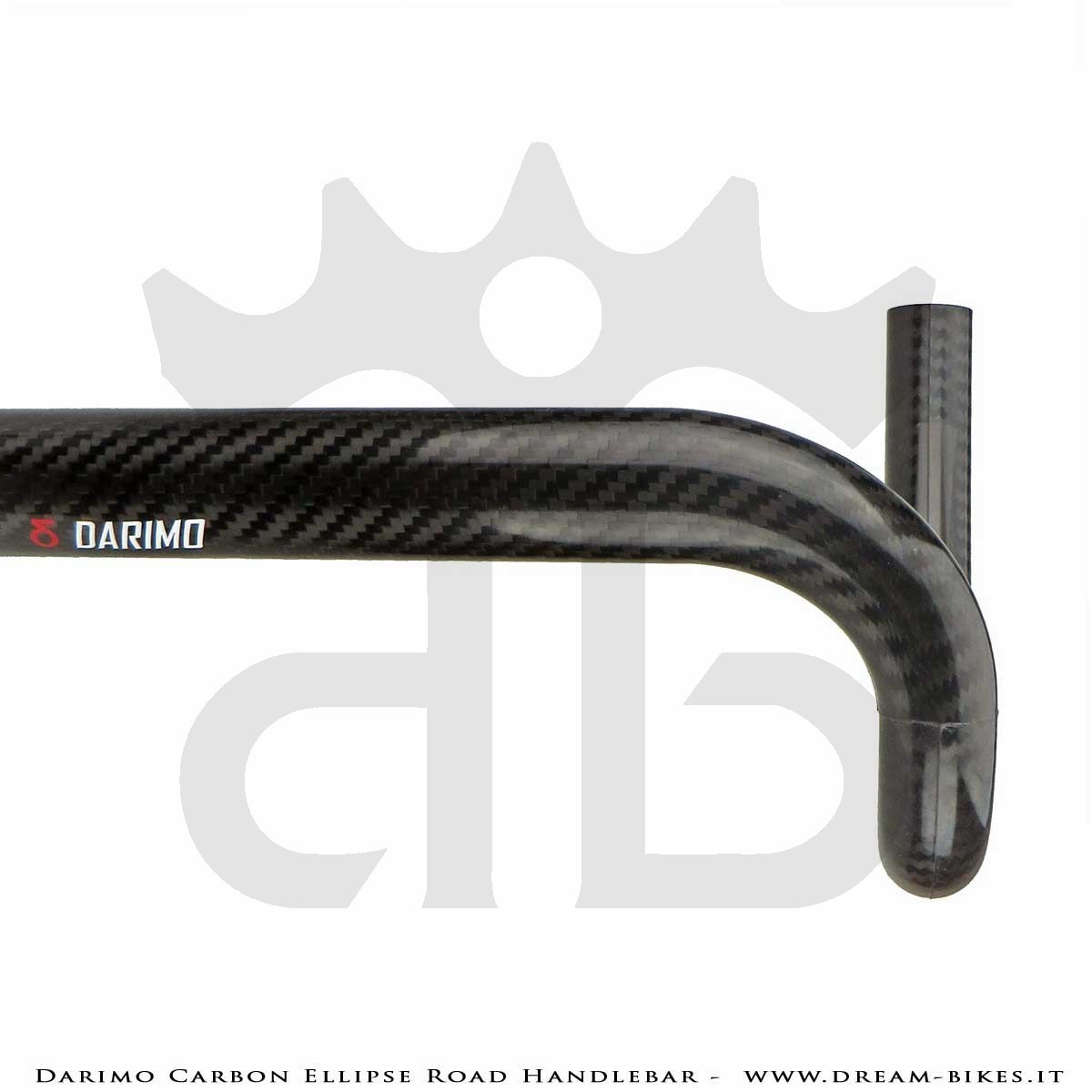

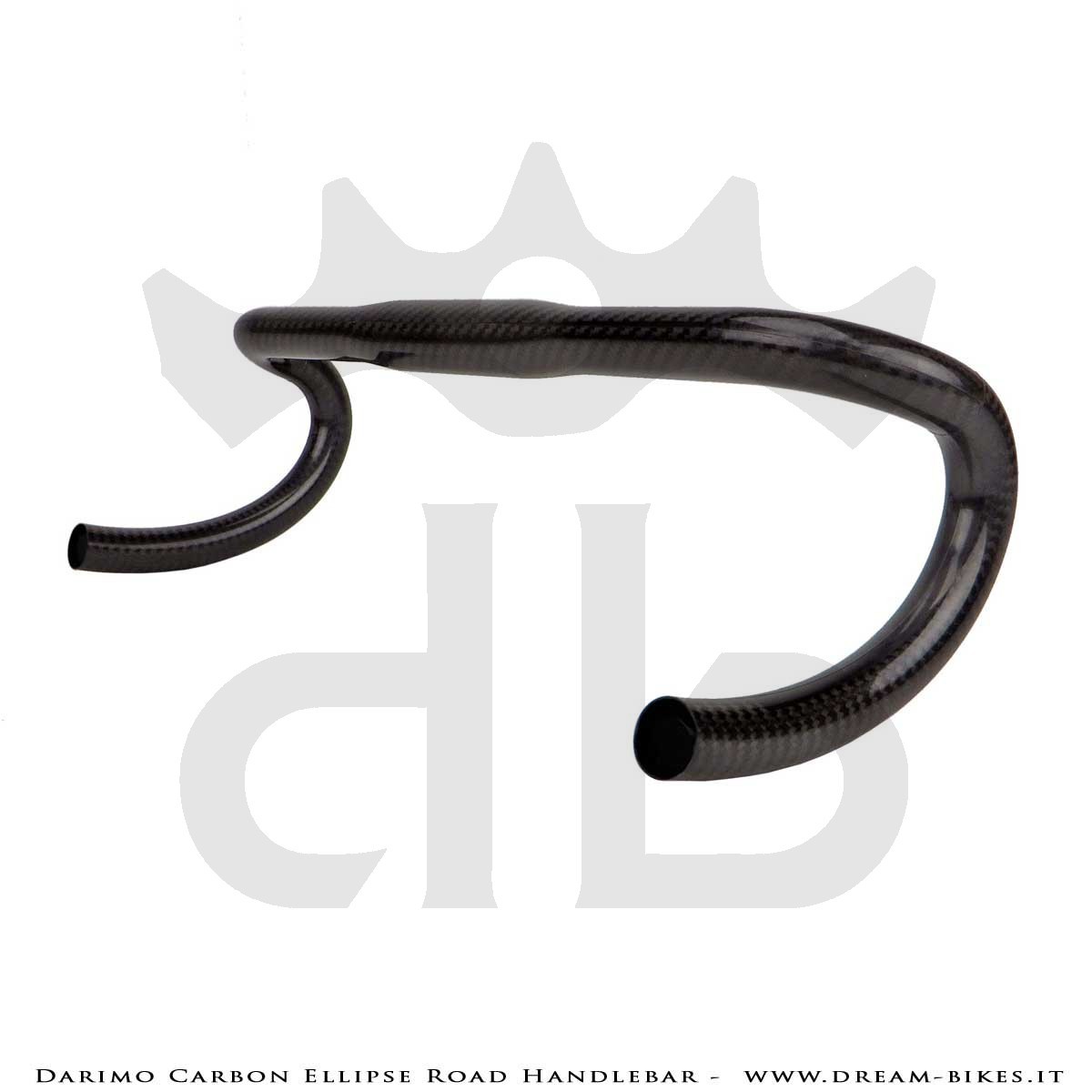

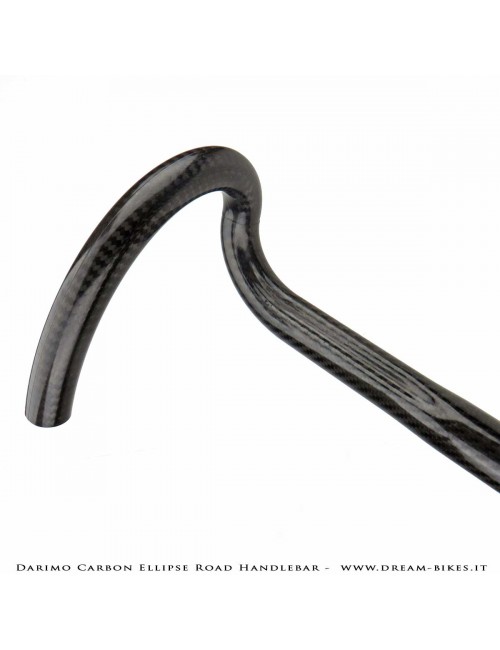

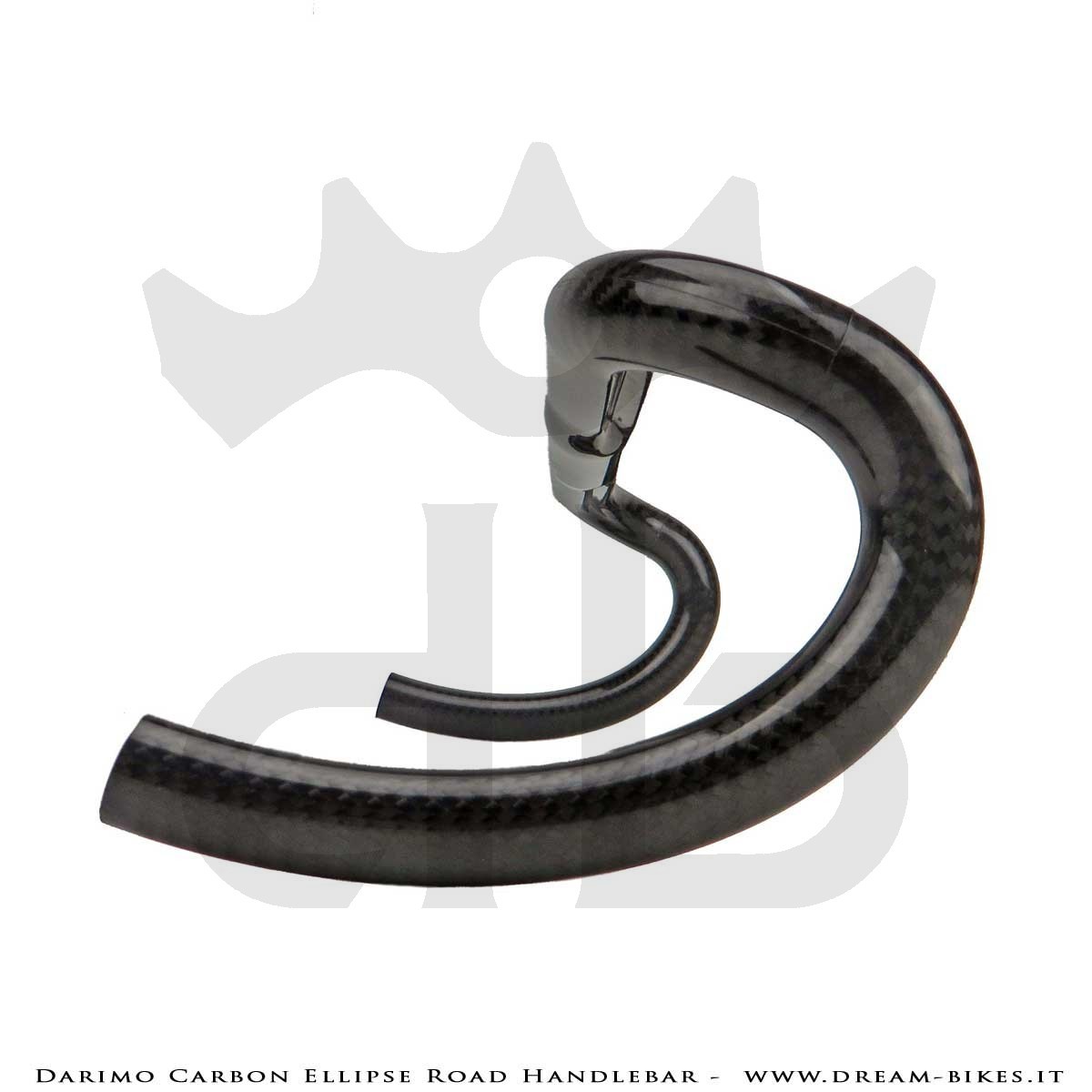

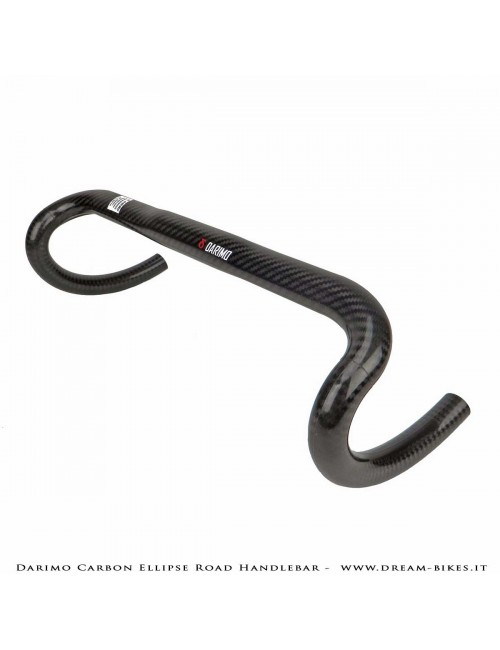

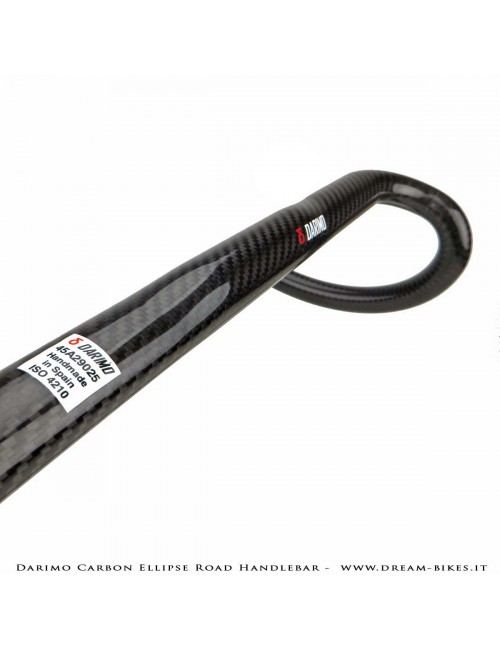

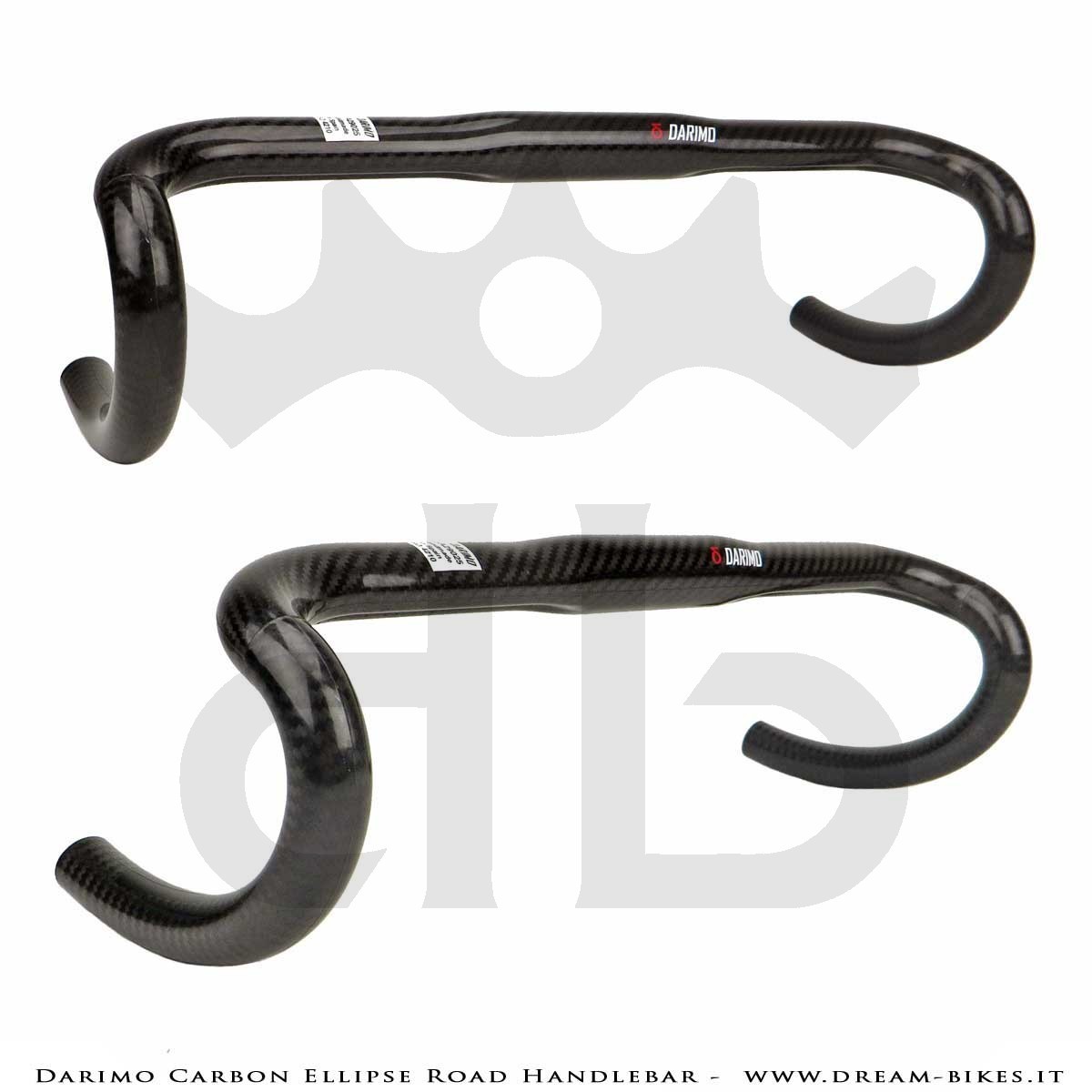

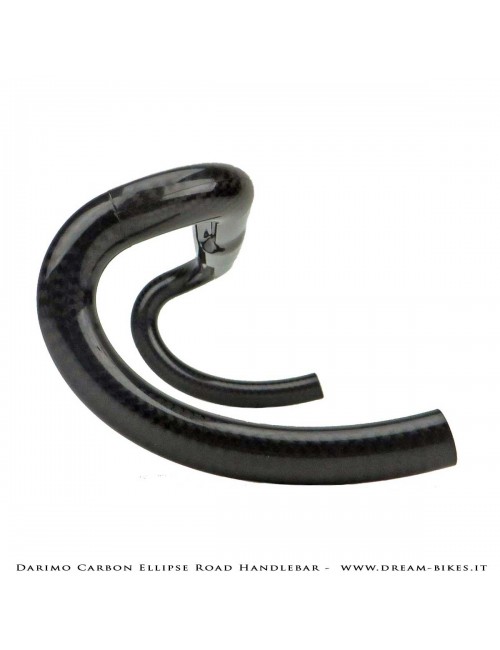

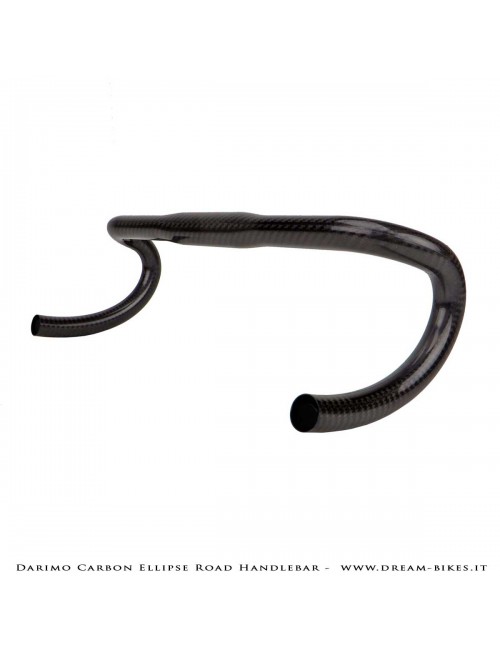

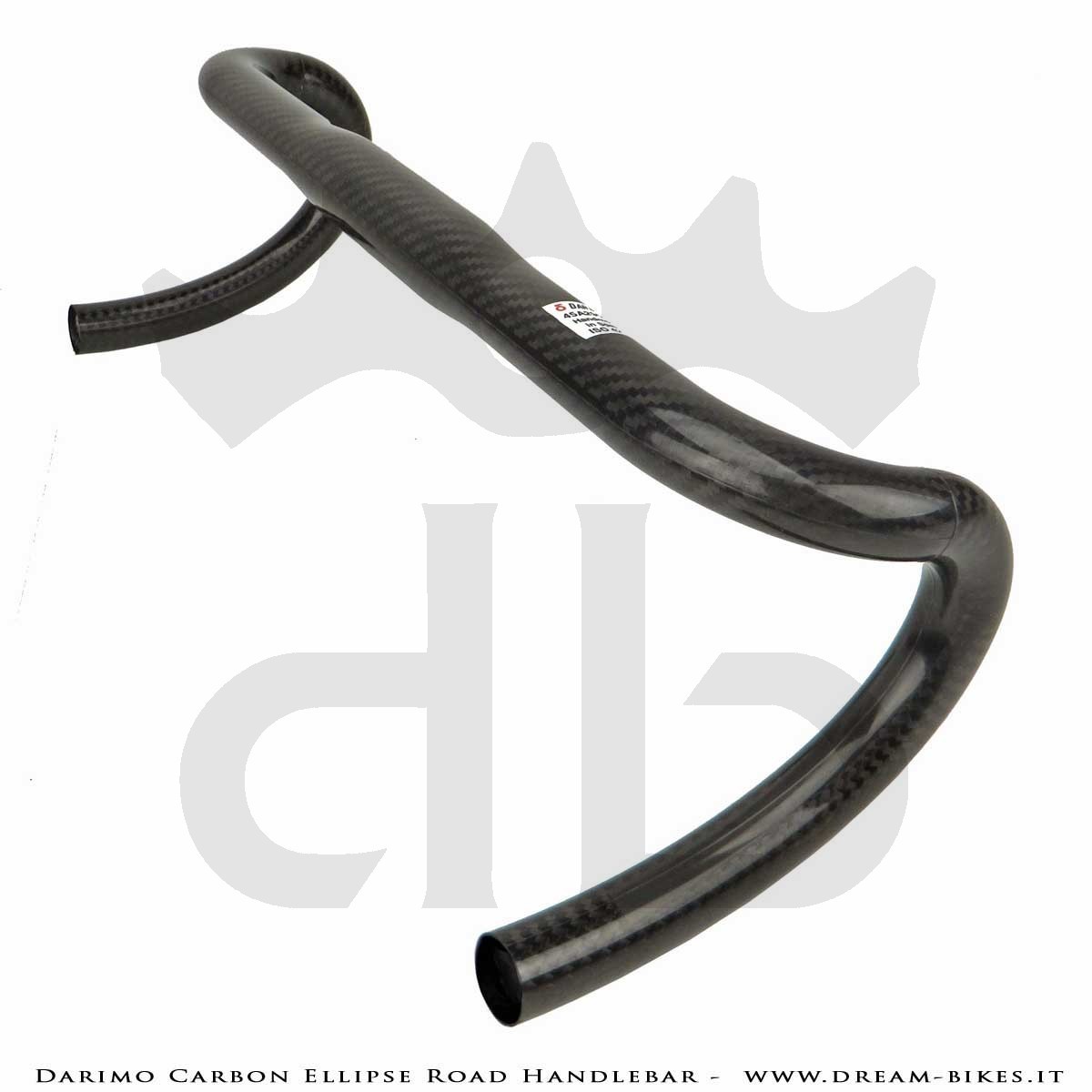

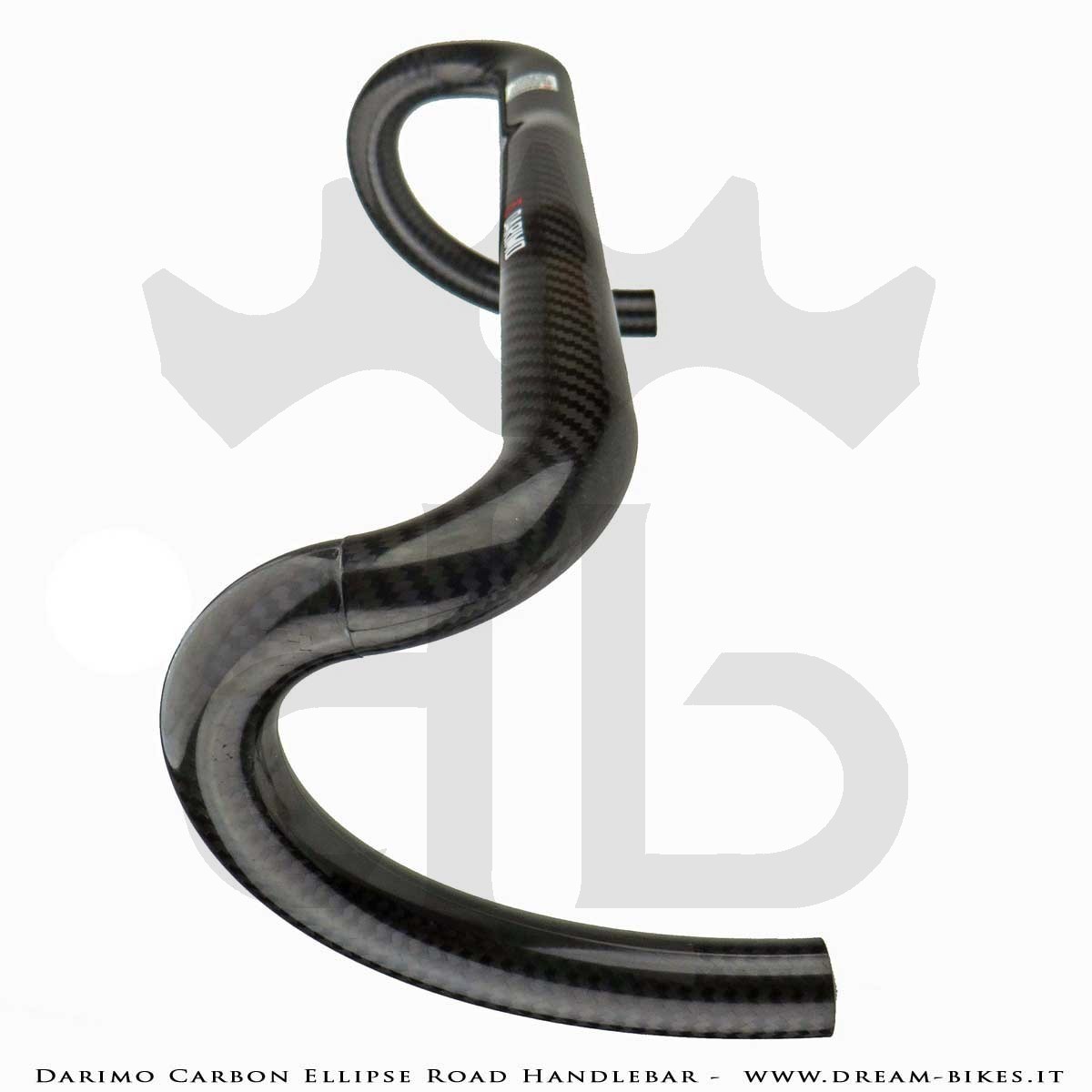

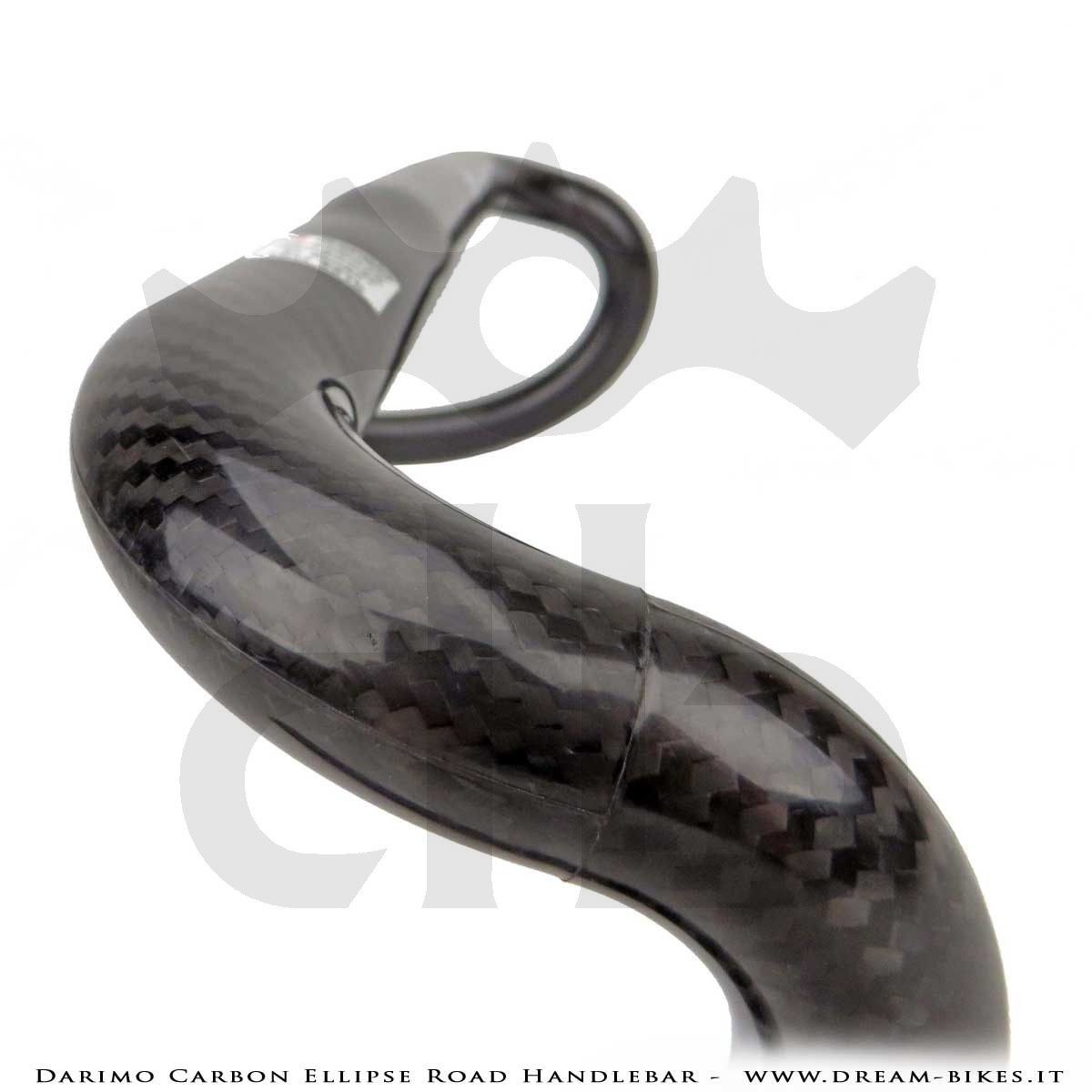

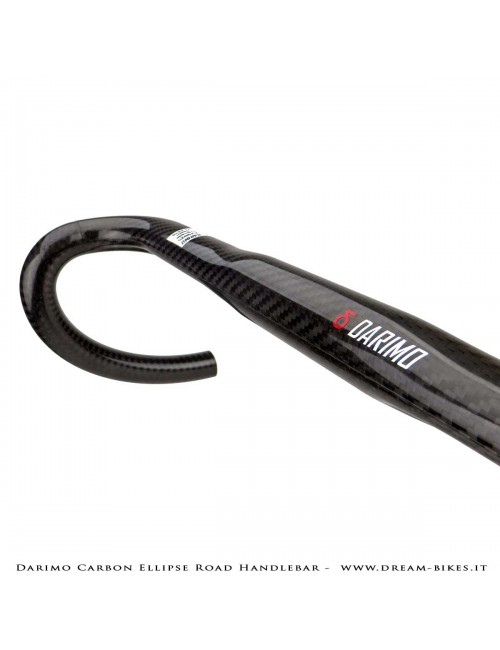

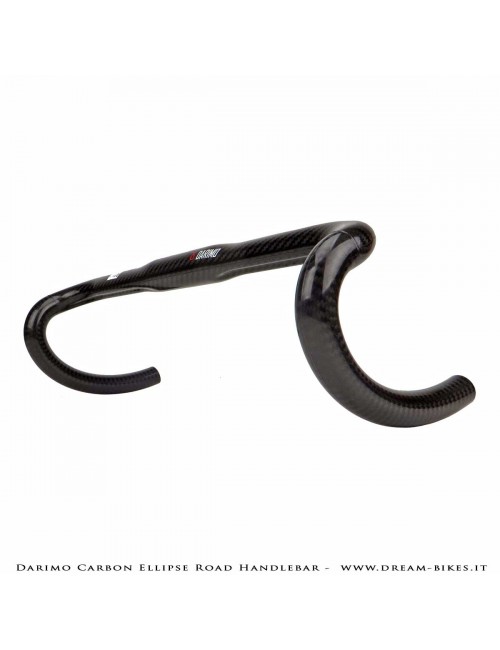

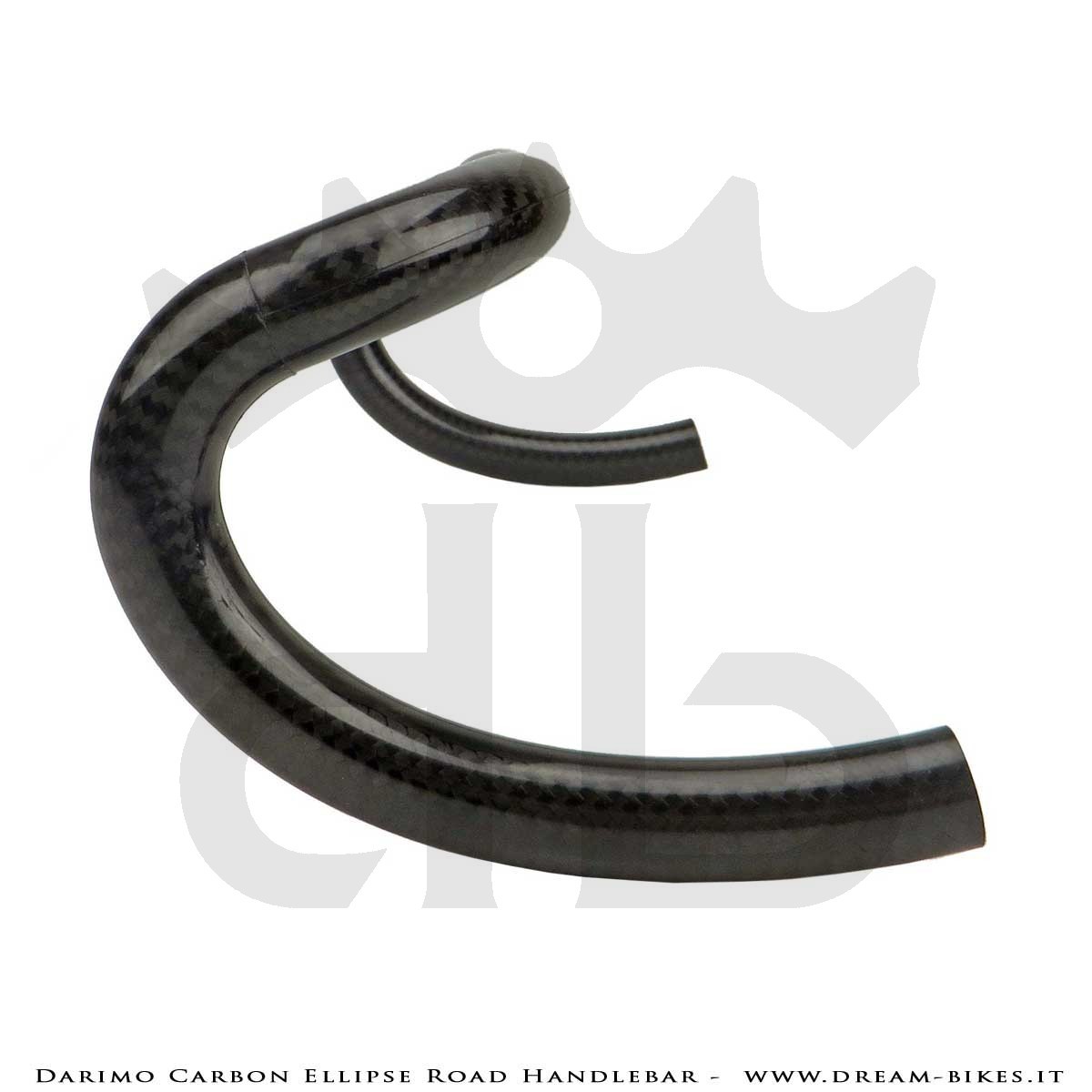

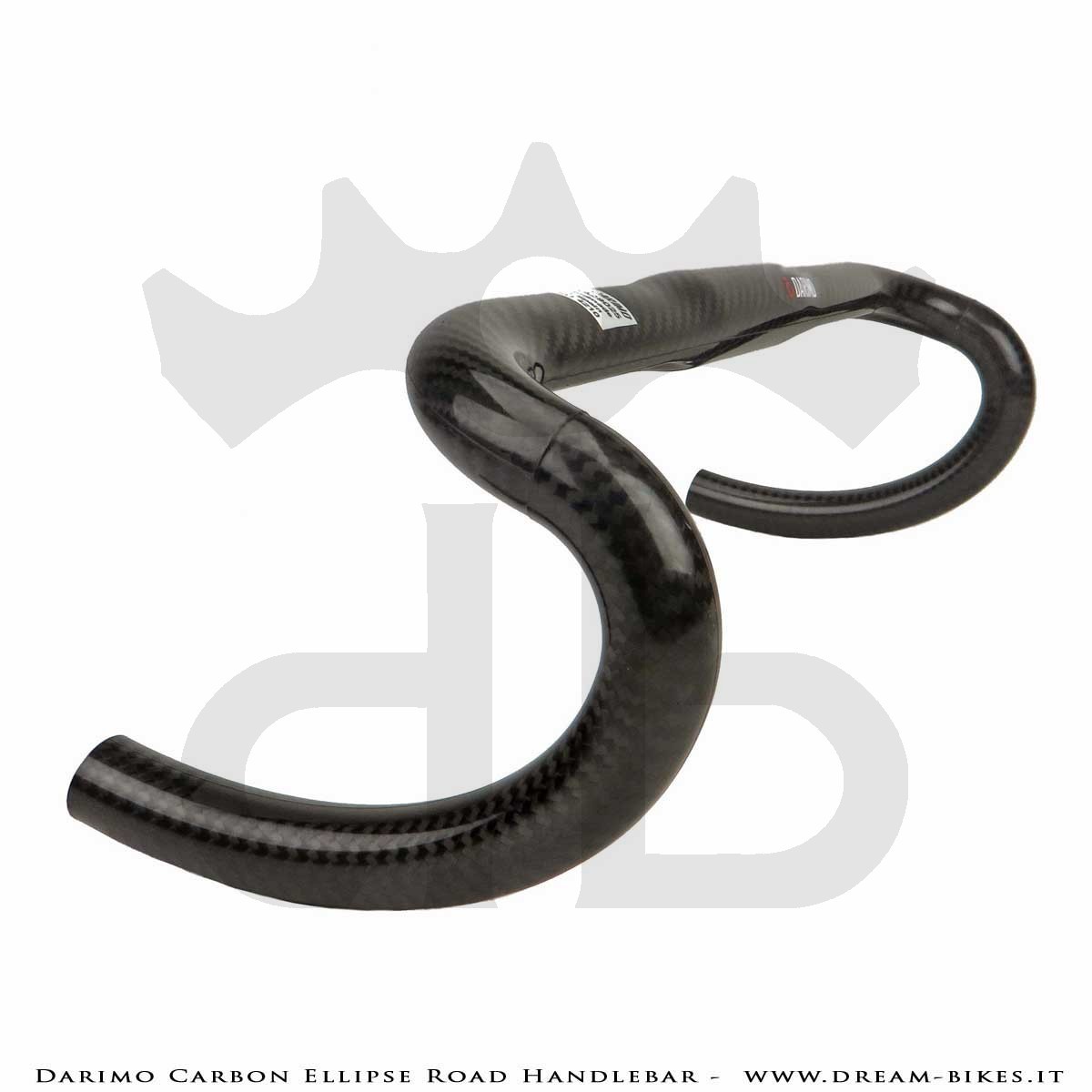

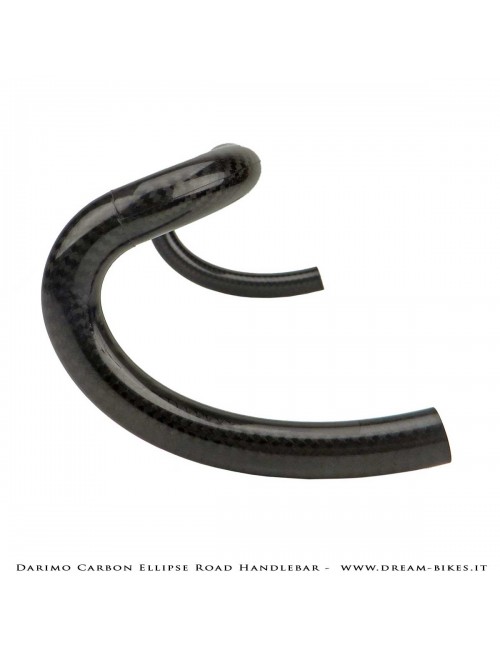

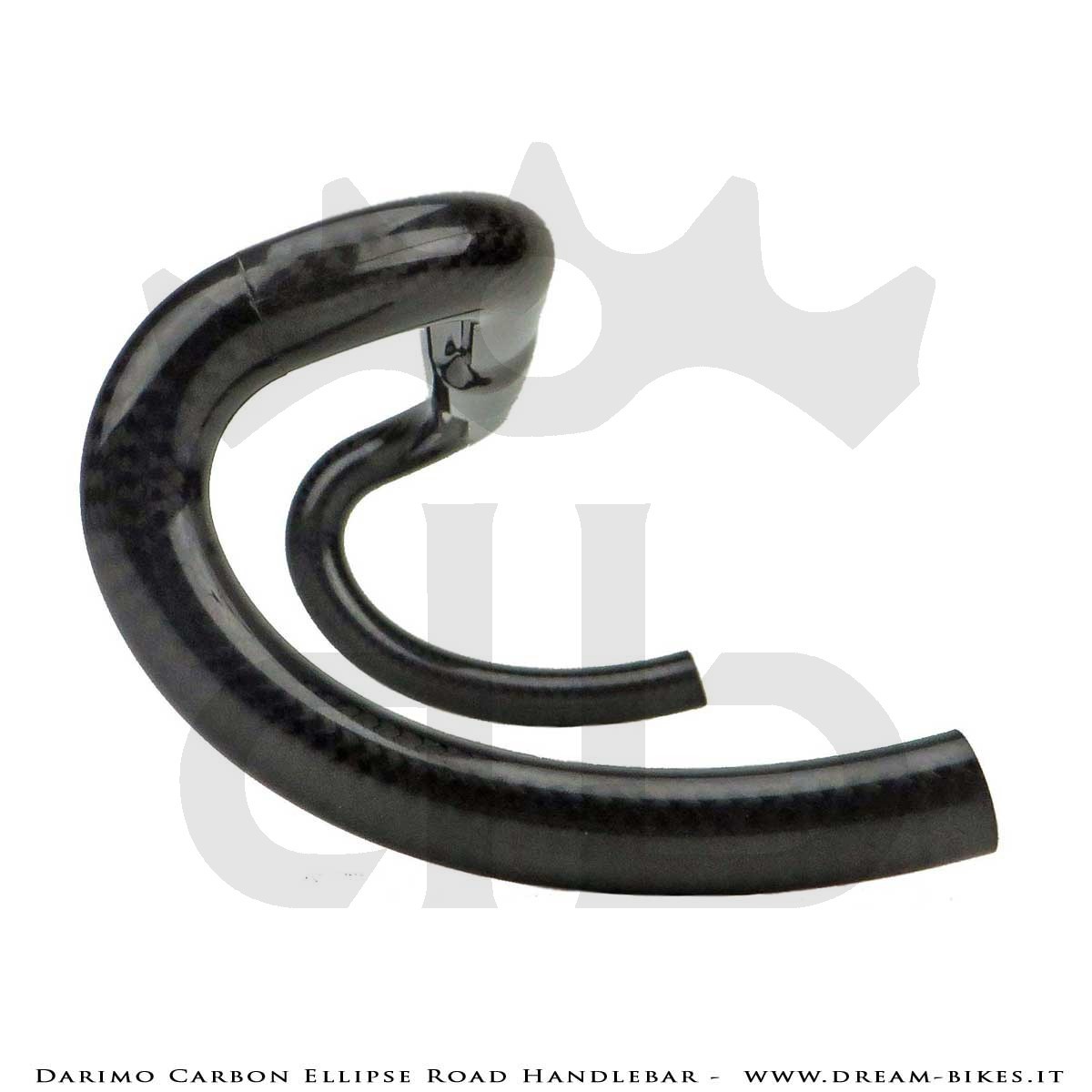

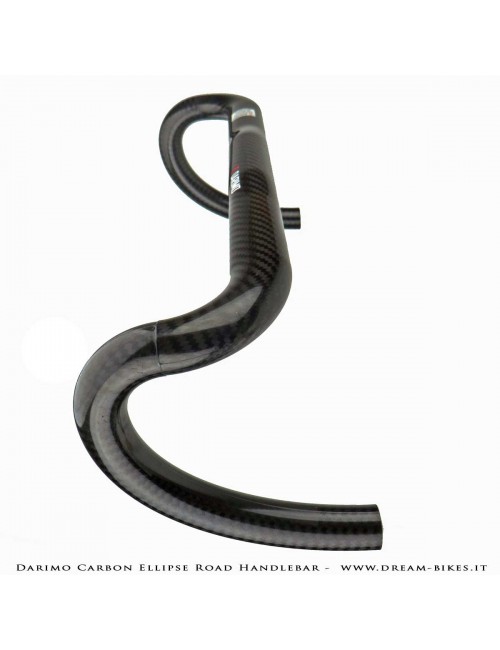

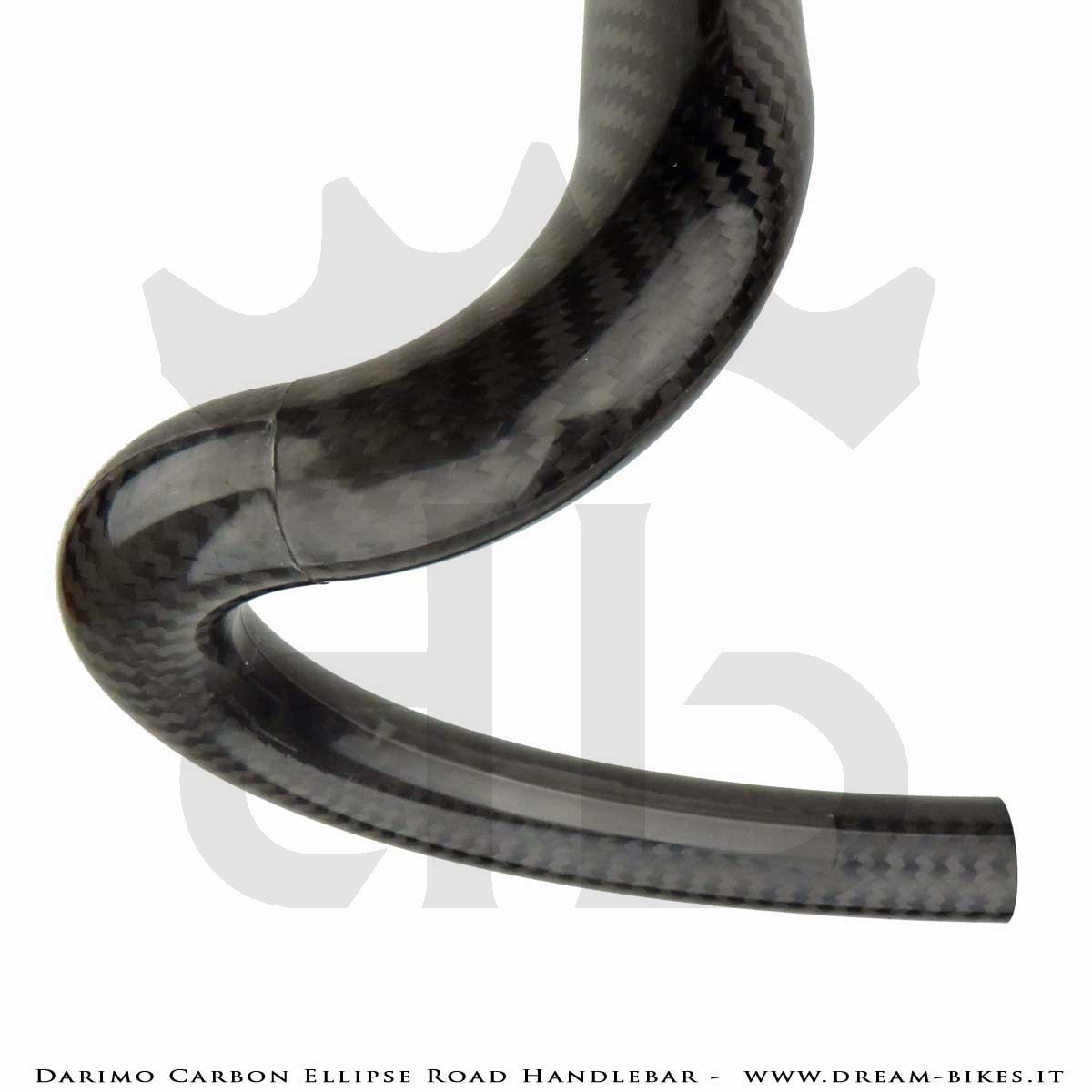

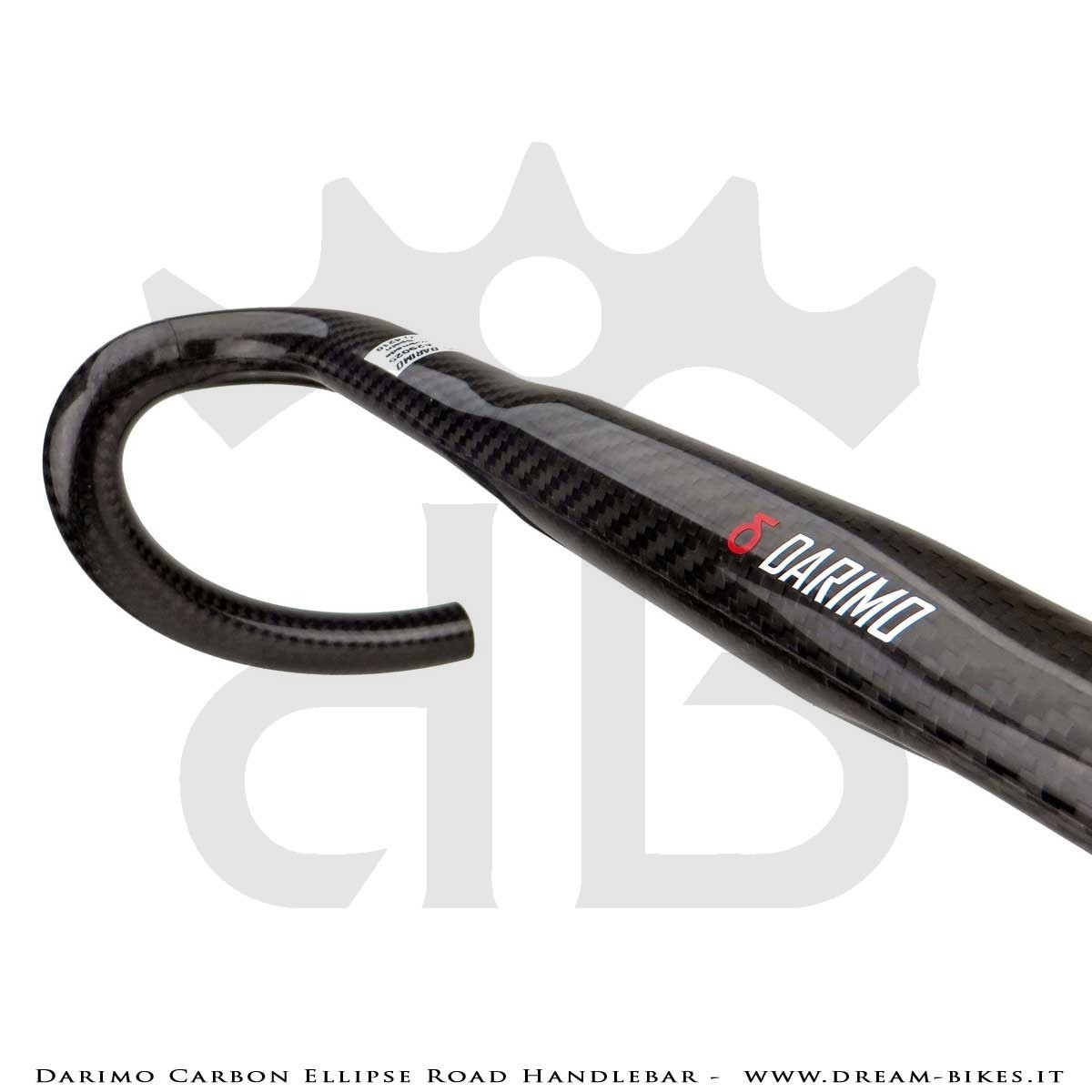

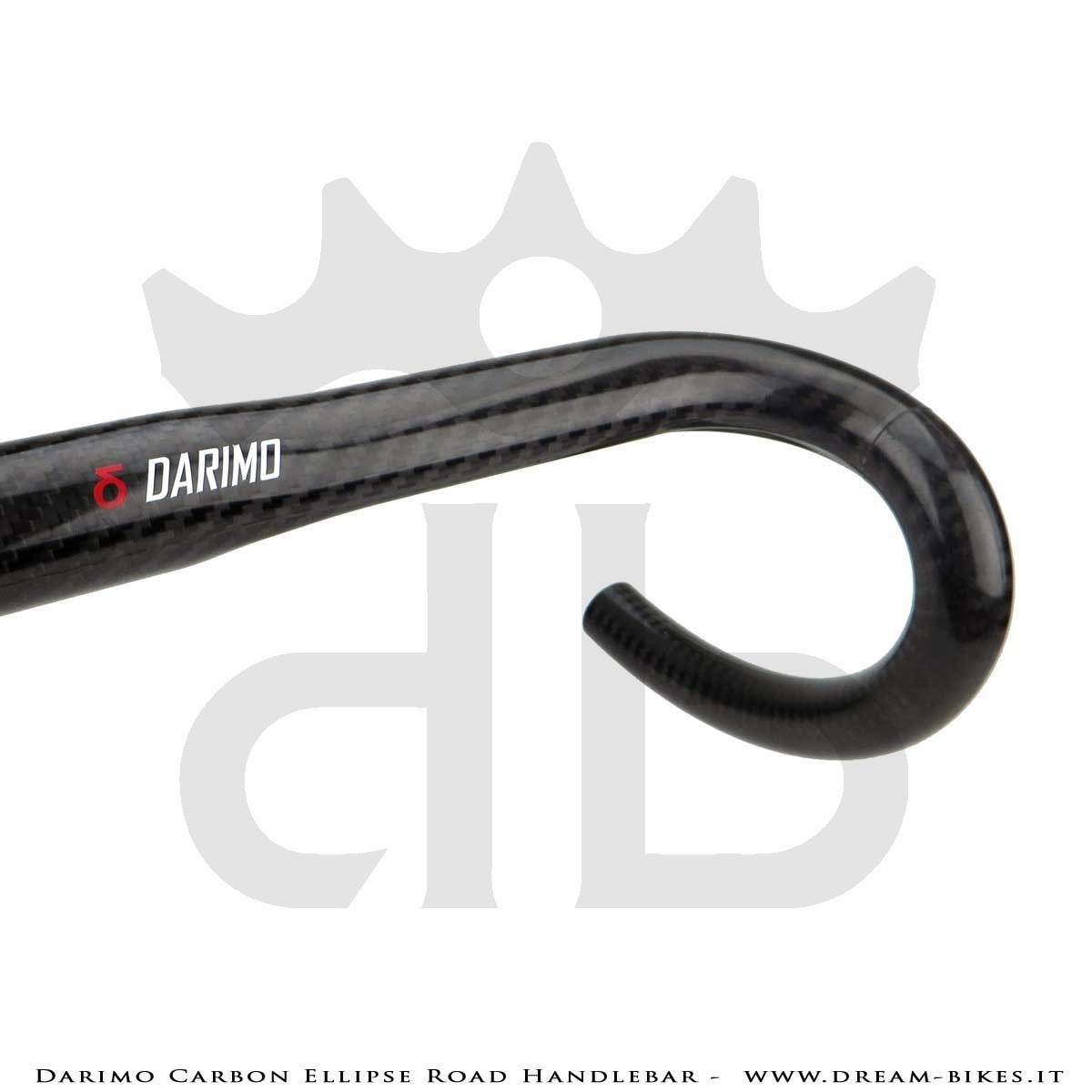

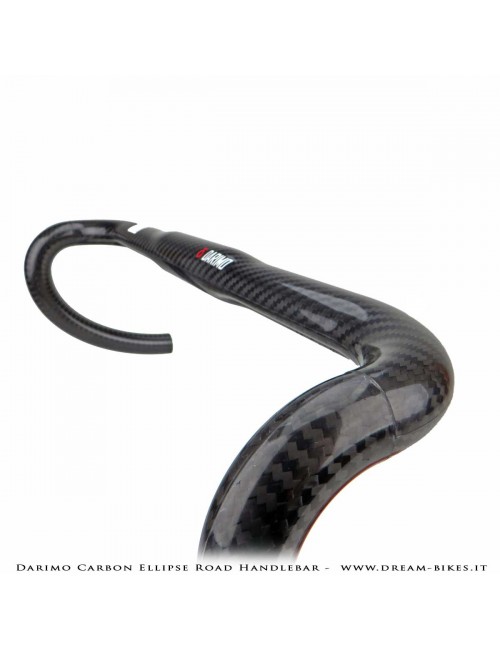

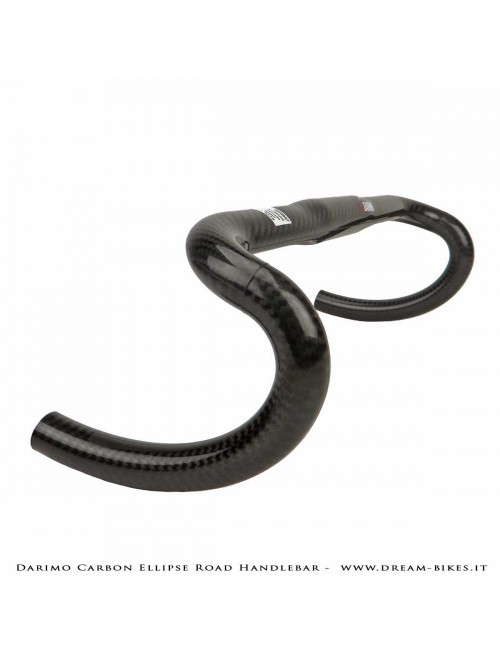

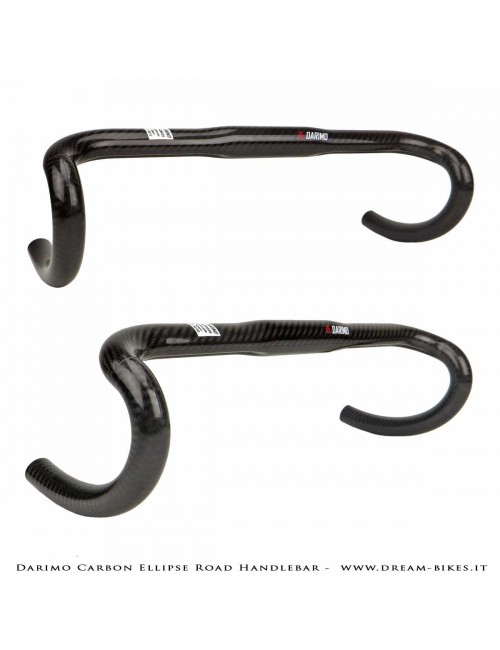

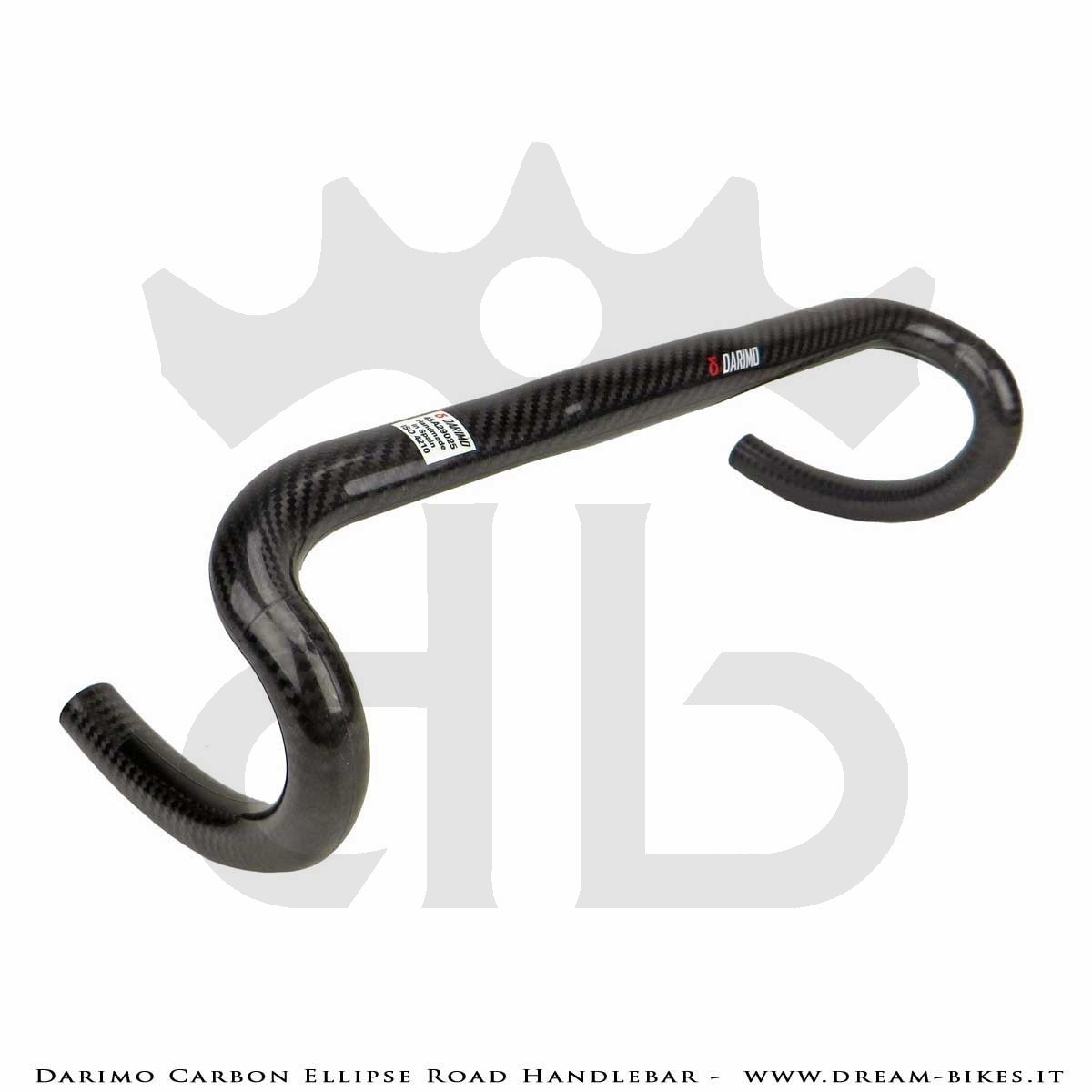

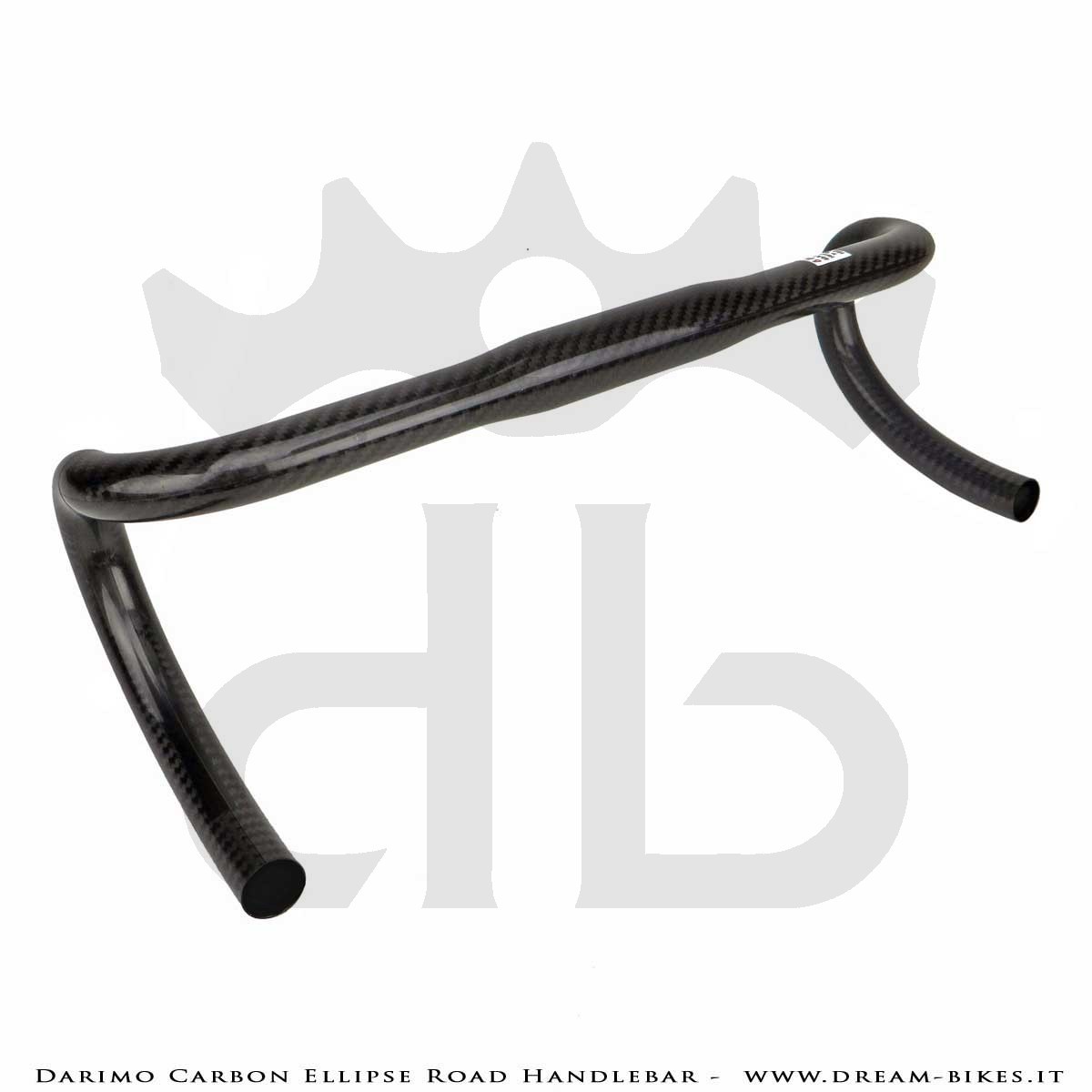

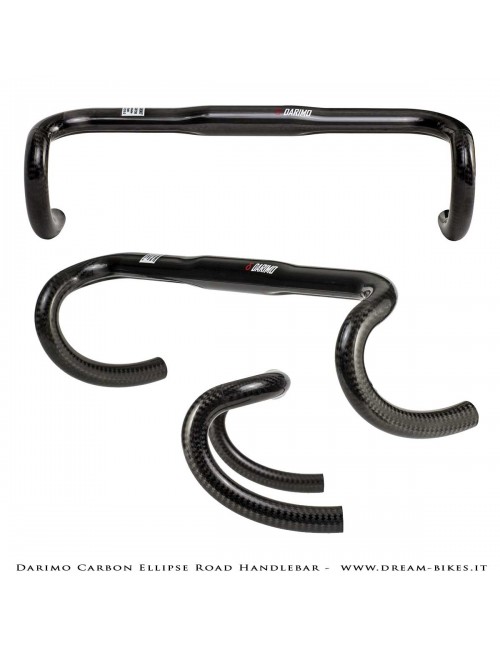

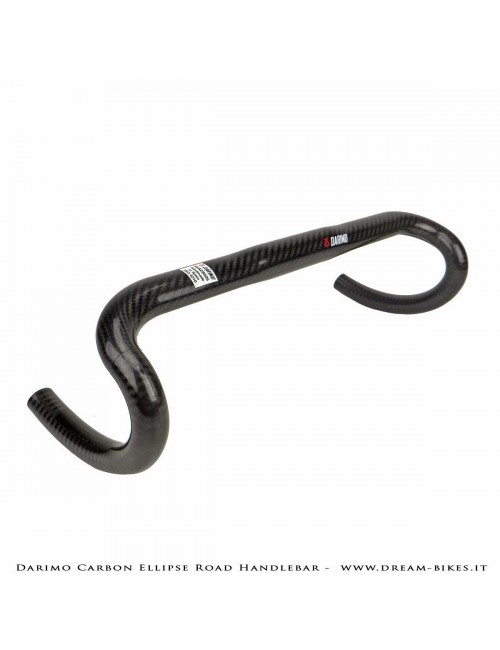

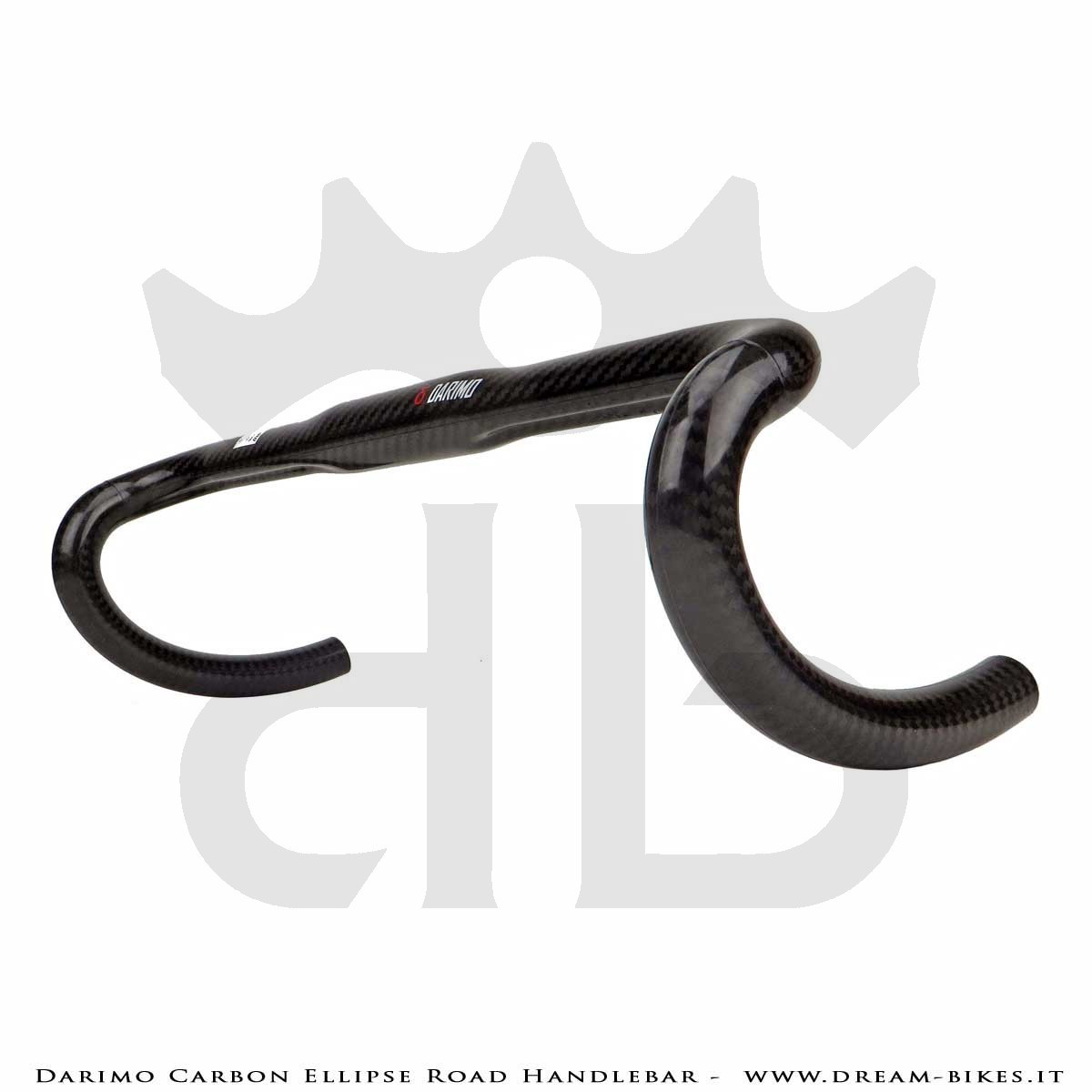

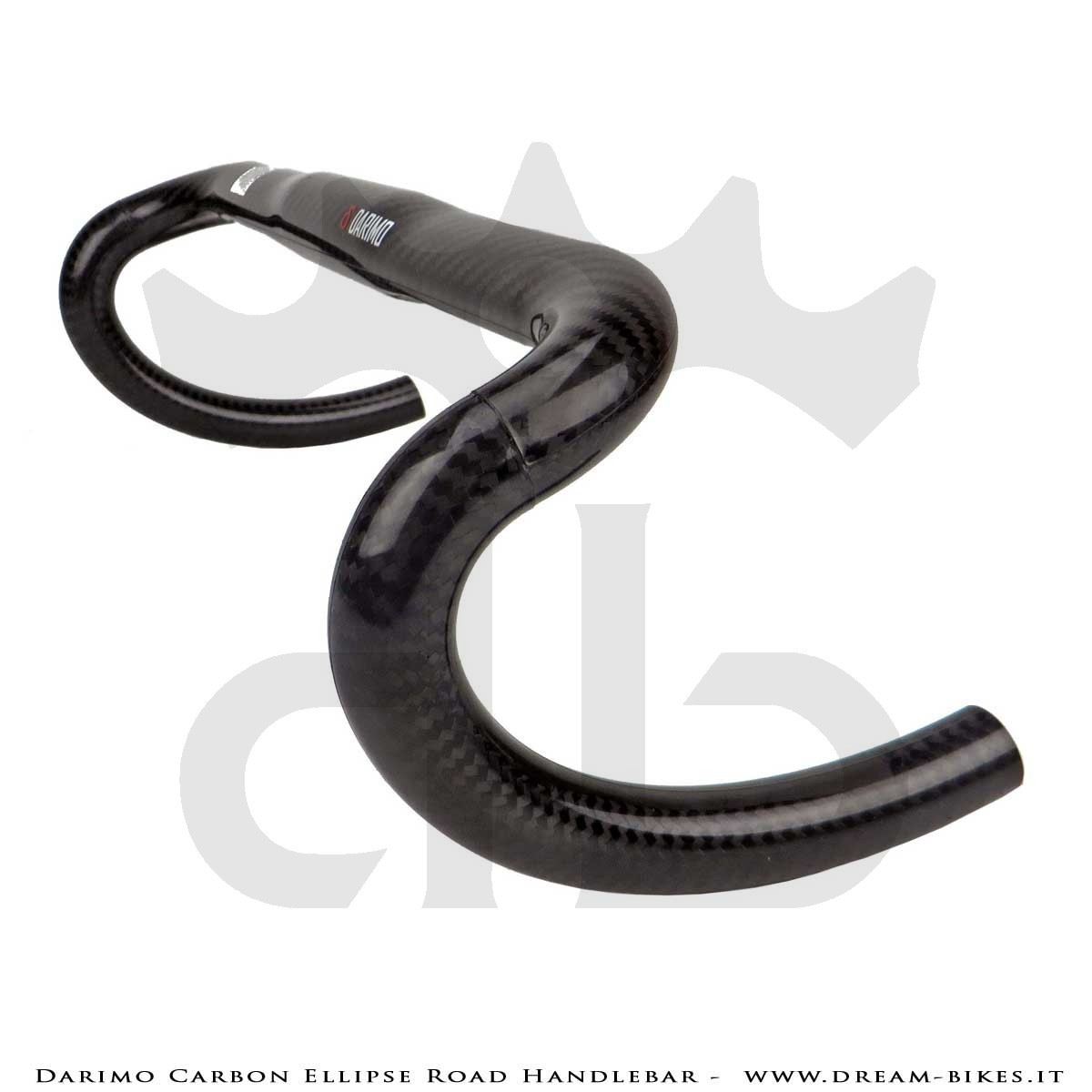

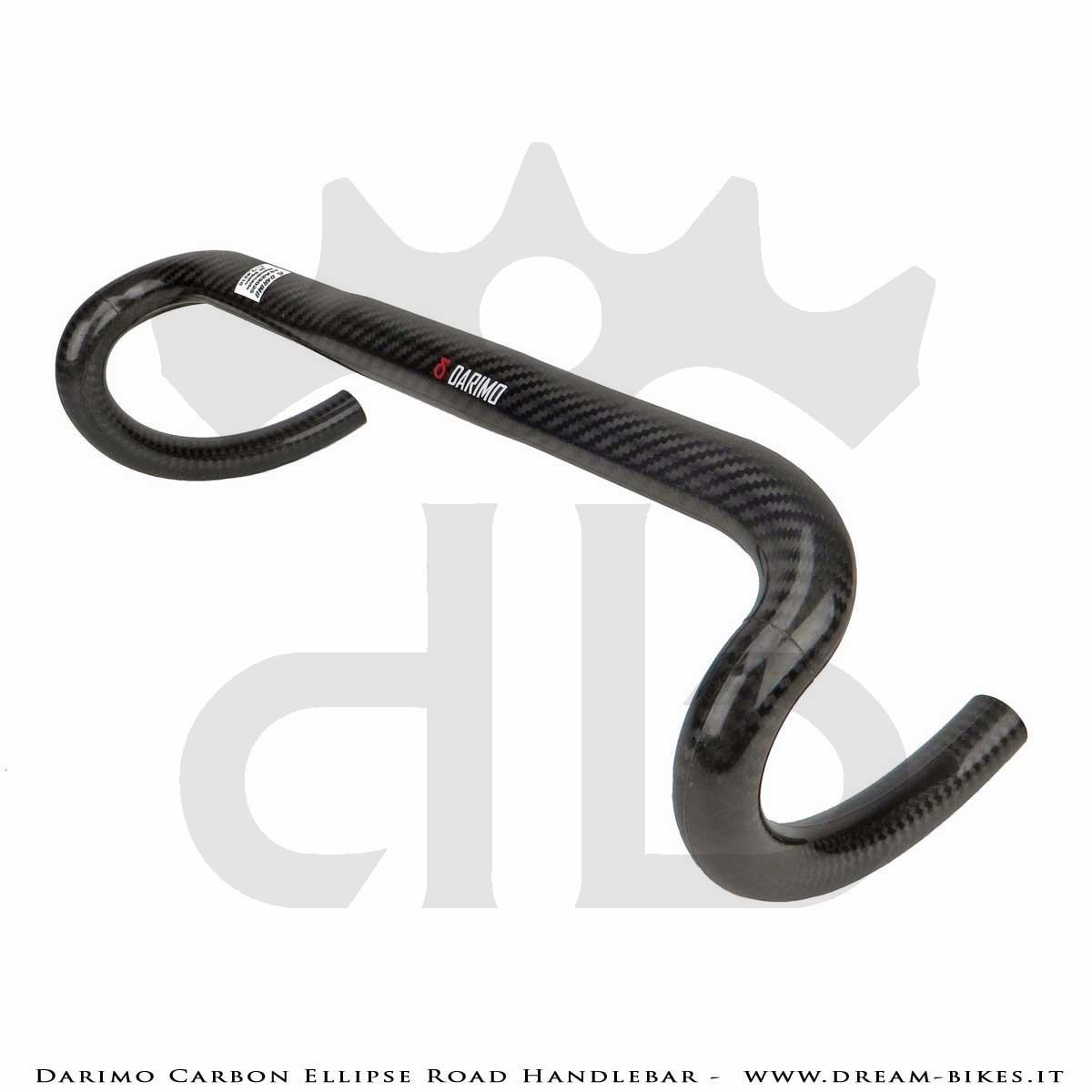

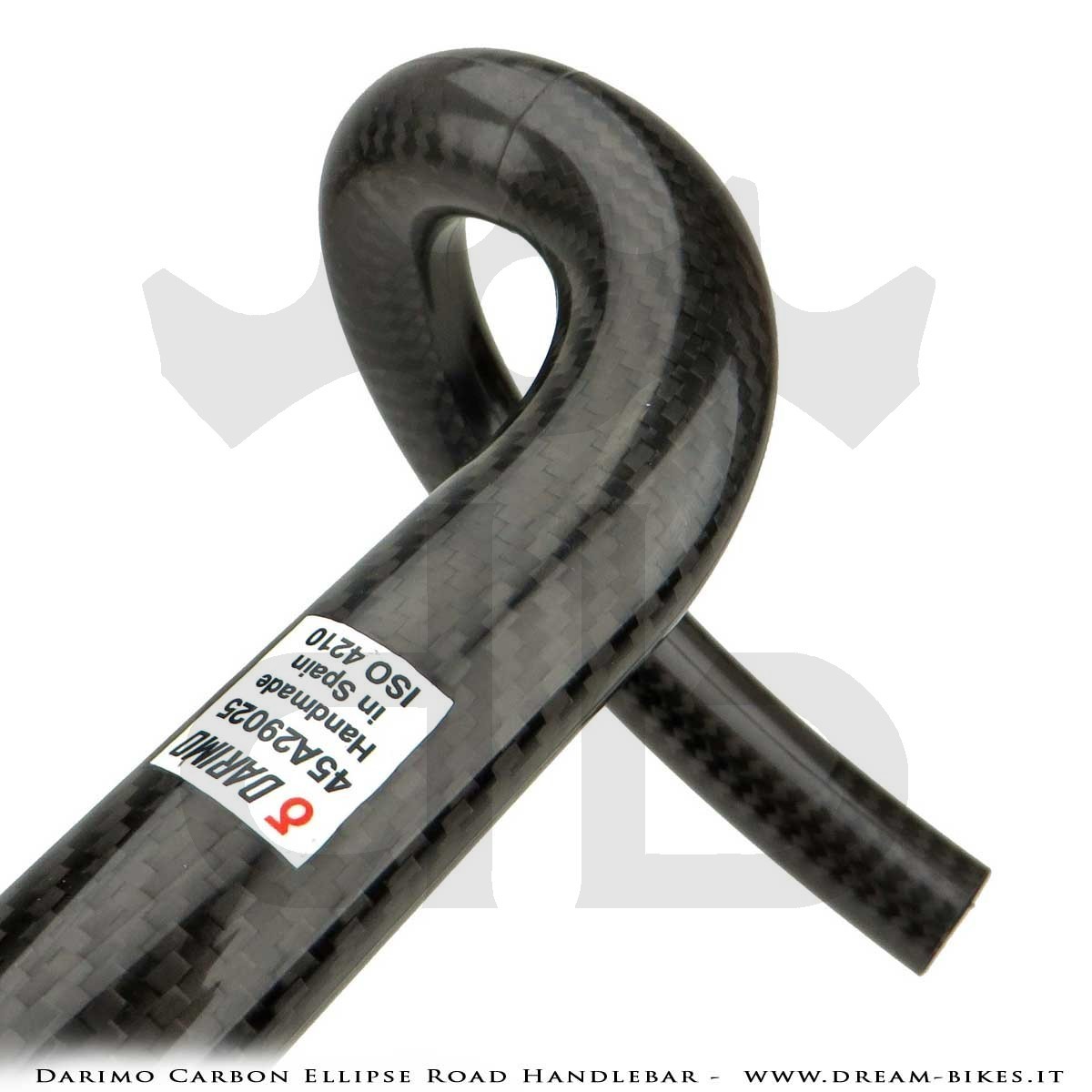

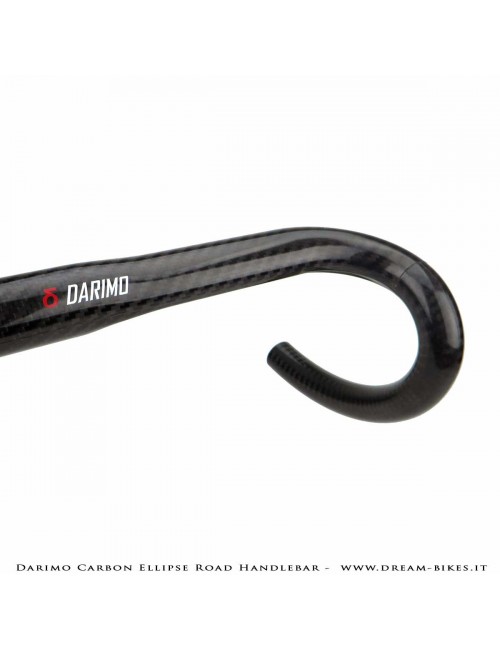

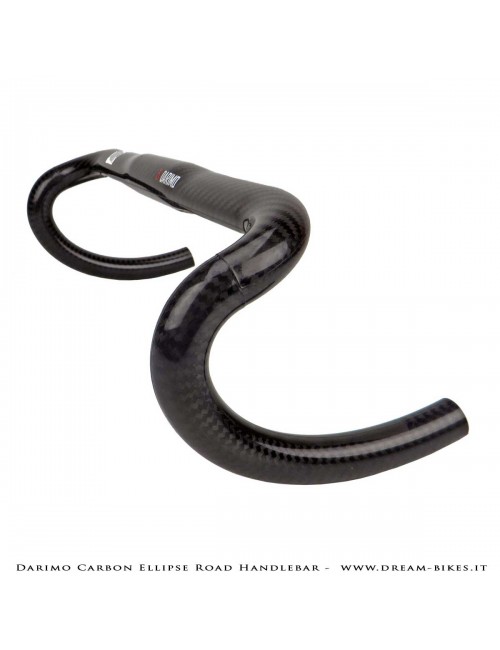

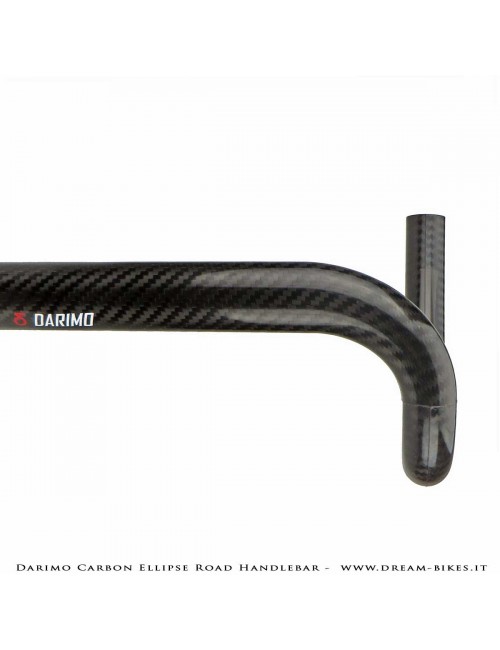

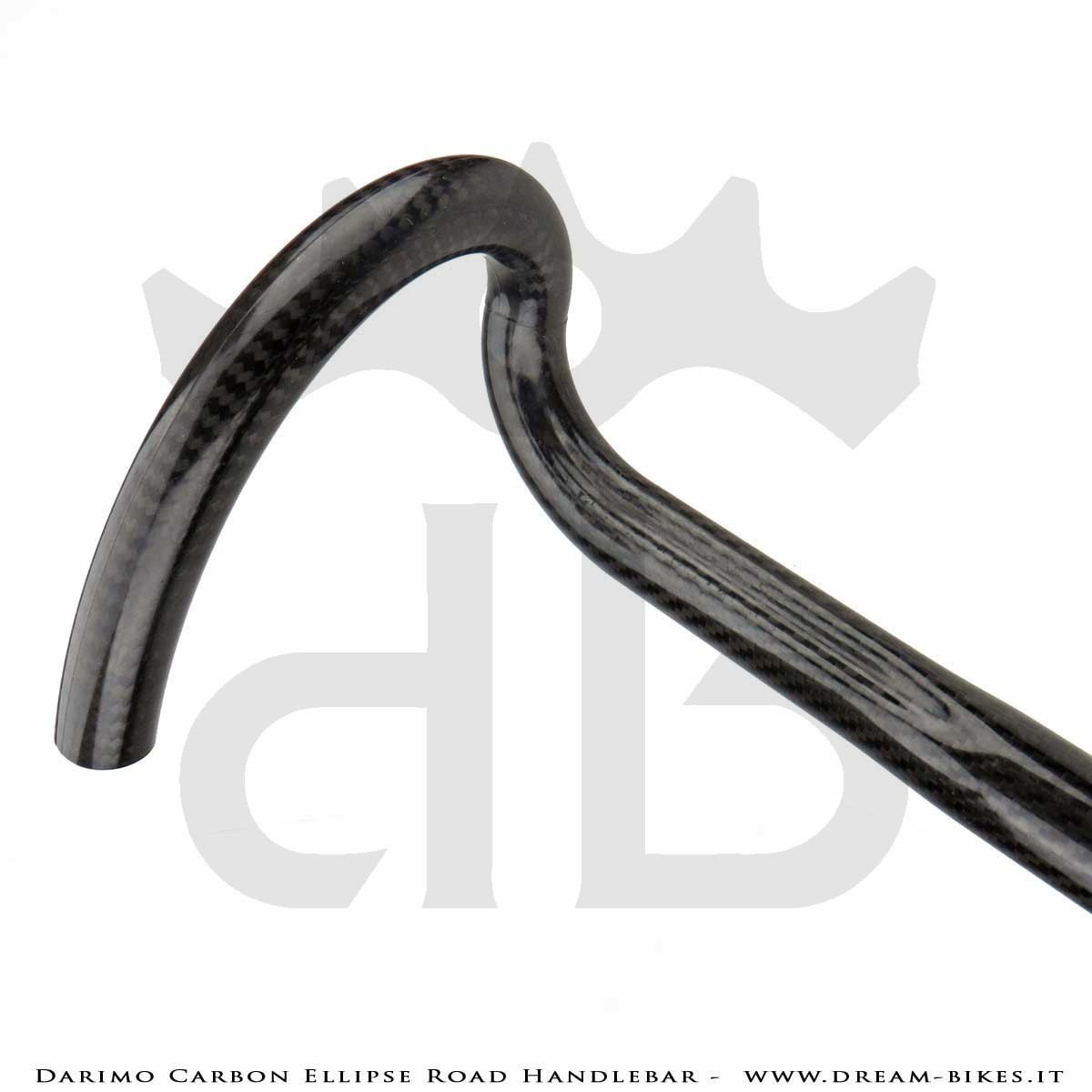

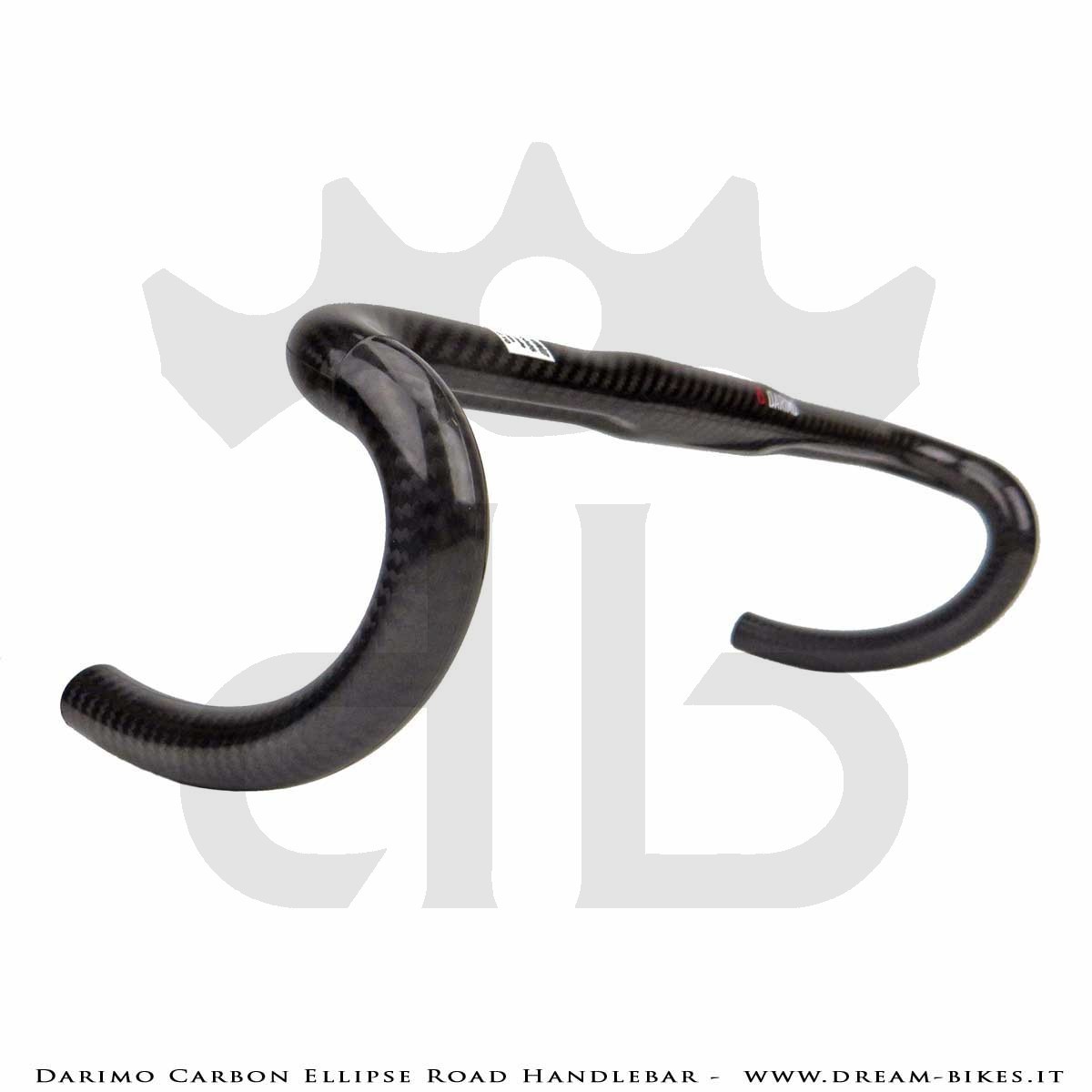

With weights from only 121 gr. Darimo Carbon Ellipse is the lightest handlebar in the world. It's made in Spain with high quality materials and standards. It's compatible with Road Bike, CX and Gravel use.

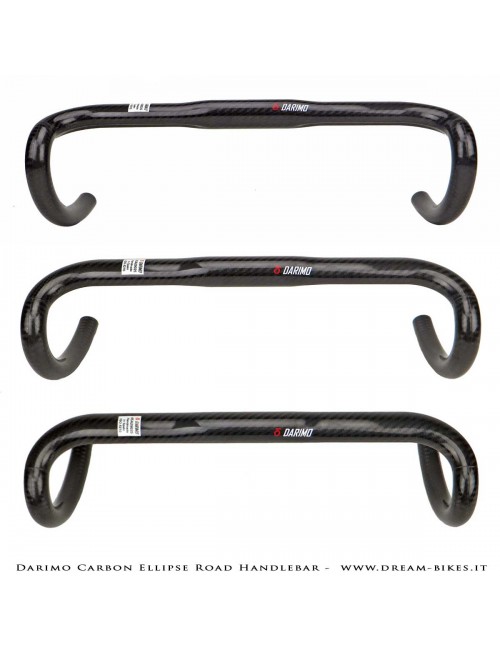

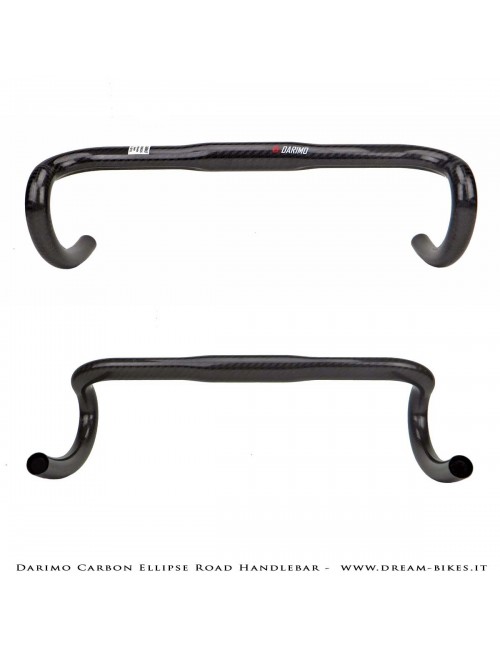

It's a Compact handlebar, with 77 mm Reach and 128 mm Drop. Has got 31.8 mm oversize diameter and is produced in 4 widths : 380-400-420-440 mm (center/center).
Darimo Carbon Ellipse handlebar is a monocoque composite made of high quality unidirectional and bidirectional carbon fibers, laminated to obtain the best stiffness/weight ratio possible, Shape and thickness are optimized to minimize weight and create greater resistance where needed.
We can find three different reinforced zones :
- Central Zone, where the stem is fixed (central zone is 60 mm width, so we recommand to use 4 bolts front clamp stems with 50 mm max width)

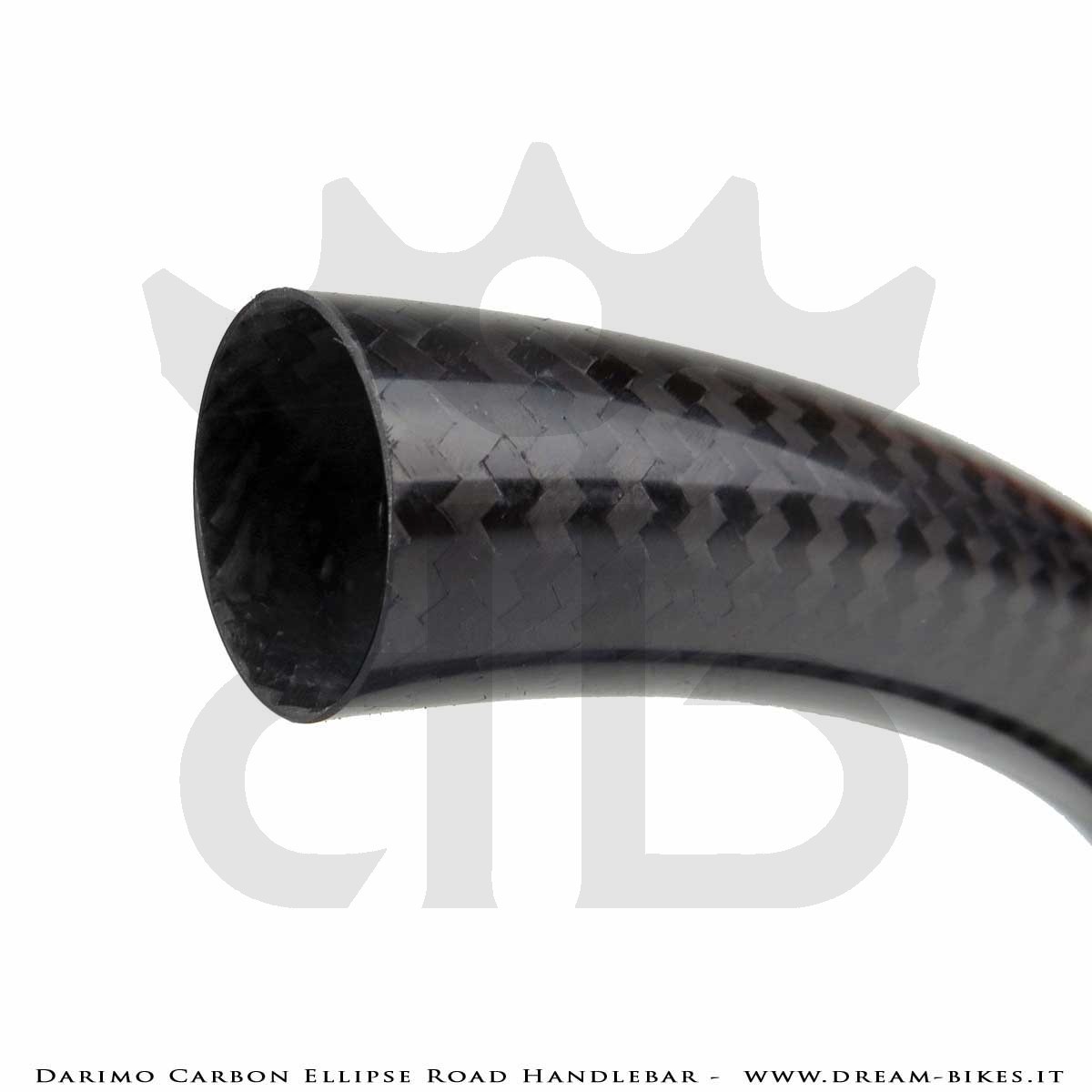

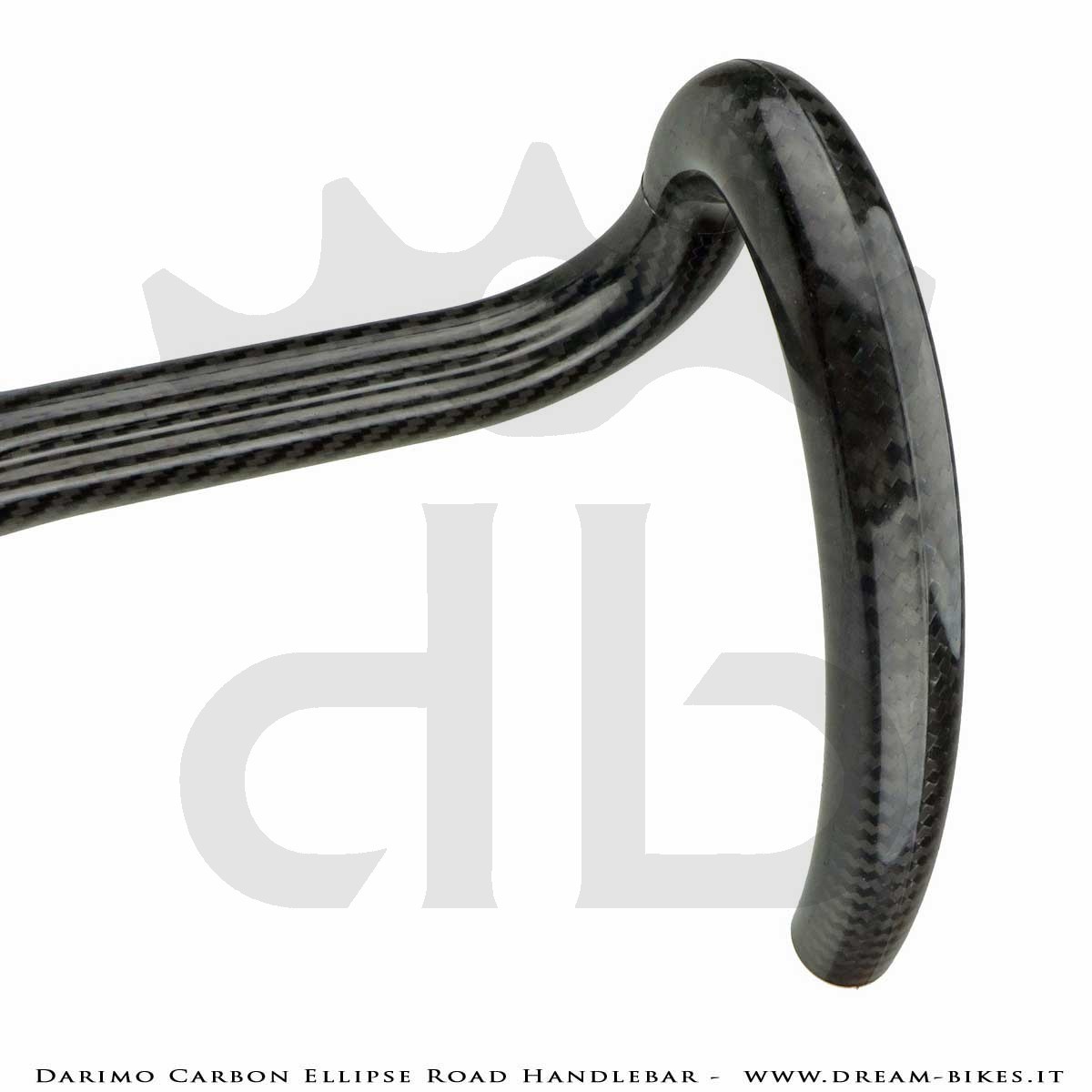

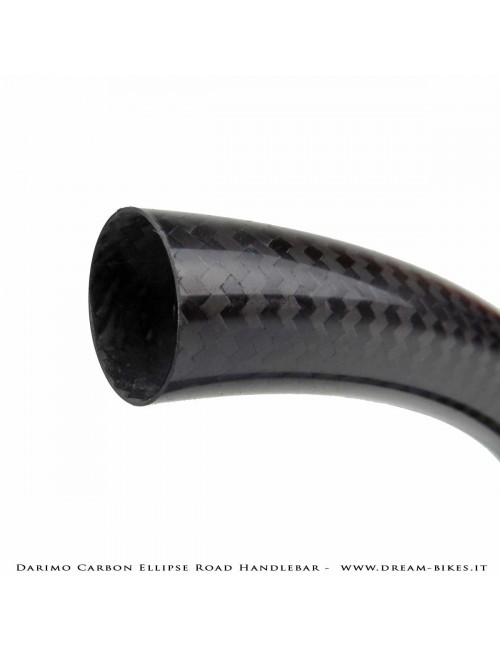

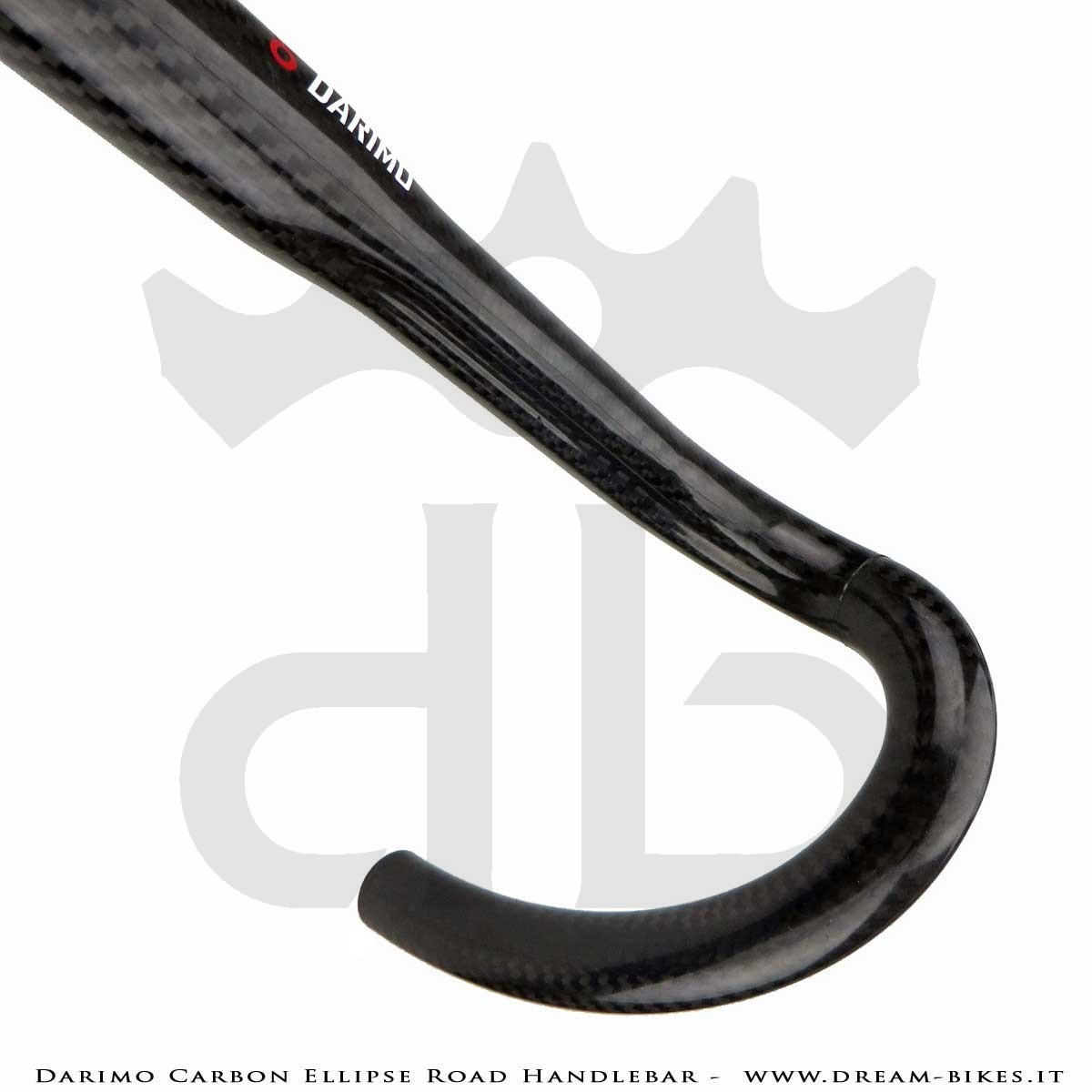

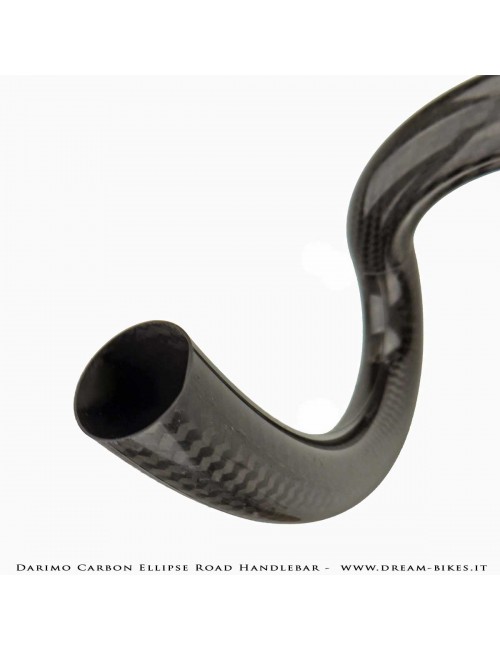

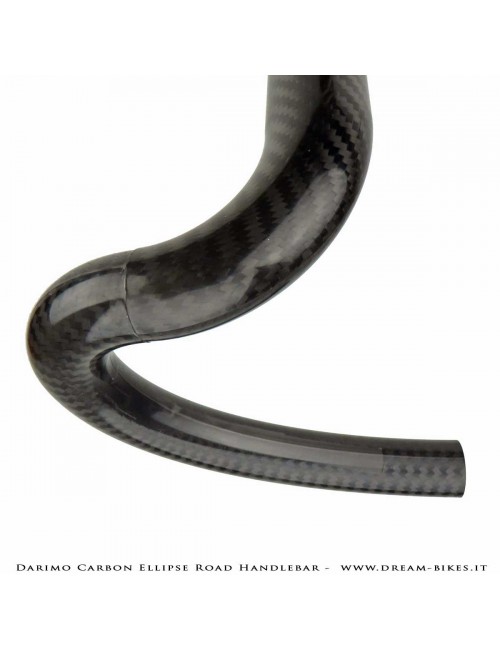

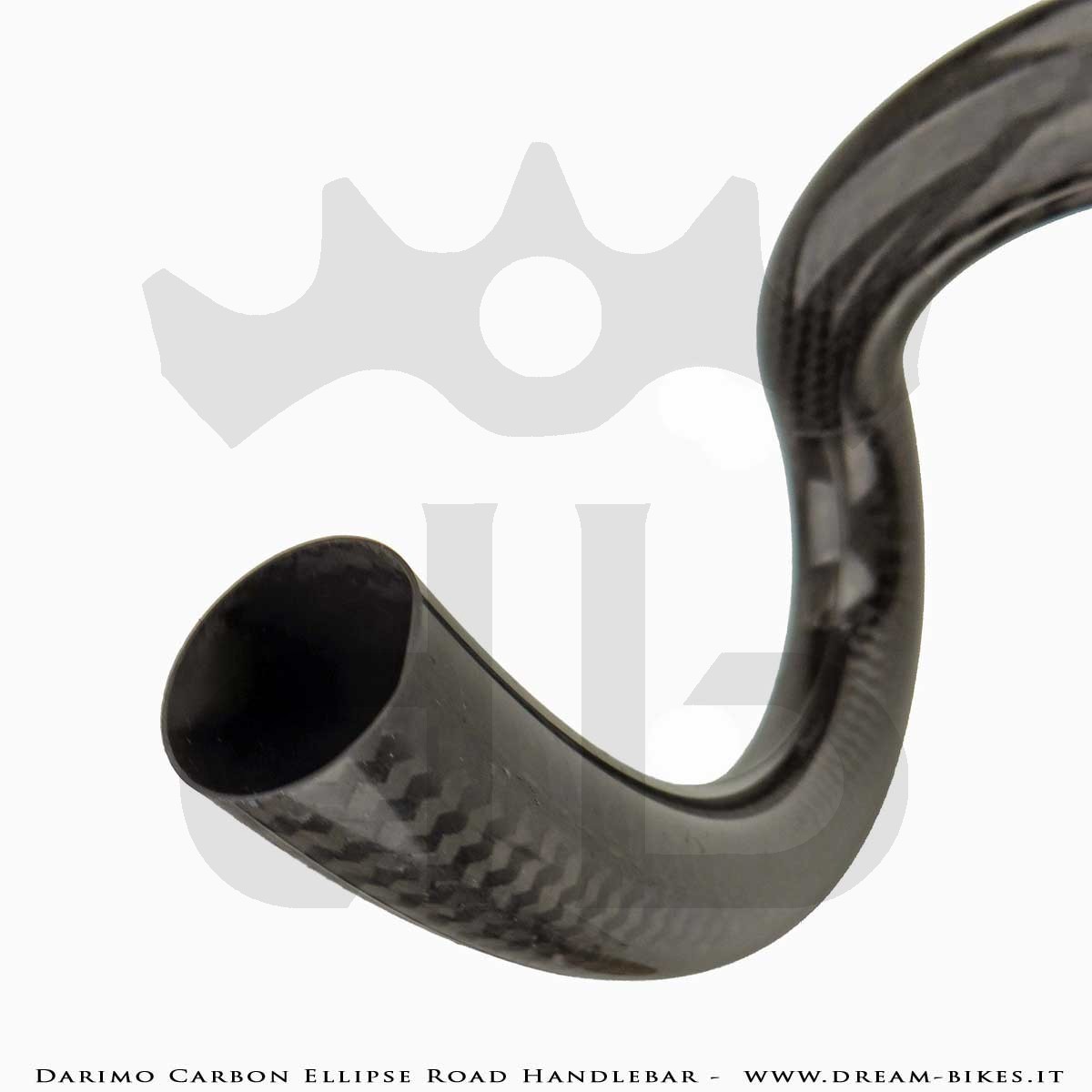

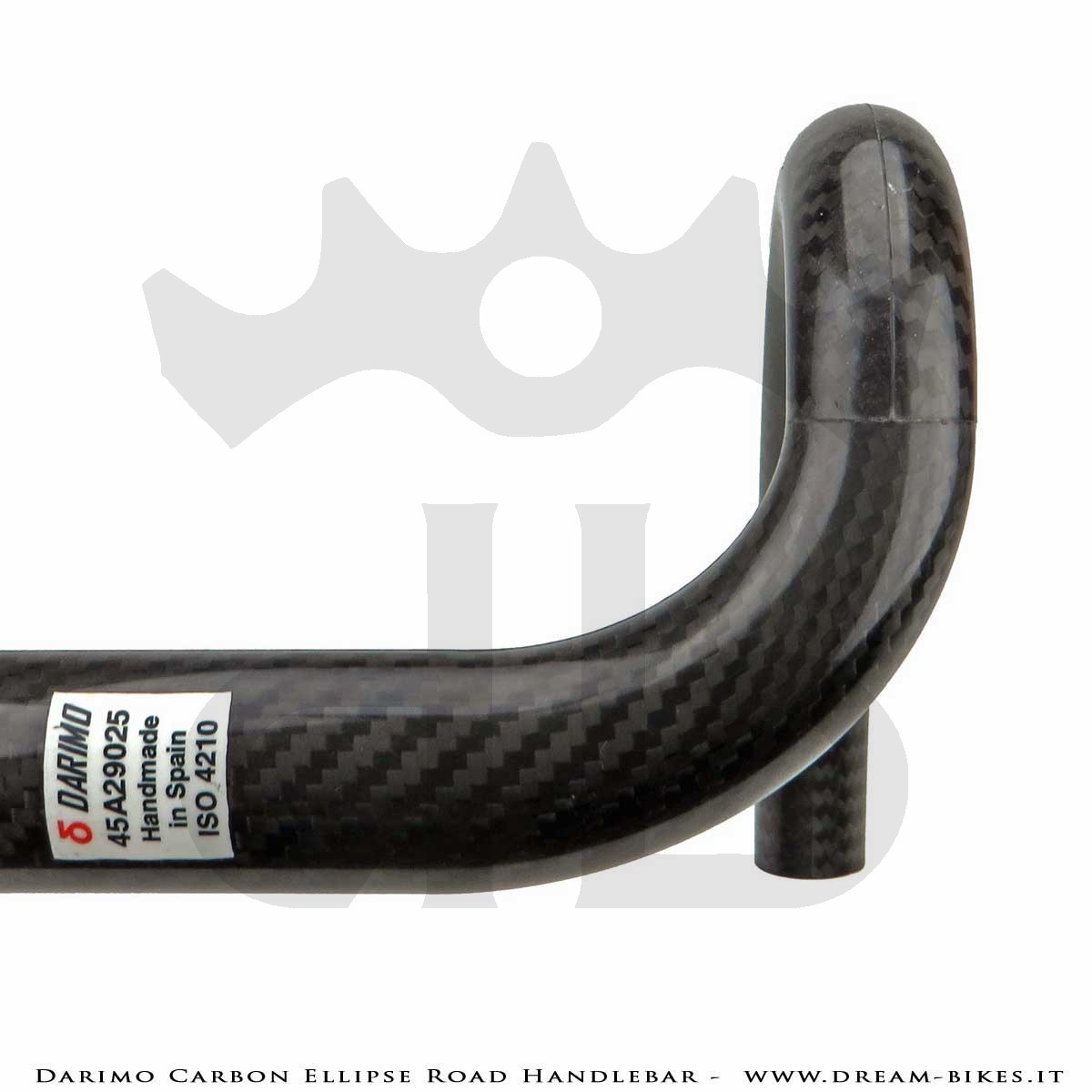

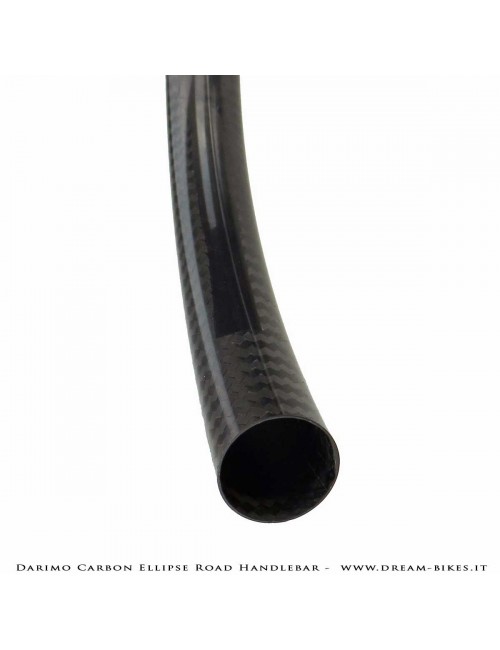

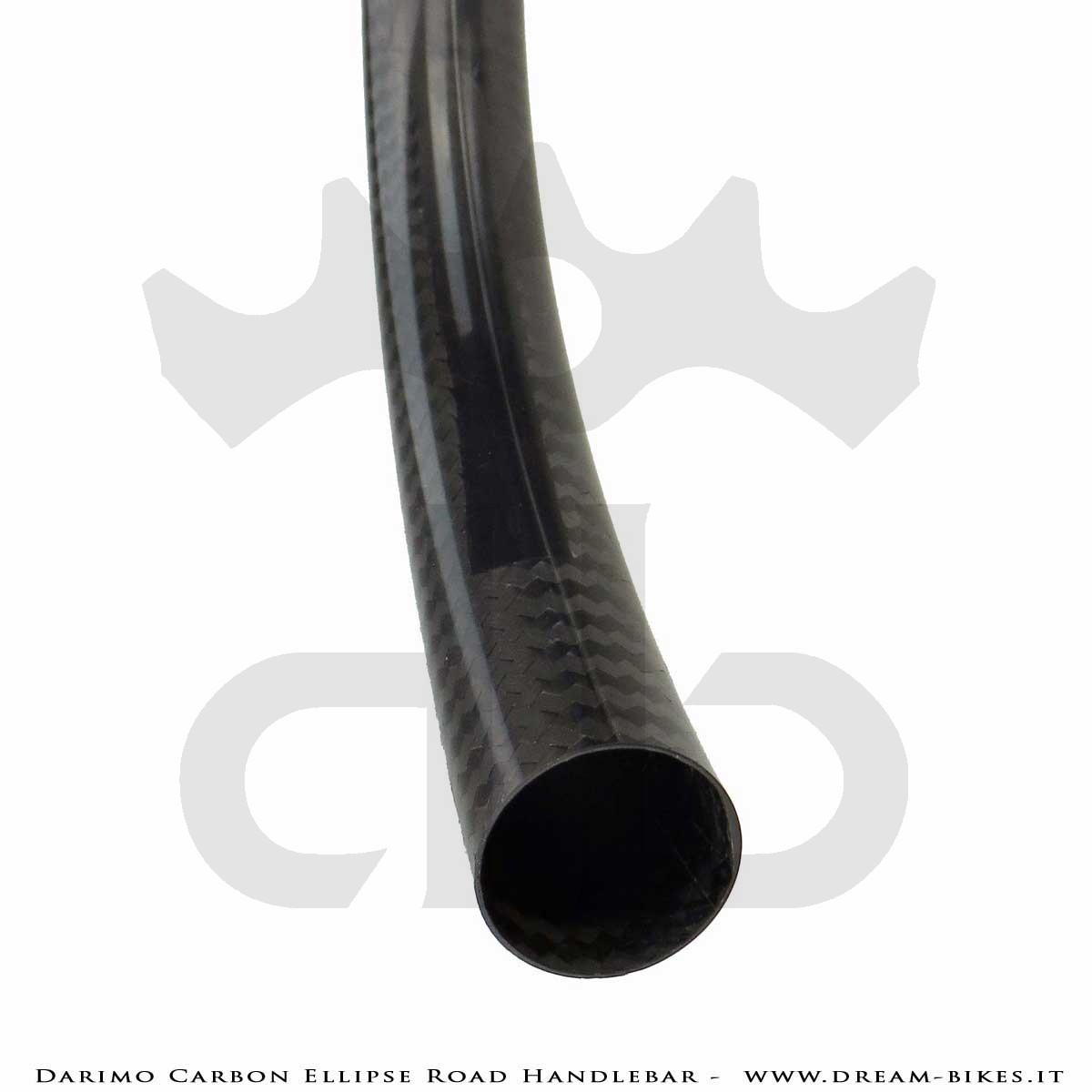

- End Zone, handlebar ends are reinforced with a bigger thichkness to minimize the possibility of splintering in case of fall or contact with the ground.Â
- Control Zone, there is a reinforced zone also where shifters/brake levers are usually tightened.
Â
Â

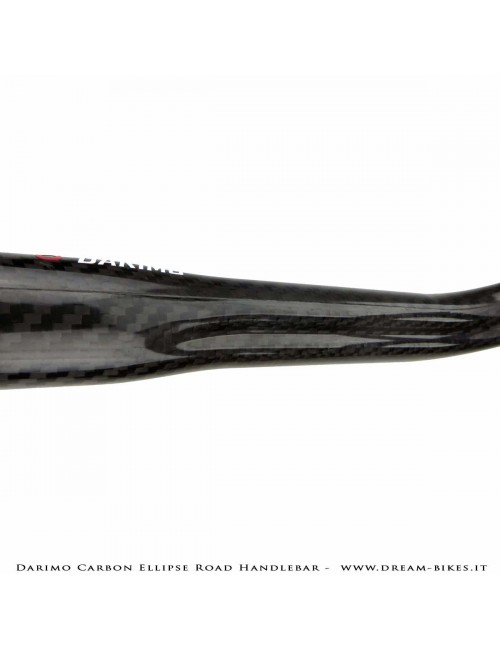

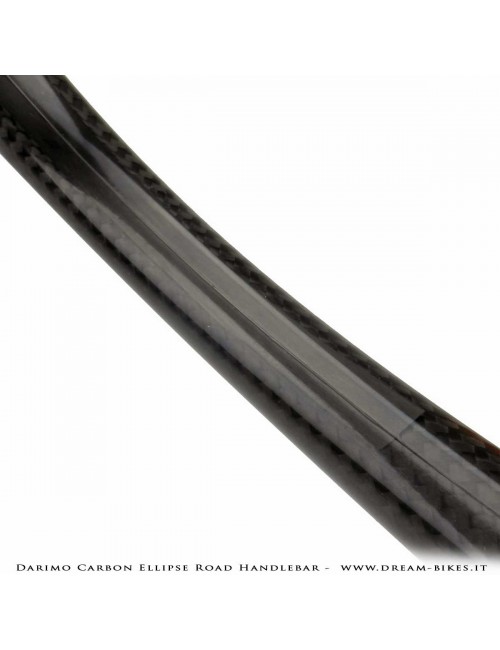

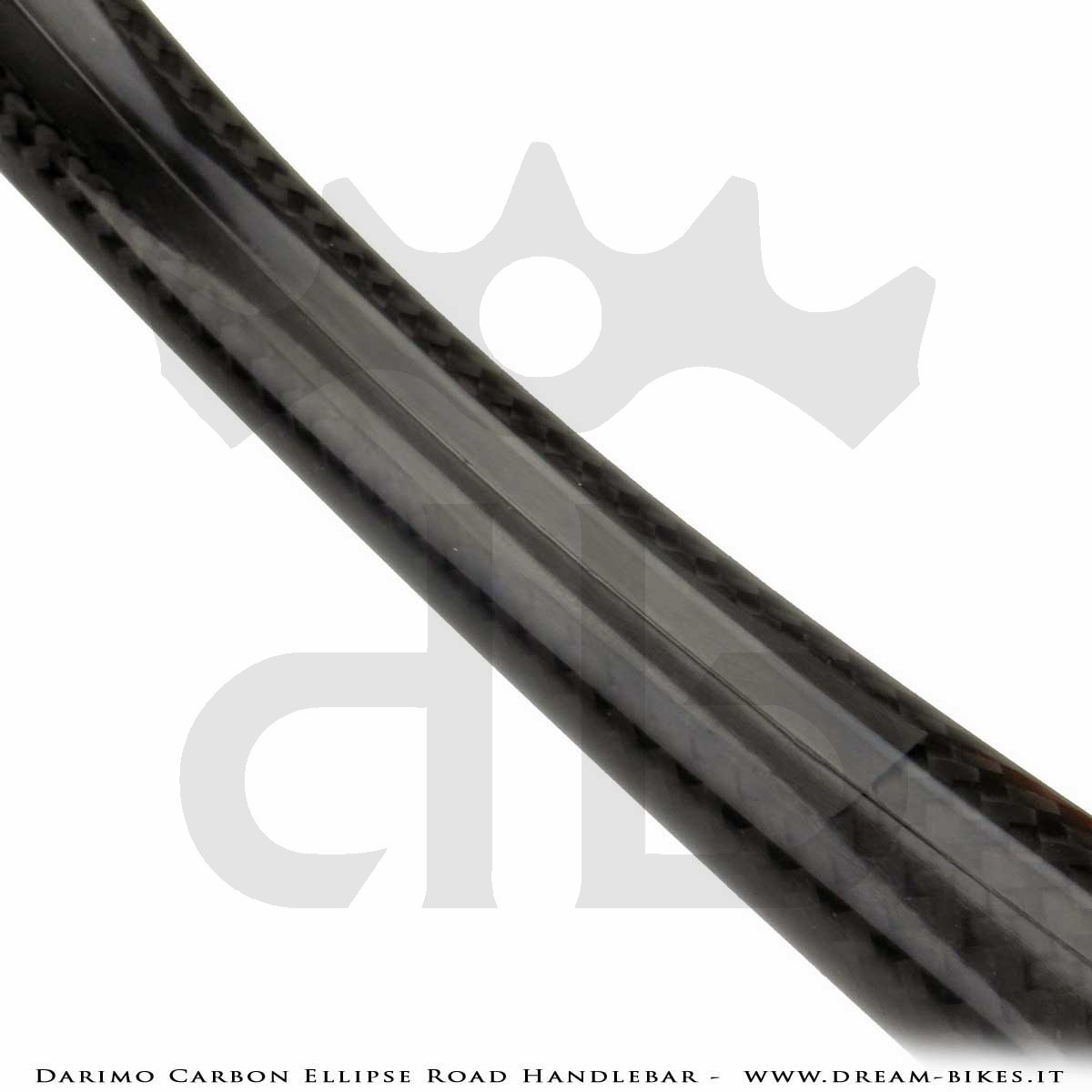

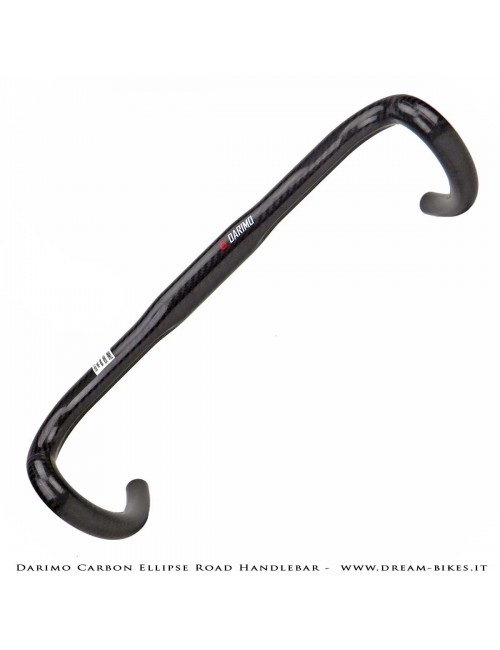

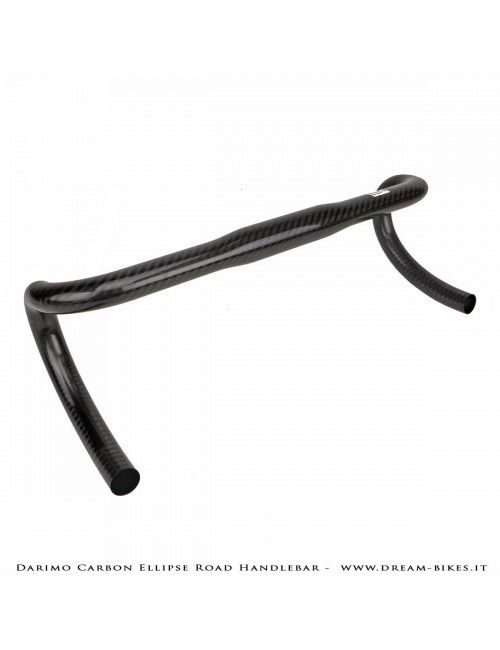

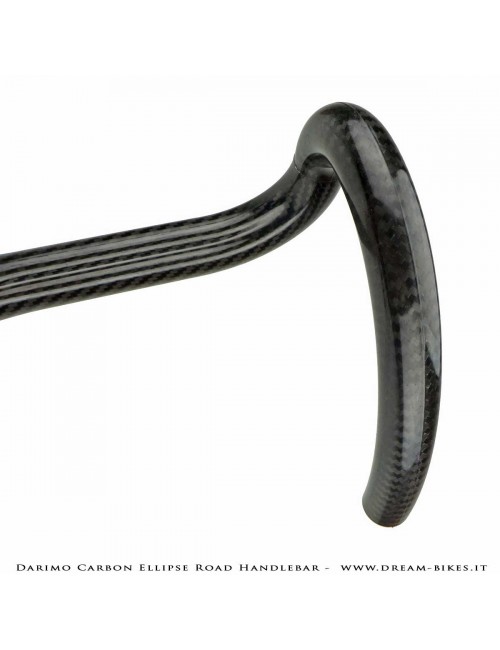

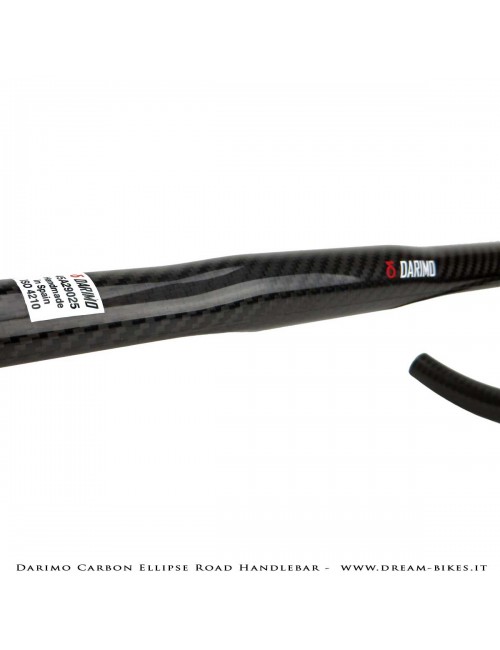

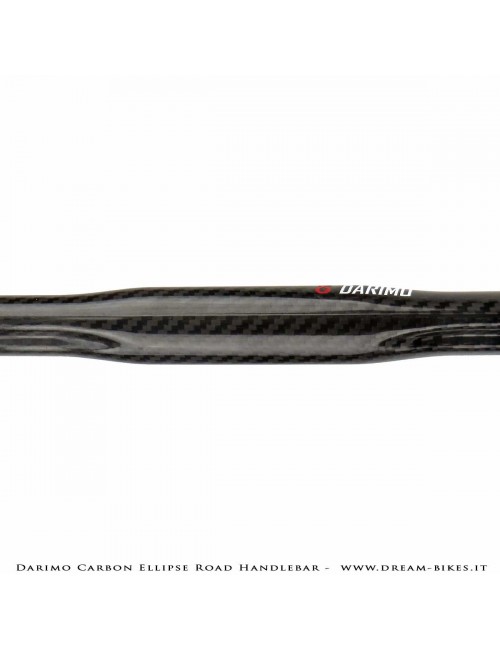

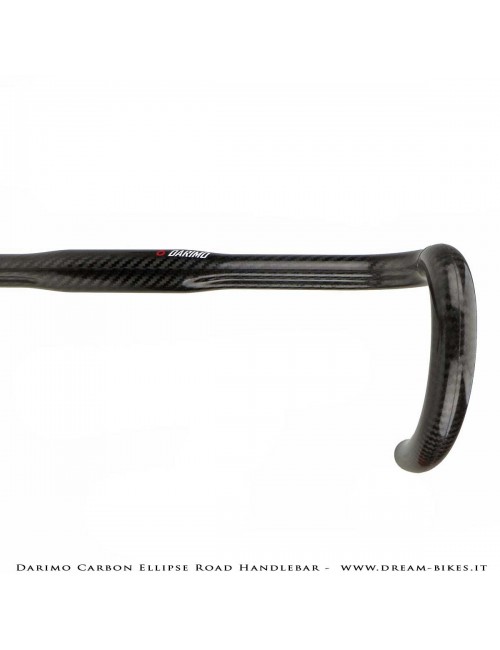

The upper part of the handlebar has a flattened shape to increase comfort during hours of riding. In the lower part it has external grooves for brake and shifters cables.
The central zone has a sufficient width for assembling extensions, but you must request an specifically reinforced versión.
On demand it’s possible to manufacture the handlebar with holes for the internal routing of electronic cables. In this case, it is necessary to specify where the holes are needed. It leads to an increase in weight depending on the number of holes since these areas must be reinforced.

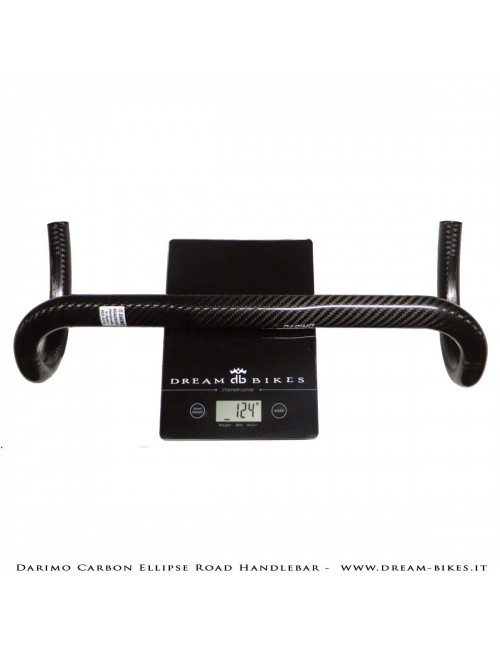

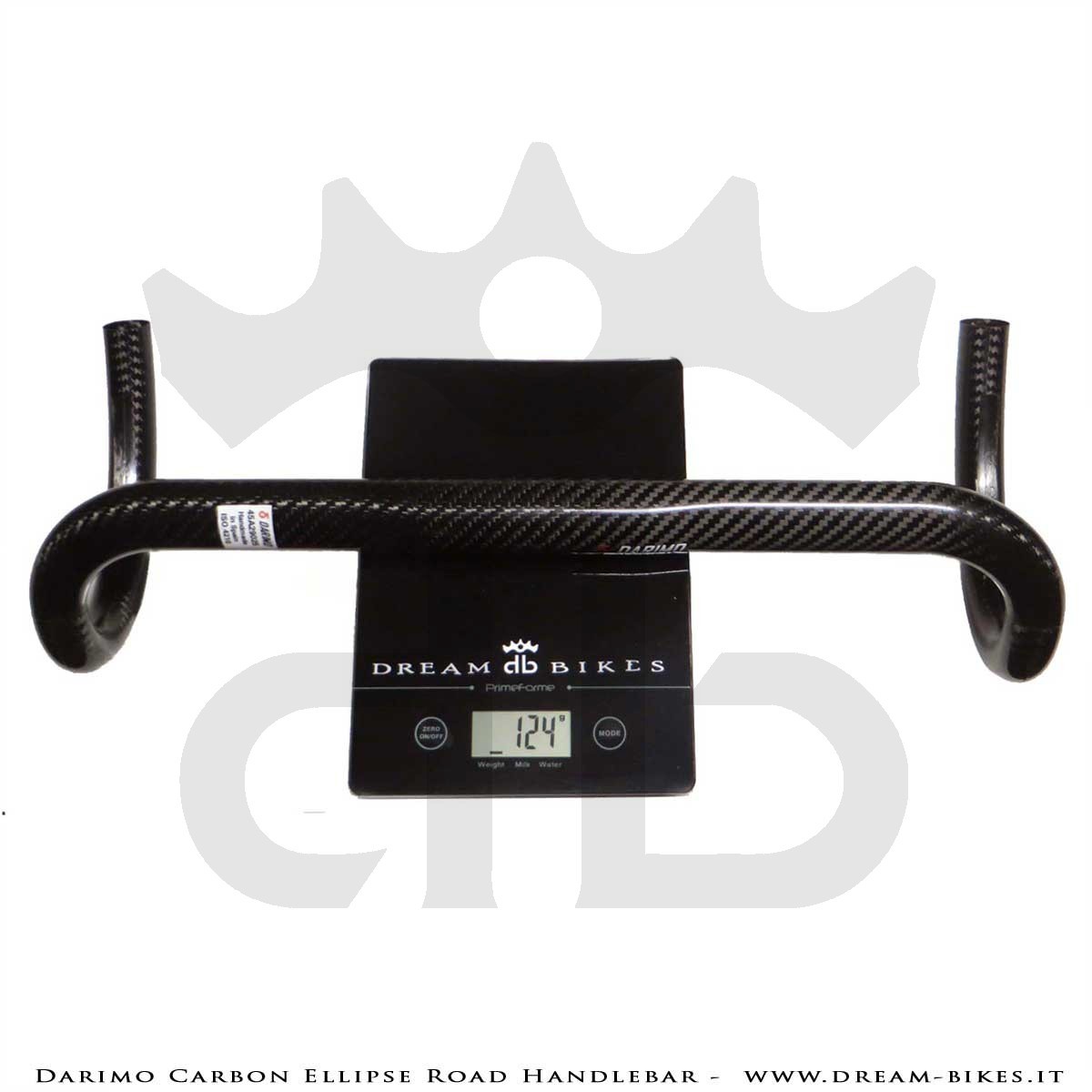

With weights from only 121 gr. (380 mm 3k), Darimo Carbon Ellipse is the lightest Road handlebar in the world! UD Unidirectional finishing adds about 8 grams of weight.

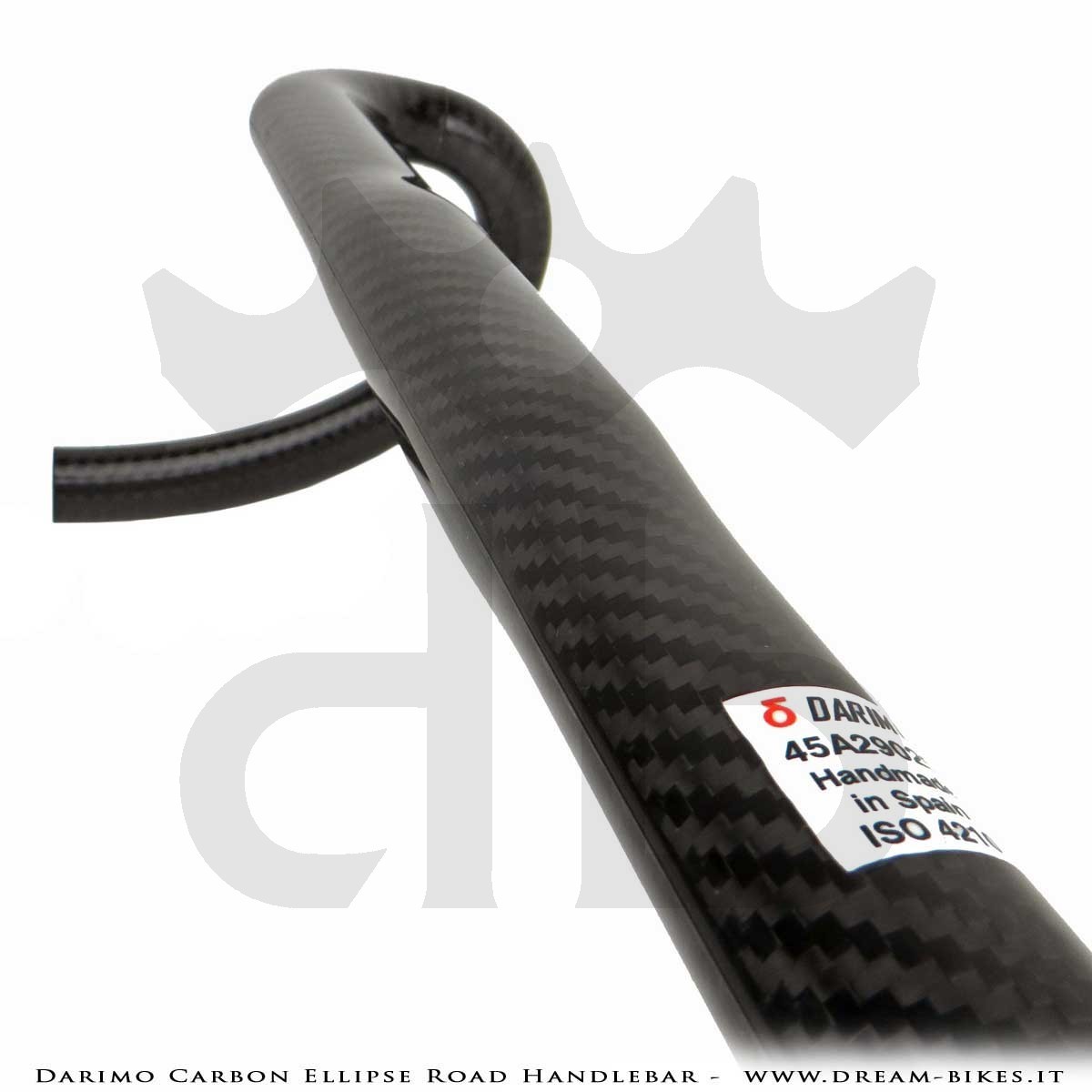

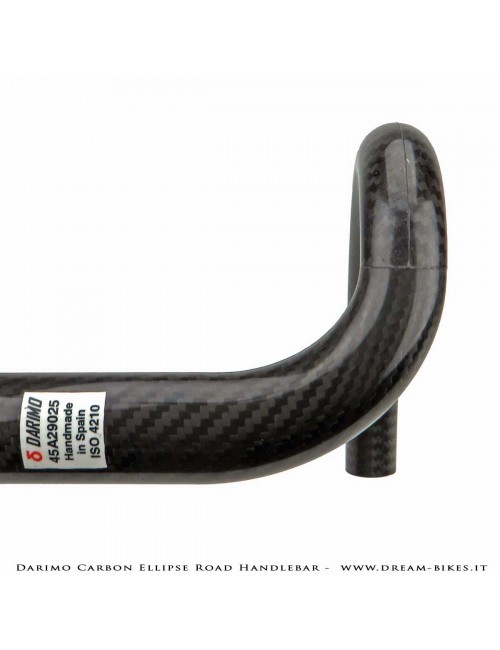

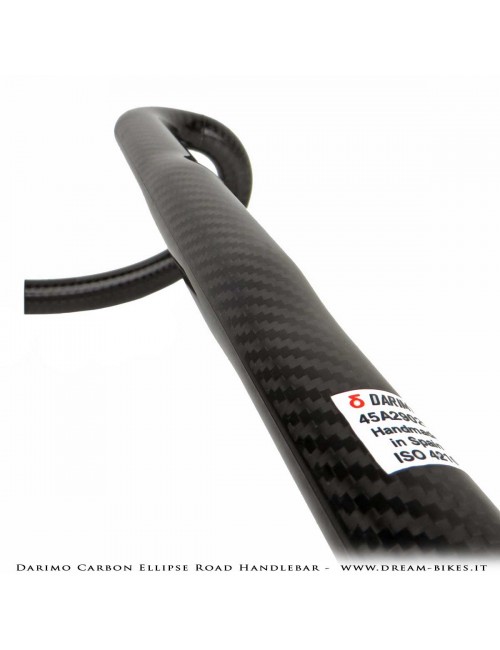

The Darimo handlebar is safe and exceeds the tests of the ISO 4210-2 standard, so it is valid for an overall system weight (bicycle, cyclist, luggage) of maximum 110 kg. In case of riders weighting more than 90kg, we recommend a reinforced version for a stiffness increase.
Darimo Carbon Ellipse Handlebar is simple but, as all other lightweight parts, require more attention and the use of a torque wrench.
The handlebar comes with an installation kit kit which include a mountain compound which helps to increase grip from the handlebar to the stem so a lower tightening torque is required with minor components stress.

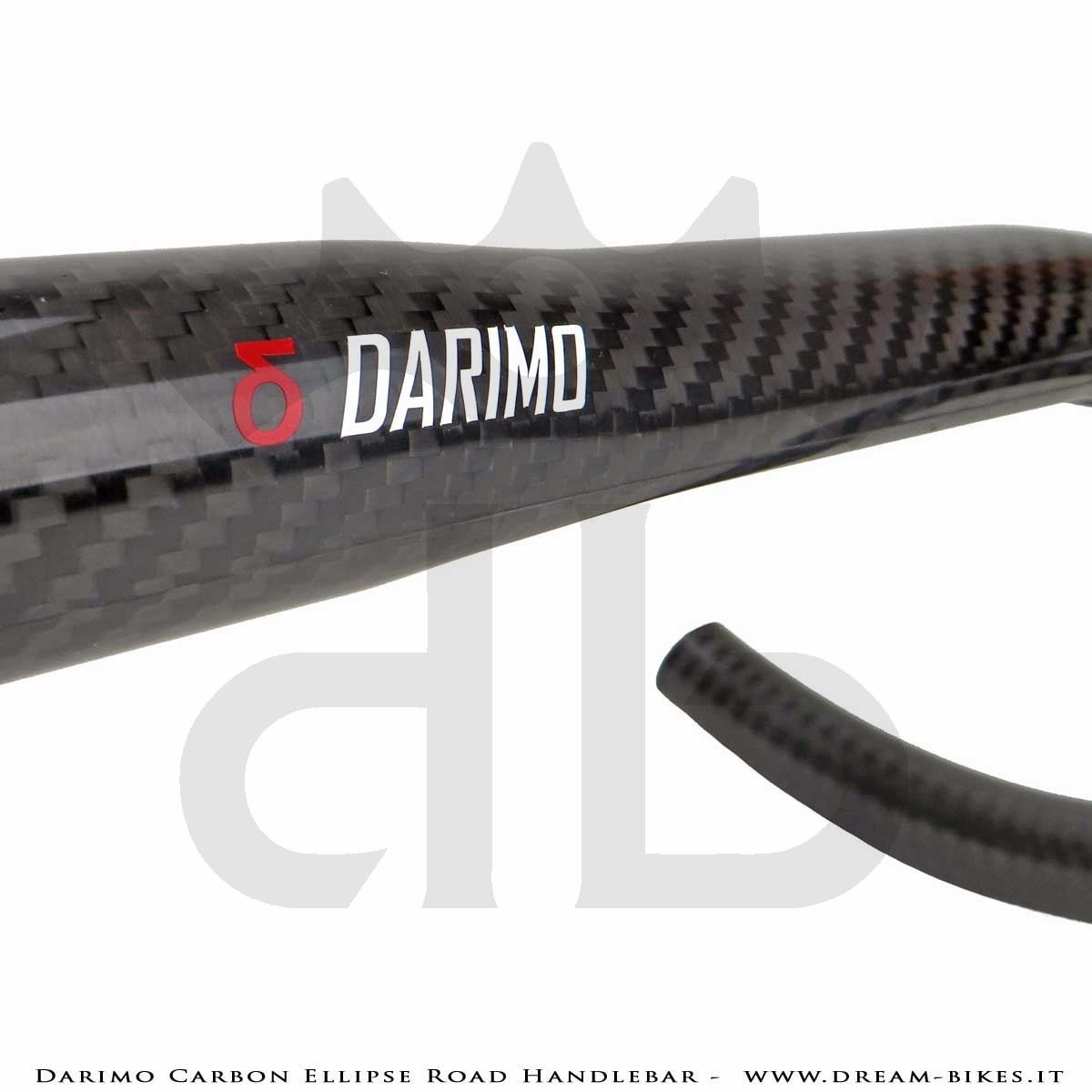

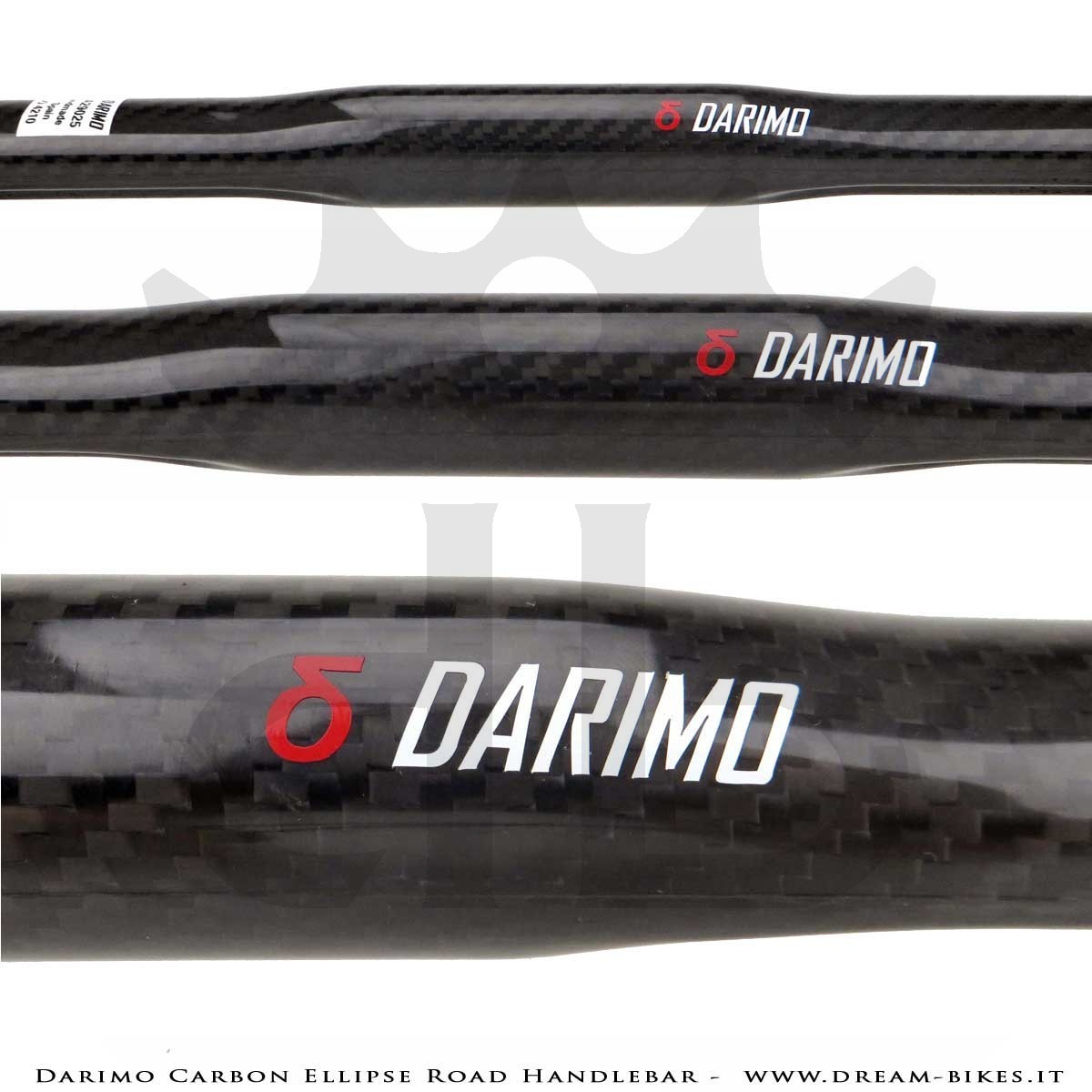

You can choose from 3k twill bidirectional or unidirectional (UD) carbon fiber fabrics with glossy or matte finishing. The Unidirectional version, only in the central part, has an increase in weight of about 8 grams.          Â

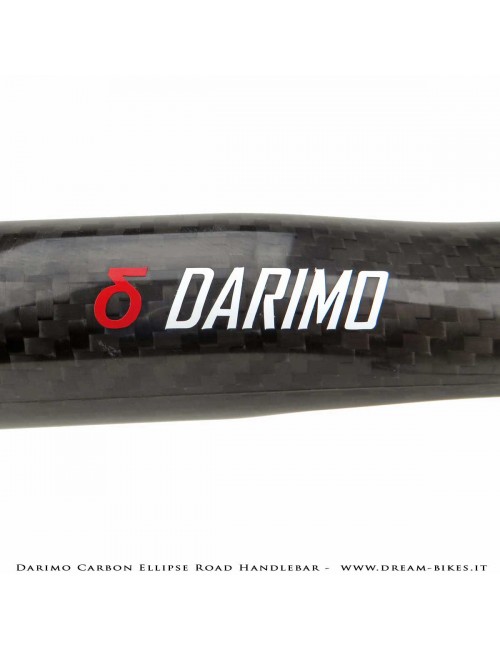

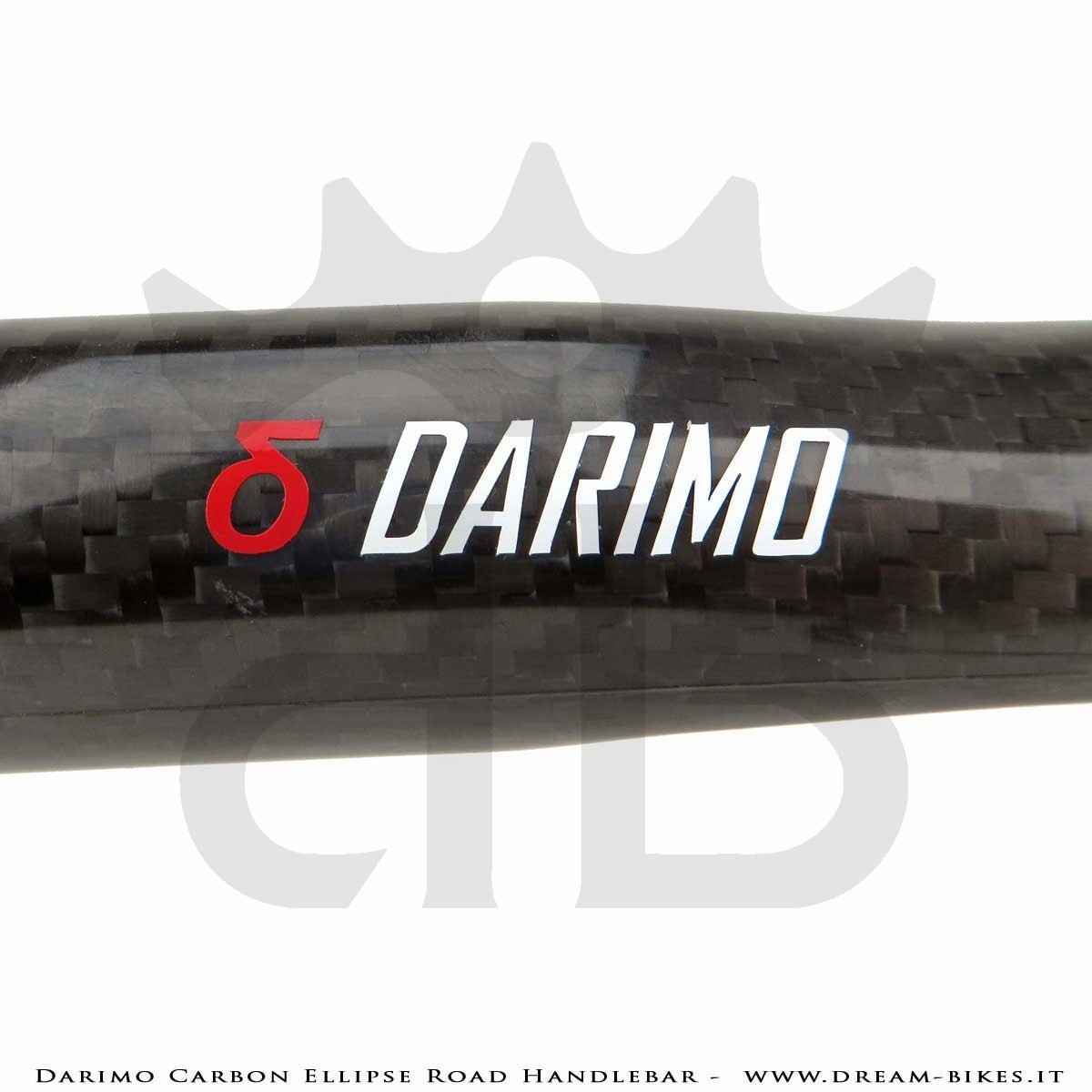

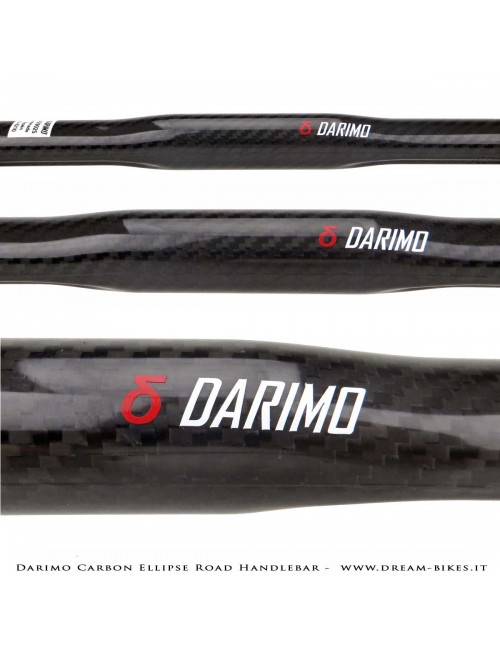

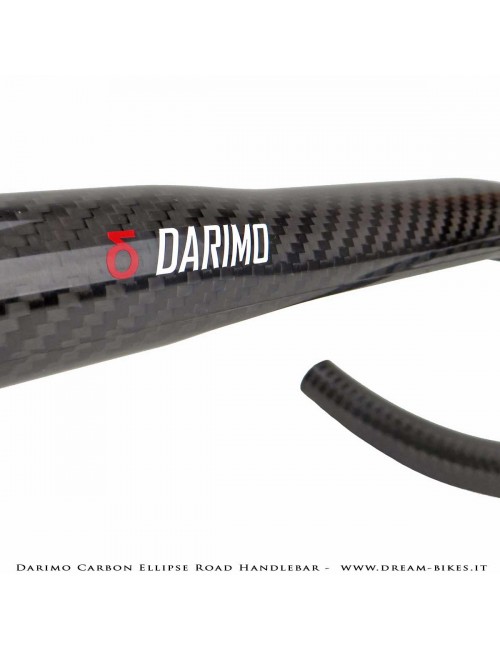

Decals are stickers with "Darimo" white writtem, you can choose Darimo logo color (red, green, yellow, orange or blue). Custom decals are possible on demand, for example all black "stealth" look or many other colors to match your bike...please use order note to let us know chosen decals colors or e-mail us for custom decals.

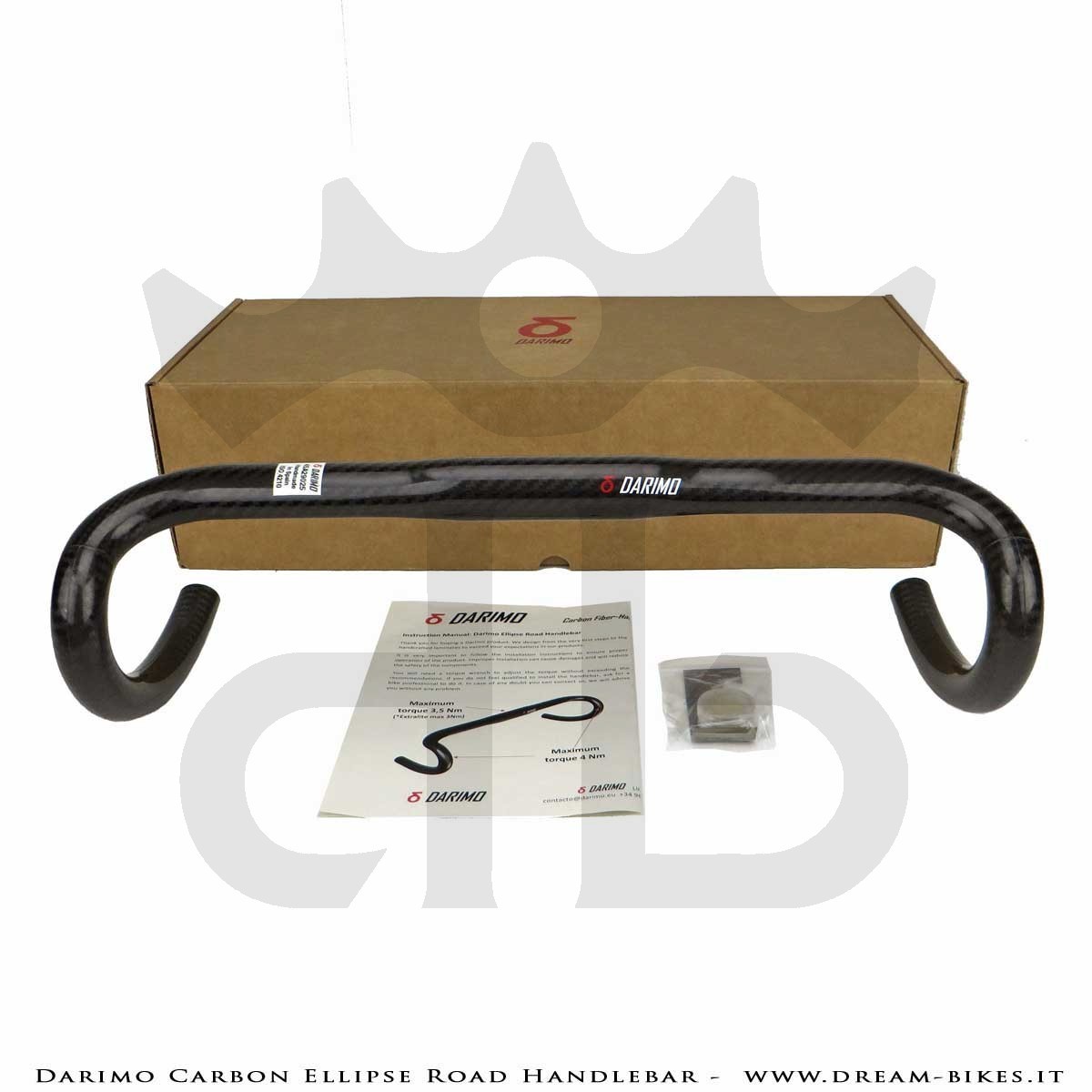

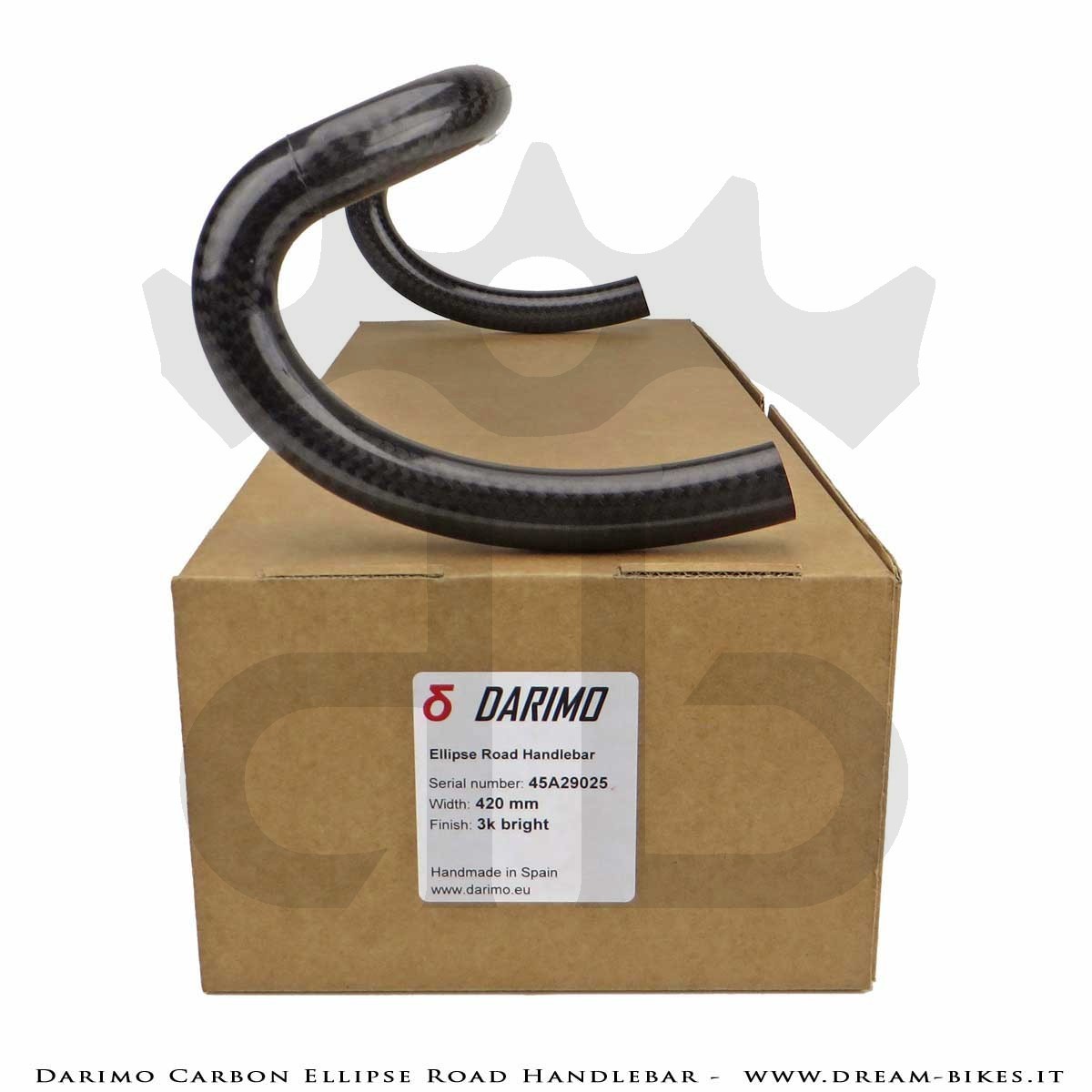

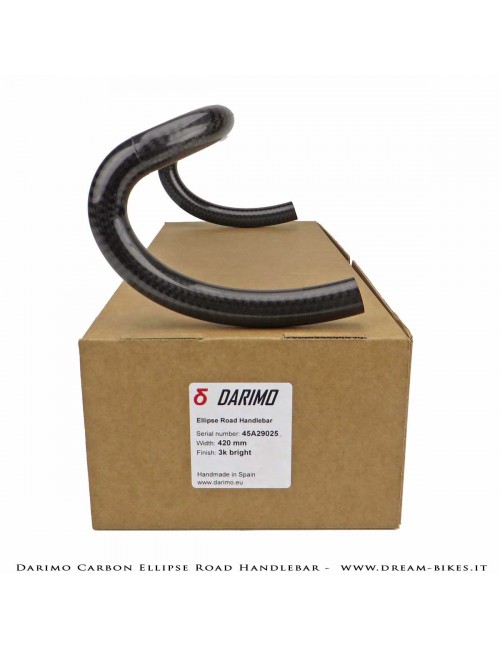

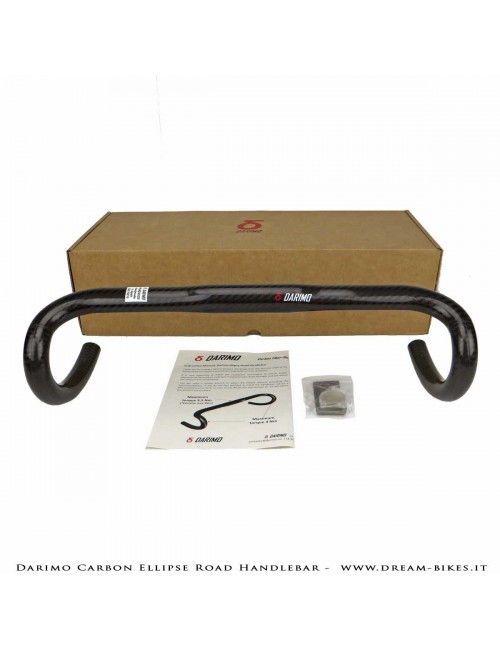

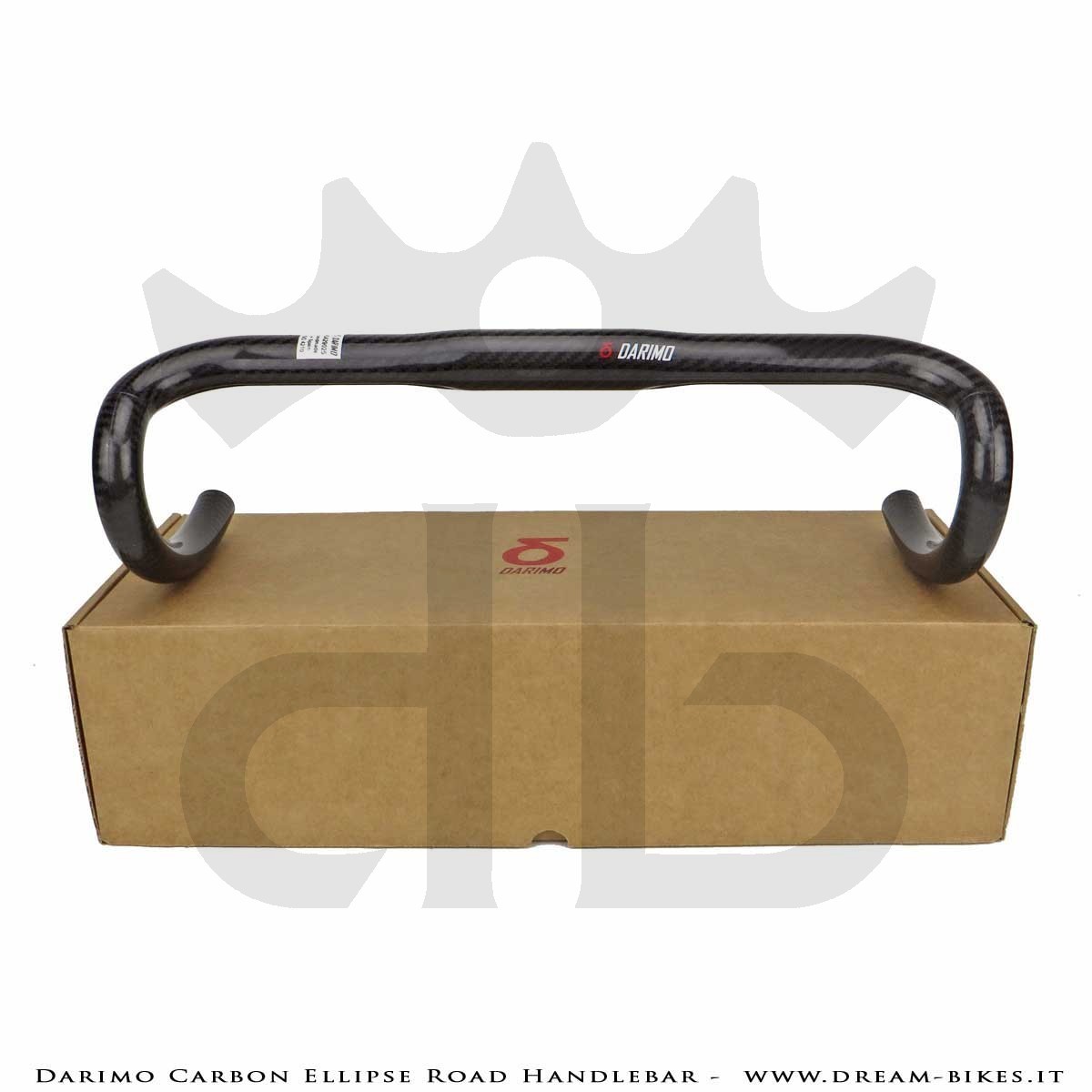

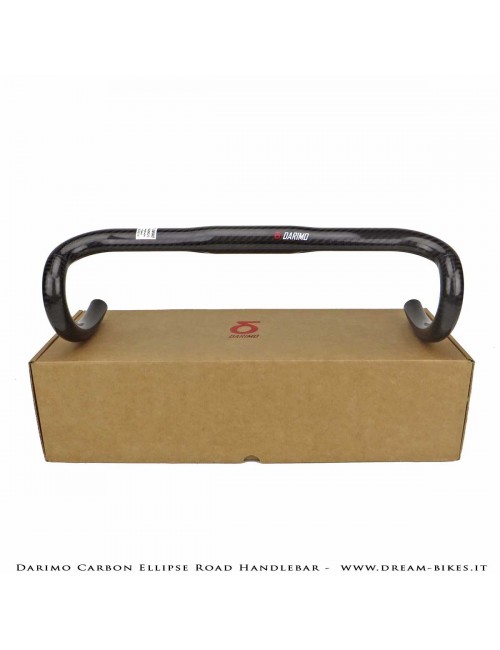

Darimo Carbon Handblebar comes with a cardboard box which contains also user manual and an installation pack with sand paper and mounting compound.
Darimo Carbon products are handmade and custom made with many sizes, finishing and laminations. Have in stock all of them is very difficult also for Darimo Carbon that made them on request.
Products that are availables in our warehouse has got "IN STOCK" indication. All other product combinations has to be ordered from Darimo and this will takes about 8-10 weeks.
These products has to be considered ordered on request so the right of withdrawal can't be applied to. This kind of order require advance payment for total amount.
All Darimo Carbon products are 100% handmade in Spain.
