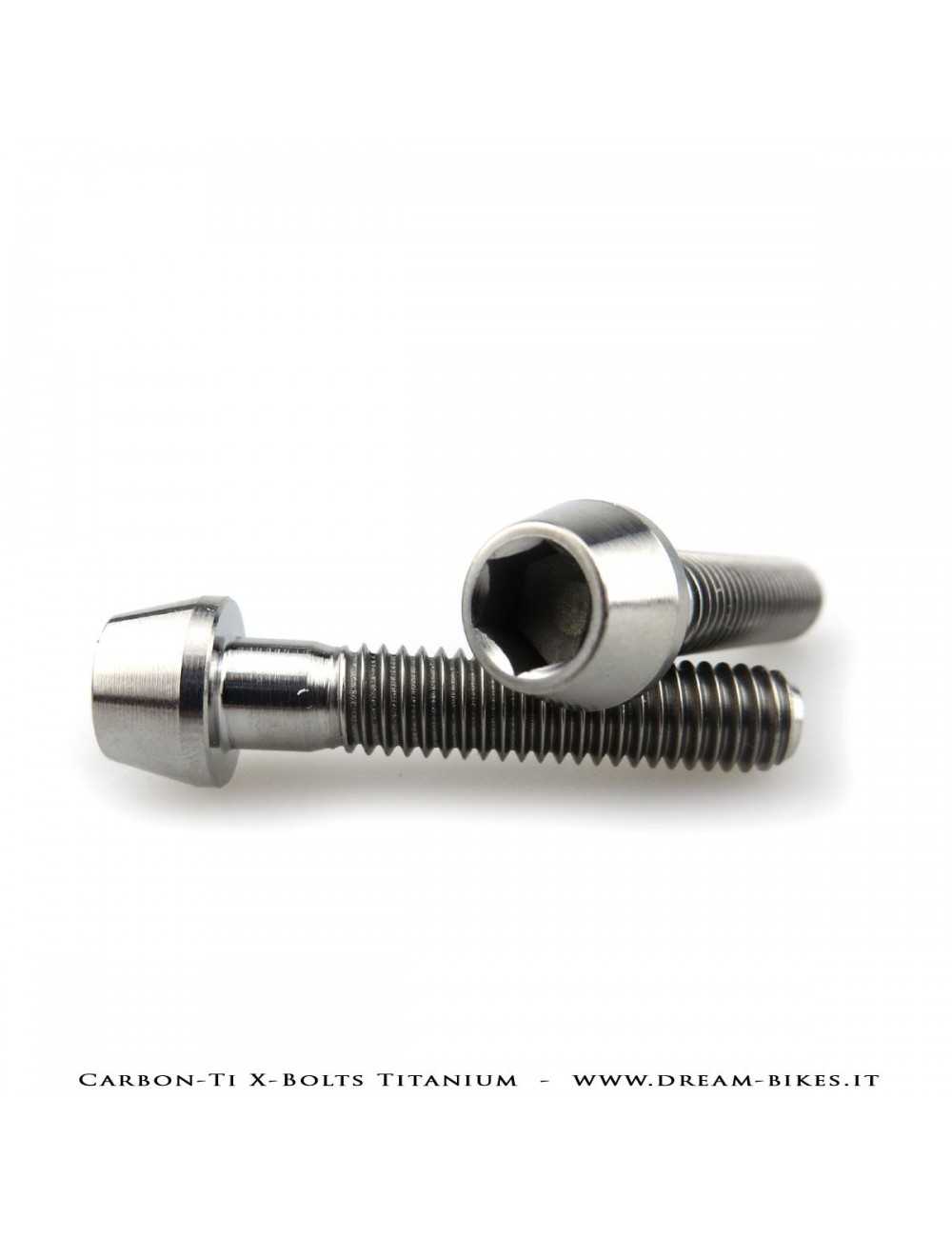

Carbon-Ti X-Bolts Titanium Tapered Hexagon Socket Head Bolts TCCE
    Carbon-Ti X-Bolts Titanium Tapered Hexagon Socket Head Bolts TCCE
    Carbon-Ti X-Bolts Titanium Tapered Hexagon Socket Head Bolts TCCE
    Carbon-Ti X-Bolts Titanium Tapered Hexagon Socket Head Bolts TCCE
    Carbon-Ti X-Bolts Titanium Tapered Hexagon Socket Head Bolts TCCE
    Carbon-Ti

    Carbon-Ti X-Bolts Titanium Tapered Hexagon Socket Head Bolts TCCE

    Reference:
    €4.43

    Carbon-Ti X-Bolts Titanium tapered hexagon socket ultralight head bolts (TCCE), made of high quality grade5 (6Al 4V) titanium with forged head and rolled threads for maximum quality. Available in M5 and M6 diameter in many lenghts. Weights from 1.4 gr. 100% Made in Italy.

    Quantity
      IN STOCK

    Add to favorites Aggiungi alla comparazione

    Product Details

    8 Items

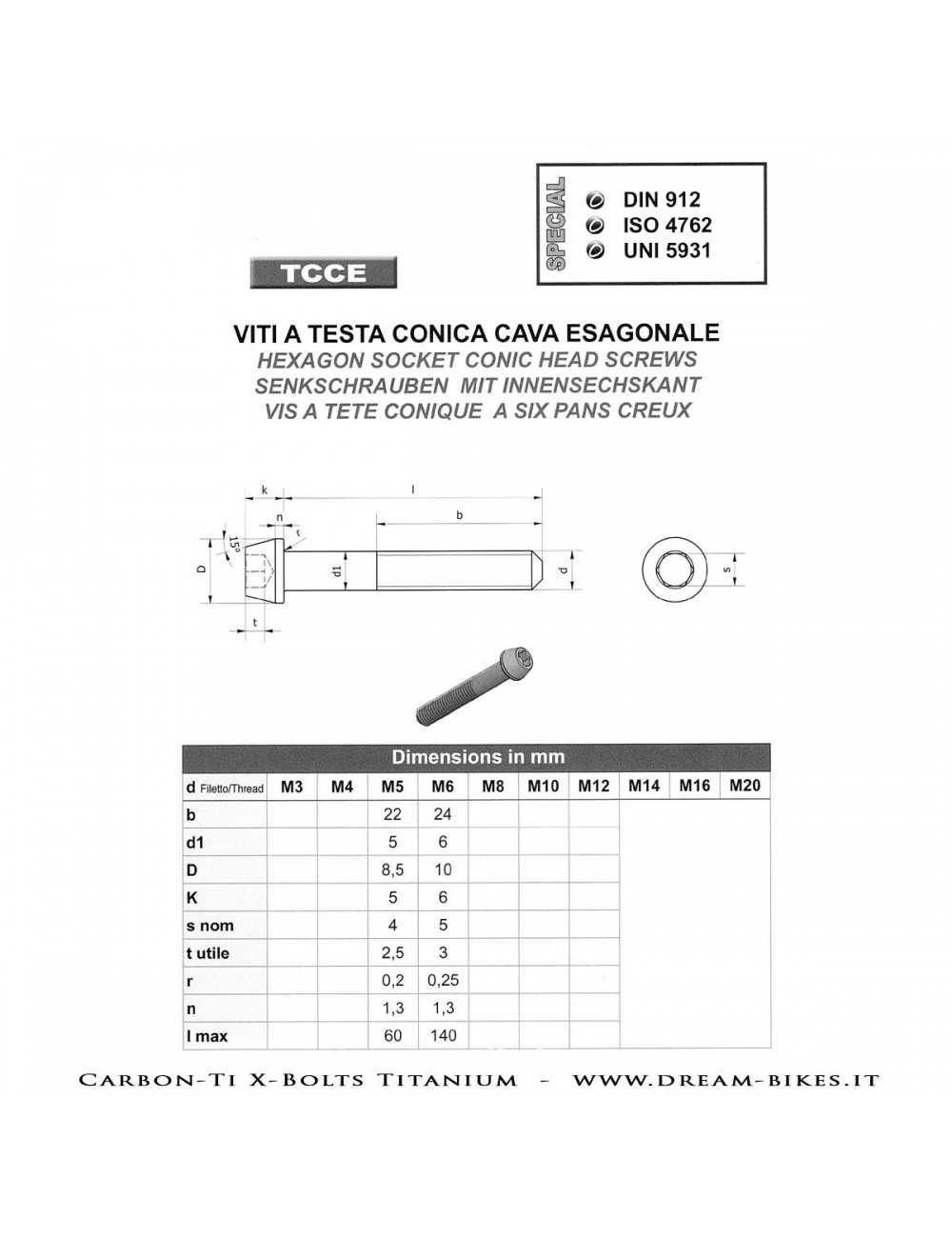

    Data sheet

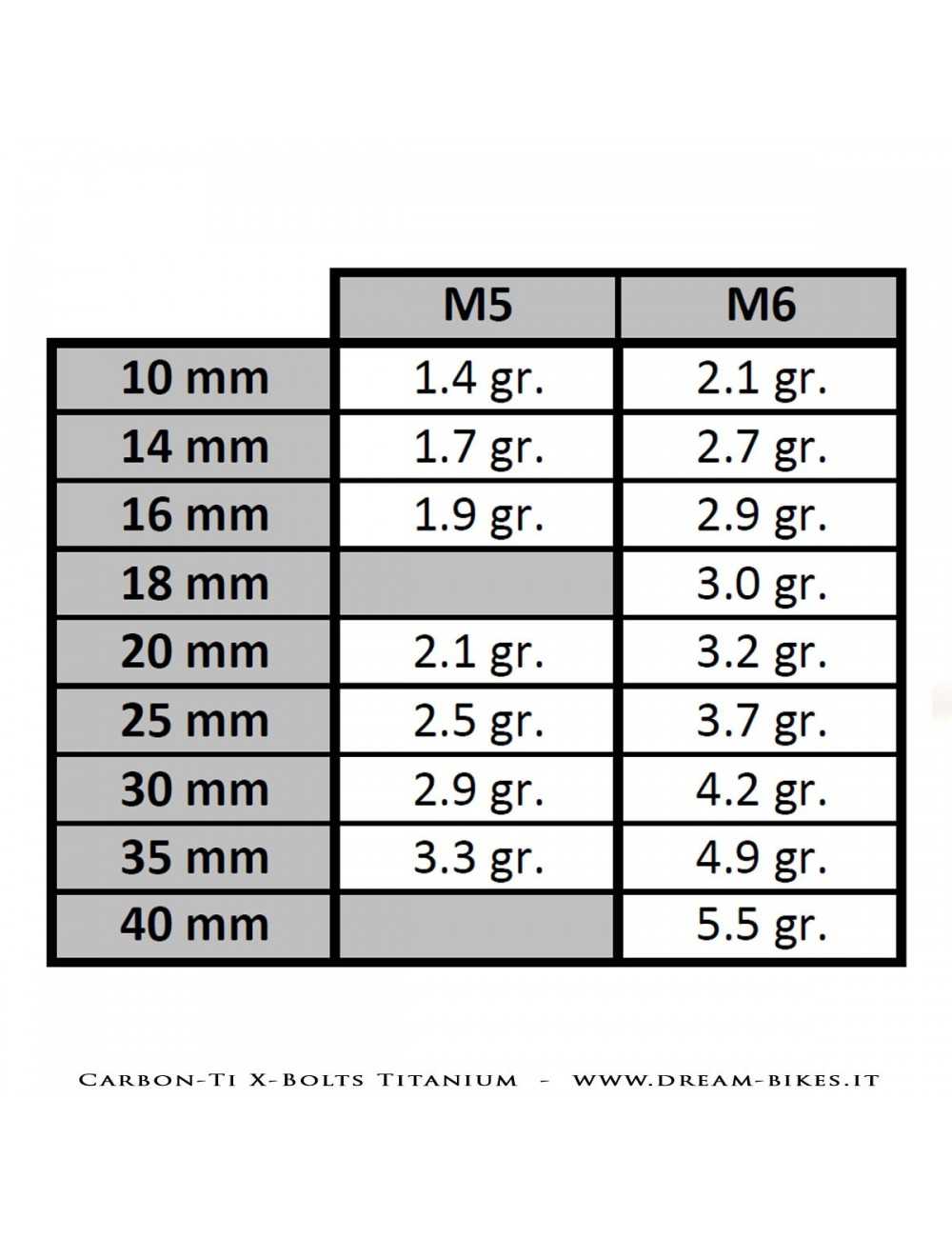

    Weight :
    From 1.4 gr.
    Diameter :
    M5 and M6
    Length :
    10-14-16-18-20-25-30-35-40 mm
    Material :
    Gr.5 Titanium alloy
    Use :
    Brakes, stem, seatpost, shifters, derailleurs etc.
    Bolt type :
    TCCE
    Screw color :
    Natural Titanium
    Bolt head type :
    Socket Hexagonal
    Max tightening torque :
    7 Nm (M5) - 11 Nm (M6)

    Download

    Carbon-Ti X-Bolts

    Carbon-Ti X-Bolts User Manual

    Download (127.69KB)

    Compara

    Prodotto
    		 Carbon-Ti X-Bolts Titanium Viti in Titanio a Testa Conica Cava Esagonale TCCE Carbon-Ti X-Bolts Titanium Viti in Titanio a Testa Conica Cava Esagonale TCCE Viti Titanio Nere Reggisella MCFK Viti Titanio Nere Reggisella MCFK
    Availability
    Disponibile
    Disponibile
    Prezzo
    4,43 €
    8,11 €
    Descrizione

    Carbon-Ti X-Bolts Titanium viti in titanio grado 5 (6Al 4V) a testa conica cava esagonale alleggerita TCCE. Filetti rullati e testa forgiata per la massima qualità. Disponibili in varie lunghezze nei diametri M5 e M6. Pesi a partire da 1.4 gr. 100% Made in Italy.

    Viti in titanio grado5 per reggisella MCFK, testa tronco conica alleggerita, finitura nera. Dimensioni : M5x30 ; M5x37.5 ; M5x43 ; M5x48. Adatte anche per altri reggisella ed altre applicazioni sulla bicicletta.
    Peso :
    		 A partire da 1.4 gr. 2.9 gr. (M5x30) ; 3.6 gr. (M5x37.5) ; 3.9 gr. (M5x43) ; 4.35 gr. (M5x48)
    Diametro :
    		 M5 e M6 M5
    Lunghezza :
    		 10-14-16-18-20-25-30-35-40 mm
    Materiale :
    		 Titanio grado 5
    Utilizzo :
    		 Freni, attacco manubrio, reggisella, comandi cambio, cambio, deragliatore
    Tipo di vite :
    		 TCCE TCCE testa tronco conica
    Materiale vite :
    		 Titanio Gr. 5
    Lunghezza Vite :
    		 30 mm - 37.5 mm - 43 mm - 48 mm
    Colore vite :
    		 Titanio naturale Nero
    Tipo di innesto :
    		 Esagonale Esagonale M4
    Coppia massima di serraggio :
    		 7 Nm (M5) - 11 Nm (M6) 5 Nm
