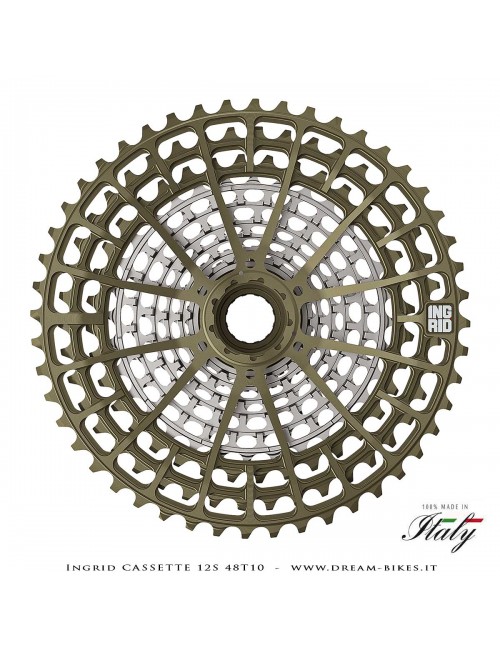

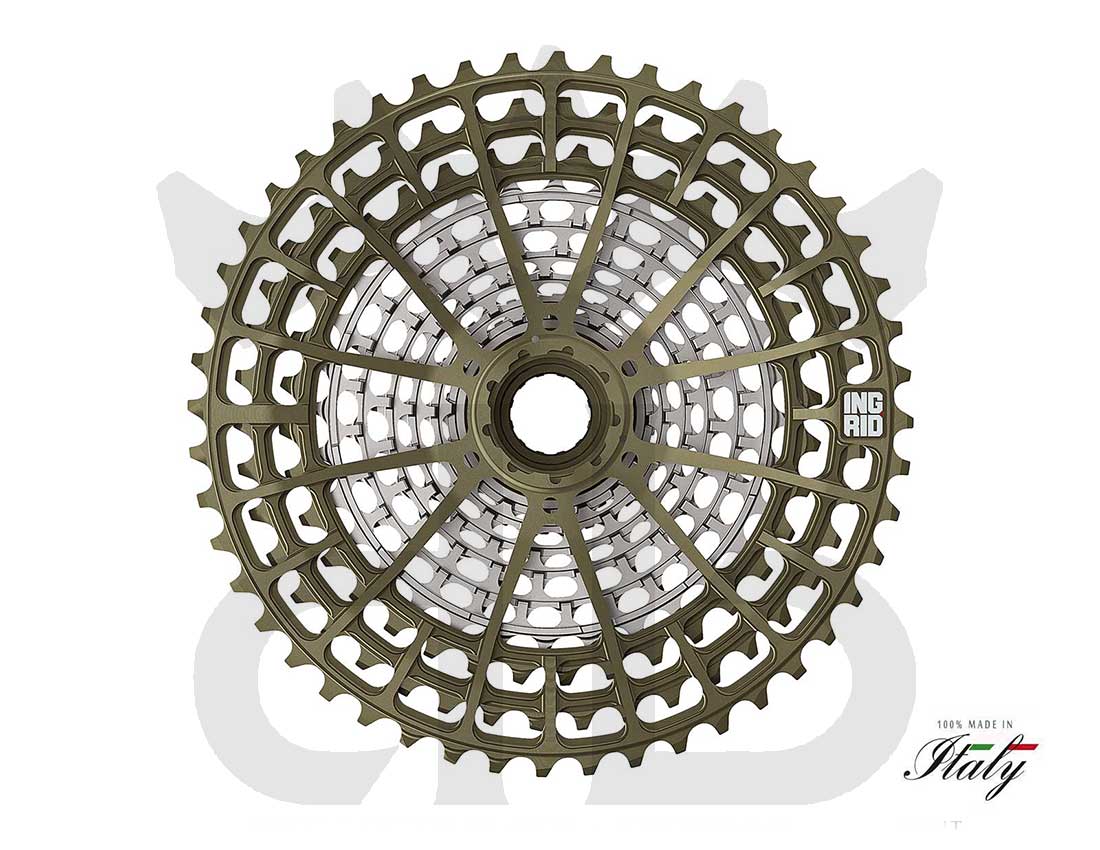

Ingrid Cassette 12S 48T10 XD
    Ingrid Bike

    Ingrid Cassette 12S 48T10 XD

    Reference:
    €327.05

    Ingrid 12S 48T10 12 speed cassette compatible with Sram XD hub standard. Made in two parts in different materials both fully CNC machined from solid AISI 9840 steel (10-12-14-16-18-21-24-28-32T cogs) and 7075T6 Aluminum (36-42-48T cogs). Heat treatments NIP coating and hard anodizing ensure a great durability, the quality of materials, design and machining guarantee an excellent shifting precision. With a 480% range and a perfect gear spacing the 48T10 cassette has got an exceptional balance of performances. It's also a lightweight cassette, only 323 grams. It's compatible with Sram, Shimano and Ingrid 12s rear derailleurs and works with MTB 12s chains. 100% Made in Italy!

    Quantity
      TO ORDER (Contact us to know delivery time)

    The Ingrid 12S 48T10 cassette is a real CNC masterpiece that combines beauty and exclusivity with excellent functionality and reliability. It is a 12-speed cassette, which can be used not only on MTB (also Gravel and Road Racing) but which works exclusively with Sram, Shimano or Ingrid 12-speed MTB rear derailleurs and with 12-speed MTB chains. The hub freewheel body standard is Sram XD 11-12s.

    The quality of the materials used, the careful and intelligent design and the precision of the workmanship in fact allow precise and smooth shifting (the chain does not fall even when pedaling backwards on the biggest cog). The well-spaced ratio (10-12-14-16-18-21-24-28-32-36-42-48T) combined with a range of 480% are a perfect combination that make it extremely usable.

    Ingrid Cassette 12S 48T10 XD

    The 12S 48T10 cassette is made of two parts of different materials that are milled from solid starting from an entire block of material, respectively AISI 9840 Steel for the first 9 cogs and 7075T6 Aluminum for the 3 largest cogs. This choice allows to obtain an excellent balance between the final weight which is only 323 grams and the duration which is extended also by the heat treatments and the protective and hardening surface coatings to which the parts are subjected: NIP (nickel plating with high phosphorus content ) for steel and hard anodizing for aluminum. The individual pieces of which the cassette is composed are available as spare parts, so it is possible to restore it without having to trash it even in the event of partial wear of one of its two components.

    Ingrid Cassette 12S 48T10 XD

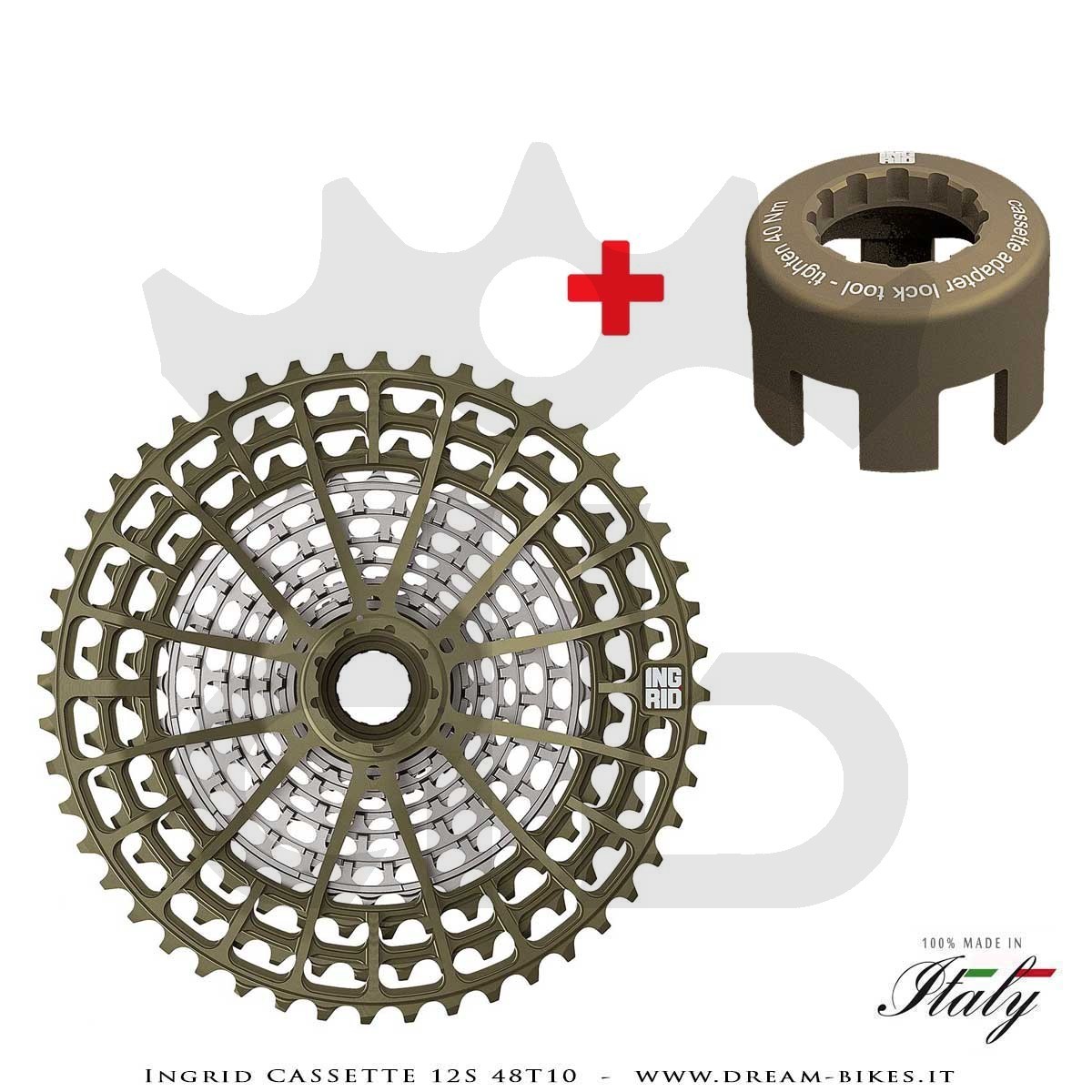

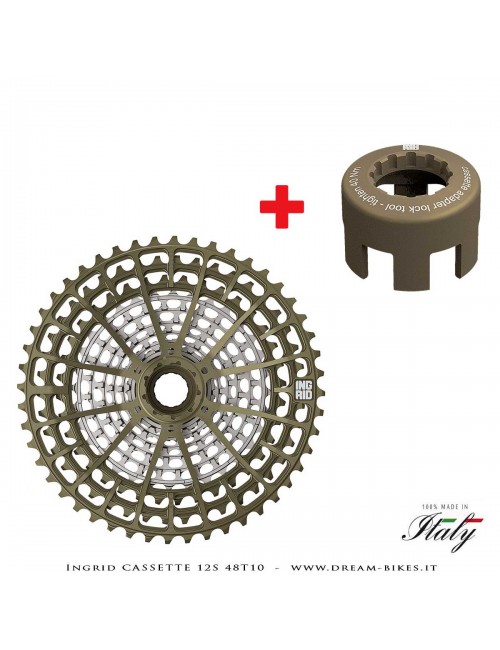

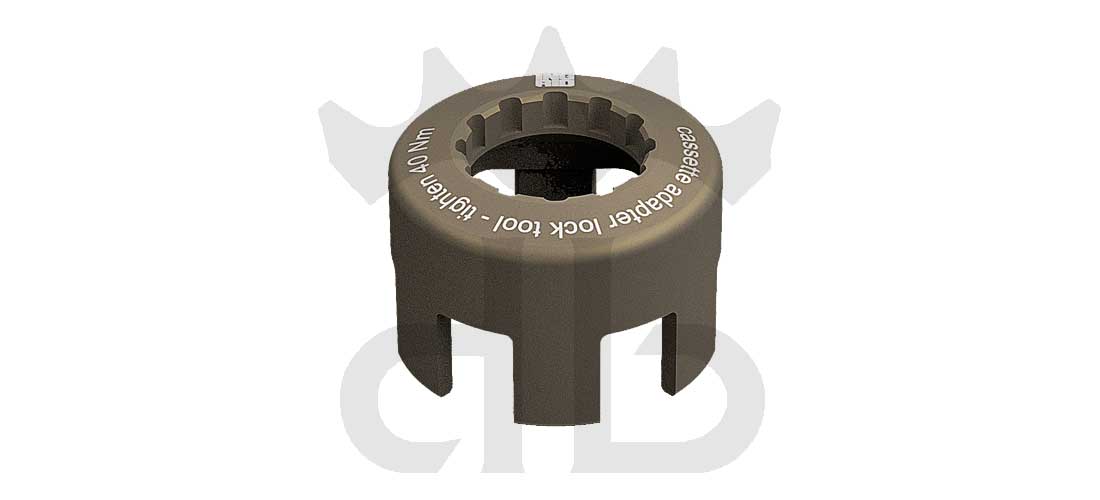

    To install the 12S 48T10 cassette you need a specific tool, made by Ingrid, which can be purchased together with the box at a special price, or even separately (for those who already own an Ingrid cassette but not the specific tool).

    If the product is not indicated as "IN STOCK" but "TO ORDER", please contact us to find out about availability and waiting times which can often be very short.

    The Ingrid 12S 48T10 cassette is entirely designed, engineered and manufactured in Italy!

    ingrid bike made in italy dream bikes

    Product Details

    Data sheet

    Weight :
    323 gr.
    Construction :
    Two different parts fully CNC machined
    Material :
    AISI 9840 Steel and 7075T6 Aluminum
    Finish :
    NIP (on steel cogs) and Hard Anodized (on aluminum cogs)
    Use :
    MTB, Road Racing, Gravel
    Number of theet :
    10-12-14-16-18-21-24-28-32-36-42-48 T (480% range)
    Free-Wheel :
    Sram XD 11-12s
    Fitting :
    With Sram, Shimano or Ingrid 12s MTB rear derailleurs and 12s MTB chains

    Download

    Ingrid 12S 48T10 Cassette

    Ingrid 12S 48T10 Cassette

    Download (1.47MB)

    Quick Compare

    Product
    Ingrid Cassette 12S 48T10 XD Ingrid Cassette 12S 48T10 XD
    Availability
    This product is no longer in stock
    Price
    €327.05
    Description

    Ingrid 12S 48T10 12 speed cassette compatible with Sram XD hub standard. Made in two parts in different materials both fully CNC machined from solid AISI 9840 steel (10-12-14-16-18-21-24-28-32T cogs) and 7075T6 Aluminum (36-42-48T cogs). Heat treatments NIP coating and hard anodizing ensure a great durability, the quality of materials, design and machining guarantee an excellent shifting precision. With a 480% range and a perfect gear spacing the 48T10 cassette has got an exceptional balance of performances. It's also a lightweight cassette, only 323 grams. It's compatible with Sram, Shimano and Ingrid 12s rear derailleurs and works with MTB 12s chains. 100% Made in Italy!

    Weight :
    323 gr.
    Construction :
    Two different parts fully CNC machined
    Material :
    AISI 9840 Steel and 7075T6 Aluminum
    Finish :
    NIP (on steel cogs) and Hard Anodized (on aluminum cogs)
    Use :
    MTB, Road Racing, Gravel
    Number of theet :
    10-12-14-16-18-21-24-28-32-36-42-48 T (480% range)
    Free-Wheel :
    Sram XD 11-12s
    Fitting :
    With Sram, Shimano or Ingrid 12s MTB rear derailleurs and 12s MTB chains
