    Ingrid MTB Direct Mount Single Chainring

    Reference:
    €89.34

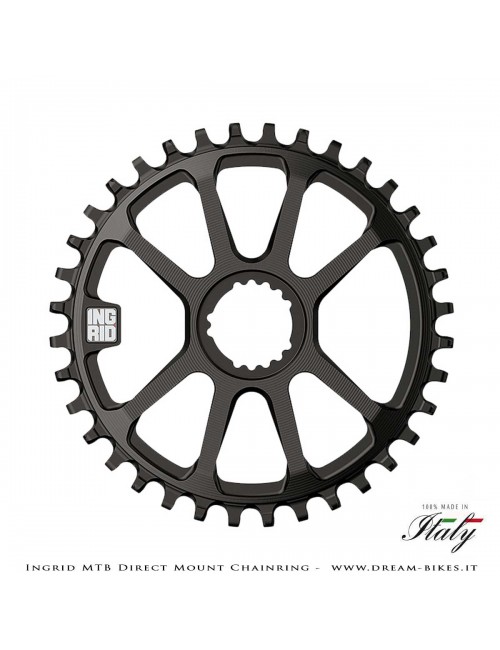

    Ingrid MTB Direct Mount chainring compatible only with Ingrid cranks. It's made of 7075T6 aluminum alloy machined from solid with sophisticated CNC machining. The quality of the materials, the heat treatments undergone and the precision of the workmanship guarantee excellent precision, smoothness, chain retention capacity and great durability. 49.5 mm chainline (if used with 131 mm axle) or 52 mm (if used with 136 mm axle). Avaiolable with black anodized finish in 32T - 34T - 36T. weights between 76 and 86 grams. Compatible on single chainring systems with 11s-12s and 13s (Campagnolo Ekar) chains. 100% Made in Italy.

    Quantity
      TO ORDER (Contact us to know delivery time)

    Add to favorites Aggiungi alla comparazione

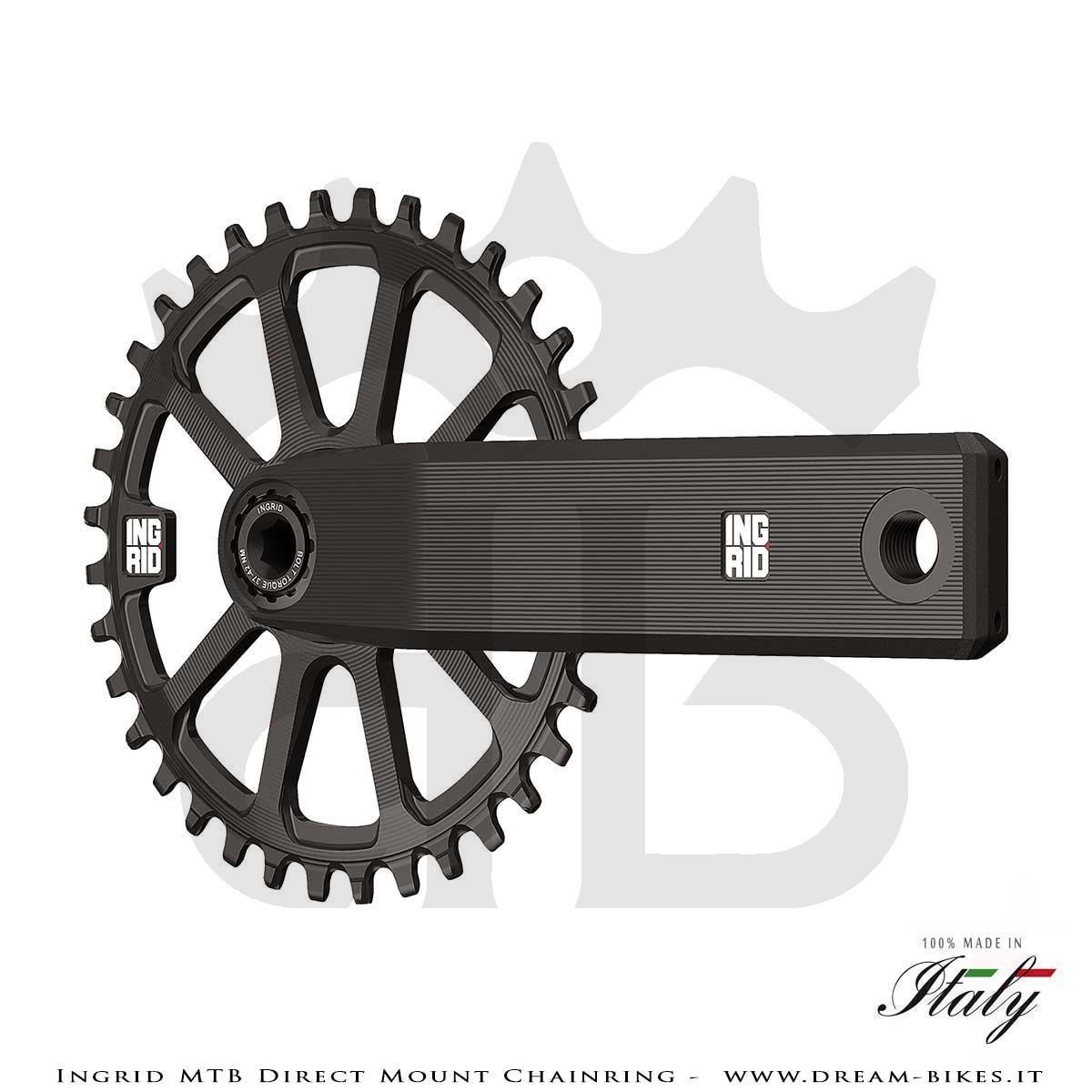

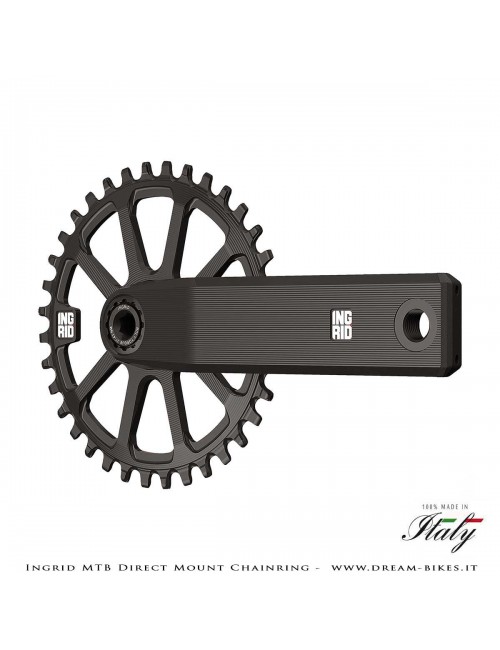

    The Ingrid MTB Direct Mount chainring is an integral single chainring dedicated exclusively to Ingrid cranks, its special fitting standard make it incompatible with other cranks.

    Ingrid MTB Direct Mount Single Chainring

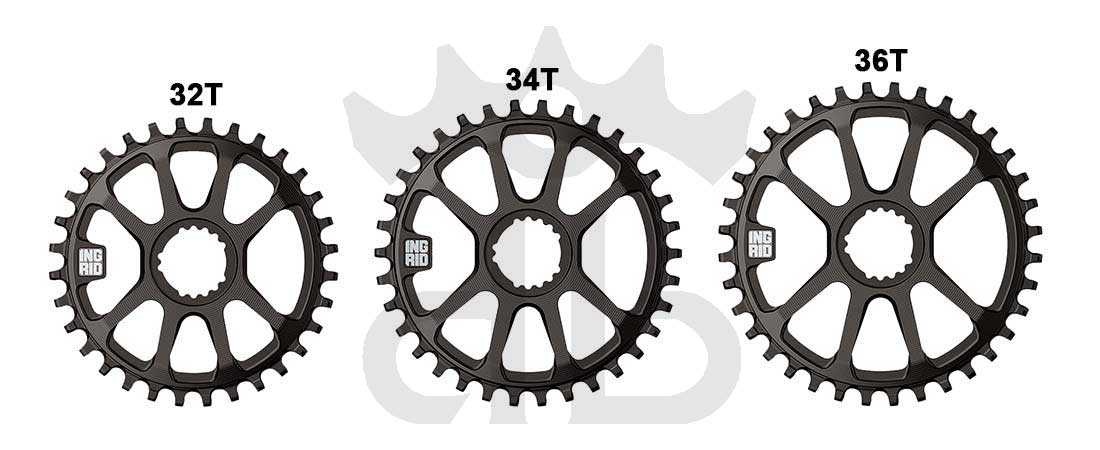

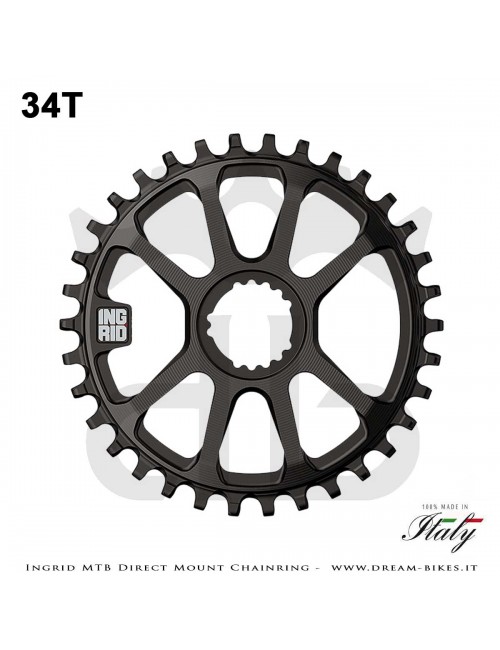

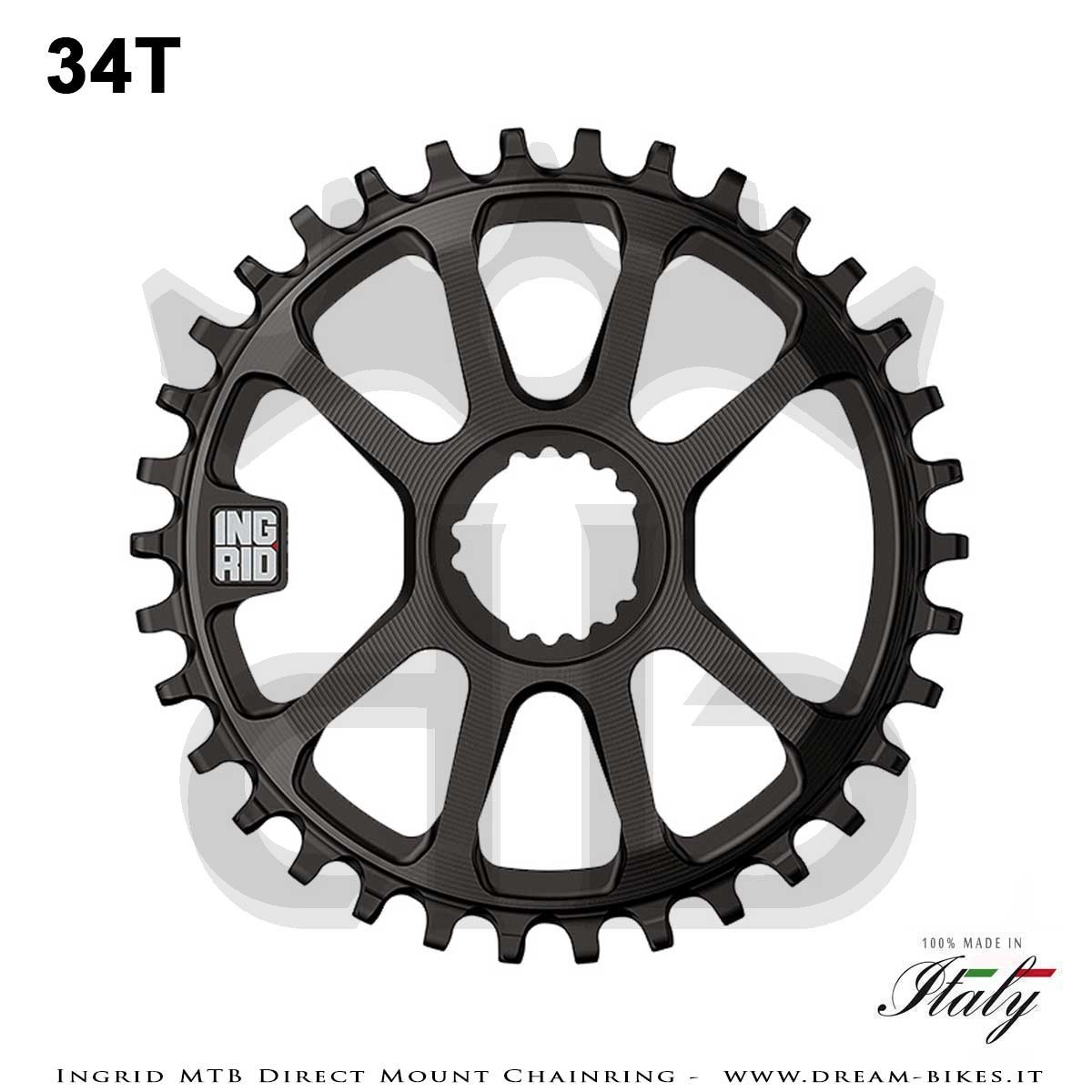

    It is available in 3 different toothings: 32T (76 gr.) - 34T (81 gr.) - 36T (86 gr.) Therefore suitable for MTB use but there are no particular contraindications even for Gravel use. Compatibility is ensured with single chainring systems equipped with 11-speed and 12-speed chains, even 13-speed (Campagnolo Ekar).

    The Ingrid MTB Direct Mount single chainring guarantees a chainline of 49.5 mm when mounted on a 131 mm Ingrid axle, and 52 mm when mounted on a 136 mm Ingrid axle. For further information on the chain line and on other technical aspects relating to installation, we invite you to consult the user manuals and technical notes which can be downloaded in the "download" section of each product sheet and which are also present on the manufacturer's website.

    Ingrid MTB Direct Mount Single Chainring

    Ingrid MTB Direct Mount single chainring is made of 7075T6 aluminum fully machined from solid through sophisticated CNC machining, the intelligent and accurate design, combined with the quality of materials and workmanship, guarantees excellent functionality and reliability. The operation is always smooth, the retention of the chain is guaranteed as well as a long life. The finish is in anodized black and its industrial design perfectly matches the Ingrid cranks.

    Ingrid MTB Direct Mount Single Chainring

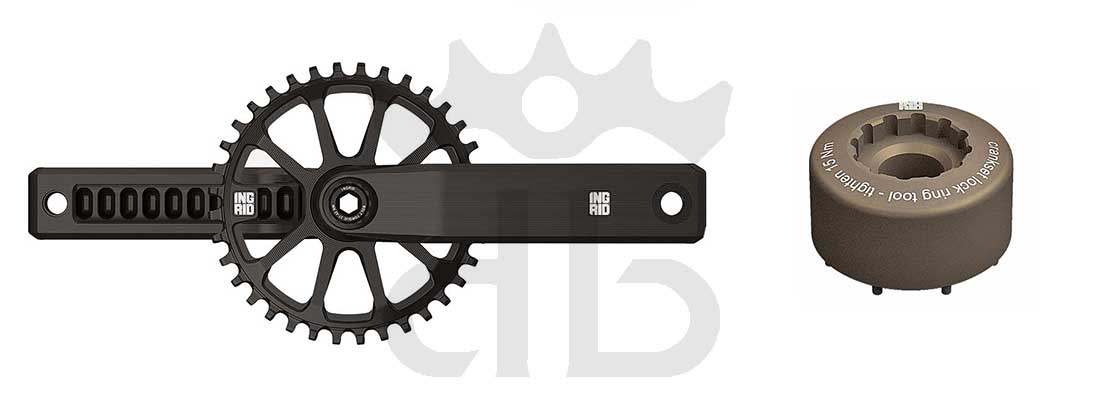

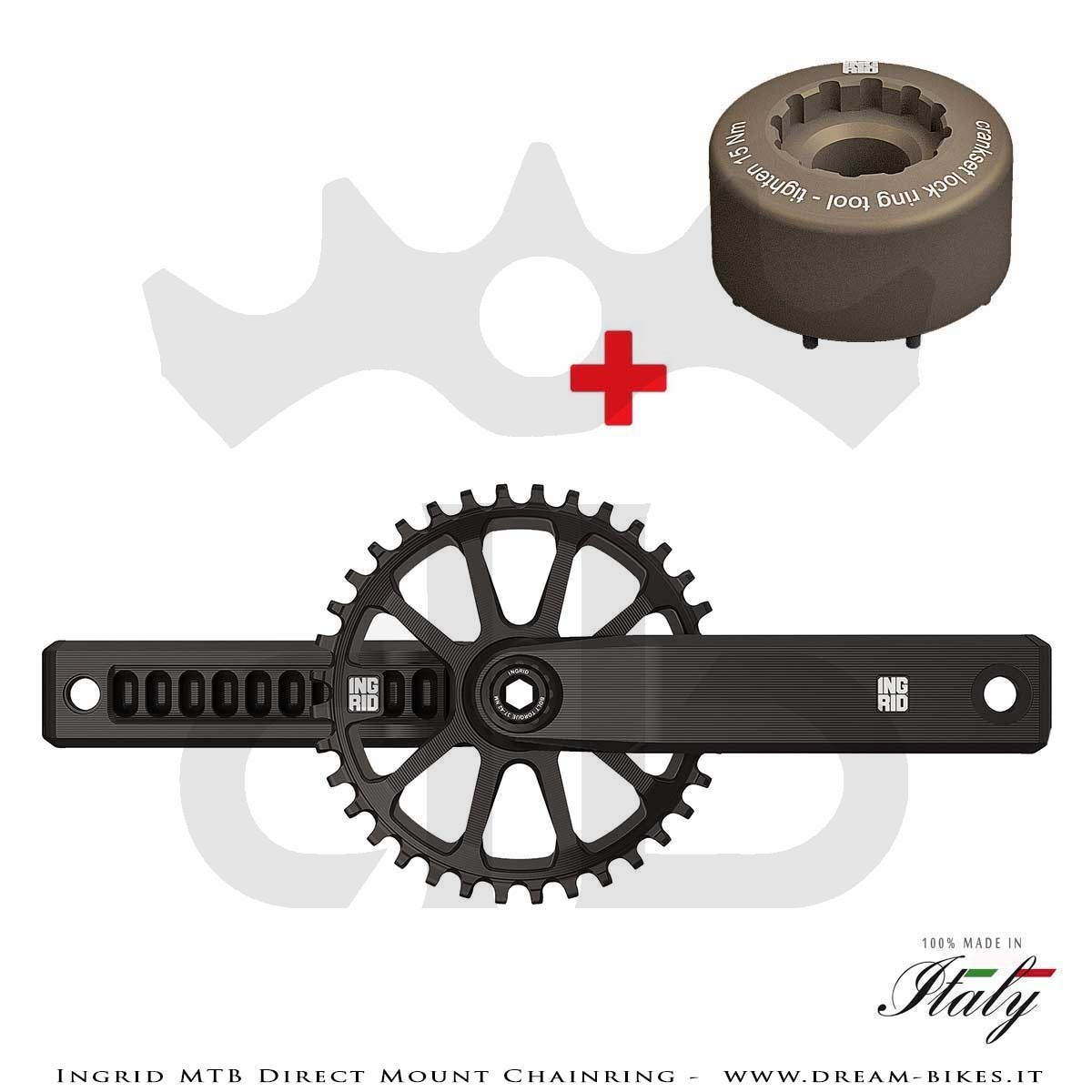

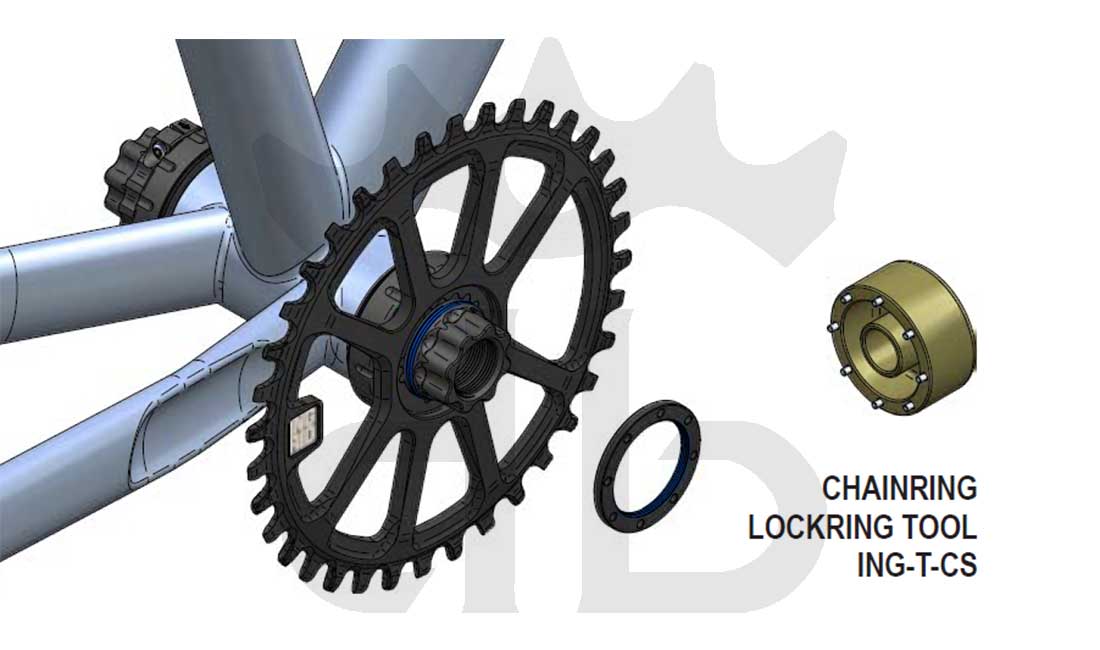

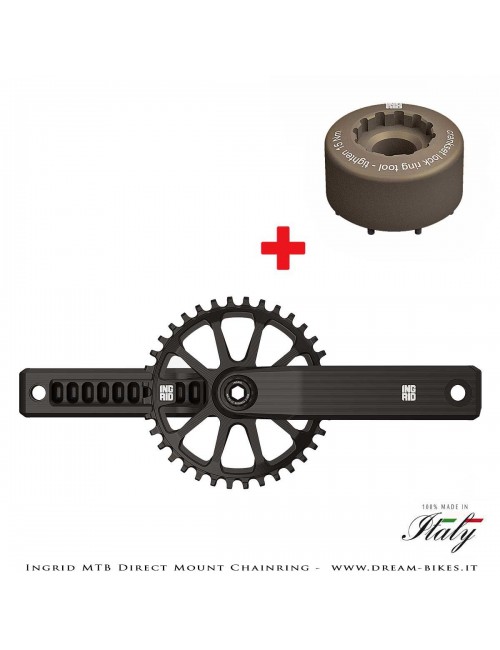

    To install the Ingrid MTB Direct Mount single chainring you need a specific tool (ING-T-CS) to screw the tightening ring nut, made by Ingrid, which can be purchased together with the cranks at a special price, or even separately (for those who are already in possession of the Ingrid cranks but not the specific tool).

    Ingrid MTB Direct Mount Single Chainring

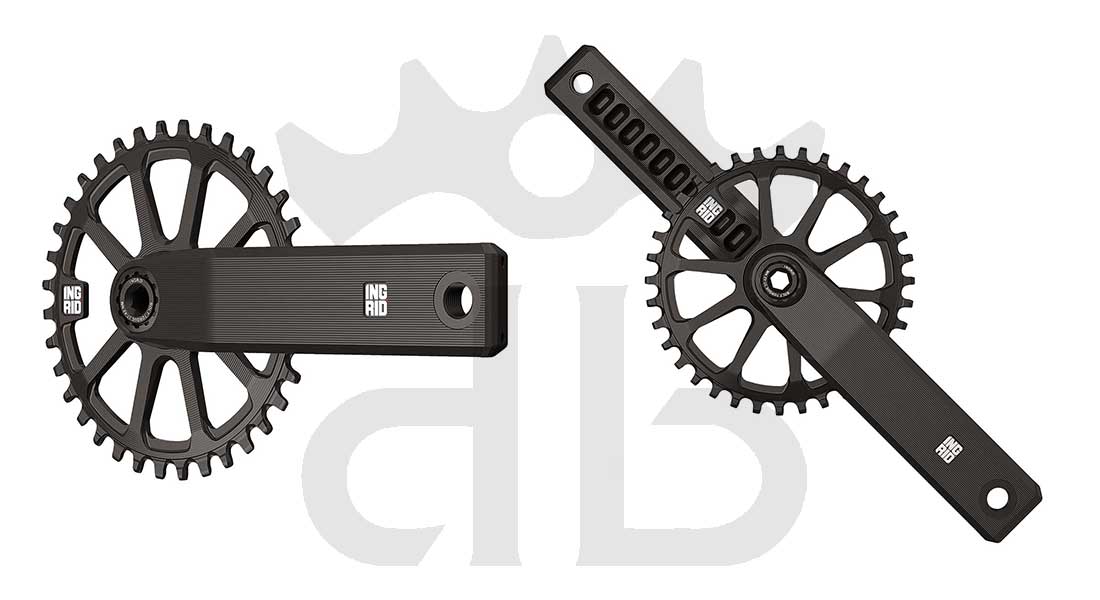

    This product sheet refers to the single Ingrid chainring, cranks, tools and other parts that appear in the photos are not included but can be purchased separately.

    If the product is not indicated as "IN STOCK" but "TO ORDER", please contact us to find out about availability and waiting times which can often be very short.

    The Ingrid MTB Direct Mount Single Chainring is entirely designed, engineered and manufactured in Italy!

    ingrid bike made in italy dream bikes

    Product Details

    Data sheet

    Weight :
    76 gr. (32T) - 81 gr. (34T) - 86 gr. (36T)
    Construction :
    Fully CNC machined
    Chainline :
    49.5 mm (with 131 mm axle) - 52 mm (with 136 mm axle)
    Material :
    7075T6 Aluminum
    Finish :
    Black anodized
    Use :
    MTB, Gravel
    Number of theet :
    32T-34T-36T
    Fitting :
    Only with Ingrid Cranks, and mono-ring drivetrain systems with 11s-12s-13s (Ekar) chains

    Download

    Chainline chart

    Chainline chart

    Download (106.29KB)
