Carbon-Ti X-Plug OS 1.1/4" Steerer Expander
Carbon-Ti X-Plug OS 1.1/4" Steerer Expander
Carbon-Ti X-Plug OS 1.1/4" Steerer Expander
Carbon-Ti X-Plug OS 1.1/4" Steerer Expander
Carbon-Ti X-Plug OS 1.1/4" Steerer Expander
Carbon-Ti X-Plug OS 1.1/4" Steerer Expander
Carbon-Ti X-Plug OS 1.1/4" Steerer Expander
Carbon-Ti X-Plug OS 1.1/4" Steerer Expander
Carbon-Ti X-Plug OS 1.1/4" Steerer Expander
Carbon-Ti X-Plug OS 1.1/4" Steerer Expander
Carbon-Ti X-Plug OS 1.1/4" Steerer Expander
Carbon-Ti X-Plug OS 1.1/4" Steerer Expander
Carbon-Ti X-Plug OS 1.1/4" Steerer Expander
Carbon-Ti X-Plug OS 1.1/4" Steerer Expander
Carbon-Ti X-Plug OS 1.1/4" Steerer Expander
Carbon-Ti X-Plug OS 1.1/4" Steerer Expander
Carbon-Ti

Carbon-Ti X-Plug OS 1.1/4" Steerer Expander

Reference:
€18.77

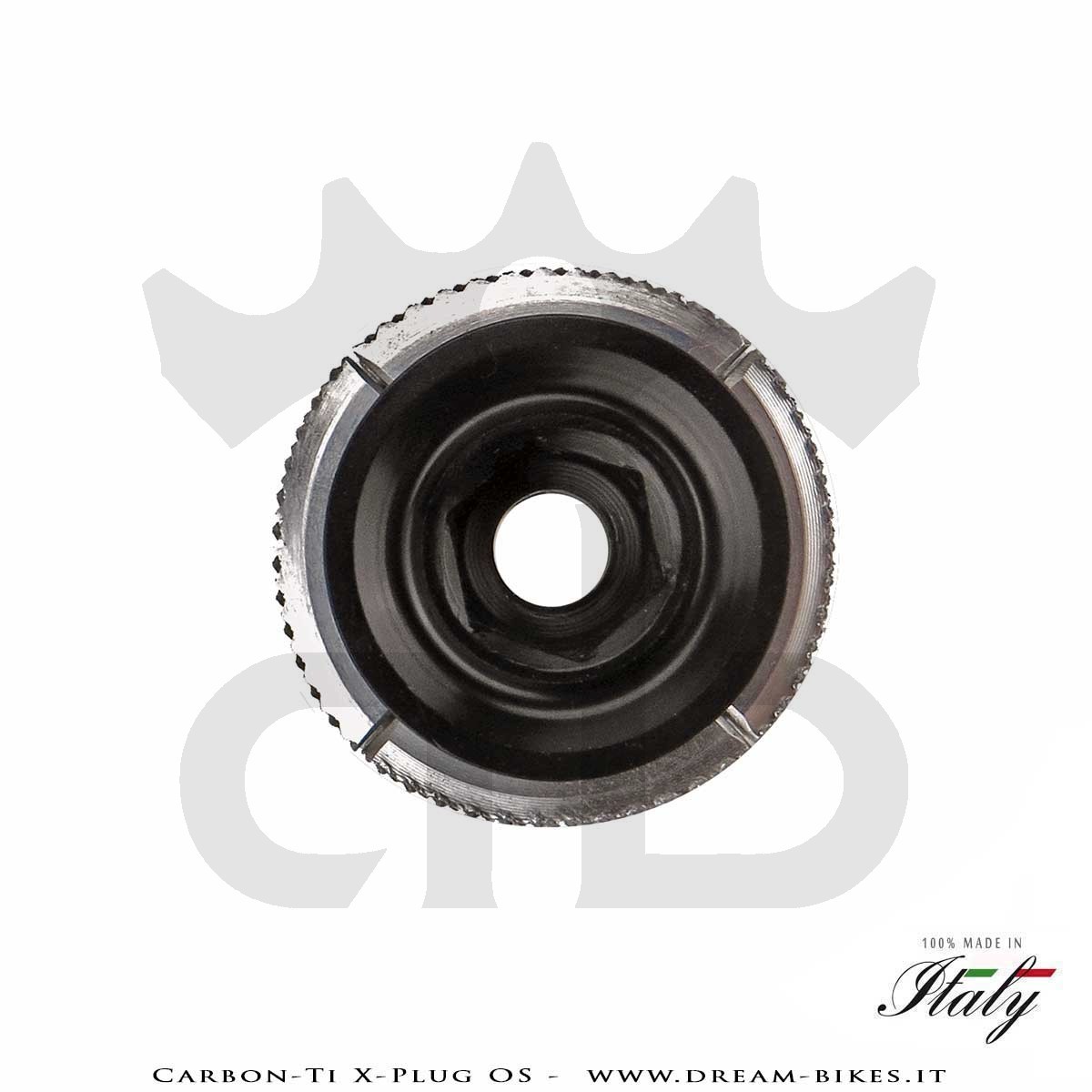

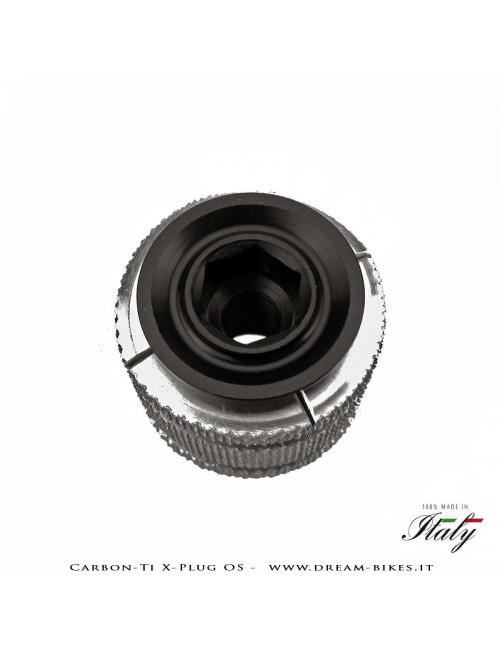

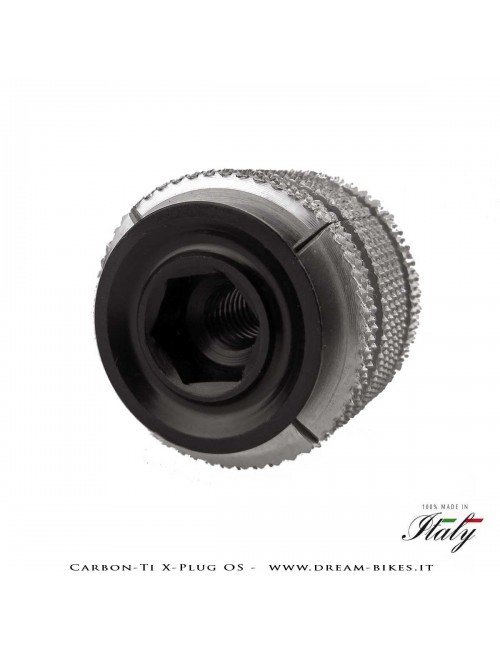

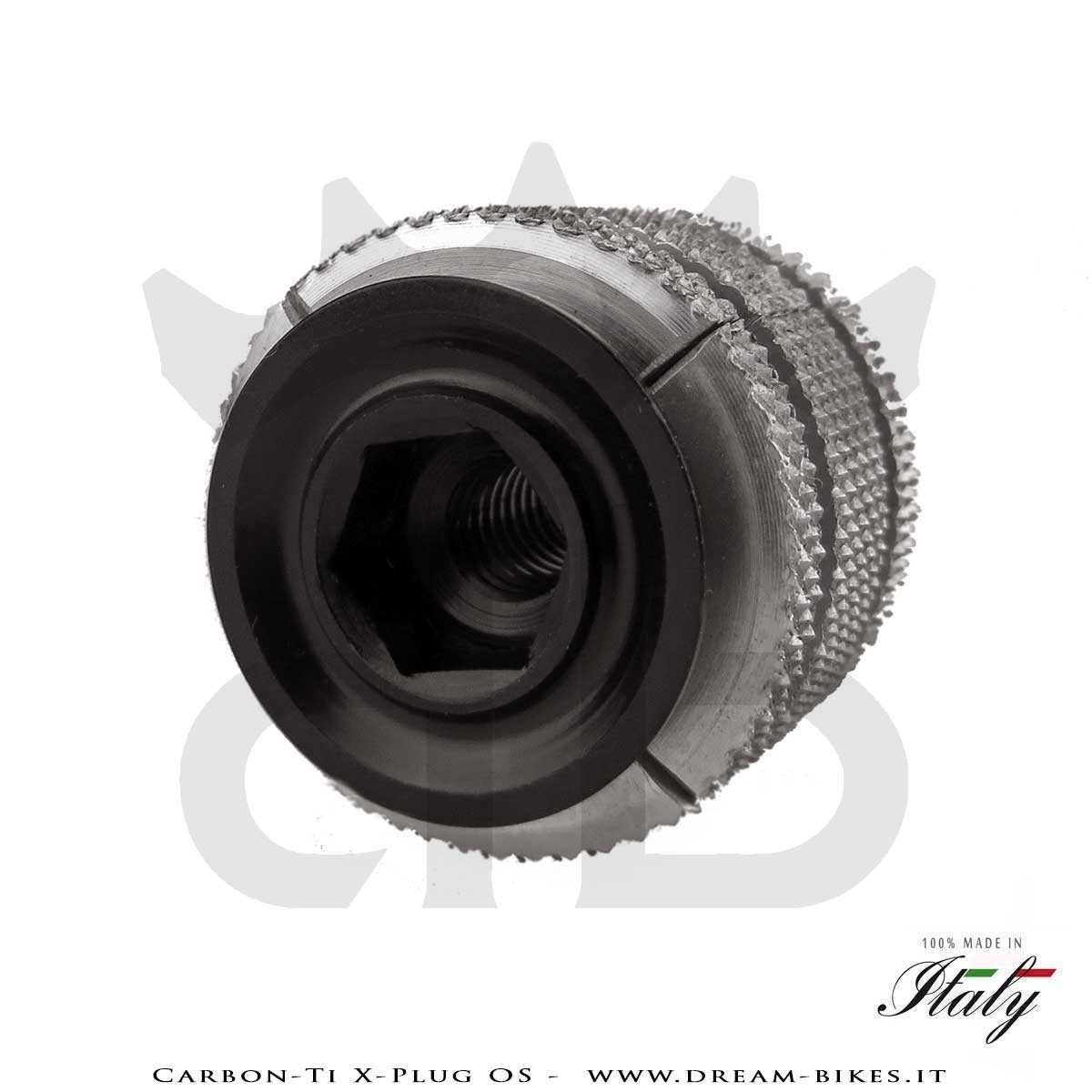

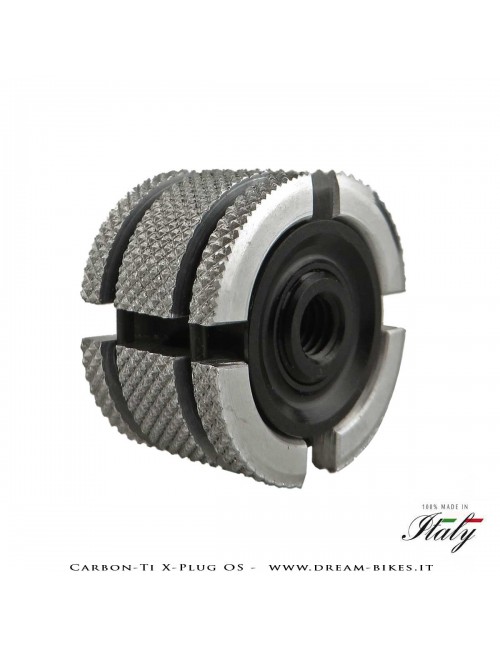

Carbon-Ti X-Plug OS ultralight steerer expander for 1.1/4" oversize steerer tubes. Fully CNC aluminium made, only 17 grams, allows to save a lot of weight. Very easy to install and remove, you just need an 8 mm allen hex key,  compatible with steerer tubes with inner diameter from 24.0 to 28.0 mm, carbon fiber or aluminium ones both. 100% Made in Italy.

Quantity
  Out-of-Stock

Add to favorites Add to compare

Carbon-Ti X-Plug OS expander is an useful and ultralight accessory for your bicycle, it's removable and allows to fix the headset cap bolt and adjust headset preload.

Carbon-Ti X-Plug OS 1.1/4" Steerer Expander

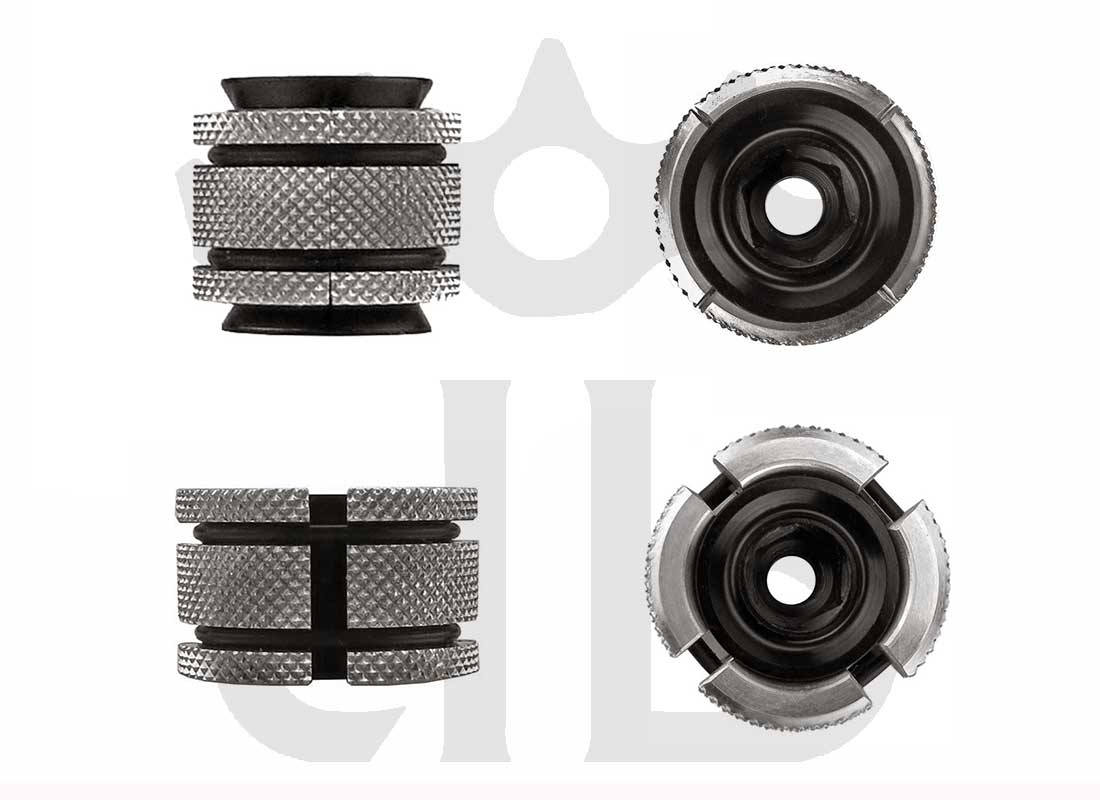

X-Plug OS special design assure a wide range of compatibility with most of 1.1/4" Oversize steerer tubes on the market, carbon fiber made or aluminium made both. Can be used on road racing bicycles, gravel and mountain bikes.

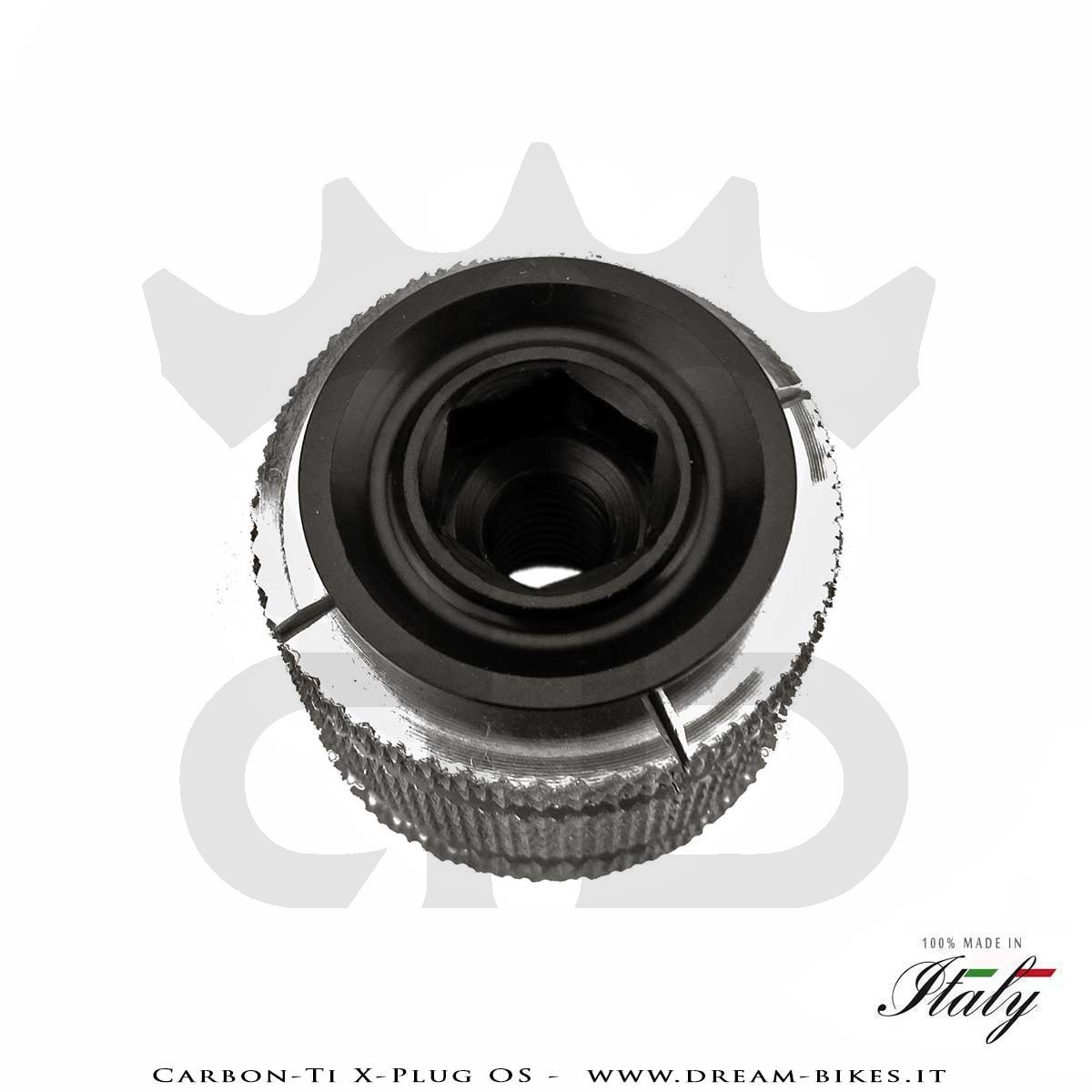

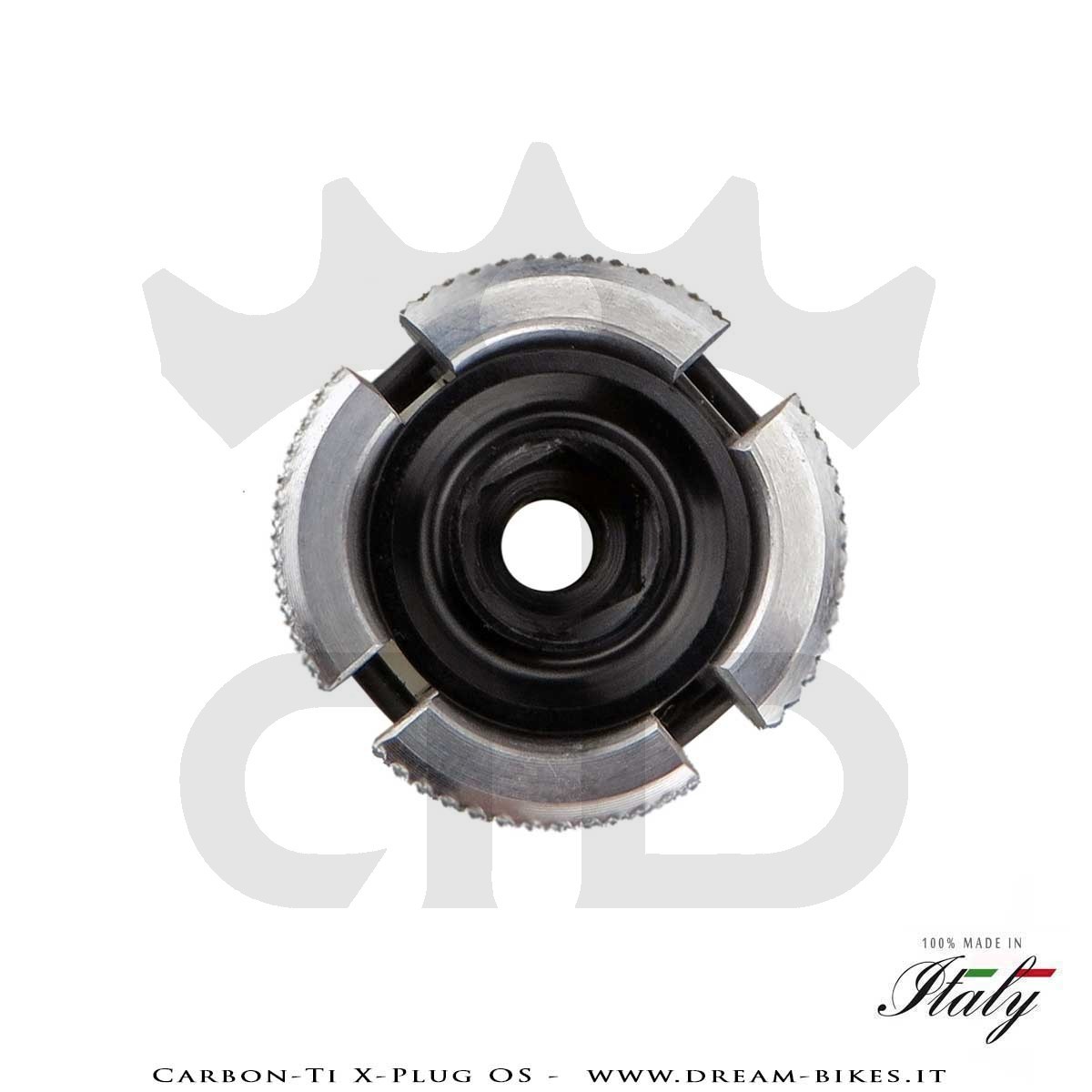

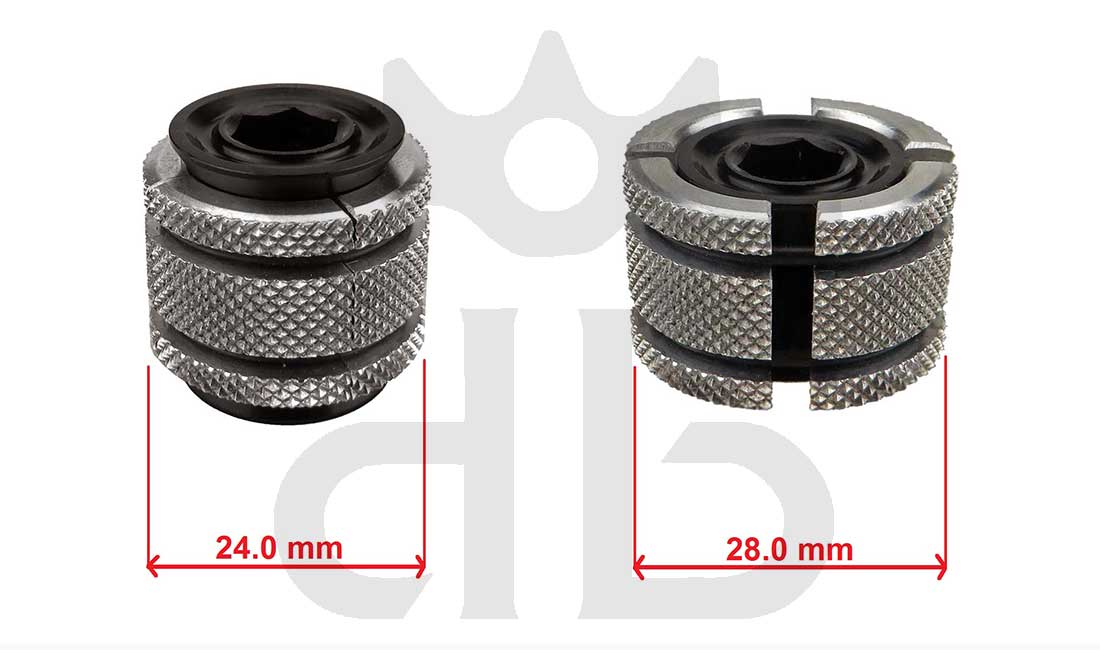

X-Plug OS expander is compatible with steering tubes with an inner diameter from 24.0 to 28.0 mm and with headset caps which are equipped of M6 bolts.

Carbon-Ti X-Plug OS 1.1/4" Steerer Expander

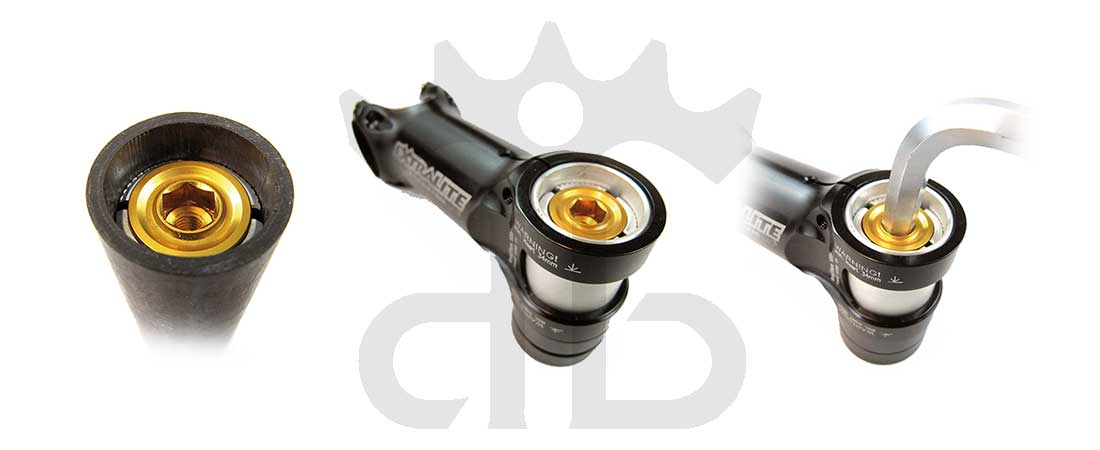

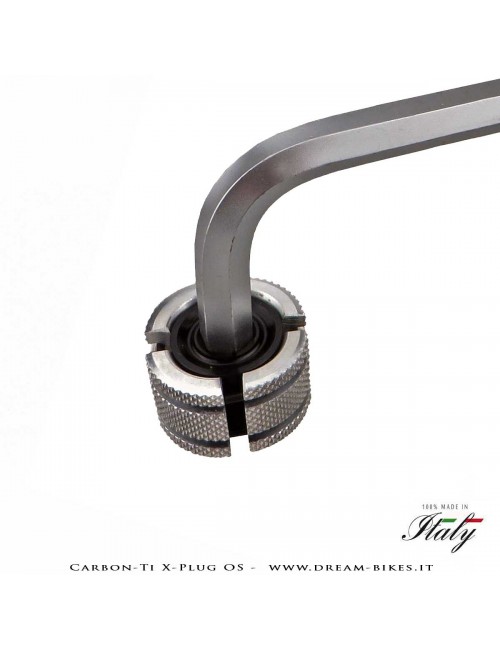

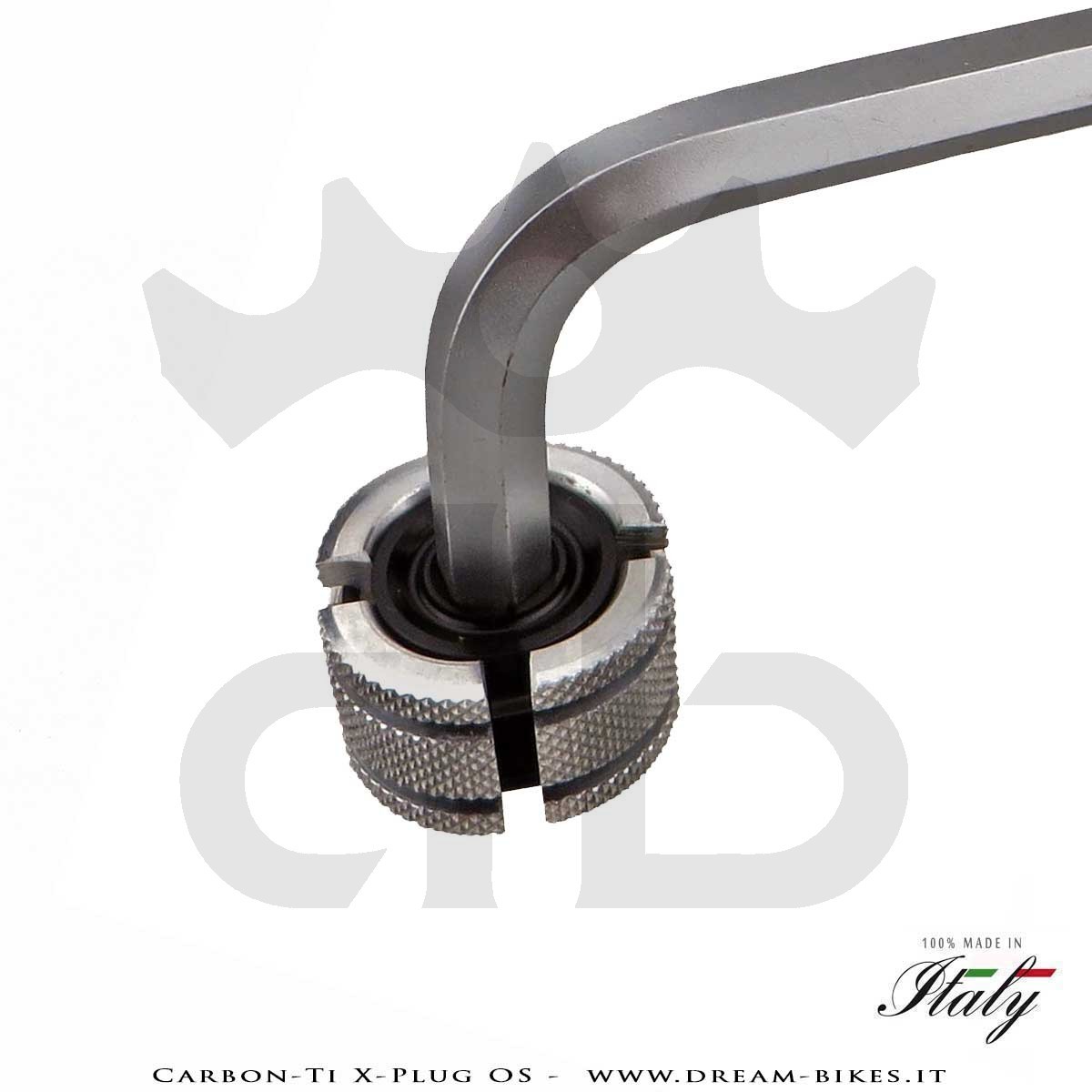

X-Plug OS expander is very easy and fast to install, only an 8 mm allen hex key is required to do the job. After the headset adjusting you can also remove X-Plug OS expander and save some additional weight. You can use X-Plug OS expander on many bicycles, if you own more than one, or use it for future bicycles.

Carbon-Ti X-Plug OS 1.1/4" Steerer Expander

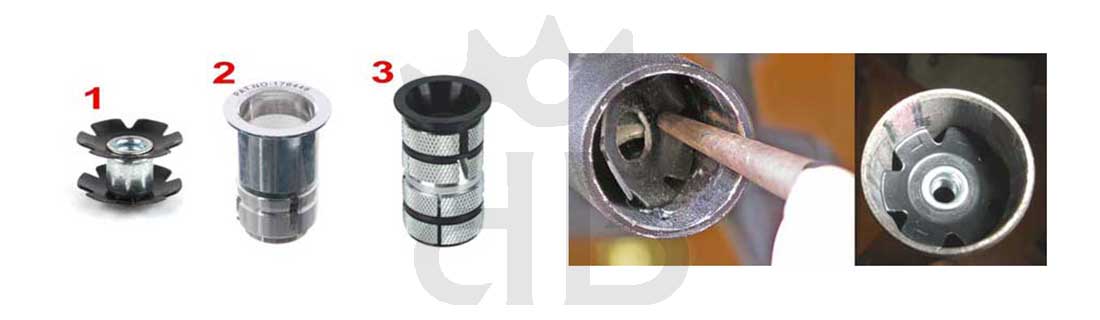

X-Plug OS is lighter and easier to install and remove than classic steel star nuts (1), when you install and remove it you don't damage the steerer tubes and the expander itself so you can reuse it many times. Star nuts (1) aren't compatible with carbon fiber steerer tubes,require special tools for installation and removal, removing the star nut isn't easy and usually damage the inner side of the steering tube.

Carbon-Ti X-Plug OS 1.1/4" Steerer Expander

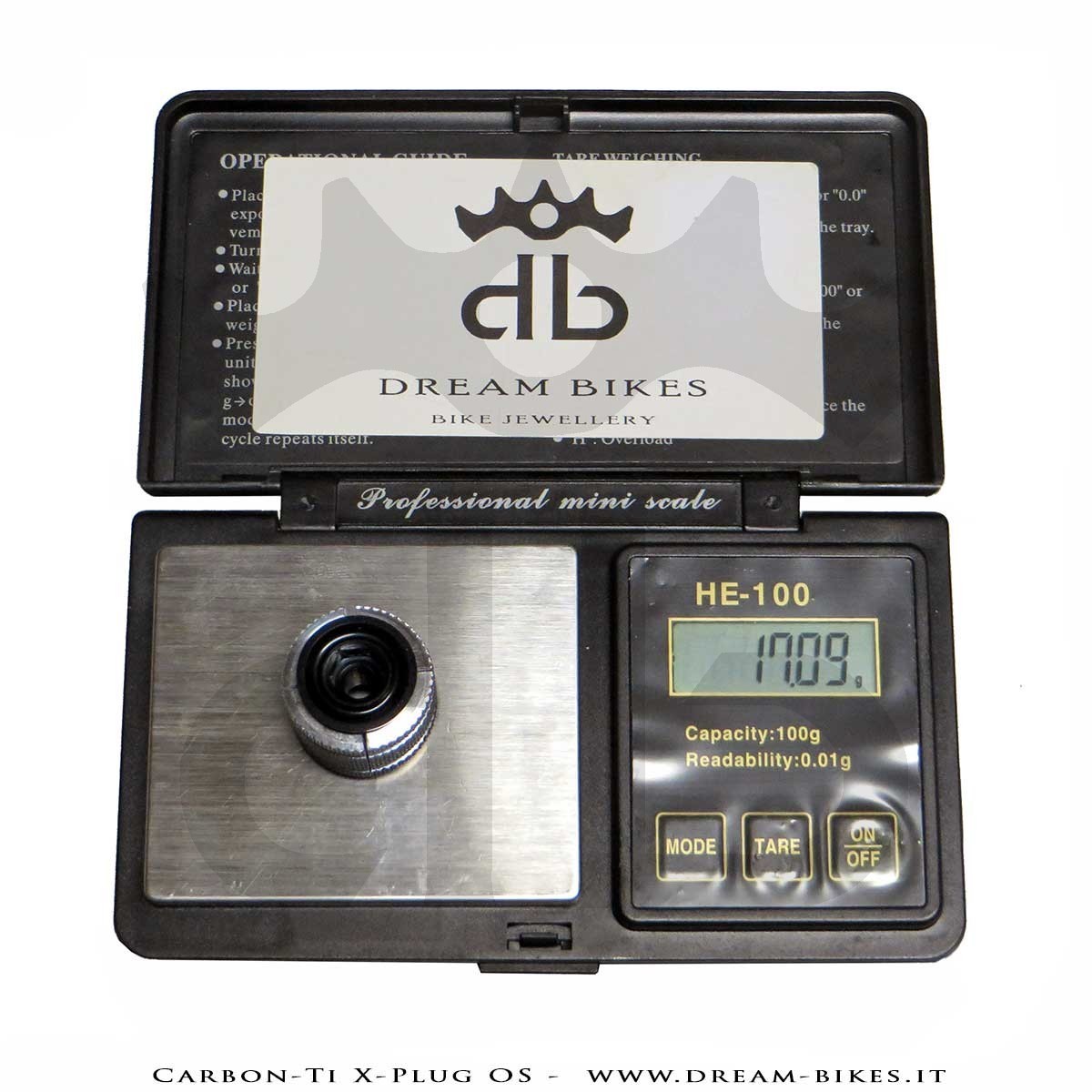

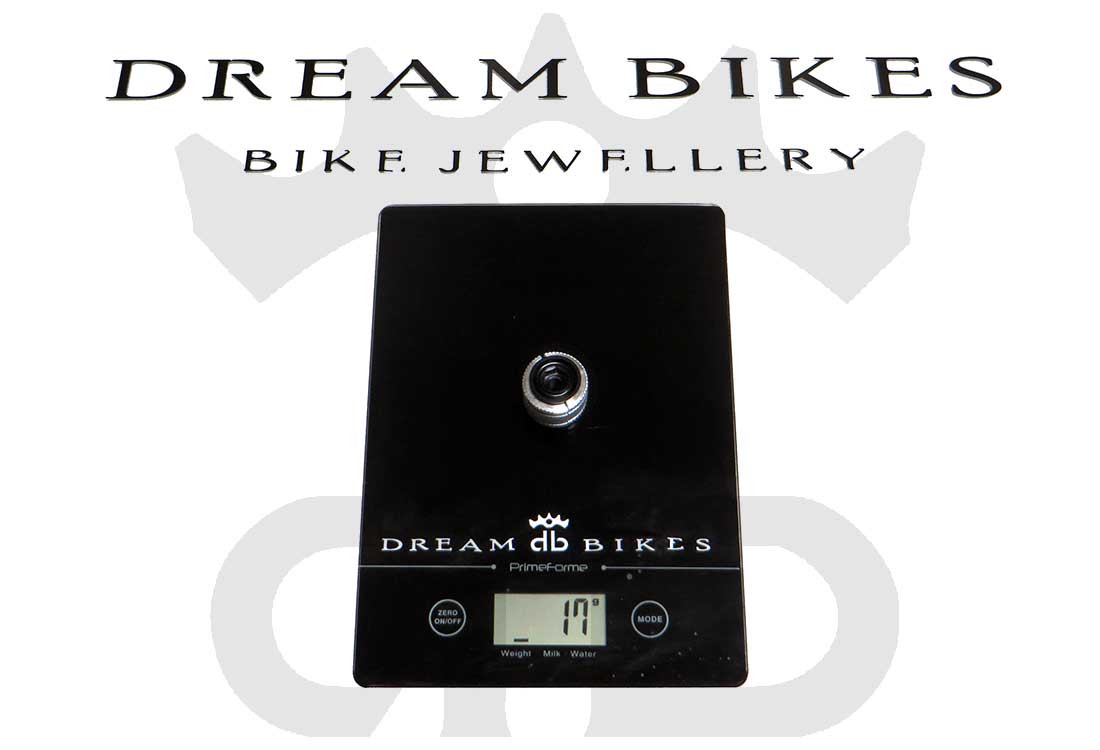

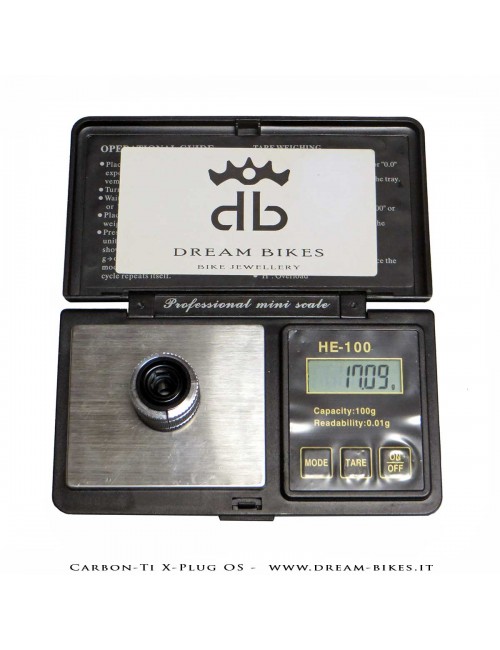

X-Plug OS allows to save a lot of weight (even more than 70%!) than first equipment carbon fiber compatible expanders (2) e (3), it weighs only 17 grams, there are on the market many expanders which weighs more than 50 grams.

Carbon-Ti X-Plug OS 1.1/4" Steerer Expander

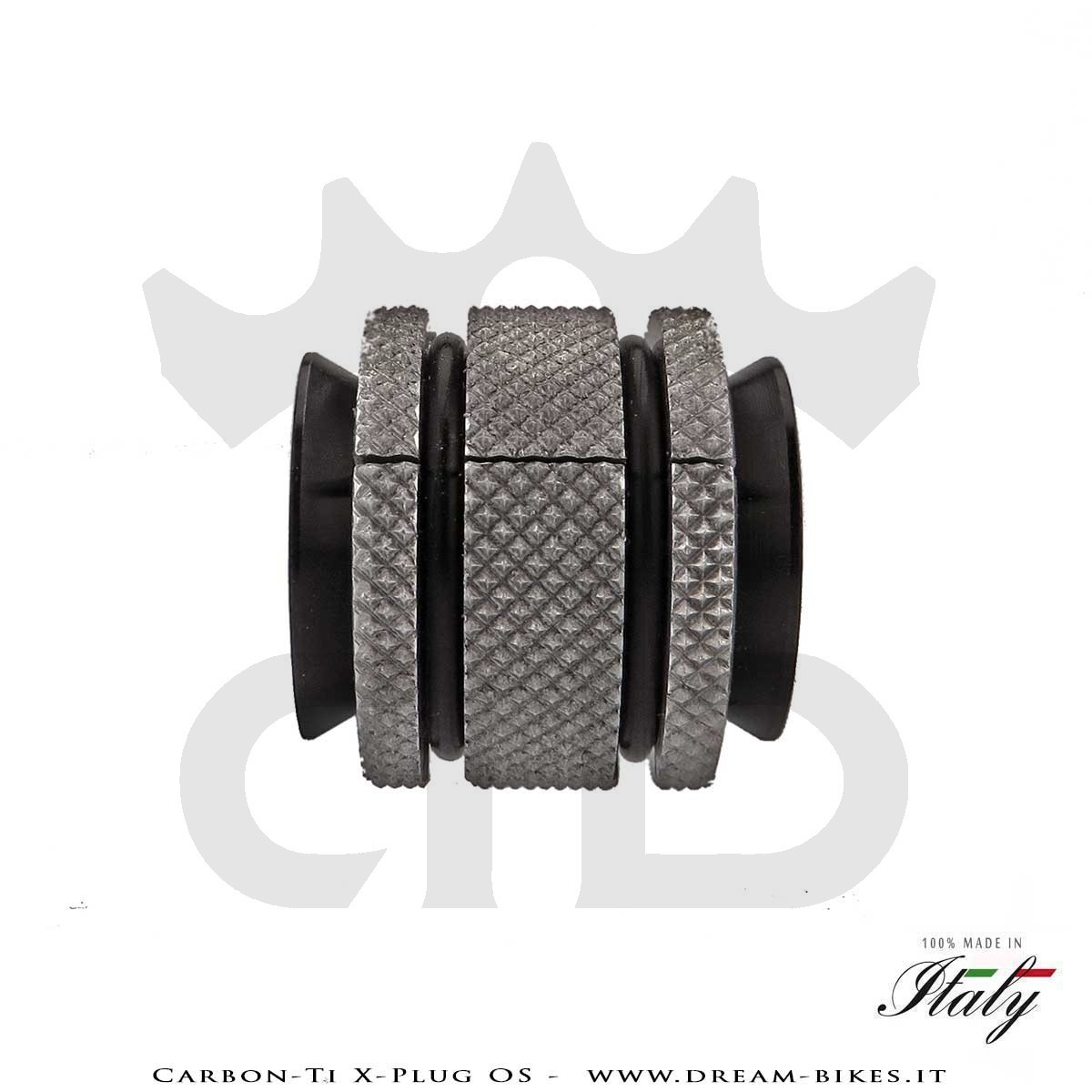

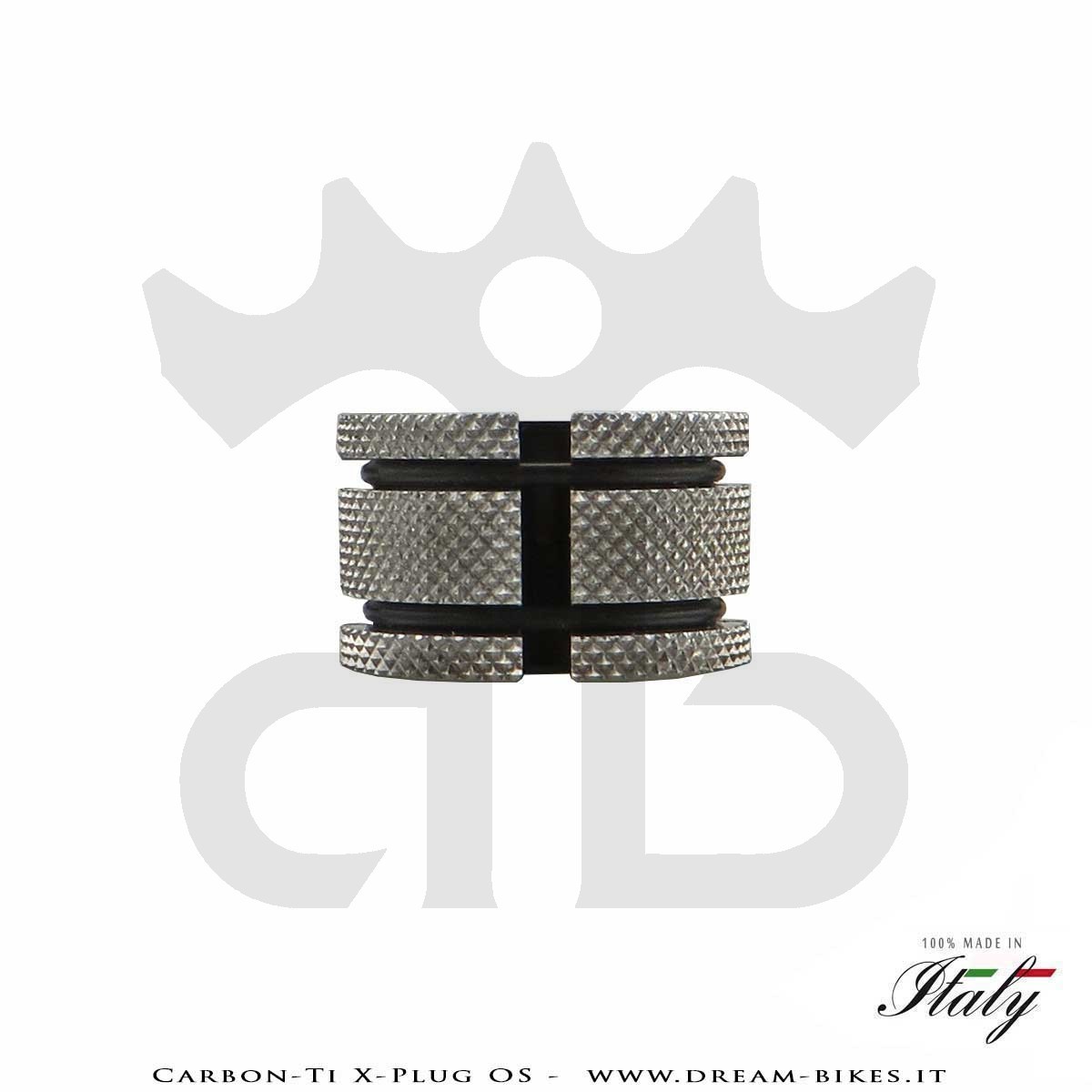

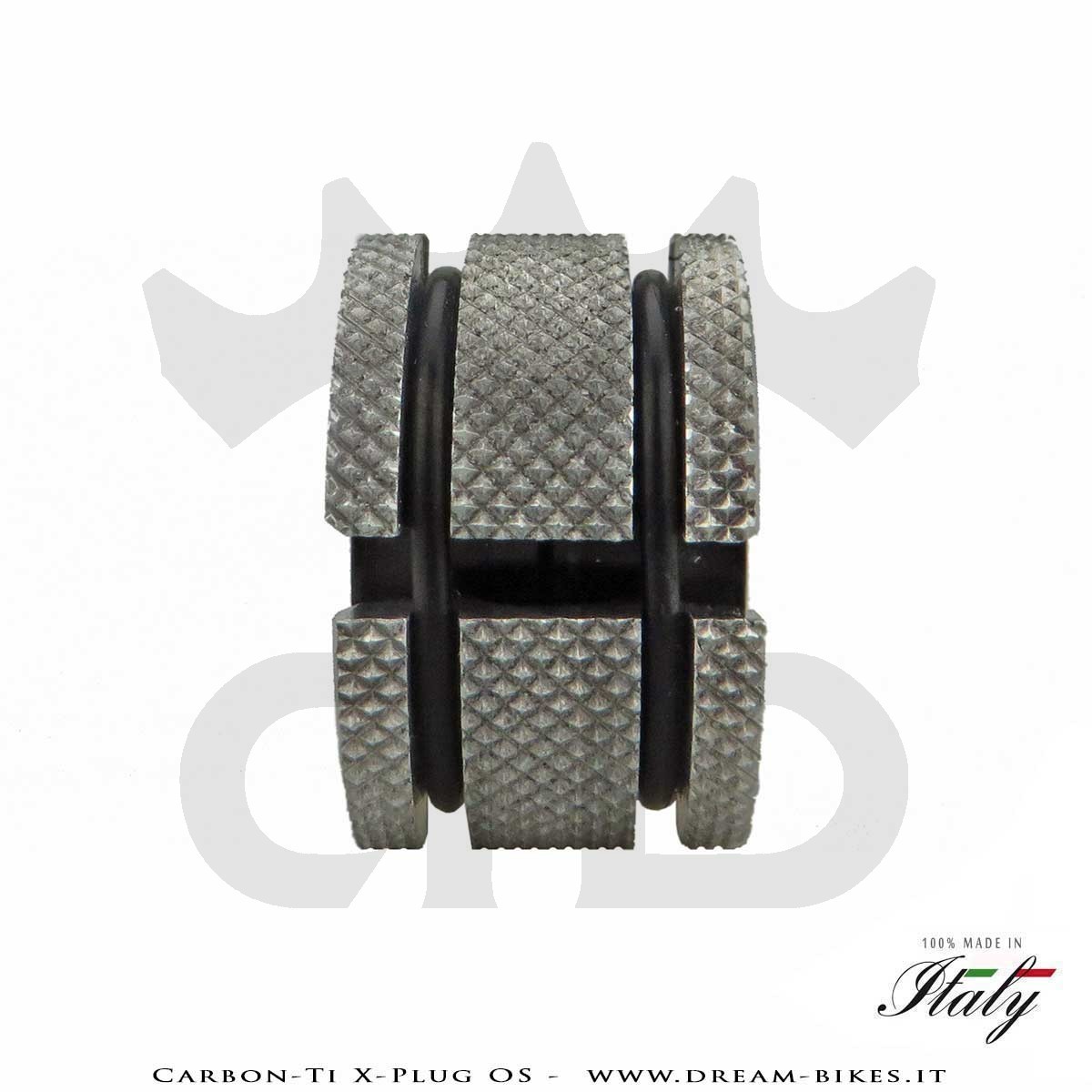

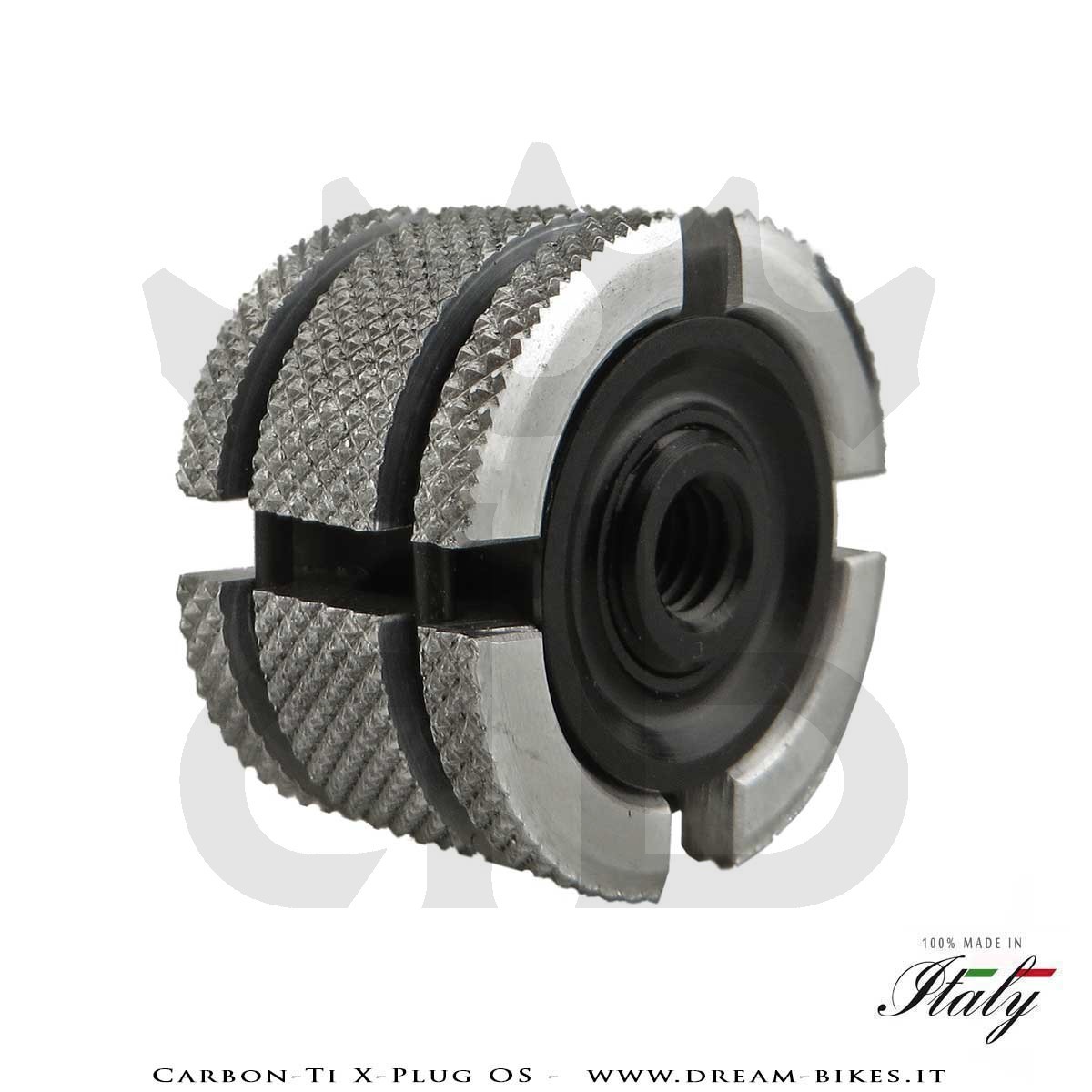

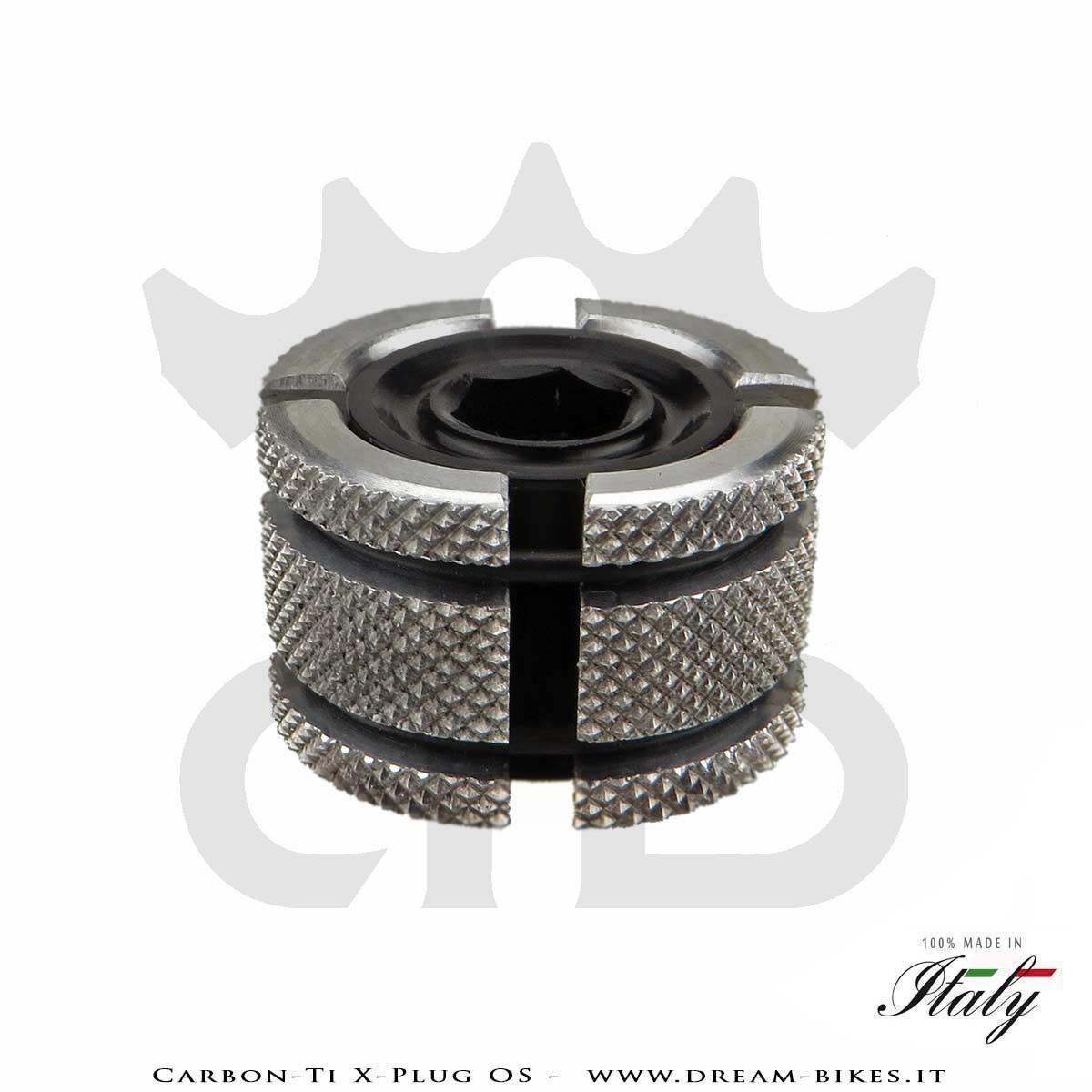

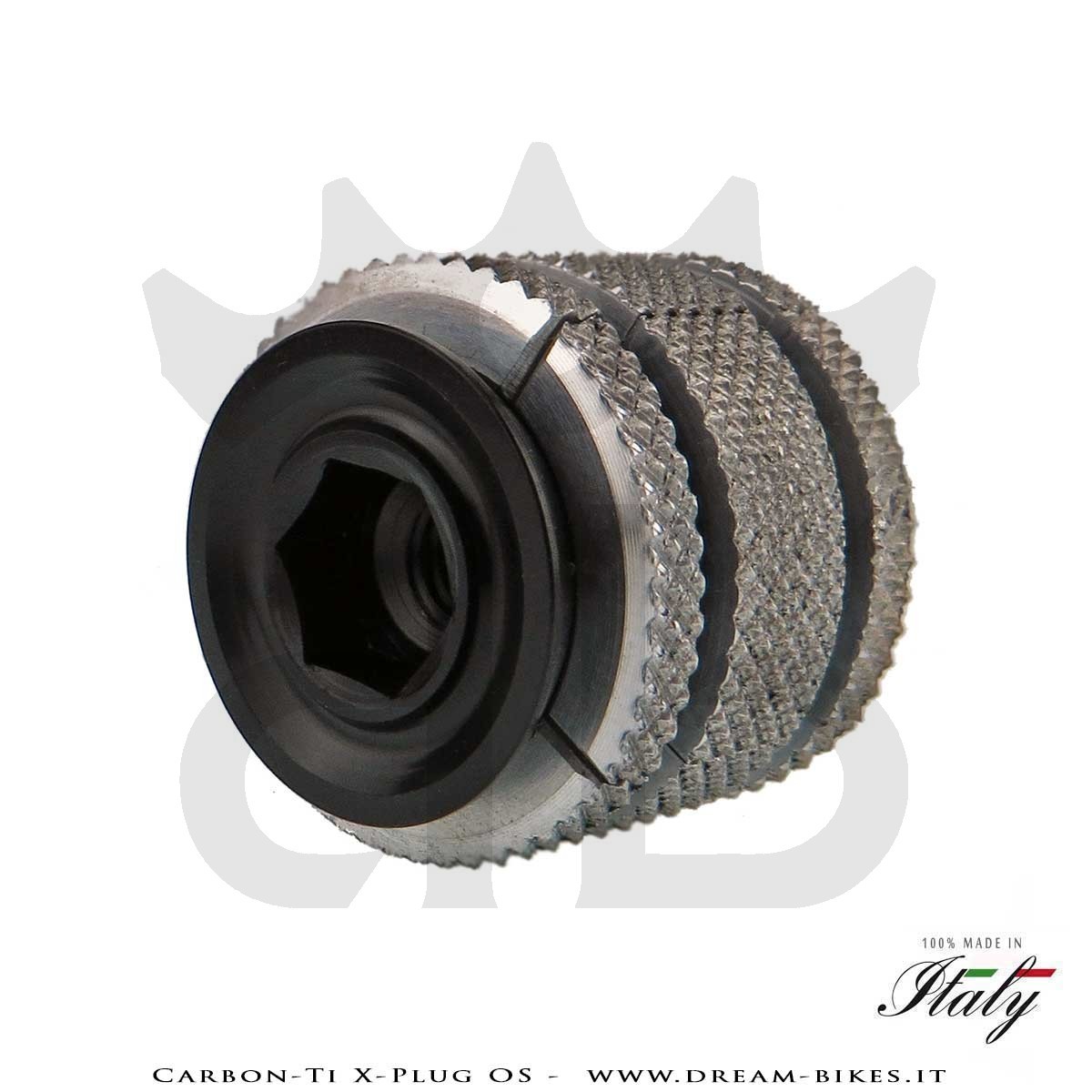

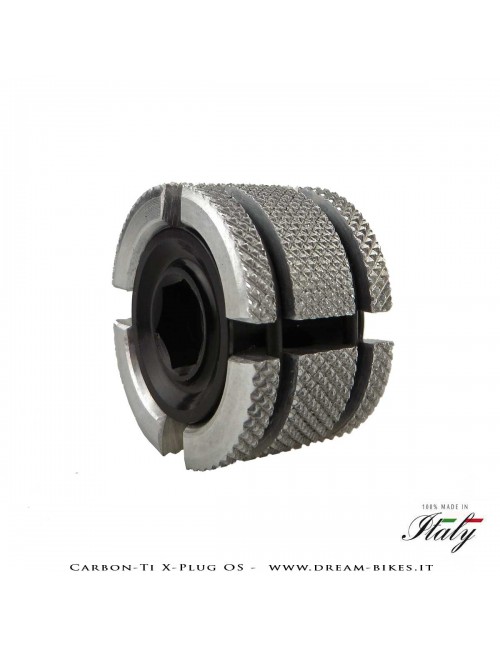

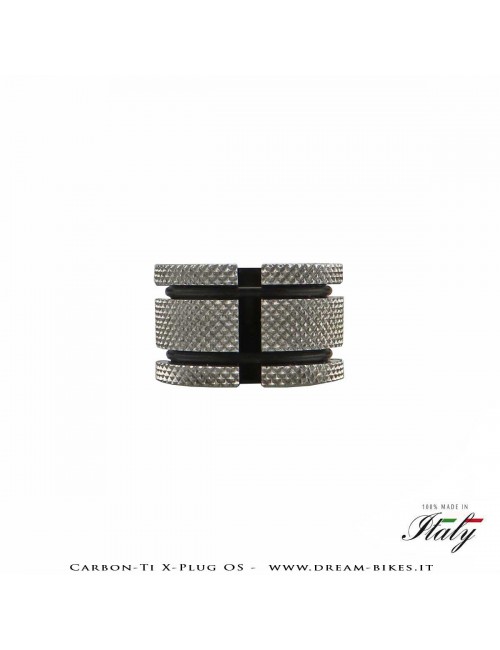

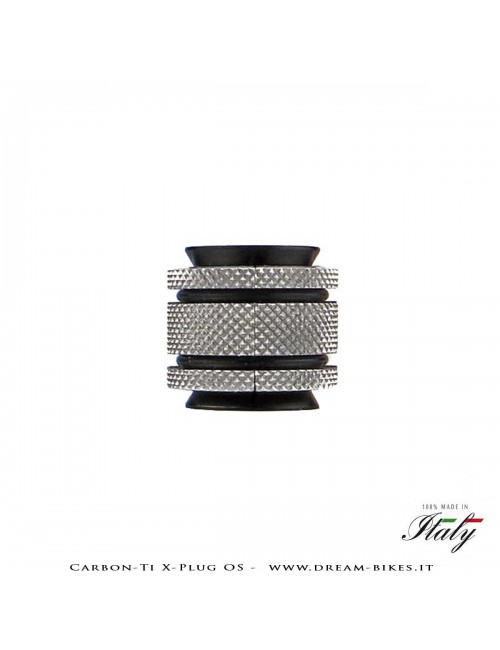

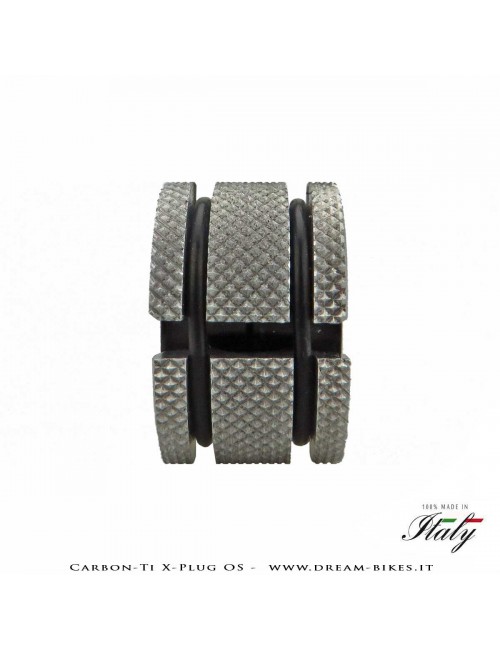

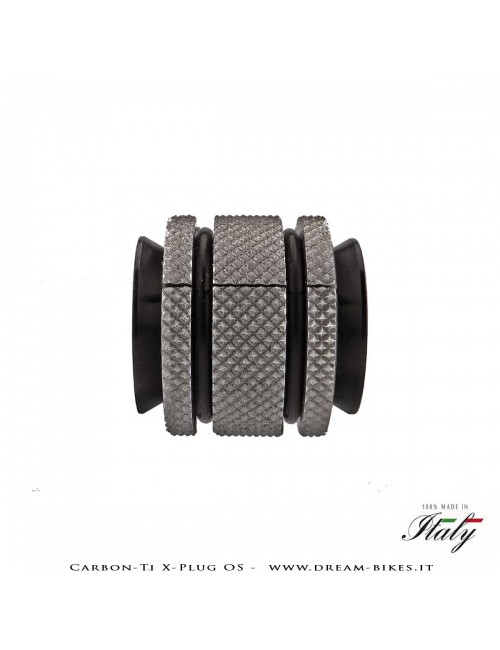

X-Plug OS has got a special external knurling finishing  which assure a great grip with the steerer tube surface, most of expanders are smooth with less grip (2).

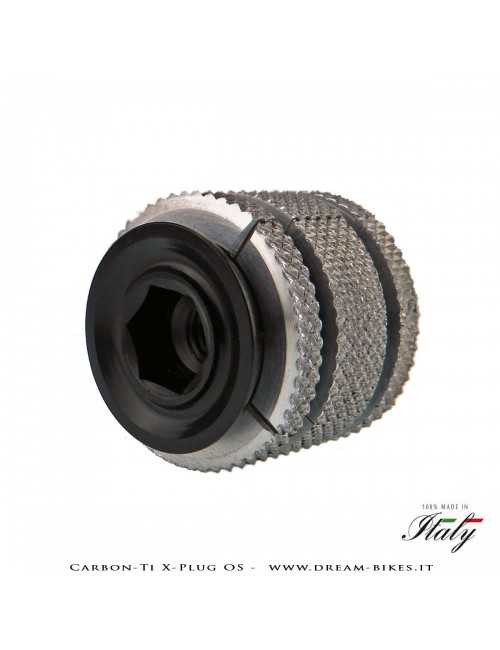

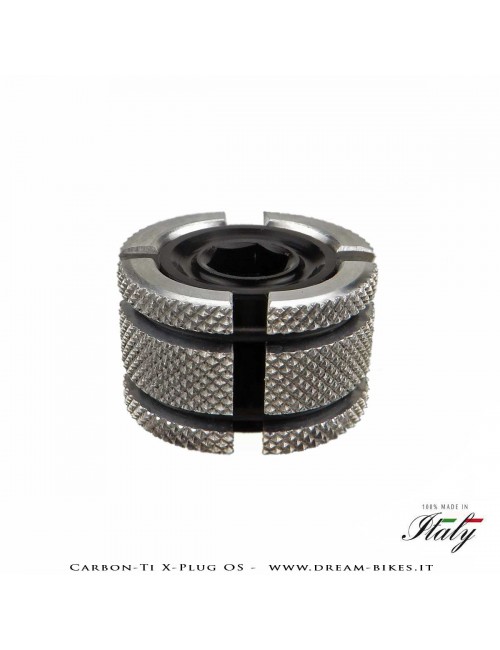

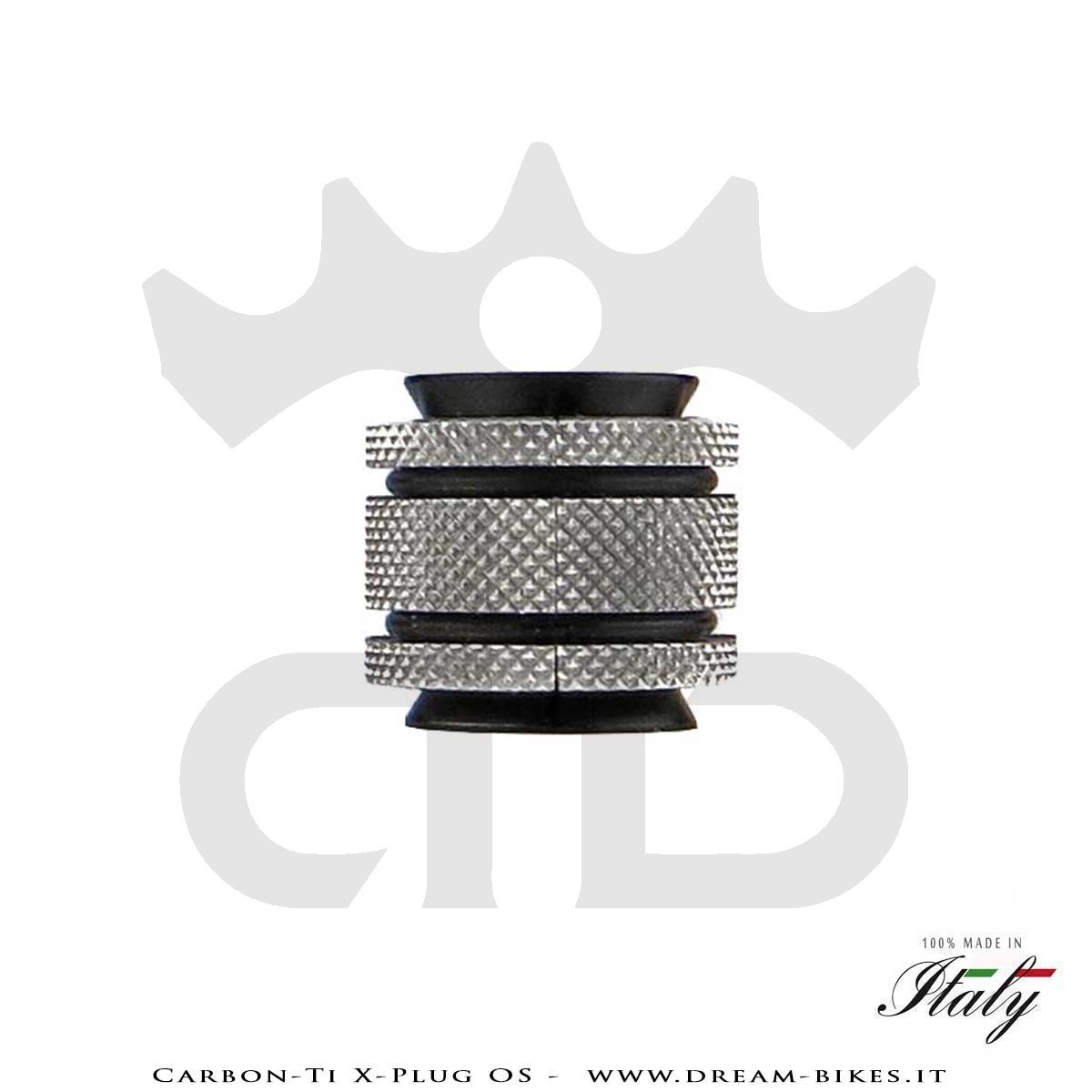

X-Plug OS expander is 7075T6 aluminium CNC made and has got a nice and clever design. Silver/black anodized finishing preserve aluminium from oxidation and assure a long time lasting.

Carbon-Ti X-Plug OS 1.1/4" Steerer Expander

Carbon-Ti produce also an headset cap (X-Cap Carbon Matte OS) specific for 1.1/4" oversize standard, you can find it on our webshop. X-Plug OS expander, as all Carbon-Ti products, is fully Made in Italy.

carbon-ti made in italy

Product Details

Data sheet

Weight :
17 gr.
Construction :
Ricavato dal pieno CNC
Steer tube clamp diameter :
1.1/4" Oversize
Material :
Al 7075 T6 CNC
Finish :
Alluminio anodizzato nero/silver
Steering Tube fitting :
con diametro interno compreso tra 24.0 e 28.0 mm
Bolt type :
M6
Max tightening torque :
10 Nm

Quick Compare

Product
 Carbon-Ti X-Plug OS 1.1/4" Steerer Expander Carbon-Ti X-Plug OS 1.1/4" Steerer Expander Carbon-Ti X-Plug Steerer Expander Carbon-Ti X-Plug Steerer Expander Extralite Ultrastar 4 Expander - 1.1/4" - 5.7 gr. Extralite Ultrastar 4 Expander - 1.1/4" - 5.7 gr.
Availability
This product is no longer in stock
Available
Available
Price
€18.77
€16.31
€23.77
Description

Carbon-Ti X-Plug OS ultralight steerer expander for 1.1/4" oversize steerer tubes. Fully CNC aluminium made, only 17 grams, allows to save a lot of weight. Very easy to install and remove, you just need an 8 mm allen hex key,  compatible with steerer tubes with inner diameter from 24.0 to 28.0 mm, carbon fiber or aluminium ones both. 100% Made in Italy.

Carbon-Ti X-Plug steerer expander is a practical and lightweight removable accessory which allows the locking of the headset cap adjusting bolt. The special design allows an extremely wide compatibility with most 1.1/8" carbon or aluminum alloy steerers on the market, they only should have inner diameter between 21.2 and 25.0 mm. It's 7075T6 Aluminum fully CNC made and with only 14 grams allows to save a lot of weight from stock headset expander systems. It's compatible with headset caps with M6 bolts and could be installed with an 8 mm hex wrench key. 100% Made in Italy.

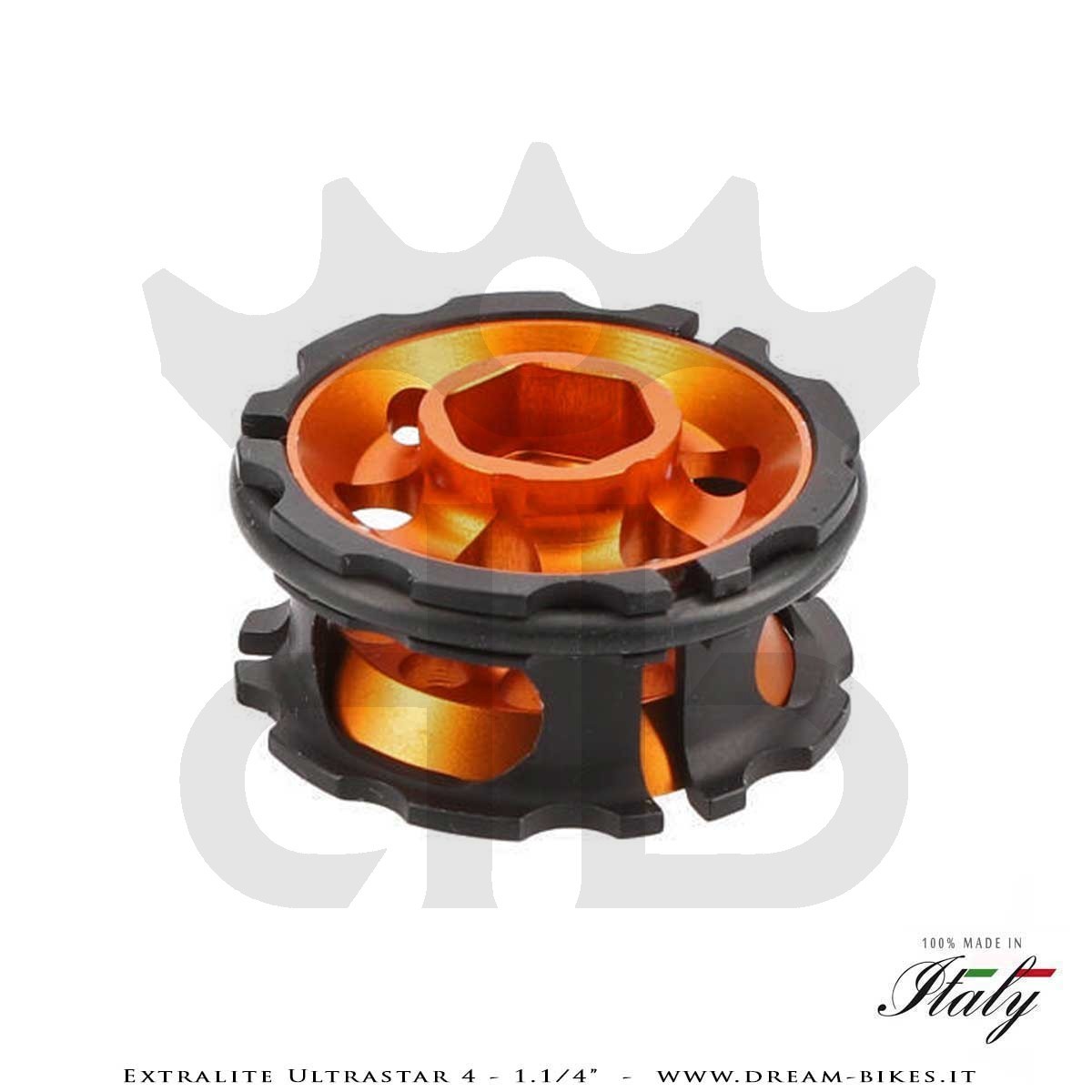

The Ultrastar 4 expander is a practical and lightweight removable accessory which allows the locking of the cap adjusting bolt. The special design allows an extremely wide compatibility with most 1.1/4" oversize carbon or aluminum alloy steerers tubes on the market, they only should have inner diameter between 25.0 and 27.2 mm. It's 7075T6 Aluminum fully CNC made and with only 5.7 grams allows to save a lot of weight from stock headset expander systems. It's compatible with headset caps with M6 bolts. Ultrastar 4 is 100% Made in Italy.
