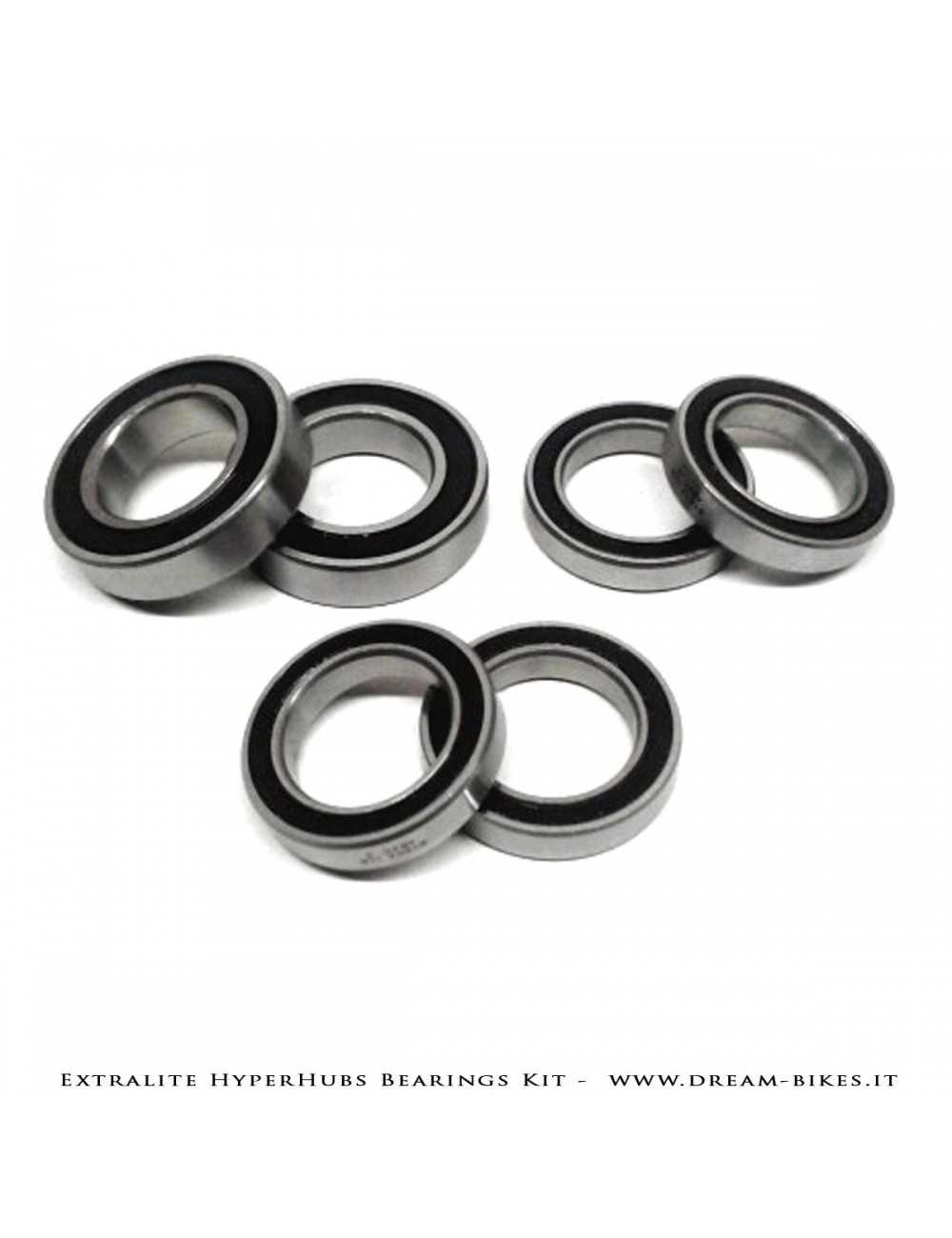

ABI Enduro ABEC5 sealed bearings complete kit for Extralite Hyper series hubs (HyperBoost F, HyperBoost R, HyperFront, HyperLefty, Hyper JF, Hyper JL, HyperRear1&2, HyperCamber1&2 e Hyper JR).
Include 6 bearingsi :
Front Lefty hubs require specific bearings with a different size than standard ones, so remember to choose Lefty option when adding to cart.
ABI Enduro ABEC5 are high quality bearings, made in the USA, specific developped for offroad use. Their double labyrinth seals assure extreme protection from mud, water and dust combined with a smooth action that not increase rolling resistance.
Grade 5 Chromium high precision Steel Balls are within 5/1,000,000″ round. These are military level specification, used for precision equipment. R-64 hardness, of the highest grade.
52100 High Carbon Chromium Alloy Races Vacuum de-gassed process for the purest chromium alloy steel, hardened to R-62, extremely tough and very durable. Polished to a mirror finish for ABEC-5 precision and noiseless movement. Nylon with graphite retainers are virtually frictionless while providing constant lubrication
To meet the ABEC-5 standard, bearing design must pass all tests, which include noise testing at high RPM, extremely close tolerances for I.D. and O.D., roundness of ball, trueness of the races and micro surface finishes of balls and races.
This specification describes the internal clearance between the bearing and its race. For example, in a 10-18 I.D. bearing, our standard is 11-21 micrometers where as others use 11-25 micrometers.
All across the board, Enduro Abec5 bearings have higher standards of tolerance, to ensure superior performance.
Top quality hubs like Extralites require top quality bearings like Enduro ABEC5!
Weights 15,3 gr. (front*) + 47,8 gr. (rear) *standard version
Weights 35,5 gr. (front**) + 47,8 gr. (rear) *Lefty version
Product |
|
|
|
|
Availability |
This product is no longer in stock
|
Available
|
This product is no longer in stock
|
Available
|
Price |
€59.02
|
€57.30
|
€49.10
|
€64.75
|
Description |
ABI Enduro ABEC5 high quality bearings complete kit for Extralite Hyper series hubs (HyperBoost F, HyperBoost R, HyperFront, HyperLefty, Hyper JF, Hyper JL, HyperRear1&2, HyperCamber1&2 e Hyper JR), Include 6 bearings (2 front + 4 rear). Weghts from 63 gr. |
Carbon-Ti X-Lock 12 mm rear thru axle available in several standards (X-12 12x142; X-12 Boost 12x148; Shimano E-Thru 12x142 and 12x148 Boost; RockShox Maxle 12x142; Rock Shox Maxle 12x150; Rock Shox Maxle ABP 12x142 (192 mm); Rock Shox Maxle ABP Boost 12x148 (198 mm); Scott 12x142; Scott Boost (12x148). Aluminum 7075T6 CNC made, several anodized colors and laser etched graphics. Weights from 32 to 36 grams. Works with a 5 mm hex wrench.
|
Carbon-Ti X-Hub SL and SP rear hub X-12 conversion kit, allows to convert hub standard from quick release to X-12 12 mm thru axle. Kit include axle and axle ends but not bearing preload regulator that can be taked from standard QR axle. Compatible only with Carbon-Ti X-Hub SL and SP rear hubs. Easy and fast to convert. Fully 7075T6 CNC made, 32.3 gr weight. Made in Italy. |
Extralite BlackLock QR15 ultralight 15 mm thru axle for DT Swiss, Fox, (also Boost) Rock Shox (also Boost) or Magura forks. Fully CNC Al 7075T6 made, black anodized with laser etched graphics. Bronze washer for smooth action. Weights from 25 gr, allows to save up to 50 gr. Locks with 6 mm hex wrench (BlackLock 15.1 with 8 mm hex wrench). |
Weight : |
15,3 gr. + 47,8 gr. (standard version) ; 35,5 gr. + 47,8 gr. (Lefty version) | X-12 (34 gr), X-12 Boost 148 (34 gr), X-E-Thru (32 gr.), X-E-Thru Boost (32 gr.), X-Maxle 142 (33 gr), X-Maxle 150 (34 gr), X-Maxle ABP 142 (35 gr.), X-Maxle ABP Boost 148 (36 gr.), X-Scott (32 gr.), X-Scott Boost 148 (32 gr.) | 32.3 gr. | 25 gr. (15.1) - 26.4 gr. (15.3) - 26.7 gr. (15.4) - 29 gr. (15.4 B) - 27 gr. (15.5) |
Diameter : |
12 mm | For 12 mm axle | ||
Length : |
143 mm (15.1 ) - 146 mm (15.3) - 147 mm (15.4) - 156 mm (15.4 B) - 139 mm (15.5) | |||
Thread length : |
8.7 mm (15.1) - 14.2 mm (15.3) - 12.2 mm (15.4) - 12.2 mm (15.4 B) - 11 mm (15.5) | |||
Thread Pitch : |
M15x1.5 (15.1 - 15.4 - 15.4 B) - M14x1.5 (15.3) - M15x1.0 (15.5) | |||
Axle Diameter : |
17 mm | 15 mm | ||
Material : |
Al 7075 T6 CNC | Al 7075 T6 CNC | Al 7075 T6 CNC | |
Hardware Material : |
Bronze washer | |||
Bearing Type : |
SRS sealed | |||
Bearing Material : |
52100 chromium steel | |||
Finish : |
Anodized, many colors | Black Anodized | Black anodized | |
Graphics : |
Laser etched | Laser etched | ||
Use : |
XC, Enduro, All Mountain | |||
Bearings n° : |
6 | |||
Fitting : |
X-12 (Specialized 12x142-148), X-E-Thru (Shimano 12x142-148), X-Maxle (Rock Shox 12x142), X-Maxle (Rock Shox 12x150), X-Maxle ABP (Rock Shox 12x142 192 mm) X-Maxle ABP Boost (Rock Shox 12x148 198 mm), X-Scott (Scott 12x142-148) | Only with Carbon-Ti X-Hub SL/SP rear hubs | DT Swiss (15.1) - Fox (15.3) - Rock Shox (15.4) - Rock Shox Boost (15.4 B) - Magura (15.5) forks. | |
Features : |
4x 61803 SRS bearings + 2x 61903 SRS bearings | Axle + axle ends | ||
Bolt head type : |
Hex wrench 6 mm (8 mm BlackLock 15.1) | |||
Max tightening torque : |
10 Nm | |||
