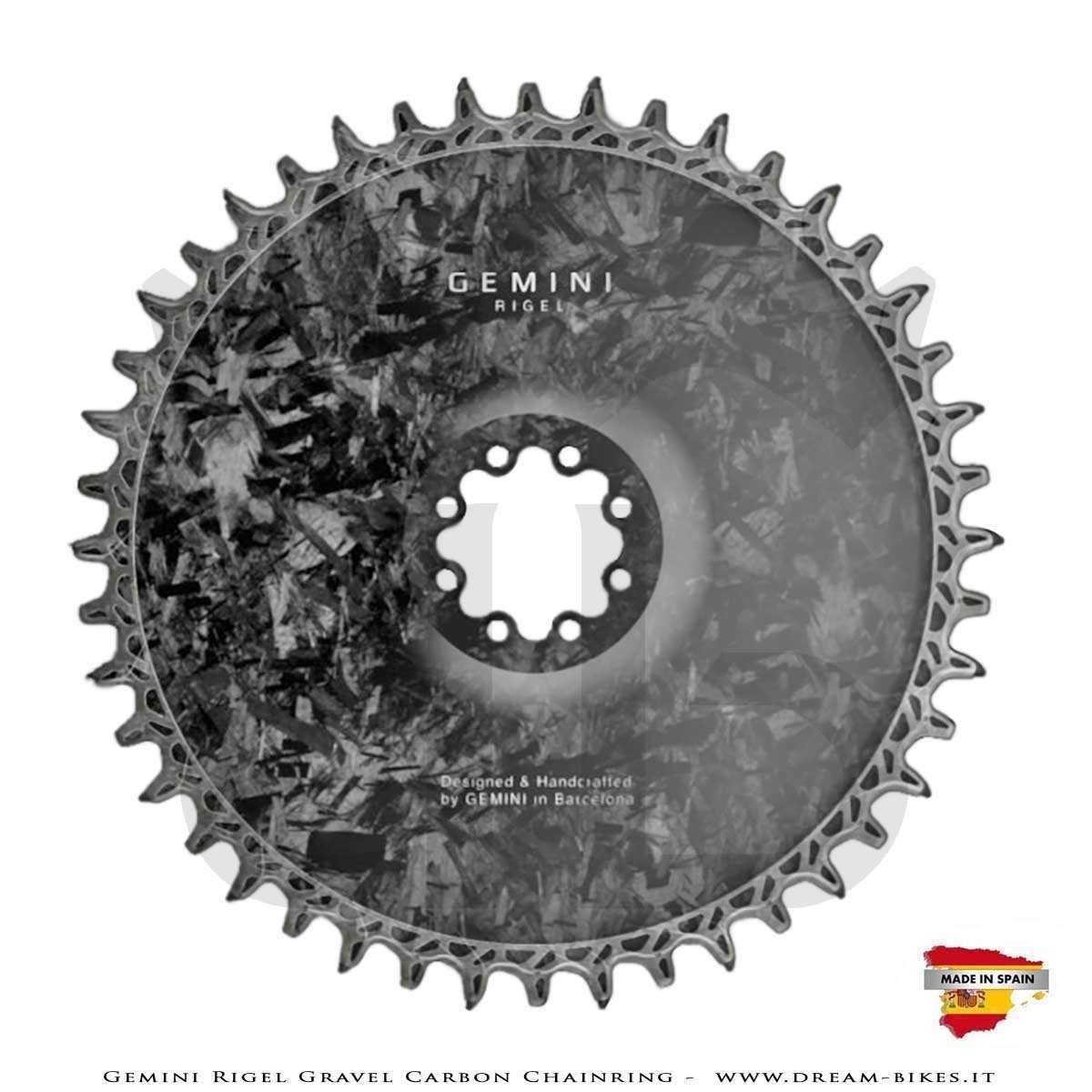

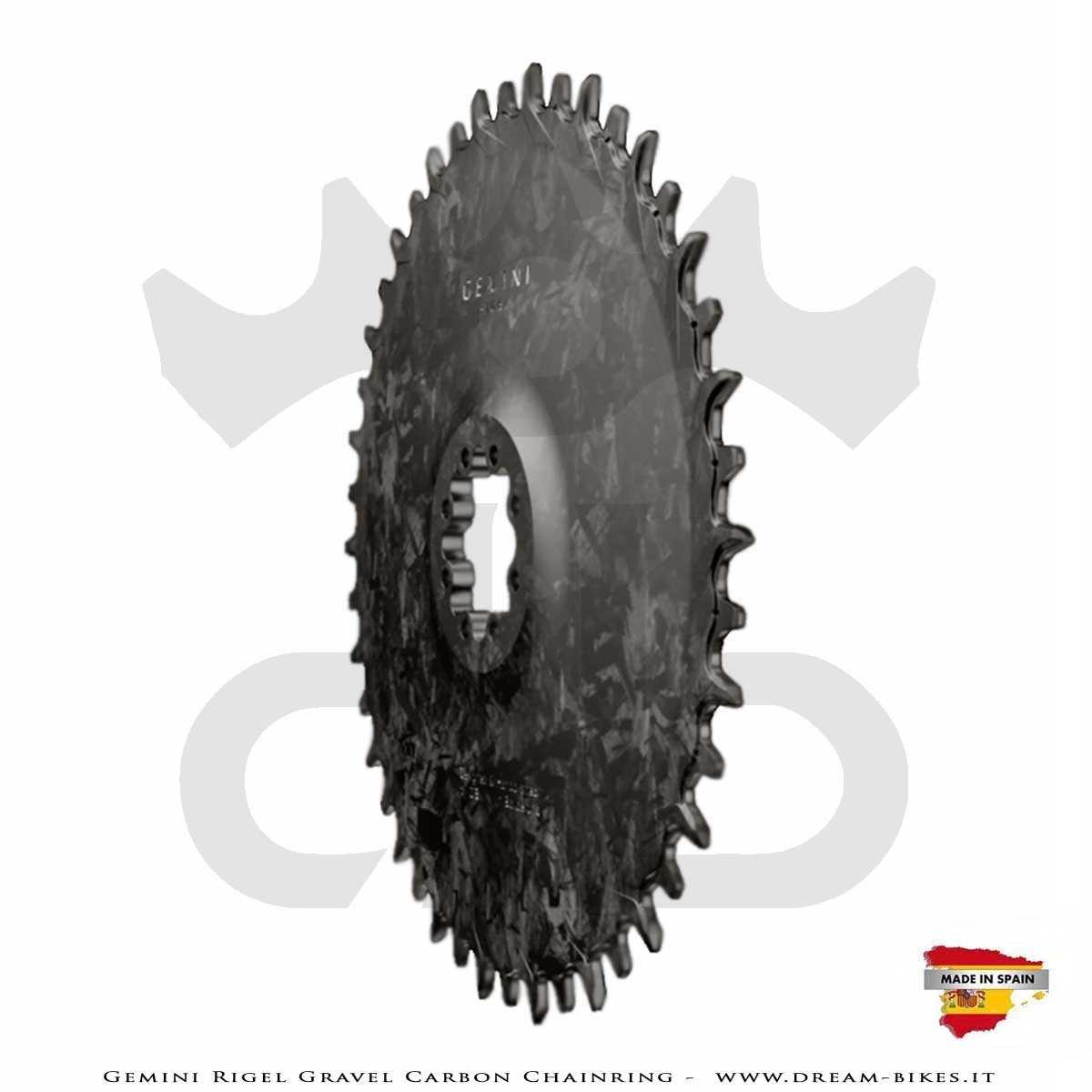

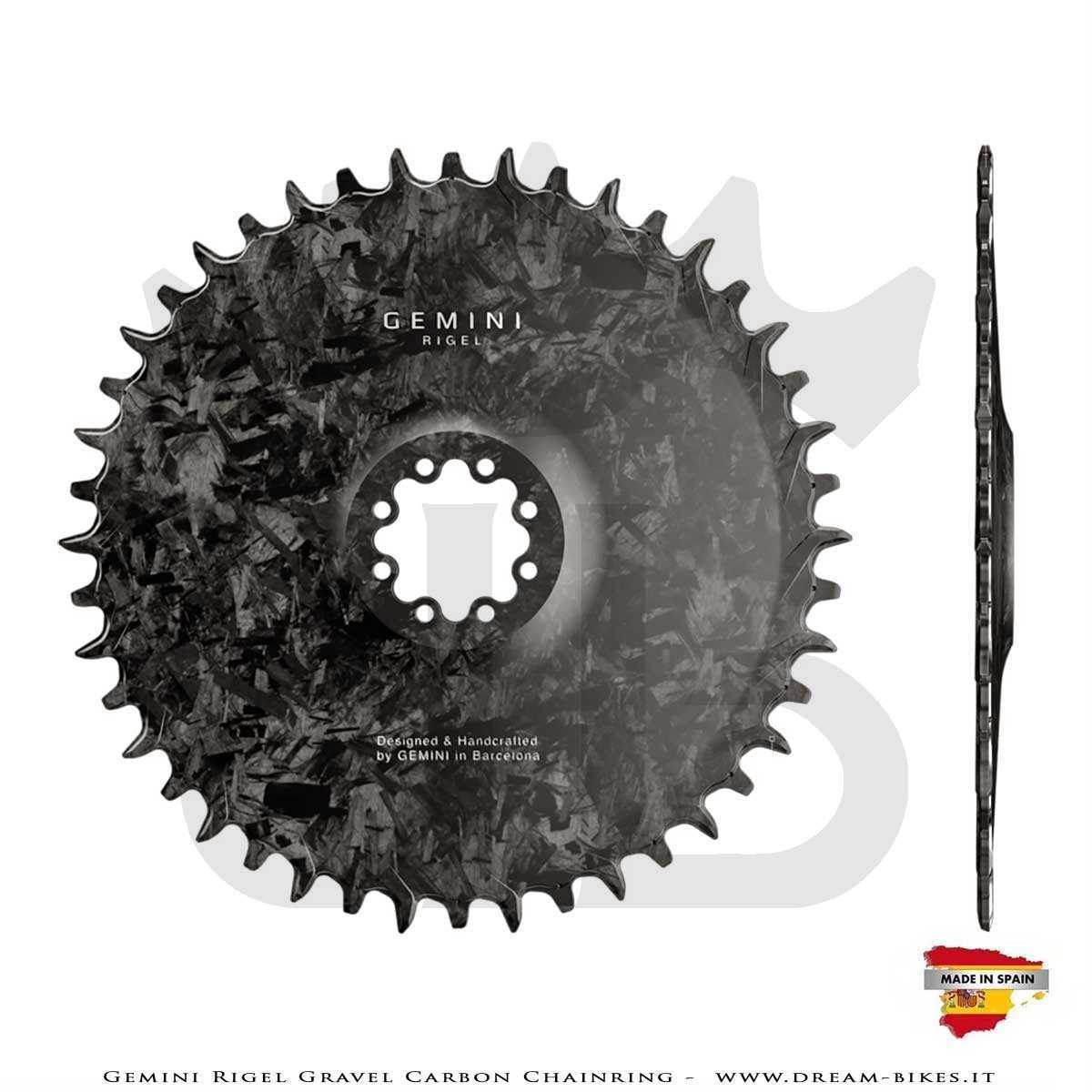

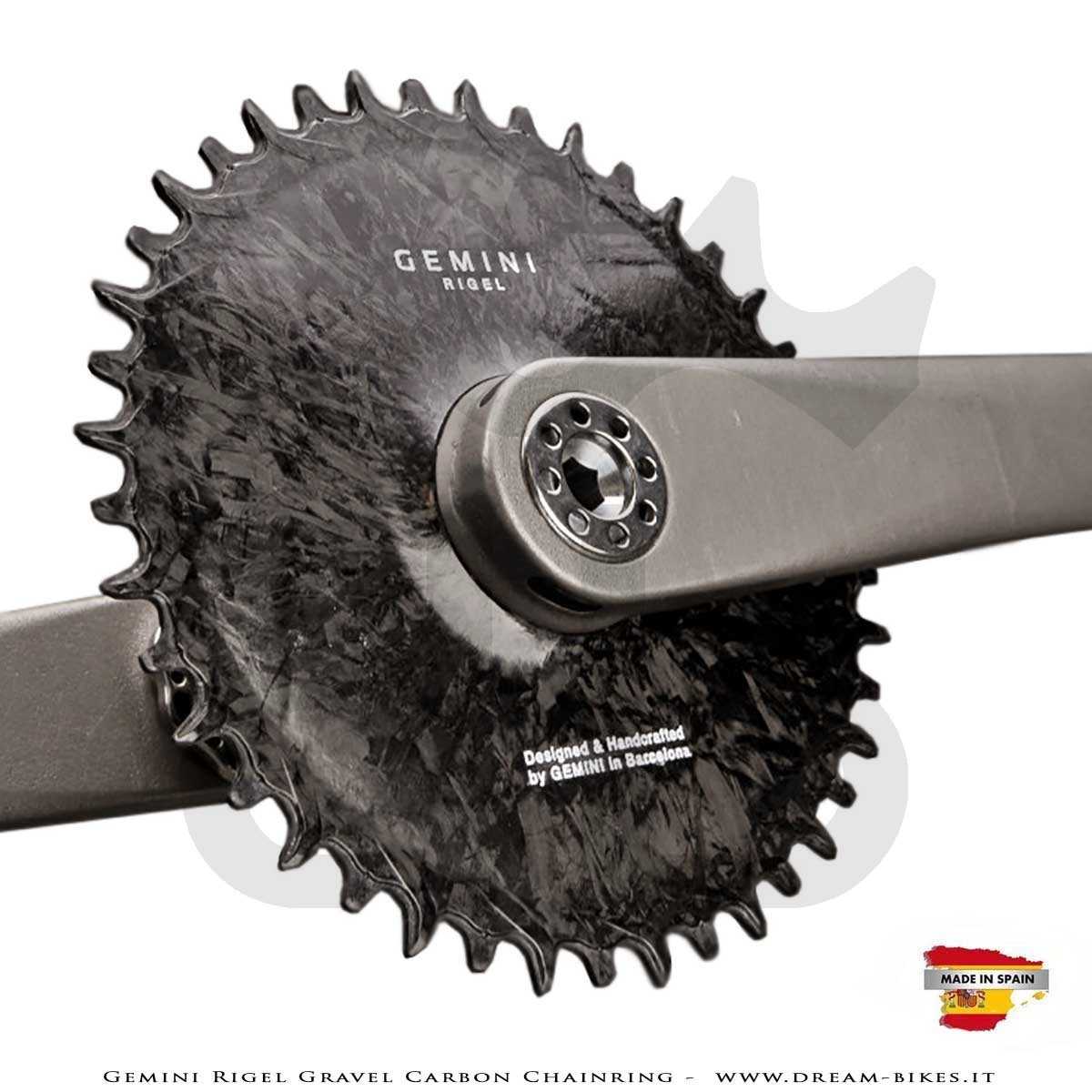

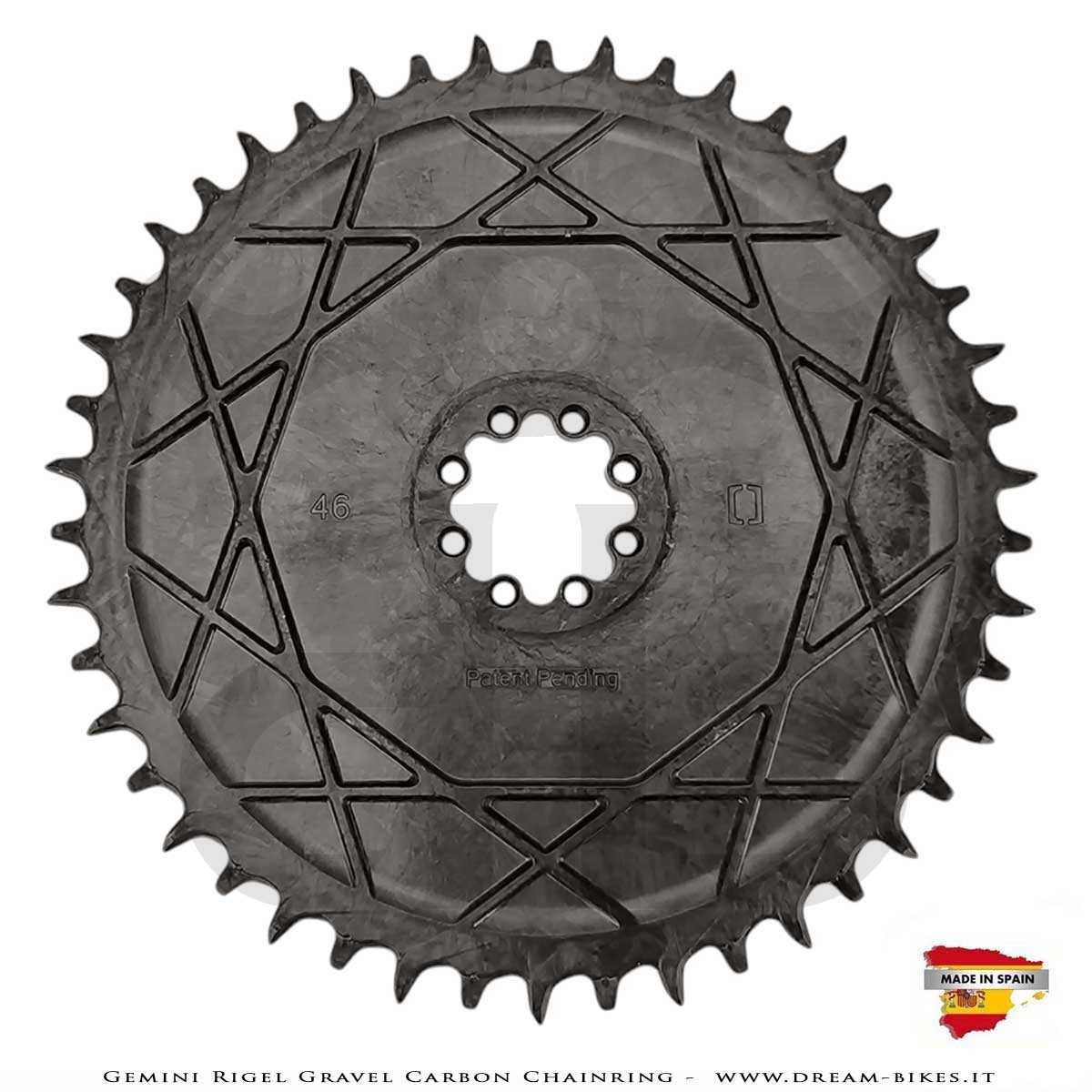

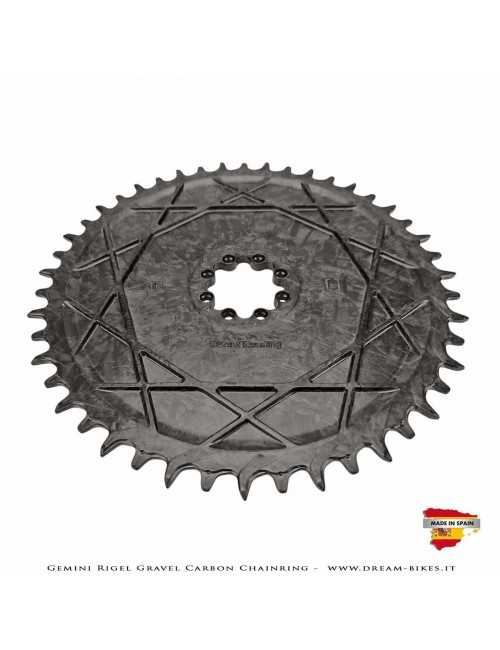

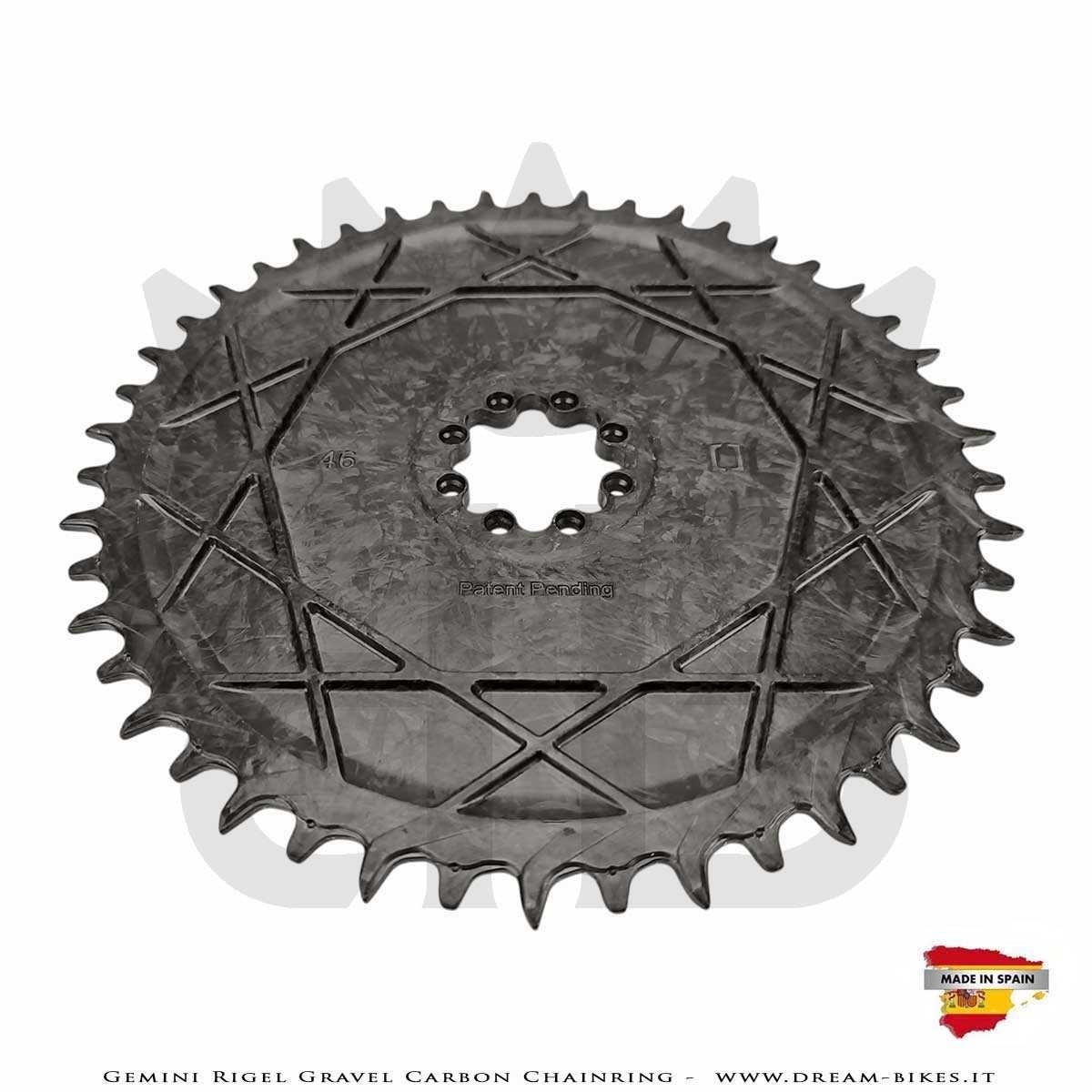

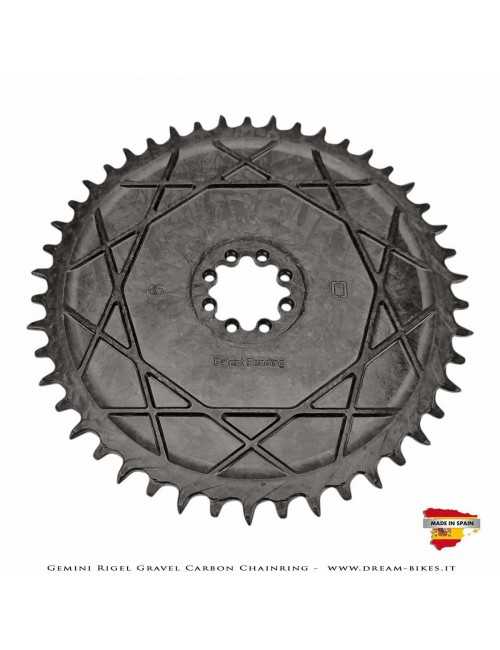

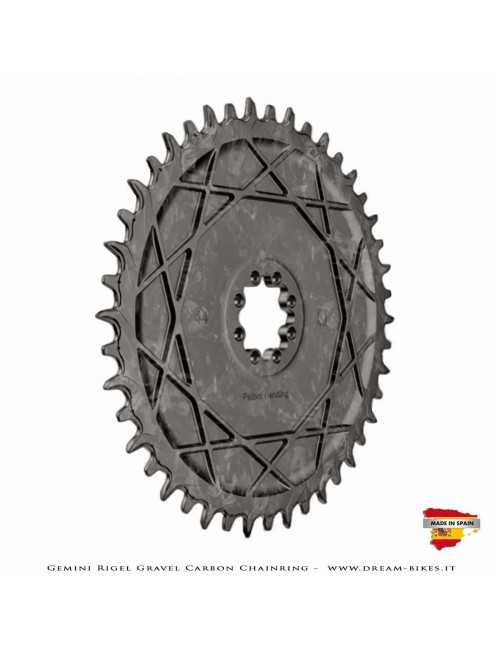

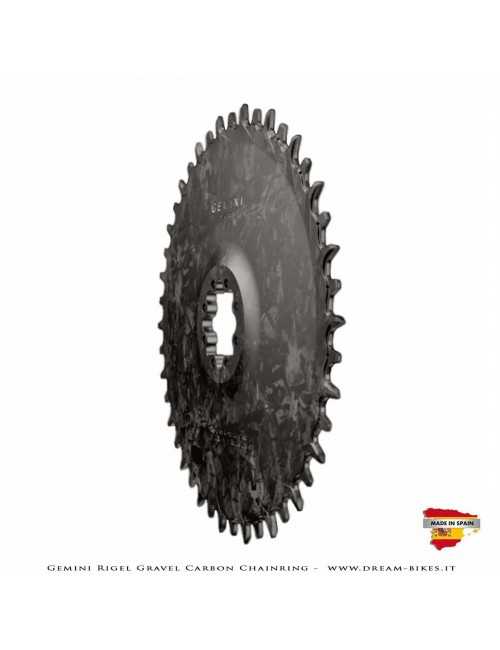

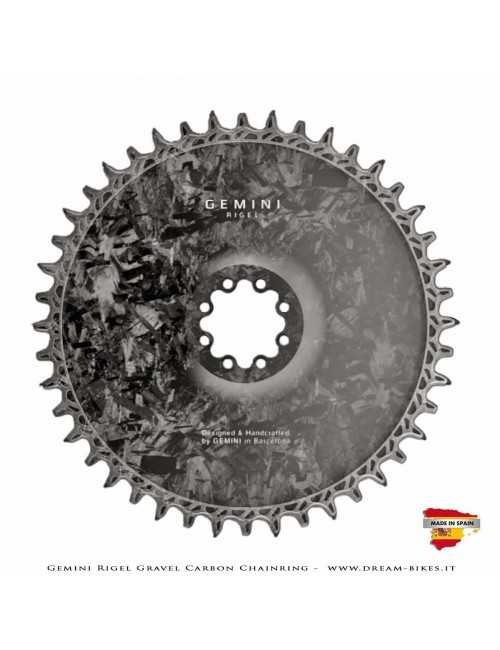

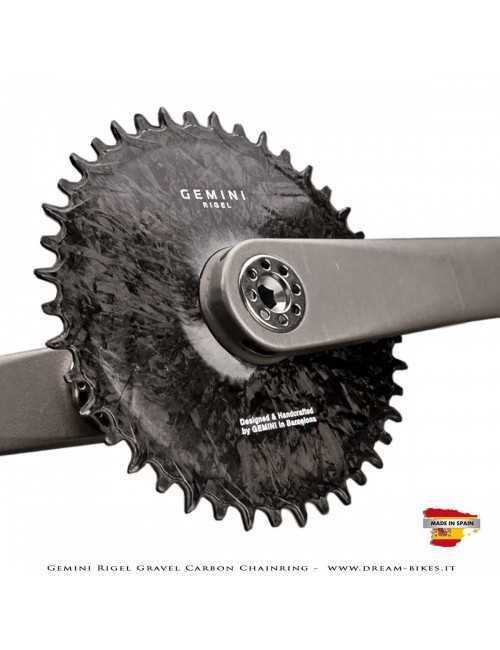

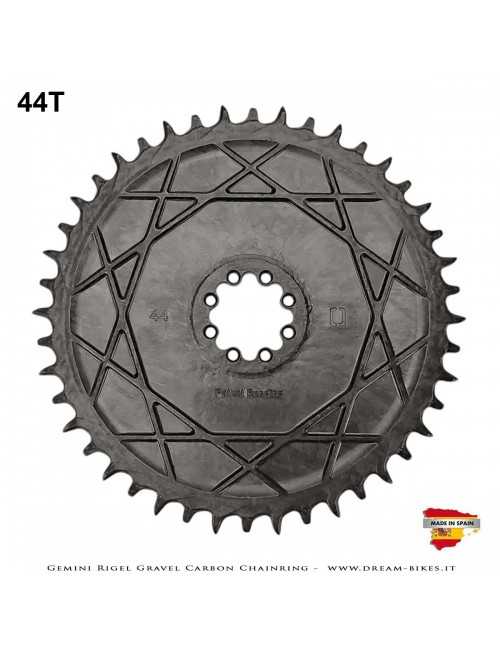

Gemini Rigel Gravel/Road Racing chainrings are the most innovative and technologically advanced on the market, dedicated to the most demanding bikers who want the maximum in terms of performance and exclusivity. They are single round chainrings directly mounted on the cranks (Direct Mount), available in various toothings and with various attachment standards. They have got 6.5 mm standard offset (perfect for 142 mm rear hubs drivetrains). They can be used for Gravel, Road Racing or Cross.

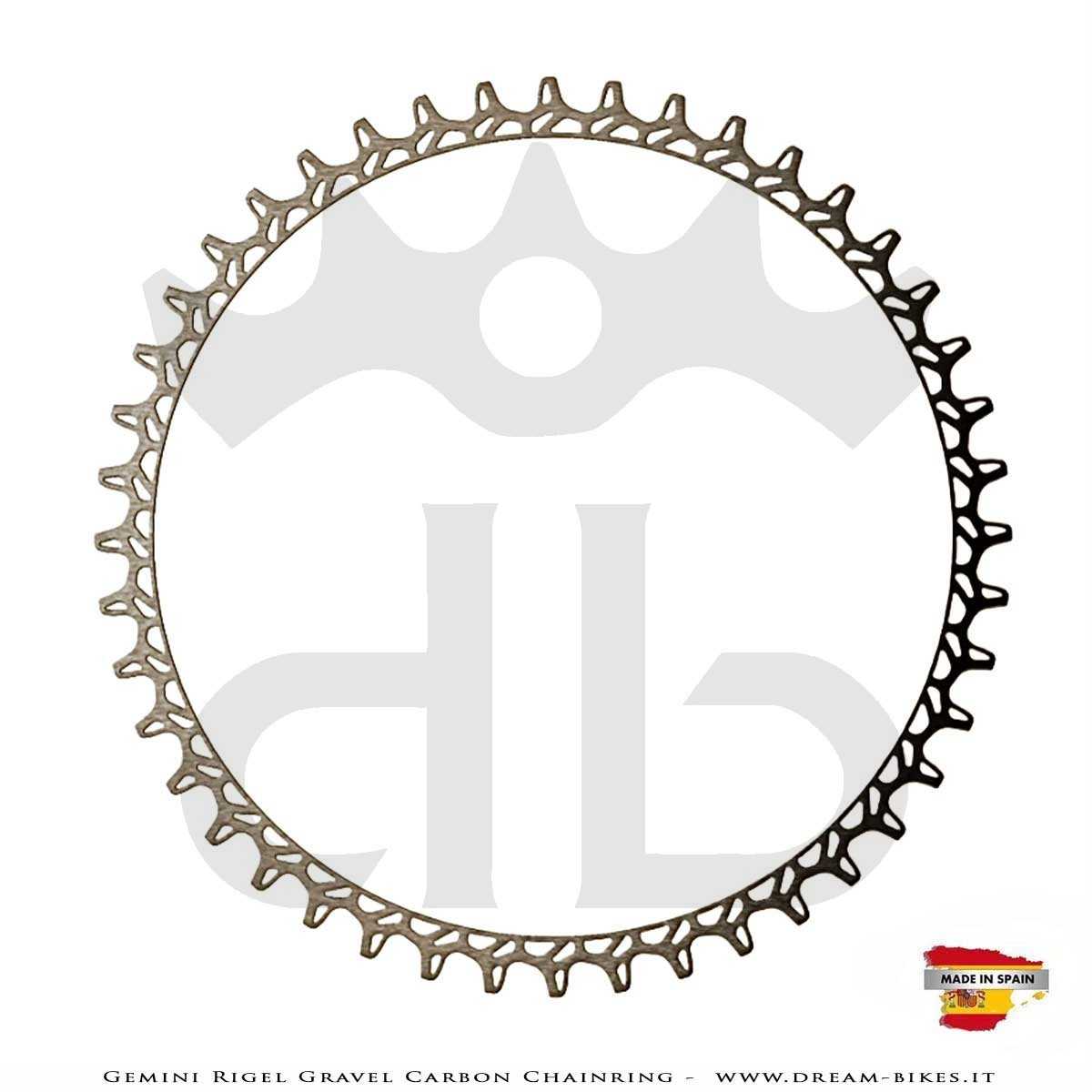

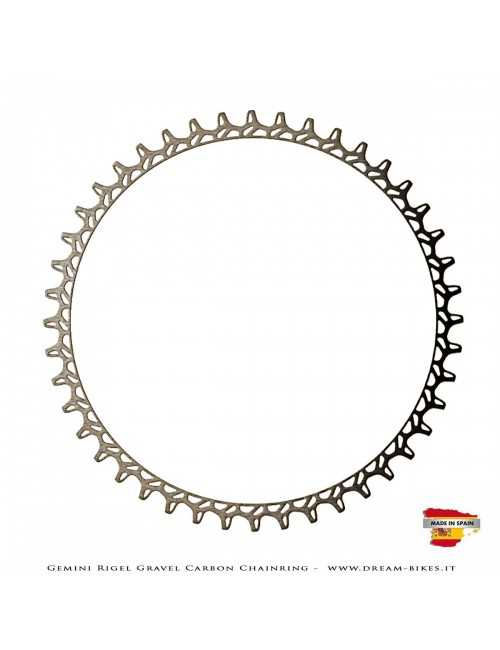

Rigel Gravel/Road Racing chainrings are made of forged carbon compacted at very high pressure (over 100 tons) with a technology derived from the Hypercars sector. But the real added value is represented by the construction methodology which includes an internal 7075T6 aluminum alloy core CNC milled with the profile of the teeth which are then covered with carbon fibers specifically oriented to follow the teeth profile.

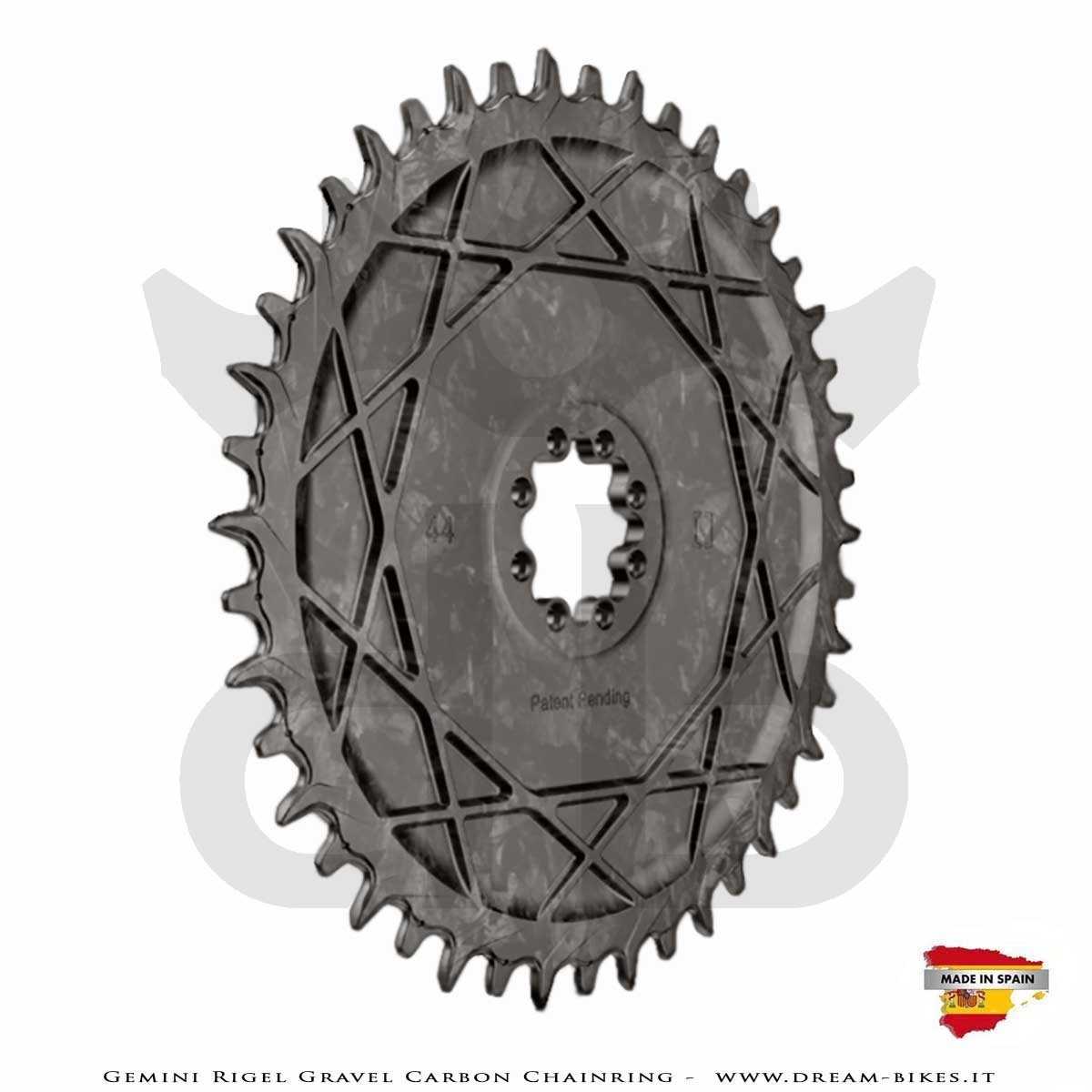

This is a construction methodology patented by Gemini which allows to obtain a chainring that is significantly lighter and stiffer than an aluminum chainring, which retains the same characteristics of resistance and durability (thanks to the internal aluminum core of the teeth) while adding better smoothness and noiselessly (the carbon coating of the teeth in fact reduces friction).

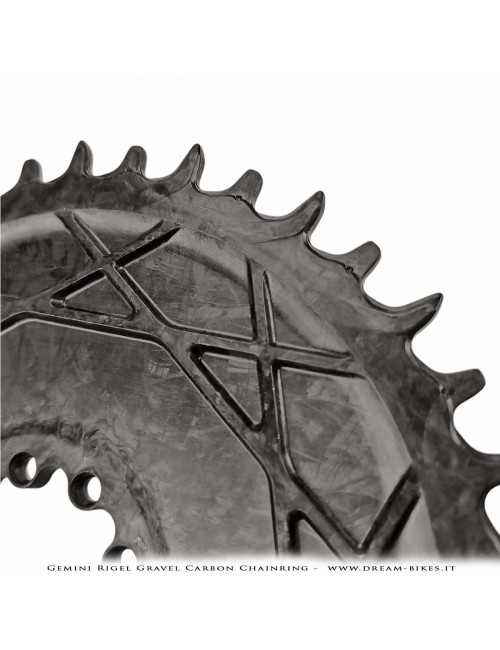

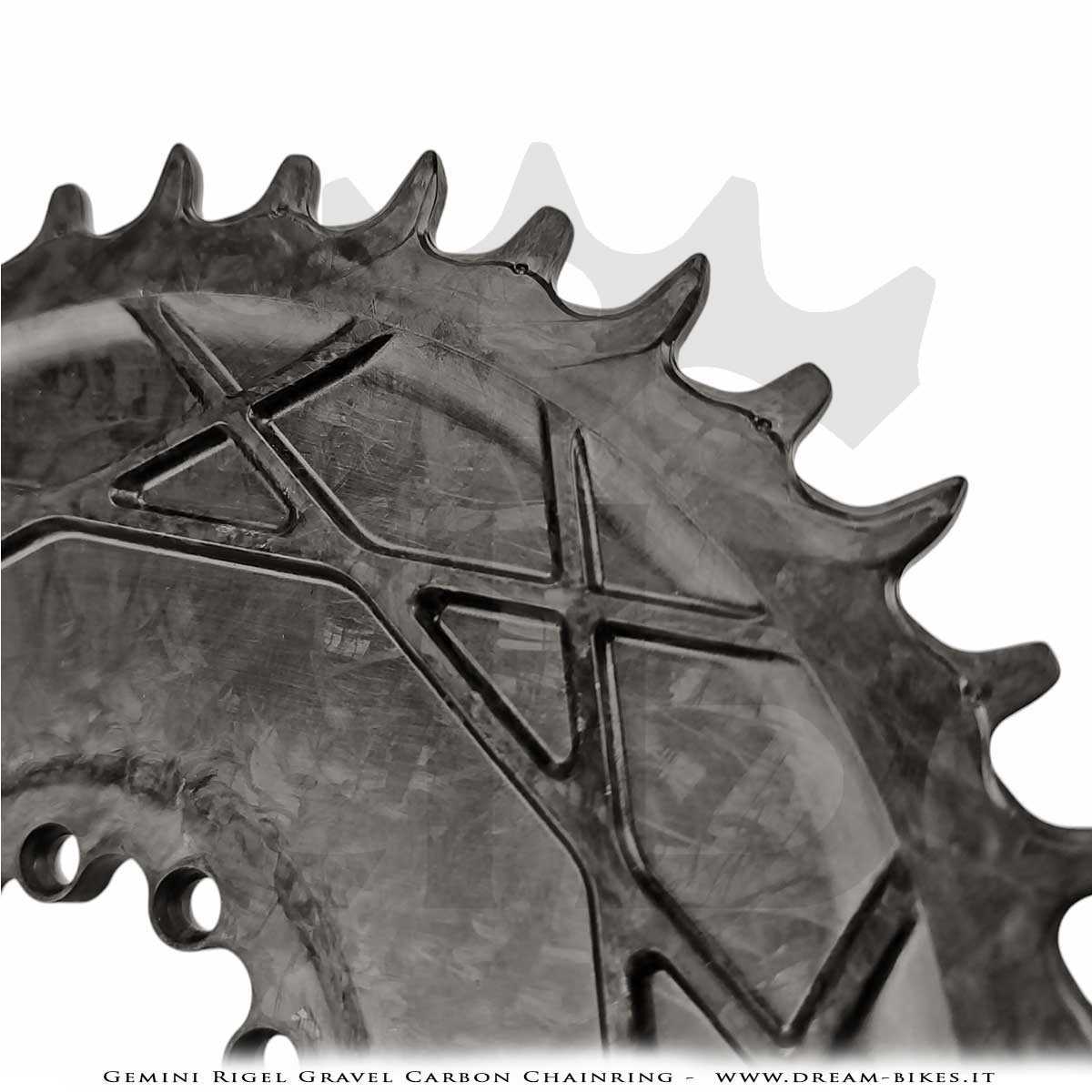

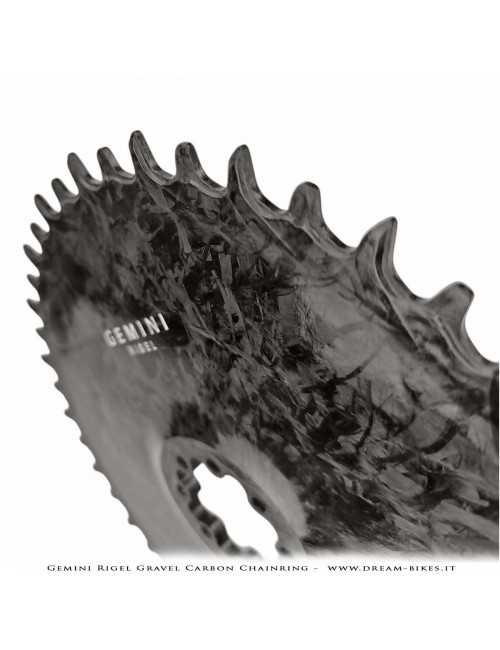

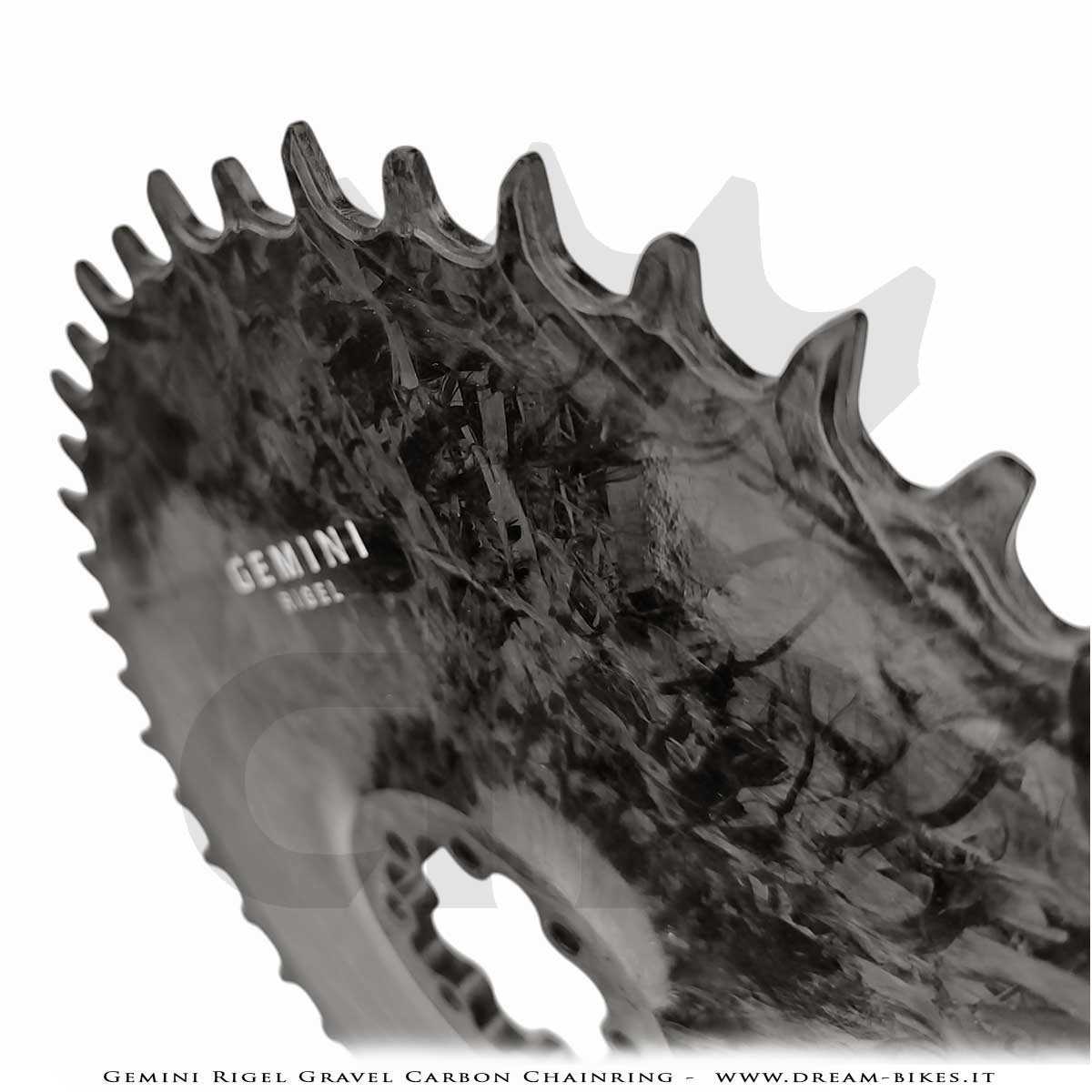

The carbon coating of the teeth is very resistant as the fibers have been arranged and oriented in the best possible way, i.e. wrapping it following the main direction of effort. No other construction method such as normal layering or milling allows this continuity and consequently resistance. The toothing is of the Narrow-Wide type alternating wide tooth with narrow tooth and is phased correctly on the chain links allowing perfect retention of the same without the need to use chain guide devices.Â

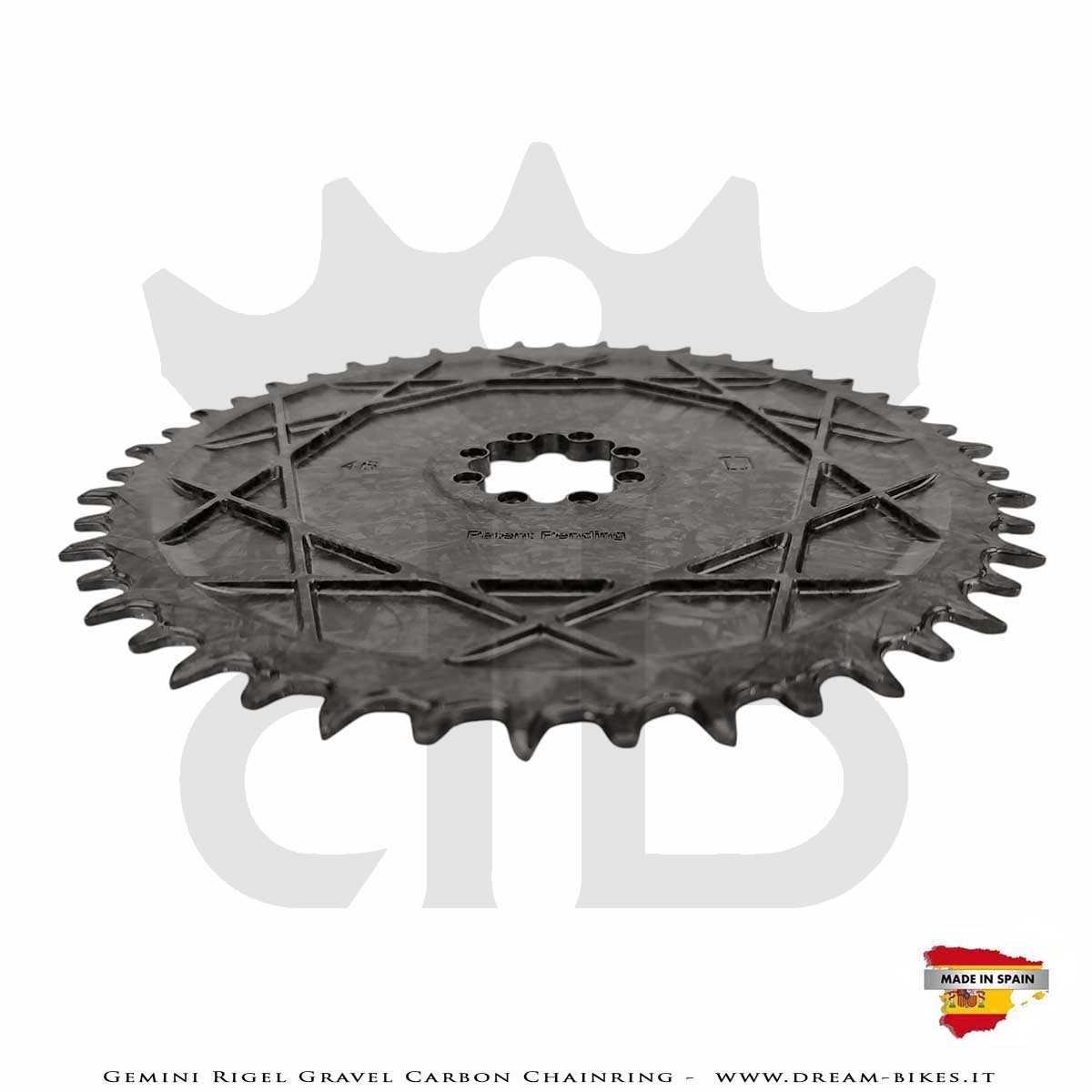

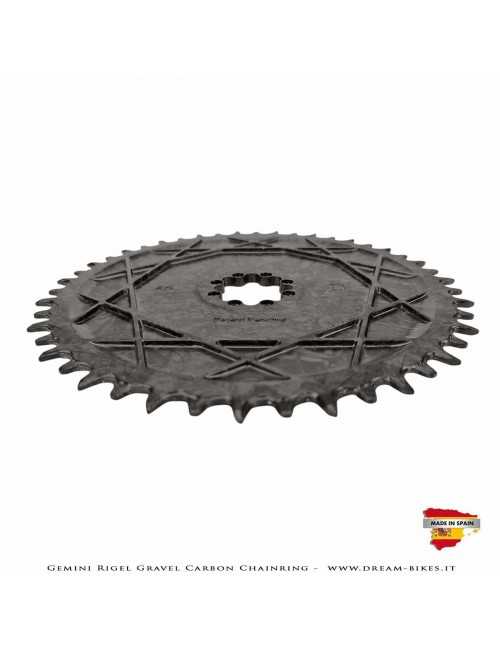

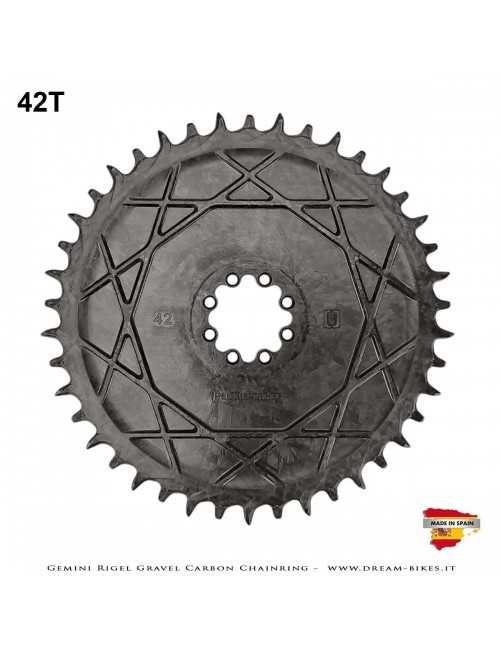

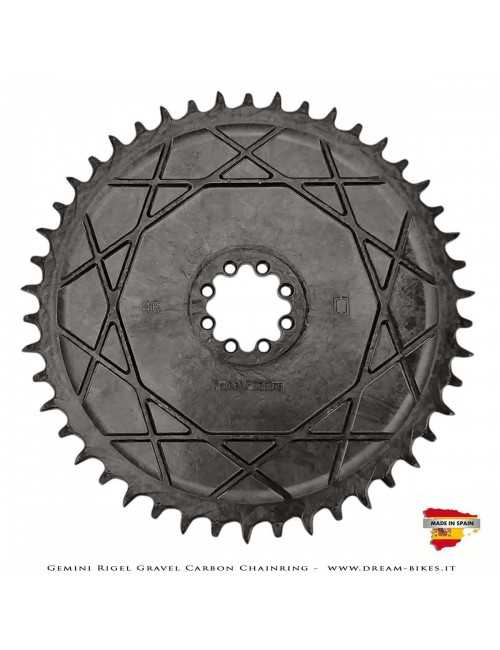

The closed type design, in addition to being more aerodynamic, avoids the accumulation of dirt, and the particular shape of the rib that characterizes the wider teeth also facilitates the expulsion flow. Every little detail in Rigel Gravel/Road Racing chainrings is not left to chance.

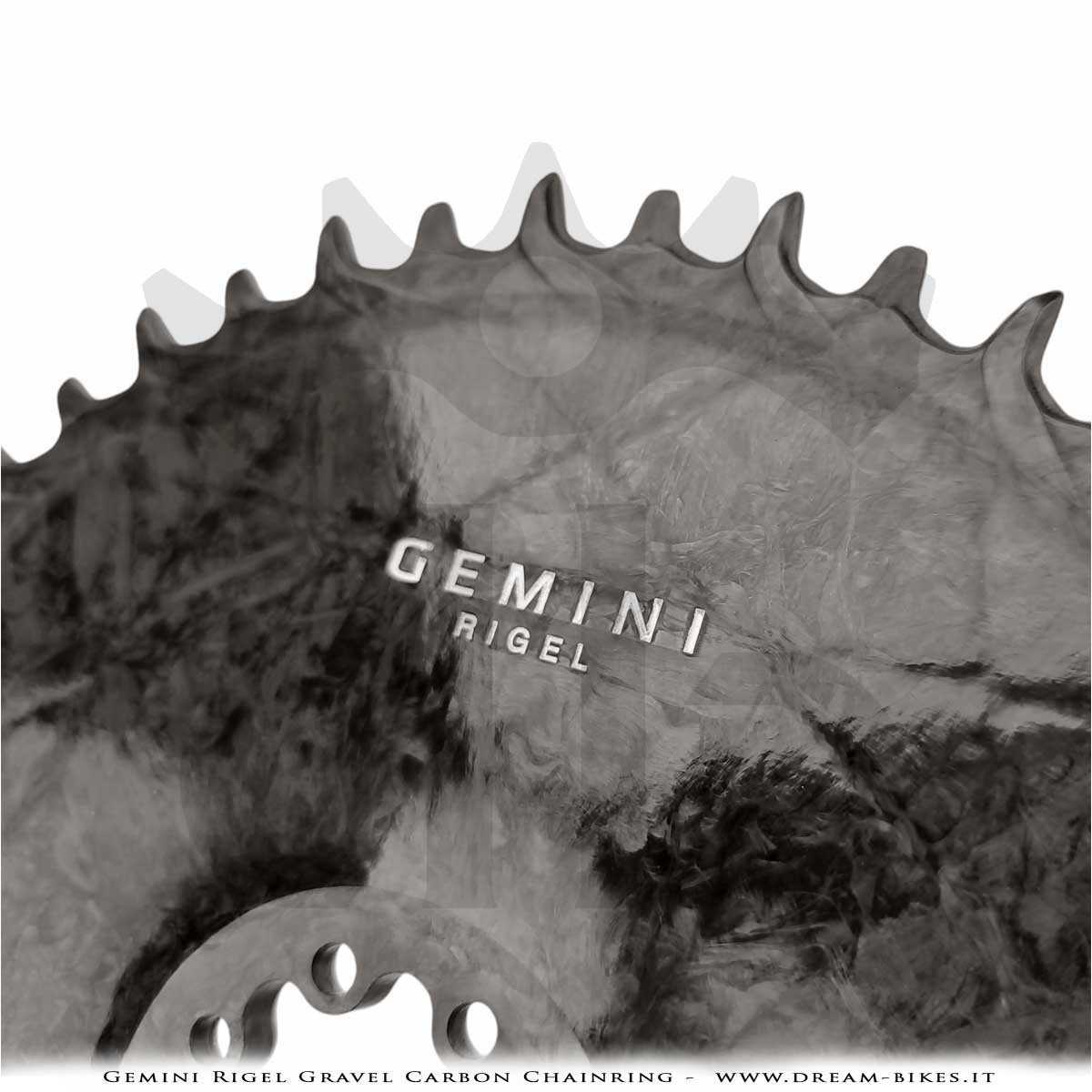

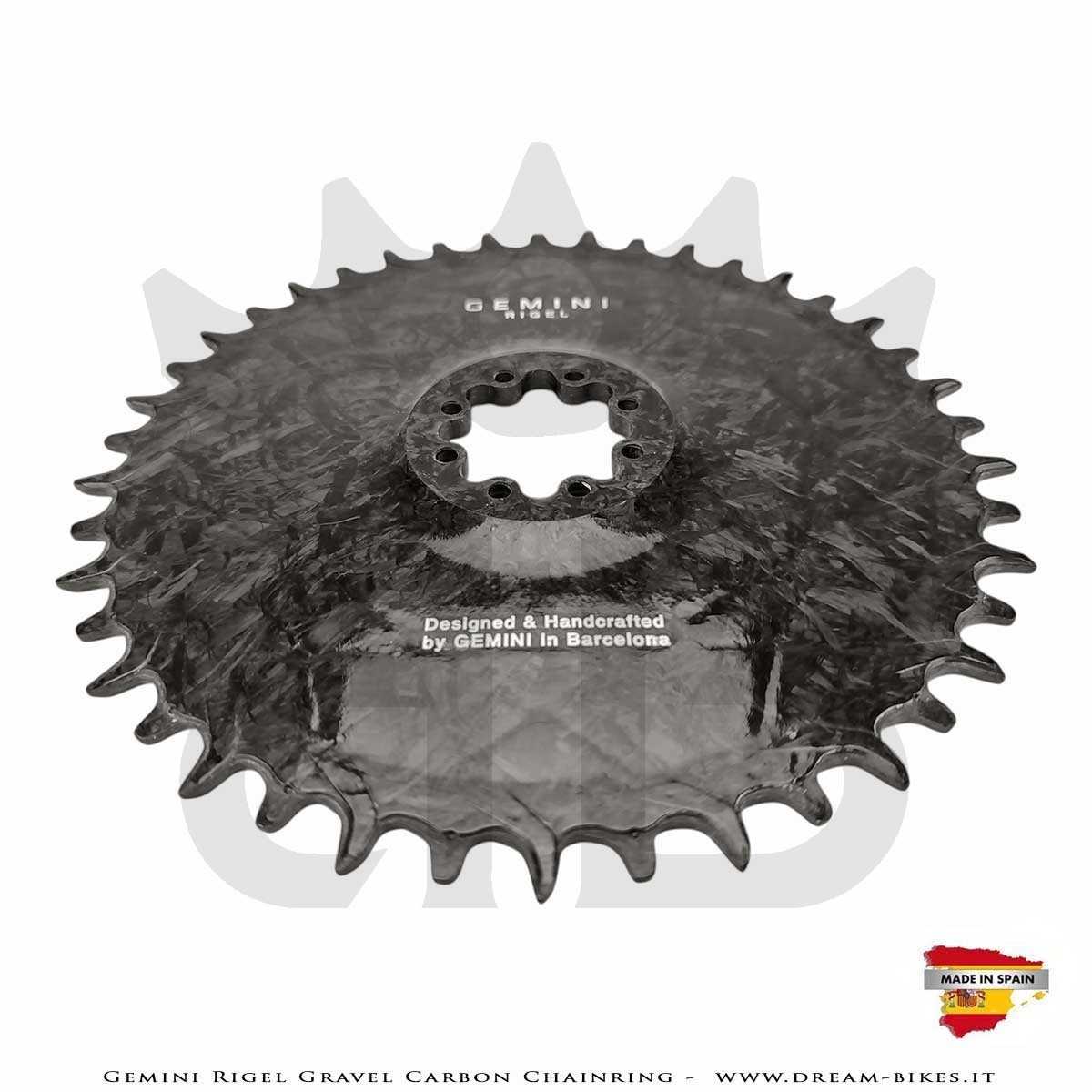

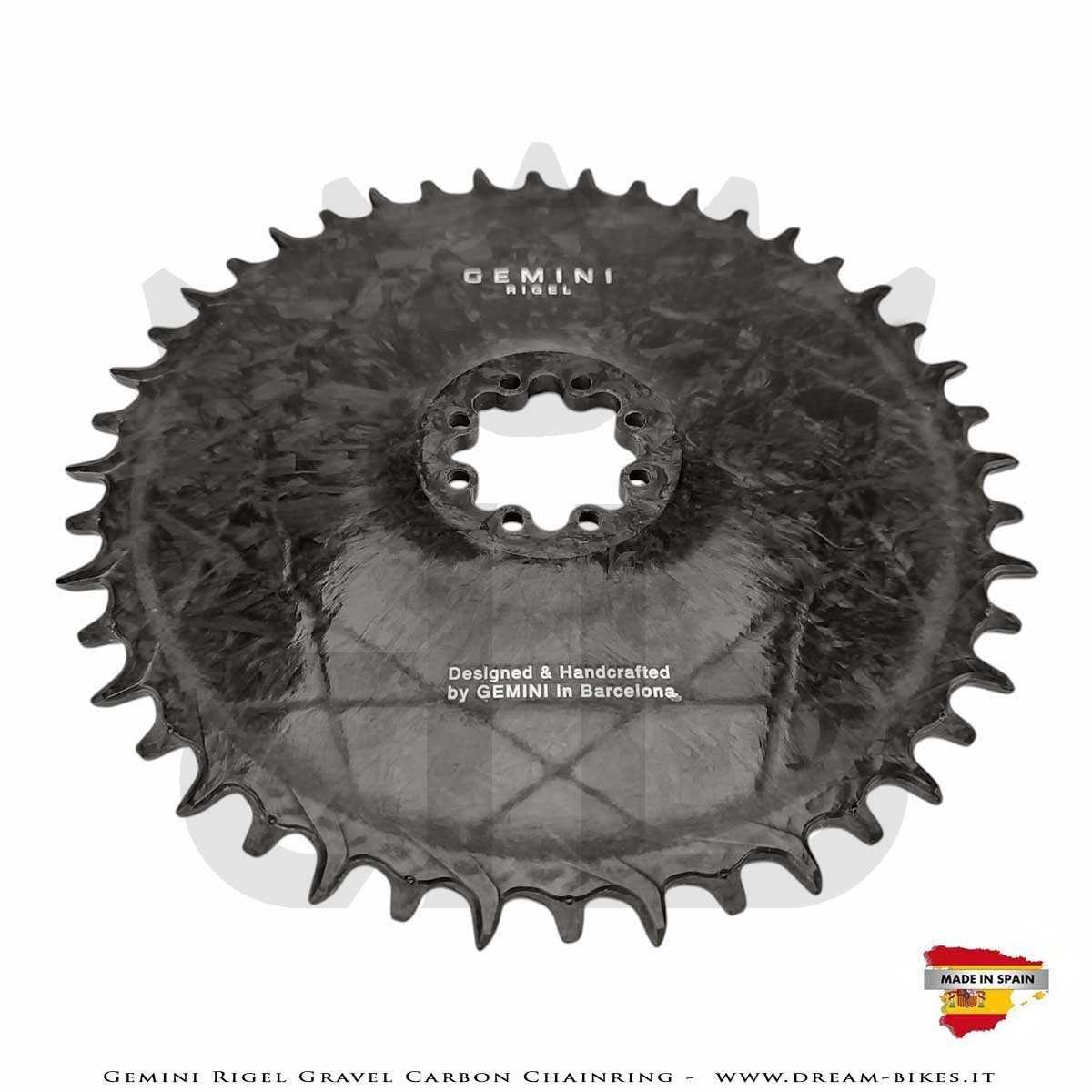

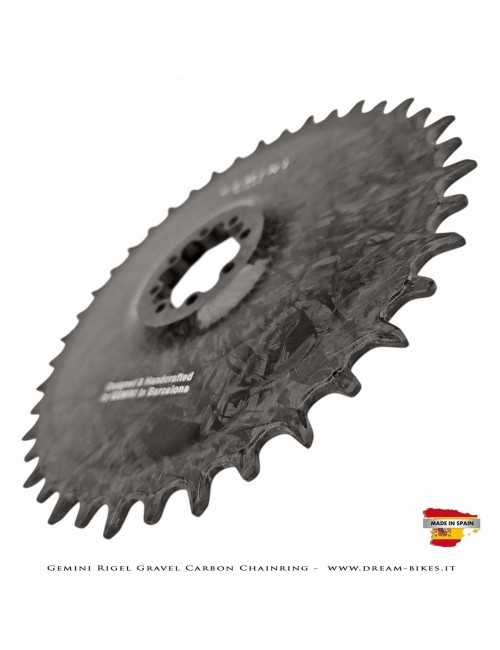

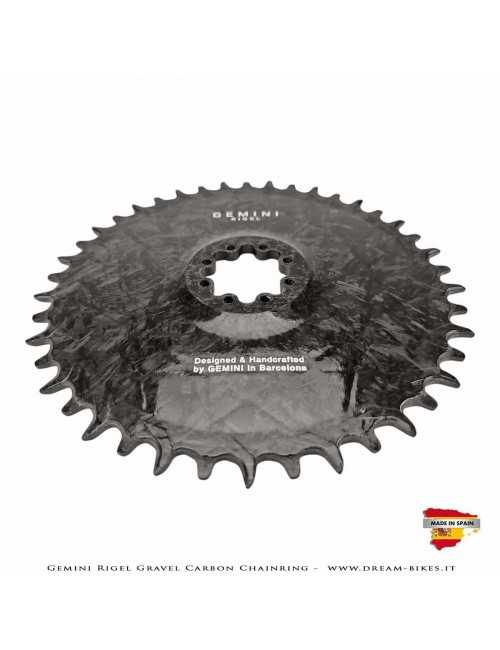

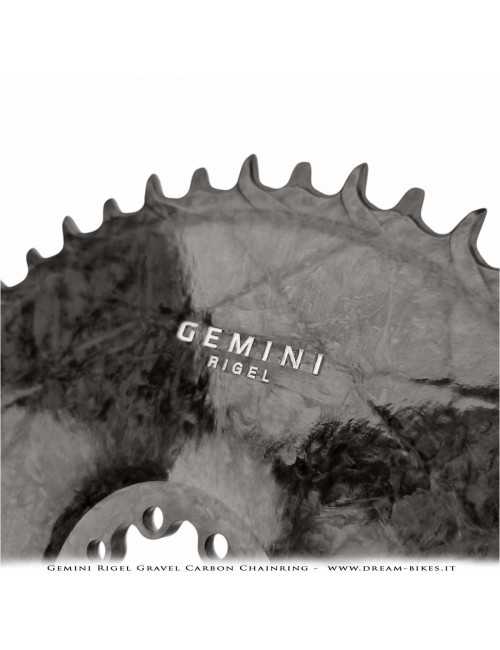

The finish of the Rigel Gravel/Road Racing chainrings is in natural forged carbon which is simply polished, the graphics are imprinted during the molding phase and are therefore permanent. The final aesthetic impact generated by the mix of design and materials is certainly unique in the current cycling panorama and makes Rigel Gravel/Road Racing chainrings even more particular and exclusive.Â

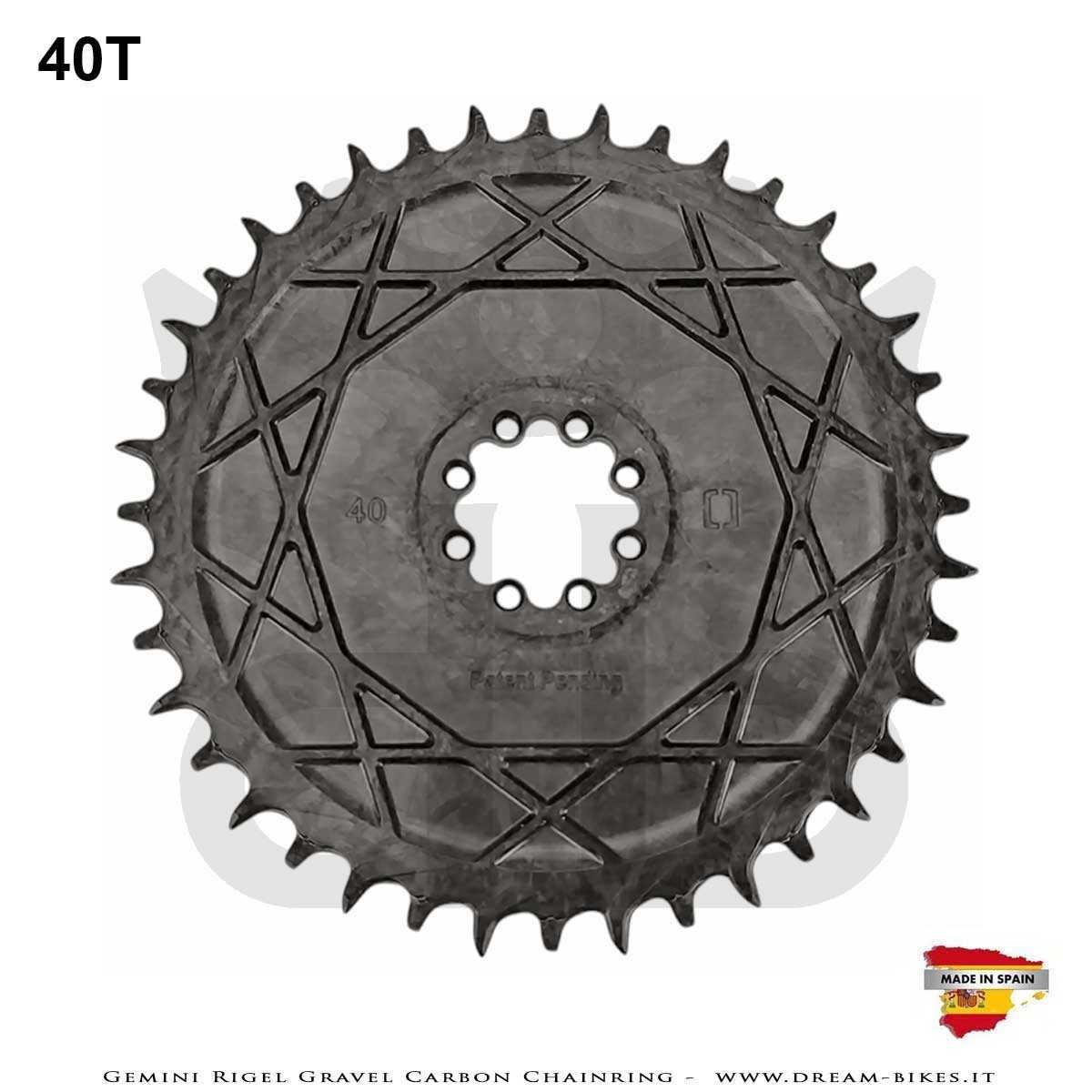

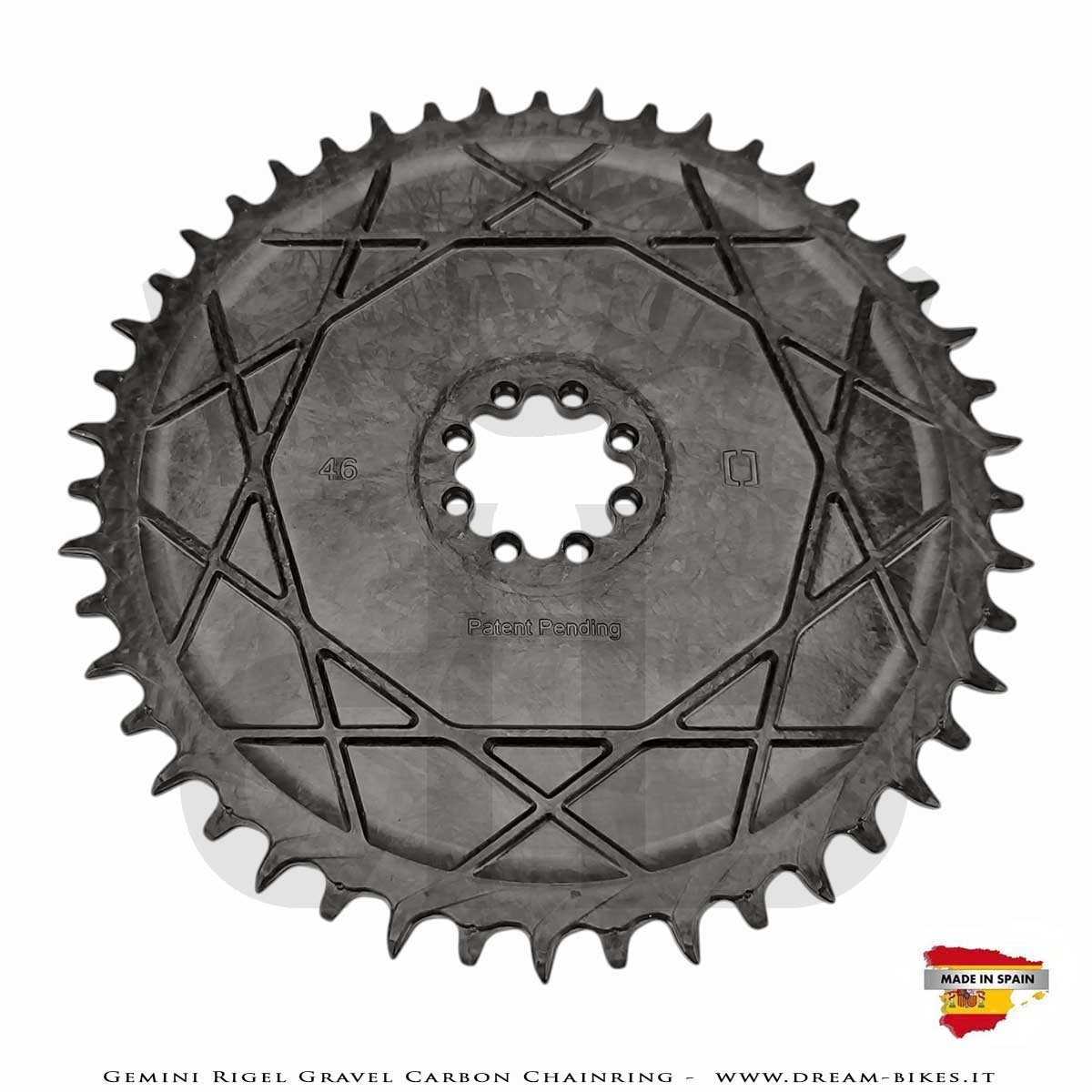

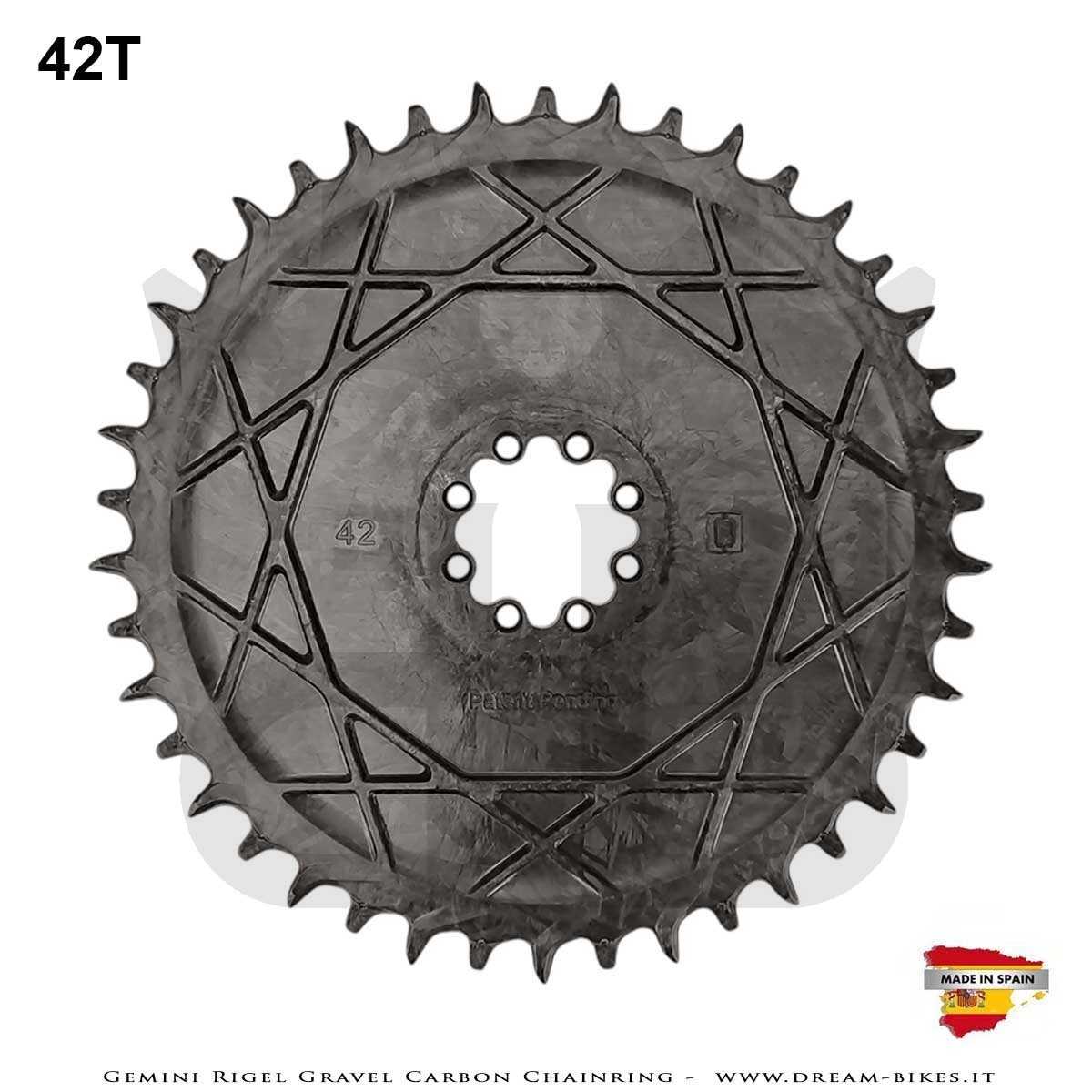

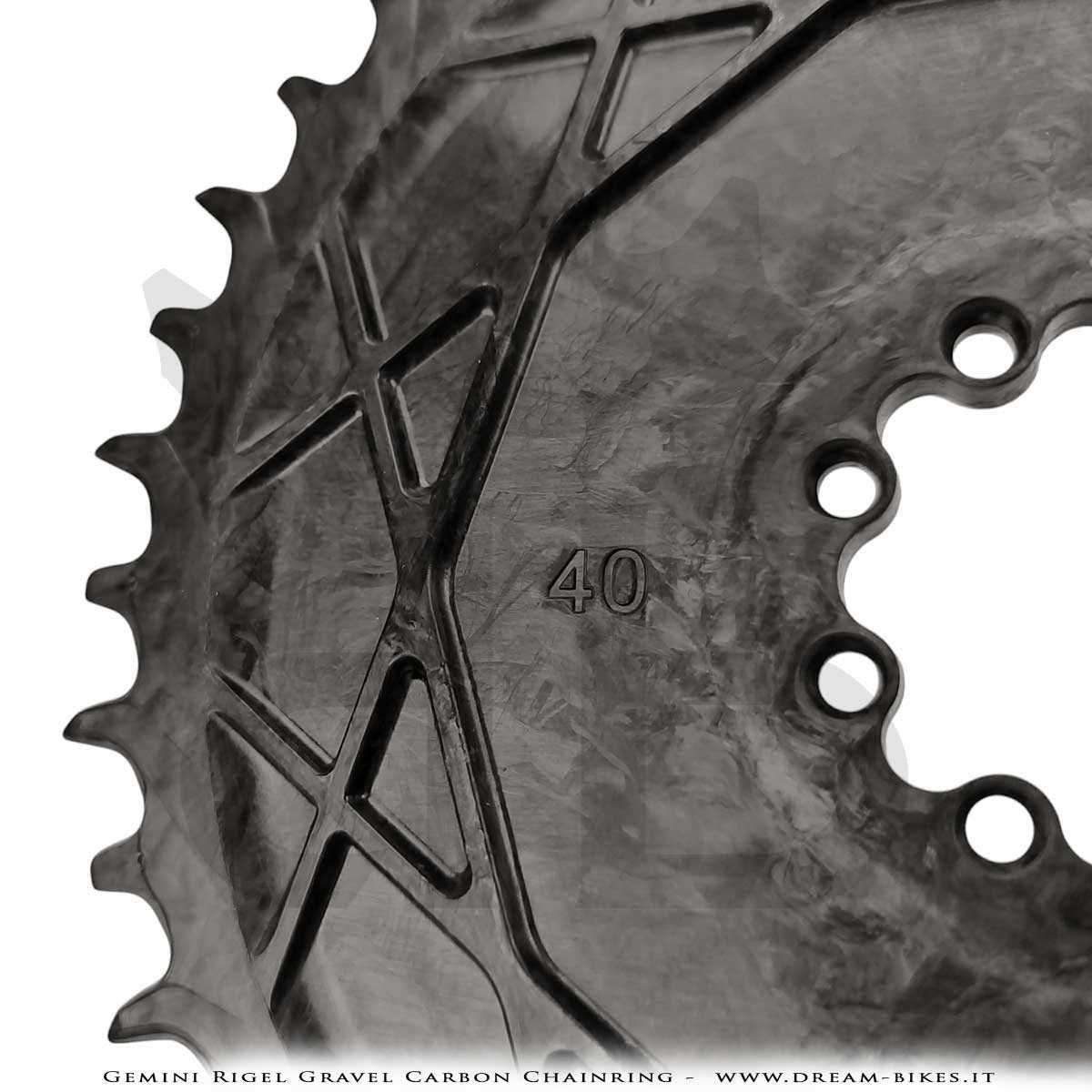

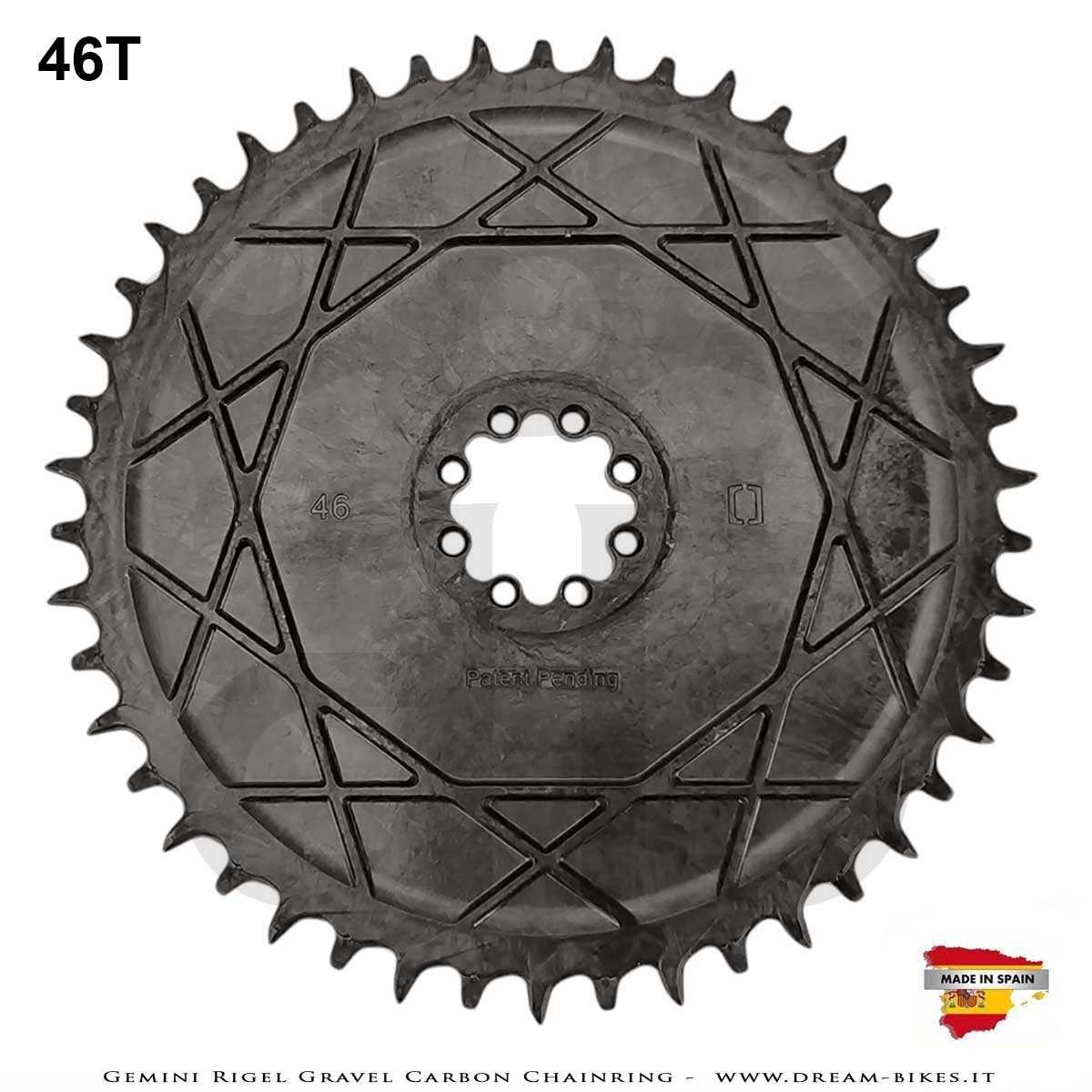

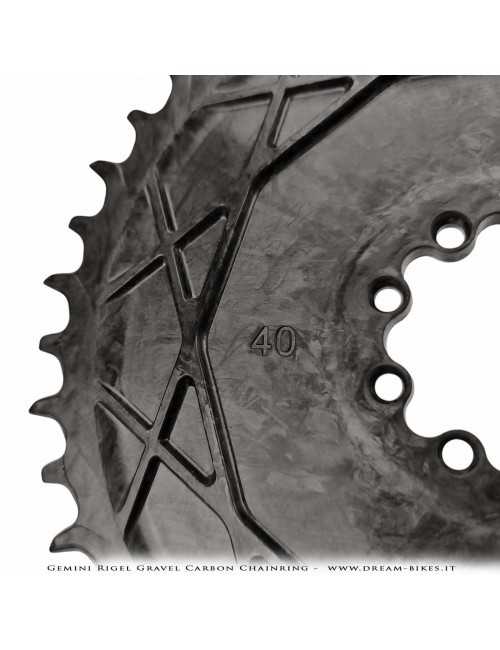

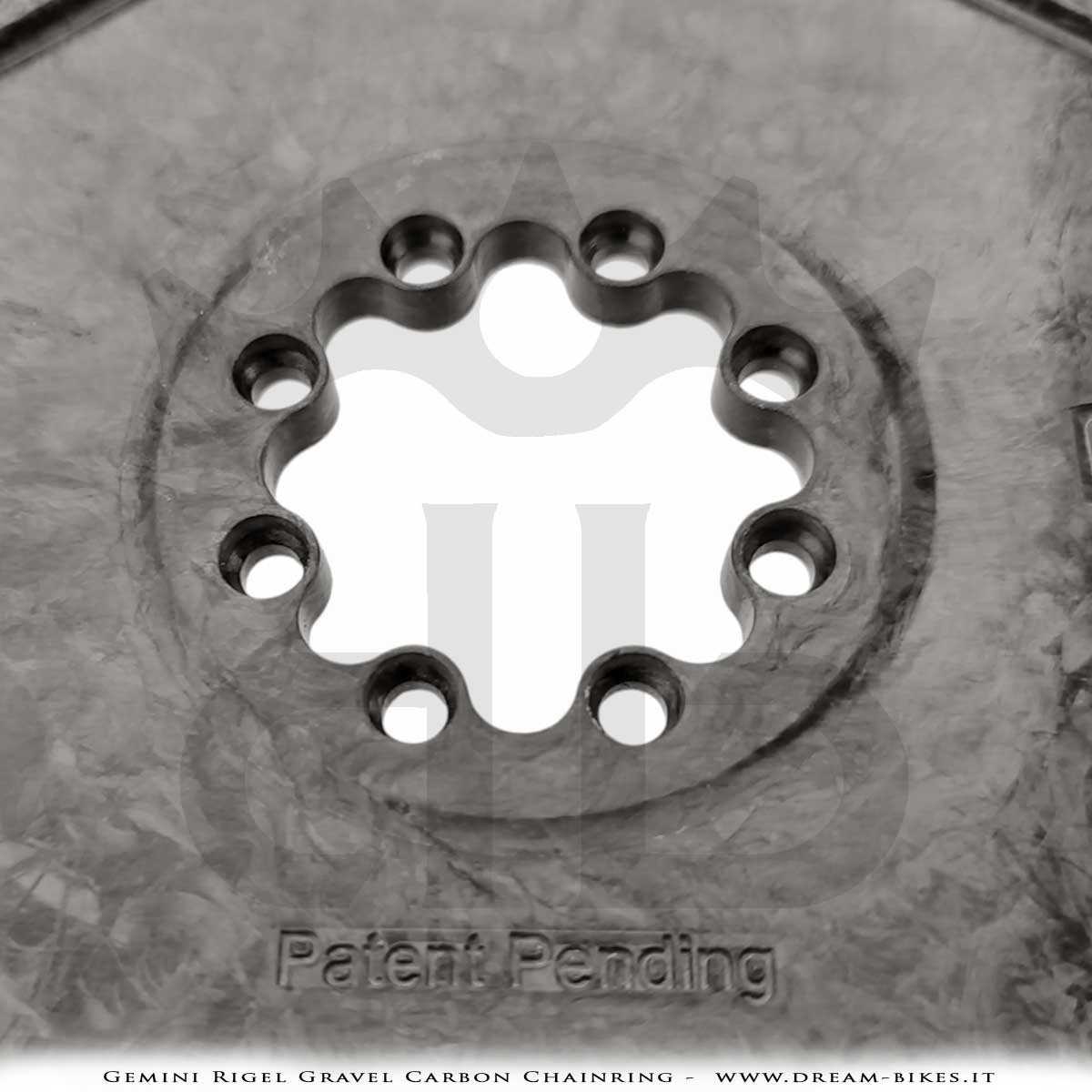

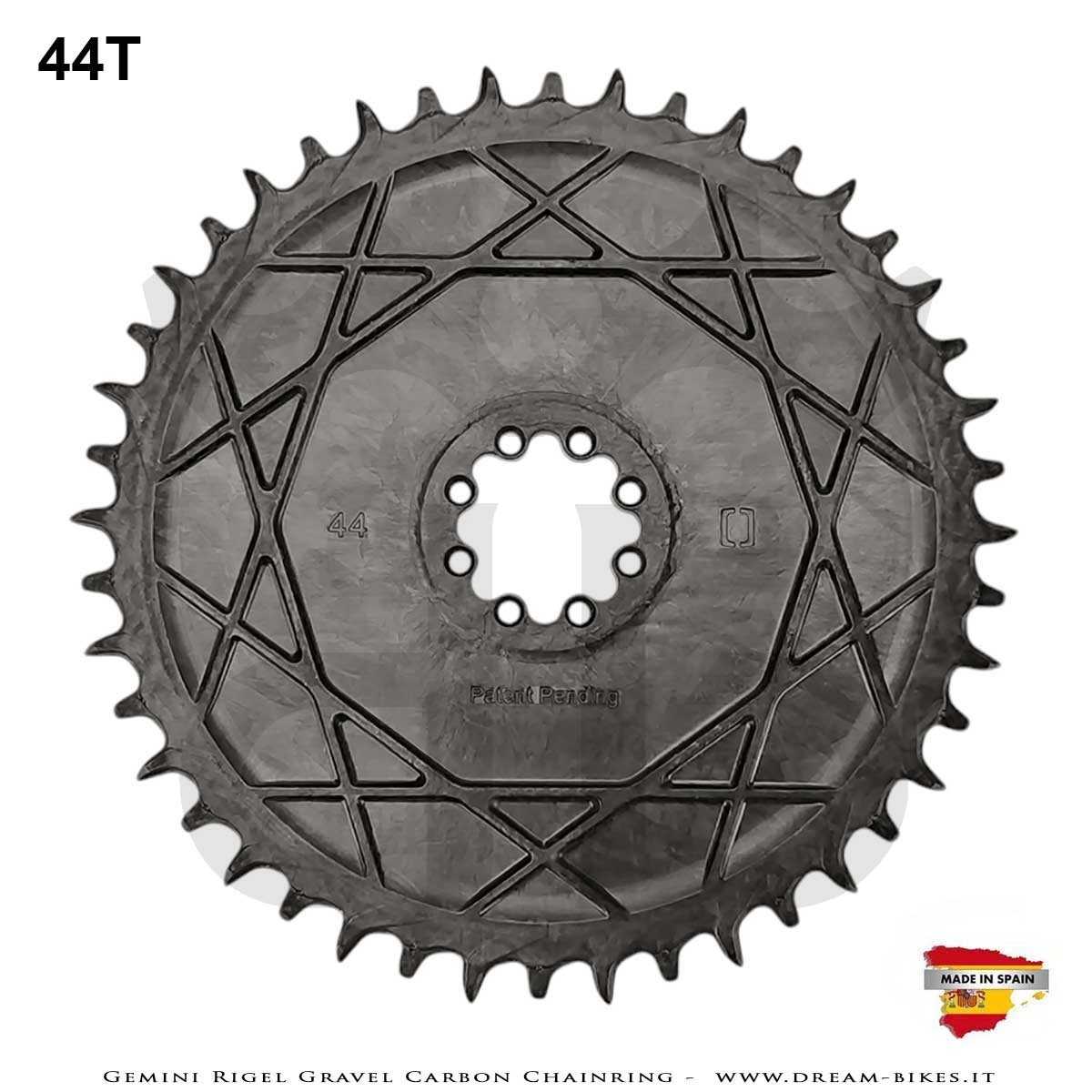

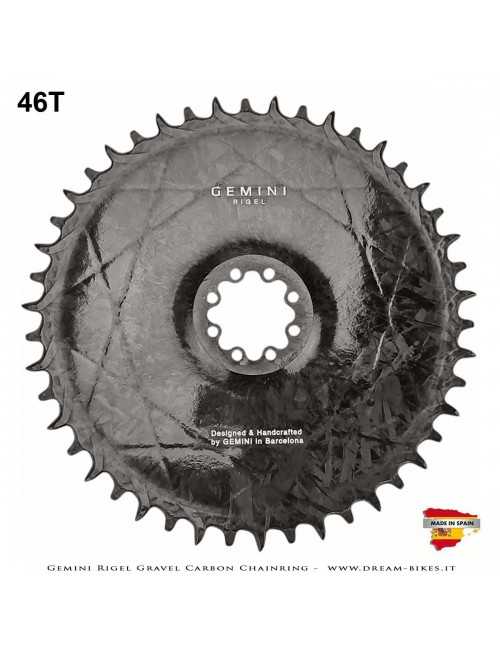

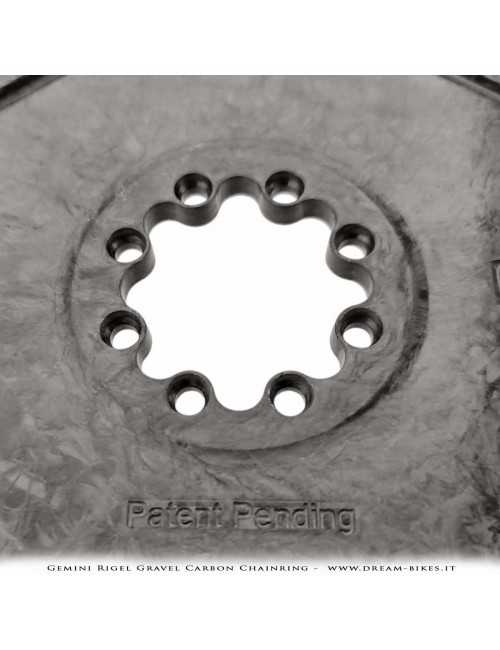

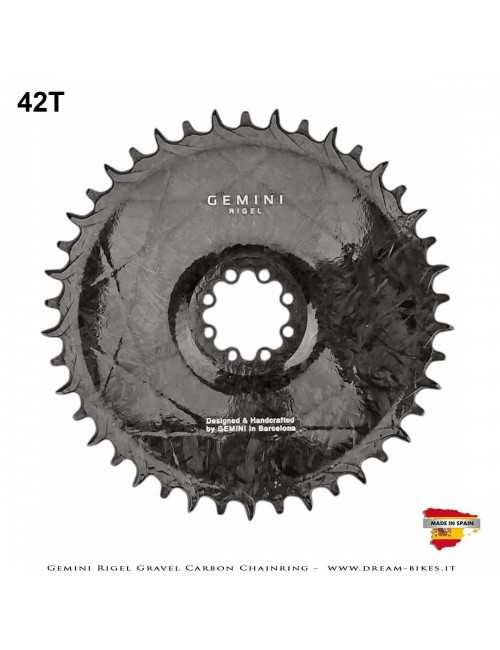

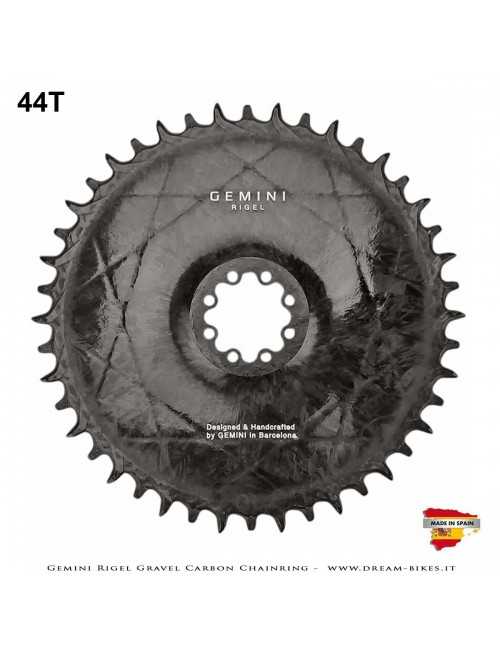

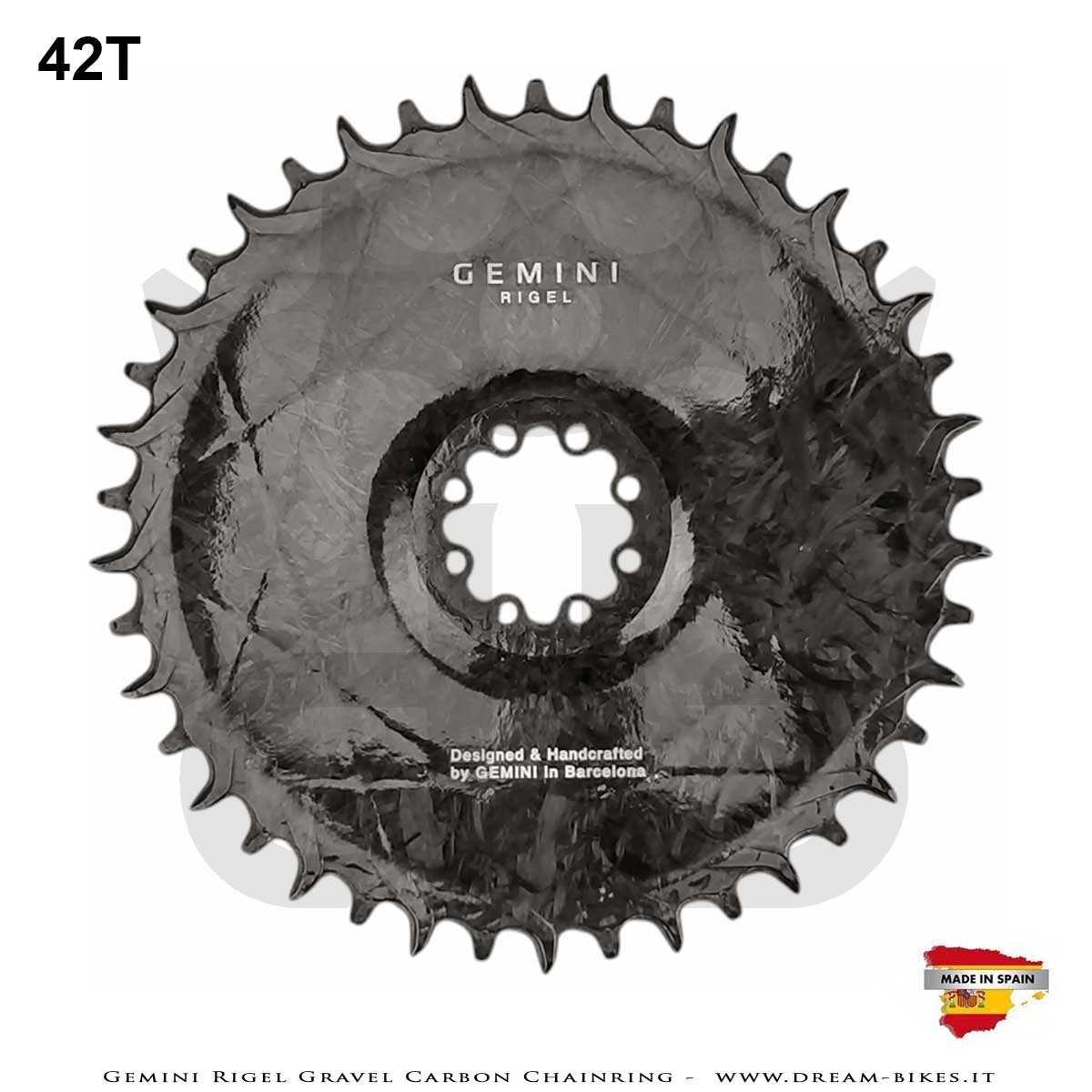

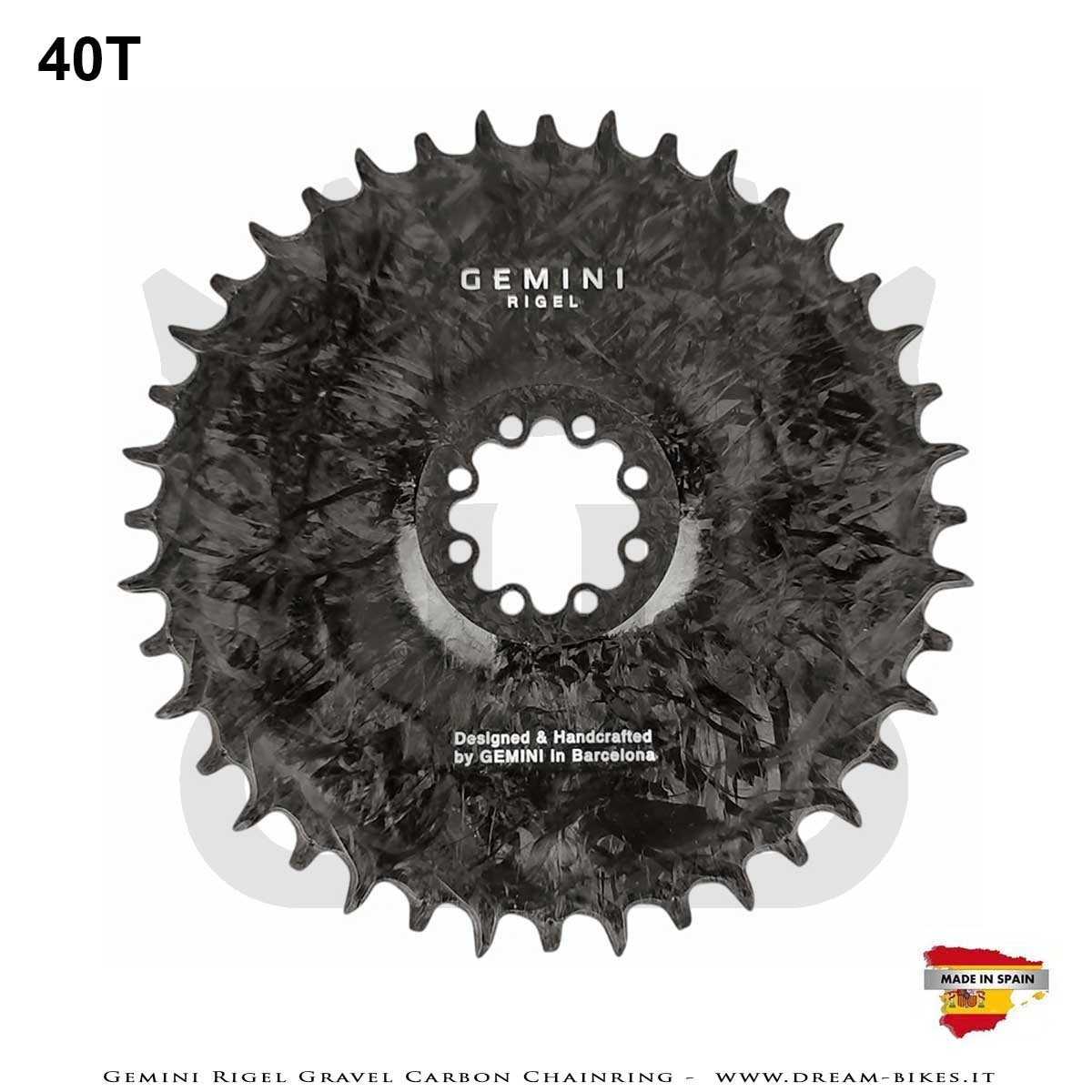

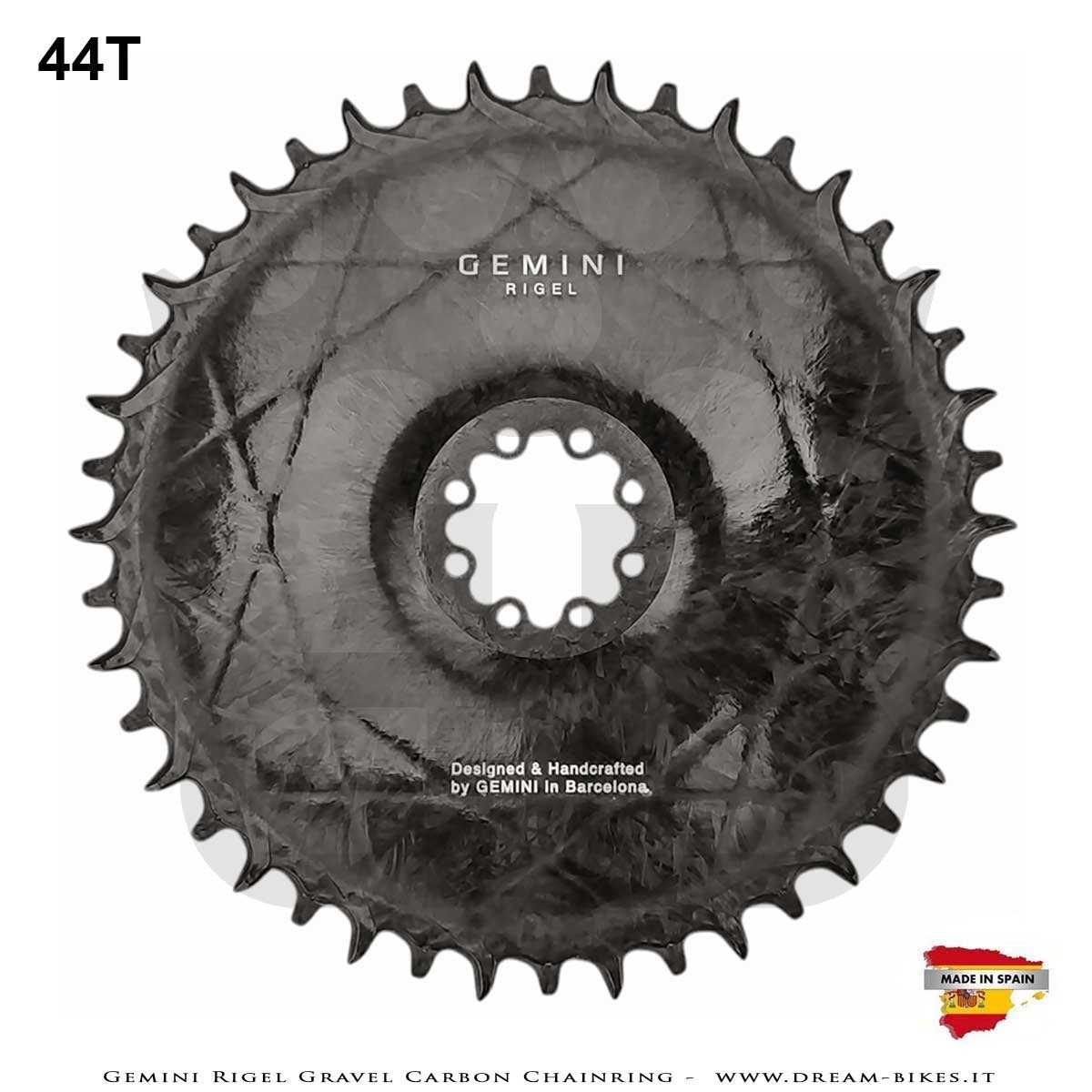

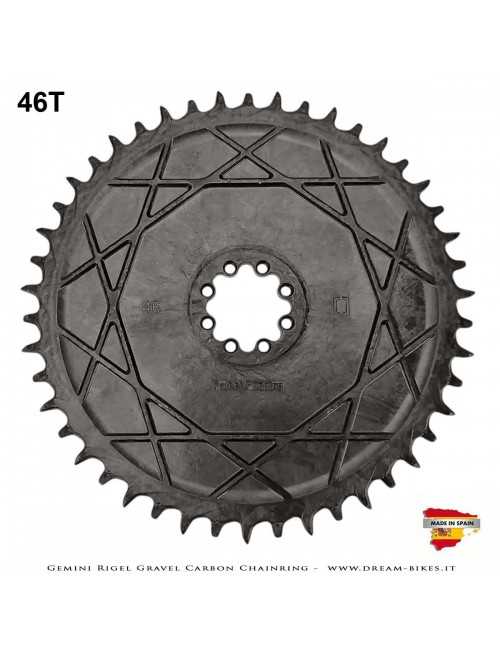

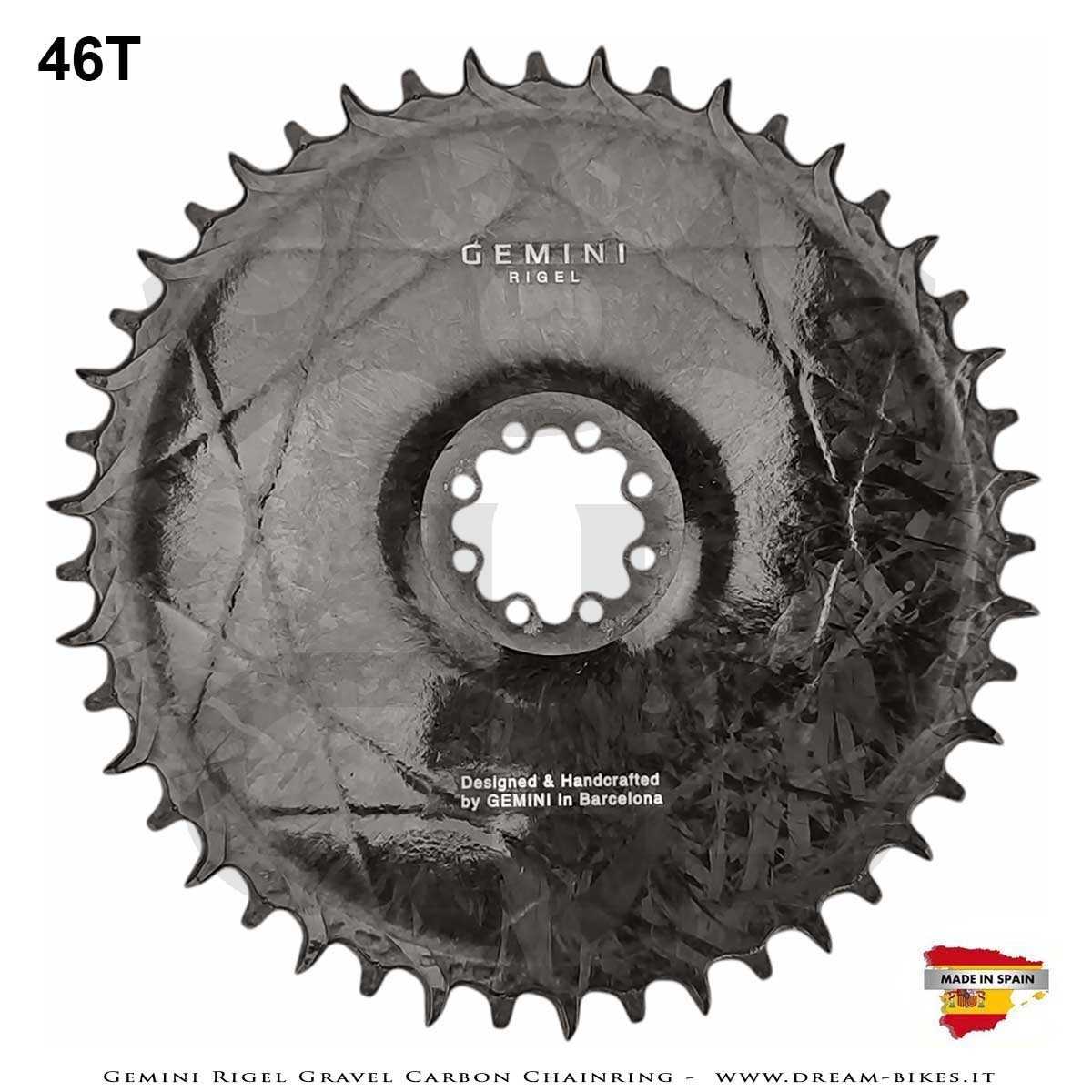

The Rigel Gravel/Road Racing chainrings are made in various teeth: 40T-42T-44T-46T-48T-50T-52T-54T and with different cranks attachment standards : Sram 3 bolts, Sram 8 bolts, Race Face/Easton Cinch, Cannondale Hollowgram (to fix Rigel Gravel/Road Racing chainrings only the original hardware that came with the cranks is required).
Compatibility is ensured with all 11-12-13s single-chainring transmission systems, and most of the chains on the market (Sram flat-top and Sram Transmission included). The offset of the Rigel Gravel/Road Racing chainrings is equal to 6.5 mm and makes them perfect with 142 mm rear hub drivetrains.Â
It is very important to ensure that the Rigel Gravel/Road Racing chainrings are mounted on cranks for chainrings with 6.5 mm offset, this to guarantee the correct chain line and the consequent optimal functioning of the transmission. Please take note that usually most of the cranks used in single chainring drivetrains with 142 mm width rear hubs are equipped with 6.5 offset chainrings.

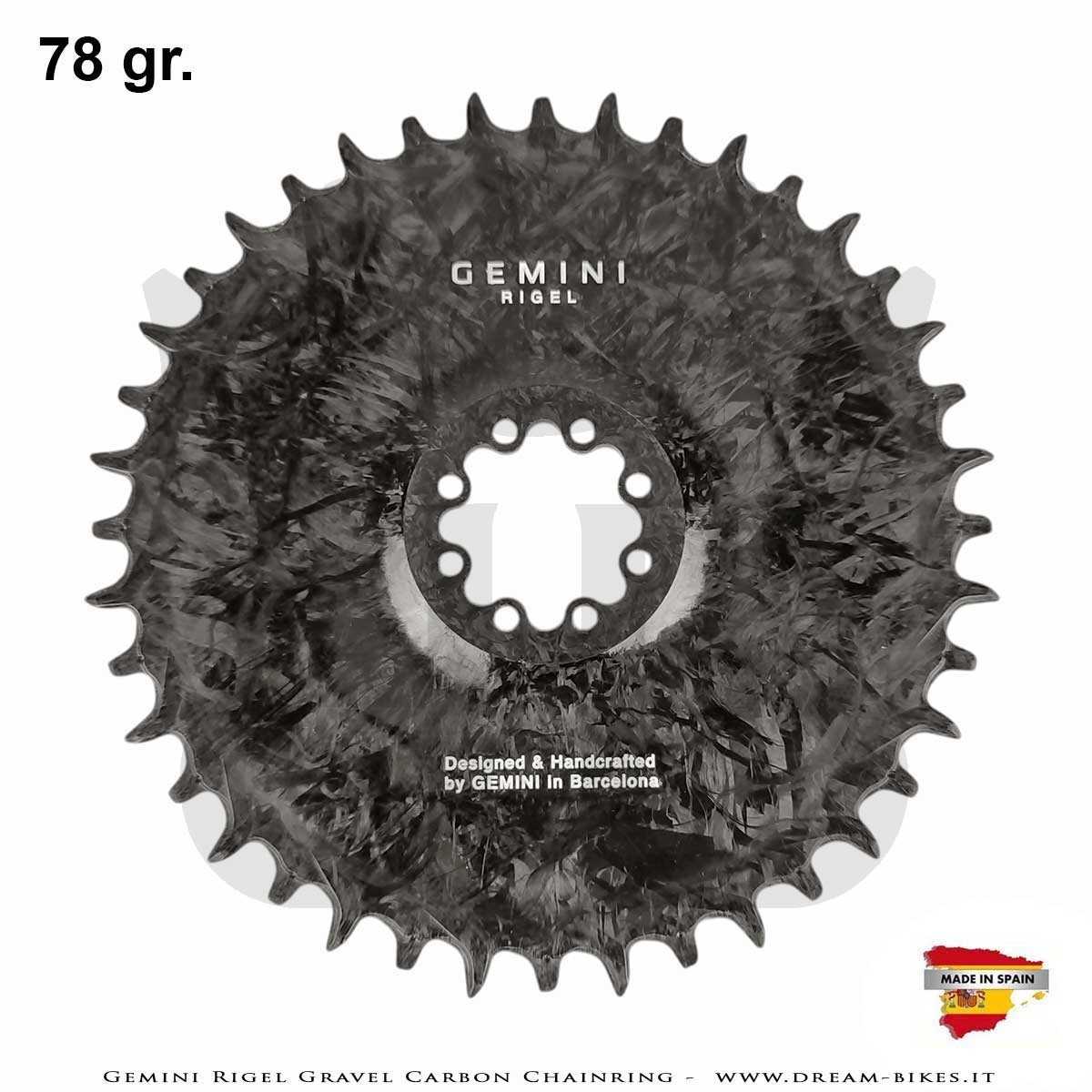

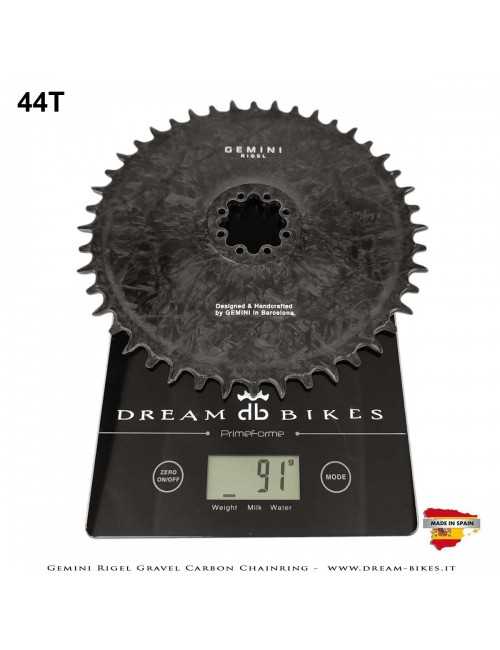

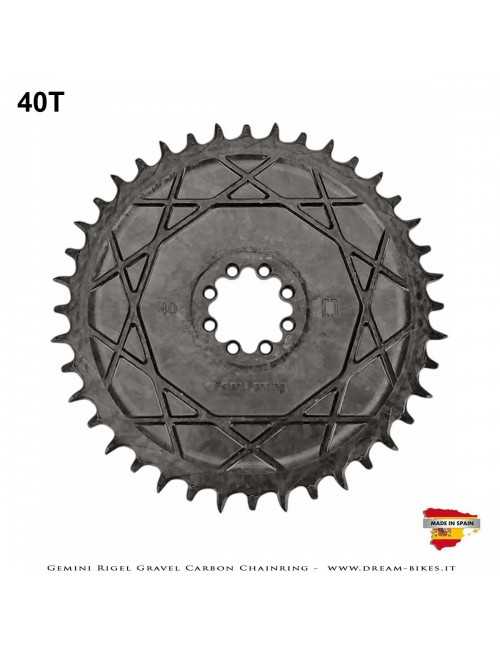

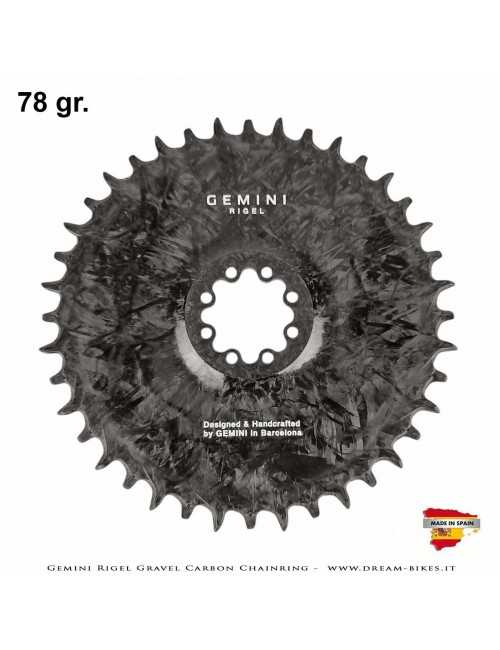

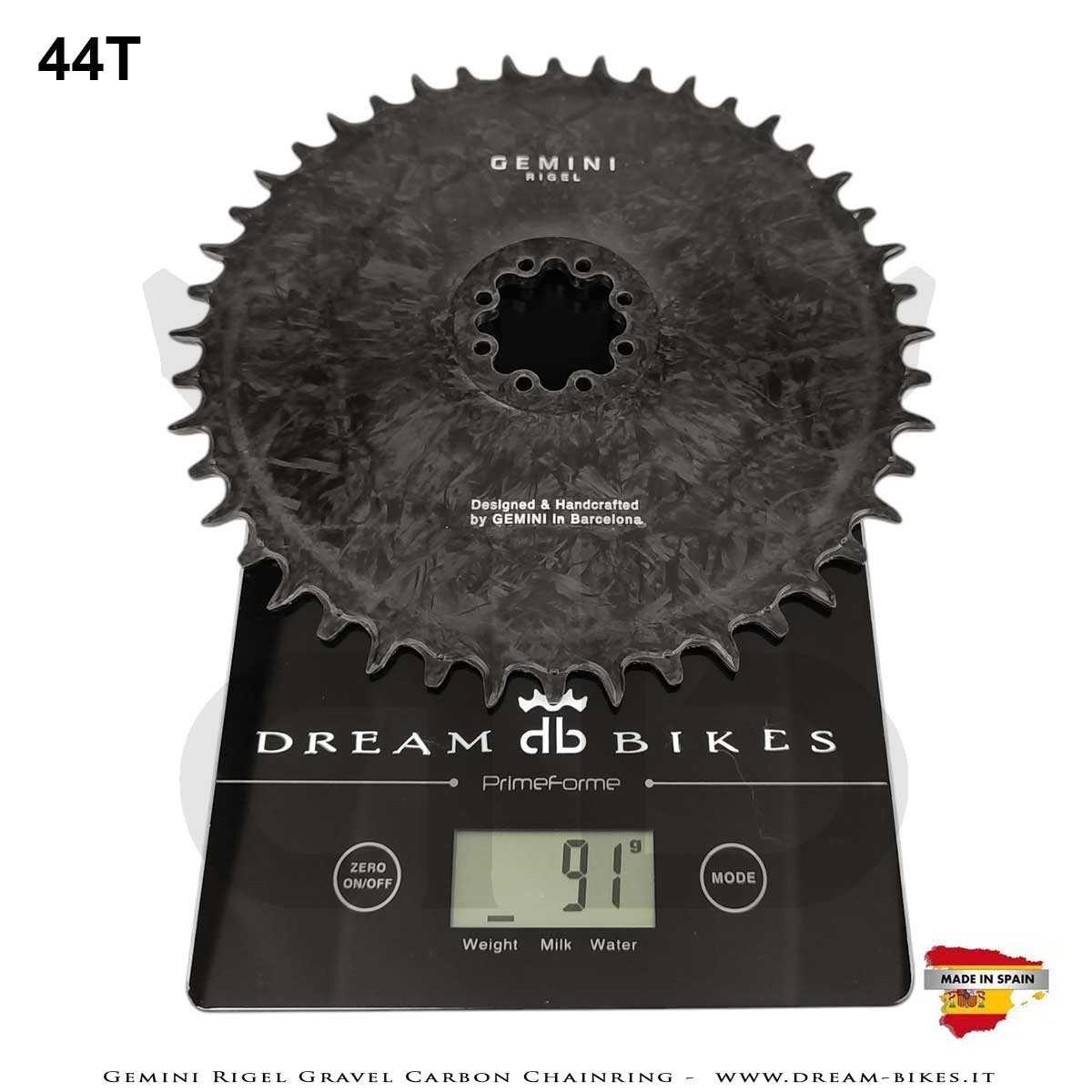

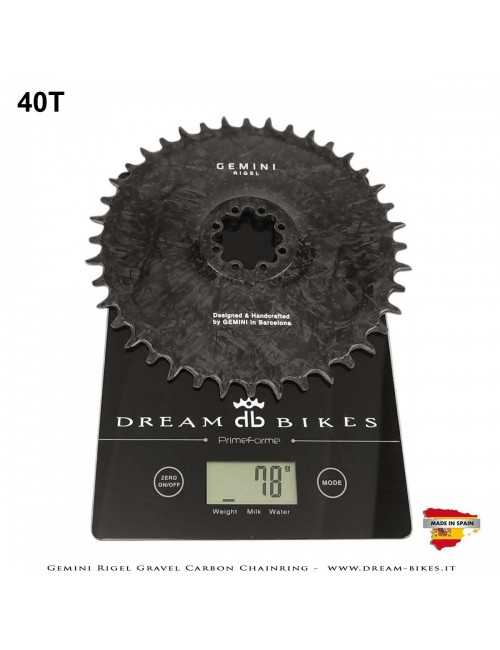

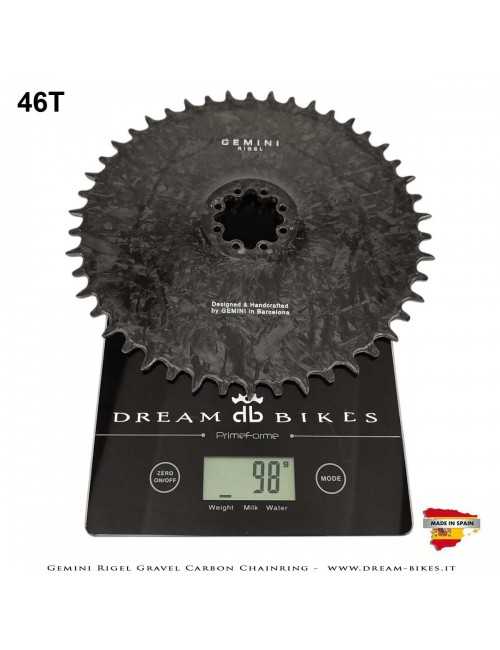

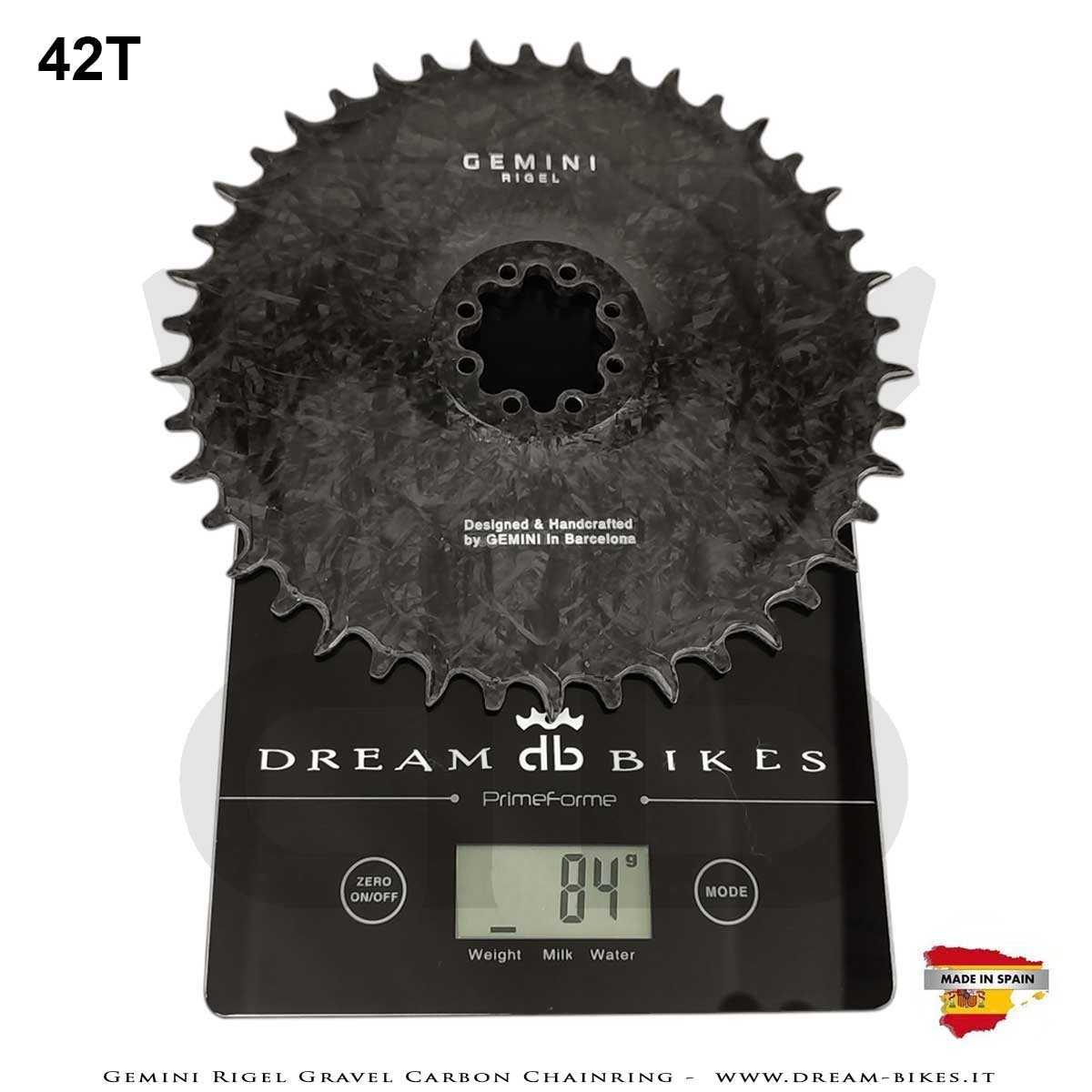

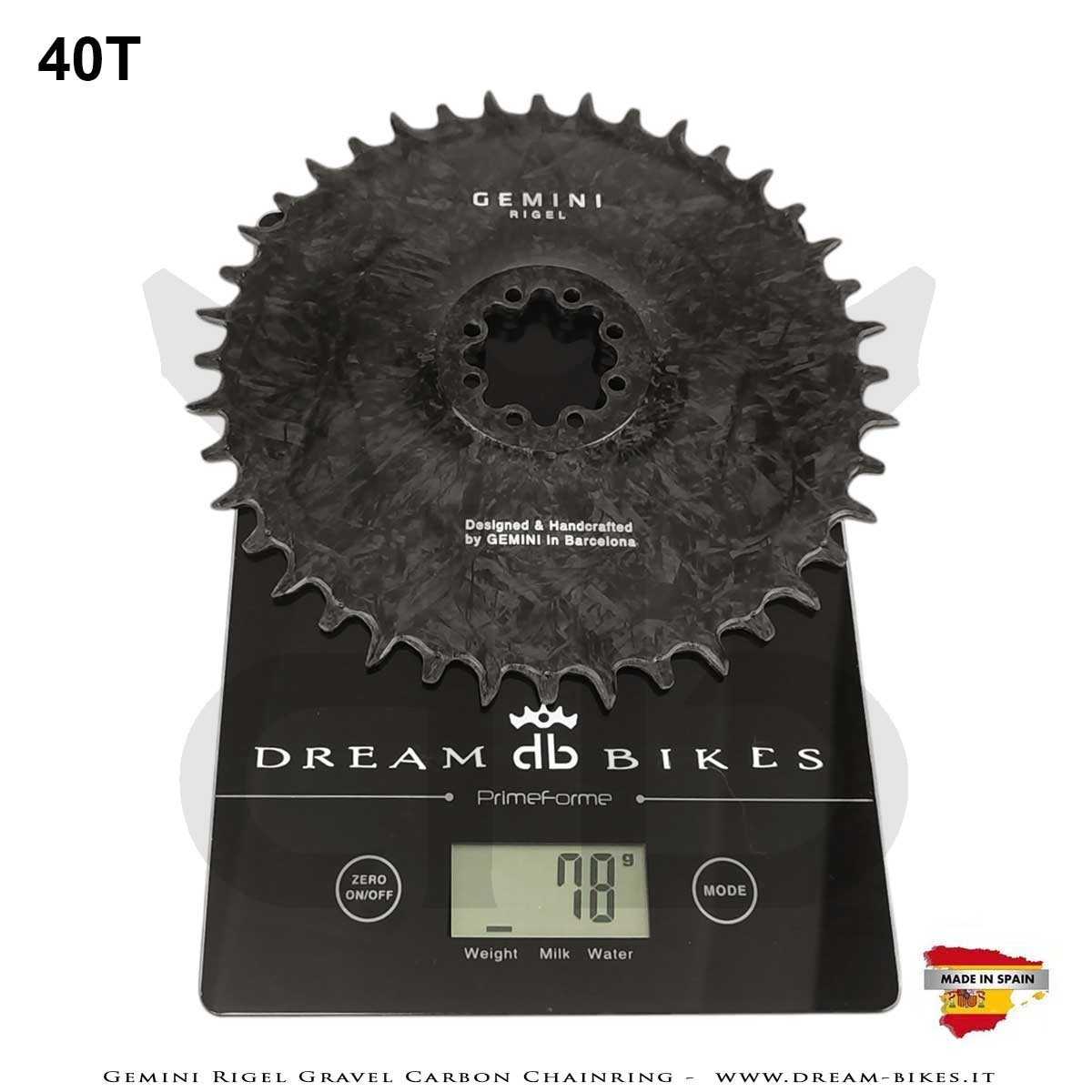

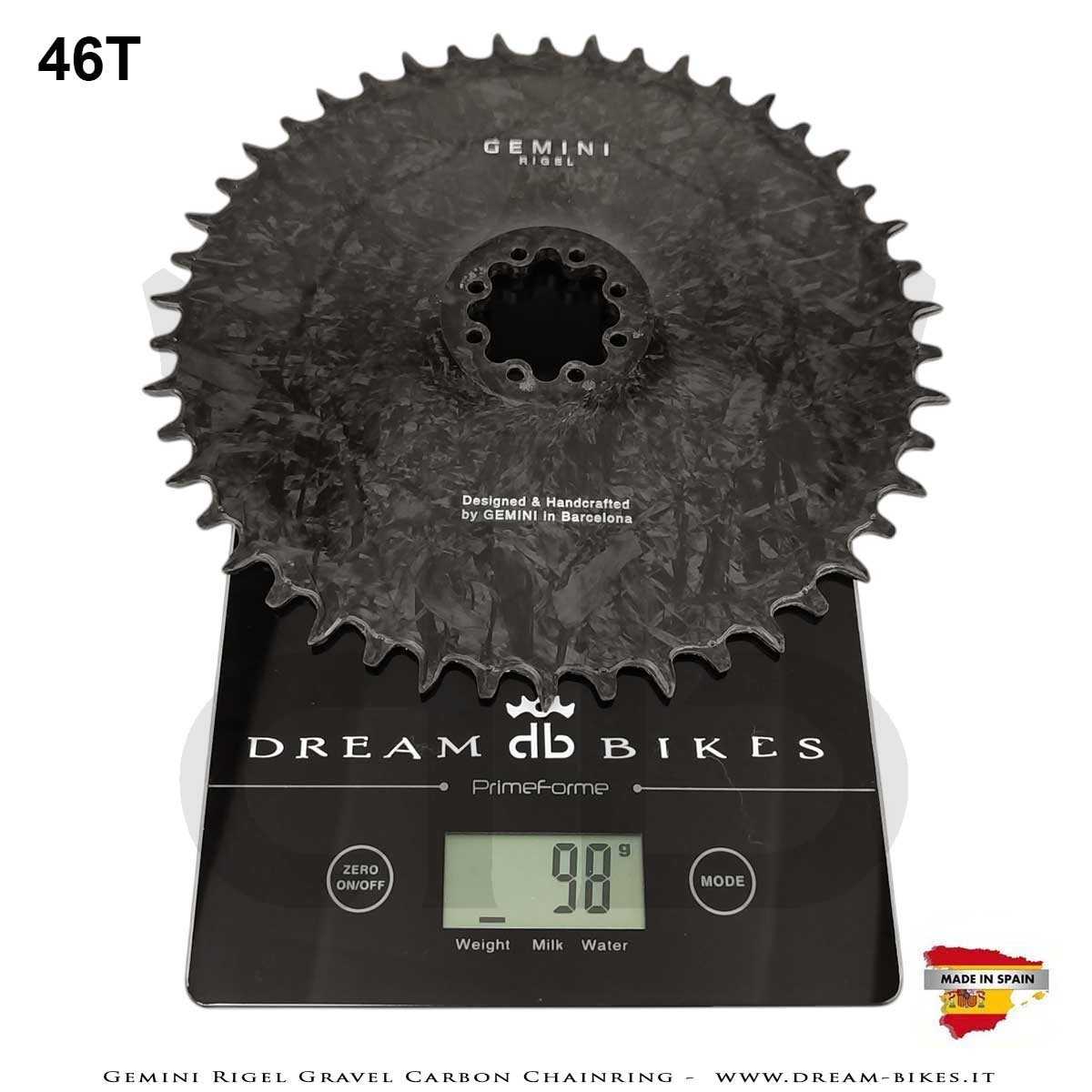

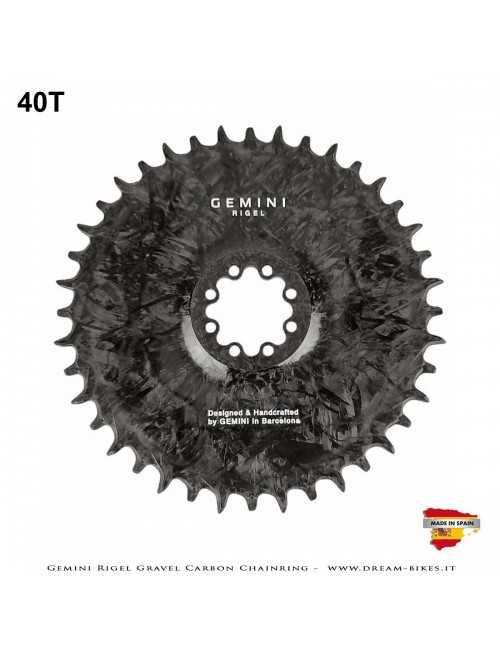

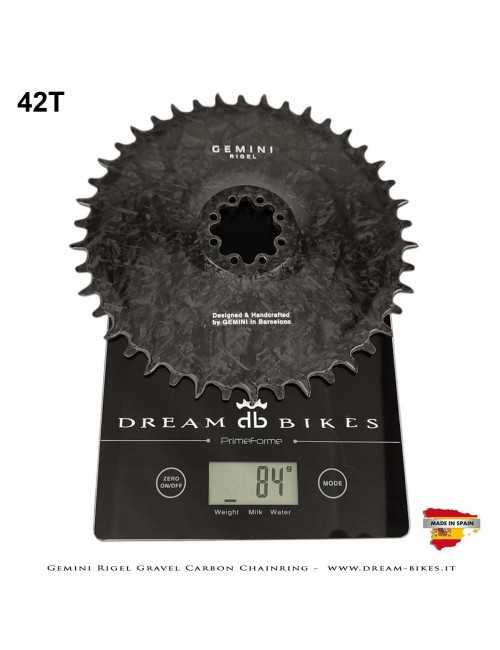

With weights starting from just 78 grams (40T Sram 8 bolts), the Rigel Gravel/Road Racing chainrings are the lightest Direct Mount on the market, as well as having a series of other superior characteristics (stiffness, smoothness, noiselessly, etc.) and an attractive and exclusive look worthy of a product of true excellence.
Rigel Gravel/Road Racing chainrings are the result of a long and meticulous development process that lasted over 3 years with over 500 prototypes and thousands of km of tests ridden by highly competitive riders on the most demanding tracks. It is therefore not a showcase product but a truly innovative component made by a serious company equipped with advanced technologies.
The main doubt that could afflict the majority of potential buyers is about the durability of these chainrings, although this data is not really quantifiable (it depends on too many factors...rider power, tracks, conditions of use, maintenance etc.) we feel reassure you by making you think about the construction technology and the presence of the internal 7075T6 aluminum core. The duration will probably be similar to a normal aluminum chainring, obviously since it is a racing, refined and expensive product it is necessary to pay the necessary attention such as using a new chain when fitting a Rigel Gravel chainring and trying to keep the transmission as clean as possible using dry lubricants which better avoid the deposit of abrasive material.
Gemini products are artisanal products, handmade and offered with different degrees of customization both in terms of size, lamination and finishes offered. Keeping a complete warehouse of all the available variables is sometimes difficult even for Gemini itself, which usually does not keep stock but makes to order.
The products we have available in stock are indicated as "IN STOCK". All other combinations that do not bear this indication, but the indication "TO ORDER" must be ordered specifically with average supply times as indicated in the product page (please contact us anyway for an updated estimate of waiting times).
These products are to be considered made to order and therefore fall outside the canonical right of withdrawal for remote sales and require full advance payment. Cash on delivery is therefore excluded for this type of product.

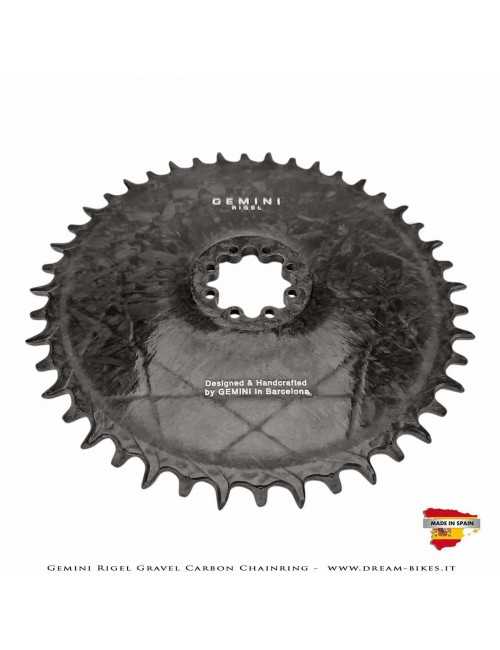

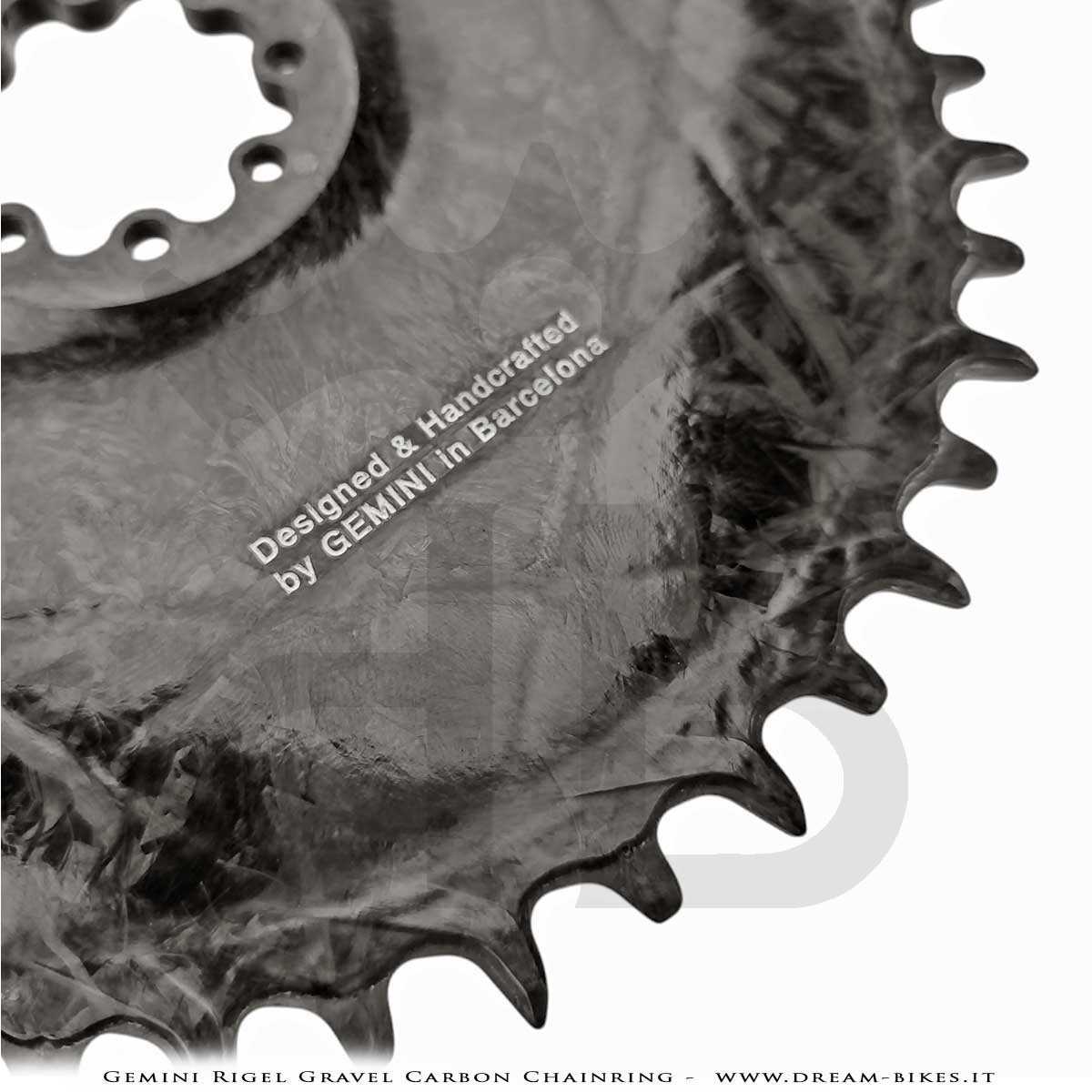

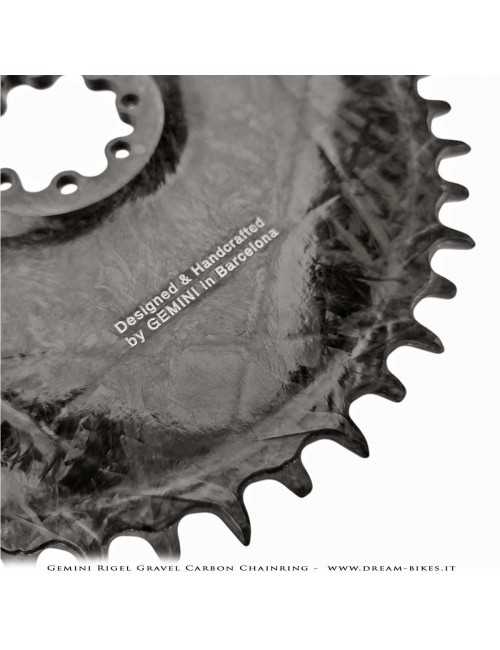

Rigel Gravel/Road Racing chainrings, like all Gemini products, are proudly designed, developed and handcrafted in Barcelona, ​​Spain.
