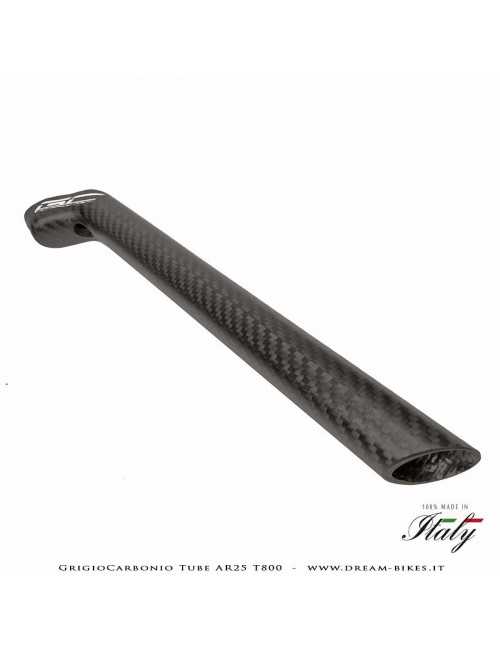

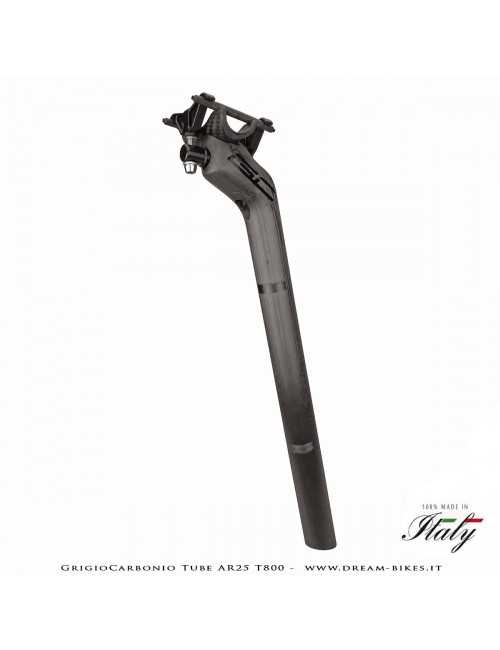

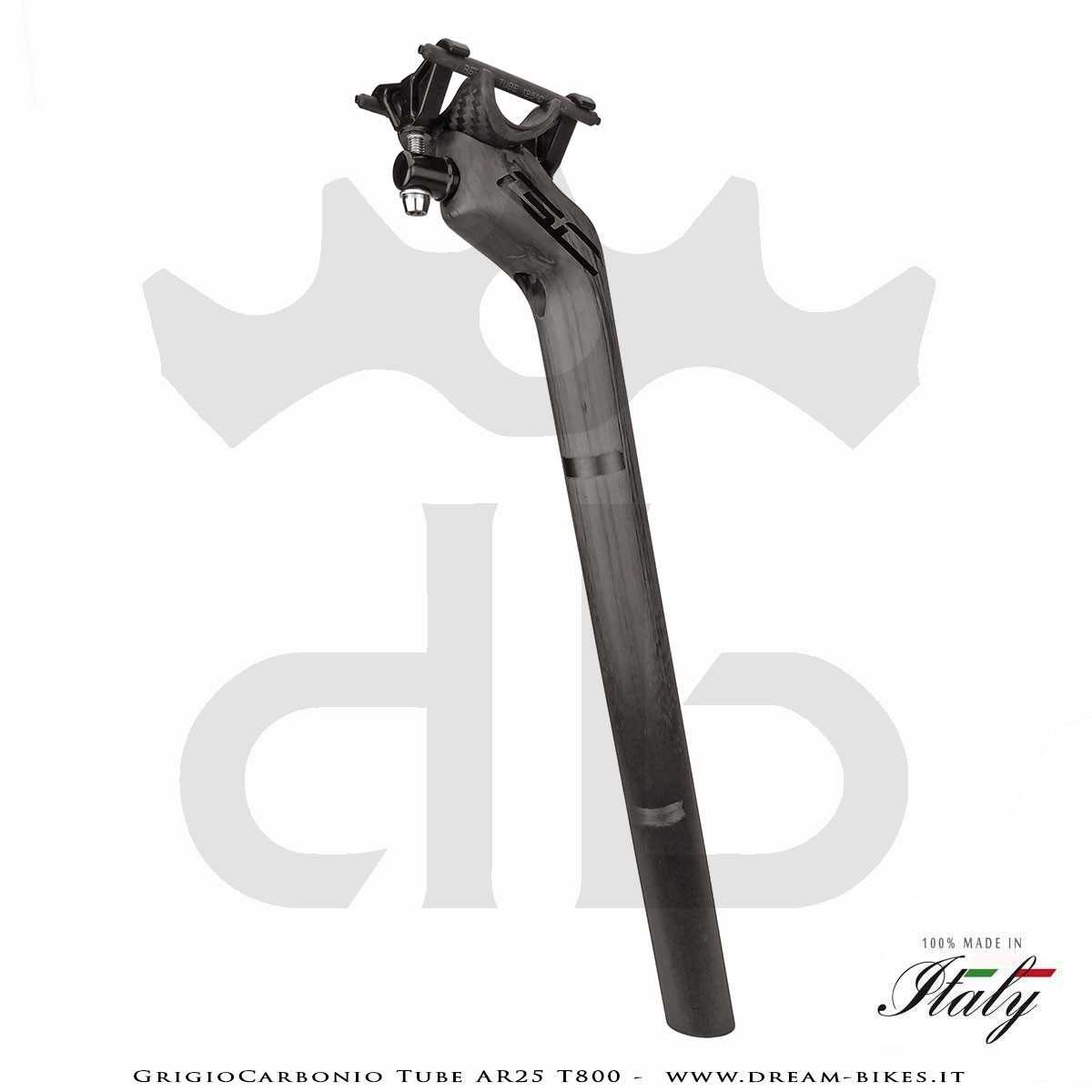

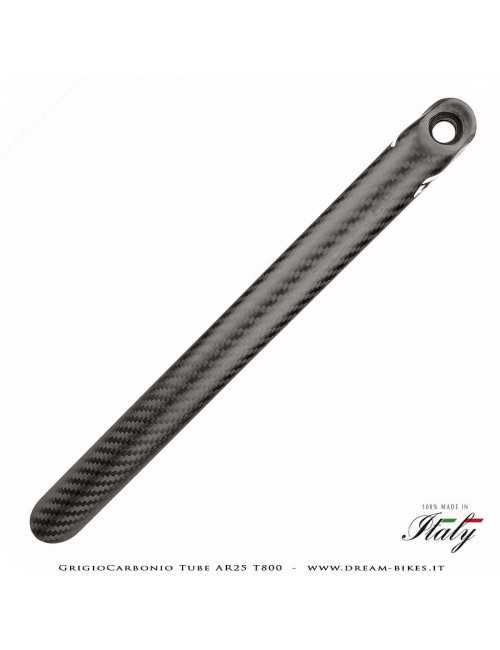

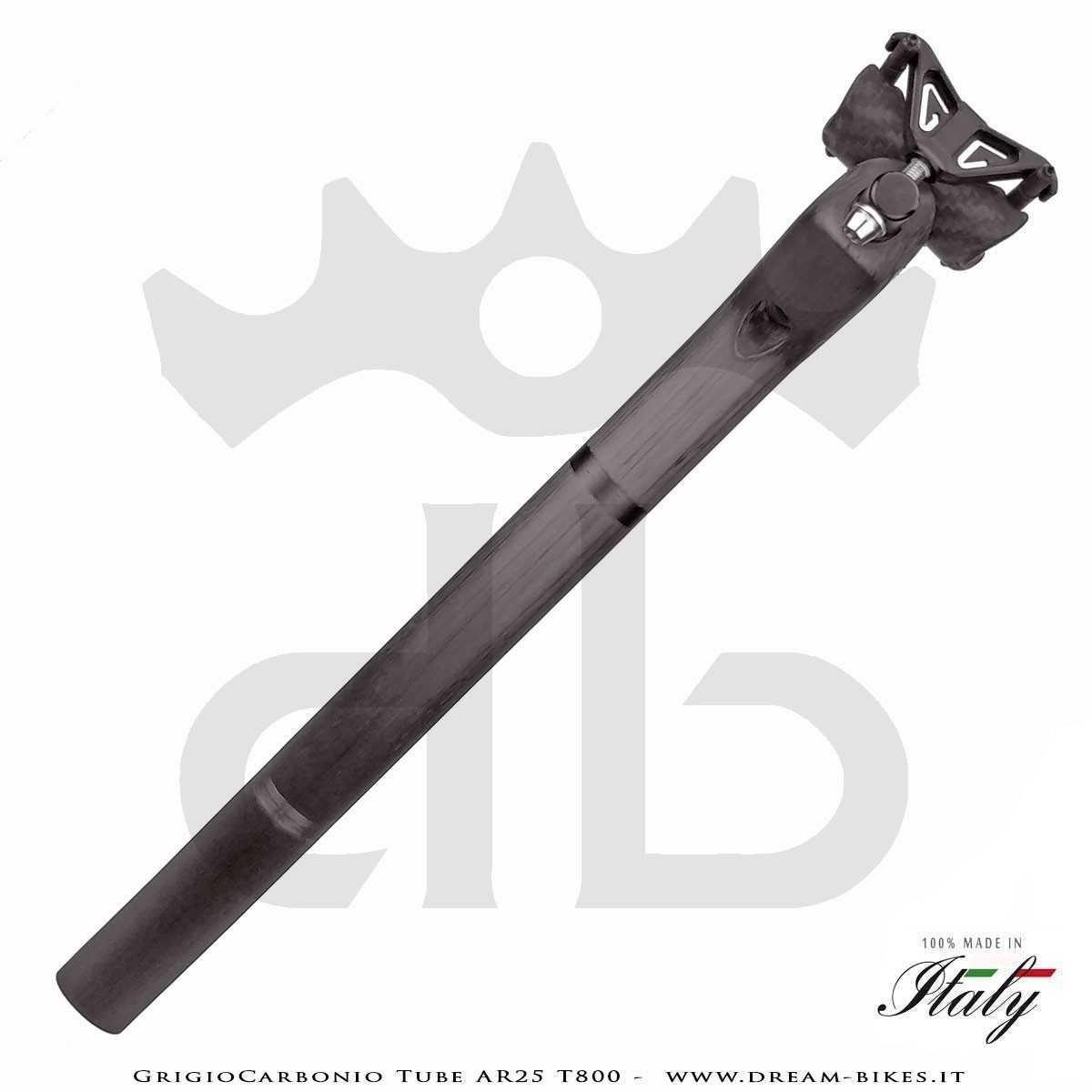

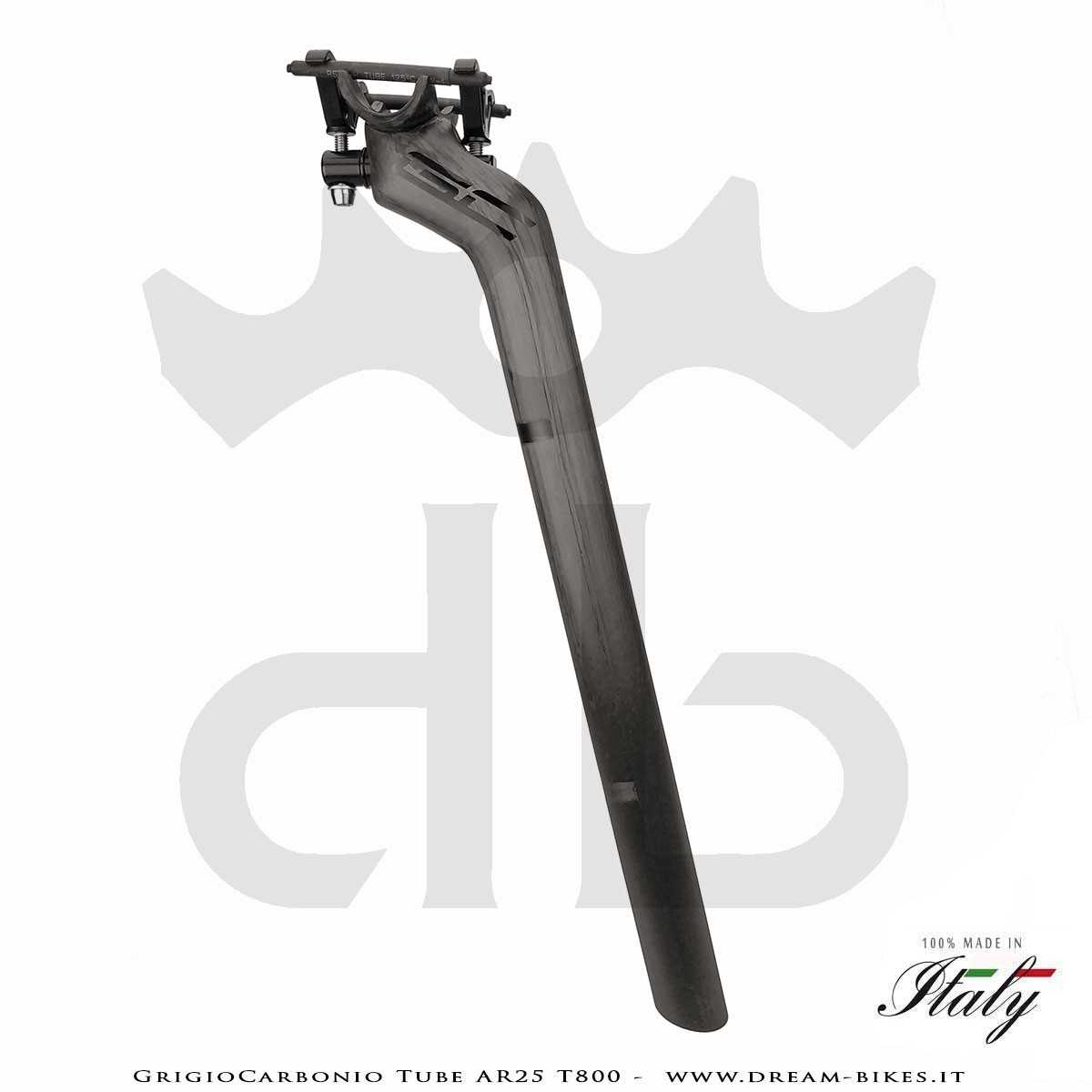

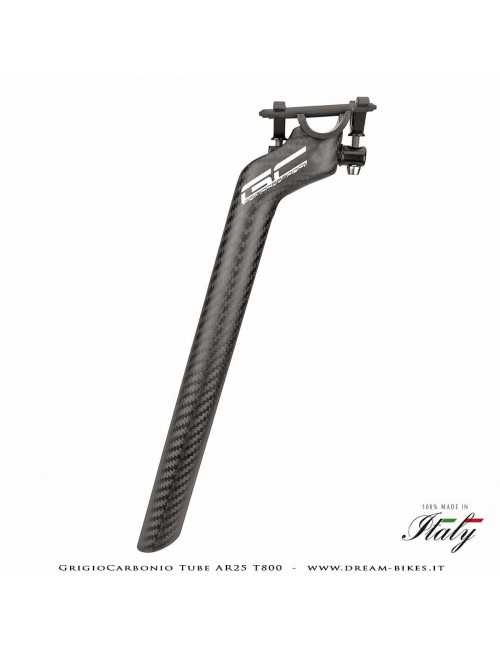

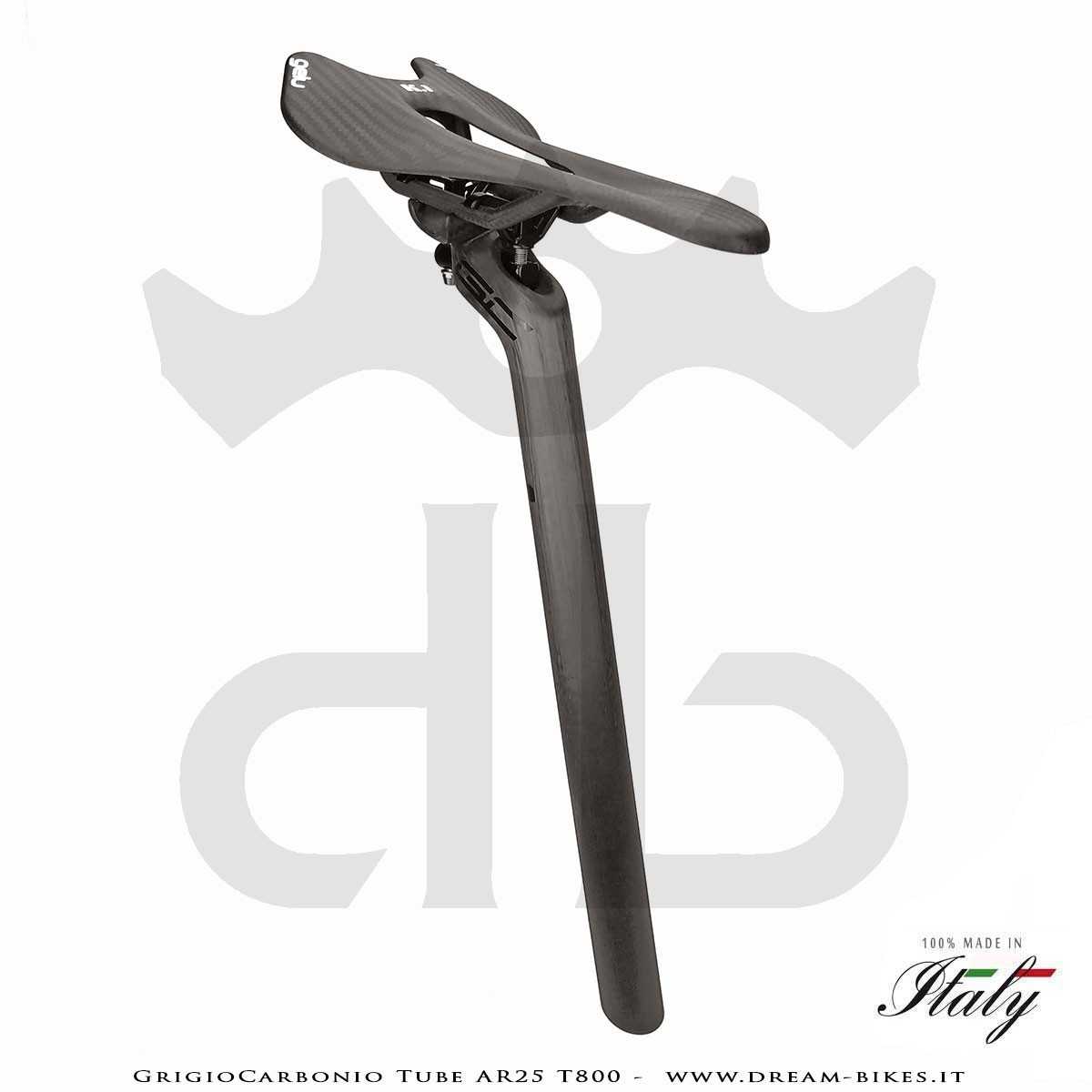

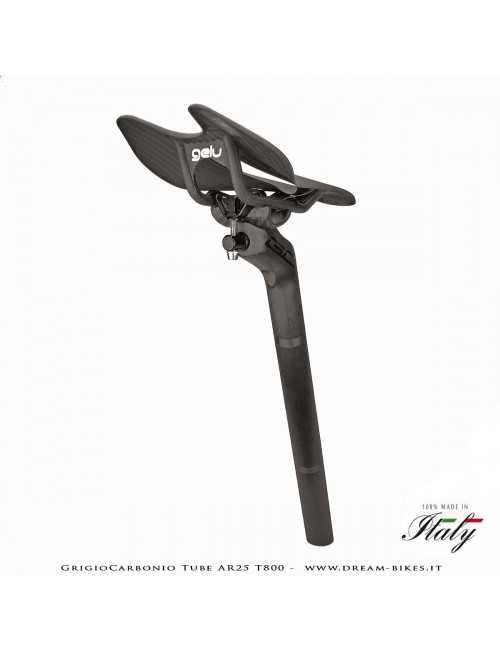

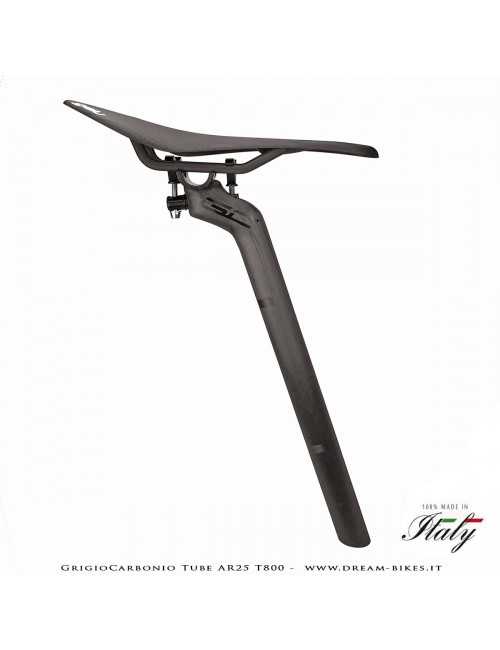

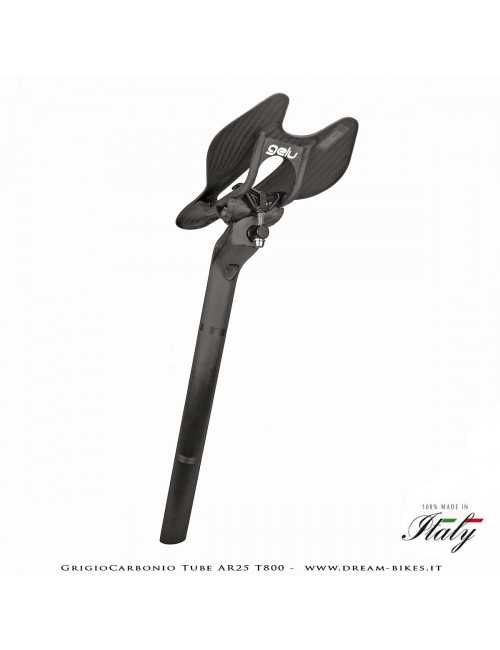

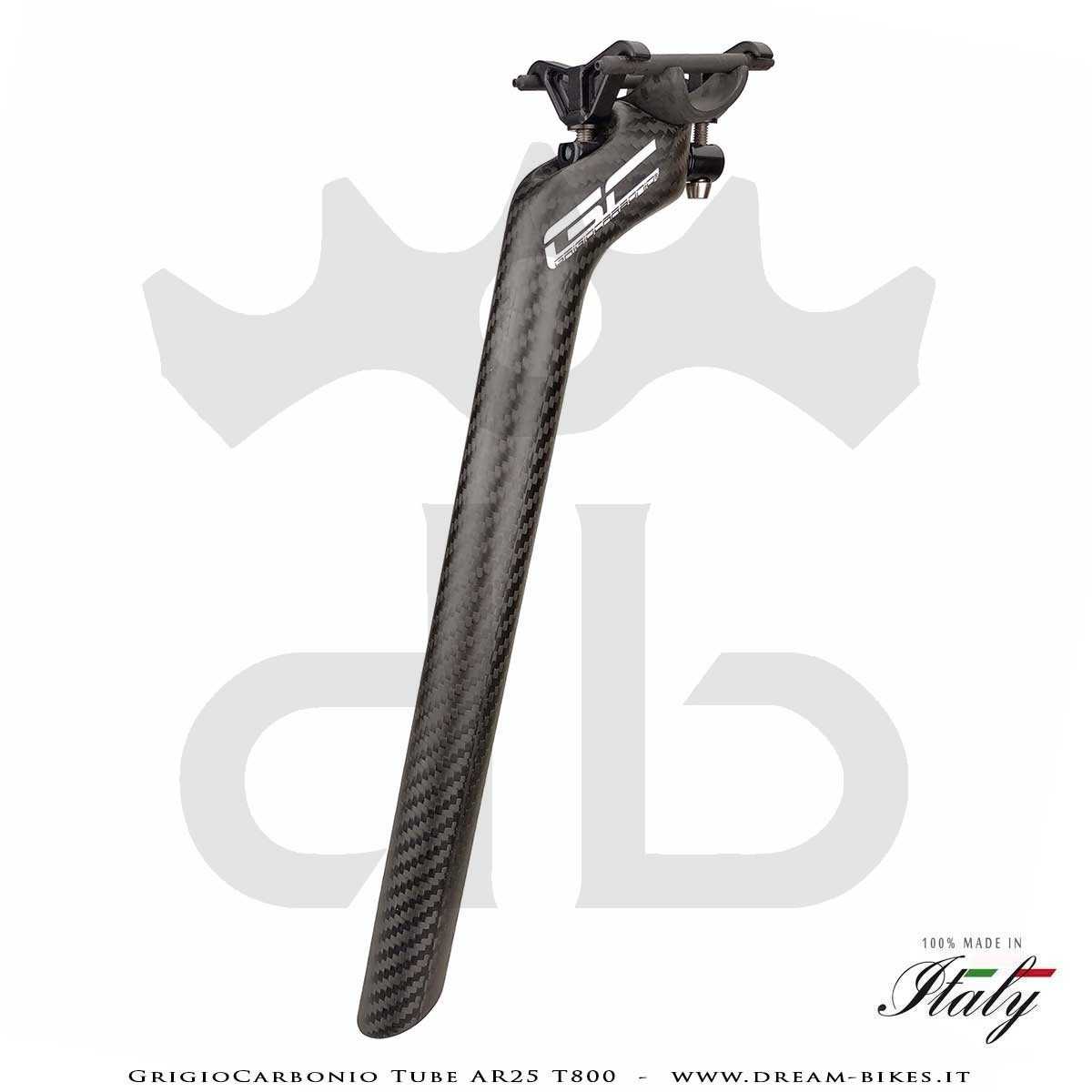

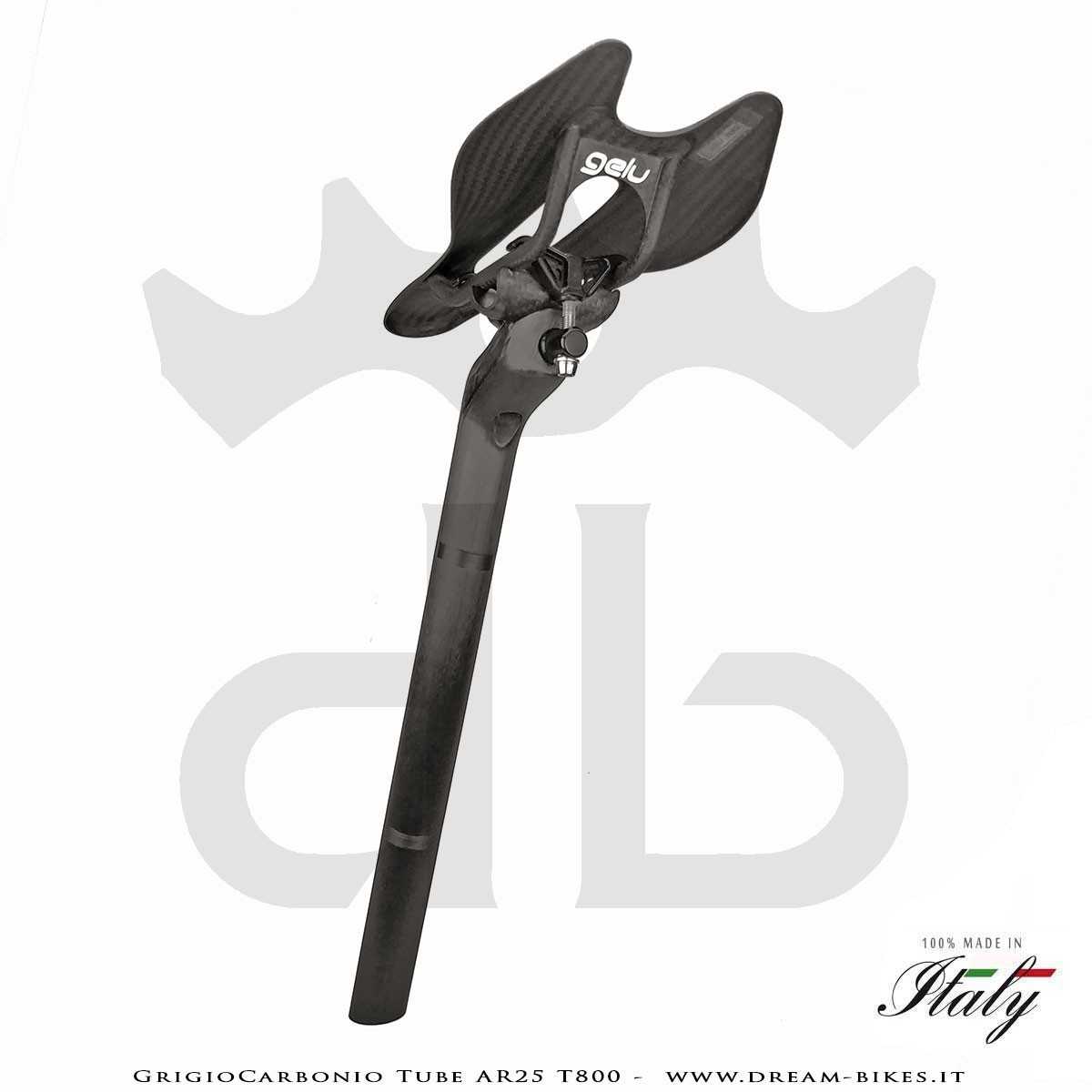

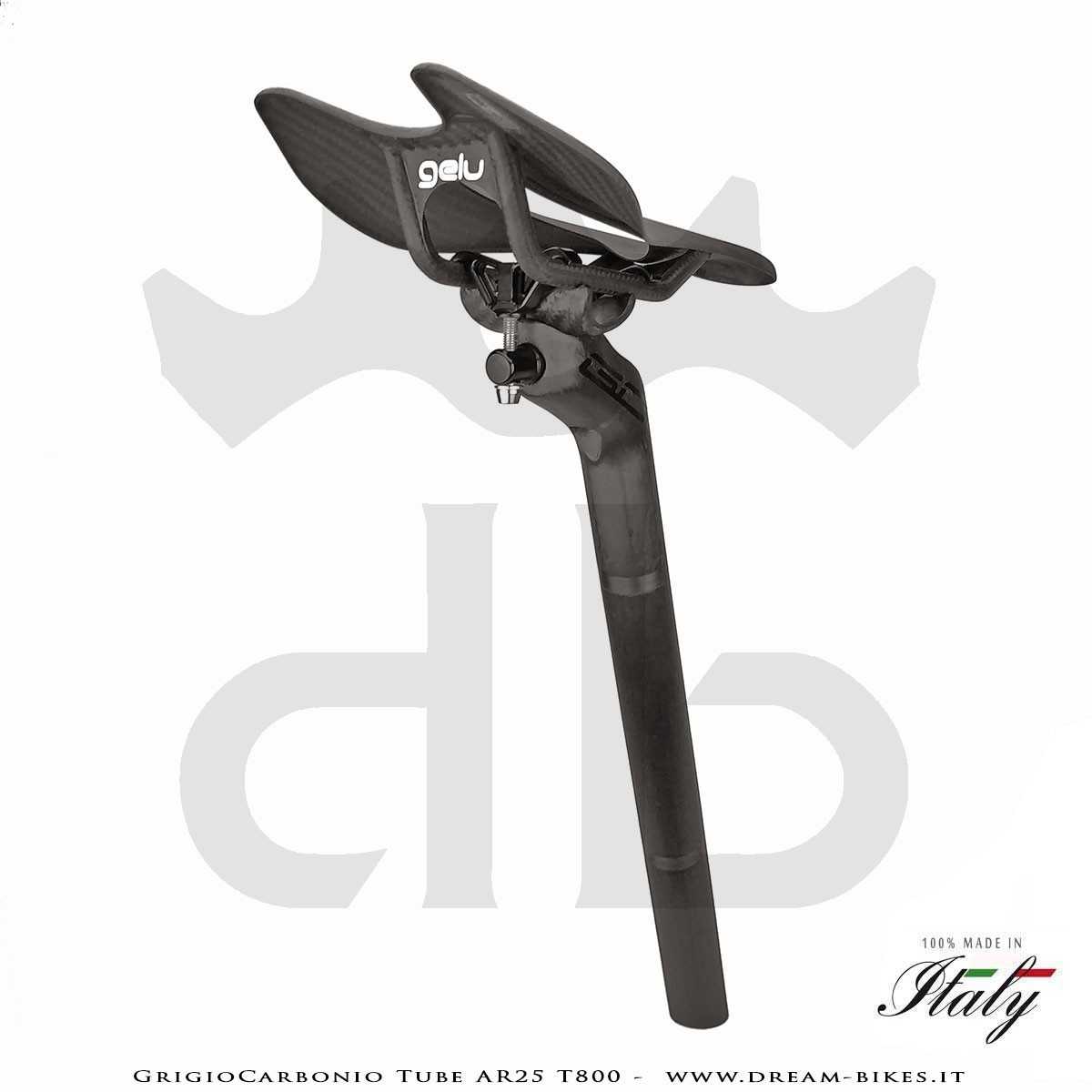

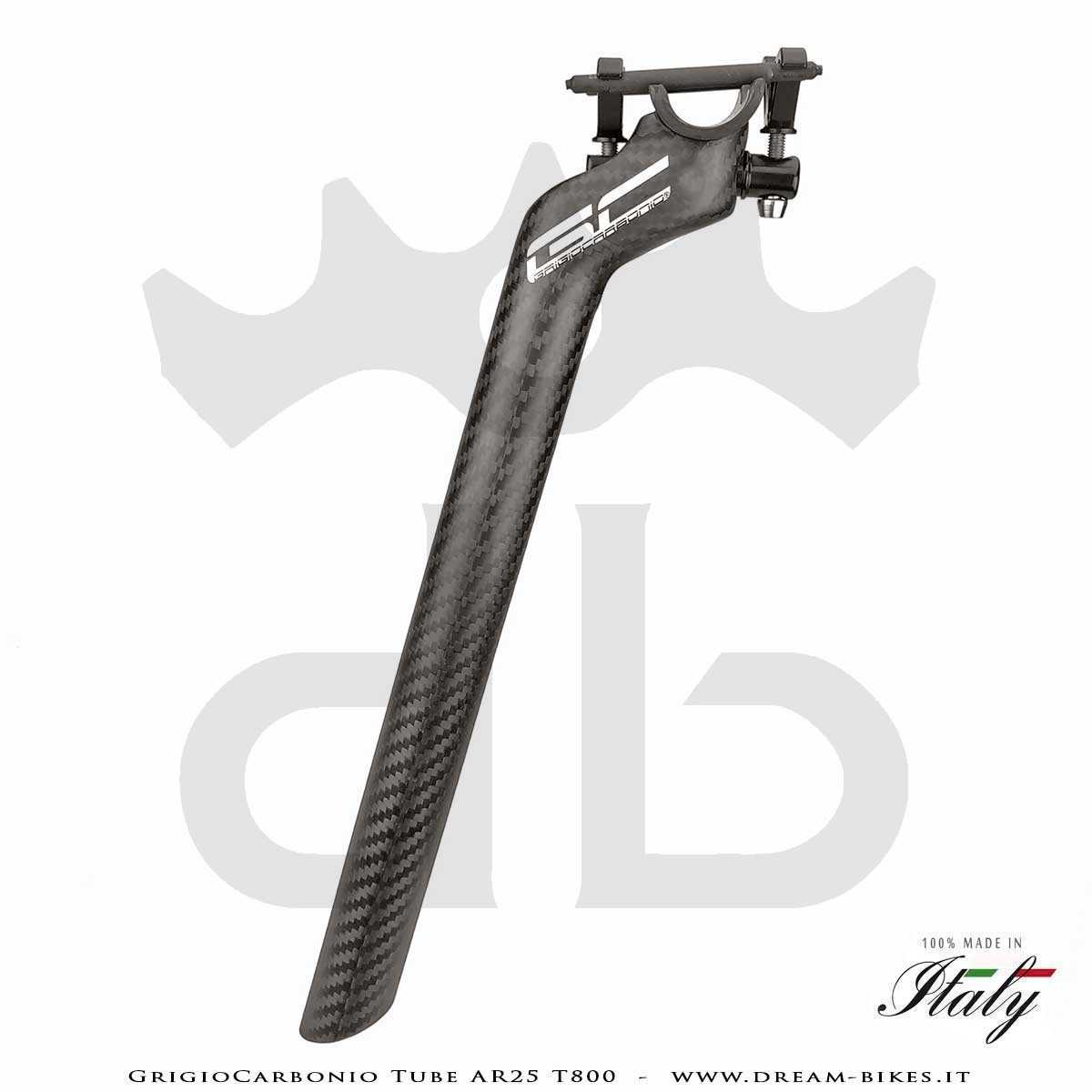

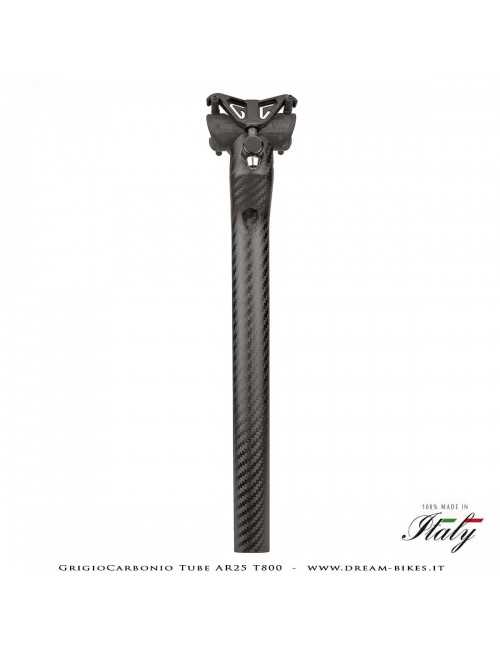

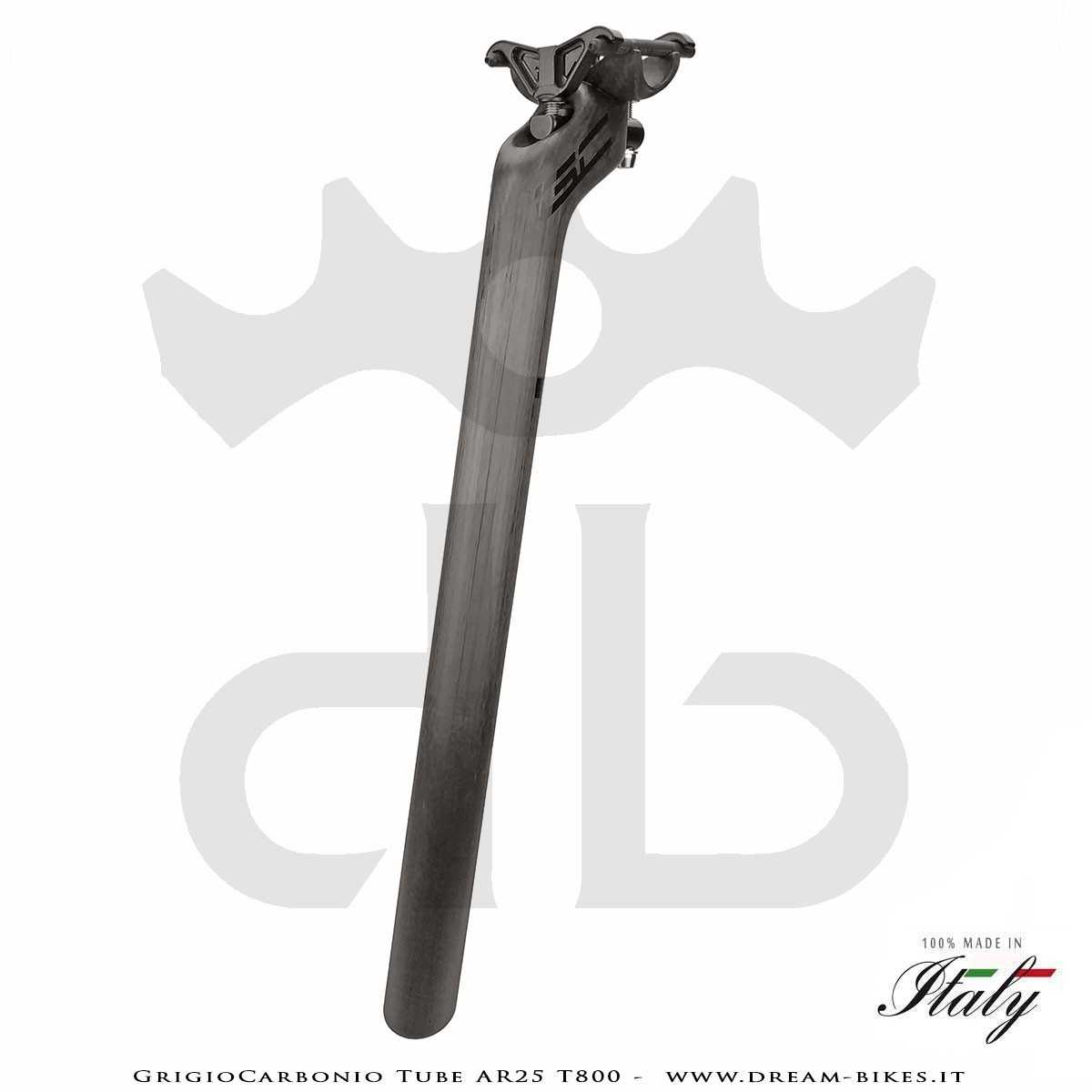

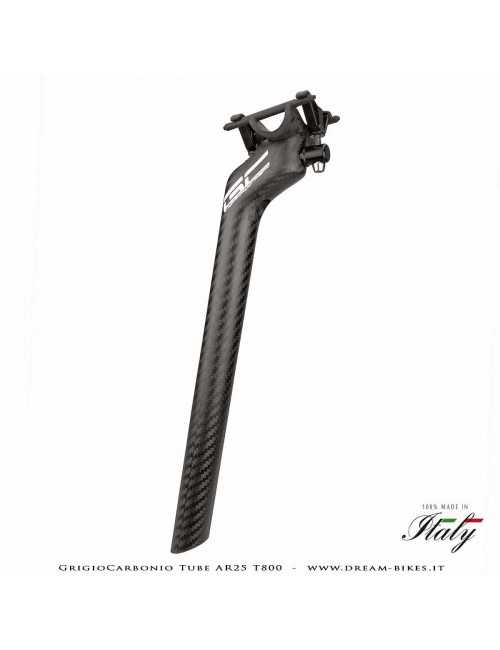

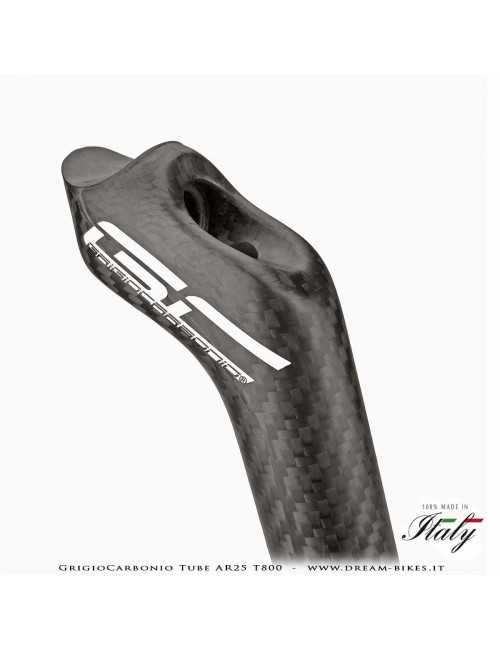

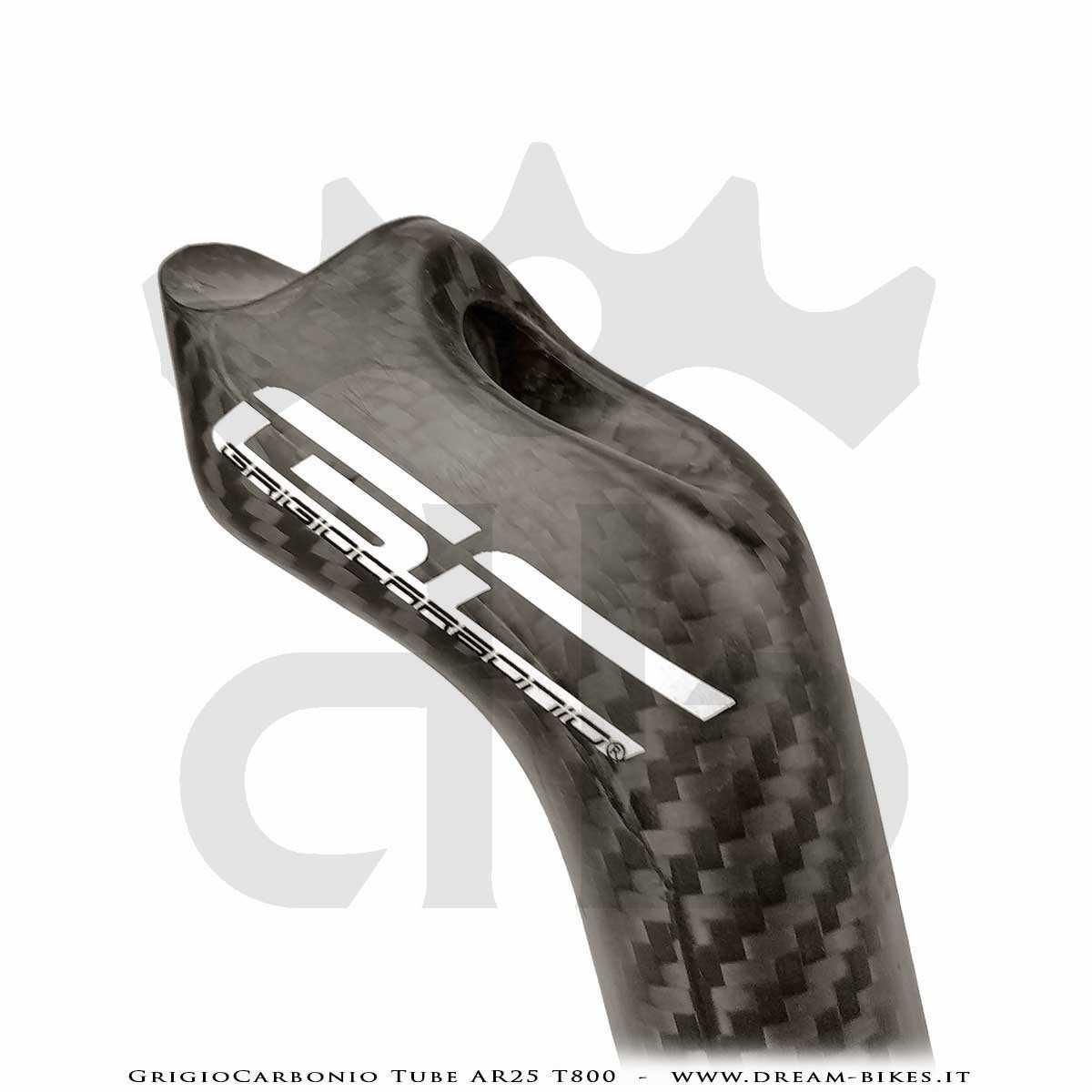

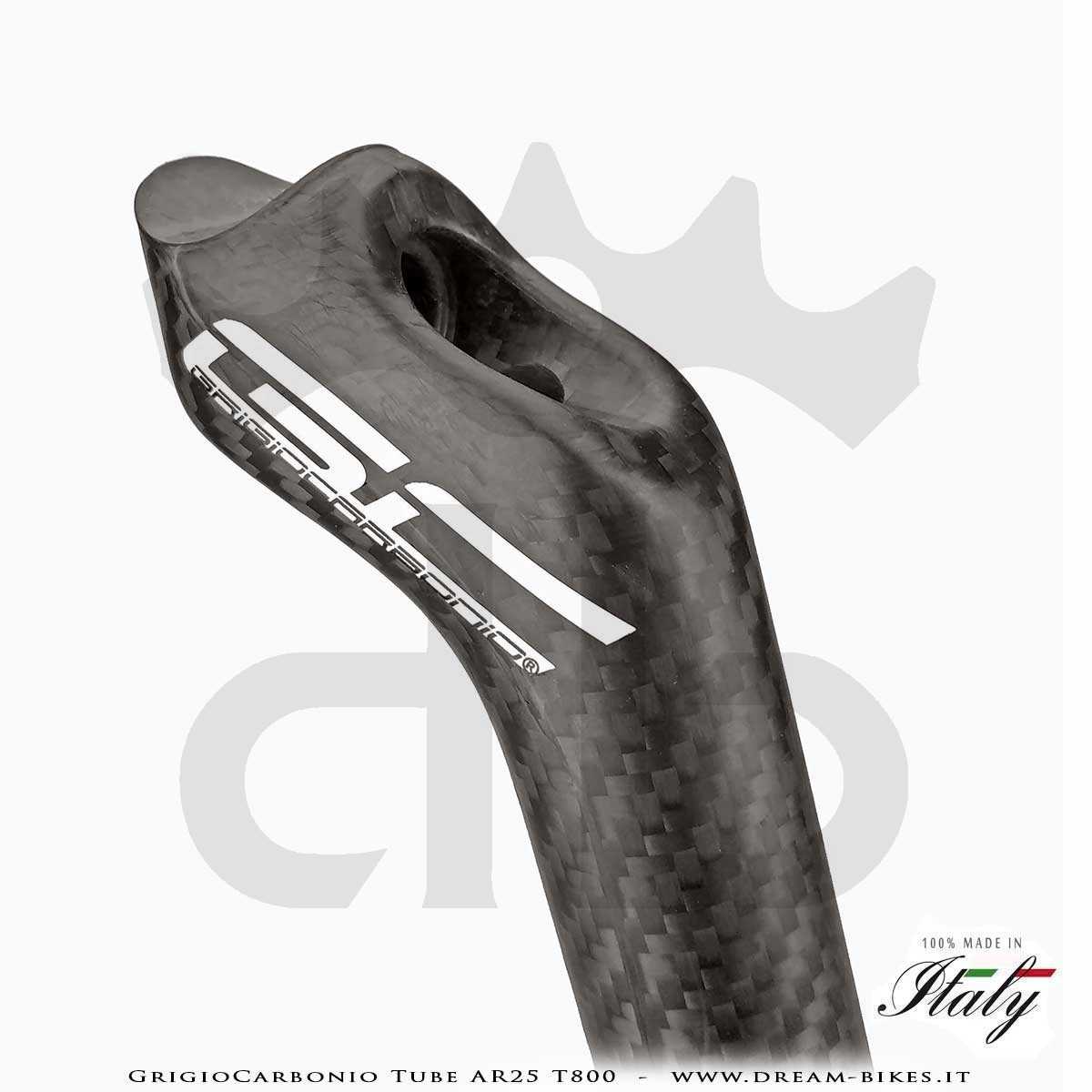

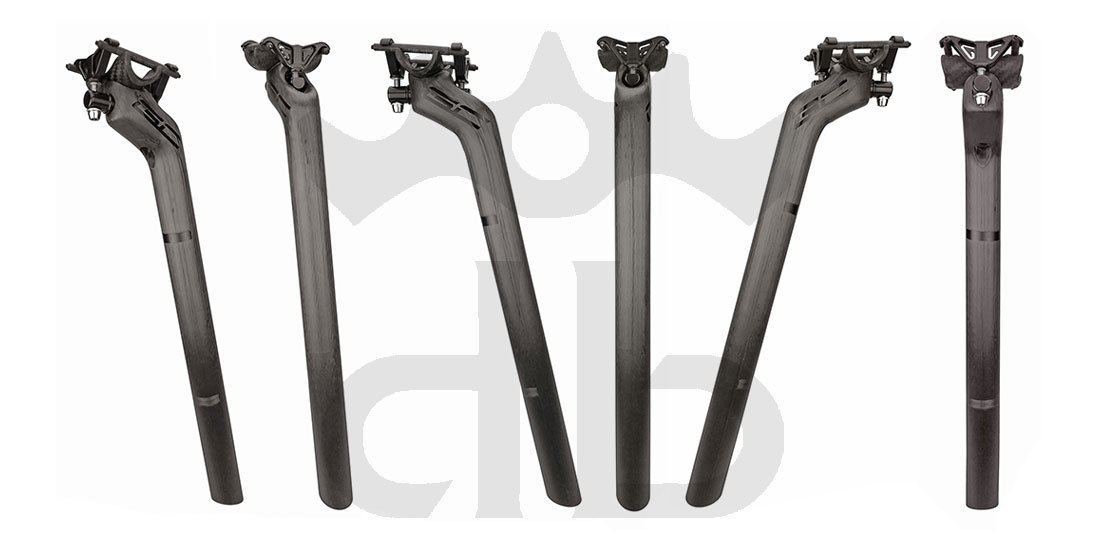

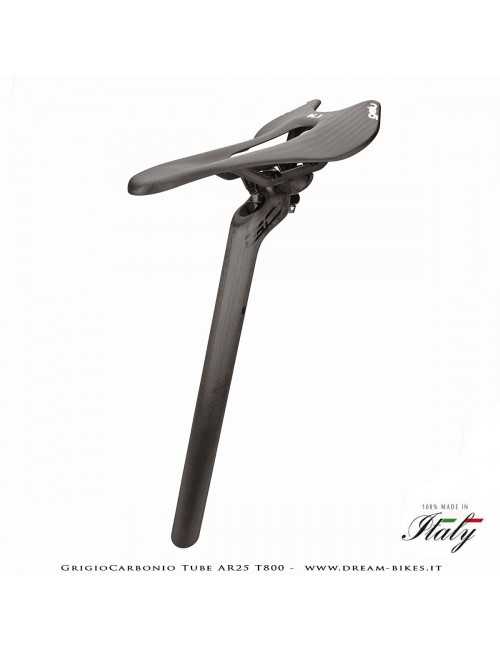

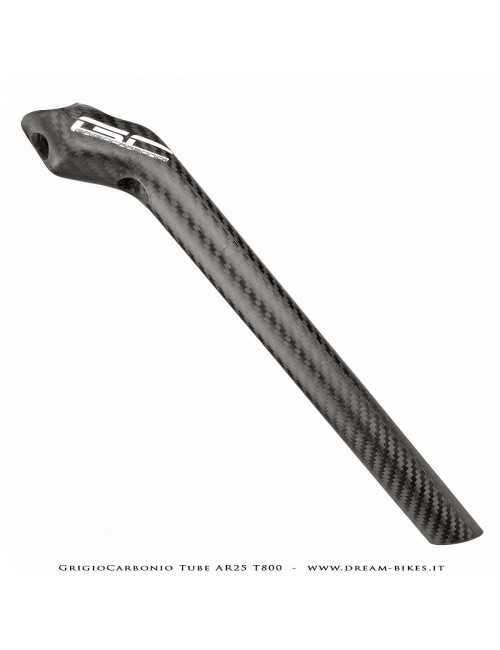

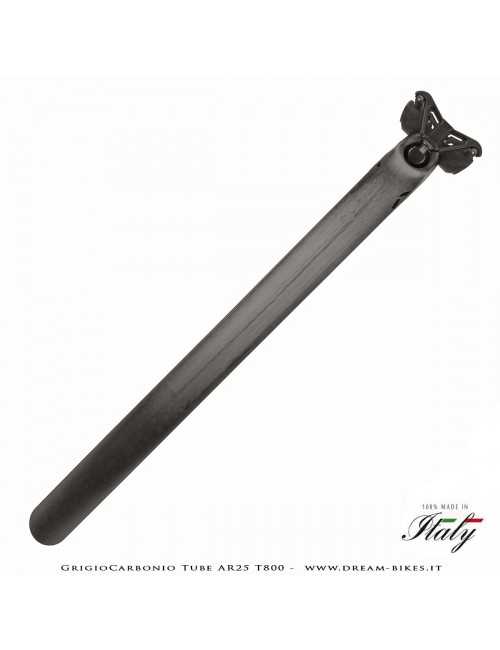

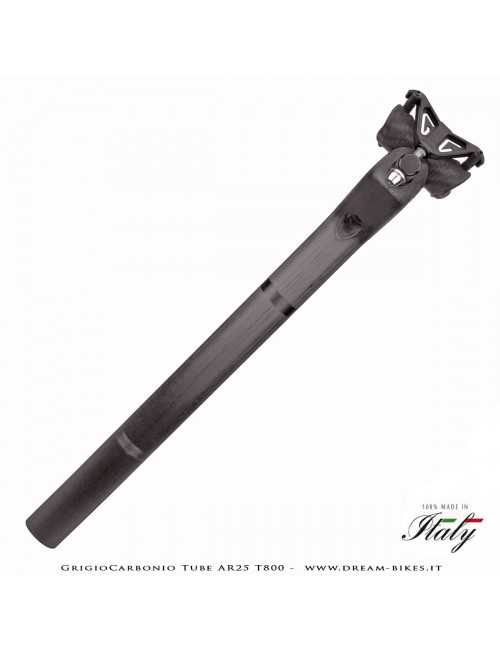

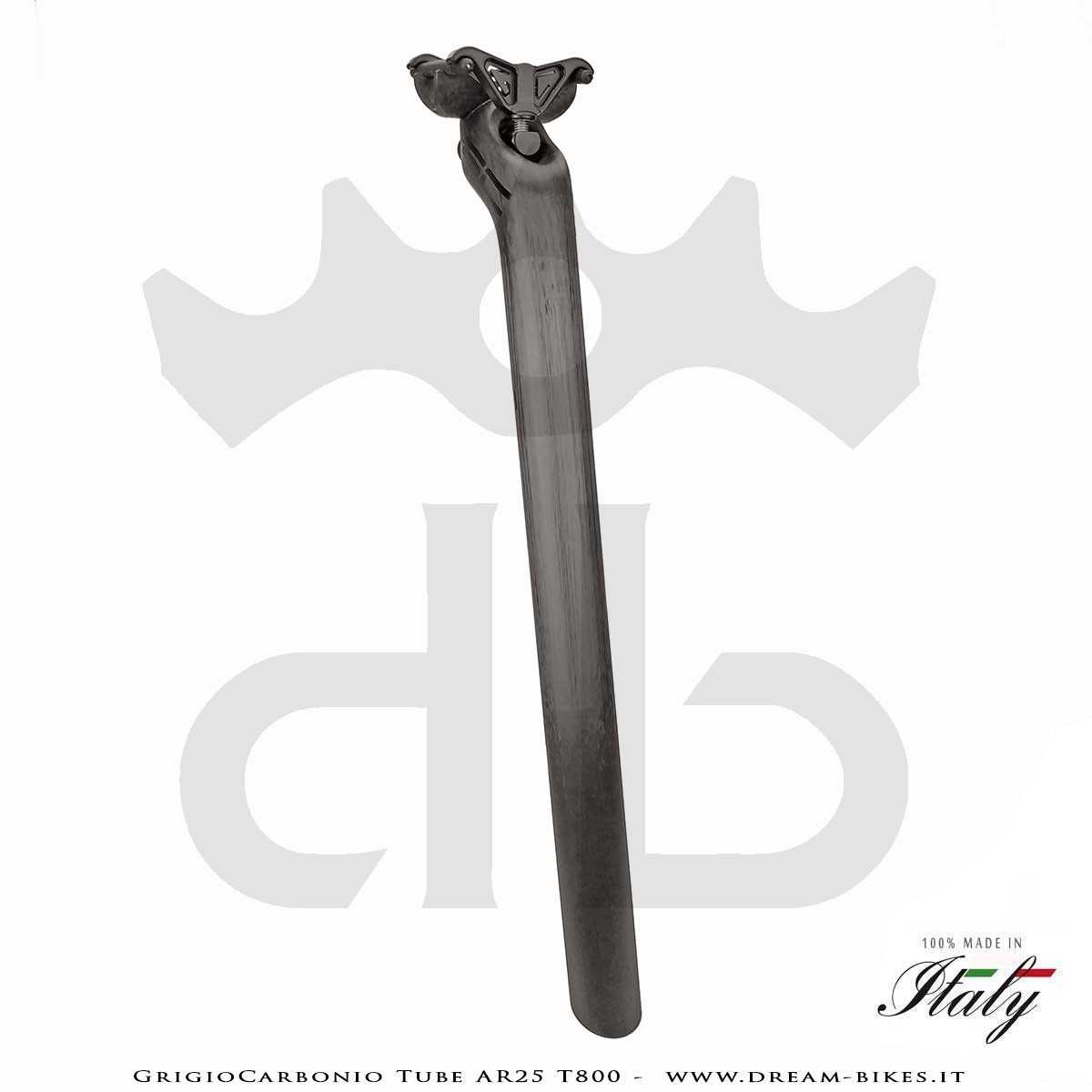

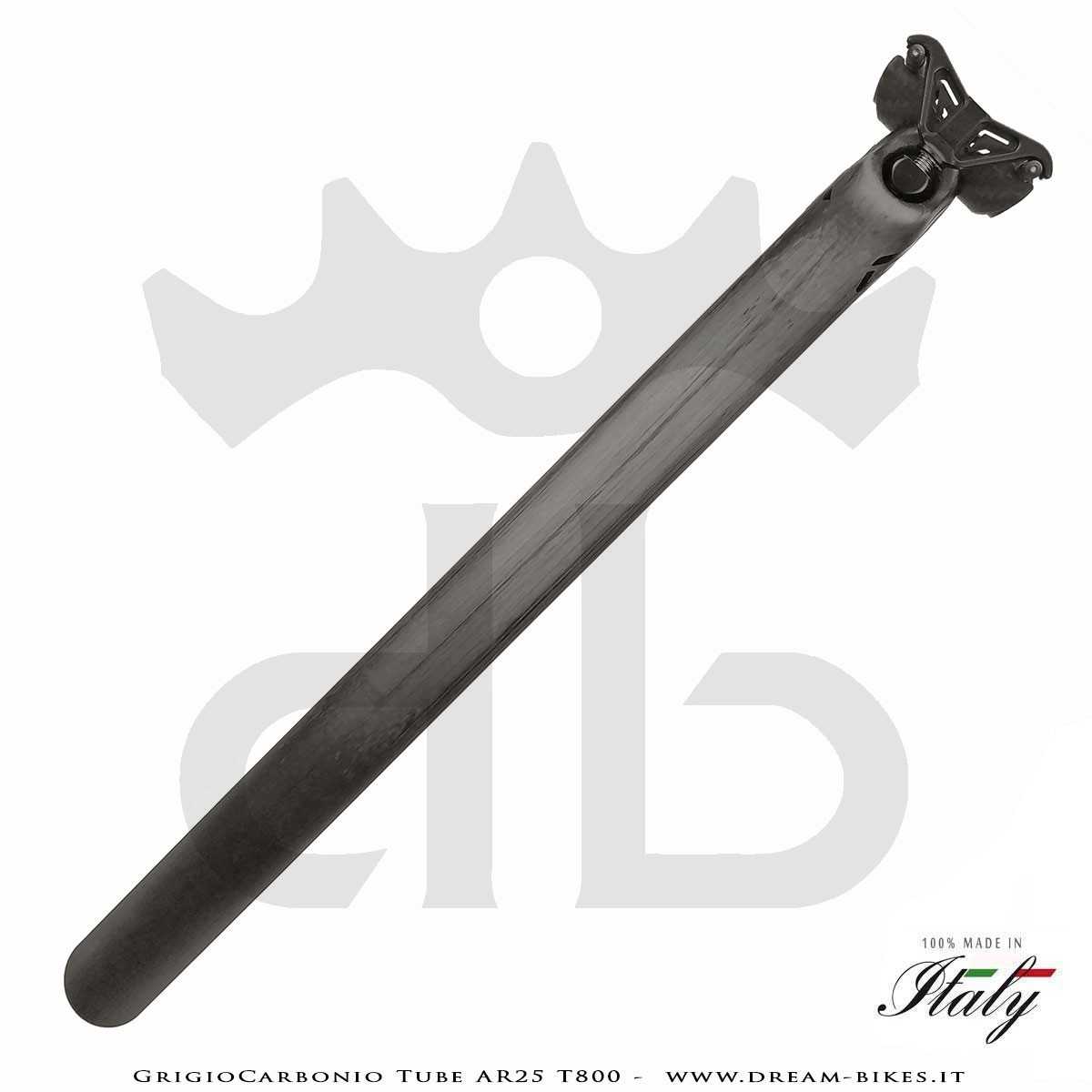

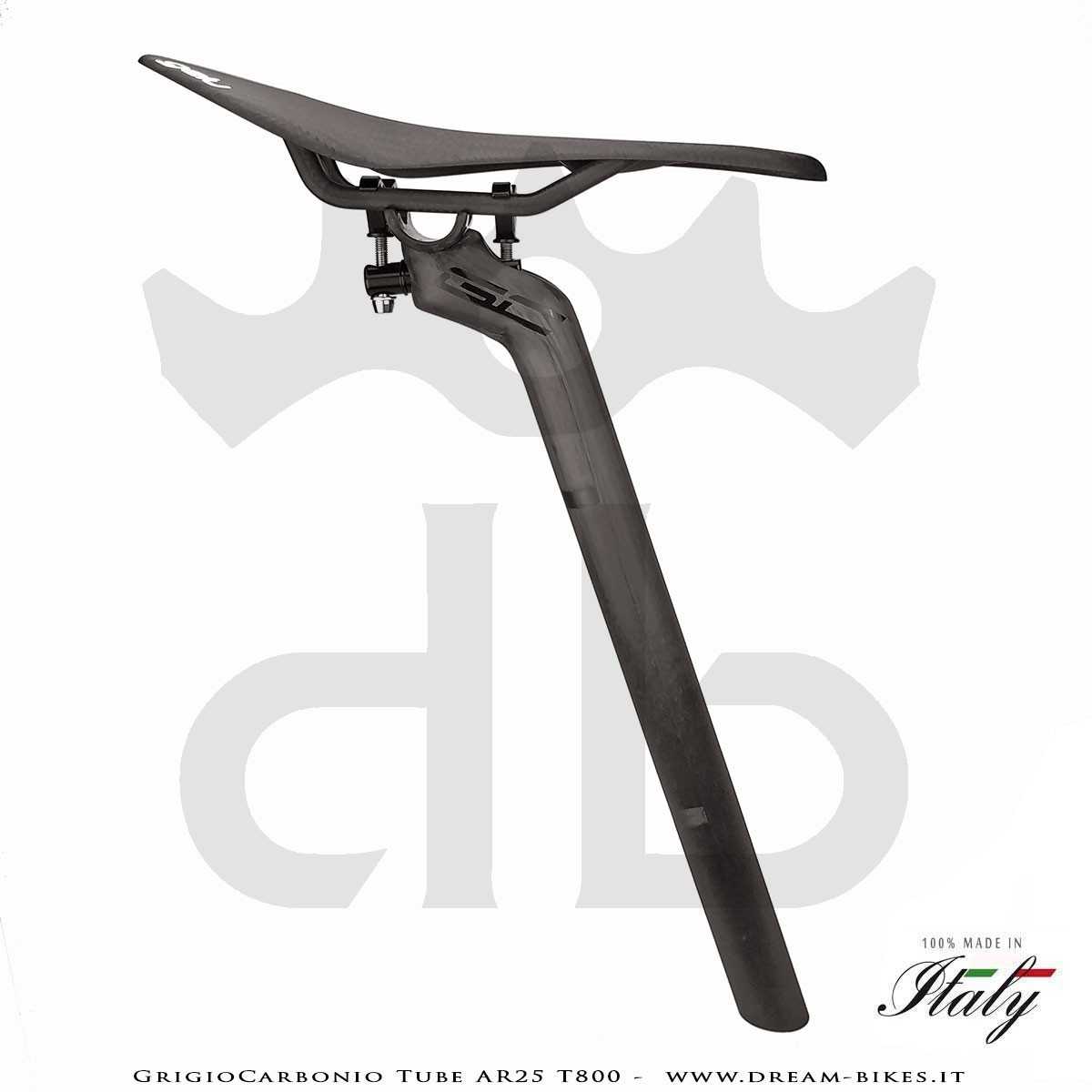

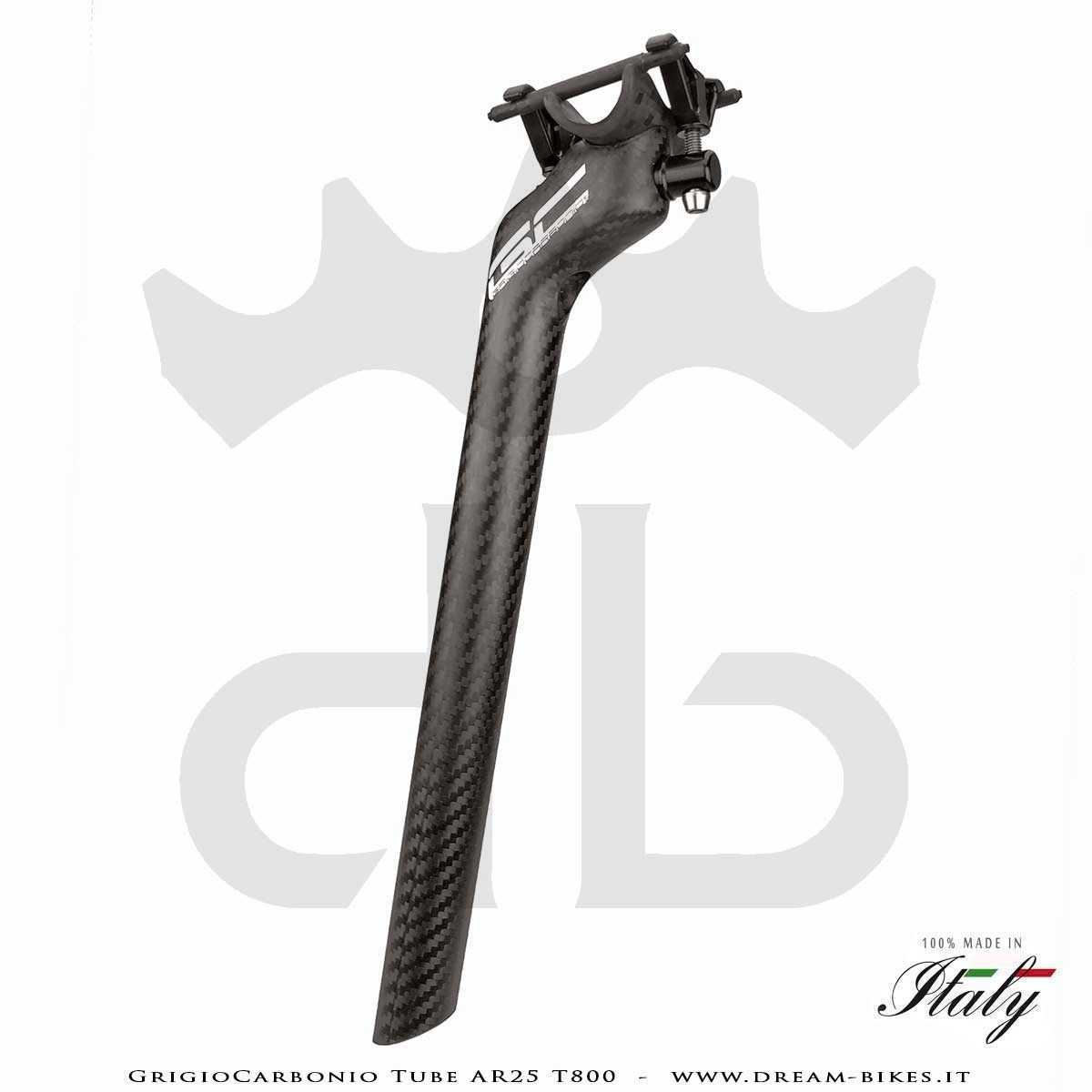

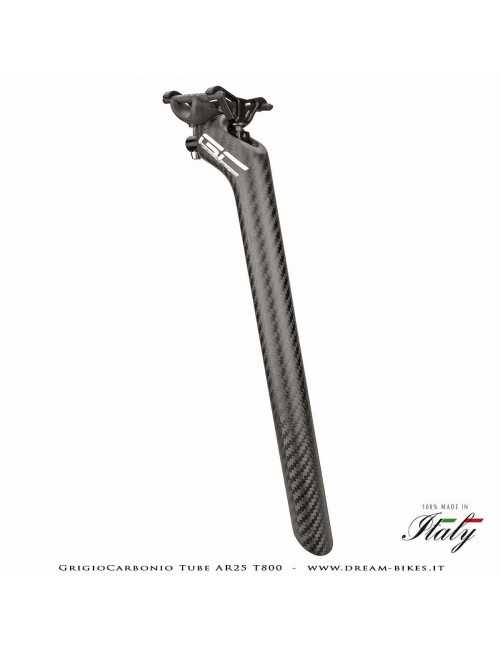

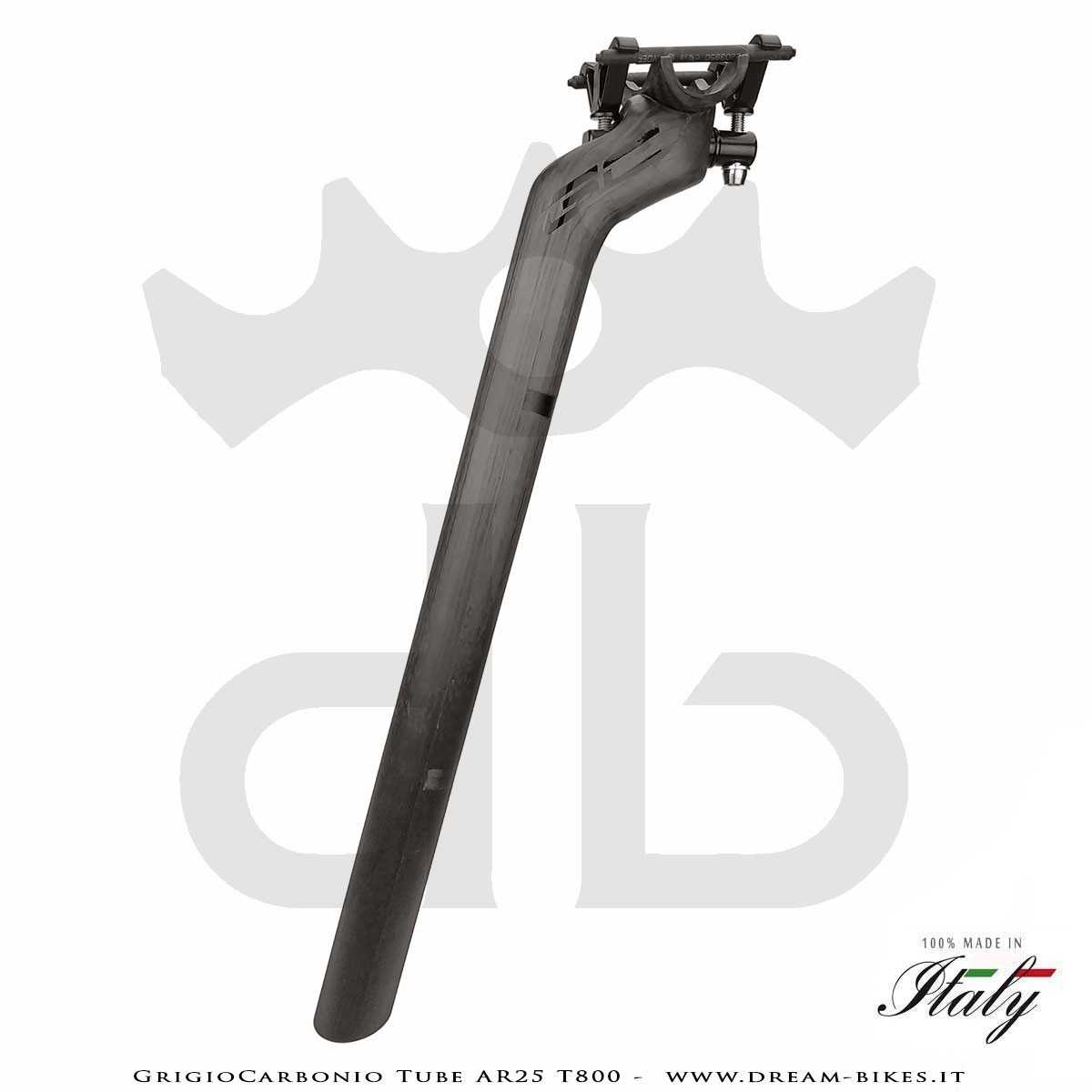

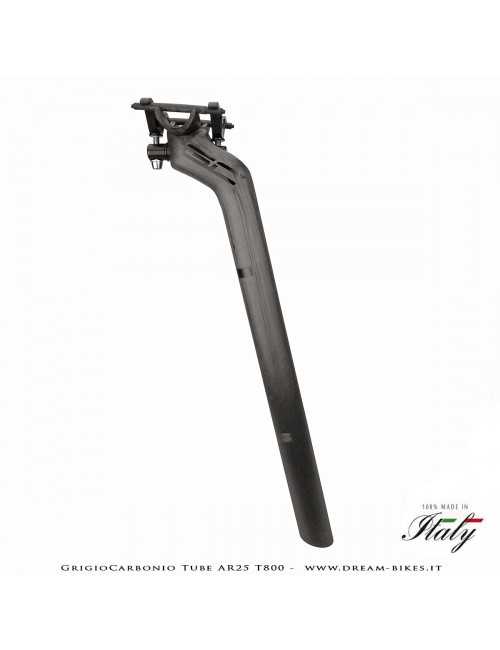

Grigiocarbonio Tube AR25 ultralight T800 high module carbon fiber setback seatpost (-25 mm offset). Al 7075T6 CNC hardware, grade 5 Titanium bolts. Available in 27.2 diameter and 250 - 300 - 350 - 400 mm lengths. Weights starting from 105 grams (125 grams in 27.2 x 350 mm). Overall great quality and details care, beautiful design, high stiffness and performance and extreme safety (UNI EN 14766/2006 certified). 3K Twill or UD mesh, glossy or matte finishing, black anodized hardware, sticker type removable decals available in many colors. 100% Handmade in Italy!
GrigioCarbonio Tube AR25 ultralight T800 high module carbon fiber setback seatpost. 25 mm offset, available in 27.2 mm diameter and many lengths (250/300/350/400 mm).
Tube seatpost has got a simple and useful design, it's made of high quality materials, worked up with professionalism, passion and attention to details, as the best Italian craftsmanship tradition. Nice 3K Twill or Unidirectional (UD) finishing, coupled with fine CNC aluminium machined parts, contribute at the racing and elegant look.

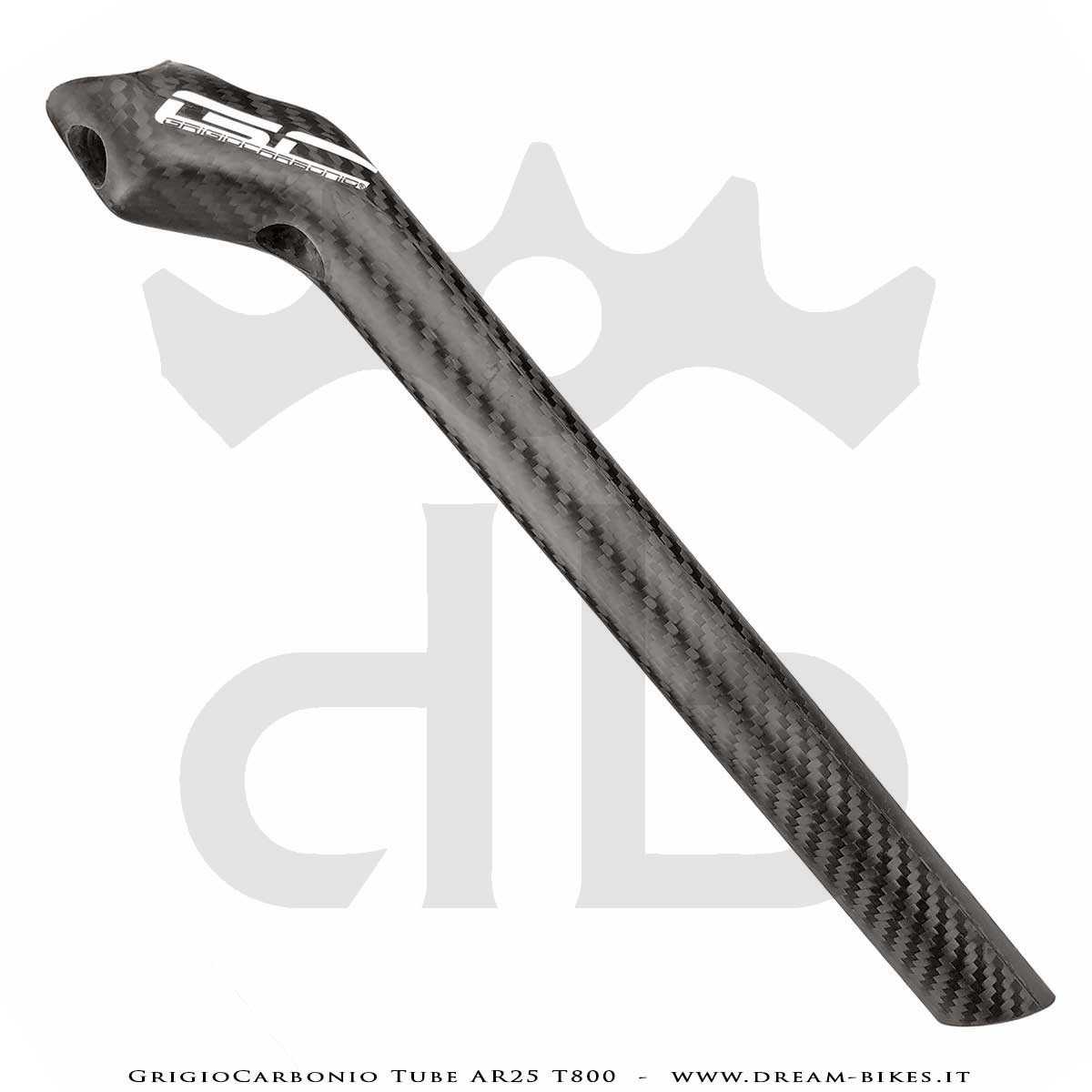

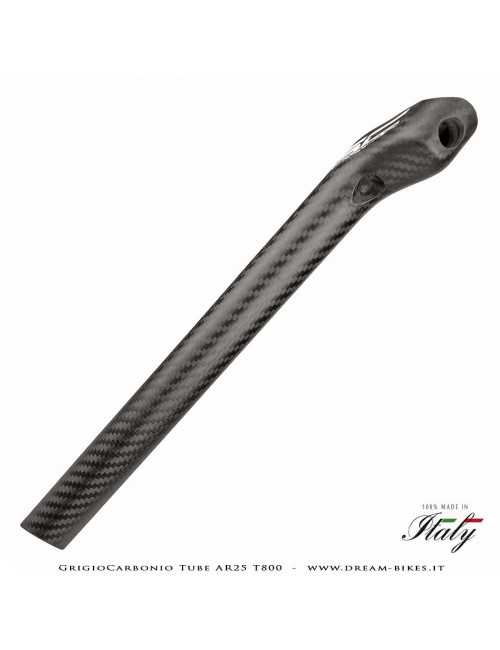

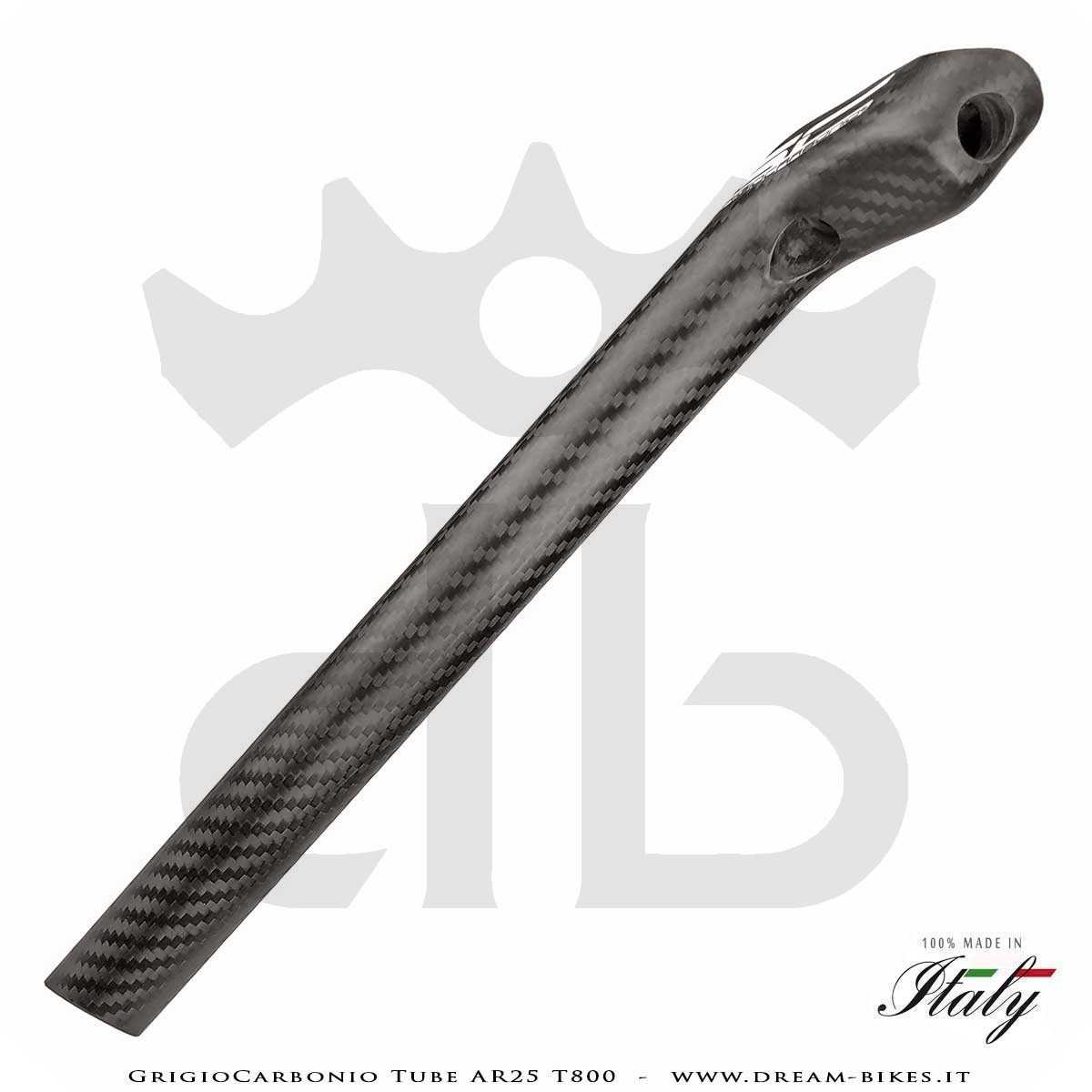

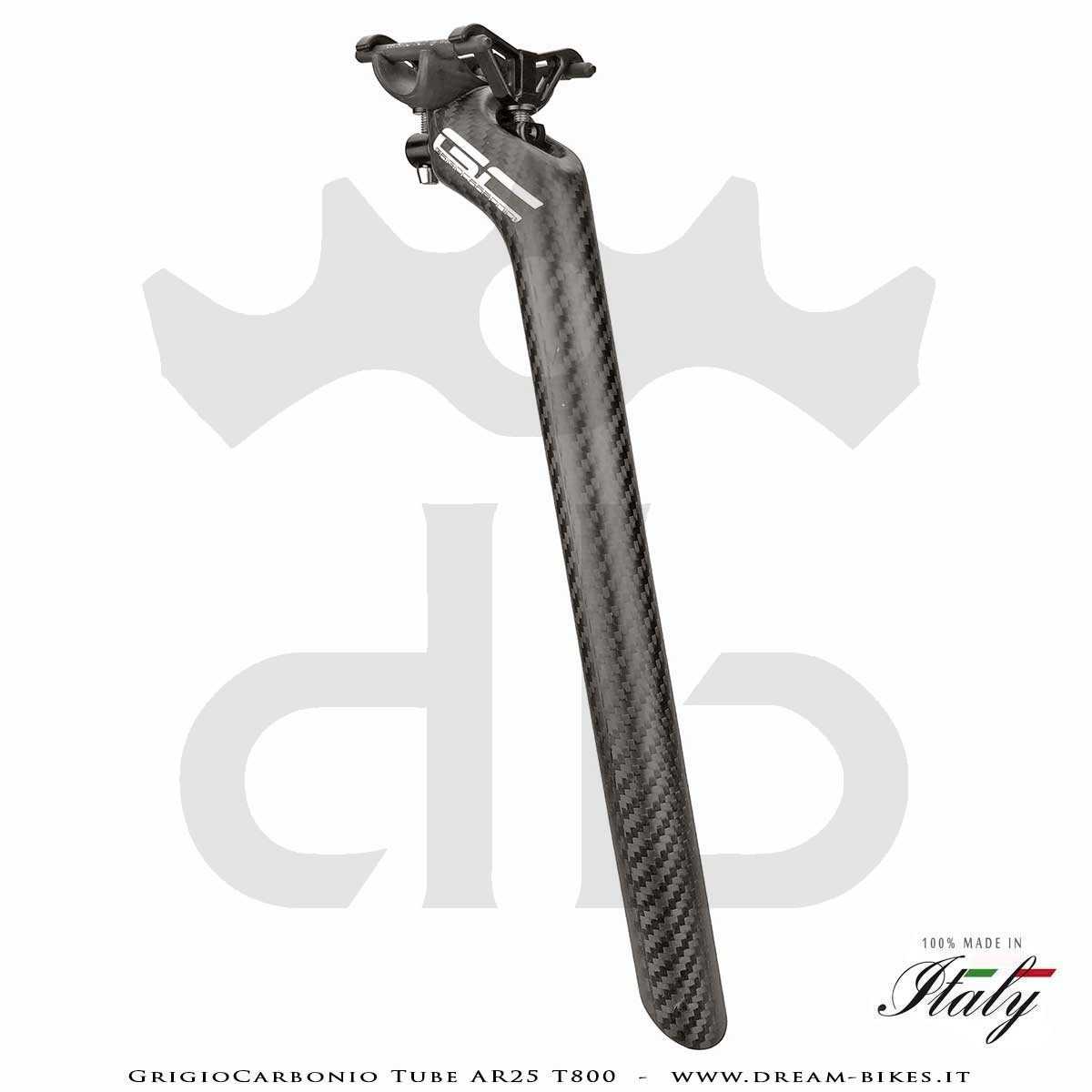

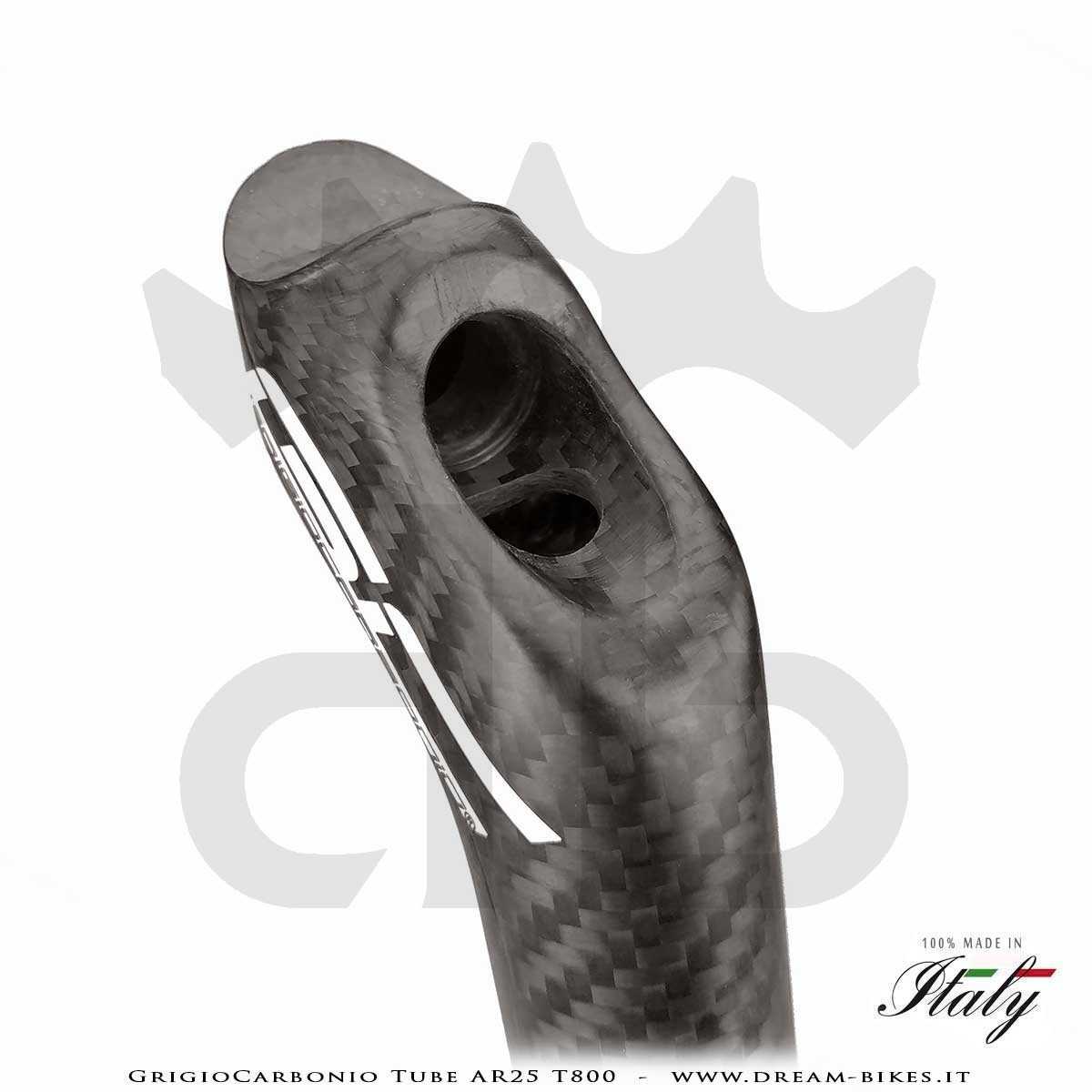

Main tube is made of T800 high quality carbon fiber, molded through high pressure and temperature autoclave technology; it's a mix of unidirectional and bidirectional fibers layered to obtain the best stiffness/weight ratio possible. The use of best materials and technologies with the great manufacturer experience allows a perfect compaction and a great resistance. The clamping zone is wide (about 15 cm) with minimal differences in tube thickness, this help the seatpost job so the result is a structure that works in harmonious way without weakness with a great reliability.

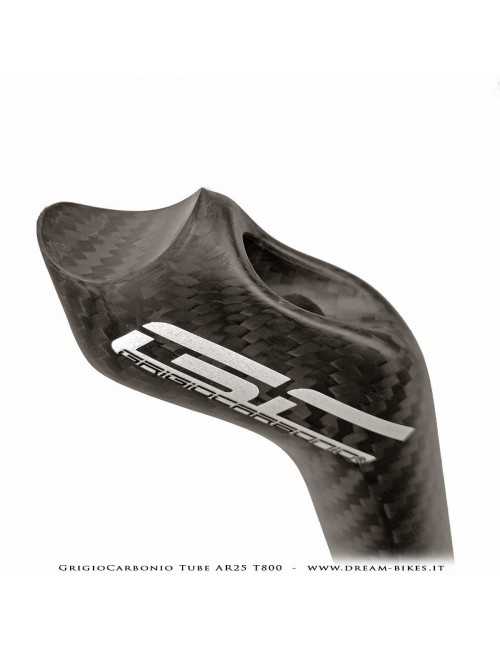

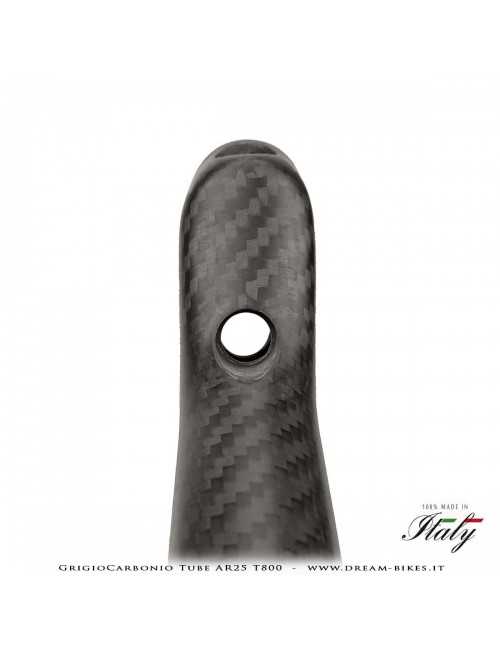

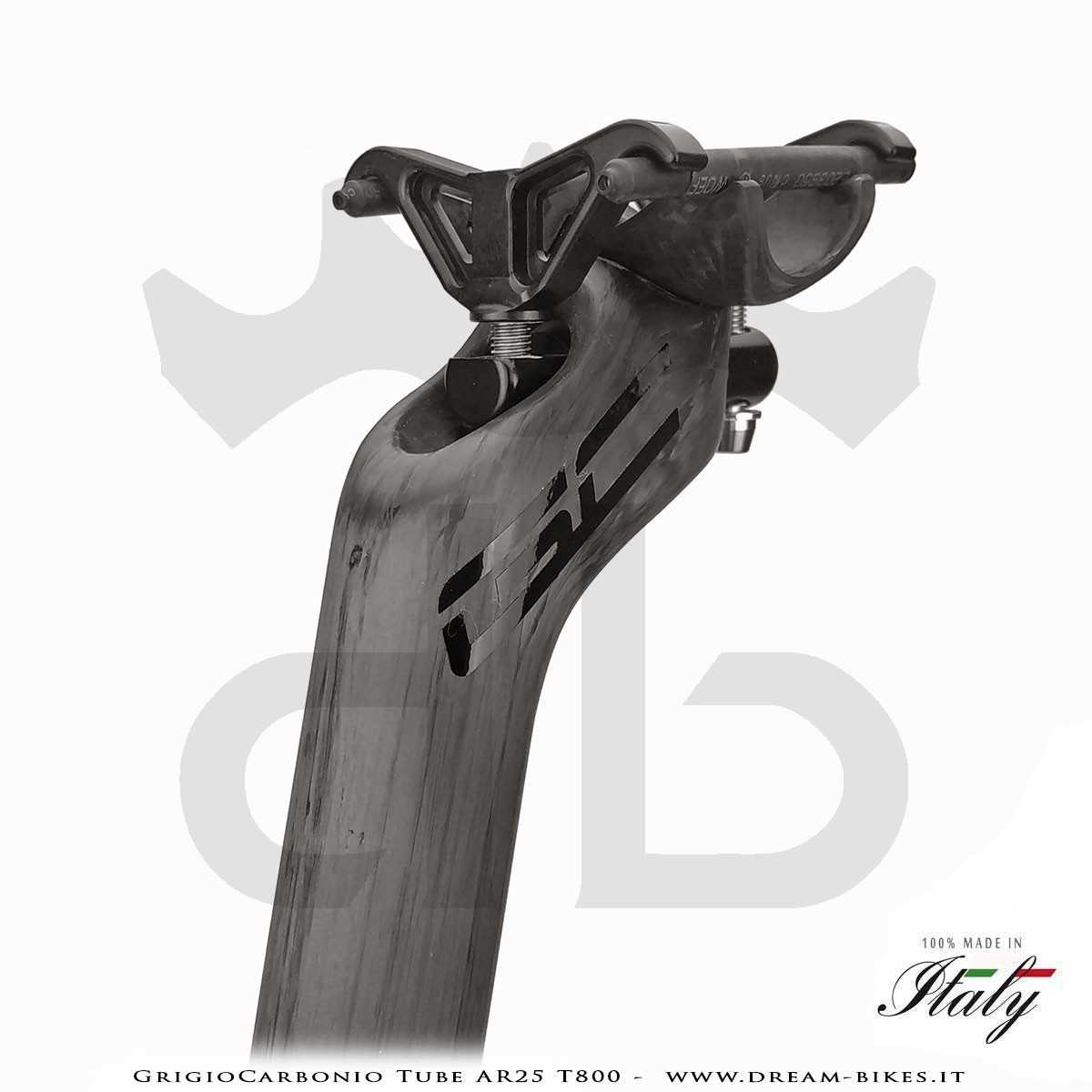

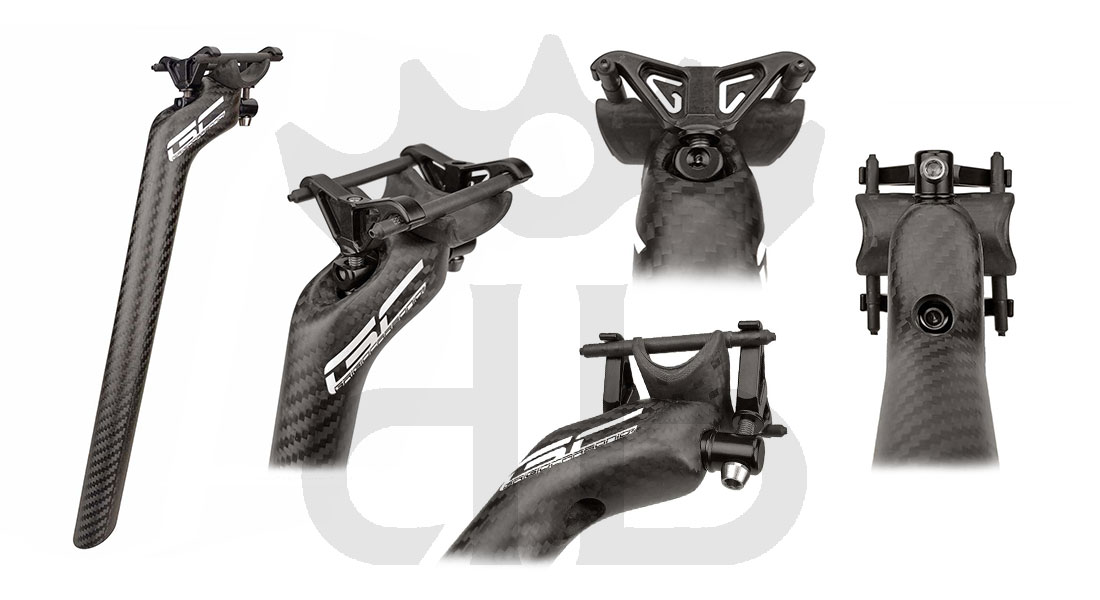

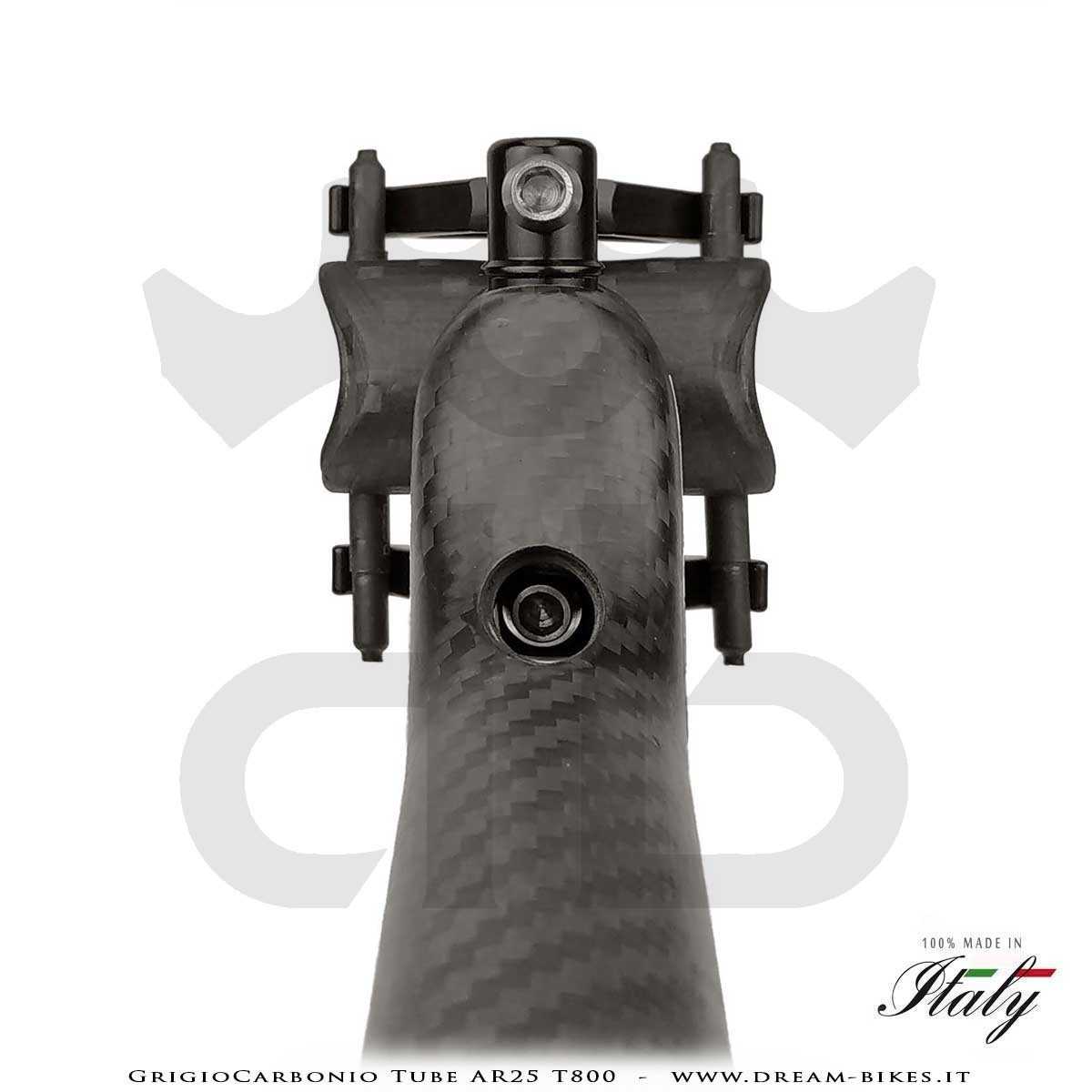

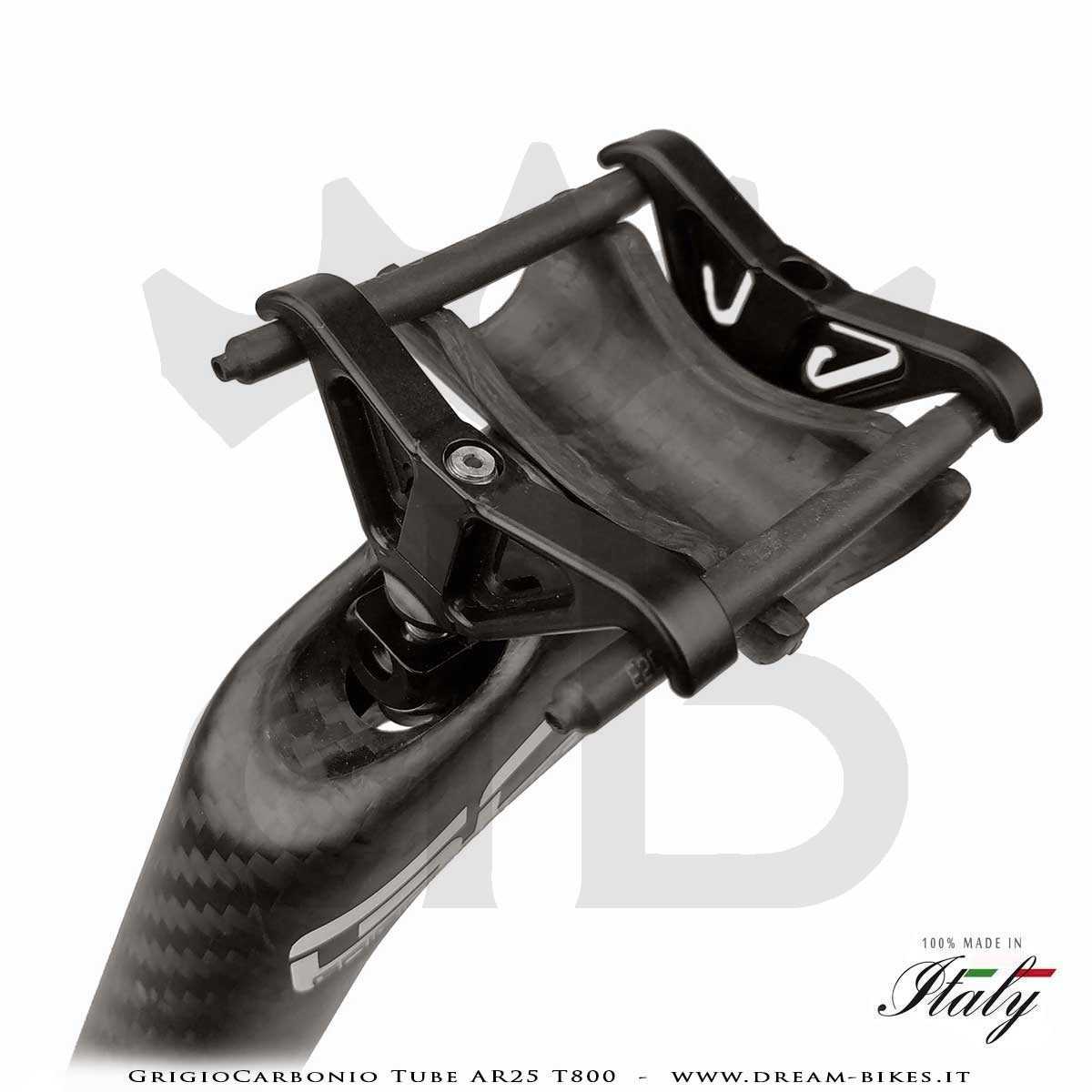

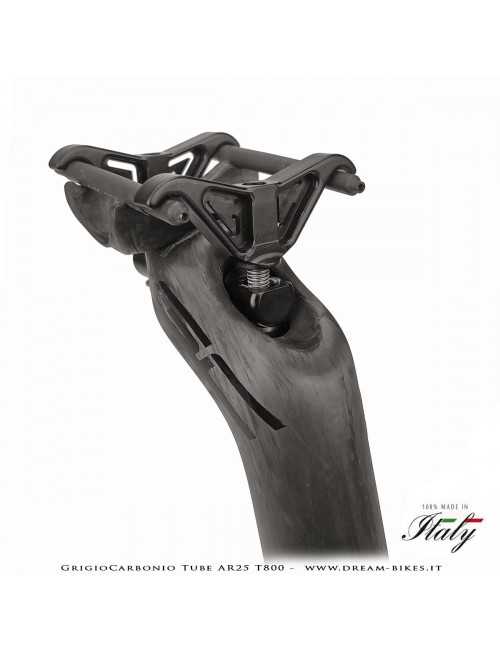

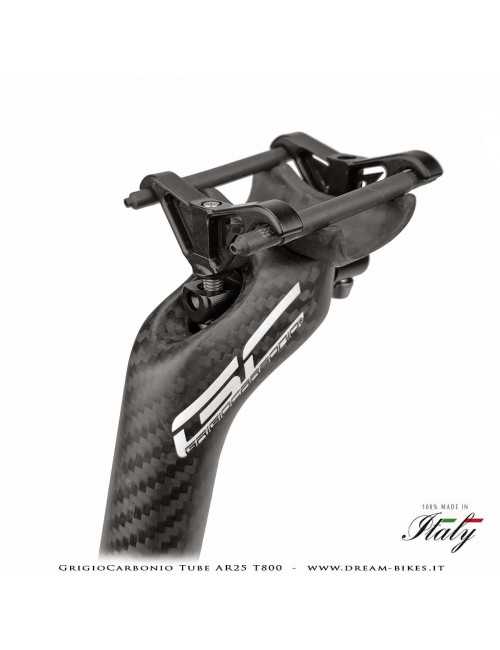

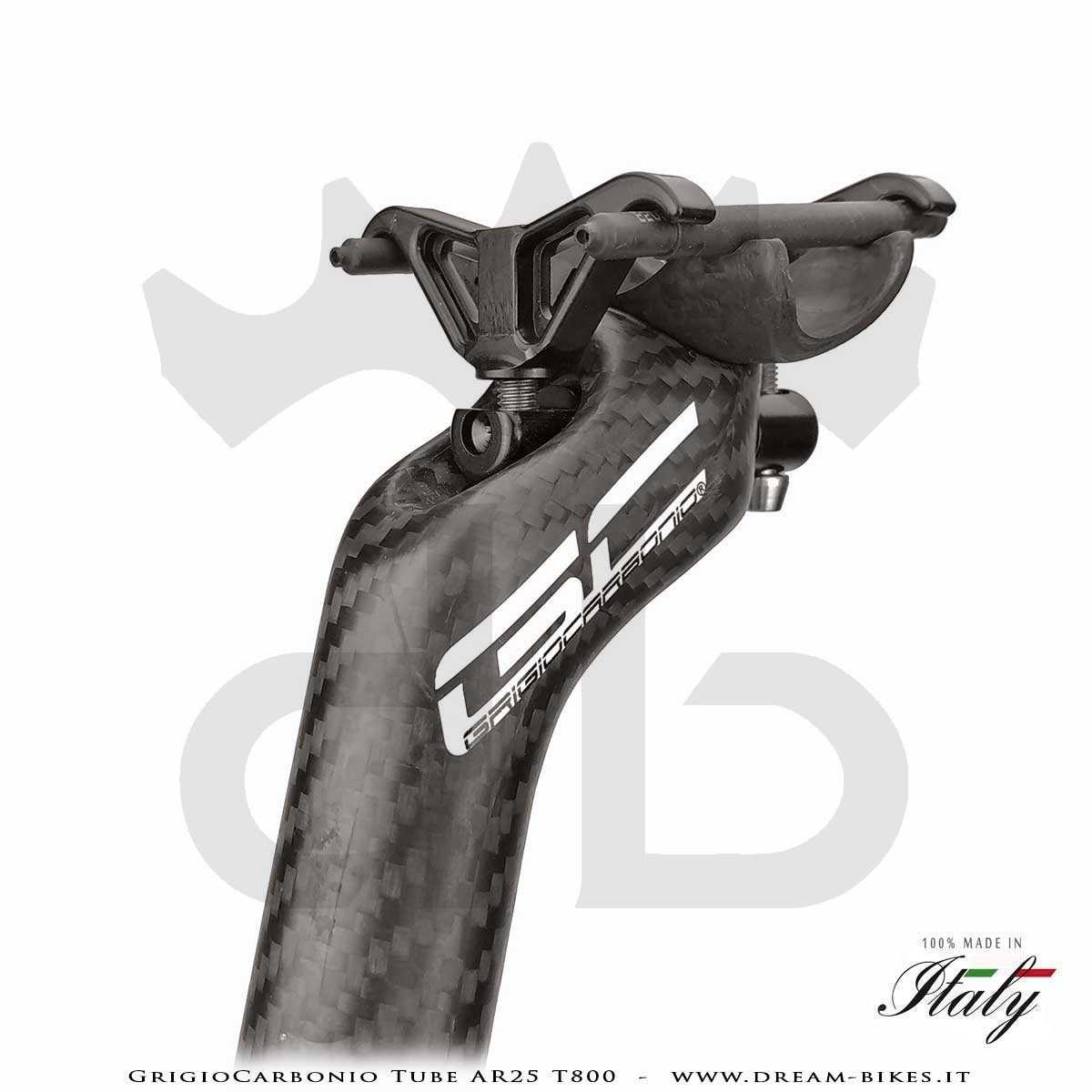

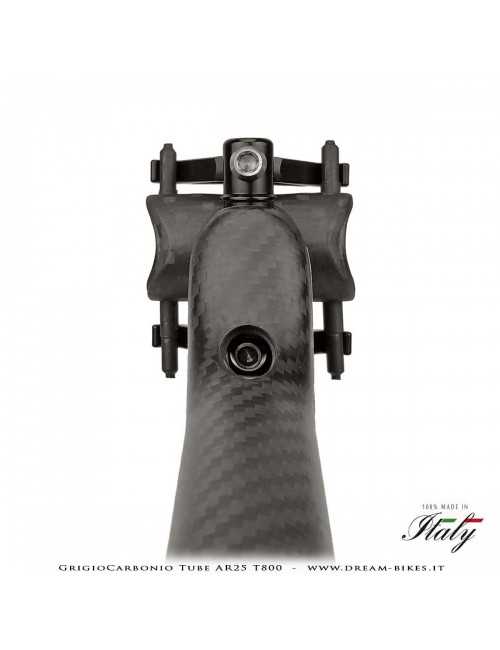

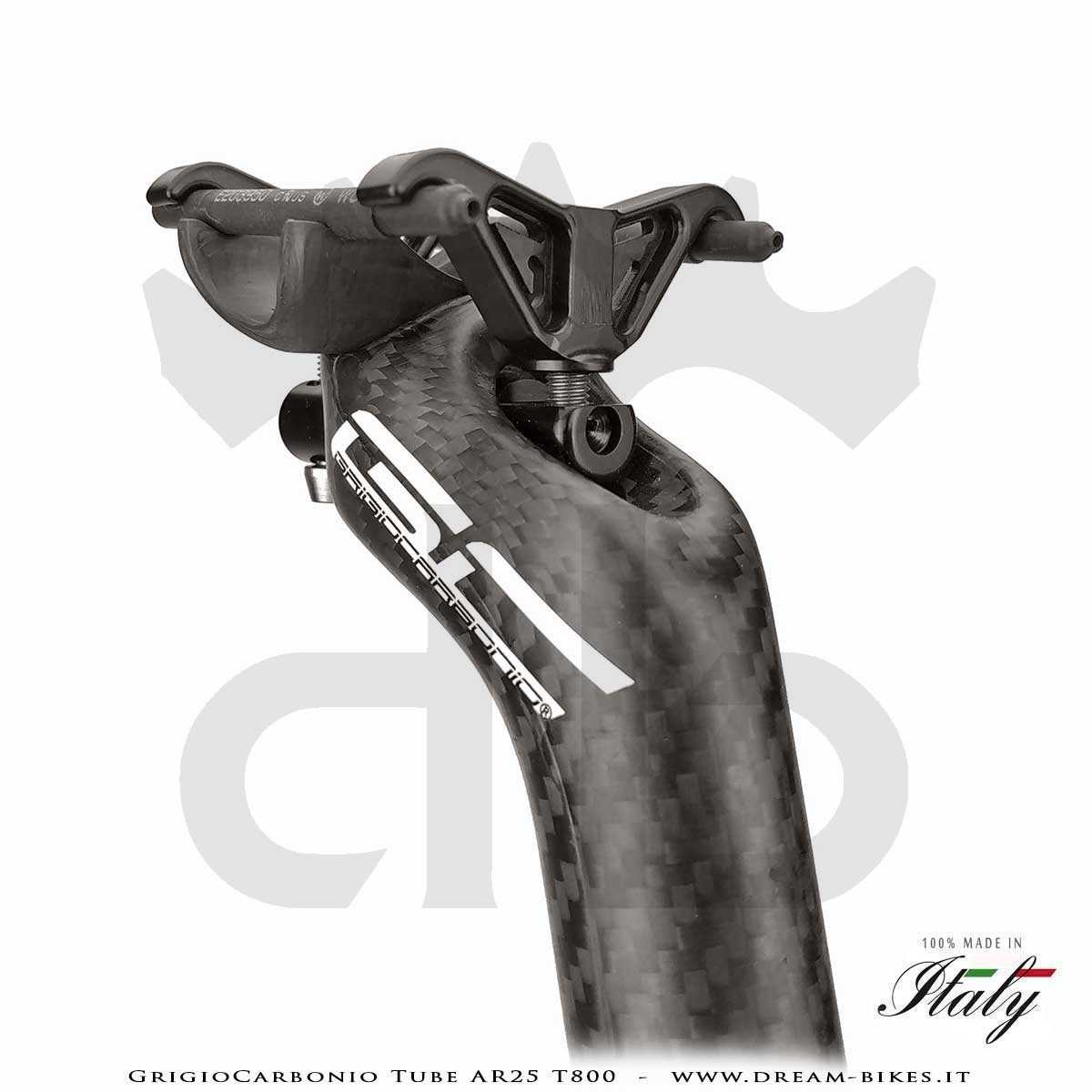

The seatpost design is unique in the bicycle market and is very smart because allows a simple saddle fixing and regulation and a great reliability/safety. Seatpost yokes are fixed with two opposed bolts which works on a central pivot as in most of vertical light seatposts. This kind of fixing system distributes the load over a larger surface avoiding load concentration points with no bolts that works directly on the carbon fiber. You can easily adjust the saddle angle with an hex wrench, and also the front bolt is very easy to access. The tube head is closed and this allows a better seatpost cradle seating with a greater contact surface and avoid dirt infiltration. This tube is a little technology masterpiece!

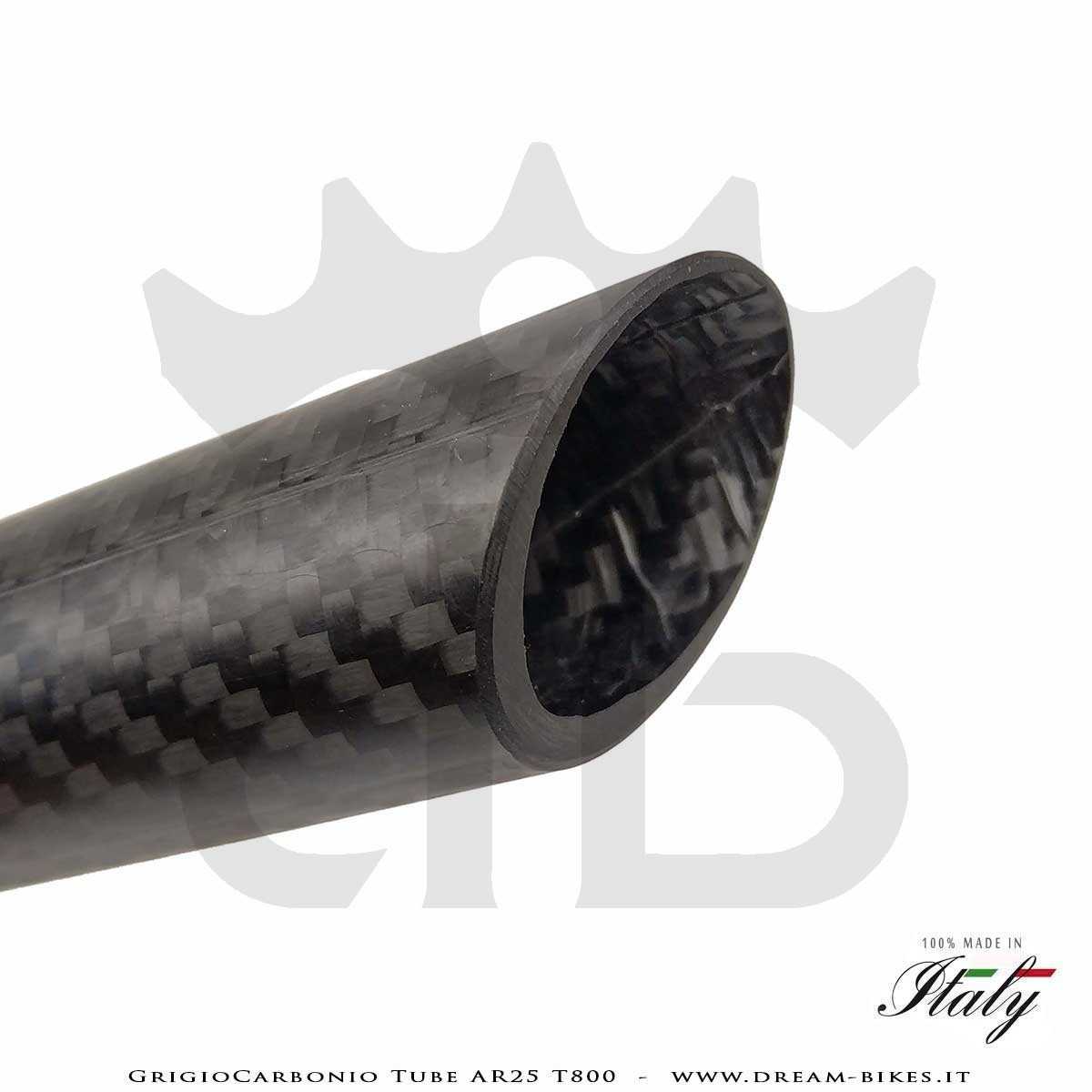

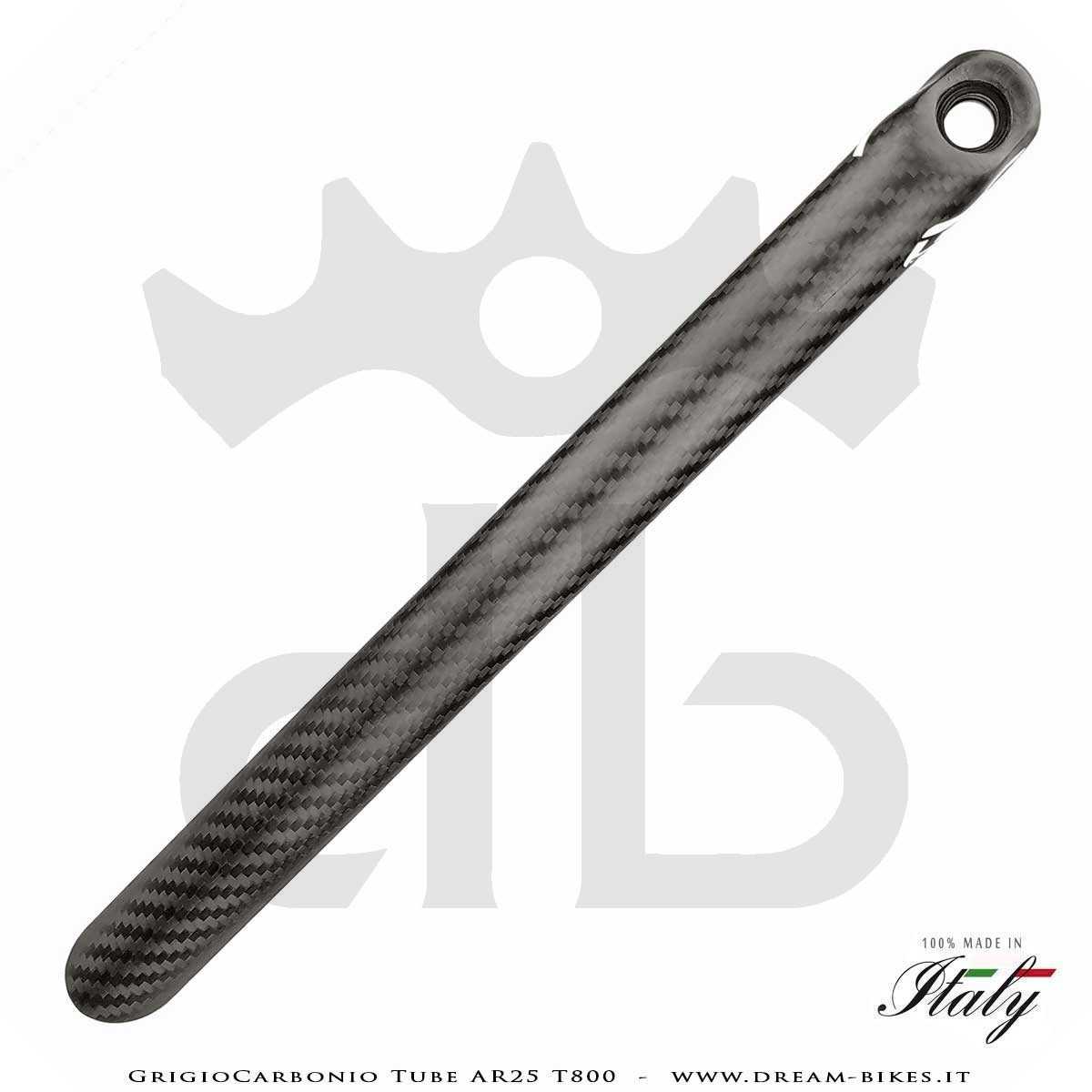

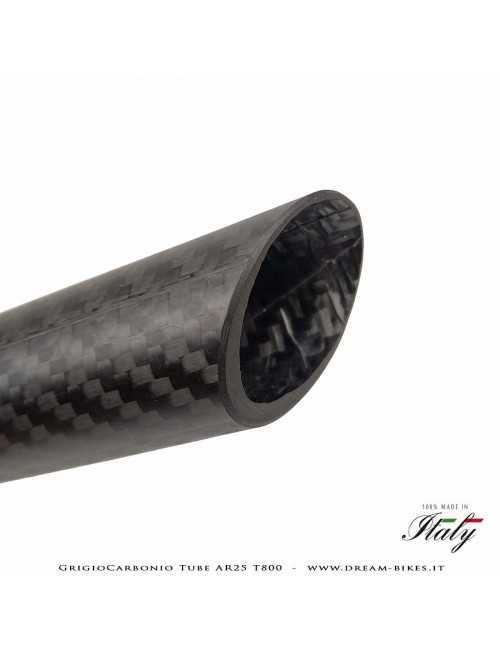

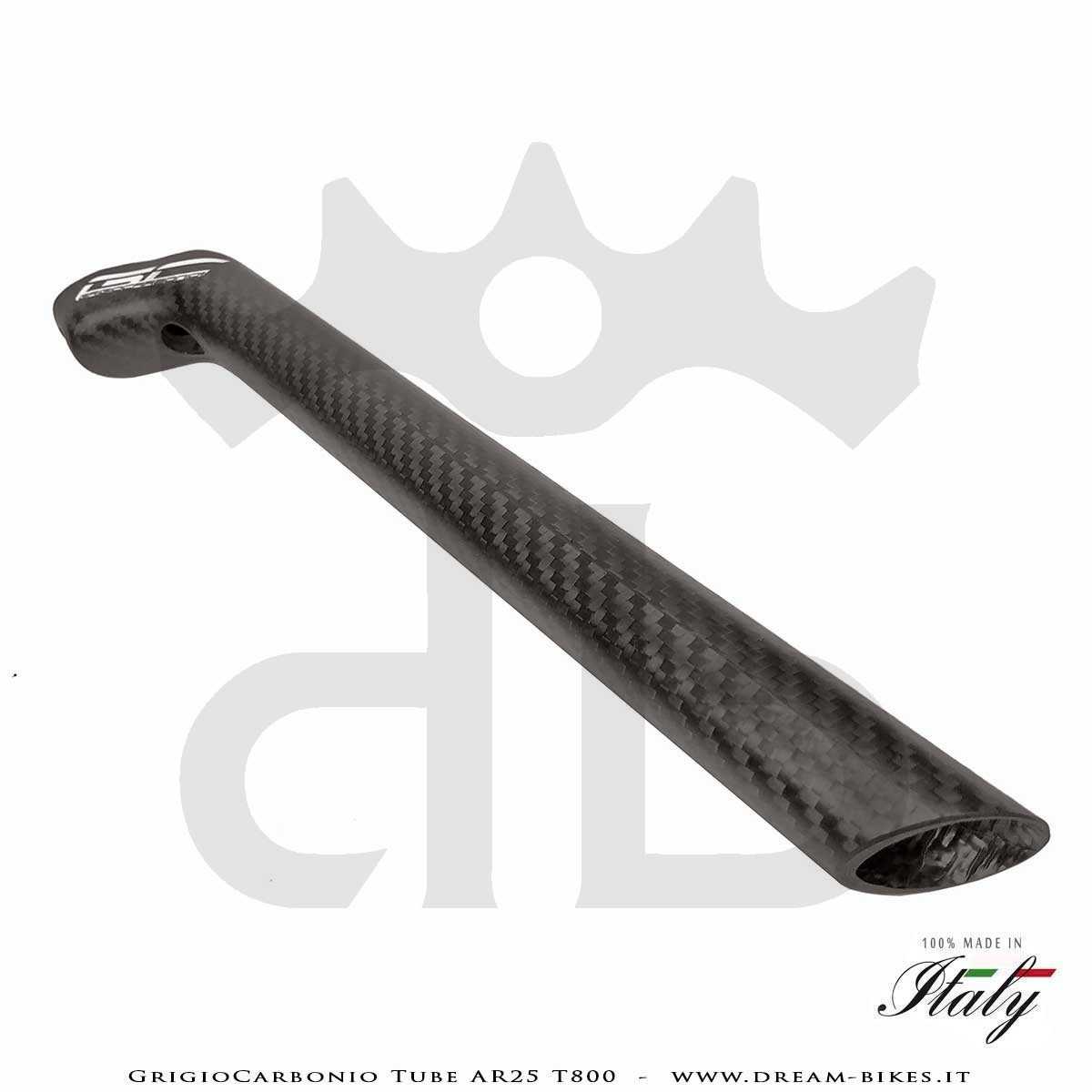

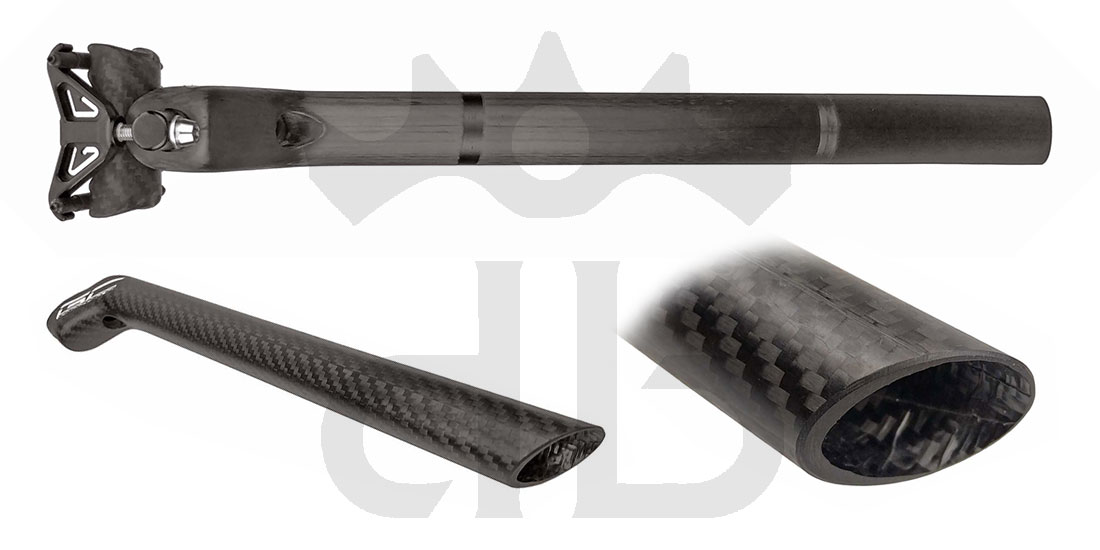

The minimum seatpost tube insertion is about 10 cm, the lower end of the tube is angled cutted to optimize the weight.

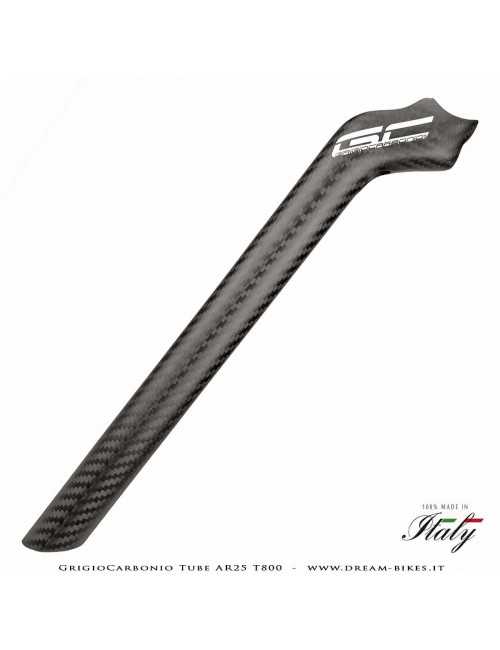

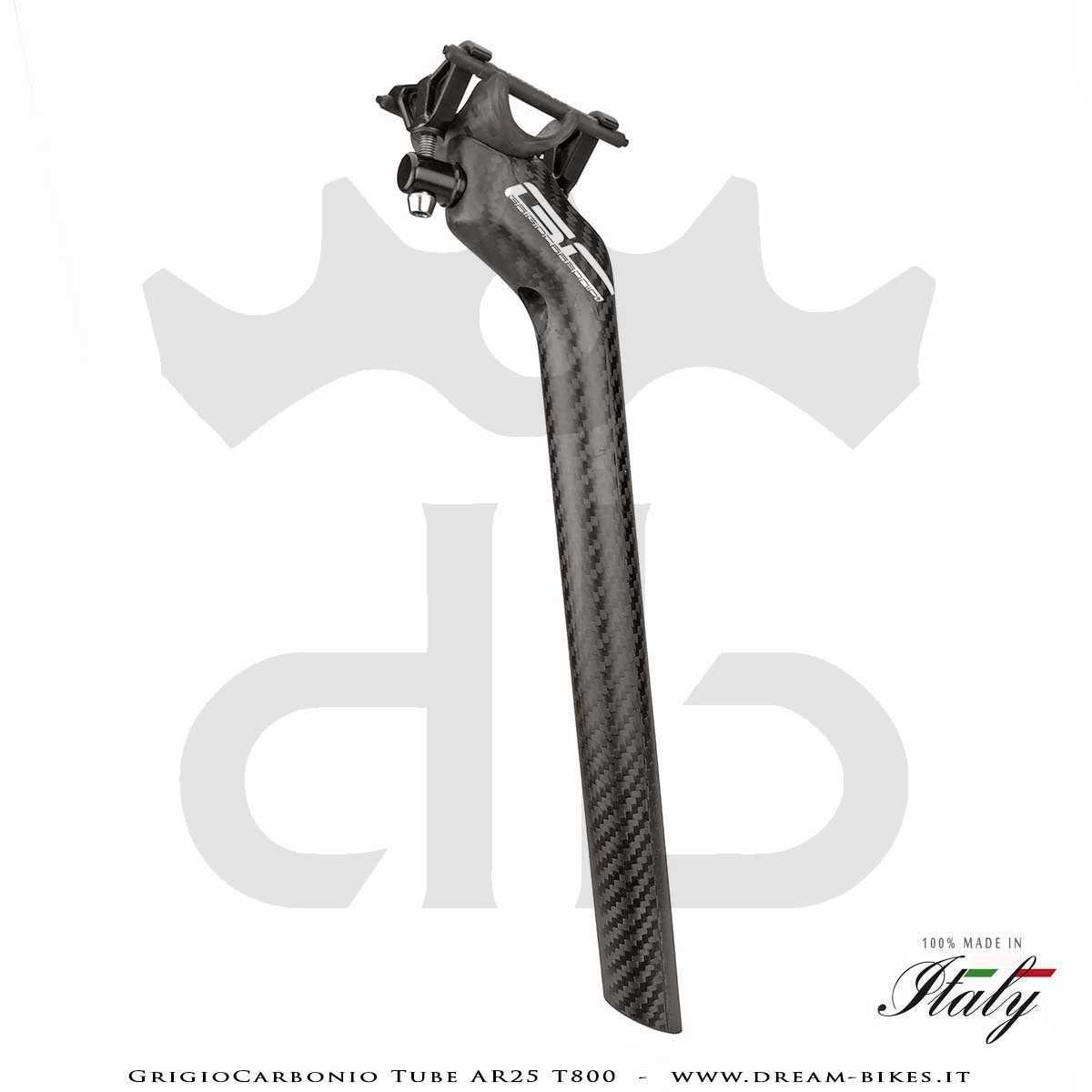

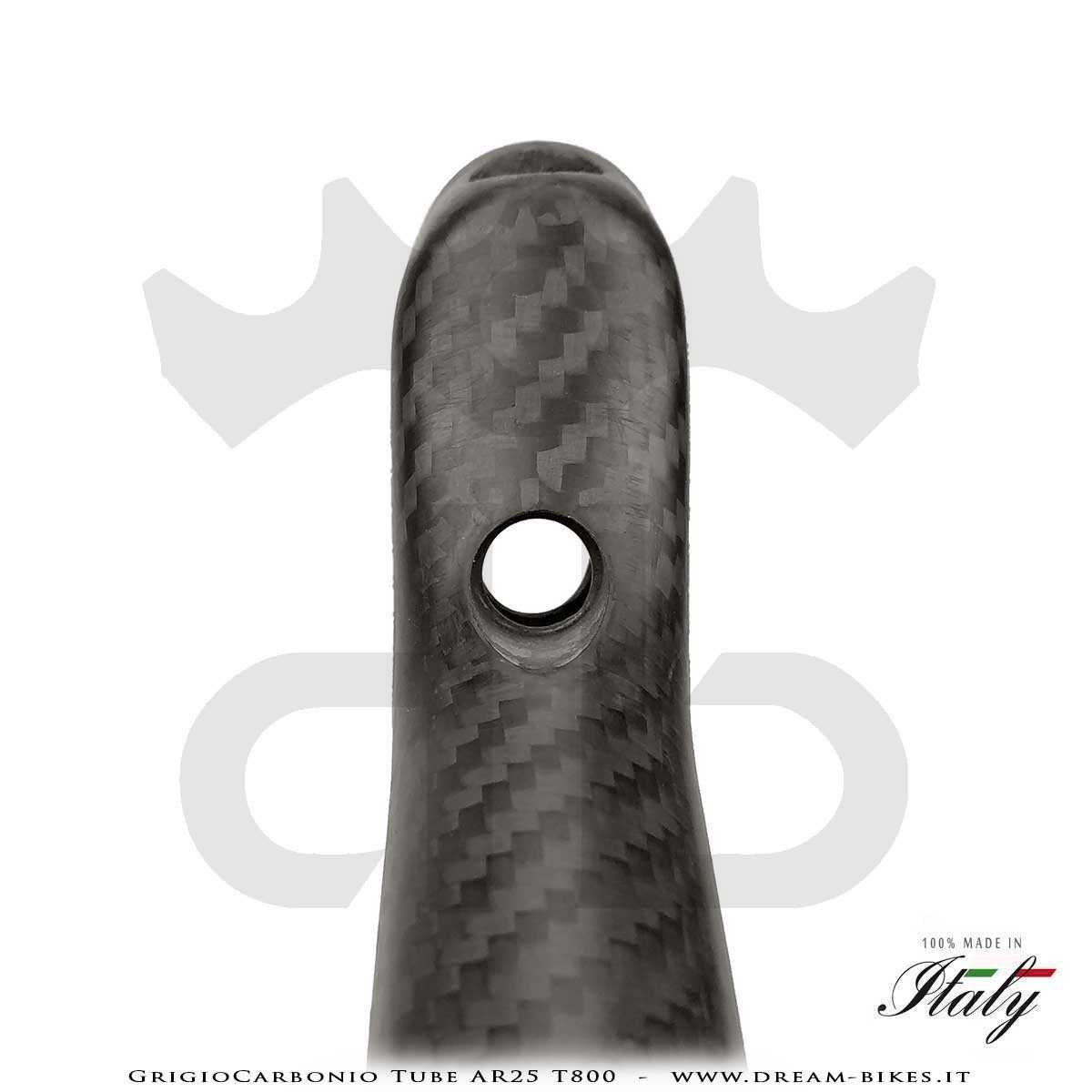

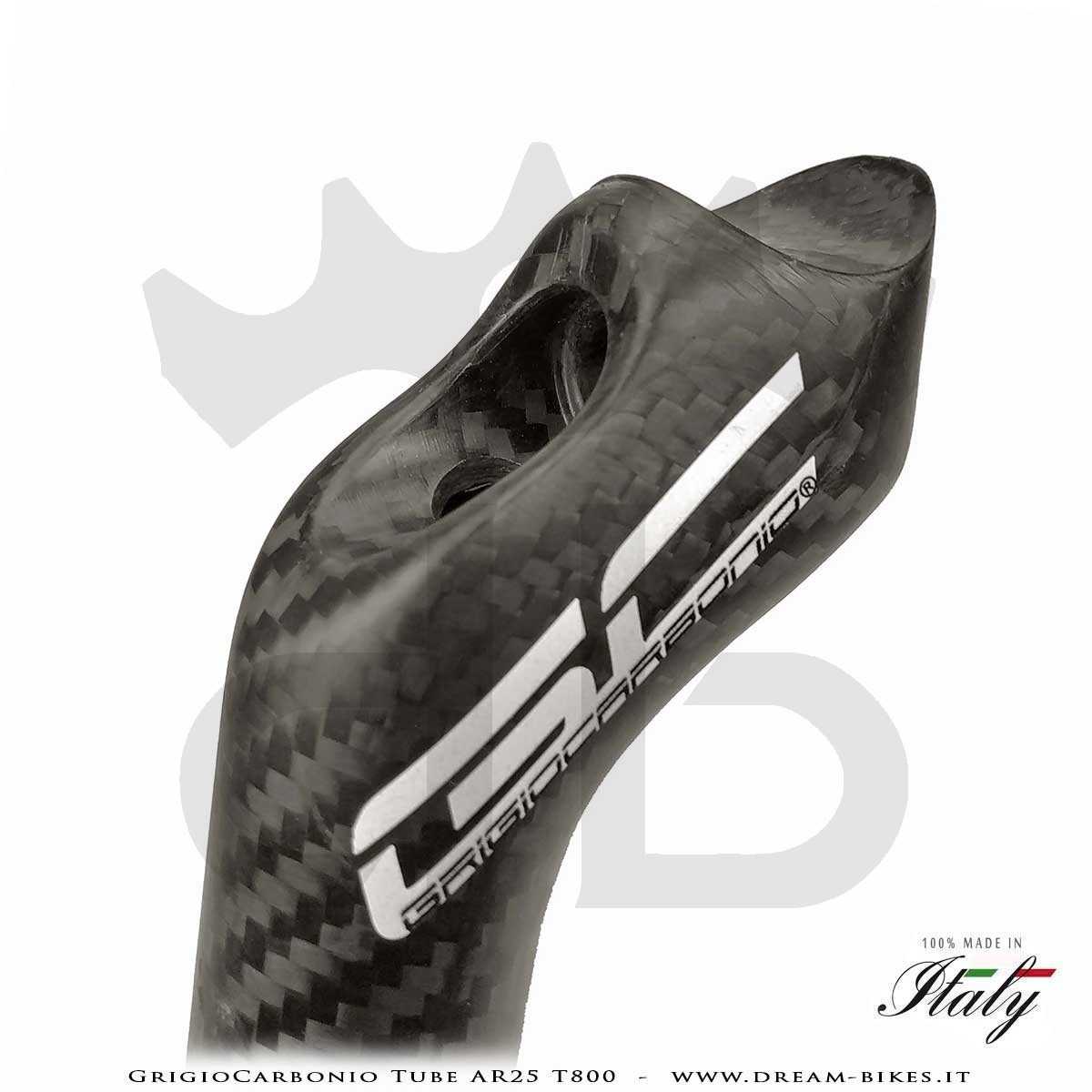

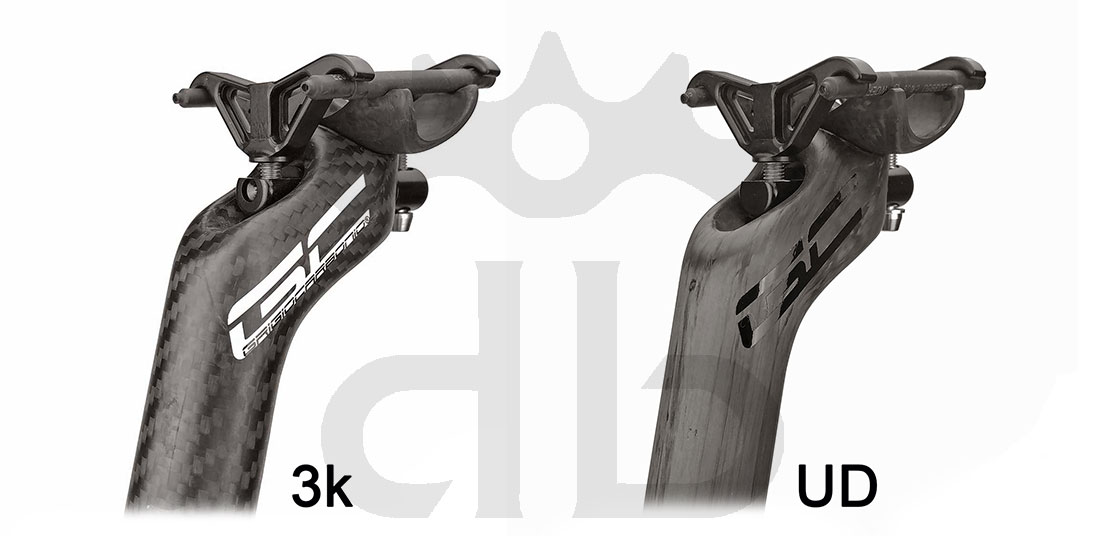

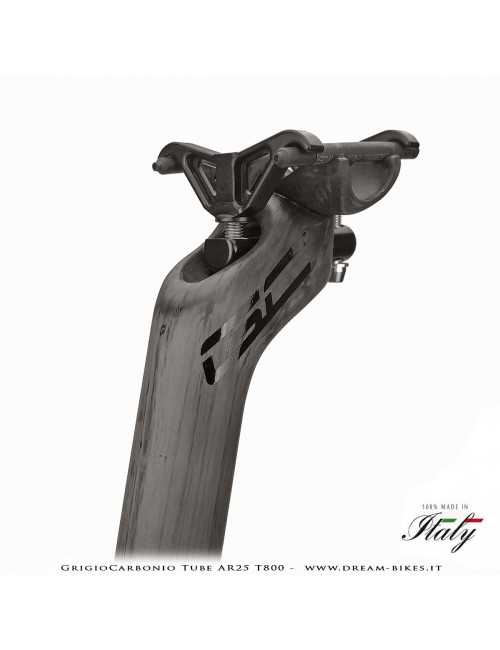

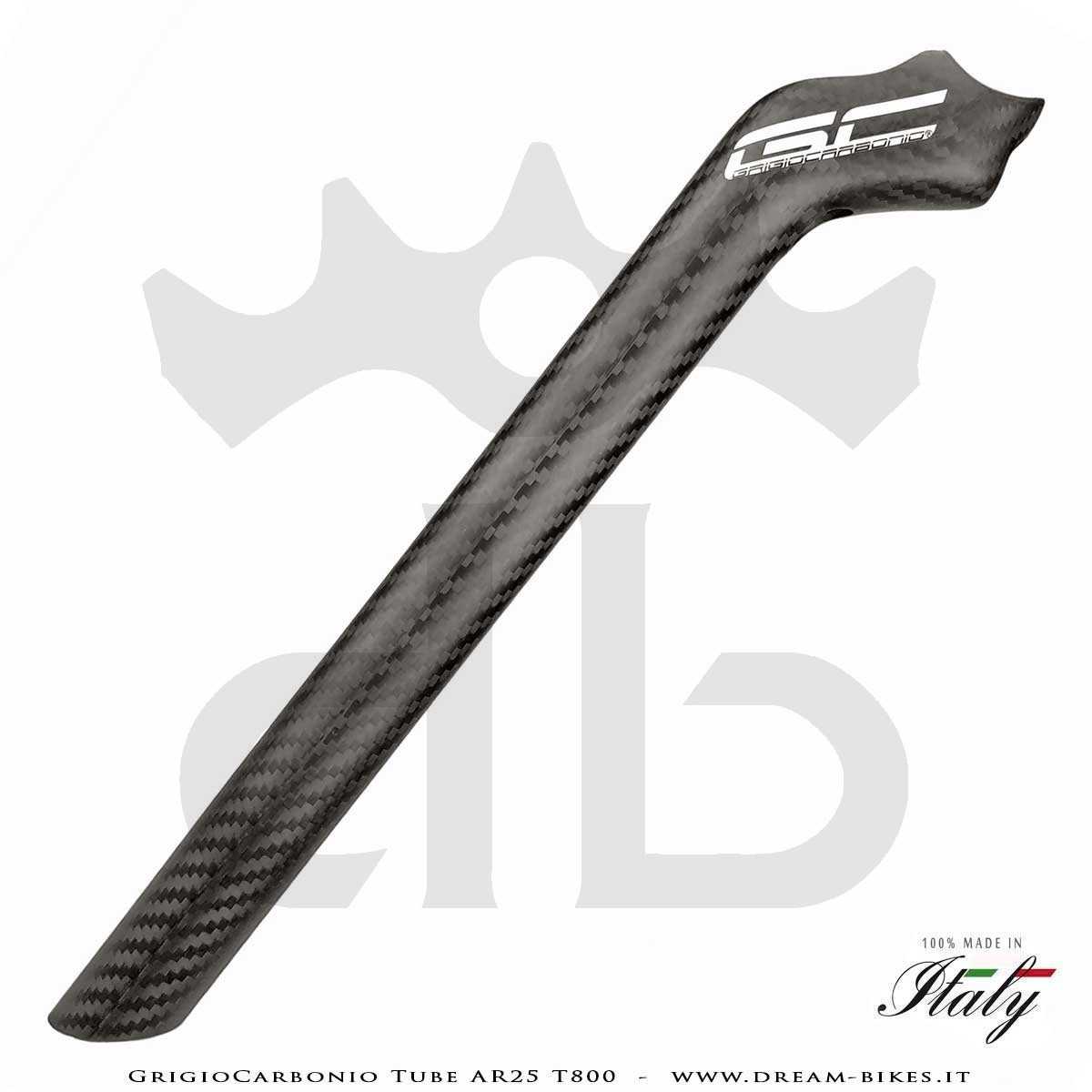

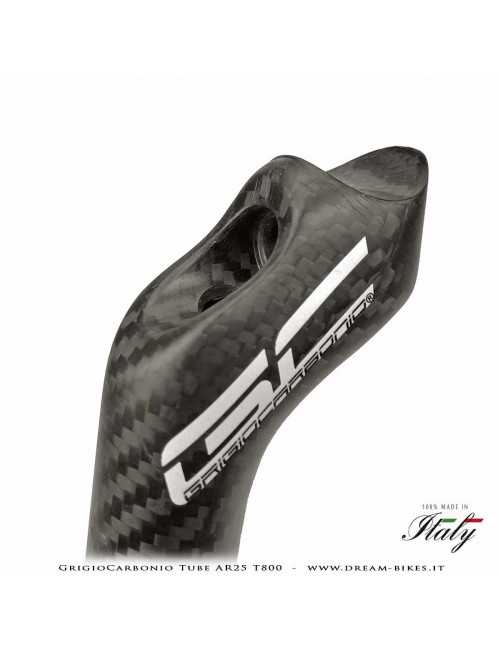

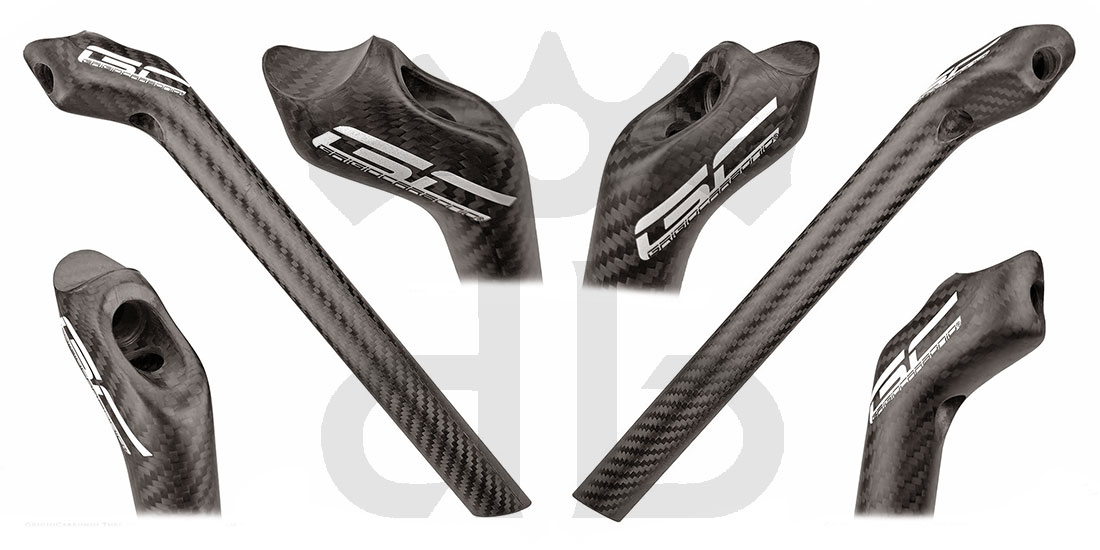

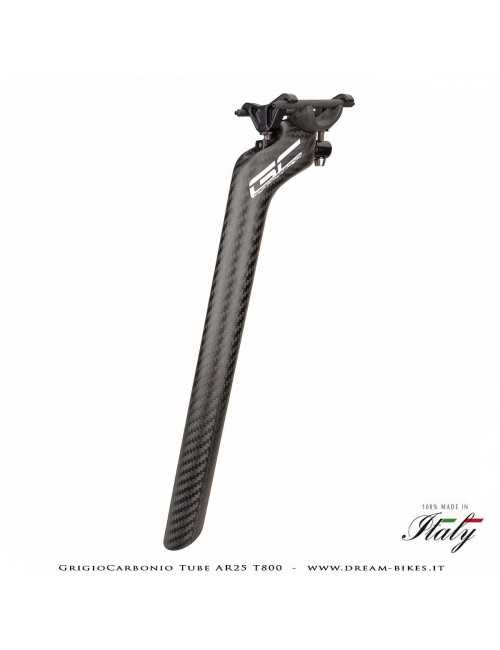

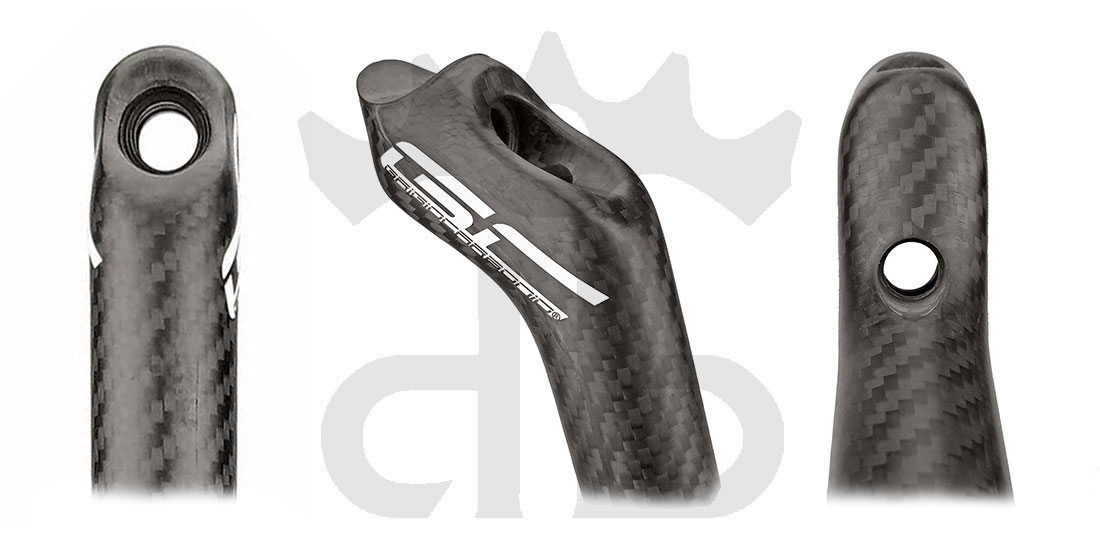

Main tube could be made with the final layer in 3k Twill or UD Unidirectional fabric, with matte or glossy finishing both. The tube is unpainted, there's a finishing made with a strong resin very difficult to damage. Graphics are sticker type, they are made of 3M high quality vinyl in many colors (please specify which color do you prefer through order notes or by e-mail) and can be easily removed and replaced.

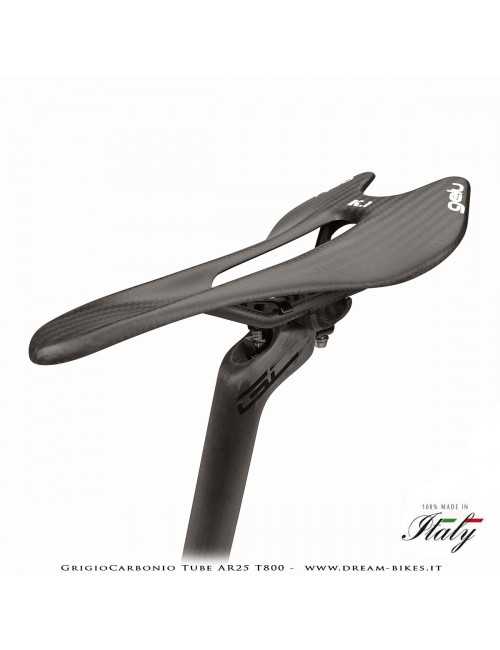

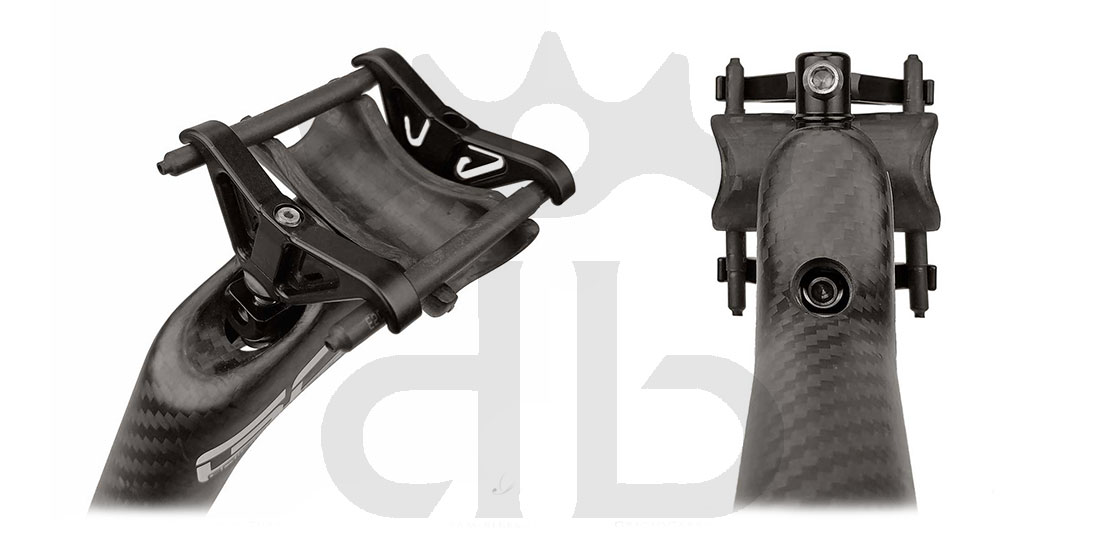

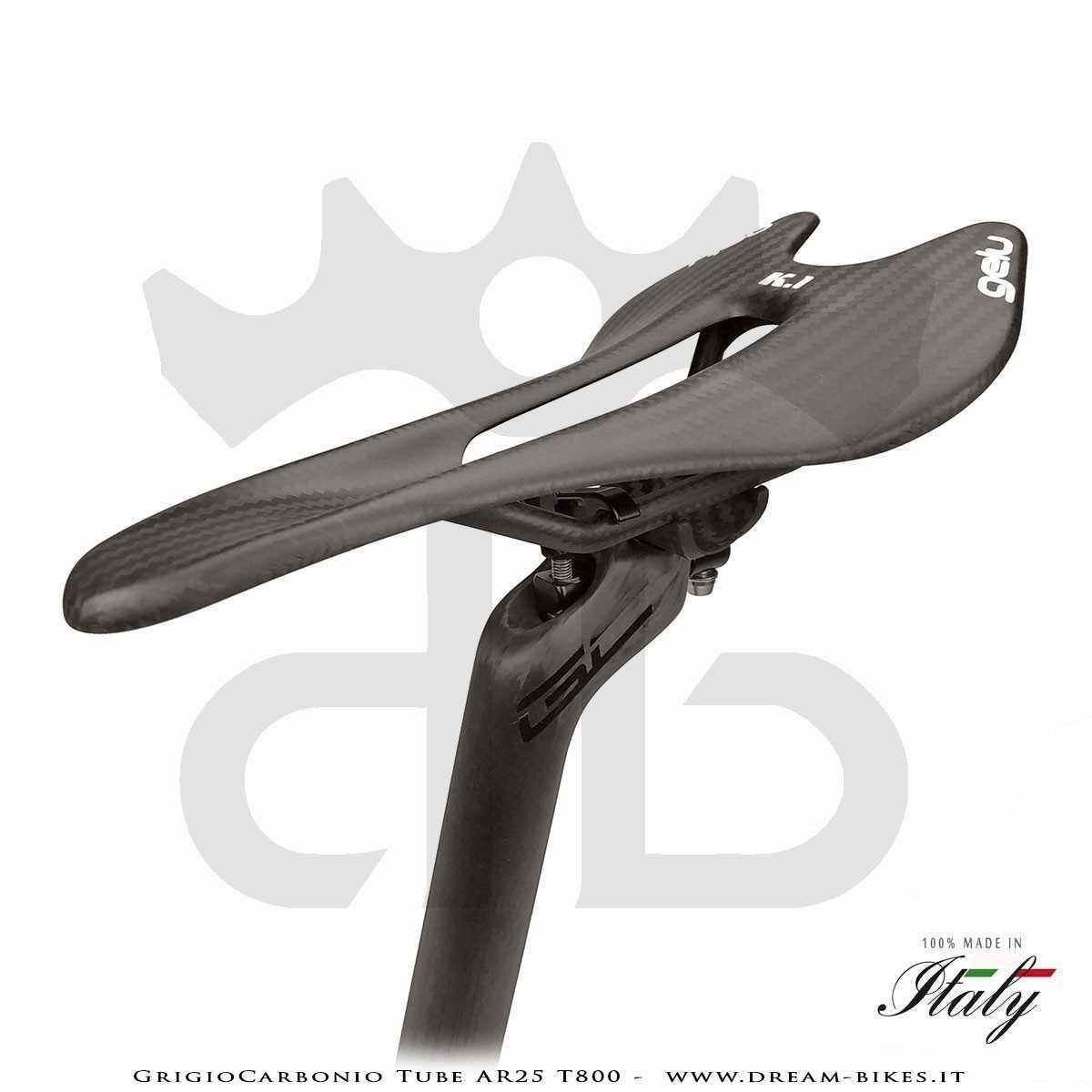

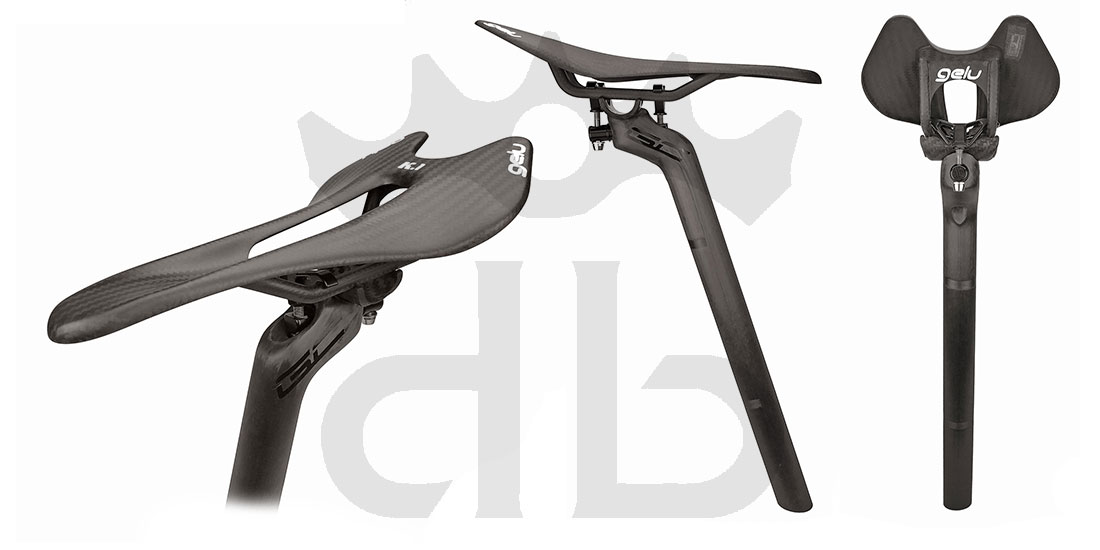

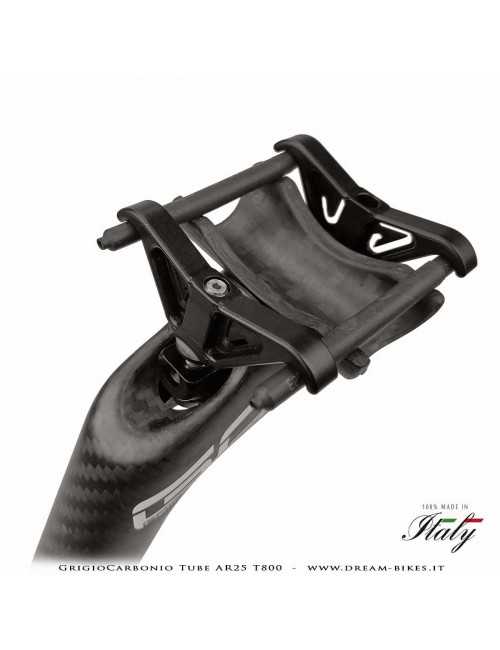

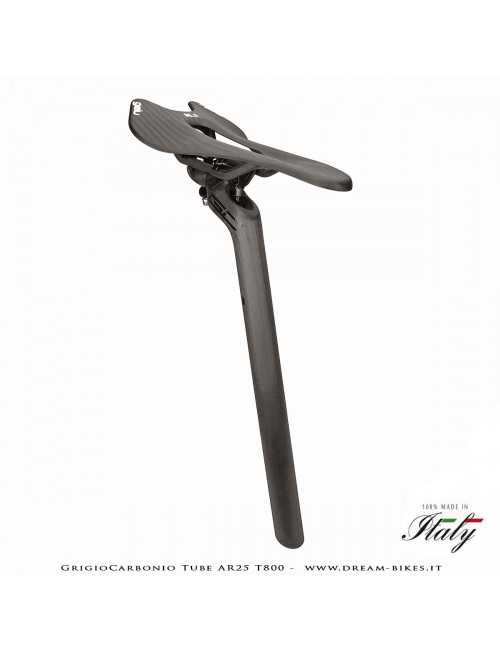

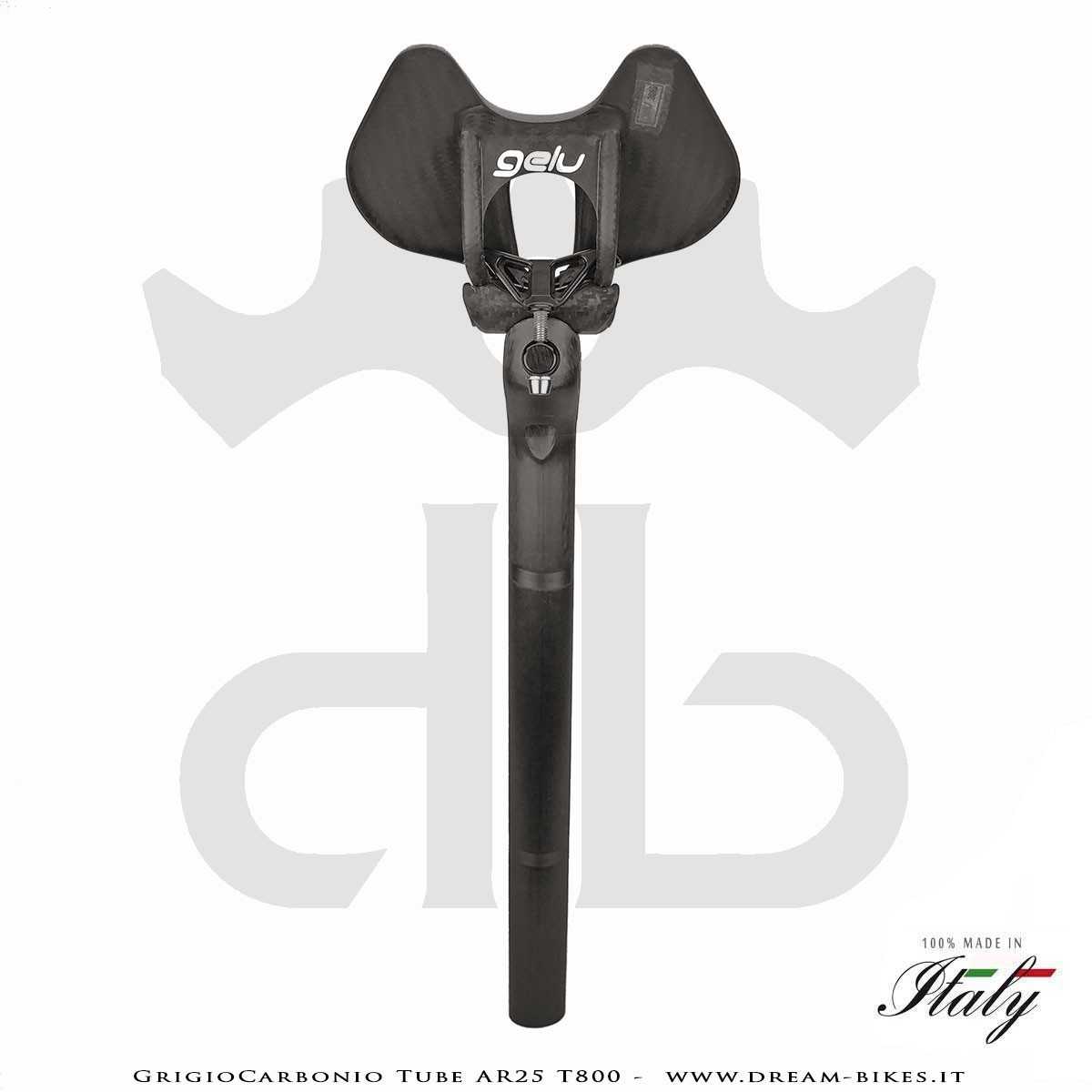

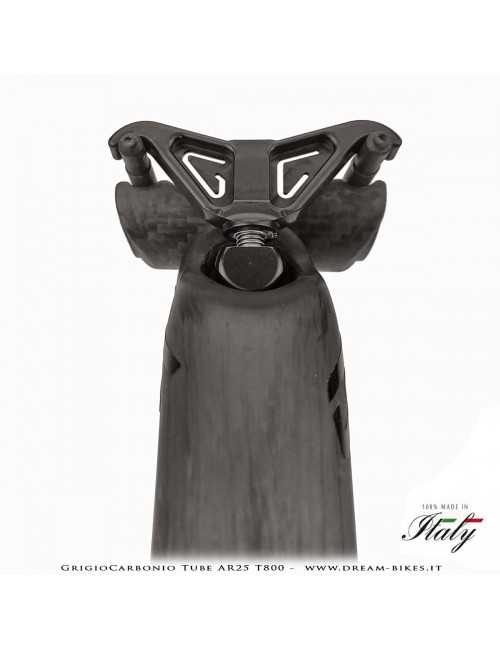

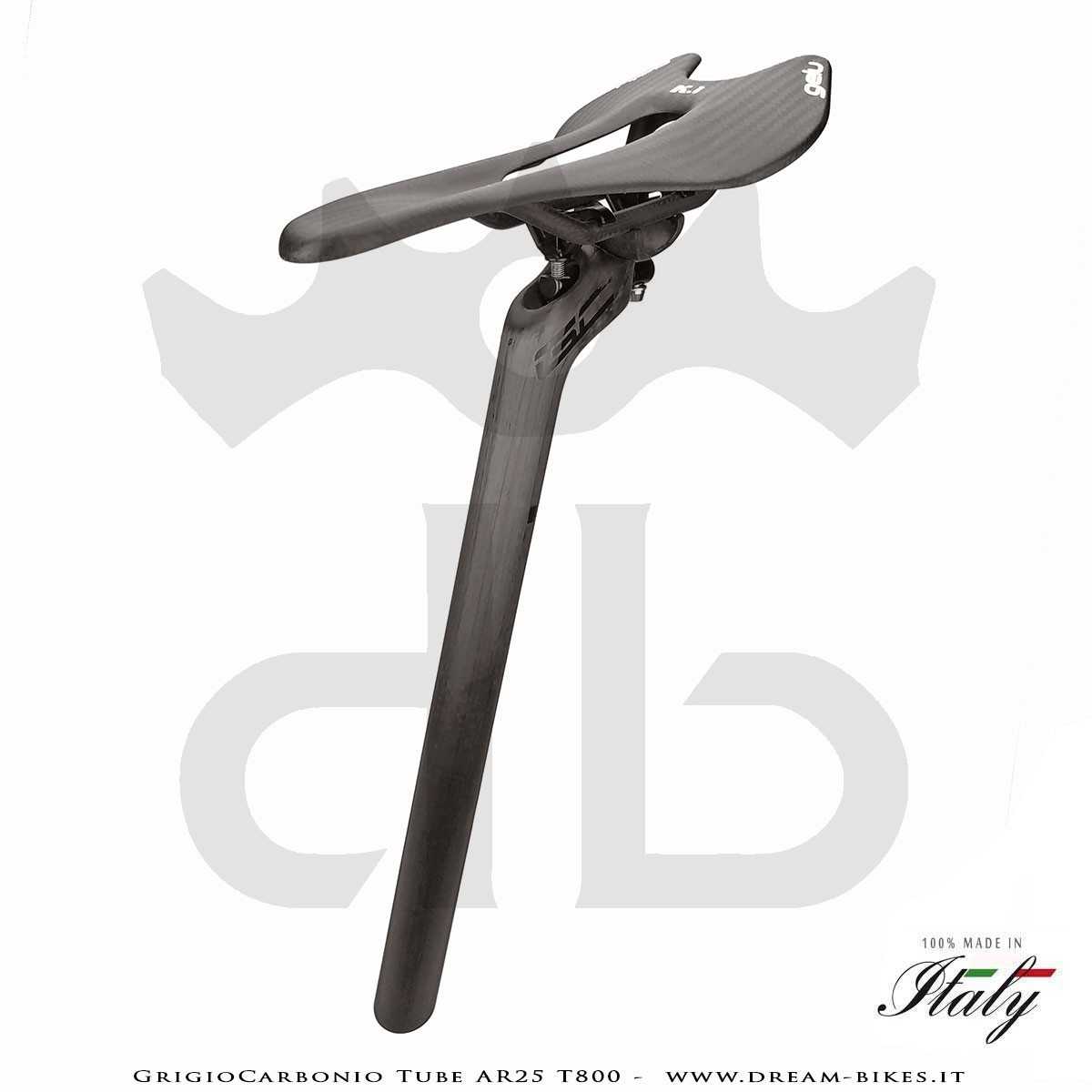

Also the seatpost cradle is made of T800 high quality carbon fiber, has got a simple but efficient design, compatible with round or oval shaped saddle rails both. Thanks to the wide and smooth supporting surface without sharp edges, the seatpost cradle is perfectly compatible also with carbon fiber rails saddles.

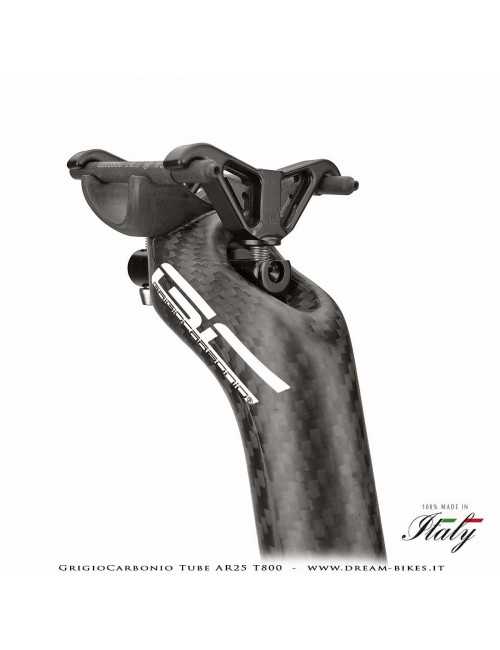

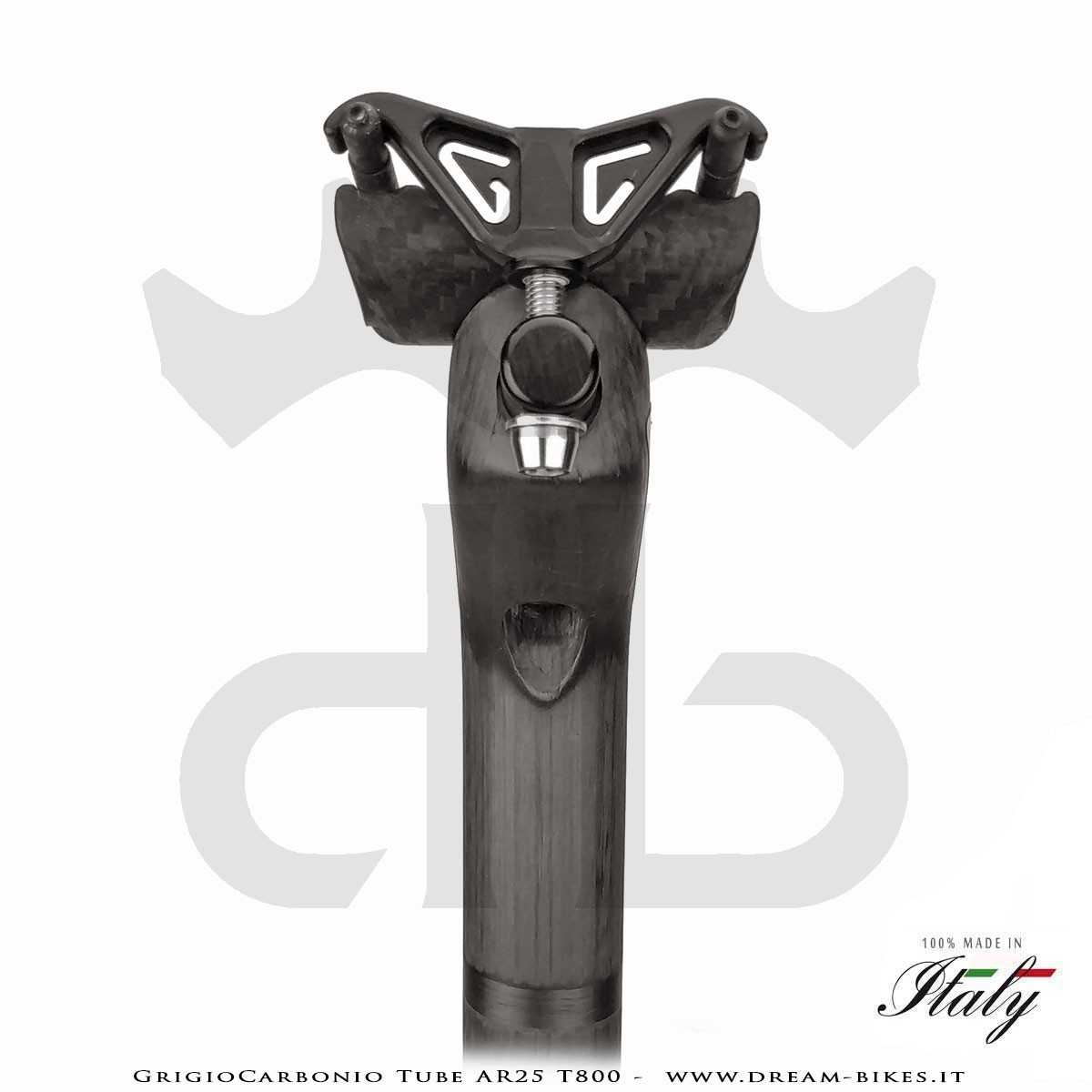

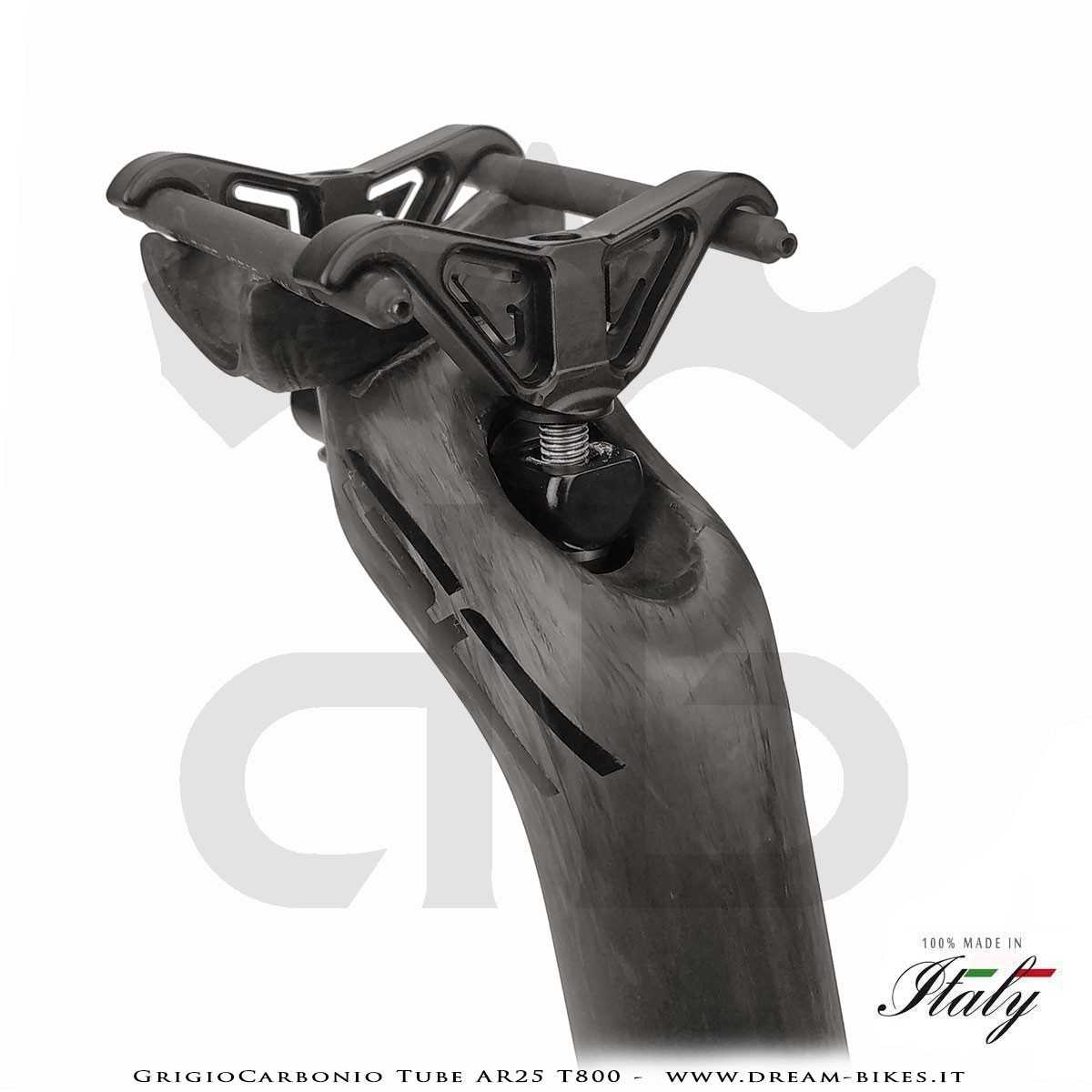

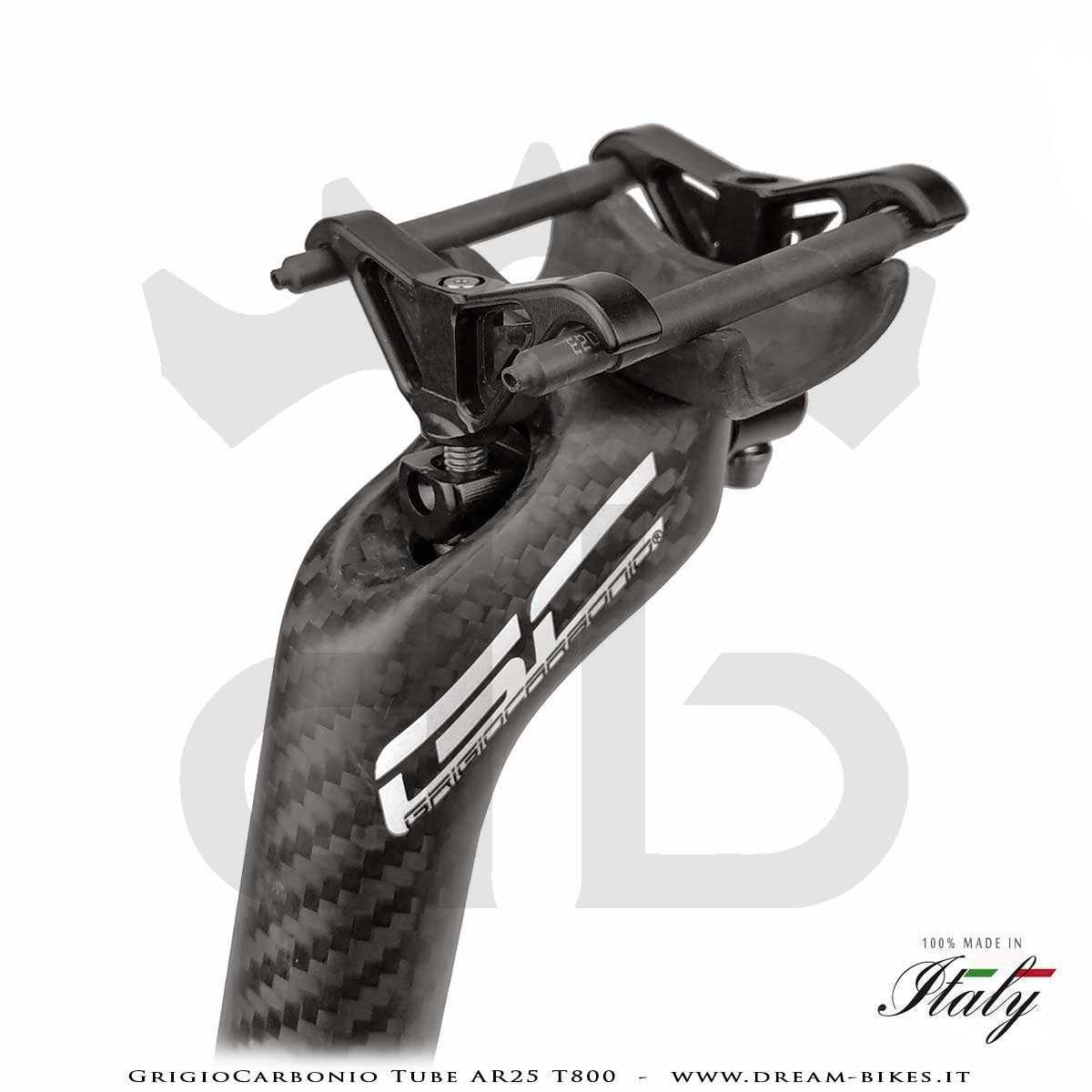

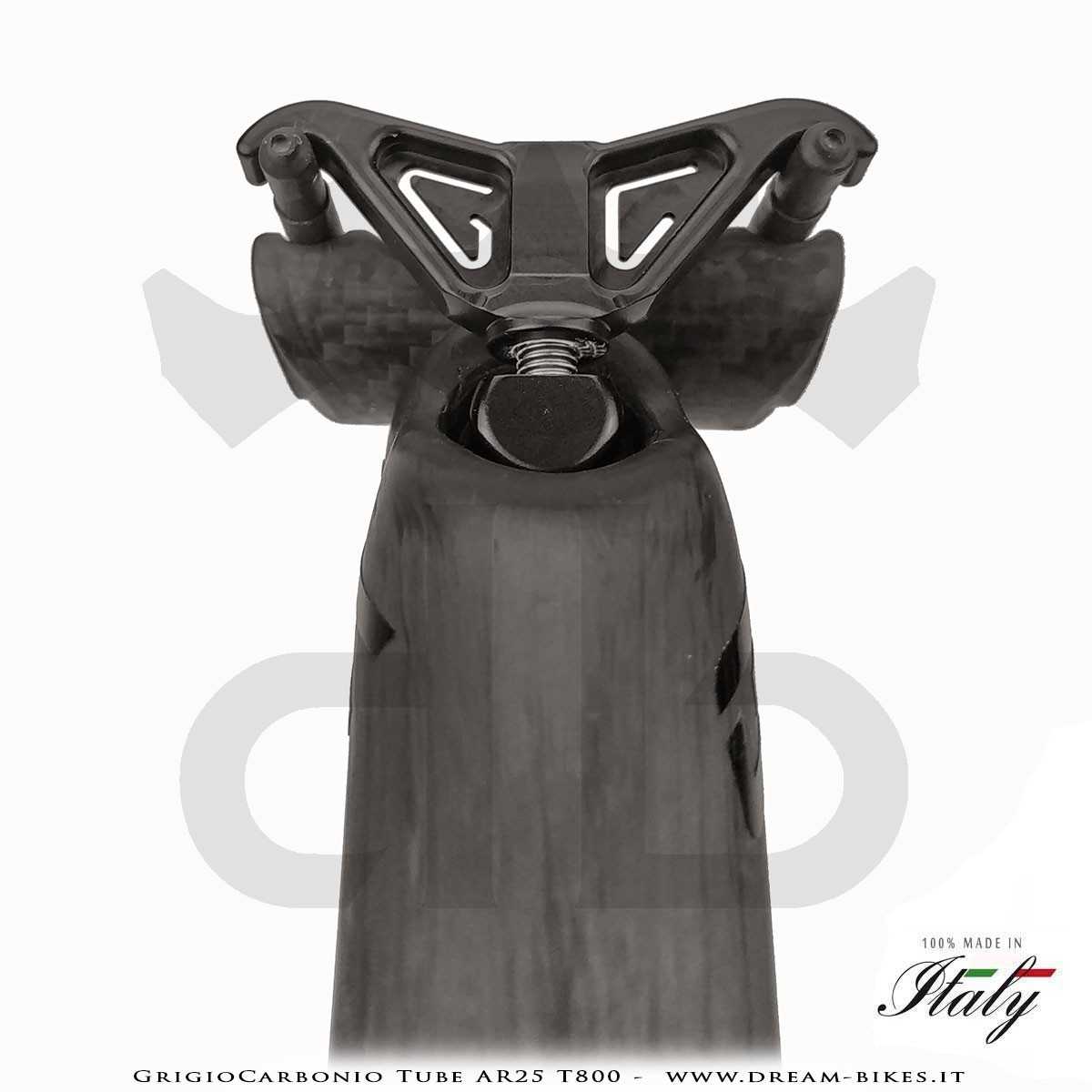

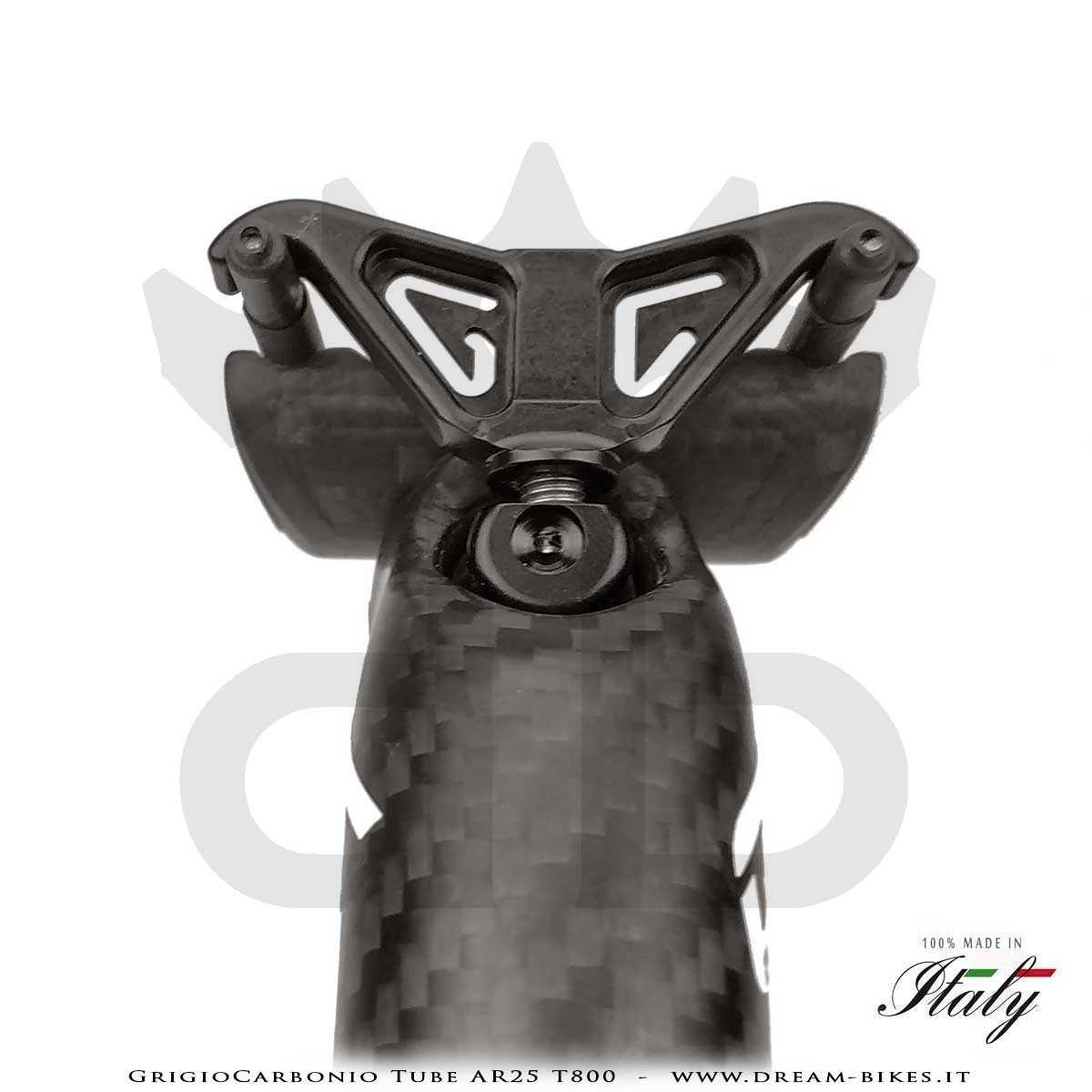

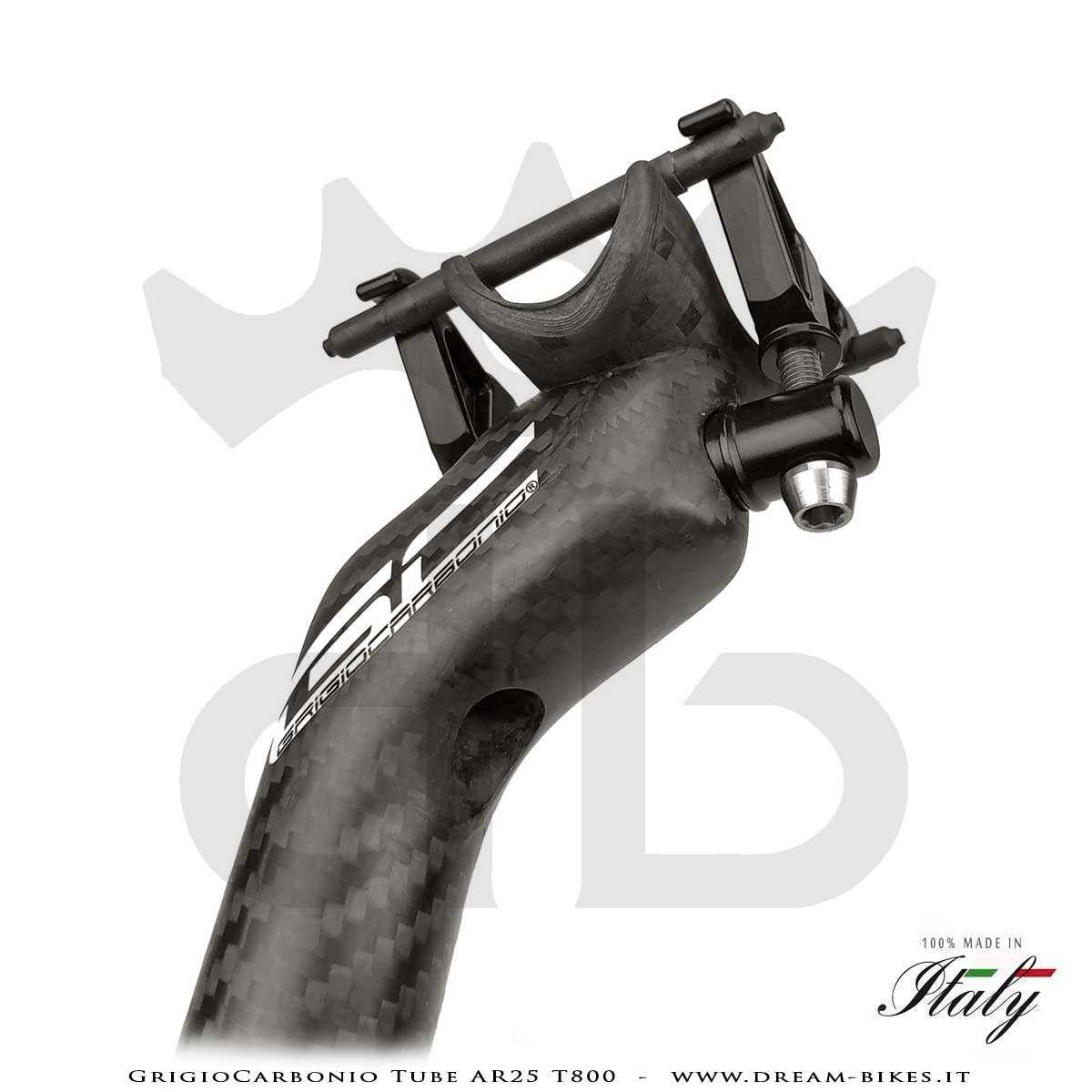

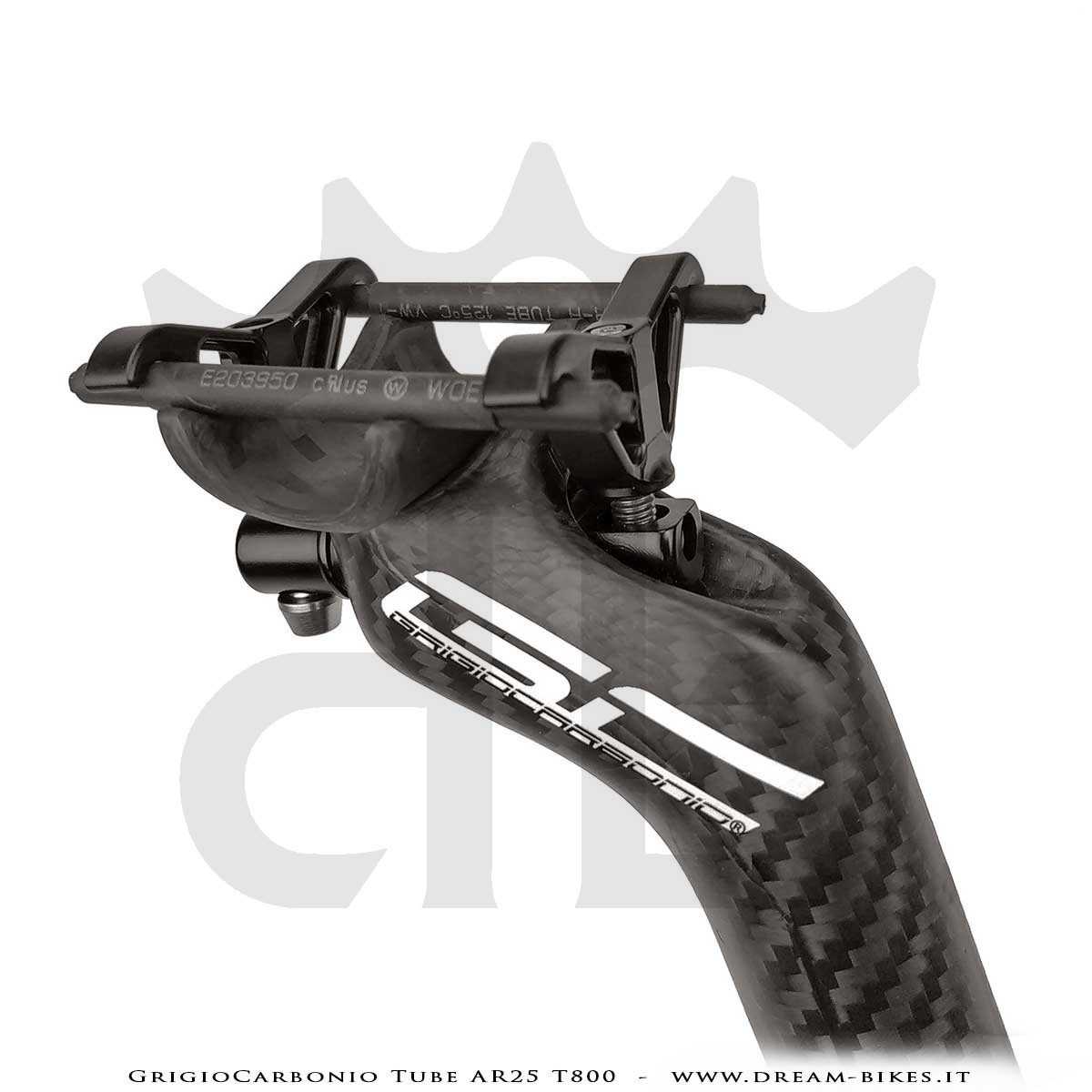

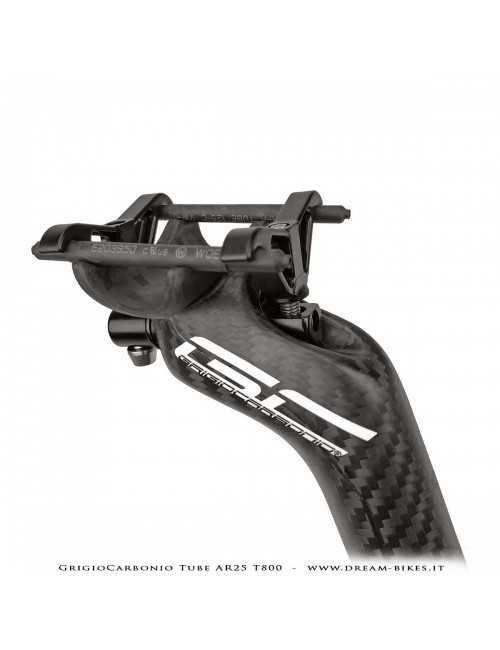

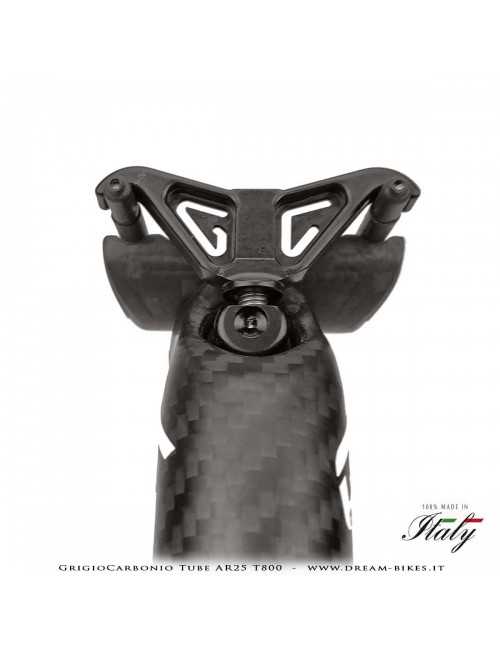

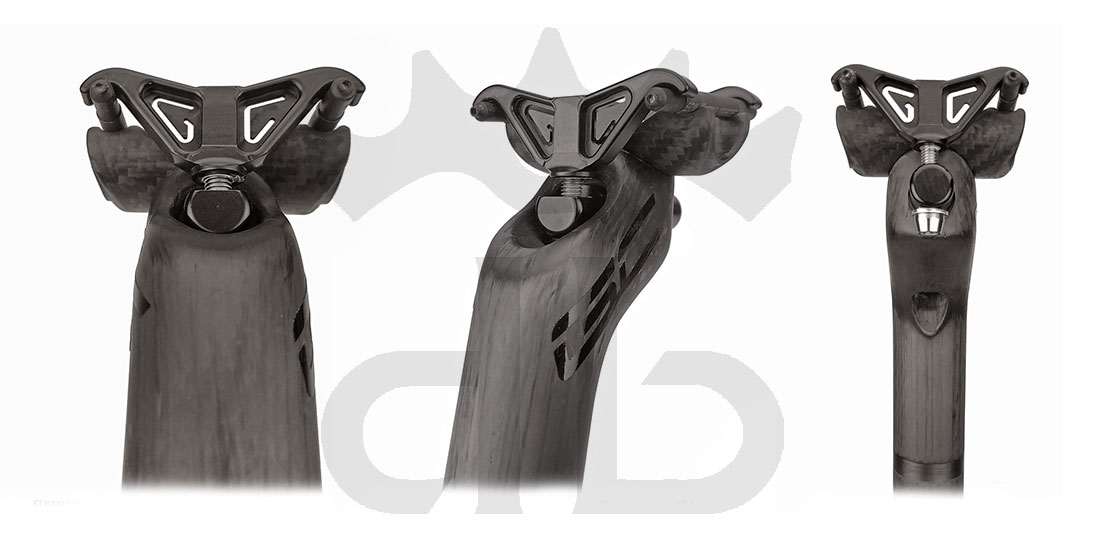

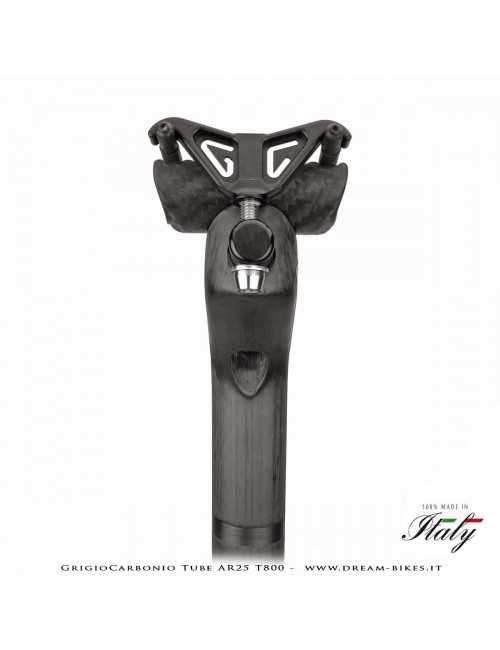

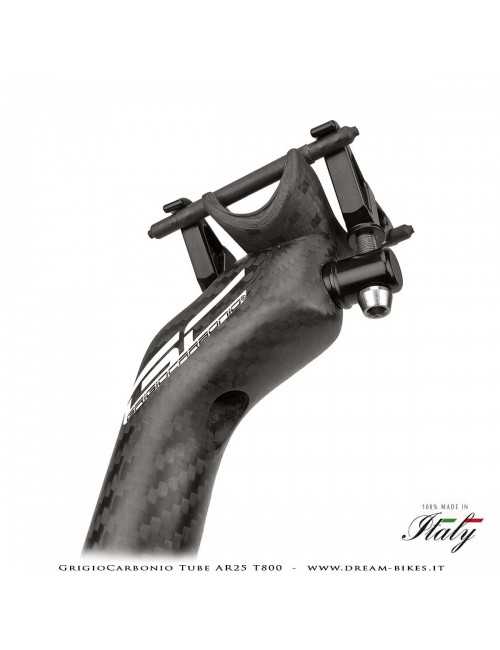

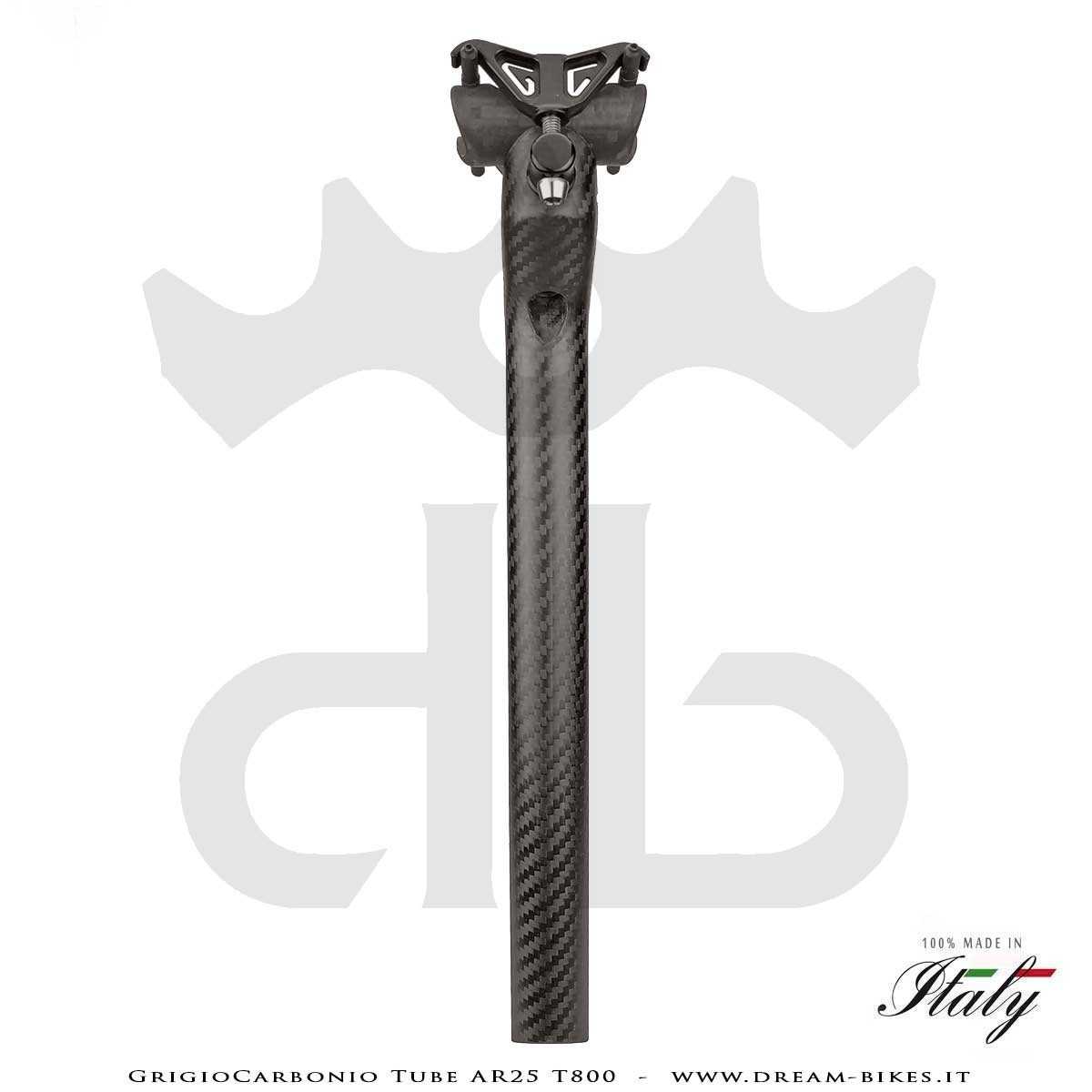

Central pivot and clamping yokes are made of 7075T6 aluminium CNC machined. The clamping yokes has got an elegant and efficient design with GC (GrigioCarbonio) milled logo. The black anodized finishing add a touch of racing look and assure a long lasting without any weight add.
Fixing bolts are high quality too and CNC machined grade 5 titanium made, with conical forged head (hex wrench insert) and rolled threads for a superior resistance and reliability. The front bolt is a M5 x 30 mm , the rear one is a M5 x 35 mm, both has got black anodized titanium finishing. Two bolts clamping system allows a simple saddle tuning with millimetric precision.

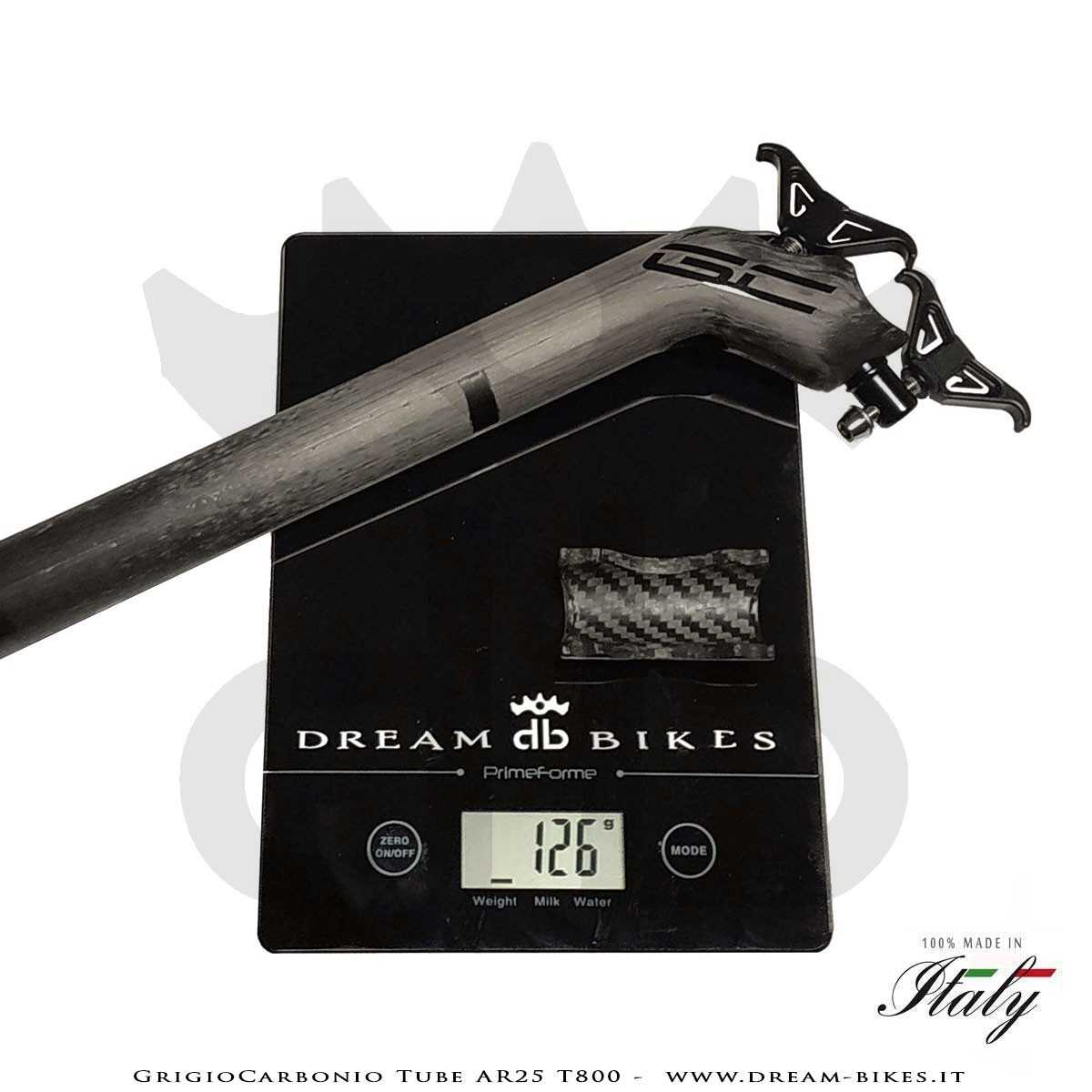

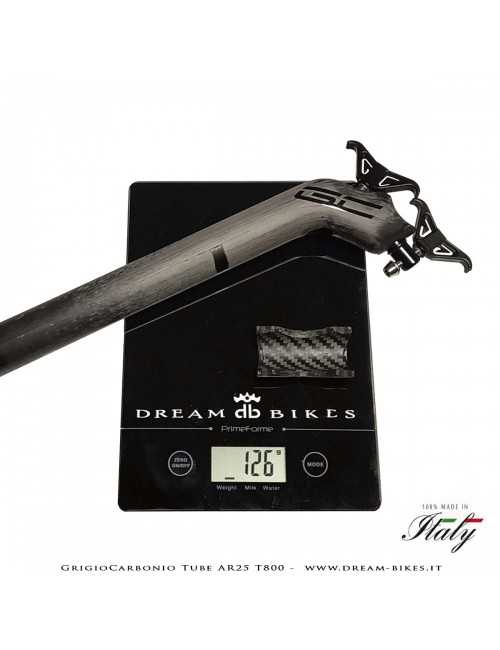

With weights starting from 105 grams (about 125 grams in 27.2 x 350 mm size), Tube AR25 T800 is one of the lightest setback seatposts on the market. The weight tolerance is +/- 5% and is caused by the pre-preg carbon fiber resin effective percentage.

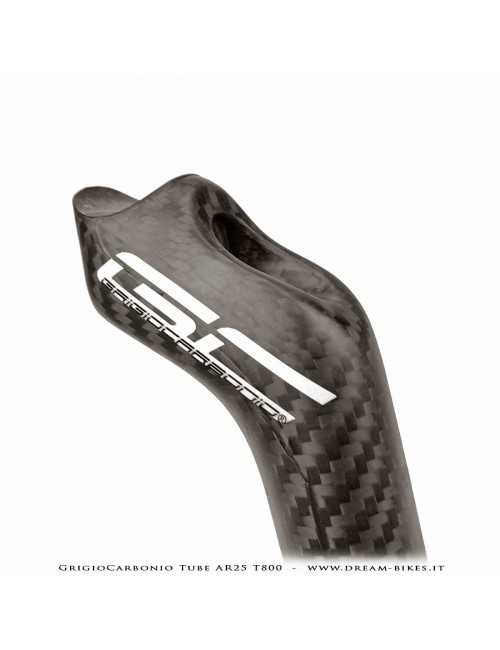

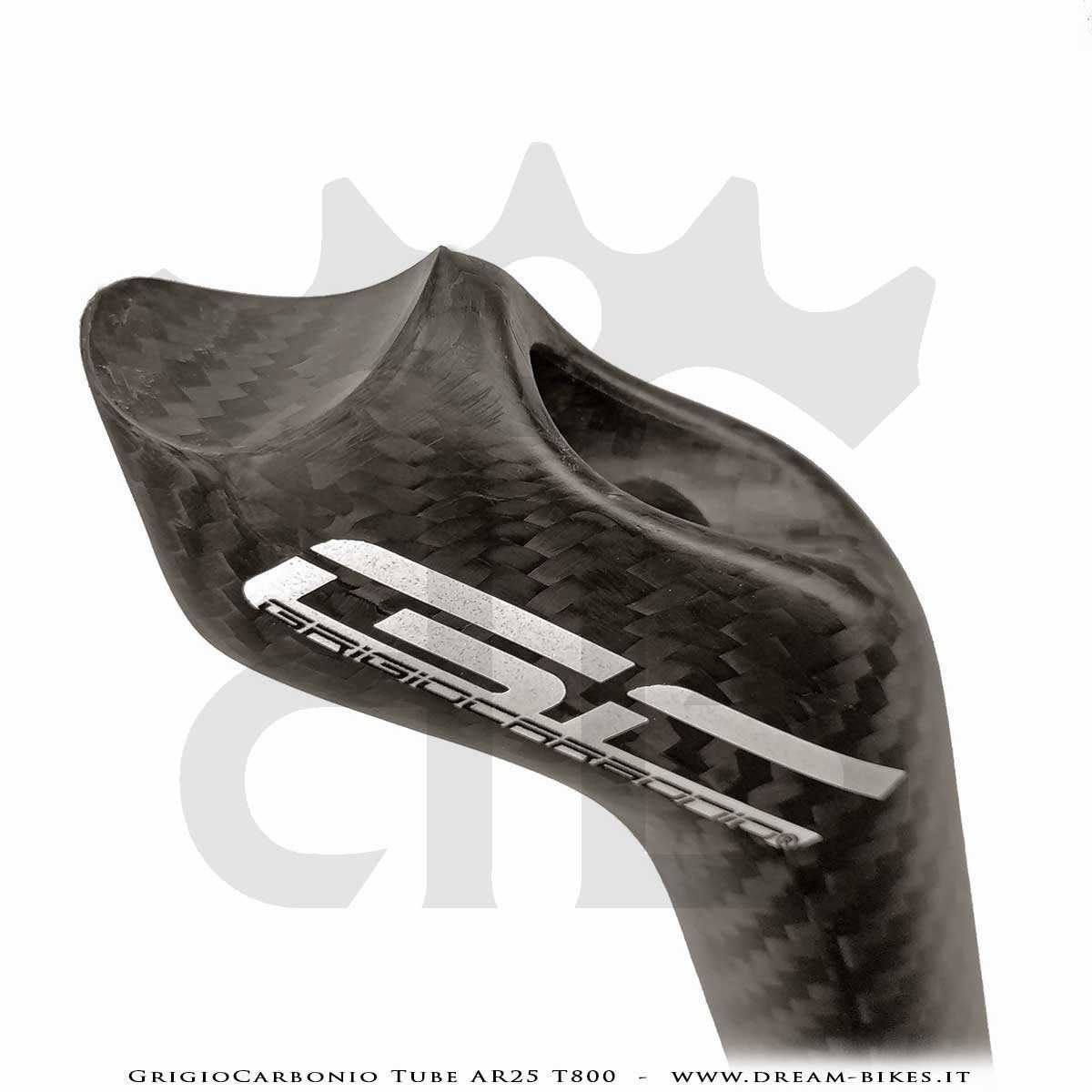

Mono-coque technology with the use of high module carbon fibers and reinforcements (where the maximum stresses are located), allows to obtain a very strong seatpost with a great stiffness but also a big comfort. Tube seatpost is extremely safe and reliable, is UNI EN 14766/2006 certified and easily exceed safety tests. Not only lab tests but also race test...there are many riders which use GrigioCarbonio components for competitions, not only for XC but also for heavy duty use riding like Super Enduro.

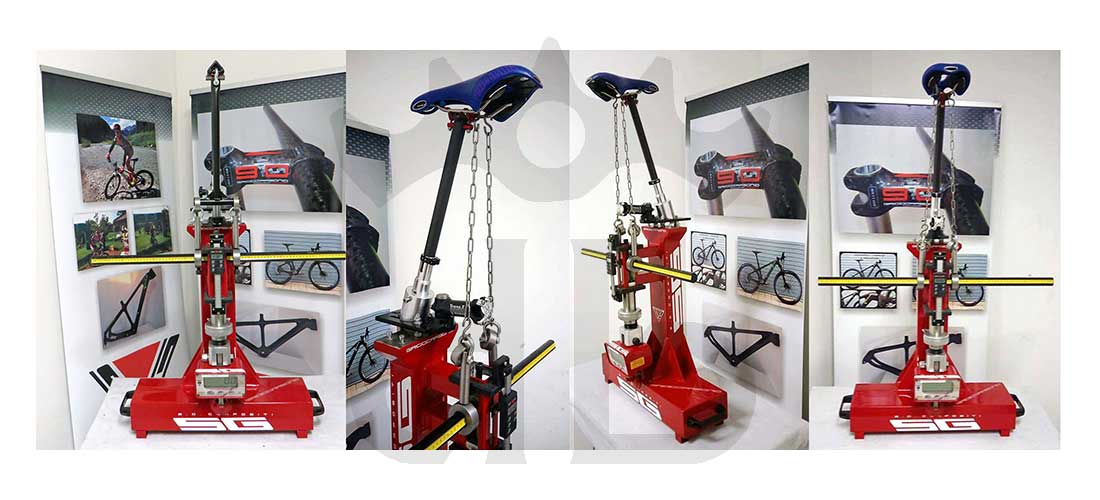

Many tests at the factory allowed to build an incredibly strong seatpost that can withstand up to 200 kg! Much more than any other competitor! Tube seatpost is compatible with road and off-road use both (Road racing, track, triathlon, gravel, cross and MTB).
GrigioCarbonio is an Italian brand that comes from the big experience of SG Compositi, more than of 20 years in high level automotive and aerospace manufacturing. This kind of experience and the habit with the most severe quality standards is a guarantee to make top quality products!
GrigioCarbonio ultralight components doesn't loose in safety, performance or reliability. Every product withstand UNI EN 14xxx safety tests and got approval in CSI labs, because safety come always first!

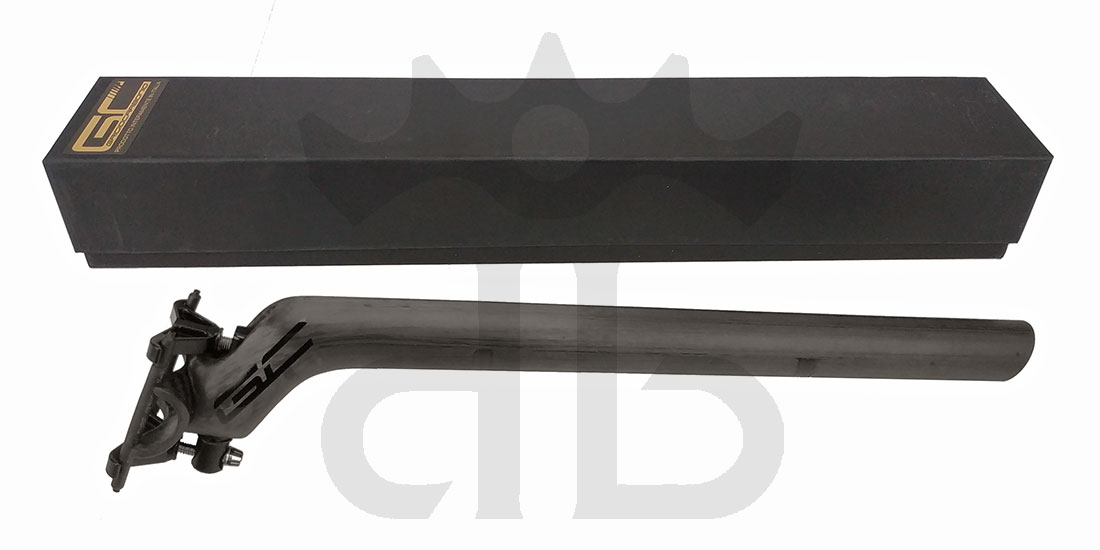

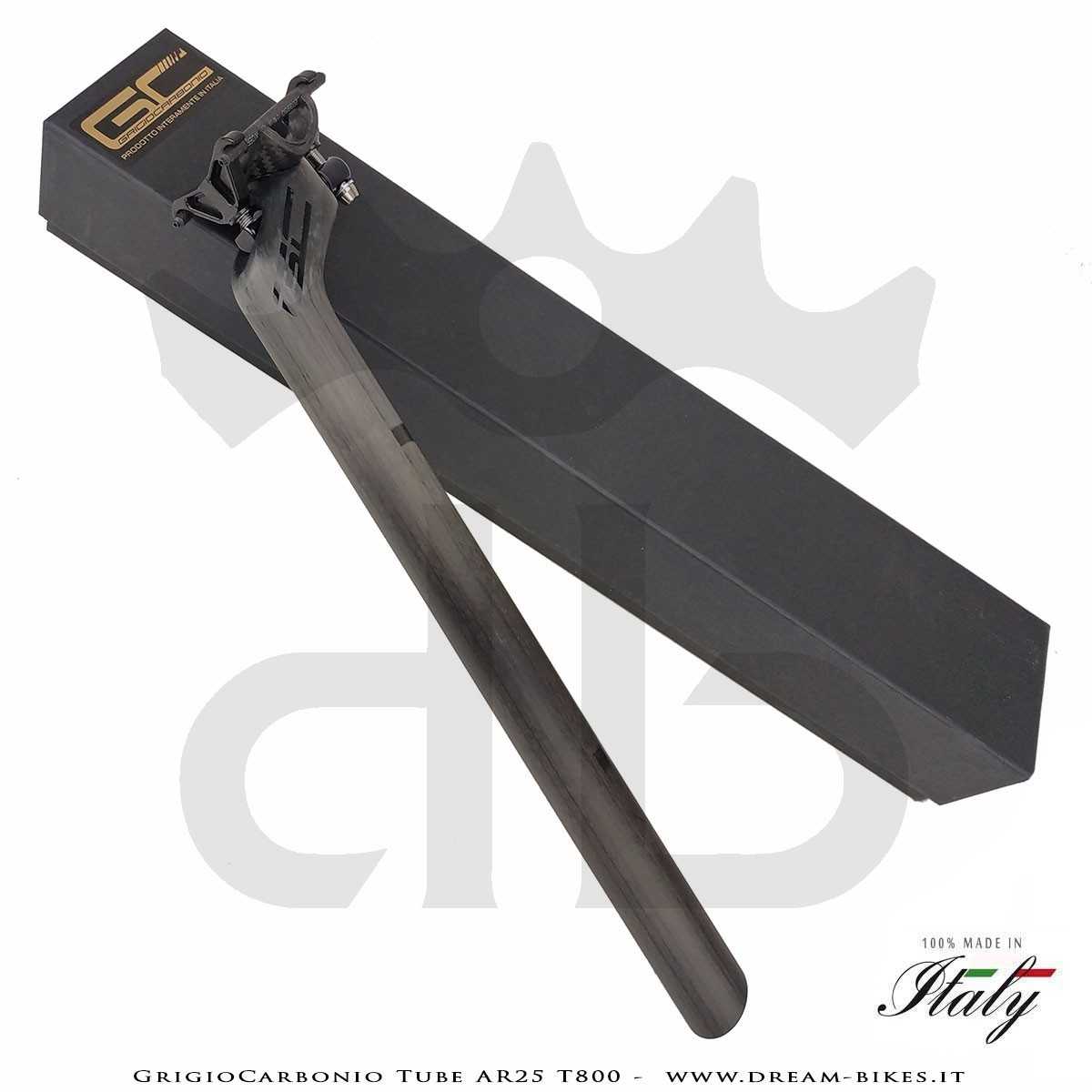

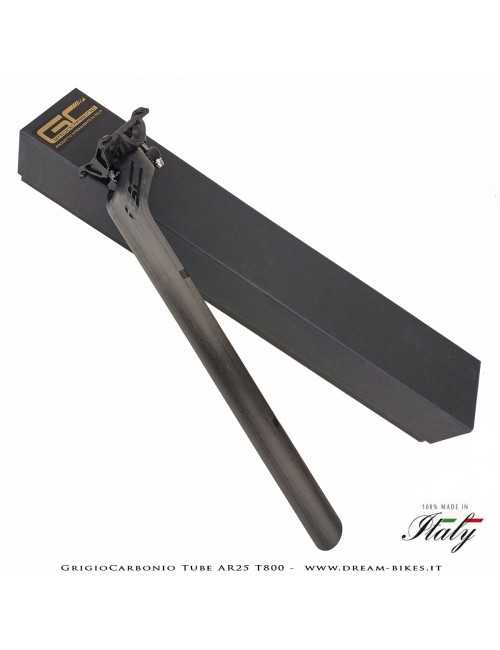

Tube AR25 seatpost come with an elegant packaging with its user manual that is also downloadable in this product page "download" area.
All over GrigioCarbonio products are proudly 100% Made in Italy!
Prodotto |
|
|
|
|
Availability |
Questo prodotto non è più disponibile
|
Disponibile
|
Disponibile
|
Questo prodotto non è più disponibile
|
Prezzo |
269,67 €
|
269,67 €
|
269,67 €
|
269,67 €
|
Descrizione |
Grigiocarbonio Tube AR25 cannotto reggisella ultraleggero in fibra di carbonio T800 ad alto modulo. Di tipo arretrato (offset -25 mm), dotato di hardware in alluminio 7075T6 CNC e viteria in titanio grado 5. Disponibile in diametro 27.2 mm e in lunghezza 250-300-350-400 mm. Pesi a partire da 105 gr. (125 gr. in misura 27.2 x 350 mm). Altissima qualità realizzativa e cura nei dettagli, grandissima resistenza ed assoluta sicurezza (certificato UNI EN 14766/2006). Trama tessuto 3K Twill o unidirezionale UD, finitura lucida o opaca scelta, hardware nero anodizzato, grafiche in vari colori. 100% Handmade in Italy! |
Darimo Carbon T2 SB 25 mm è il più leggero cannotto reggisella arretrato al mondo! Solo 115 grammi in misura 31.6 x 400 mm (offset - 25mm) E' realizzato in fibra di carbonio con hardware in lega di alluminio 7075T6 e titanio grado 5. Progettazione FEM, test di laboratorio e sui campi di gara danno vita ad un prodotto che non è solo ultraleggero ma anche sicuro e certificato ISO 4210. Prodotto in varie lunghezze (su richiesta fino a 500 mm) e in vari diametri (25.4 - 27.2 - 30.9 - 31.6), finitura in carbonio 3k twill oppure unidirezionale UD, lucida o opaca a scelta. Grafiche adesive personalizzabili nei colori, peso massimo biker 90 kg (su richiesta anche oltre). 100% Made in Spain. |
Darimo Carbon T2 SB 15 mm è il più leggero cannotto reggisella arretrato al mondo! Solo 117 grammi in lunghezza 400 mm (offset - 15mm) E' realizzato in fibra di carbonio con hardware in lega di alluminio 7075T6 e titanio grado 5. Progettazione FEM, test di laboratorio e sui campi di gara danno vita ad un prodotto che non è solo ultraleggero ma anche sicuro e certificato ISO 4210. Prodotto in varie lunghezze (su richiesta fino a 700 mm) e in vari diametri (27.2 - 30.9 - 31.6), finitura in carbonio 3k twill oppure unidirezionale UD, lucida o opaca a scelta. Grafiche adesive personalizzabili nei colori, peso massimo biker 90 kg (su richiesta anche oltre). 100% Made in Spain. |
Grigiocarbonio Tube cannotto reggisella ultraleggero in fibra di carbonio T800 ad alto modulo. Di tipo verticale (offset zero), dotato di hardware in alluminio 7075T6 CNC e viteria in titanio grado 5. Disponibile in diametro 27.2-30.9-31.6 mm e in lunghezza 250-300-350-400 mm. Pesi a partire da 101 gr. (125 gr. in misura 27.2 x 400 mm). Altissima qualità realizzativa e cura nei dettagli, grandissima resistenza ed assoluta sicurezza (certificato UNI EN 14766/2006). Trama tessuto 3K Twill o unidirezionale UD, finitura lucida o opaca scelta, hardware nero anodizzato, grafiche in vari colori. 100% Handmade in Italy! |
Peso : |
125 gr. (27.2 x 350 mm) - tolleranza +/- 5% | 115 gr. (31.6 x 400 mm) +/- 3% - finitura UD +4 gr. | 117 gr. (lunghezza 400 mm) +/- 3% - finitura UD +4 gr. | 125 gr. (27.2 x 400 mm) ; 139 gr. (30.9 x 400 mm) ; 139 gr. (31.6 x 400 mm) - tolleranza +/- 5% |
Offset : |
25 mm | - 25 mm | - 15 mm | 0 mm |
Diametro : |
27.2 mm | 27.2 / 30.9 /31.6 mm | ||
Lunghezza : |
250 / 300 / 350 /400 mm | 250-300-350-400 mm (fino a 500 mm su richiesta) | 250-300-350-400 mm (fino a 700 mm su richiesta) | 250 / 300 / 350 /400 mm |
Diametro Tubo : |
25.4 mm - 27.2 mm - 30.9 mm - 31.6 mm | 27.2 mm - 30.9 mm - 31.6 mm | ||
Materiale Tubo : |
Fibra di carbonio T800 | Fibra di Carbonio preimpregnata ad alto modulo | Fibra di Carbonio preimpregnata ad alto modulo | Fibra di carbonio T800 |
Materiale Hardware : |
Mezzaluna in Carbonio preimpregnato, Morsetti in Al 7075T6, Viteria in titanio Ti6Al4V | Culla in fibra di carbonio, morsetti in alluminio 7075T6 e viteria in titanio gr.5 | Culla in fibra di carbonio, morsetti in alluminio 7075T6 e viteria in titanio gr.5 | Mezzaluna in Carbonio preimpregnato, Morsetti in Al 7075T6, Viteria in titanio Ti6Al4V |
Finitura : |
Fibra di Carbonio 3k Twill o UD, lucida o opaca | Fibra di carbonio naturale 3k o UD, lucida o opaca | Fibra di carbonio naturale 3k o UD, lucida o opaca | Fibra di Carbonio 3k Twill o UD, lucida o opaca |
Grafiche : |
adesive, removibili, vari colori | Adesive | Adesive | adesive, removibili, vari colori |
Viteria : |
Speciale CNC Titanio grado 5 | Speciale CNC Titanio grado 5 | ||
Utilizzo : |
MTB, Strada, Cross, Gravel, Triathlon, Pista | MTB, Strada, Ciclocross | MTB, Strada, Ciclocross | MTB, Strada, Cross, Gravel, Triathlon, Pista |
Limite peso Biker : |
Nessuno | 90 kg | 90 kg | Nessuno |
Coppia massima di serraggio : |
4 Nm (viti) - 5 Nm (collarino) | 6 Nm (collarino) - 4 Nm (sella) | 6 Nm (collarino) - 4 Nm (sella) | 4 Nm (viti) - 5 Nm (collarino) |
